How to install a Ubuntu 16.04 LTS (Xenial Xerus) Minimal Server

This tutorial shows the installation of a Ubuntu 16.04 minimal server in detail with many screenshots. I will use the current release of the Ubuntu LTS (Long Term Support) series for this guide. The Ubuntu LTS versions are preferred by most administrators for server installations as you will get updates from Ubuntu for 5 years in the LTS branch.

If you like to get the latest software versions instead, then use this minimal server tutorial which installs the latest non-lts release, such releases get 9 months security updates only.

The purpose of the guide is to show the basic installation of Ubuntu Xenial Xerus that can be used as a basis for the other Ubuntu tutorials here at howtoforge like our perfect server guides.

1. Requirements

To install a Ubuntu LTS Server, you will need the following prerequisites:

2. Preliminary Note

In this tutorial, I use the hostname server1.example.com with the IP address 192.168.1.100 and the gateway 192.168.1.1 These settings might differ for you, so you have to replace them where appropriate.

3. The Base System

Insert your Ubuntu install CD into your system and boot from it. When you install the OS in a virtual machine like I do it here, then you should be able to select the downloaded ISO file as source for the CD/DVD drive in VMWare and Virtualbox without burning it on CD first.

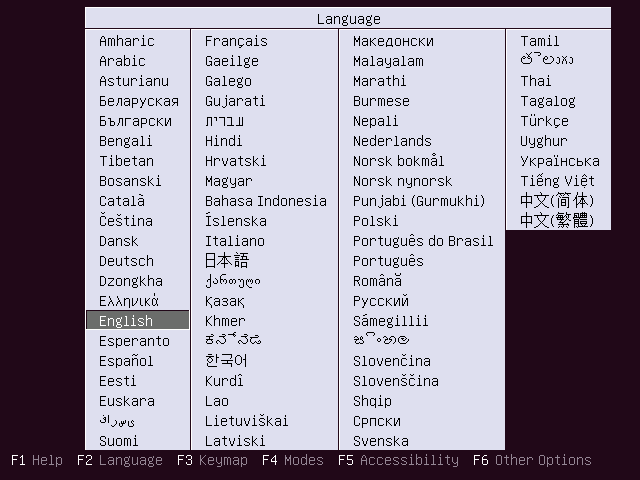

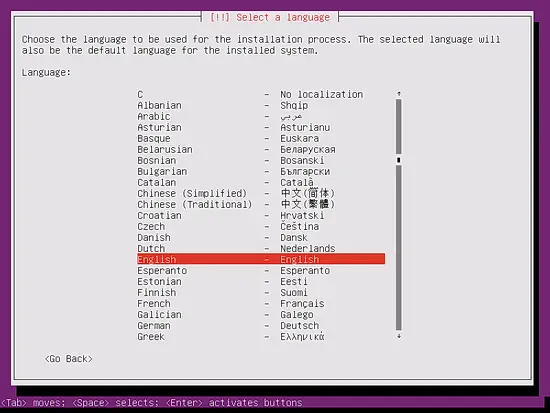

The first screen will show the language selector. Plese select your language:

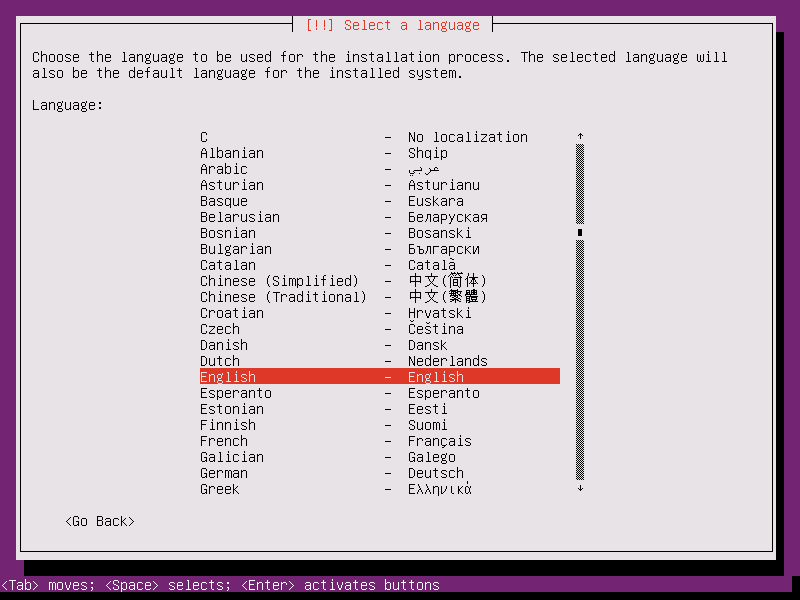

Select the installation language

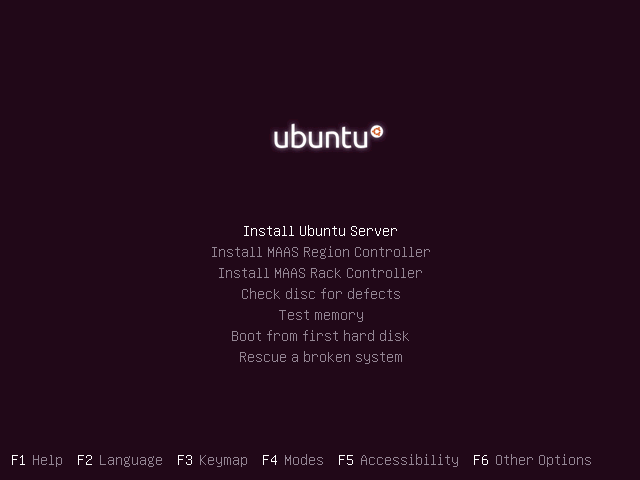

Then choose the option Install Ubuntu Server:

Choose to install Ubuntu Server

Select the language for the installed Operating System:

Select the language for the installed Operating System

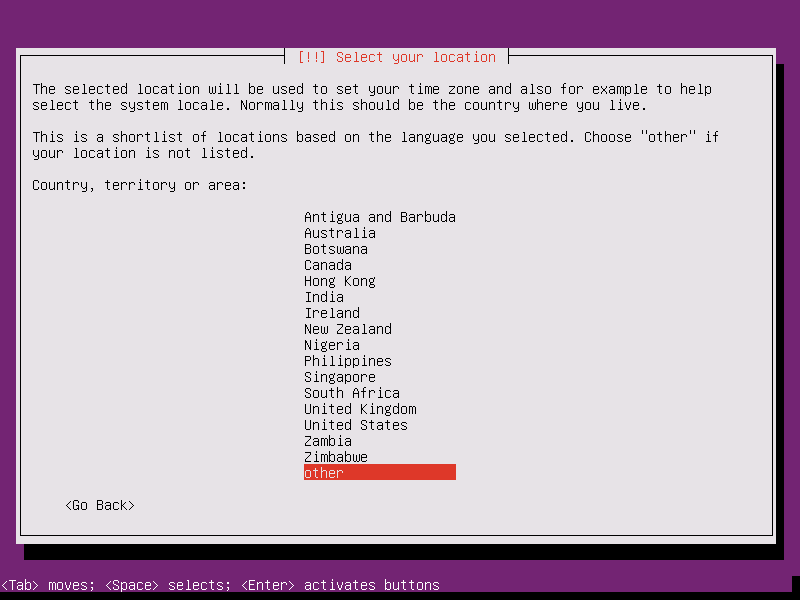

Then choose your location. The location settings are important for the keyboard layout, locale and timezone of your server:

Choose your country

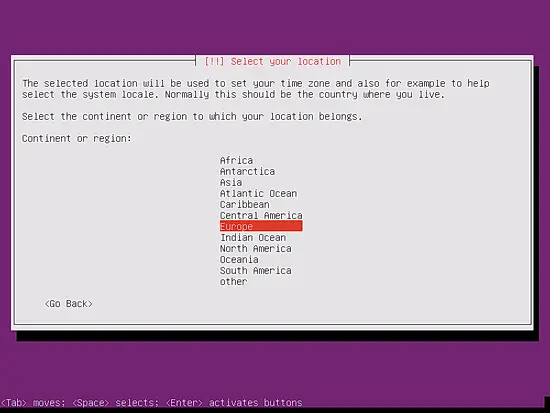

Choose the world region

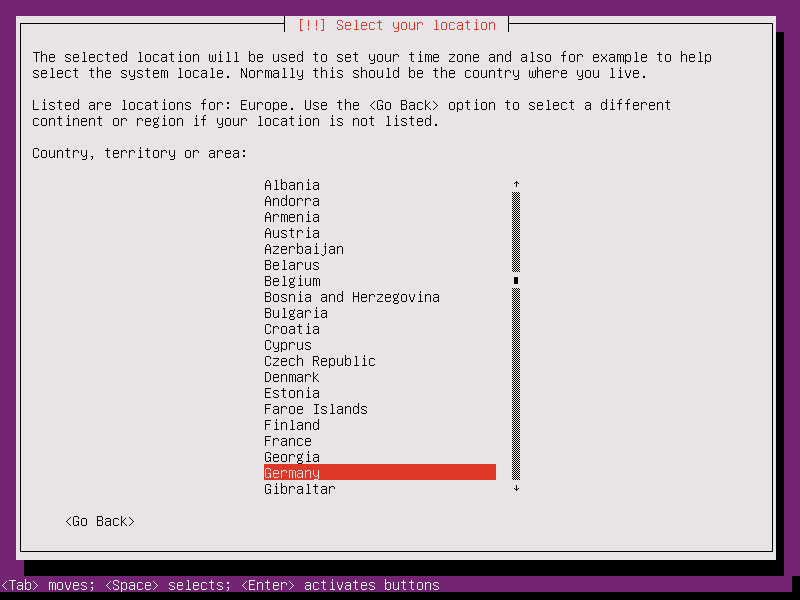

Choose the country

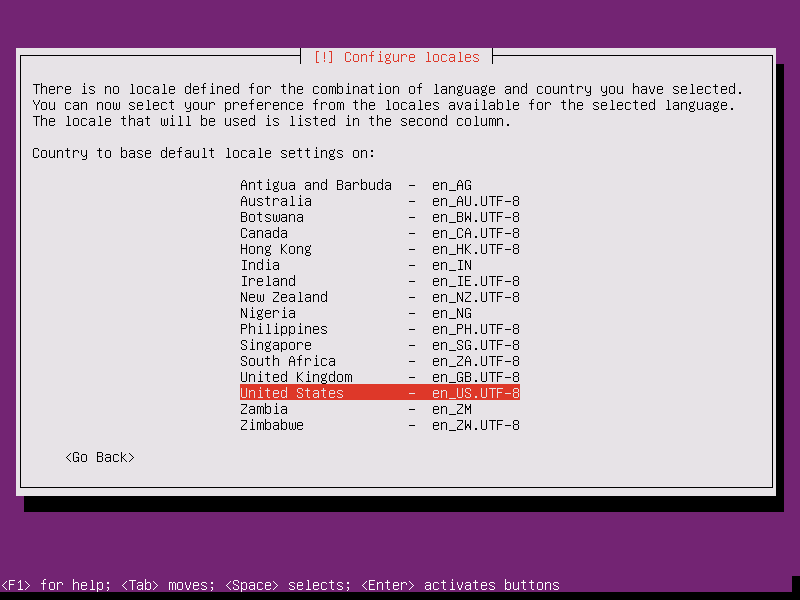

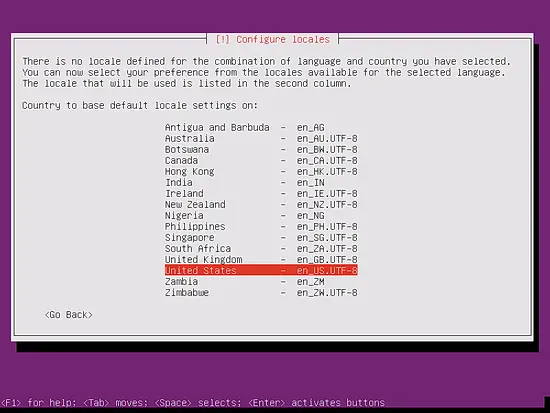

Choose locale settings

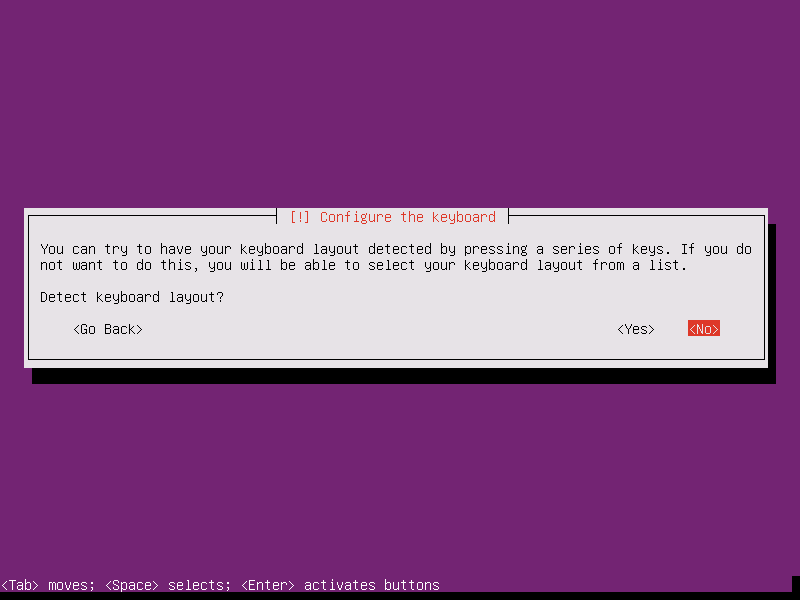

Choose a keyboard layout: You have the option to let the Ubuntu installer detect the keyboard layout automatically by choosing "yes" here. I prefer to select the right keyboard from a list and therefore, I choose No & keyboard layout as German:

Detect the Keyboard Layout

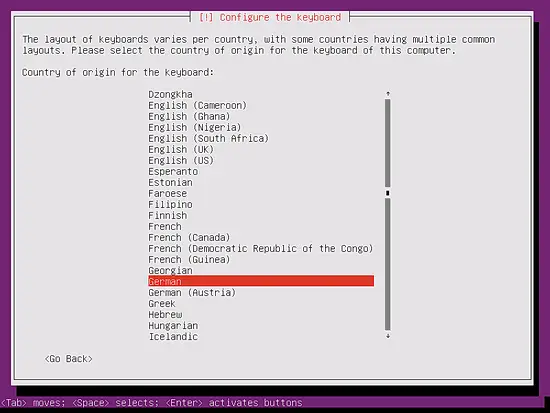

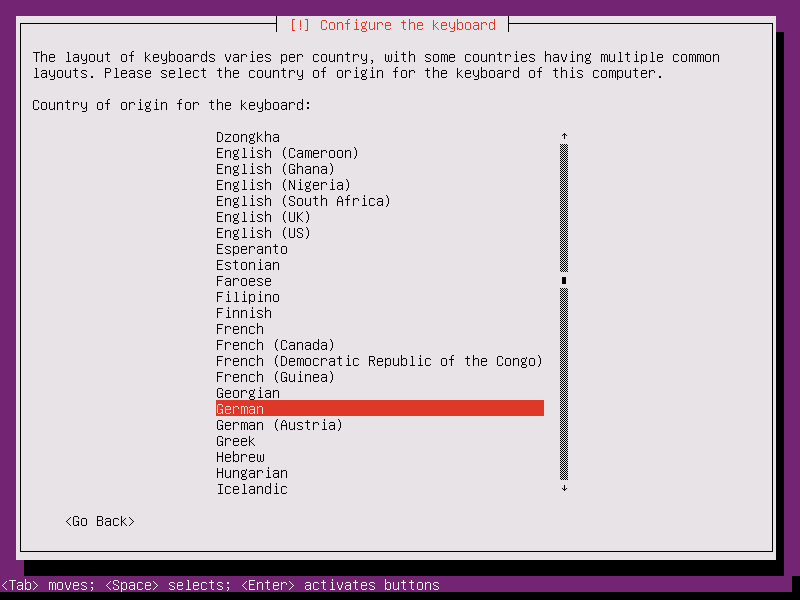

Select country origin of the keyboard

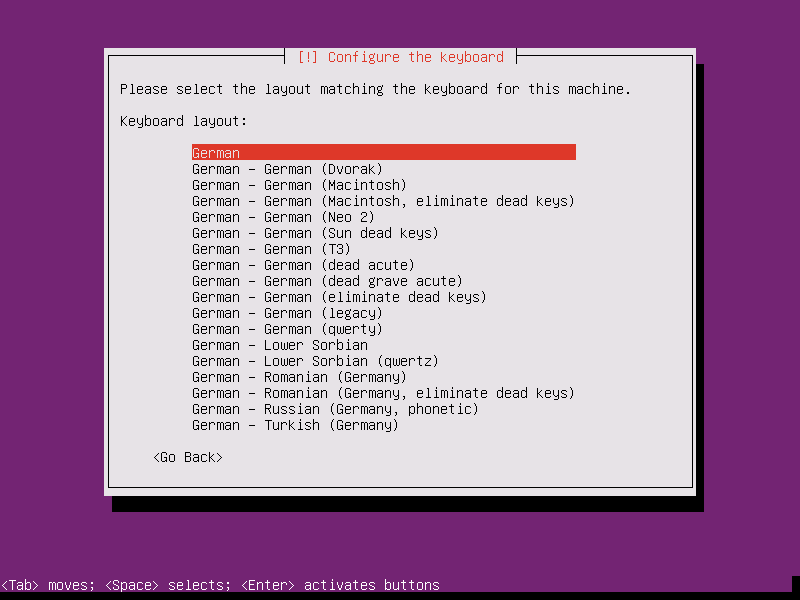

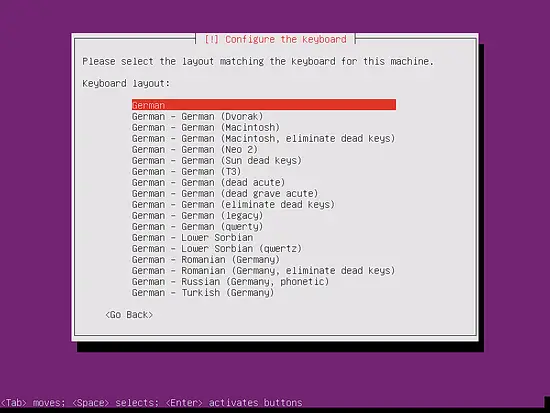

Choose the layout

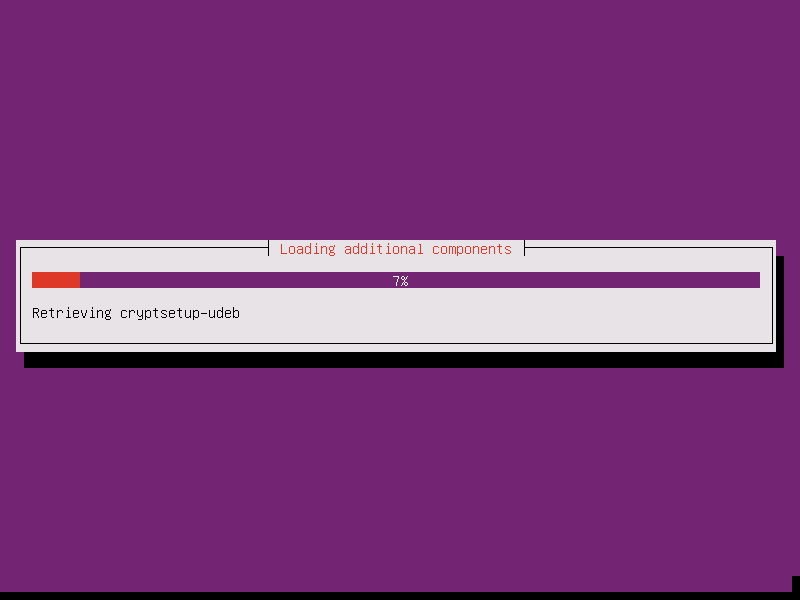

The installer checks the installation CD, your hardware, and configures the network with DHCP if there is a DHCP server in the network:

The installer downloads packages

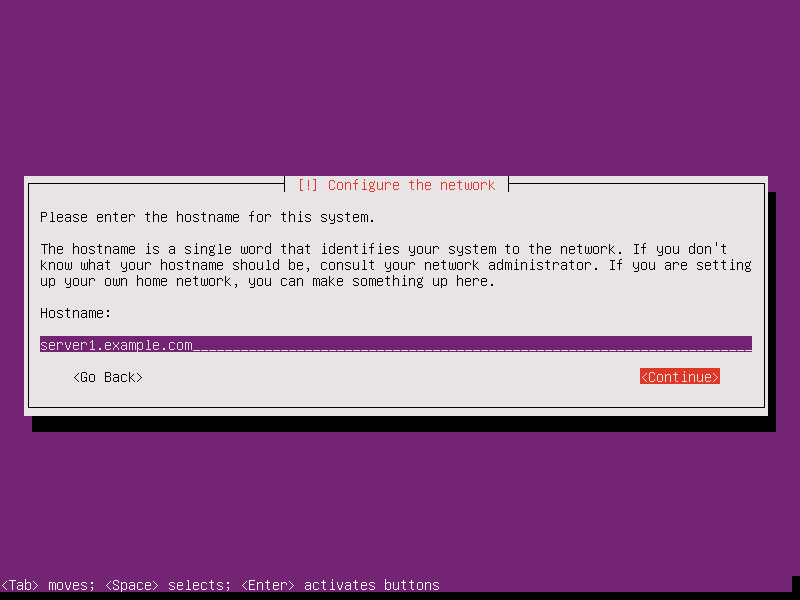

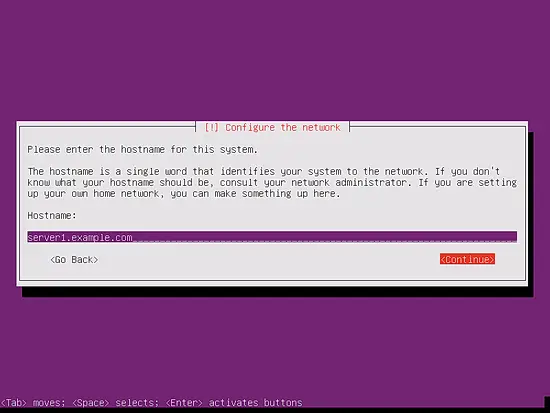

Enter the hostname of the system. In this example, my server is named server1.example.com, so I enter server1.example.com:

Ubuntu Network configuration


Ubuntu does not let you log in as root user directly. Therefore, we create a new system user here for the initial login. I will create a user with the name Administrator and user name administrator (don't use the user name admin as it is a reserved name on Ubuntu Linux):

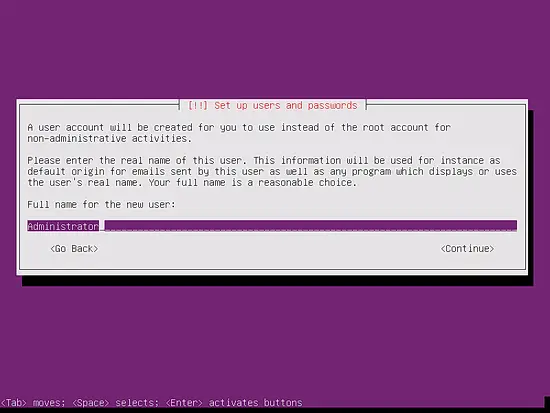

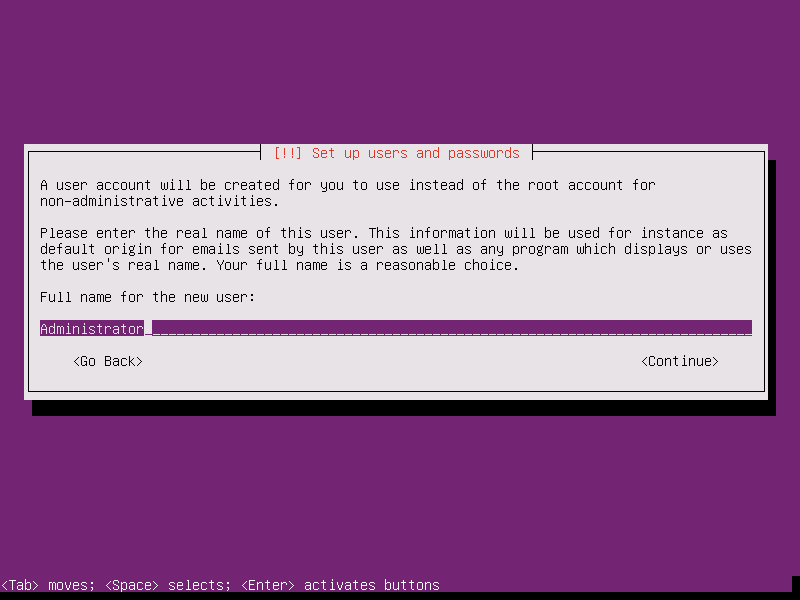

Choose a name for the User

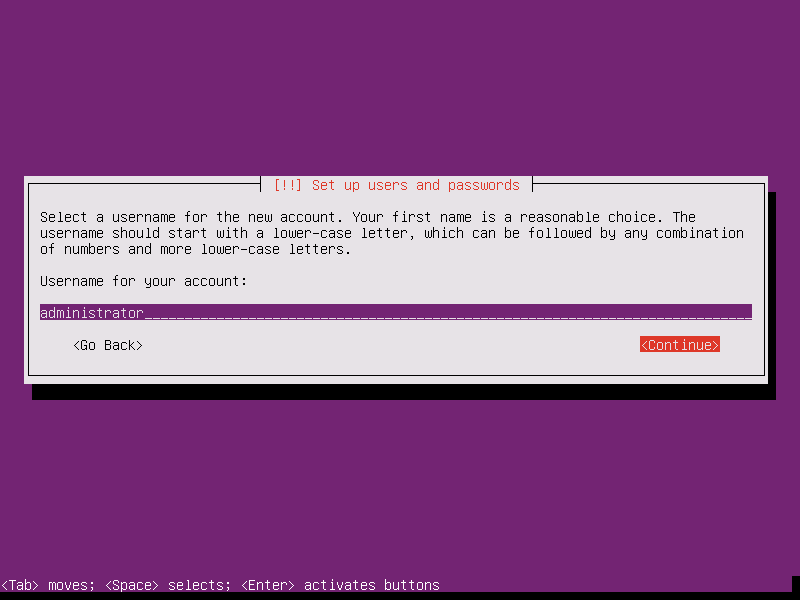

Enter the username

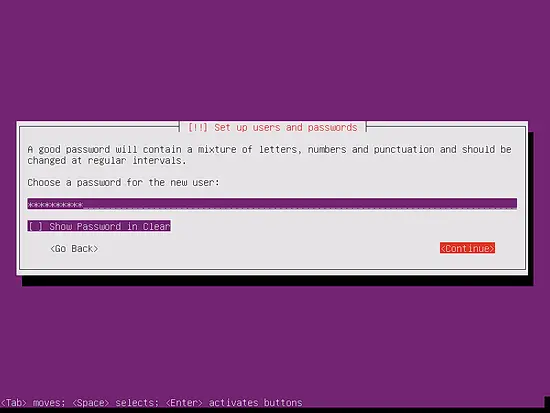

Choose a password

Set the password

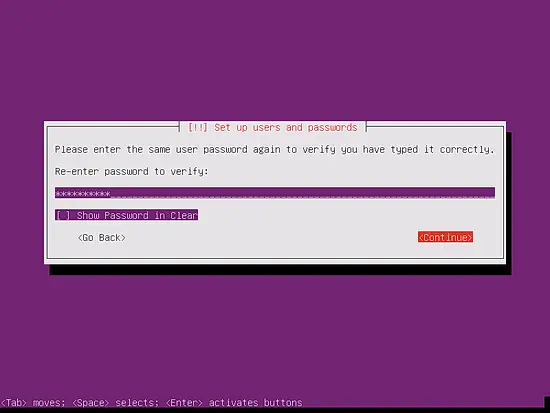

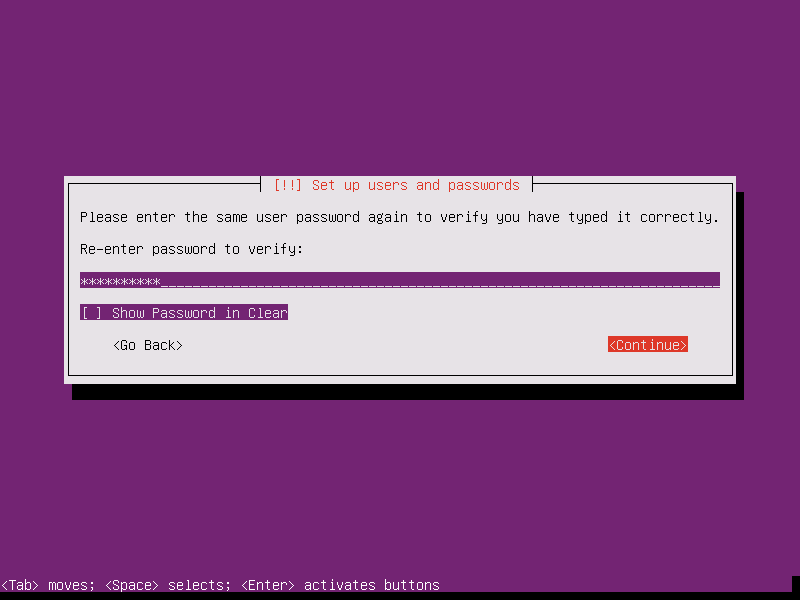

Repeat the password

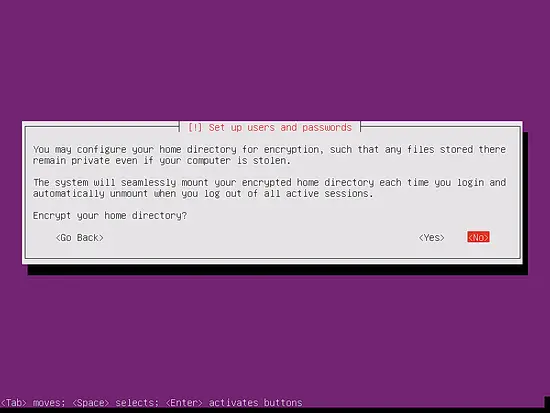

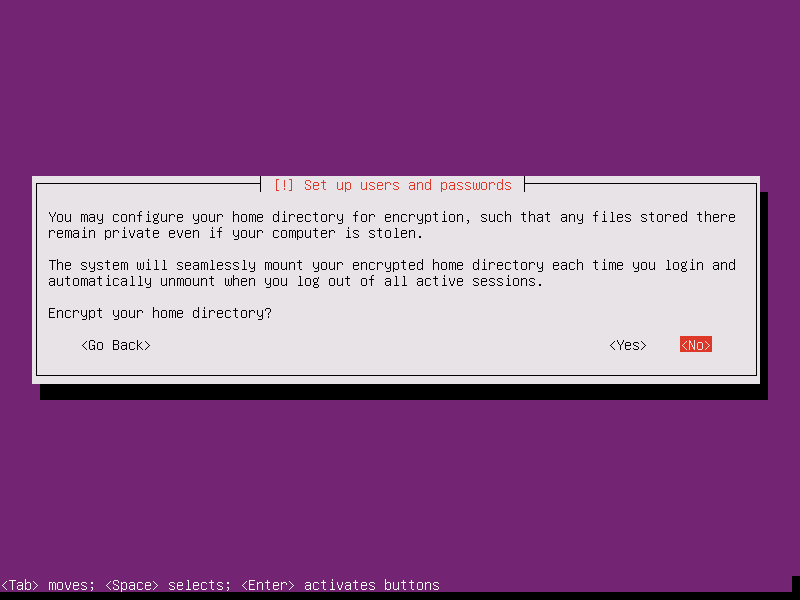

I don't need an encrypted private directory, so I choose No here:

Do not create an encrypted private directory
