The Perfect Server - Ubuntu Jaunty Jackalope (Ubuntu 9.04) [ISPConfig 2]

Version 1.0
Author: Falko Timme
Last edited 04/23/2009

This tutorial shows how to set up an Ubuntu Jaunty Jackalope (Ubuntu 9.04) server that offers all services needed by ISPs and hosters: Apache web server (SSL-capable), Postfix mail server with SMTP-AUTH and TLS, BIND DNS server, Proftpd FTP server, MySQL server, Courier POP3/IMAP, Quota, Firewall, etc. In the end you should have a system that works reliably, and if you like you can install the free webhosting control panel ISPConfig 2 (i.e., ISPConfig runs on it out of the box).

I will use the following software:

  • Web Server: Apache 2.2 with PHP 5.2.6, Python, Ruby, and WebDAV
  • Database Server: MySQL 5.0
  • Mail Server: Postfix
  • DNS Server: BIND9
  • FTP Server: proftpd
  • POP3/IMAP: I will use Maildir format and therefore install Courier-POP3/Courier-IMAP.
  • Webalizer for web site statistics

Please note that this setup does not work for ISPConfig 3! It is valid for ISPConfig 2 only!

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!



1 Requirements

To install such a system you will need the following:



2 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.100 and the gateway 192.168.0.1. These settings might differ for you, so you have to replace them where appropriate.



3 The Base System

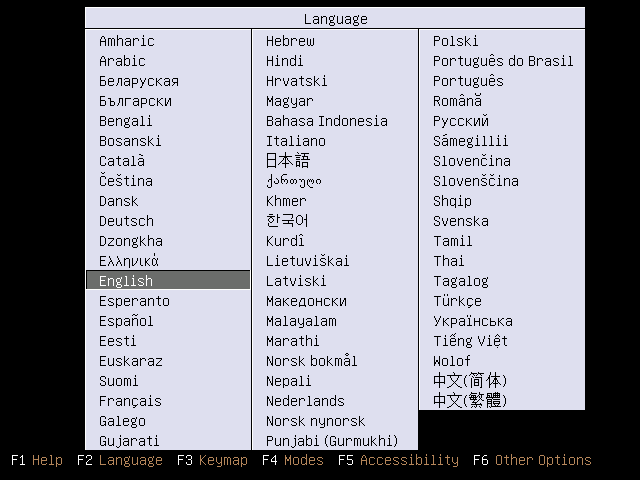

Insert your Ubuntu install CD into your system and boot from it. Select your language:

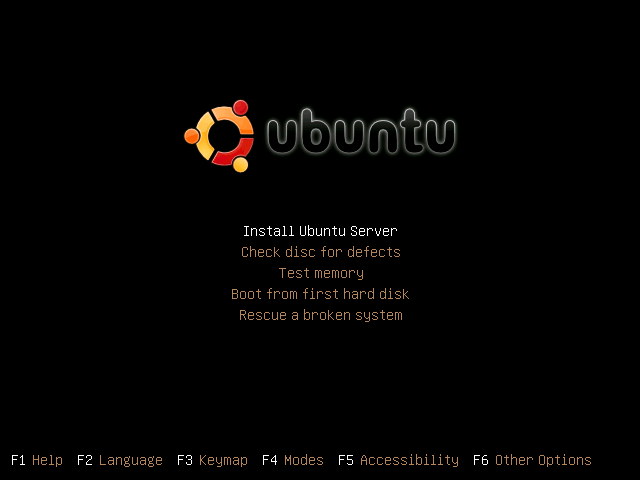

Then select Install Ubuntu Server:

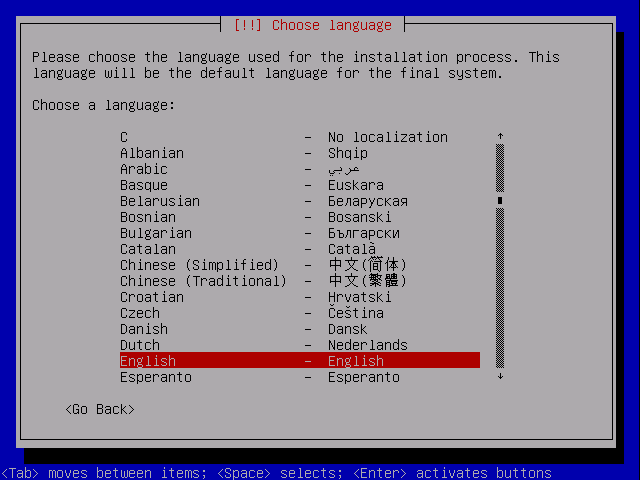

Choose your language again (?):

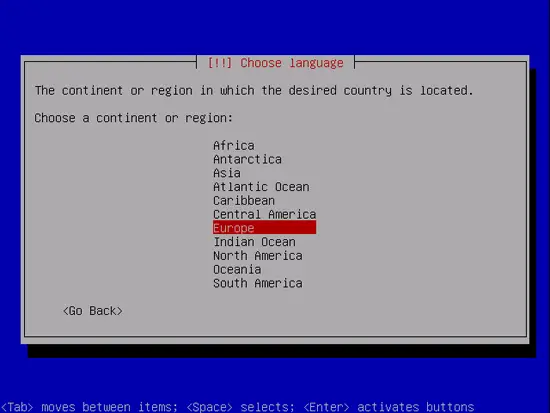

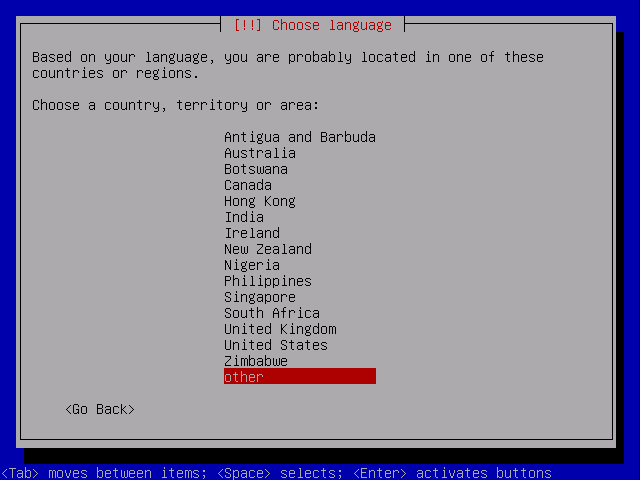

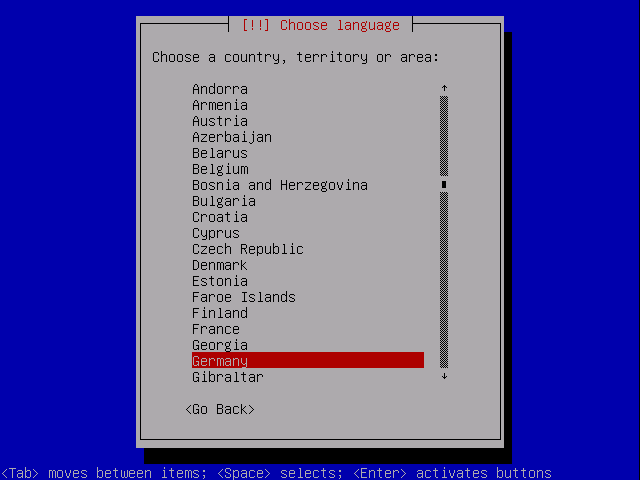

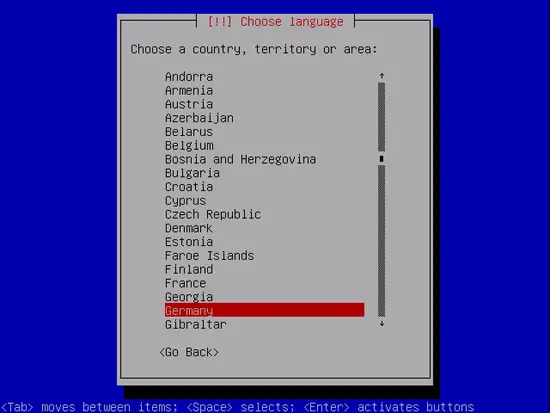

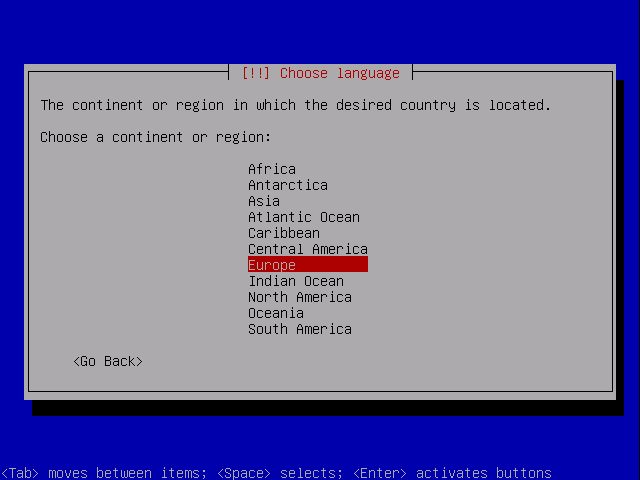

Then select your location:

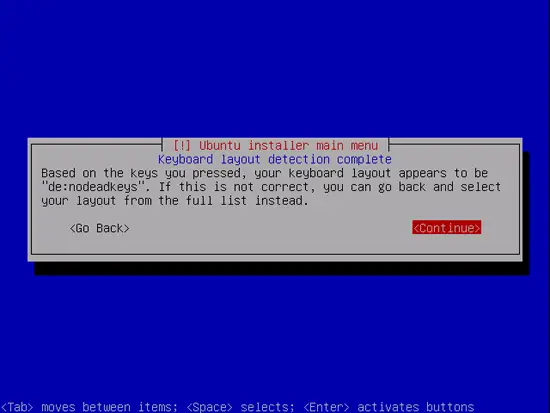

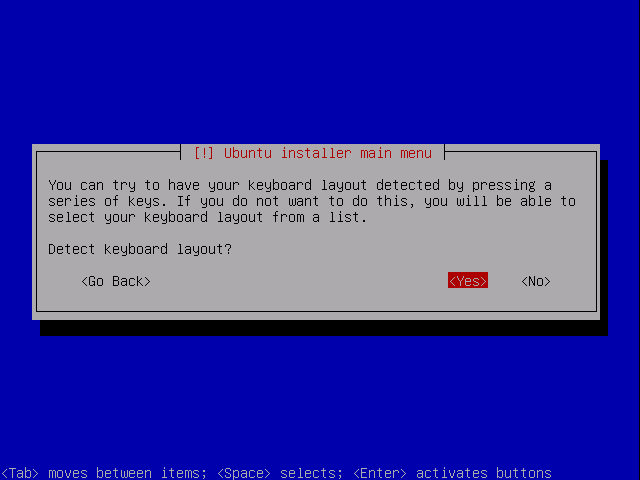

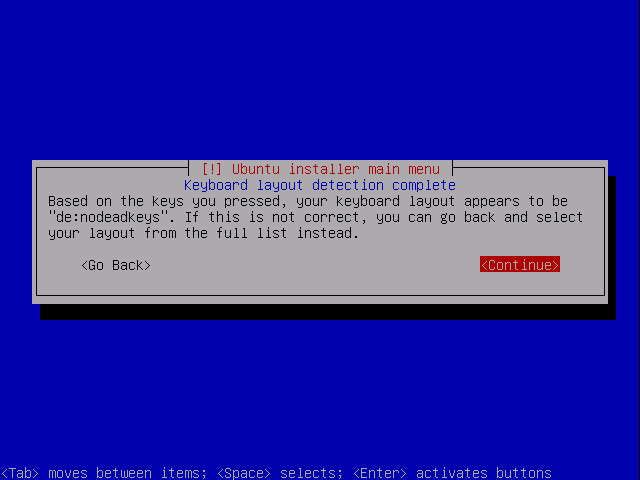

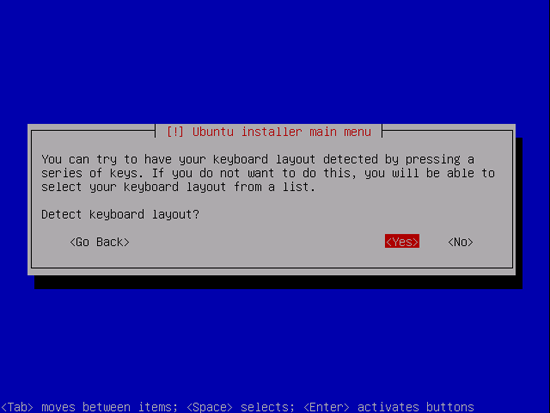

Choose a keyboard layout (you will be asked to press a few keys, and the installer will try to detect your keyboard layout based on the keys you pressed):

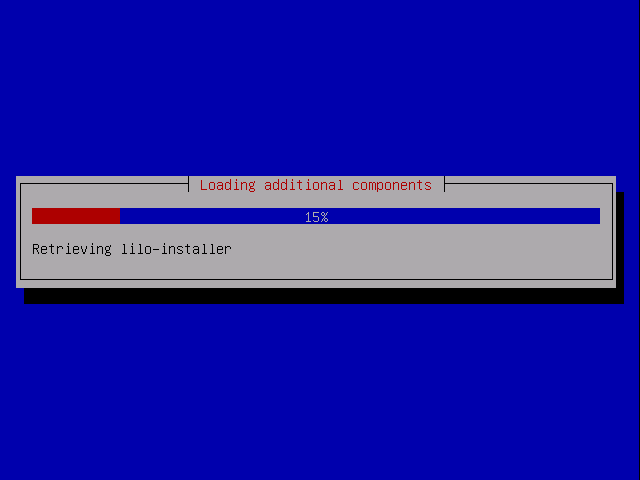

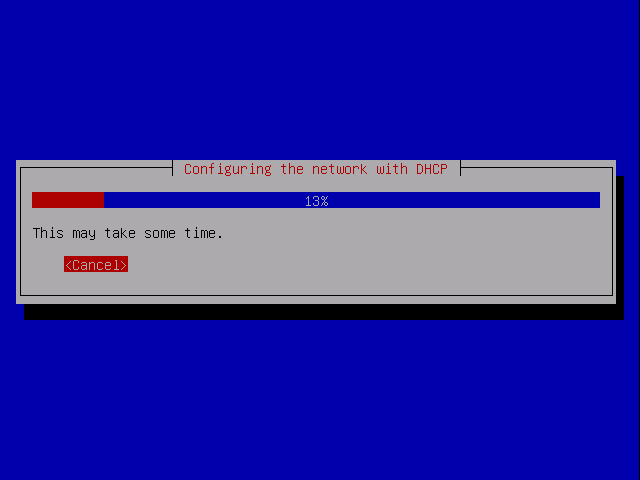

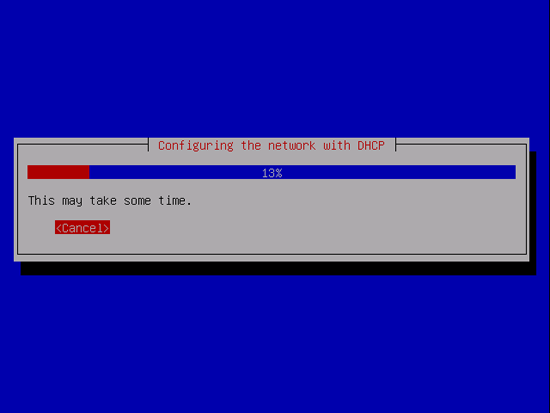

The installer checks the installation CD, your hardware, and configures the network with DHCP if there is a DHCP server in the network:
