Ubuntu 22.04 Minimal Server Installation

This tutorial shows the installation of an Ubuntu 22.04 LTS base server in detail with many screenshots. The purpose of the guide is to show the installation of Ubuntu 22.04 LTS that can be used as the basis for our other Ubuntu tutorials here at howtoforge like our perfect server guides. This tutorial uses the LTS branch which gets updates for 5 years from Ubuntu and is recommended for use on servers.

1. Requirements

To install an Ubuntu Server, you will need the following prerequisites:

2. Preliminary Note

In this tutorial, I use the hostname server1.example.com with the IP address 192.168.0.100 and the gateway 192.168.0.1 These settings might differ for you, so you have to replace them where appropriate.

3. Installing the Ubuntu 22.04 Base System

Insert the Ubuntu install CD / DVD / USB stick into your system and boot from it. When you install the OS in a virtual machine like I will do it here, then you should be able to select the downloaded ISO file as a source for the CD/DVD drive in VMWare and Virtualbox without burning it on CD first. Start the server or virtual machine, it will boot the system and start the installer.

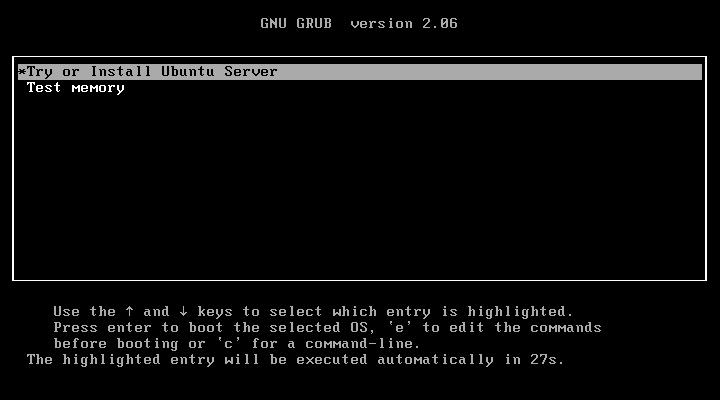

Start Ubuntu Installation

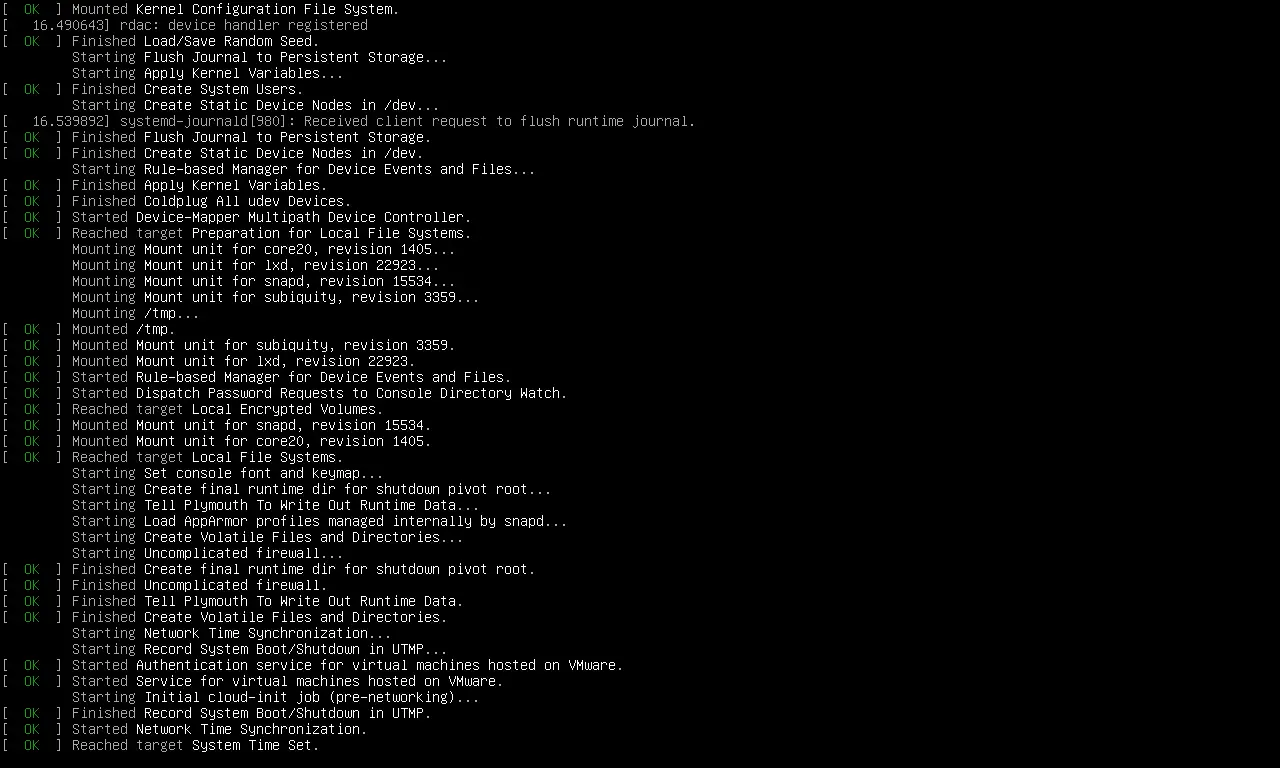

Ubuntu Live server is booting up

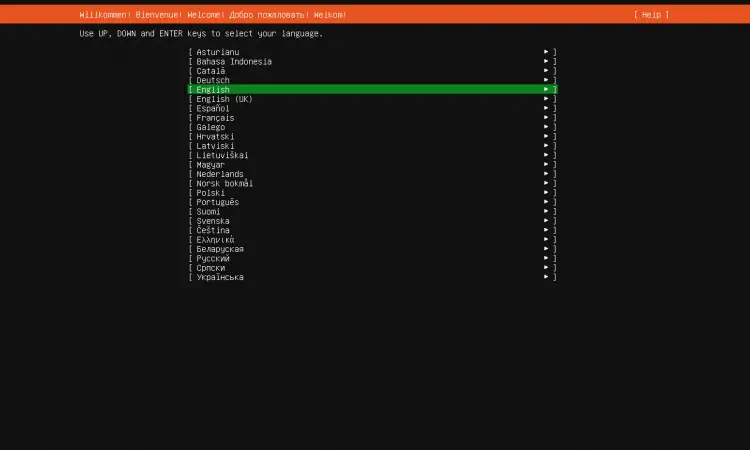

The first screen of the Ubuntu installer will show the language selector. Please select your language for the installation process:

Choose language

On the next screen, you can choose the keyboard layout. The English keyboard will be fine for many users. In this case, choose "Done" at the end of the screen and press the "Return" key, to go to the next step. In my case, I'm using a German keyboard layout, this means I'll have to navigate to the "Layout" option by pressing the "Tab" key on my keyboard until the Layout option is highlighted. Then press the "Return" key to open the Layout selector.

Keyboard layout

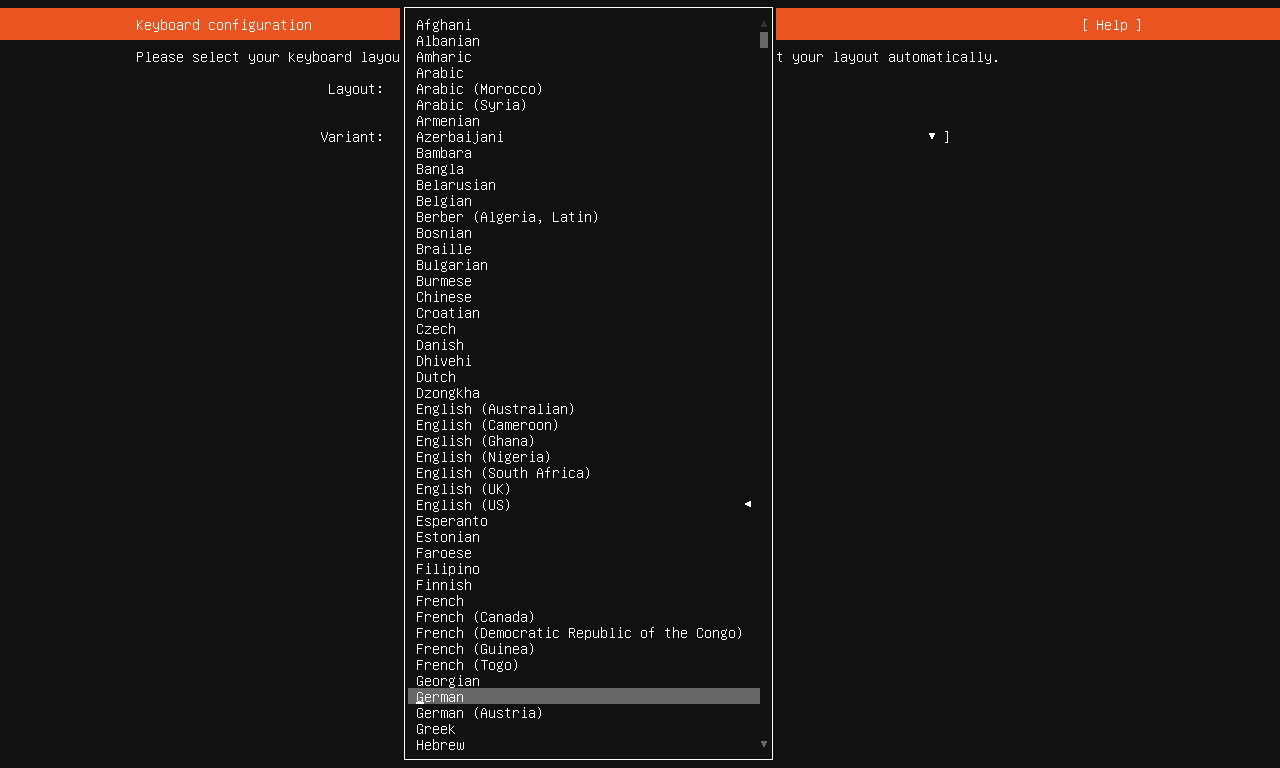

Choose the keyboard layout that matches the keyboard that is attached to the server.

Choose alternative keyboard layout

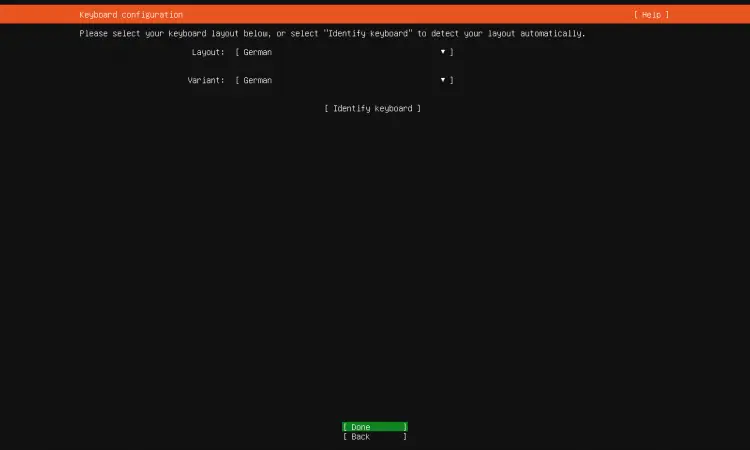

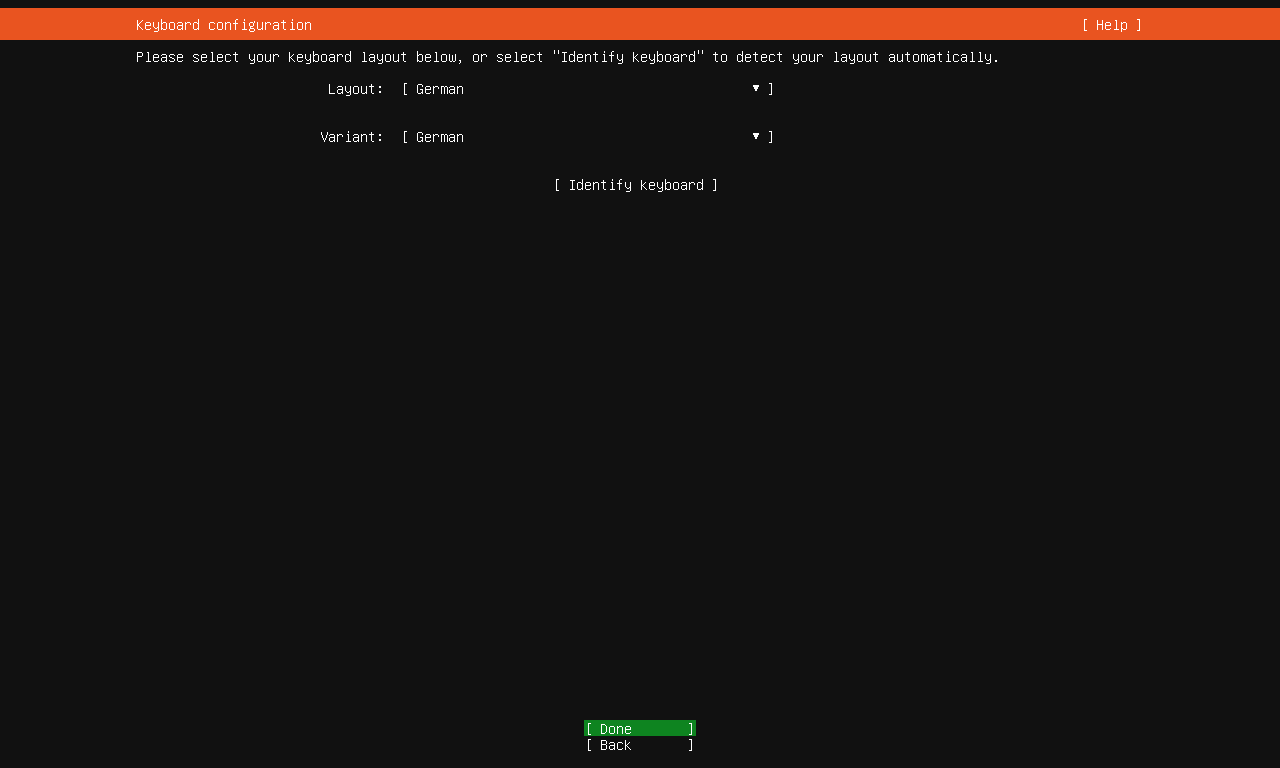

The right keyboard layout for my installation is selected now. Choose "Done" at the end of the screen and press "Return", to go to the next step.

Alternative keyboard layout selected

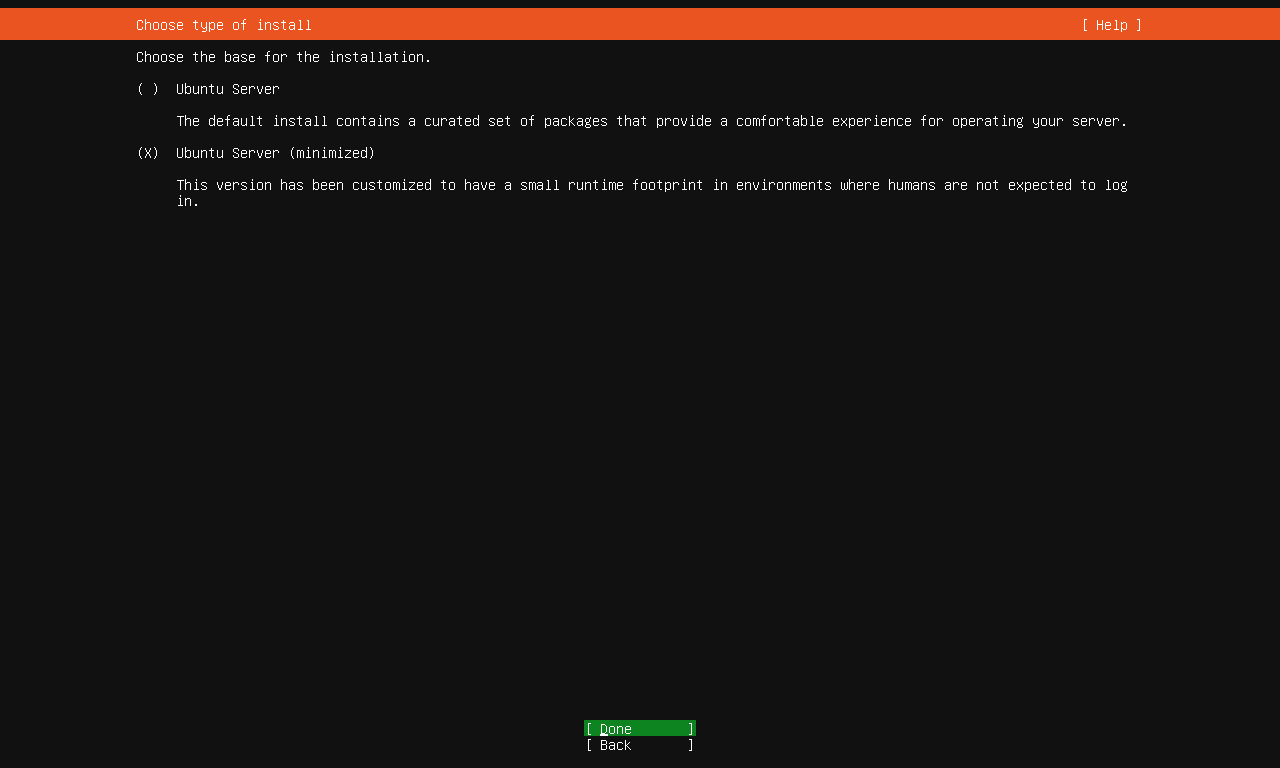

In the next step, the installer allows you to choose between a standard Ubuntu server setup or a minimal setup. I will choose a minimal setup here to and install only software that I really need at a later stage. This is especially useful when running Ubuntu on a small virtual server.

Ubuntu Server or Ubuntu Server Minimized

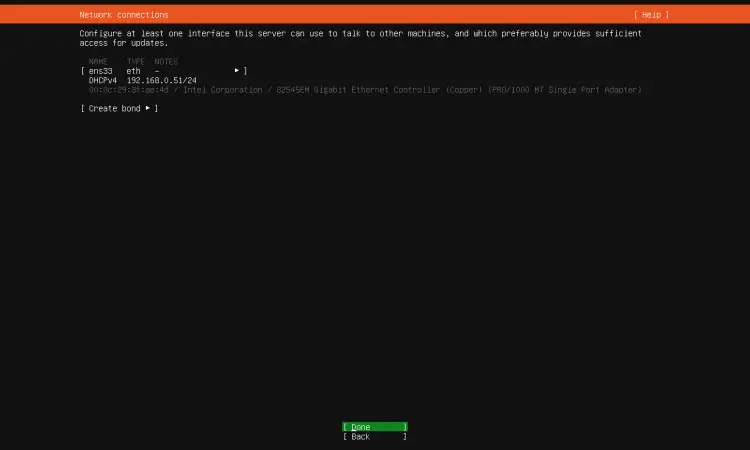

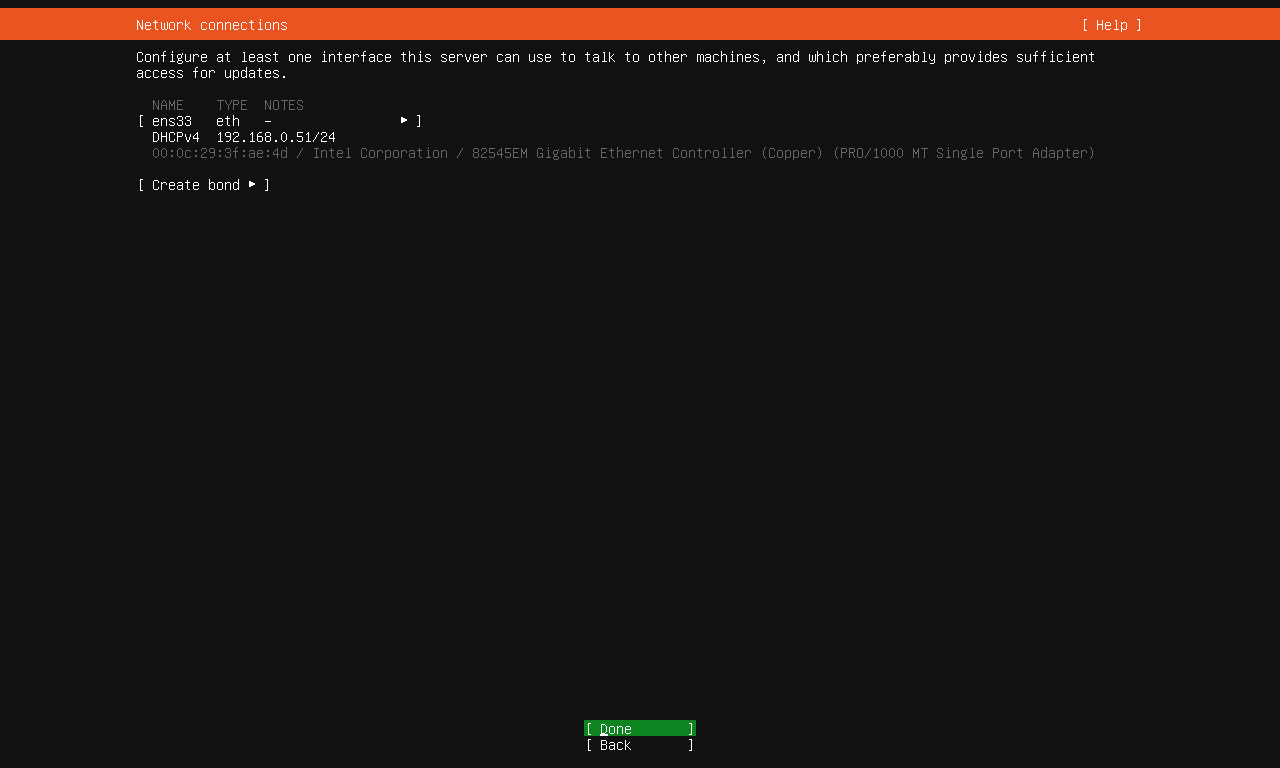

The Ubuntu installer shows now which network card it has detected on the server. The network device name which got assigned automatically is ens33. The IPv4 address has been assigned automatically via DHCP. I will change it later to a fixed IP address when the base system has been installed. If your network has no DHCP server, then you can enter a fixed IP address now by choosing the network card (press Tab until it is highlighted and then press Return).

Ubuntu network configuration

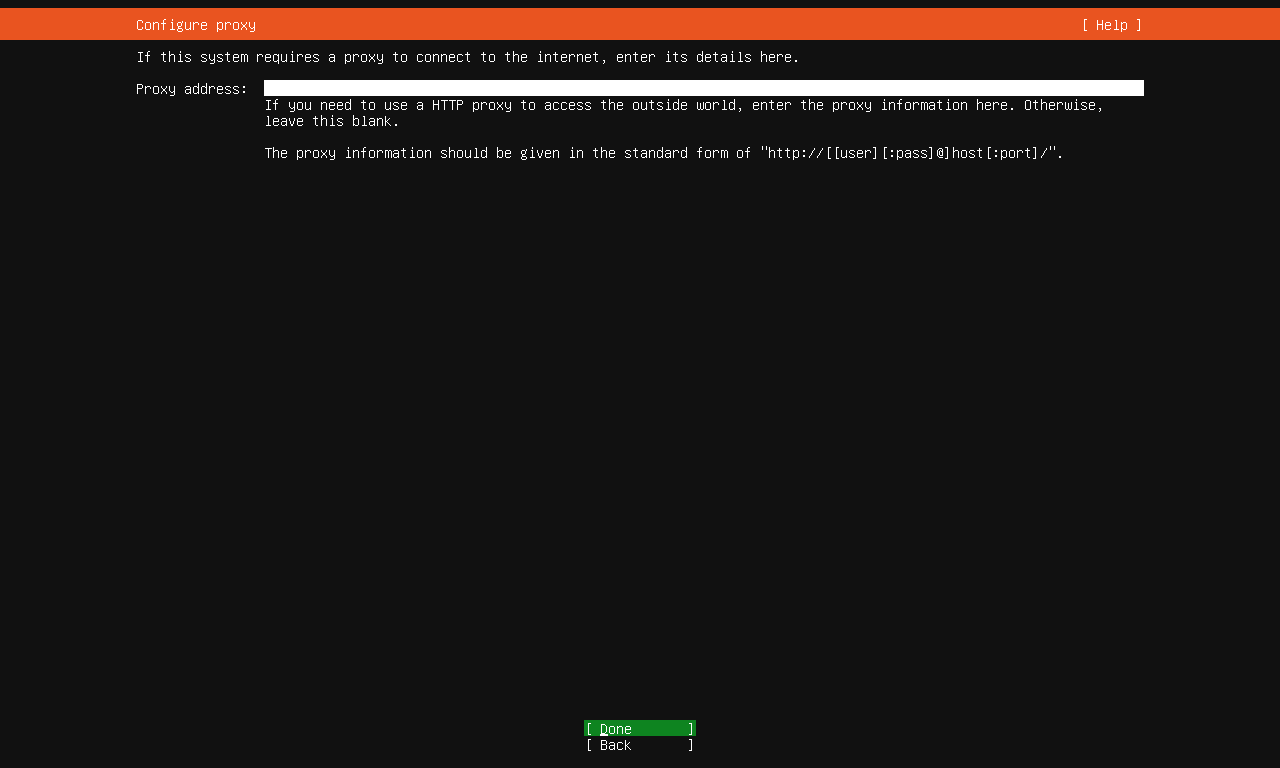

Now you can set a proxy server address in case a proxy is required to access the internet. In my case, there is no proxy required, so I choose "Done" to go to the next installation step.

Proxy Configuration

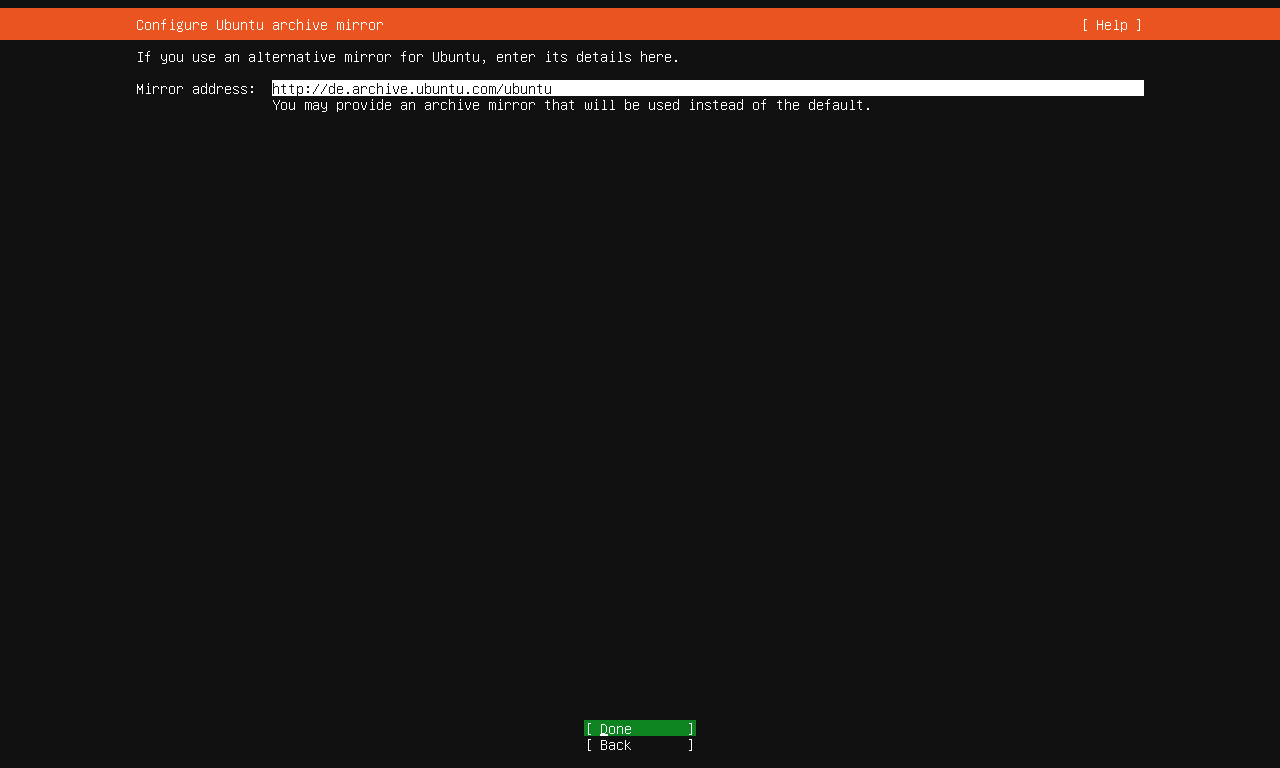

Here you can choose from which Ubuntu mirror server updates and installation files shall be downloaded. I'll keep the default and go to the next install screen.

Mirror server address

The Ubuntu server installer shows now the harddisks that it has detected in the server. The installation disk is a 40GB HD on /dev/sda here. I'll choose to use the entire disk for my Ubuntu installation. If you need a custom layout consisting of multiple partitions, select "Custom Layout" instead and create partitions as needed.

Hard disk layout

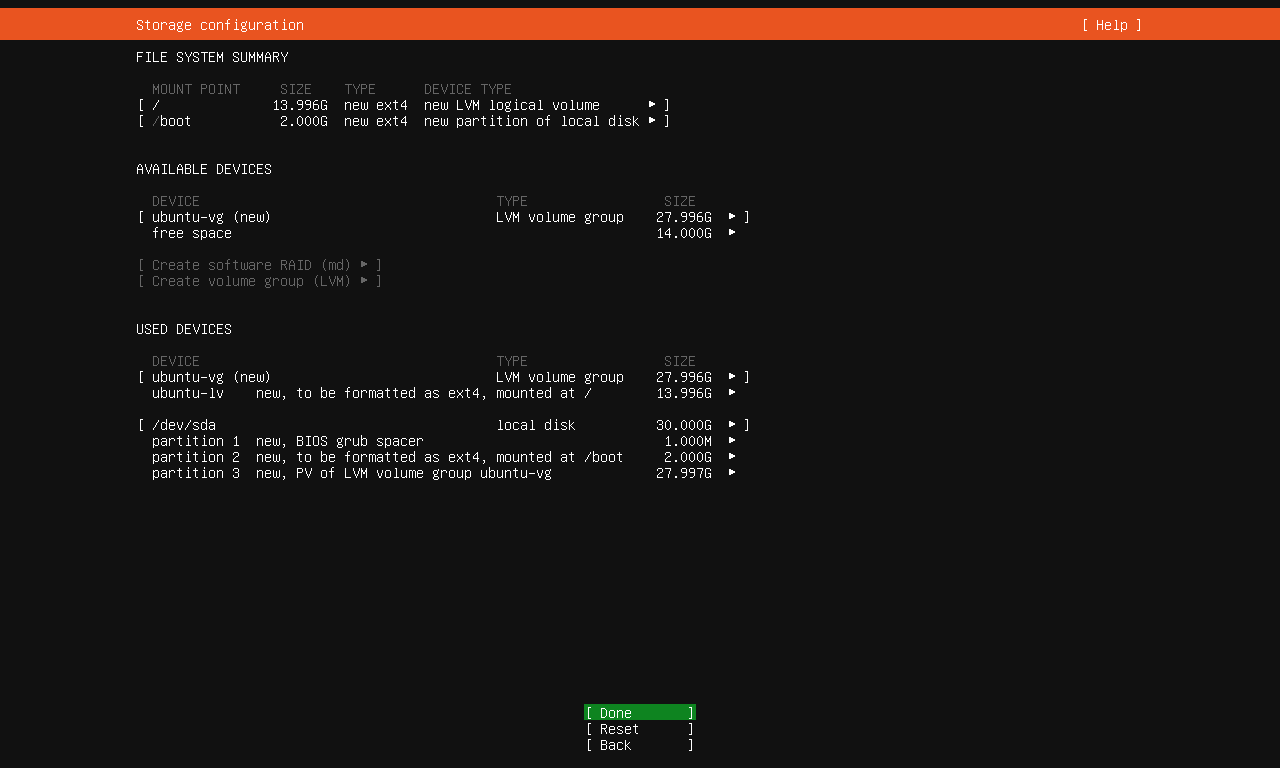

The installer shows the default storage configuration below. It consists of a 1MB bios_grub partition plus one large / partition that will contain the operating system installation. Choose "Done" to proceed to the next screen.

Partition table

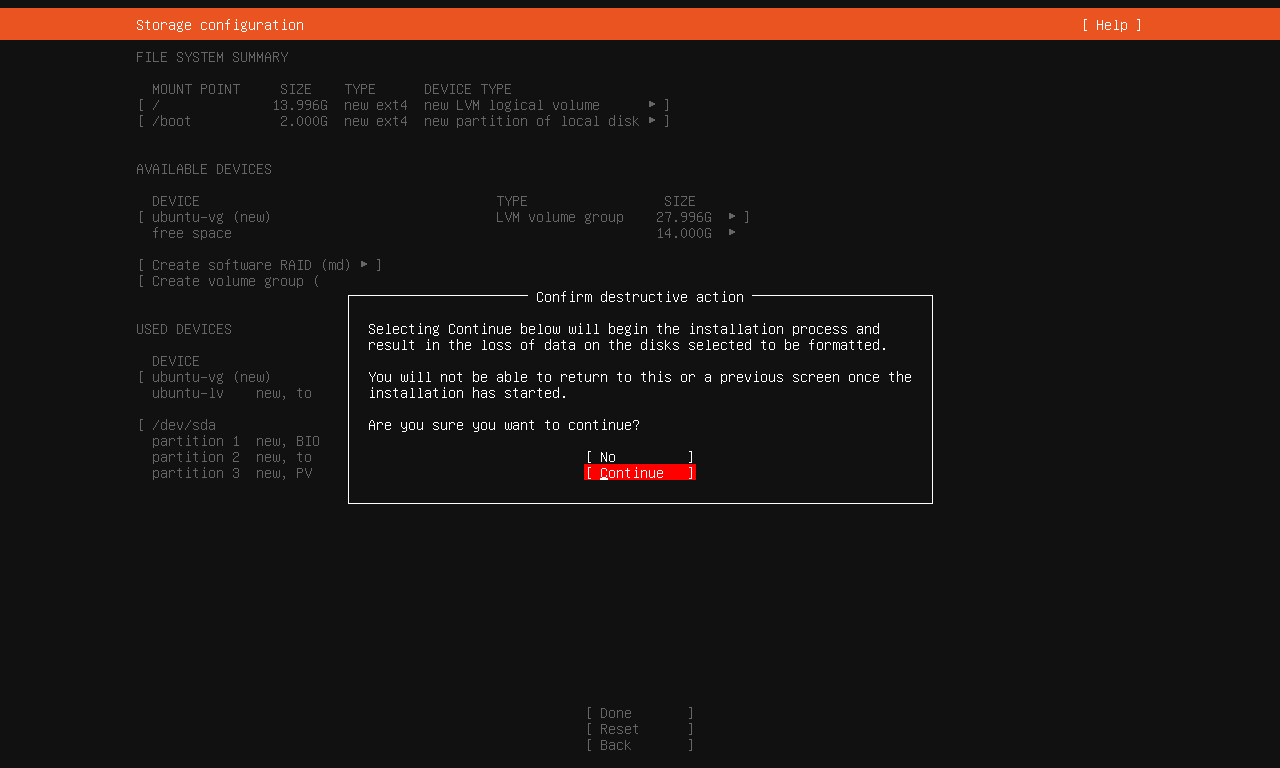

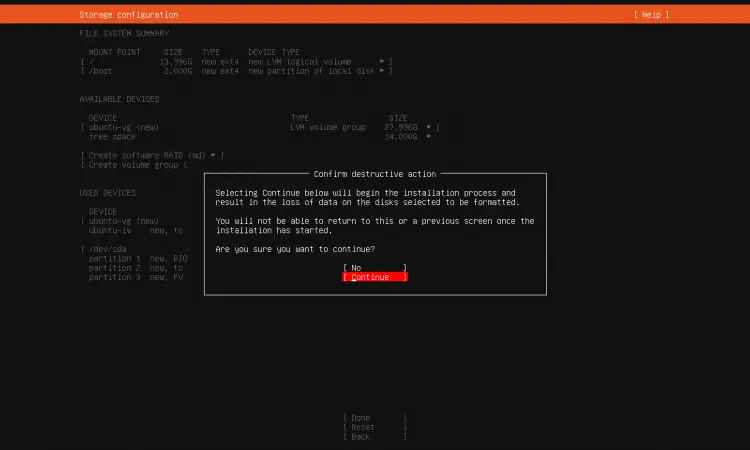

Before the installation starts, the Ubuntu installer requests to confirm the partitioning. Press the "Tab" key until the "Continue" option is highlighted in red, then press "Return" to proceed.

Confirm writing changes to disk

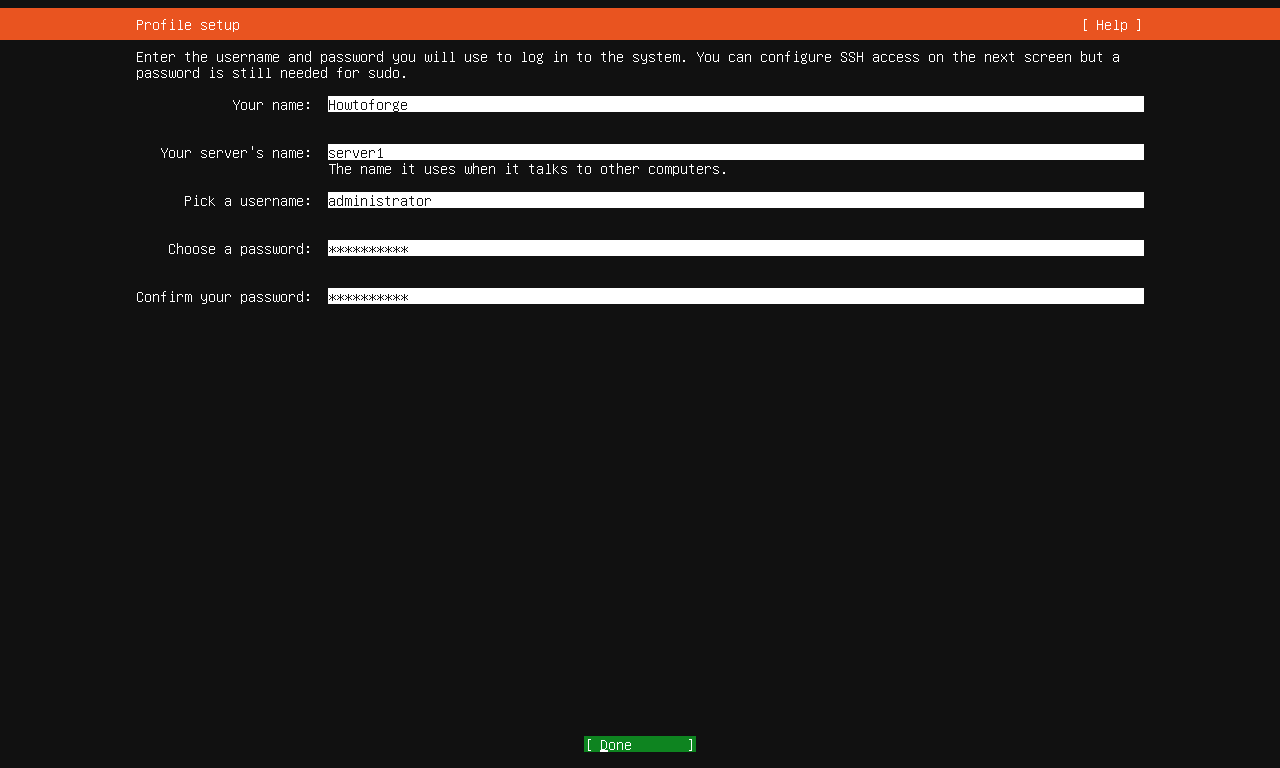

Now it's time to set the server name (hostname) and the username and password of the administrator. I'll choose the username 'administrator' here just as an example, please use a different and more secure name in your real setup. The Ubuntu shell user that we create in this step has sudo permissions, this means that he is able to administrate the system and to become root user via sudo.

Set hostname and create a user

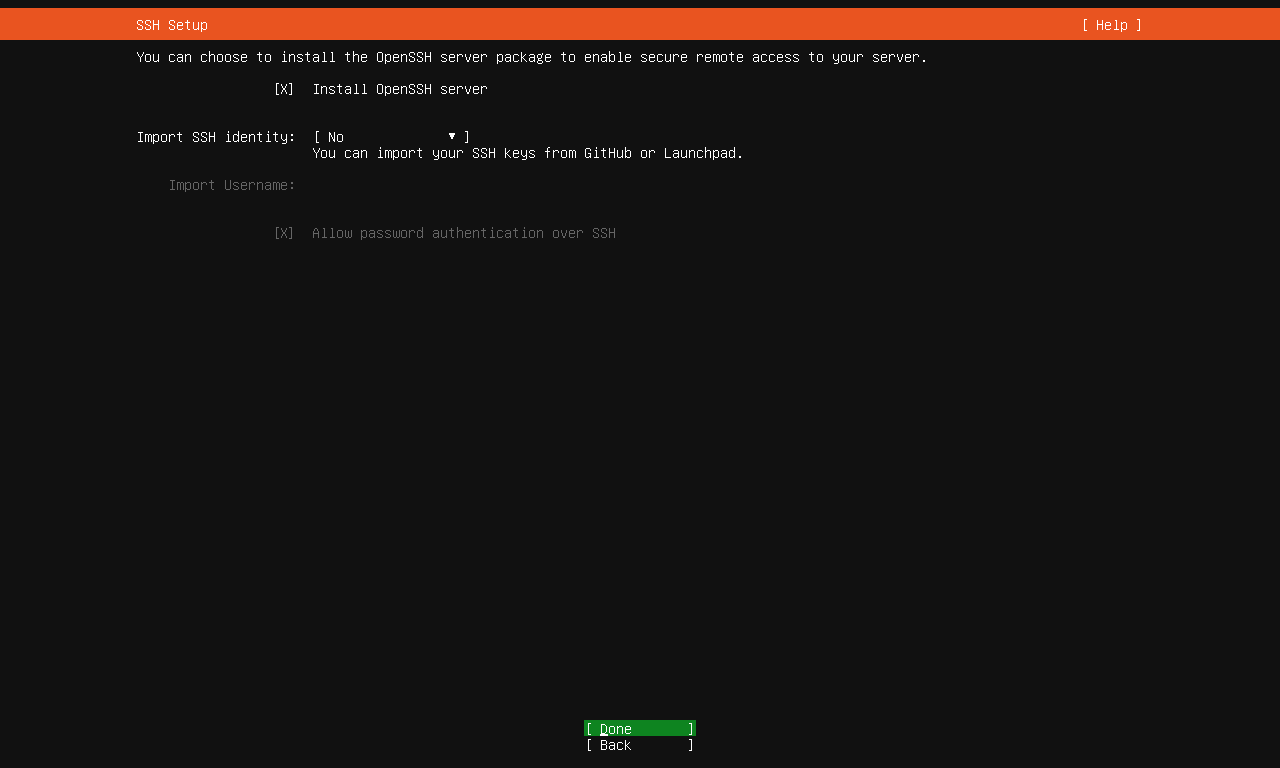

Most Linux servers get administered over the network using SSH. In this step, the Ubuntu installer can install the SSH server directly. Select the checkbox "Install OpenSSH Server" and proceed to the next step.

Install OpenSSH

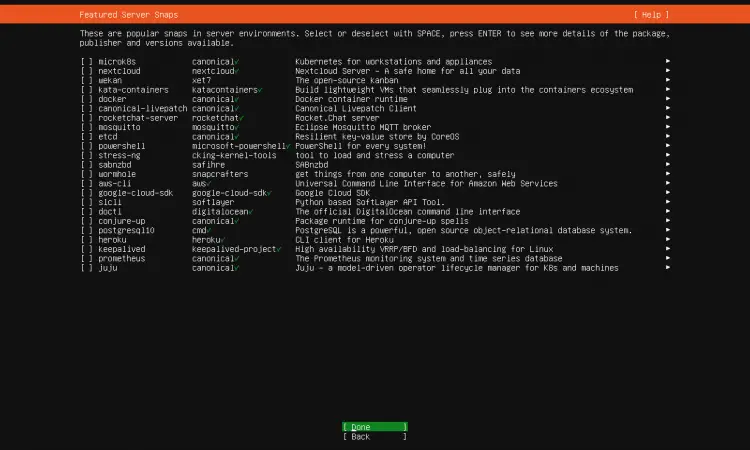

In this step, you can preinstall commonly used services via Snap installer. I do not select any services here as the purpose of this guide is to install a minimal base system. You can install services via apt or snap at any time later.

Do not install additional services now

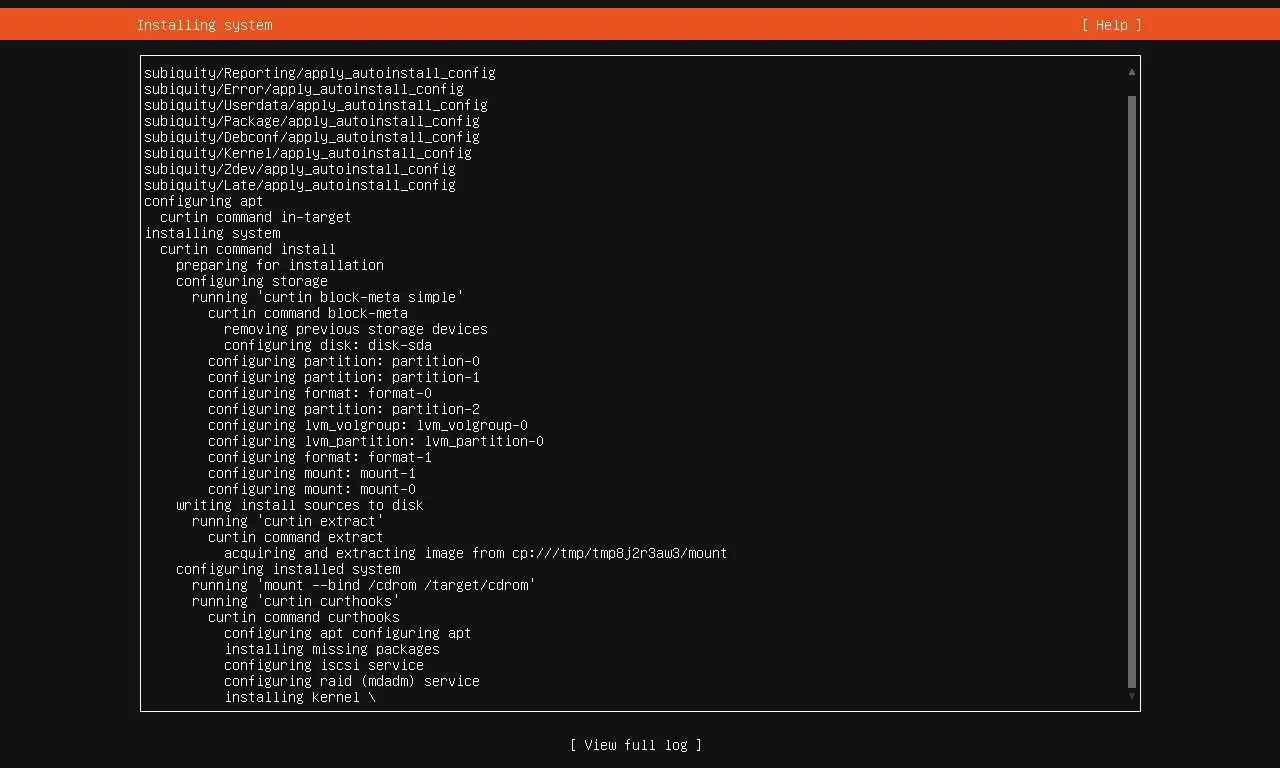

The Ubuntu installer now proceeds with the installation based on the settings we have chosen.

Installing the Ubuntu 22.04 system

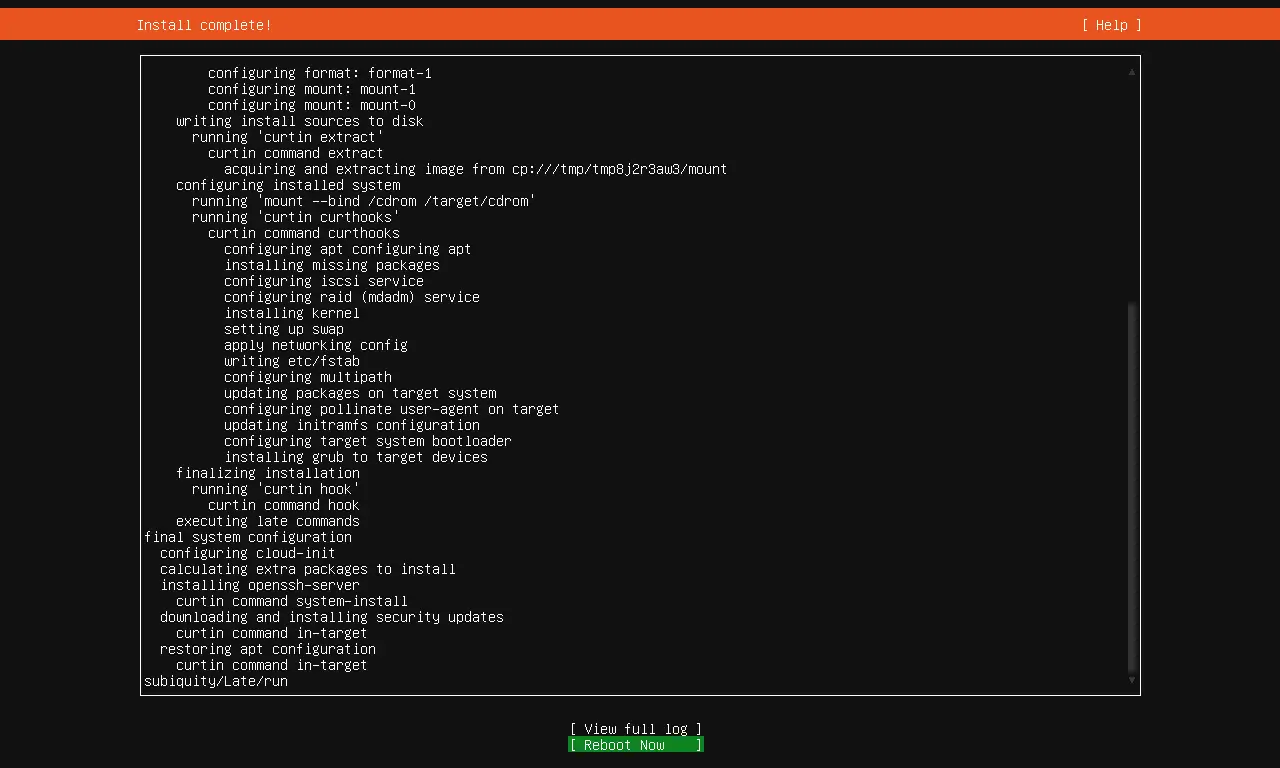

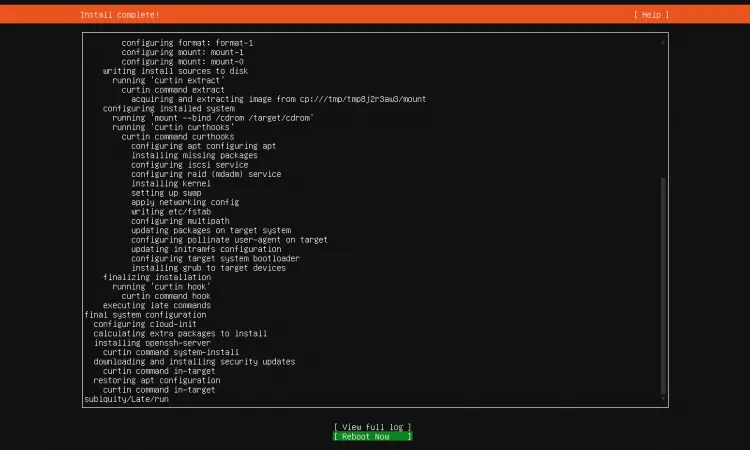

Ubuntu Installation finished successfully. Select "Reboot" to boot the server into the fresh installed Ubuntu 22.04 system.

Ubuntu 22.04 Installation finished successfully

The base installation is finished now. In the next chapter, I will explain the configuration of the static network address and install a shell-based text editor for editing configuration files.

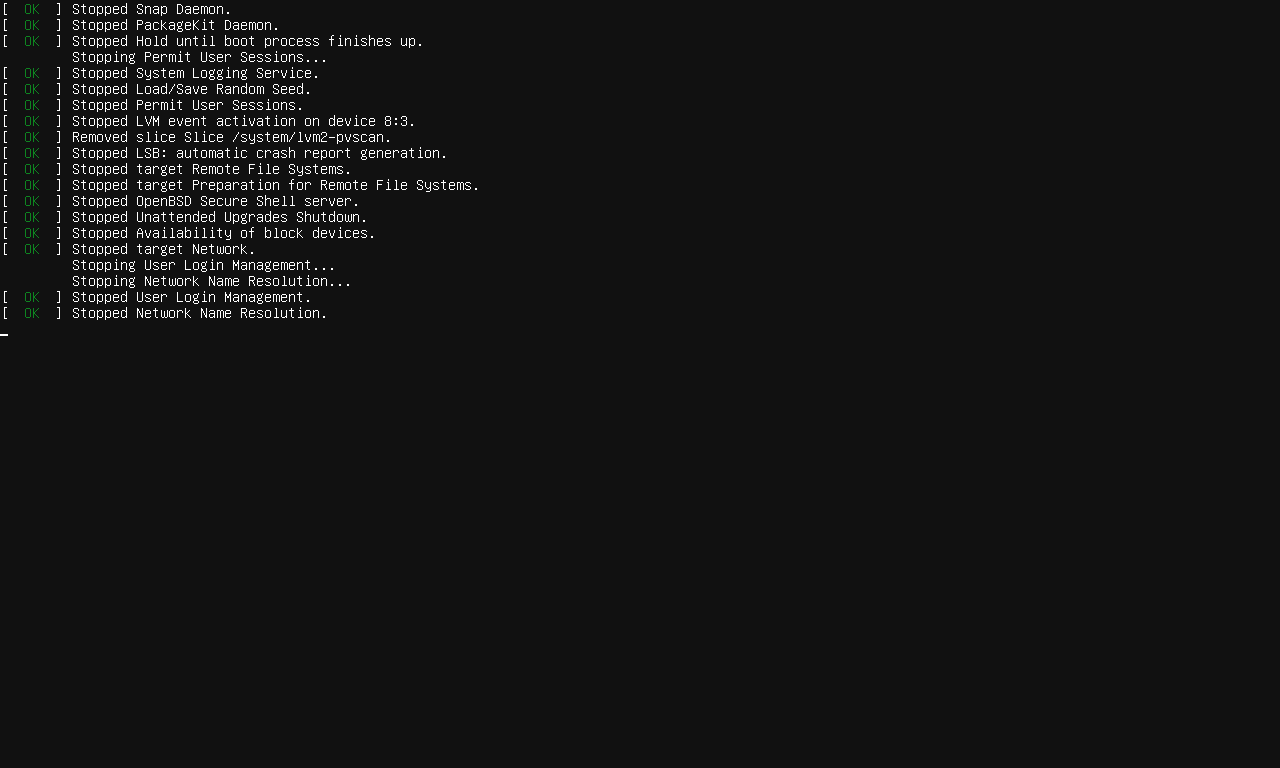

Rebooting the system

4. First Login

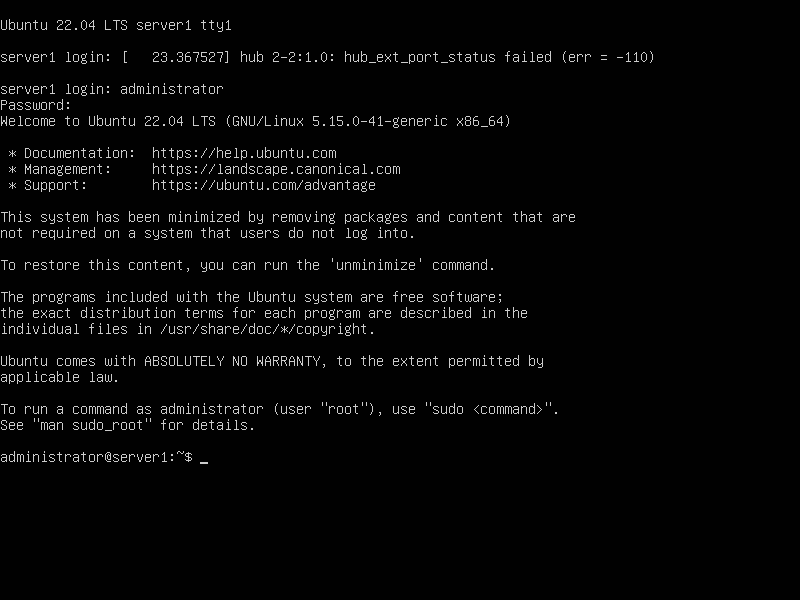

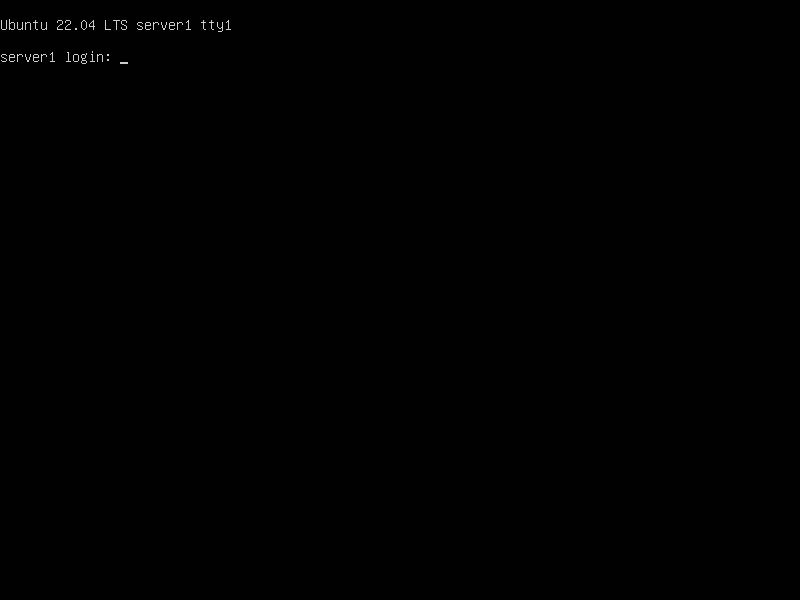

Now login on the shell (or remotely by SSH) on the server as user "administrator". The username may differ if you have chosen a different name during setup.

Ubuntu 22.04 First Login

Successfully Logged into Ubuntu 22.04 Server.

Ubuntu First Login

5. Get root Privileges

After the reboot, you can log in with your previously created username (e.g. administrator). Because we must run all the steps from this tutorial with root privileges, we can either prepend all commands in this tutorial with the string sudo, or we become root right now by typing:

sudo -s

You can enable the root login by running:

sudo passwd root

And giving root a password. You can then directly log in as root, but this is frowned upon by the Ubuntu developers and community for various reasons. See https://help.ubuntu.com/community/RootSudo.)

6. Install the SSH Server (Optional)

If you did not select to install the OpenSSH server during the system installation above, you could do it now:

sudo apt -y install ssh openssh-server

From now on you can use an SSH client such as PuTTY and connect from your workstation to your Ubuntu 22.04 (Focal Fosset) server.

7. Install a shell-based editor (Optional)

Here we will install two text-based editors. The Nano editor is easier to use for newbies while others prefer the traditional vi/vim editor. The default vi program has some strange behavior on Ubuntu and Debian; to fix this, we install vim-nox:

sudo apt -y install nano vim-nox

8. Configure the Network

Some commonly used network tools are not installed when choosing minimal install, we can install them with the following command:

sudo apt install net-tools

Because the Ubuntu installer has configured our system to get its network settings via DHCP, we can change that now because a server should have a static IP address. If you want to keep the DHCP-based network configuration, then skip this chapter. In Ubuntu 22.04, the network is configured with Netplan and the configuration file is /etc/netplan/01-netcfg.yaml. The traditional network configuration file /etc/network/interfaces is not used anymore. Edit /etc/netplan/00-installer-config.yaml and adjust it to your needs (in this example setup I will use the IP address 192.168.0.100 and the DNS servers 8.8.4.4, 8.8.8.8 .

Open the network configuration file with nano:

sudo nano /etc/netplan/00-installer-config.yaml

The server is using DHCP right after the installation; the interfaces file will look like this:

# This is the network config written by 'subiquity'
network:
  ethernets:
    ens33:
      dhcp4: true
  version: 2

To use a static IP address 192.168.0.100, I will change the file so that it looks like this afterward:

# This file describes the network interfaces available on your system
# For more information, see netplan(5).
network:
 version: 2
 renderer: networkd
 ethernets:
   ens33:
     dhcp4: no
     dhcp6: no
     addresses: [192.168.0.100/24]
     routes:
      - to: default
        via: 192.168.0.1
     nameservers:
       addresses: [8.8.8.8,8.8.4.4]

IMPORTANT: The indentation of the lines matters, add the lines as shown above.

Then restart your network to apply the changes:

sudo netplan generate
sudo netplan apply

Then edit /etc/hosts.

sudo nano /etc/hosts

Make it look like this:

127.0.0.1 localhost
192.168.0.100 server1.example.com server1

# The following lines are desirable for IPv6 capable hosts
::1 localhost ip6-localhost ip6-loopback
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters

Now, we will change the hostname of our machine as follows:

sudo echo server1 > /etc/hostname
sudo hostname server1

The first command sets the hostname "server1" in the /etc/hostname file. This file is read by the system at boot time. The second command sets the hostname in the current session so we don't have to restart the server to apply the hostname.

As an alternative to the two commands above you can use the hostnamectl command which is part of the systemd package.

sudo hostnamectl set-hostname server1

Afterward, run:

hostname
hostname -f

The first command returns the short hostname while the second command shows the fully qualified domain name (fqdn):

[email protected]:/home/administrator# hostname
server1
[email protected]:/home/administrator# hostname -f
server1.example.com
[email protected]:/home/administrator#

If you want to adjust the keyboard layout of the server, run this command:

sudo dpkg-reconfigure keyboard-configuration

Congratulations! Now we have a basic Ubuntu 22.04 server setup that provides a solid basis for all Ubuntu Server setups.

9. Virtual Machine image

This tutorial is available as ready to use virtual machine in OVA / OVF format for Howtoforge subscribers. The VM format is compatible with VMWare and Virtualbox and other tools that can import the ova or ovf format. You can find the download link on the right menu near the top. Click on the filename to start the download.

The login details of the VM are:

SSH Login

Username: administrator
Password: howtoforge

The administrator user has sudo permissions.

Please change the passwords after the first boot.

The VM is configured for the static IP 192.168.0.100, the IP can be changed in the file /etc/netplan/00-installer-config.yaml as shown in the tutorial step 8. The keyboard layout of the downloadable VM is the US keyboard layout.
