The Perfect Server - OpenSUSE 11.1 [ISPConfig 3]
Author: Till Brehm <t [dot] brehm [at] ispconfig [dot] com>, Falko Timme
Last edited 03/18/2009
This is a detailed description about how to set up an OpenSUSE 11.1 server that offers all services needed by ISPs and hosters: Apache web server (SSL-capable) with PHP, CGI and SSI support, Postfix mail server with SMTP-AUTH, TLS and virtual mail users, MyDNS DNS server, Pureftpd FTP server, MySQL server, Courier POP3/IMAP, Quota, Firewall, etc.
I will use the following software:
- Web Server: Apache 2.2 with PHP 5.2
- Database Server: MySQL
- Mail Server: Postfix with virtual users
- DNS Server: MyDNS
- FTP Server: pureftpd
- POP3/IMAP: Courier-POP3/Courier-IMAP.
- Webalizer for web site statistics
In the end you should have a system that works reliably and is easily manageable with the ISPConfig 3 control panel. The following guide is for the 32Bit version of openSUSE, for 64Bit installations the package names may differ especially the names of downloaded rpm files.
I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!
Notice: This guide if for ISPConfig 3.0.1 or newer. It is not suitable for ISPConfig 2.x
In order to learn how to use ISPConfig 3, I strongly recommend to download the ISPConfig 3 Manual.
On nearly 300 pages, it covers the concept behind ISPConfig (admin, resellers, clients), explains how to install and update ISPConfig 3, includes a reference for all forms and form fields in ISPConfig together with examples of valid inputs, and provides tutorials for the most common tasks in ISPConfig 3. It also lines out how to make your server more secure and comes with a troubleshooting section at the end.
To install such a system you will need the following:
- The OpenSUSE 11.1DVD. You can download it here: http://download.opensuse.org/distribution/11.1/iso/openSUSE-11.1-DVD-i586.iso
- A fast Internet connection...
2 Preliminary Note
In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.105 and the gateway 192.168.0.1. These settings might differ for you, so you have to replace them where appropriate.
3 The Base System

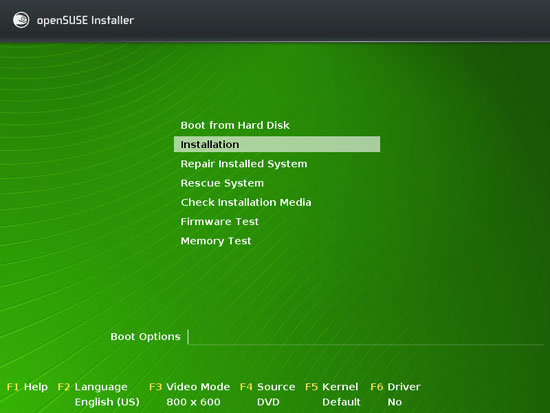

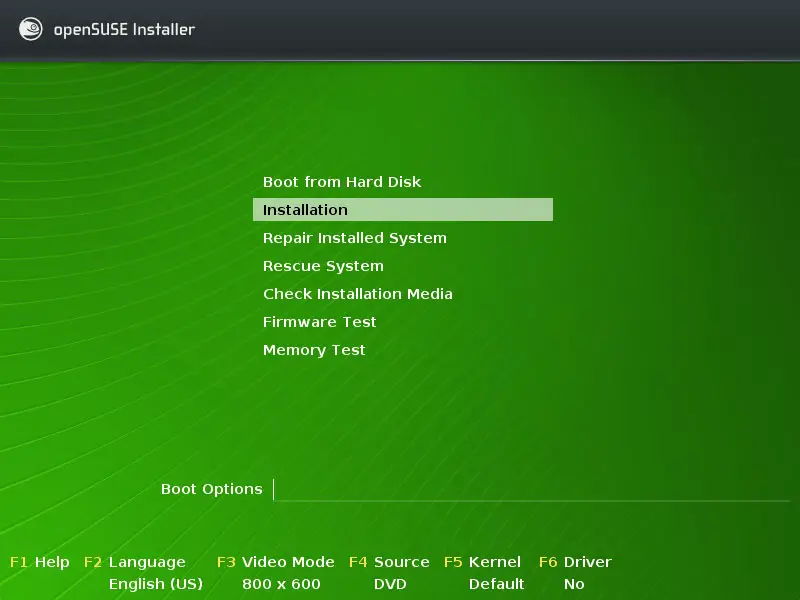

Boot from your OpenSUSE 11.1 DVD and select Installation:

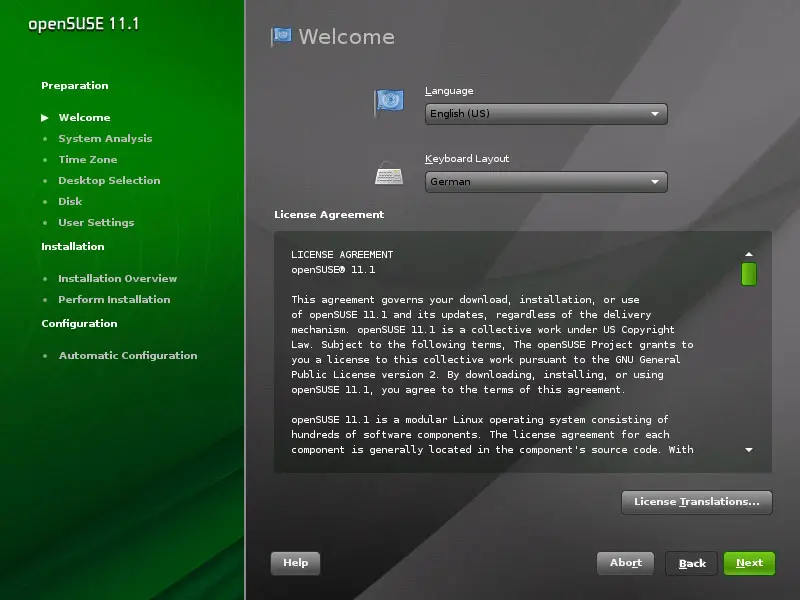

Select your language, keyboard layout and accept the licence terms:

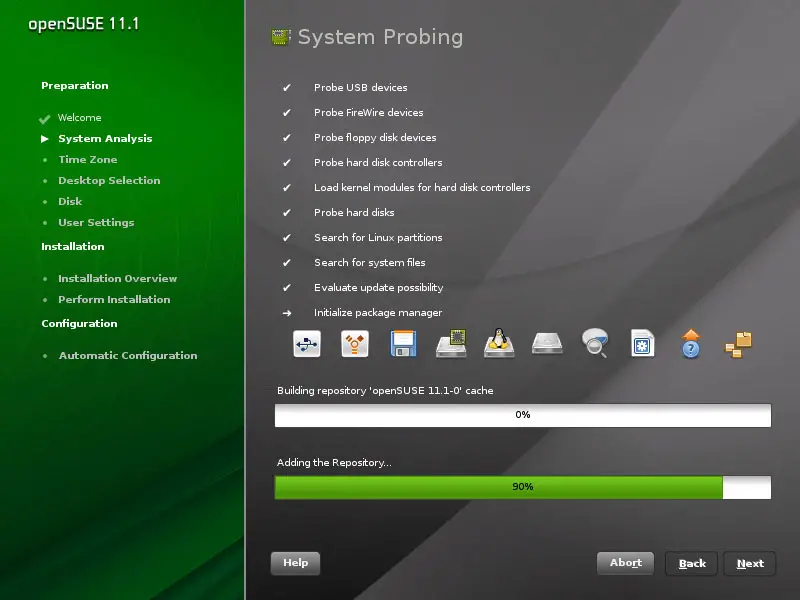

The installer analyzes your hardware and builds the software repository cache:

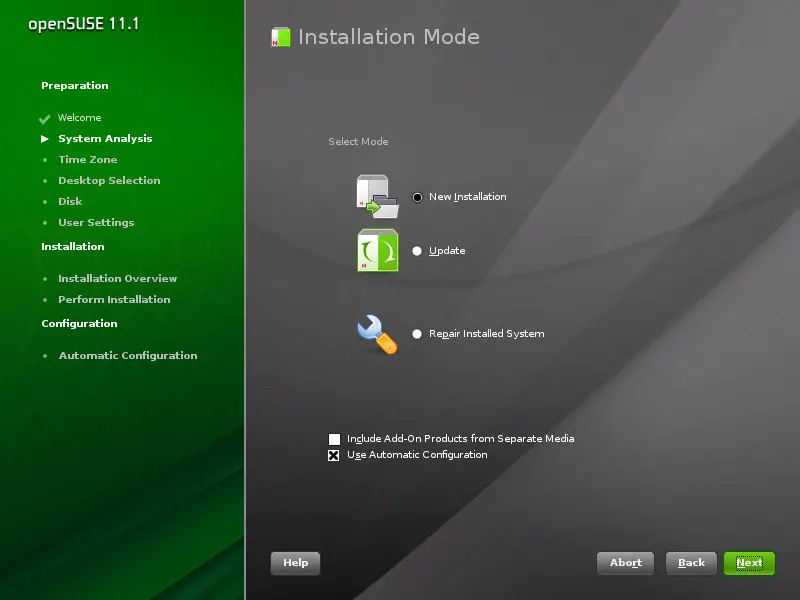

Select New Installation:

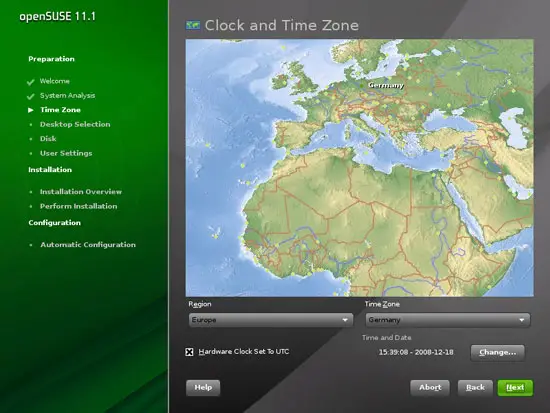

Select the region and timezone:

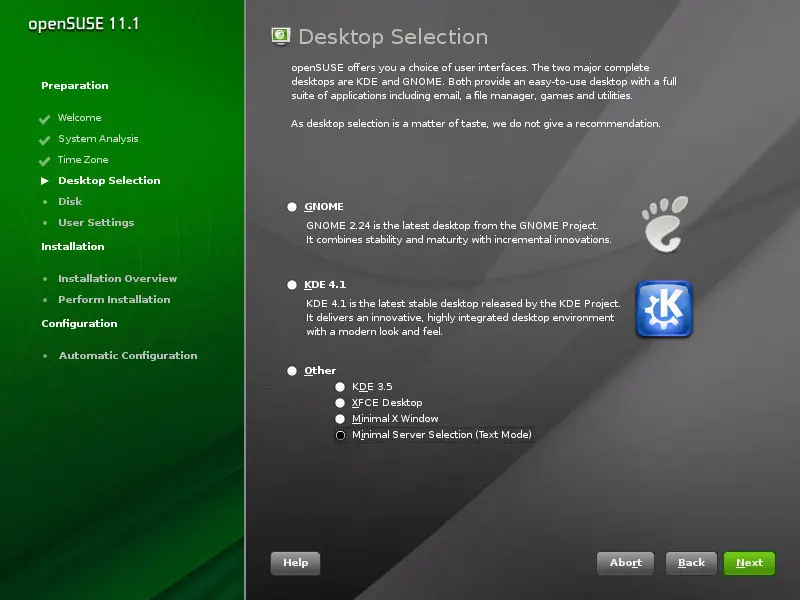

We select Other > Minimal Server Selection (Text Mode) here as we want to install a server without X-Window desktop. The X-Window system is not nescessary to run the server and would slow down the system. We will do all administration tasks on the shell or trough an SSH connection, e.g. via PuTTY from a remote desktop.
