The Perfect Setup - Mandriva 2007 Free Edition

Version 1.1
Author: Falko Timme
Last edited 12/01/2006

This is a detailed description about how to set up a Mandriva 2007 Free Edition based server that offers all services needed by ISPs and hosters (web server (SSL-capable), mail server (with SMTP-AUTH and TLS!), DNS server, FTP server, MySQL server, POP3/IMAP, Quota, Firewall, etc.).

I will use the following software:

  • Web Server: Apache 2
  • Mail Server: Postfix
  • DNS Server: BIND9
  • FTP Server: proftpd
  • POP3/IMAP server
  • Webalizer for web site statistics

In the end you should have a system that works reliably and is ready for the free webhosting control panel ISPConfig (i.e., ISPConfig runs on it out of the box).

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!



1 Preliminary Note

In this example I will use the following settings for my system:

  • IP address: 192.168.0.100, gateway: 192.168.0.1
  • Host name: server1.example.com

Your settings will most likely differ, so you might have to adjust the instructions from this tutorial.



2 Requirements

To install such a system you will need the following:



3 The Base System

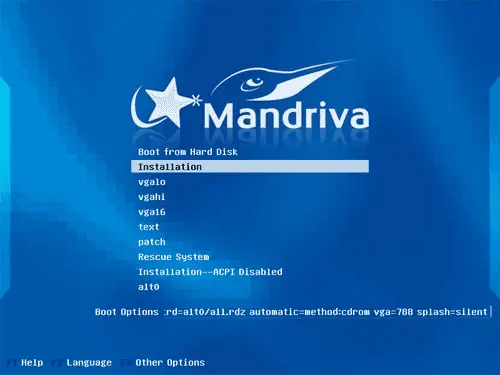

Boot from your Mandriva 2007 CD (CD 1). Select Installation and press Enter:

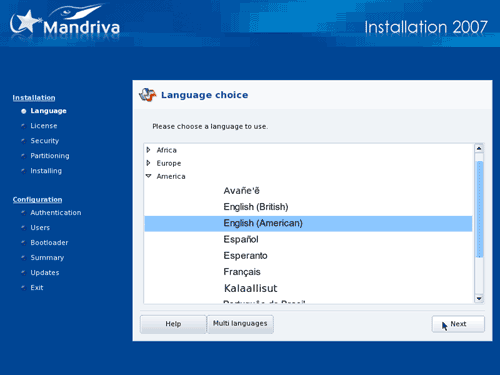

Choose your language next:

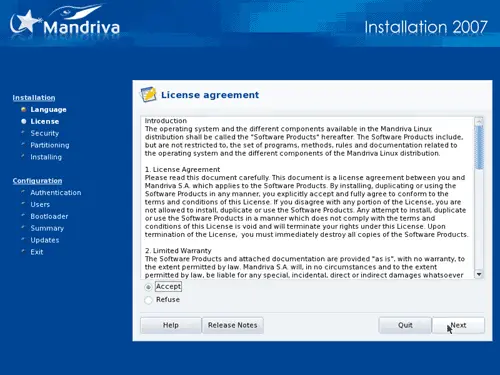

Accept the license and click on Next:

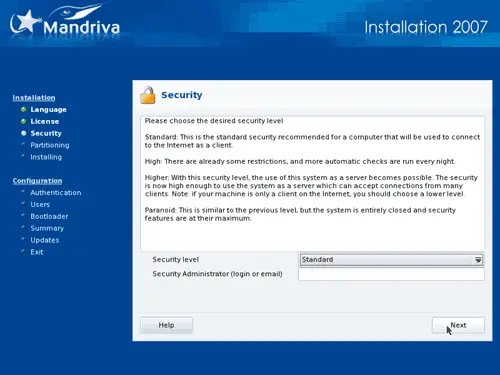

Select Standard as the Security level and leave the field Security Administrator empty:

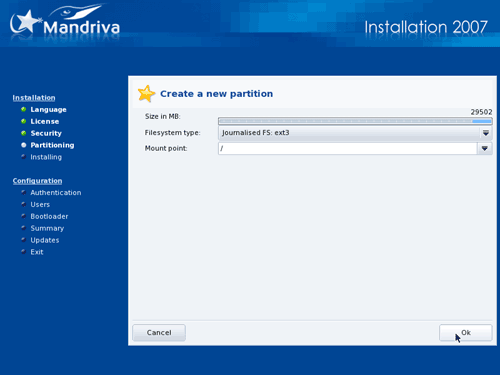

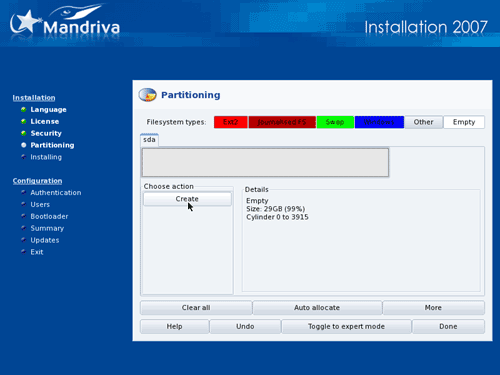

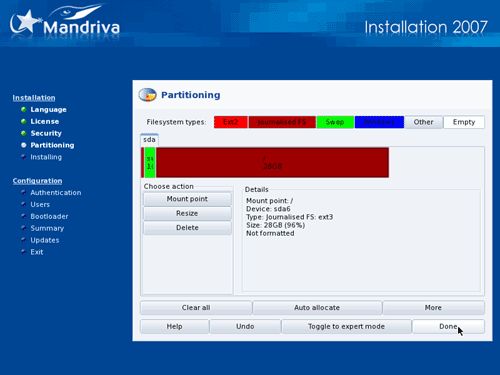

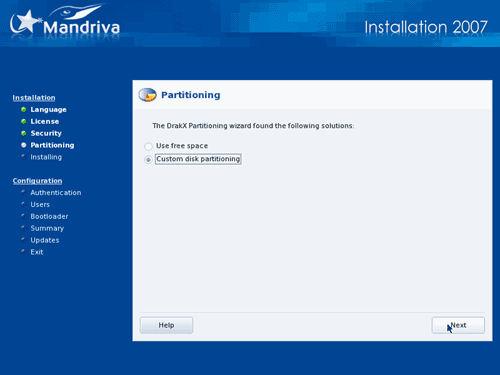

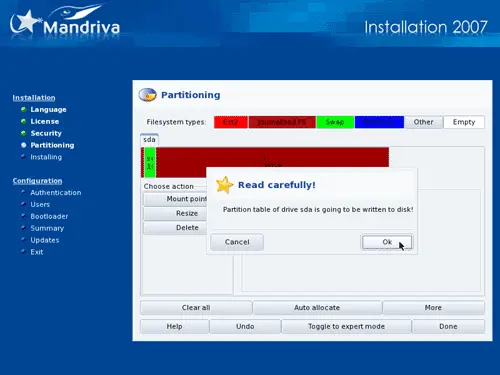

Now we have to partition our hard disk. You can choose to let the Mandriva installer do the partitioning, or you can do it yourself. I want to create a small /boot partition (about 150 MB) with the file system ext3, a swap partition and a huge / partition (again with ext3):

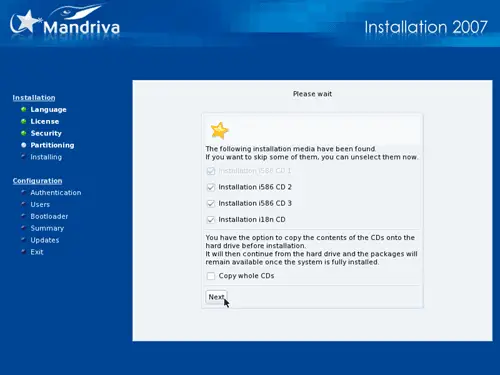

Click on Next if you have all four CDs of the Mandriva Download Edition:
