22 Install SquirrelMail

To install the SquirrelMail webmail client, run...

yum install squirrelmail

... and restart Apache:

/etc/init.d/httpd restart

Then configure SquirrelMail:

/usr/share/squirrelmail/config/conf.pl

We must tell SquirrelMail that we are using Courier-IMAP/-POP3:

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <-- D


SquirrelMail Configuration : Read: config.php
---------------------------------------------------------
While we have been building SquirrelMail, we have discovered some
preferences that work better with some servers that don't work so
well with others.  If you select your IMAP server, this option will
set some pre-defined settings for that server.

Please note that you will still need to go through and make sure
everything is correct.  This does not change everything.  There are
only a few settings that this will change.

Please select your IMAP server:
    bincimap    = Binc IMAP server
    courier     = Courier IMAP server
    cyrus       = Cyrus IMAP server
    dovecot     = Dovecot Secure IMAP server
    exchange    = Microsoft Exchange IMAP server
    hmailserver = hMailServer
    macosx      = Mac OS X Mailserver
    mercury32   = Mercury/32
    uw          = University of Washington's IMAP server
    gmail       = IMAP access to Google mail (Gmail) accounts

    quit        = Do not change anything
Command >>
 <-- dovecot


SquirrelMail Configuration : Read: config.php
---------------------------------------------------------
While we have been building SquirrelMail, we have discovered some
preferences that work better with some servers that don't work so
well with others.  If you select your IMAP server, this option will
set some pre-defined settings for that server.

Please note that you will still need to go through and make sure
everything is correct.  This does not change everything.  There are
only a few settings that this will change.

Please select your IMAP server:
    bincimap    = Binc IMAP server
    courier     = Courier IMAP server
    cyrus       = Cyrus IMAP server
    dovecot     = Dovecot Secure IMAP server
    exchange    = Microsoft Exchange IMAP server
    hmailserver = hMailServer
    macosx      = Mac OS X Mailserver
    mercury32   = Mercury/32
    uw          = University of Washington's IMAP server
    gmail       = IMAP access to Google mail (Gmail) accounts

    quit        = Do not change anything
Command >> dovecot

              imap_server_type = dovecot
         default_folder_prefix = <none>
                  trash_folder = Trash
                   sent_folder = Sent
                  draft_folder = Drafts
            show_prefix_option = false
          default_sub_of_inbox = false
show_contain_subfolders_option = false
            optional_delimiter = detect
                 delete_folder = false

Press any key to continue...
<-- press a key


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <--S


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <--Q

One last thing we need to do is modify the file /etc/squirrelmail/config_local.php and comment out the $default_folder_prefix variable - if you don't do this, you will see the following error message in SquirrelMail after you've logged in: Query: CREATE "Sent" Reason Given: Invalid mailbox name.

vi /etc/squirrelmail/config_local.php

<?php
/**
 * Local config overrides.
 *
 * You can override the config.php settings here.
 * Don't do it unless you know what you're doing.
 * Use standard PHP syntax, see config.php for examples.
 *
 * @copyright &copy; 2002-2006 The SquirrelMail Project Team
 * @license http://opensource.org/licenses/gpl-license.php GNU Public License
 * @version $Id: config_local.php,v 1.2 2006/07/11 03:33:47 wtogami Exp $
 * @package squirrelmail
 * @subpackage config
 */
//$default_folder_prefix                = '';
?>

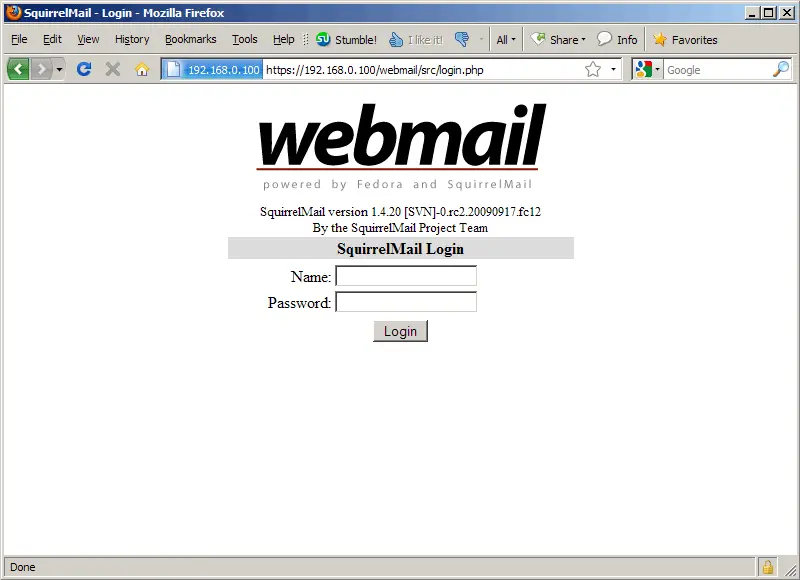

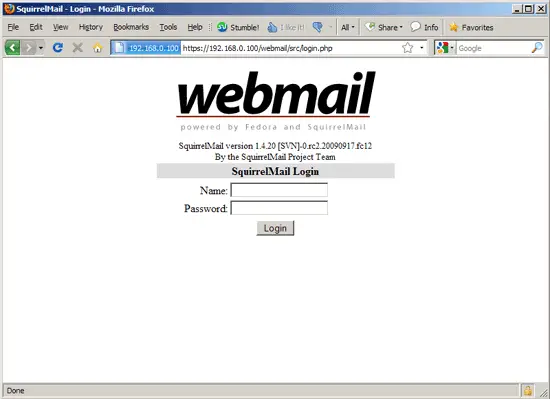

Now you can type in http://server1.example.com/webmail or http://192.168.0.100/webmail in your browser to access SquirrelMail.



23 Install ISPConfig 3

To install ISPConfig 3 from the latest released version, do this:

cd /tmp
wget http://downloads.sourceforge.net/ispconfig/ISPConfig-3.0.2.1.tar.gz?use_mirror=
tar xvfz ISPConfig-3.0.2.1.tar.gz
cd ispconfig3_install/install/

The next step is to run

php -q install.php

This will start the ISPConfig 3 installer:

[root@server1 install]# php -q install.php


--------------------------------------------------------------------------------
 _____ ___________   _____              __ _
|_   _/  ___| ___ \ /  __ \            / _(_)
  | | \ `--.| |_/ / | /  \/ ___  _ __ | |_ _  __ _
  | |  `--. \  __/  | |    / _ \| '_ \|  _| |/ _` |
 _| |_/\__/ / |     | \__/\ (_) | | | | | | | (_| |
 \___/\____/\_|      \____/\___/|_| |_|_| |_|\__, |
                                              __/ |
                                             |___/
--------------------------------------------------------------------------------


>> Initial configuration

Operating System: Redhat or compatible, unknown version.

    Following will be a few questions for primary configuration so be careful.
    Default values are in [brackets] and can be accepted with <ENTER>.
    Tap in "quit" (without the quotes) to stop the installer.


Select language (en,de) [en]:
 <-- ENTER

Installation mode (standard,expert) [standard]: <-- ENTER

Full qualified hostname (FQDN) of the server, eg server1.domain.tld  [server1.example.com]: <-- ENTER

MySQL server hostname [localhost]: <-- ENTER

MySQL root username [root]: <-- ENTER

MySQL root password []: <-- yourrootsqlpassword

MySQL database to create [dbispconfig]: <-- ENTER

MySQL charset [utf8]: <-- ENTER

Generating a 2048 bit RSA private key
...................................................+++
.................+++
writing new private key to 'smtpd.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:
 <-- ENTER
State or Province Name (full name) []: <-- ENTER
Locality Name (eg, city) [Default City]: <-- ENTER
Organization Name (eg, company) [Default Company Ltd]: <-- ENTER
Organizational Unit Name (eg, section) []: <-- ENTER
Common Name (eg, your name or your server's hostname) []: <-- ENTER
Email Address []: <-- ENTER
Configuring Jailkit
Configuring SASL
Configuring PAM
Configuring Dovecot
Configuring Spamassassin
Configuring Amavisd
PHP Warning:  copy(/etc/authlib/amavisd.conf~): failed to open stream: No such file or directory in /tmp/ispconfig3_install/install/dist/lib/fedora.lib.php on line 346
Configuring Getmail
Configuring Pureftpd
Configuring BIND
Configuring Apache
Configuring vlogger
Configuring Apps vhost
Configuring Firewall
Installing ISPConfig
ISPConfig Port [8080]:
 <-- ENTER

Configuring DBServer
Installing Crontab
no crontab for root
no crontab for getmail
Restarting services ...
Stopping mysqld:                                           [  OK  ]
Starting mysqld:                                           [  OK  ]
Shutting down postfix:                                     [  OK  ]
Starting postfix:                                          [  OK  ]
Stopping saslauthd:                                        [FAILED]
Starting saslauthd:                                        [  OK  ]
Waiting for the process [2195] to terminate
Waiting for the process [2195] to terminate
Daemon [2195] terminated by SIGTERM
Shutting down amavisd:                                     [  OK  ]
amavisd stopped
Starting amavisd:                                          [  OK  ]

Stopping clamd.amavisd:                                    [  OK  ]
LibClamAV Warning: ***********************************************************
LibClamAV Warning: ***  This version of the ClamAV engine is outdated.     ***
LibClamAV Warning: *** DON'T PANIC! Read http://www.clamav.net/support/faq ***
LibClamAV Warning: ***********************************************************
Starting clamd.amavisd:                                    [  OK  ]
Stopping Dovecot Imap:                                     [  OK  ]
Starting Dovecot Imap:                                     [  OK  ]
Stopping httpd:                                            [  OK  ]
[Mon May 31 18:04:46 2010] [warn] NameVirtualHost *:80 has no VirtualHosts
Starting httpd:                                            [  OK  ]
Stopping pure-ftpd:                                        [  OK  ]
Starting pure-ftpd:                                        [  OK  ]
Installation completed.
[root@server1 install]#

The installer automatically configures all underlying services, so no manual configuration is needed.

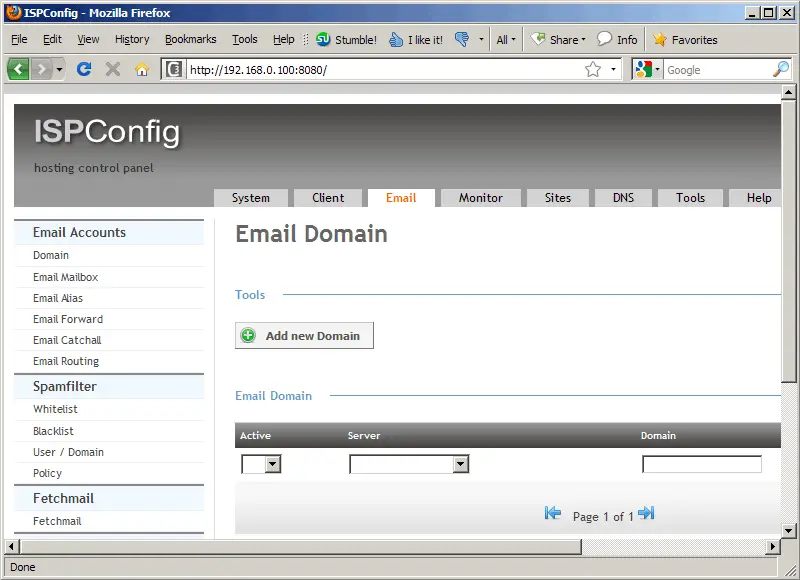

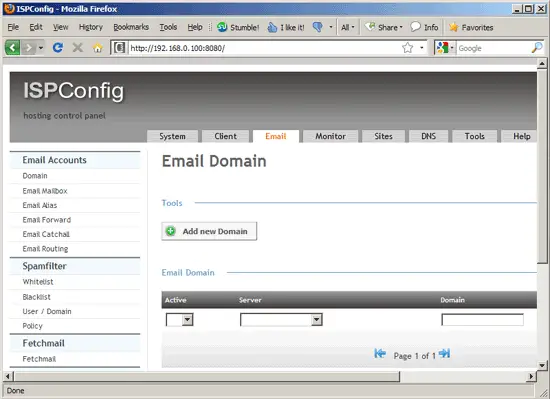

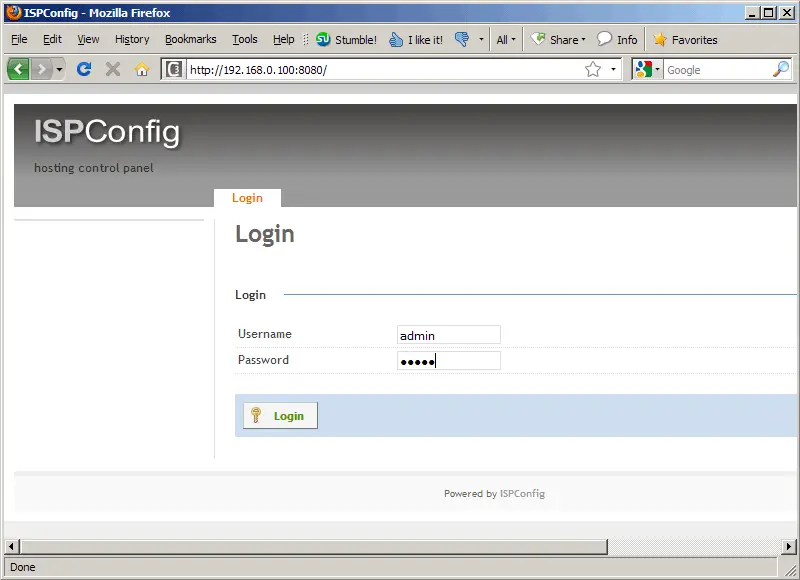

Afterwards you can access ISPConfig 3 under http://server1.example.com:8080/ or http://192.168.0.100:8080/. Log in with the username admin and the password admin (you should change the default password after your first login):

The system is now ready to be used.



23.1 ISPConfig 3 Manual



24 Links

Share this page:

12 Comment(s)

Add comment

Comments

From: at: 2010-06-19 14:41:47

Has anyone actually managed to get a Squirrelmail login page for Fedora 13?

I've tried the Fedora 13/ISPConfig3 howto once as written, for an x86-64 PC, and twice using i686 architecture (not replacing lib with lib64).

 All three attempts had as a show-stopper, the non-appearance of Squirrelmail at <http://server1.example.com/webmail>, or at the equivalent address.

Fortunately the CentOS x86-64 equivalent eventually worked, so I'm not under pressure, but it still seems extremely curious that the same issue - lack of any kind of Squirrelmail login interface - hit three different machines running the Fedora 13 - ISPConfig howto.
Neither the configuration test nor the Squirrelmail login work. The config test at <http://server1.example.com/src/configtest.php> fails saying:

"Not Found

The requested URL /src/configtest.php was not found on this server."

- and the login page doesn't appear either. Instead,  at <http://server1.example.com/webmail> we find:

"Unable to connect

 Firefox can't establish a connection to the server at server1.example.com." [or the IP address, or localhost].


It is almost as though the aliases (like webmail for /usr/share/squirrelmail) aren't being established. But the files in /etc/httpd/conf.d are certainly being read, because if I enable server-info, it tells me so.

Besides the Squirrelmail issue, webalyzer doesn't run. Firefox tells me I'm forbidden to access http://server1.example.com/usage.

But, both the phpMyAdmin and the ISPConfig pages do appear. It's not ISPConfig which is causing the Squirrelmail problem because it's installed and tested before ISPConfig is even downloaded.

One other peculiarity: some system users (vmail, getmail, ispapps, and ispconfig)  appear in the Fedora login screen now. I think that's because they have user ID numbers greater than the limit in Fedora for system users (499).

User 500 is always present (it's the one you set during install). vmail has user ID 5000. The others seem to take the user ID from the last ID you created (typically then, 501, 502, and 503).

Can anyone duplicate this? Any ideas?

From: Nick at: 2010-07-08 12:48:17

Try to install mod_ssl!

From: Anonymous at: 2011-10-07 12:26:42

thx. installing mod_ssl helped me with fedora 15 + ispcfg 3 as well

From: at: 2010-07-14 15:51:58

If you select the DNS Name Server category of software to install then "bind-chroot" will be installed. In step 17 there are instructions to install "bind". If both are installed then BIND (named) will not start because named will not be able to find the file named.conf.locate. Even if you create a blank "named.conf.local" in /etc or use ISPConfig web admin to create the file named still will not start. See also, related comments on PG5.

From: Pierre at: 2010-07-19 16:42:10

I don't get the option where I get to choose what to install or not install. I saw on another page where a person was complaining about the fact that the live CD doesn't allow older machines to configure setup as one would want. Sort of idiotic if you think about it! After all Linux is the ideal web server and if you have an older machine laying around you want to setup to tinker on, you won't want any type of GUI. So my question is HOW DO I GET AROUND THIS?

 I have an old Pentium 4 (1.4 GHz) I don't want Gnome or any interface, just the good old command prompt. Unfortunately, I'm a novice and I can't figure out how to get around this.

 Thanks for your help.

From: at: 2010-07-07 00:40:21

After completing all steps in this series and logging in to ISPConfig3 as admin I found that in the 'Monitor' section there was 1 error marked in red.  Clicking on 'more' information revealed that 'MyDNS' was not running. Although MyDNS is not installed as part of this procedure. I assumed that was mis-labeled and that BIND was not starting.

I tried to start BIND (named) manually but it gave an error, stated that the file /etc/named.conf.local was missing which it was missing. But I used the ISPConfig3 to add a client then logged in as that client and created a DNS zone and the named.conf.local file was created.

But when trying to start 'named' I still get the error that /etc/named.conf.local is missing even though it is there. It had the group as 'root' instead of named like the other named.* files had so I chgrp on named.conf.local to named but BIND still won't start and gives the same error that /etc/named.conf.local is missing even though it is present.

If I comment out the include in named.conf for named.conf.local named starts without error even though in the ISPConfig MyDNS still shows 'offline'.

Another file included by named.conf is named.rfc1912.zones it is present and is not mentioned in the error message.

The only difference that I can see is that the permissions on named.rfc1912.zones is "-rw-r-----." were on named.conf.local the perms are "-rw-r--r--" NOTE the period is missing. I have no idea what the period in the permissions list is for but that is the only difference I can see between the two files.

So, how can I fix this and what is the period in the permissions list for?

From: at: 2010-07-19 06:25:27

BIND runs in a chroot environment at /var/named

So the path you are looking for is /var/named/etc/named.conf.local

From: at: 2010-07-14 17:39:43

To get suphp to work I had to add quotes:

x-httpd-suphp=php:/usr/bin/php-cgi
to:
x-httpd-suphp="php:/usr/bin/php-cgi"

refer to

http://www.howtoforge.com/forums/showthread.php?t=47203

From: Serge at: 2010-09-13 20:39:43

Hello,

I was wondering php-mhash is no longer in fedora 13 in fact its stopped since late fc11.

in your install notes you refer to yum php-mhash.... do you have an alternative or this can be skipped?

From: Serge at: 2010-09-12 18:38:13

Hello,

I was wondering php-mhash is no longer in fedora 13 in fact its stopped since late fc11.

in your install notes you refer to yum php-mhash.... do you have an alternative or this can be skipped?

From: Anonymous at: 2010-10-11 14:52:00

Why do you people keep using the comments forms when it specifically says not to? You are not going to get your questions answered here.

From: moodz at: 2010-09-17 08:09:17

If you really want it to work properly look in /tmp/ispconfig3_install/install/dist/conf ... you will see a number of conf files ... I copied the fedora9.conf to fedora13.conf and voila ! the DNS bit starts working !!

Oh and mydns will install OK from yum ....

# yum install mydns

 Otherwise it all works OK.
