Server Monitoring With Icinga On Ubuntu 11.10 - Page 2

3 Configuring Icinga

server1.example.com:

The main Icinga configuration file is /etc/icinga/icinga.cfg, additional configurations are stored in /etc/icinga/commands.cfg and /etc/icinga/resource.cfg. Usually the default configuration is ok, so you don't have to change these files.

The first thing you should change is the contact details in /etc/icinga/objects/contacts_icinga.cfg so that notifications are sent to the correct email address:

vi /etc/icinga/objects/contacts_icinga.cfg

[...]
define contact{
        contact_name                    root
        alias                           Falko Timme
        service_notification_period     24x7
        host_notification_period        24x7
        service_notification_options    w,u,c,r
        host_notification_options       d,r
        service_notification_commands   notify-service-by-email
        host_notification_commands      notify-host-by-email
        email                           me@myself.com
        }
[...]

The service checks for localhost (= server1.example.com) are defined in /etc/icinga/objects/localhost_icinga.cfg - take a look at that file:

cat /etc/icinga/objects/localhost_icinga.cfg

# A simple configuration file for monitoring the local host
# This can serve as an example for configuring other servers;
# Custom services specific to this host are added here, but services
# defined in icinga-common_services.cfg may also apply.
#

define host{
        use                     generic-host            ; Name of host template to use
        host_name               localhost
        alias                   localhost
        address                 127.0.0.1
        }

# Define a service to check the disk space of the root partition
# on the local machine.  Warning if < 20% free, critical if
# < 10% free space on partition.

define service{
        use                             generic-service         ; Name of service template to use
        host_name                       localhost
        service_description             Disk Space
        check_command                   check_all_disks!20%!10%
        }



# Define a service to check the number of currently logged in
# users on the local machine.  Warning if > 20 users, critical
# if > 50 users.

define service{
        use                             generic-service         ; Name of service template to use
        host_name                       localhost
        service_description             Current Users
        check_command                   check_users!20!50
        }


# Define a service to check the number of currently running procs
# on the local machine.  Warning if > 250 processes, critical if
# > 400 processes.

define service{
        use                             generic-service         ; Name of service template to use
        host_name                       localhost
        service_description             Total Processes
                check_command                   check_procs!250!400
        }



# Define a service to check the load on the local machine.

define service{
        use                             generic-service         ; Name of service template to use
        host_name                       localhost
        service_description             Current Load
                check_command                   check_load!5.0!4.0!3.0!10.0!6.0!4.0
        }

The check_command commands (like check_all_disks) are defined in the Nagios plugin configuration files in the /etc/nagios-plugins/config directory:

ls -l /etc/nagios-plugins/config

root@server1:~# ls -l /etc/nagios-plugins/config
total 144
-rw-r--r-- 1 root root  277 2011-09-07 18:45 apt.cfg
-rw-r--r-- 1 root root  182 2011-09-07 18:45 breeze.cfg
-rw-r--r-- 1 root root  458 2011-09-07 18:45 dhcp.cfg
-rw-r--r-- 1 root root  909 2011-09-07 18:45 disk.cfg
-rw-r--r-- 1 root root 1722 2011-09-07 18:45 disk-smb.cfg
-rw-r--r-- 1 root root  321 2011-09-07 18:45 dns.cfg
-rw-r--r-- 1 root root  673 2011-09-07 18:45 dummy.cfg
-rw-r--r-- 1 root root  146 2011-09-07 18:45 flexlm.cfg
-rw-r--r-- 1 root root  159 2011-09-07 18:45 fping.cfg
-rw-r--r-- 1 root root  414 2011-09-07 18:45 ftp.cfg
-rw-r--r-- 1 root root  320 2011-09-07 18:45 games.cfg
-rw-r--r-- 1 root root  157 2011-09-07 18:45 hppjd.cfg
-rw-r--r-- 1 root root 3579 2011-09-07 18:45 http.cfg
-rw-r--r-- 1 root root  818 2011-09-07 18:45 ifstatus.cfg
-rw-r--r-- 1 root root  748 2011-09-07 18:45 ldap.cfg
-rw-r--r-- 1 root root  195 2011-09-07 18:45 load.cfg
-rw-r--r-- 1 root root 2062 2011-09-07 18:45 mail.cfg
-rw-r--r-- 1 root root  708 2011-09-07 18:45 mailq.cfg
-rw-r--r-- 1 root root  385 2011-09-07 18:45 mrtg.cfg
-rw-r--r-- 1 root root  567 2011-09-07 18:45 mysql.cfg
-rw-r--r-- 1 root root 2355 2011-09-07 18:45 netware.cfg
-rw-r--r-- 1 root root  420 2011-09-07 18:45 news.cfg
-rw-r--r-- 1 root root  497 2011-09-07 18:45 nt.cfg
-rw-r--r-- 1 root root  466 2011-09-07 18:45 ntp.cfg
-rw-r--r-- 1 root root  426 2011-09-07 18:45 pgsql.cfg
-rw-r--r-- 1 root root 2026 2011-09-07 18:45 ping.cfg
-rw-r--r-- 1 root root  511 2011-09-07 18:45 procs.cfg
-rw-r--r-- 1 root root  240 2011-09-07 18:45 radius.cfg
-rw-r--r-- 1 root root  397 2011-09-07 18:45 real.cfg
-rw-r--r-- 1 root root  315 2011-09-07 18:45 rpc-nfs.cfg
-rw-r--r-- 1 root root 5550 2011-09-07 18:45 snmp.cfg
-rw-r--r-- 1 root root  753 2011-09-07 18:45 ssh.cfg
-rw-r--r-- 1 root root  784 2011-09-07 18:45 tcp_udp.cfg
-rw-r--r-- 1 root root  438 2011-09-07 18:45 telnet.cfg
-rw-r--r-- 1 root root  155 2011-09-07 18:45 users.cfg
root@server1:~#

Let's check out the /etc/nagios-plugins/config/disk.cfg file:

cat /etc/nagios-plugins/config/disk.cfg

# 'check_disk' command definition
define command{
        command_name    check_disk
        command_line    /usr/lib/nagios/plugins/check_disk -w '$ARG1$' -c '$ARG2$' -e -p '$ARG3$'
        }

# 'check_all_disks' command definition
define command{
        command_name    check_all_disks
        command_line    /usr/lib/nagios/plugins/check_disk -w '$ARG1$' -c '$ARG2$' -e
        }

# 'ssh_disk' command definition
define command{
        command_name    ssh_disk
        command_line    /usr/lib/nagios/plugins/check_by_ssh -H '$HOSTADDRESS$' -C "/usr/lib/nagios/plugins/check_disk -w '$ARG1$' -c '$ARG2$' -e -p '$ARG3$'"
        }

####
# use these checks, if you want to test IPv4 connectivity on IPv6 enabled systems
####

# 'ssh_disk_4' command definition
define command{
        command_name    ssh_disk_4
        command_line    /usr/lib/nagios/plugins/check_by_ssh -H '$HOSTADDRESS$' -C "/usr/lib/nagios/plugins/check_disk -w '$ARG1$' -c '$ARG2$' -e -p '$ARG3$'" -4
        }

As you see, the check_all_disks command is defined as /usr/lib/nagios/plugins/check_disk -w '$ARG1$' -c '$ARG2$' -e. If you take a look at the /etc/icinga/objects/localhost_icinga.cfg file again, you see that we have the line check_command check_all_disks!20%!10% in it. Icinga allows us to pass command line arguments to service checks by separating them with an exclamation mark (!), so check_command check_all_disks!20%!10% means we pass 20% as the first command line argument and 10% as the second command line argument to the /usr/lib/nagios/plugins/check_disk -w '$ARG1$' -c '$ARG2$' -e command so that it finally translates to /usr/lib/nagios/plugins/check_disk -w '20%' -c '10%' -e.

If you want to pass a command line argument that contains an exclamation mark, you must escape the exclamation mark with a backslash: \!

The Nagios plugins (i.e., the tools Icinga uses to run checks) are located in the /usr/lib/nagios/plugins directory:

ls -l /usr/lib/nagios/plugins

root@server1:~# ls -l /usr/lib/nagios/plugins
total 2456
-rwxr-xr-x 1 root root 108928 2011-09-07 18:46 check_apt
-rwxr-xr-x 1 root root   5369 2011-09-07 18:45 check_bgpstate
-rwxr-xr-x 1 root root   2242 2011-09-07 18:45 check_breeze
-rwxr-xr-x 1 root root  51976 2011-09-07 18:46 check_by_ssh
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_clamd -> check_tcp
-rwxr-xr-x 1 root root  35136 2011-09-07 18:46 check_cluster
-rwxr-xr-x 1 root root  51552 2011-09-07 18:46 check_dhcp
-rwxr-xr-x 1 root root  47584 2011-09-07 18:46 check_dig
-rwxr-xr-x 1 root root 126016 2011-09-07 18:46 check_disk
-rwxr-xr-x 1 root root   8726 2011-09-07 18:45 check_disk_smb
-rwxr-xr-x 1 root root  47488 2011-09-07 18:46 check_dns
-rwxr-xr-x 1 root root  30704 2011-09-07 18:46 check_dummy
-rwxr-xr-x 1 root root   3053 2011-09-07 18:45 check_file_age
-rwxr-xr-x 1 root root   6315 2011-09-07 18:45 check_flexlm
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_ftp -> check_tcp
lrwxrwxrwx 1 root root     10 2011-09-07 18:46 check_host -> check_icmp
-rwxr-xr-x 1 root root  47264 2011-09-07 18:46 check_hpjd
-rwxr-xr-x 1 root root 146656 2011-09-07 18:46 check_http
-rwxr-xr-x 1 root root  55328 2011-09-07 18:46 check_icmp
-rwxr-xr-x 1 root root  39360 2011-09-07 18:46 check_ide_smart
-rwxr-xr-x 1 root root  15134 2011-09-07 18:45 check_ifoperstatus
-rwxr-xr-x 1 root root  12598 2011-09-07 18:45 check_ifstatus
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_imap -> check_tcp
-rwxr-xr-x 1 root root   6887 2011-09-07 18:45 check_ircd
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_jabber -> check_tcp
-rwxr-xr-x 1 root root  43656 2011-09-07 18:46 check_ldap
lrwxrwxrwx 1 root root     10 2011-09-07 18:46 check_ldaps -> check_ldap
-rwxr-xr-x 1 root root   3407 2011-09-07 18:45 check_linux_raid
-rwxr-xr-x 1 root root  39104 2011-09-07 18:46 check_load
-rwxr-xr-x 1 root root   6026 2011-09-07 18:45 check_log
-rwxr-xr-x 1 root root  20284 2011-09-07 18:45 check_mailq
-rwxr-xr-x 1 root root  39296 2011-09-07 18:46 check_mrtg
-rwxr-xr-x 1 root root  39168 2011-09-07 18:46 check_mrtgtraf
-rwxr-xr-x 1 root root  47552 2011-09-07 18:46 check_mysql
-rwxr-xr-x 1 root root  47560 2011-09-07 18:46 check_mysql_query
-rwxr-xr-x 1 root root  39136 2011-09-07 18:46 check_nagios
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_nntp -> check_tcp
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_nntps -> check_tcp
-rwxr-xr-x 1 root root  51648 2011-09-07 18:46 check_nt
-rwxr-xr-x 1 root root  51616 2011-09-07 18:46 check_ntp
-rwxr-xr-x 1 root root  51880 2011-09-07 18:46 check_ntp_peer
-rwxr-xr-x 1 root root  47512 2011-09-07 18:46 check_ntp_time
-rwxr-xr-x 1 root root  63848 2011-09-07 18:46 check_nwstat
-rwxr-xr-x 1 root root   8326 2011-09-07 18:45 check_oracle
-rwxr-xr-x 1 root root  43336 2011-09-07 18:46 check_overcr
-rwxr-xr-x 1 root root  43552 2011-09-07 18:46 check_pgsql
-rwxr-xr-x 1 root root  51648 2011-09-07 18:46 check_ping
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_pop -> check_tcp
-rwxr-xr-x 1 root root 117344 2011-09-07 18:46 check_procs
-rwxr-xr-x 1 root root  43496 2011-09-07 18:46 check_radius
-rwxr-xr-x 1 root root  43424 2011-09-07 18:46 check_real
-rwxr-xr-x 1 root root   9581 2011-09-07 18:45 check_rpc
lrwxrwxrwx 1 root root     10 2011-09-07 18:46 check_rta_multi -> check_icmp
-rwxr-xr-x 1 root root   1137 2011-09-07 18:45 check_sensors
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_simap -> check_tcp
-rwxr-xr-x 1 root root 125632 2011-09-07 18:46 check_smtp
-rwxr-xr-x 1 root root 134272 2011-09-07 18:46 check_snmp
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_spop -> check_tcp
-rwxr-xr-x 1 root root  39296 2011-09-07 18:46 check_ssh
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_ssmtp -> check_tcp
-rwxr-xr-x 1 root root  43232 2011-09-07 18:46 check_swap
-rwxr-xr-x 1 root root  52064 2011-09-07 18:46 check_tcp
-rwxr-xr-x 1 root root  43392 2011-09-07 18:46 check_time
lrwxrwxrwx 1 root root      9 2011-09-07 18:46 check_udp -> check_tcp
-rwxr-xr-x 1 root root  47488 2011-09-07 18:46 check_ups
-rwxr-xr-x 1 root root  39072 2011-09-07 18:46 check_users
-rwxr-xr-x 1 root root   2936 2011-09-07 18:45 check_wave
-rwxr-xr-x 1 root root  43352 2011-09-07 18:46 negate
-rwxr-xr-x 1 root root  39032 2011-09-07 18:46 urlize
-rw-r--r-- 1 root root   1938 2011-09-07 18:45 utils.pm
-rwxr-xr-x 1 root root    862 2011-09-07 18:45 utils.sh
root@server1:~#

To find out what command line arguments a plugin can take, call that plugin with the --help switch. For example, to find out how the check_disk plugin can be used, run

/usr/lib/nagios/plugins/check_disk --help

With this knowledge you can modify the service checks in /etc/icinga/objects/localhost_icinga.cfg to your likings, and you can add/modify plugin configurations in the /etc/nagios-plugins/config directory.

Now let's assume we want to add a service check for MySQL, we first take a look at the appropriate plugin configuration:

cat /etc/nagios-plugins/config/mysql.cfg

# 'check_mysql' command definition
define command{
        command_name    check_mysql
        command_line    /usr/lib/nagios/plugins/check_mysql -H '$HOSTADDRESS$'
}

# 'check_mysql_cmdlinecred' command definition
define command{
        command_name    check_mysql_cmdlinecred
        command_line    /usr/lib/nagios/plugins/check_mysql -H '$HOSTADDRESS$' -u '$ARG1$' -p '$ARG2$'
}

# 'check_mysql_database' command definition
define command{
        command_name    check_mysql_database
        command_line    /usr/lib/nagios/plugins/check_mysql -d '$ARG3$' -H '$HOSTADDRESS$' -u '$ARG1$' -p '$ARG2$'
}

The command I want to use is check_mysql_cmdlinecred - this takes a MySQL username and a password as arguments (besides the host address which is taken from the host_name parameter of the service check definition. I want to use the MySQL user nagios with the password howtoforge here, so I add the following section to /etc/icinga/objects/localhost_icinga.cfg:

vi /etc/icinga/objects/localhost_icinga.cfg

[...]
define service{
       use                             generic-service
       host_name                       localhost
       service_description             MySQL
       check_command                   check_mysql_cmdlinecred!nagios!howtoforge
}

Before we restart Icinga, we must create the MySQL user nagios with the password howtoforge:

mysql -u root -p

GRANT USAGE ON *.* TO nagios@localhost IDENTIFIED BY 'howtoforge';
GRANT USAGE ON *.* TO nagios@localhost.localdomain IDENTIFIED BY 'howtoforge';
FLUSH PRIVILEGES;

quit;

(The USAGE privilege is a synonym for 'no privileges', i.e., the nagios user can connect to MySQL, but not alter or read any data.)

Now we restart Icinga so that our changes take effect:

/etc/init.d/icinga restart

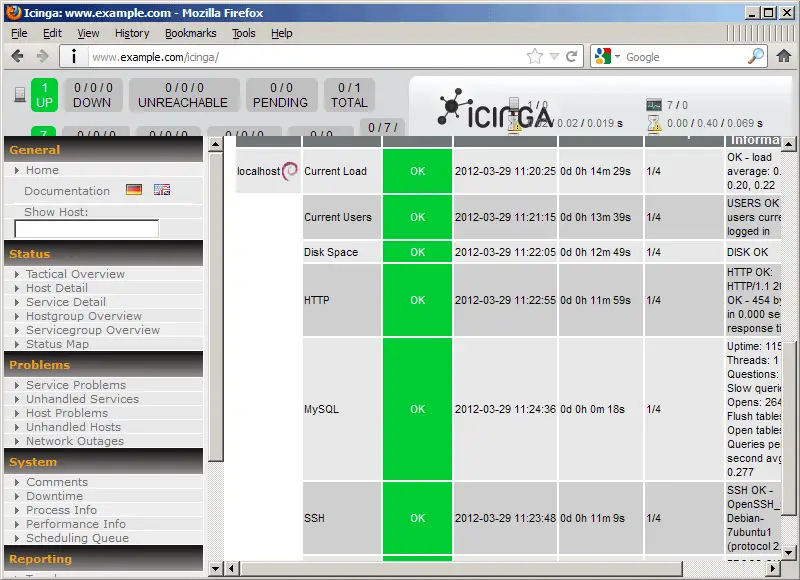

If you check localhost's services in the Icinga web interface now, you should see that a check for MySQL has been added:

Likewise, we can add checks for SMTP, POP3, and IMAP - these are just connection checks, so we don't need any arguments:

vi /etc/icinga/objects/localhost_icinga.cfg

[...]
define service{
       use                             generic-service
       host_name                       localhost
       service_description             SMTP
       check_command                   check_smtp
}
define service{
       use                             generic-service
       host_name                       localhost
       service_description             POP3
       check_command                   check_pop
}
define service{
       use                             generic-service
       host_name                       localhost
       service_description             IMAP
       check_command                   check_imap
}

Restart Icinga...

/etc/init.d/icinga restart

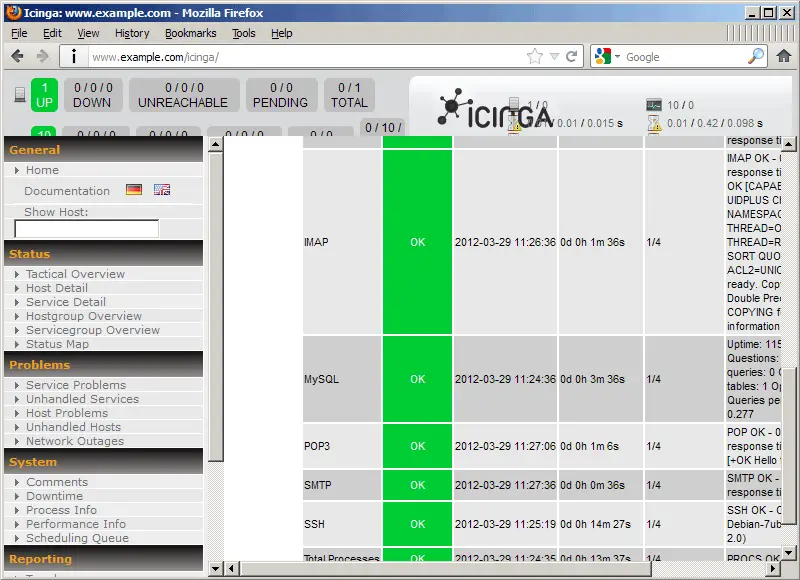

... and a few moments later you should see the new checks in the Icinga web interface:

You might have noticed the SSH and HTTP checks for localhost which are not defined in /etc/icinga/objects/localhost_icinga.cfg. These are defined in hostgroups in the /etc/icinga/objects/hostgroups_icinga.cfg file. A hostgroup allows us to run a service check for multiple servers and define it only once. Take a look at that file:

cat /etc/icinga/objects/hostgroups_icinga.cfg

# Some generic hostgroup definitions

# A simple wildcard hostgroup
define hostgroup {
        hostgroup_name  all
                alias           All Servers
                members         *
        }

# A list of your Debian GNU/Linux servers
define hostgroup {
        hostgroup_name  debian-servers
                alias           Debian GNU/Linux Servers
                members         localhost
        }

# A list of your web servers
define hostgroup {
        hostgroup_name  http-servers
                alias           HTTP servers
                members         localhost
        }

# A list of your ssh-accessible servers
define hostgroup {
        hostgroup_name  ssh-servers
                alias           SSH servers
                members         localhost
        }

As you see, we have a hostgroup called http-servers and a hostgroup called ssh-servers, and localhost is a member of each of these groups. The service checks for the hostgroups are defined in /etc/icinga/objects/services_icinga.cfg. This file contains service checks and refers to the hostgroups to which these checks should be applied by using the hostgroup_name parameter:

cat /etc/icinga/objects/services_icinga.cfg

# check that web services are running
define service {
        hostgroup_name                  http-servers
        service_description             HTTP
        check_command                   check_http
        use                             generic-service
        notification_interval           0 ; set > 0 if you want to be renotified
}

# check that ssh services are running
define service {
        hostgroup_name                  ssh-servers
        service_description             SSH
        check_command                   check_ssh
        use                             generic-service
        notification_interval           0 ; set > 0 if you want to be renotified
}

As you see, the SSH and HTTP service checks are defined here.

Share this page:

2 Comment(s)

Add comment

Comments

From: Anonymous at: 2012-04-01 19:30:39

Wow, thats a nice tutorial, however you should look into using Nagios. What you described is MUCH easier to do with Nagios and if its for a business, look into Nagios XI, it takes all of the work out of configuring it, simple point and click wizards are so easy, even your manager can configure it :)

From: Bill at: 2012-04-01 22:47:12

One thing everyone forgets about is the -n parameter when running plugins (like nrpe). The -n means no ssl. If this is not specified, the server will try to initiate an ssl handshake first. If your clients don't have ssl turned on for NSClient++ or whatever, then hard to track errors occur. I use the -n flag a lot in my environment. All our monitoring happens on a private network with no external access.
