The Perfect Setup - Mandriva 2006 Free Edition

This is a "copy & paste" HowTo! The easiest way to follow this tutorial is to use a command line client/SSH client (like PuTTY for Windows) and simply copy and paste the commands (except where you have to provide own information like IP addresses, hostnames, passwords,...). This helps to avoid typos.

The Perfect Setup - Mandriva 2006 Free Edition

Version 1.0
Author: Falko Timme
Last edited: 11/29/2005

This is a detailed description about the steps to be taken to setup a Mandriva 2006 Free Edition based server that offers all services needed by ISPs and hosters (web server (SSL-capable), mail server (with SMTP-AUTH and TLS!), DNS server, FTP server, MySQL server, POP3/IMAP, Quota, Firewall, etc.).

I will use the following software:

  • Web Server: Apache 2.0.x
  • Mail Server: Postfix (easier to configure than sendmail; has a shorter history of security holes than sendmail)
  • DNS Server: BIND9
  • FTP Server: proftpd
  • POP3/IMAP servers
  • Webalizer for web site statistics

In the end you should have a system that works reliably and is ready for the free webhosting control panel ISPConfig (i.e., ISPConfig runs on it out of the box).

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!

Requirements

To install such a system you will need the following:

1 The Base System

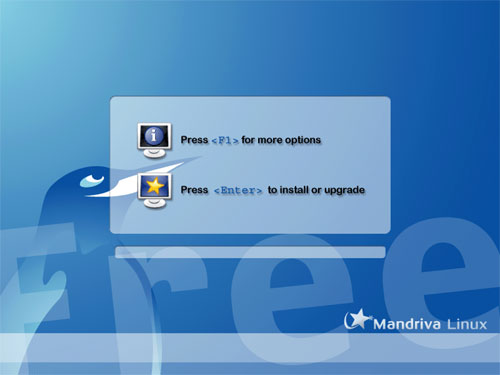

Boot from your Mandriva 2006 CD (CD 1). Press Enter to start the installation:

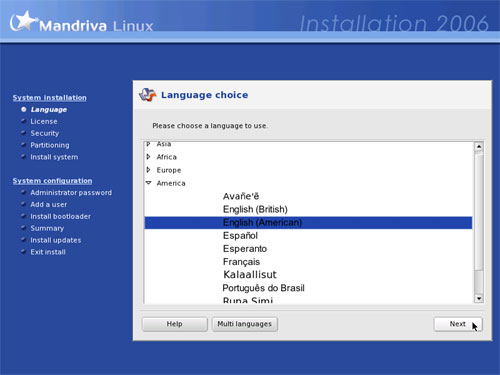

Choose your language next:

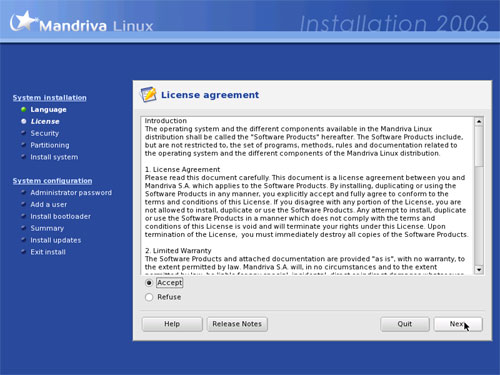

Accept the license and click on Next:

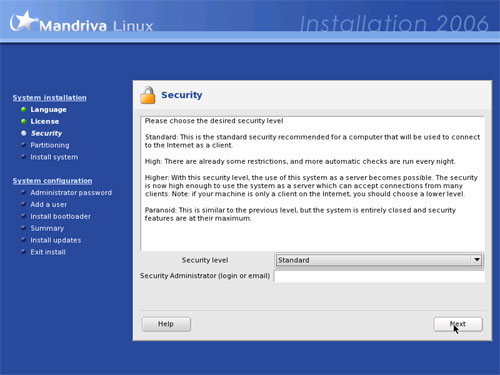

Select Standard as the Security level and leave the field Security Administrator empty:

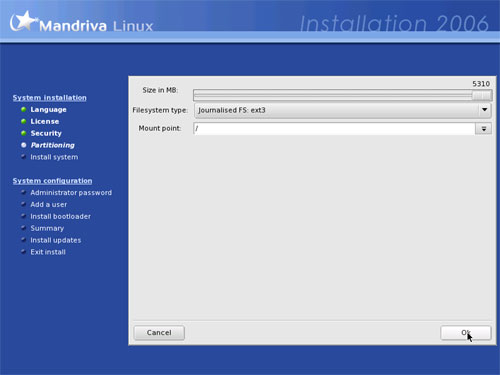

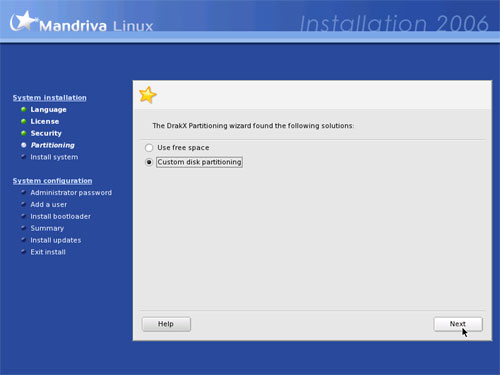

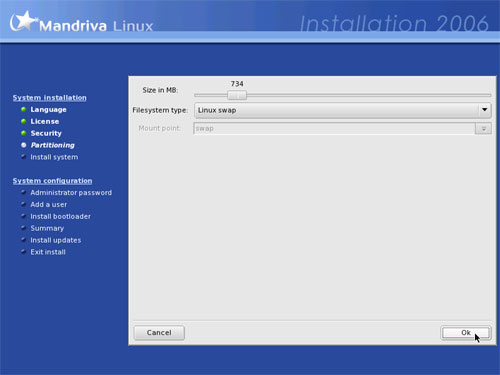

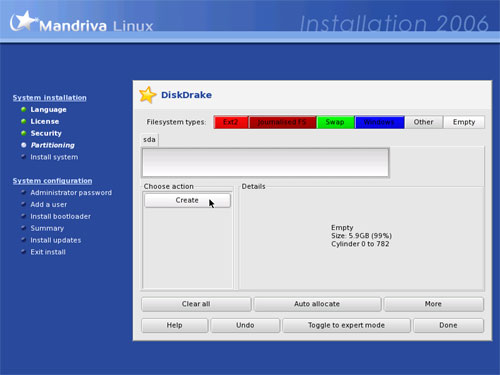

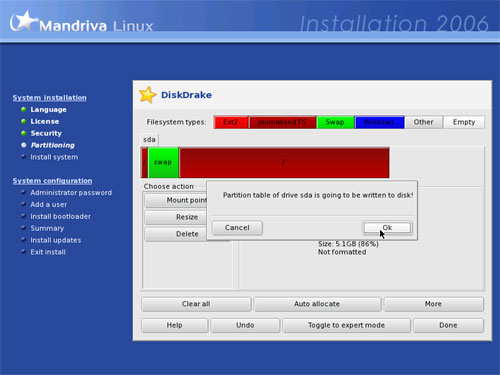

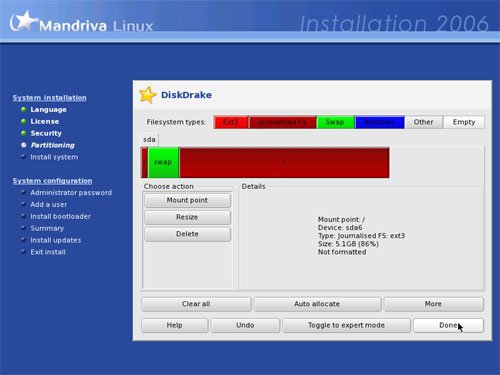

Now we have to partition our hard disk. You can choose to let the Mandriva installer do the partitioning, or you can do it yourself. I want to create a small /boot partition (about 100 MB) with the file system ext3, a swap partition and a huge / partition (again with ext3):

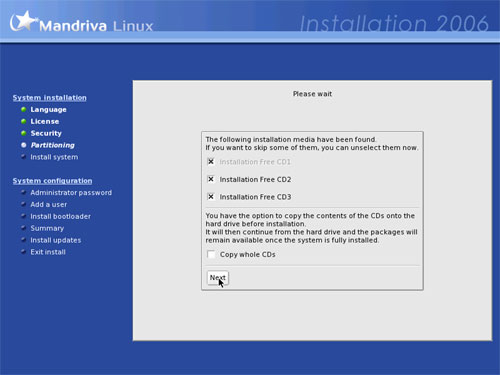

Click on Next if you have all three CDs of the Mandriva Download Edition:

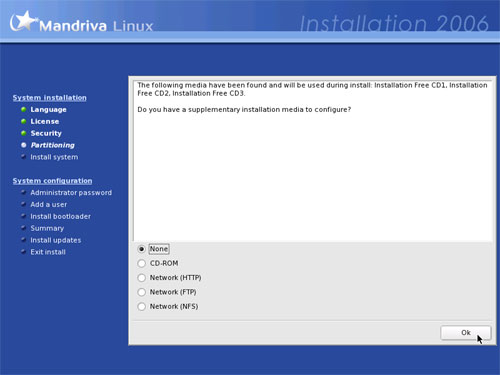

Select None and click on Next:
