How to Install PowerDNS and PowerDNS-Admin on Ubuntu 22.04

PowerDNS is a free and open-source authoritative nameserver written in C++. It is cross-platform and can run on Unix, Linux, and macOS operating systems. It supports several databases such as MySQL, MariaDB, PostgreSQL, and Oracle to store zone files and records.

PowerDNS Admin is a web-based application that can be used for managing PowerDNS via a web browser. It allows you to create and manage DNS zones using the PowerDNS web interface. It offers very useful features, including IPv4 and IPv6 support, bulk domain, DNSSec support, AD, LDAP, SAML authentication, and more.

In this post, we will explain how to install PowerDNS and PowerDNS admin on Ubuntu 22.04 server.

Prerequisites

  • A server running Ubuntu 22.04.
  • A valid domain name pointed with your server IP.
  • A root password is configured on the server.

Install and Configure MariaDB Server

First, you will need to install the MariaDB database server on your system.

apt-get install mariadb-server -y

Once the MariaDB has been installed, you will need to create a database and user for PowerDNS.

First, login to MariaDB with the following command:

mysql

Once login, create a database and user with the following command:

MariaDB [(none)]> create database pdns;
MariaDB [(none)]> grant all on pdns.* to [email protected] identified by 'password';

Next, flush the privileges and exit from the MariaDB shell with the following command:

MariaDB [(none)]> flush privileges;
MariaDB [(none)]> exit;

Install PowerDNS

Before starting, you will need to disable the systemd-resolved service from your system. You can disable it with the following command:

systemctl disable --now systemd-resolved

Next, remove the default resolv.conf file and create a new file:

rm -rf /etc/resolv.conf
echo "nameserver 8.8.8.8" > /etc/resolv.conf

Next, install the PowerDNS server with the following command:

apt-get install pdns-server pdns-backend-mysql -y

Once the PowerDNS is installed, you can proceed to the next step.

Configure PowerDNS

First, import the PowerDNS database schema to the PowerDNS database with the following command:

mysql -u pdnsadmin -p pdns < /usr/share/pdns-backend-mysql/schema/schema.mysql.sql

Next, you will need to create a PowerDNS configuration file and define the PowerDNS database connection details:

nano /etc/powerdns/pdns.d/pdns.local.gmysql.conf

Add the following lines:

# MySQL Configuration
#
# Launch gmysql backend
launch+=gmysql

# gmysql parameters
gmysql-host=127.0.0.1
gmysql-port=3306
gmysql-dbname=pdns
gmysql-user=pdnsadmin
gmysql-password=password
gmysql-dnssec=yes
# gmysql-socket=

Save and close the file, then set proper permission to the file pdns.local.gmysql.conf:

chmod 640 /etc/powerdns/pdns.d/pdns.local.gmysql.conf
chown pdns:pdns /etc/powerdns/pdns.d/pdns.local.gmysql.conf

Next, stop the PowerDNS server and test the PowerDNS with the following command:

systemctl stop pdns
pdns_server --daemon=no --guardian=no --loglevel=9

If everything is fine, you should get the following output:

Aug 06 10:43:47 gmysql Connection successful. Connected to database 'pdns' on '127.0.0.1'.
Aug 06 10:43:47 gmysql Connection successful. Connected to database 'pdns' on '127.0.0.1'.
Aug 06 10:43:47 gmysql Connection successful. Connected to database 'pdns' on '127.0.0.1'.
Aug 06 10:43:47 Done launching threads, ready to distribute questions

Next, start the PowerDNS server with the following command:

systemctl start pdns

You can now check the status of the PowerDNS using the following command:

systemctl status pdns

You should see the following output:

? pdns.service - PowerDNS Authoritative Server
     Loaded: loaded (/lib/systemd/system/pdns.service; enabled; vendor preset: enabled)
     Active: active (running) since Sat 2022-08-06 10:37:28 UTC; 8s ago
       Docs: man:pdns_server(1)
             man:pdns_control(1)
             https://doc.powerdns.com
   Main PID: 93982 (pdns_server)
      Tasks: 8 (limit: 2242)
     Memory: 43.1M
        CPU: 166ms
     CGroup: /system.slice/pdns.service
             ??93982 /usr/sbin/pdns_server --guardian=no --daemon=no --disable-syslog --log-timestamp=no --write-pid=no

Aug 06 10:37:28 ubuntu2204 pdns_server[93982]: UDP server bound to [::]:53
Aug 06 10:37:28 ubuntu2204 pdns_server[93982]: TCP server bound to 0.0.0.0:53
Aug 06 10:37:28 ubuntu2204 pdns_server[93982]: TCP server bound to [::]:53
Aug 06 10:37:28 ubuntu2204 pdns_server[93982]: PowerDNS Authoritative Server 4.5.3 (C) 2001-2021 PowerDNS.COM BV
Aug 06 10:37:28 ubuntu2204 pdns_server[93982]: Using 64-bits mode. Built using gcc 11.2.0.
Aug 06 10:37:28 ubuntu2204 pdns_server[93982]: PowerDNS comes with ABSOLUTELY NO WARRANTY. This is free software, and you are welcome to redi>
Aug 06 10:37:28 ubuntu2204 pdns_server[93982]: Creating backend connection for TCP
Aug 06 10:37:28 ubuntu2204 systemd[1]: Started PowerDNS Authoritative Server.
Aug 06 10:37:28 ubuntu2204 pdns_server[93982]: About to create 3 backend threads for UDP
Aug 06 10:37:29 ubuntu2204 pdns_server[93982]: Done launching threads, ready to distribute questions

At this point, PowerDNS is started and listening on port 53. You can check it with the following command:

ss -alnp4 | grep pdns

You should get the following output:

udp   UNCONN 0      0             0.0.0.0:53         0.0.0.0:*    users:(("pdns_server",pid=93982,fd=5))
tcp   LISTEN 0      128           0.0.0.0:53         0.0.0.0:*    users:(("pdns_server",pid=93982,fd=7))

Install PowerDNS Admin

In this section, we will show you how to install PowerDNS admin with Nginx.

Install Required Dependencies

First, install all the dependencies required for PowerDNS admin with the following command:

apt-get install nginx python3-dev libsasl2-dev libldap2-dev libssl-dev libxml2-dev libxslt1-dev libxmlsec1-dev libffi-dev pkg-config apt-transport-https virtualenv build-essential libmariadb-dev git python3-flask -y

Once all the dependencies are installed, add the Node.js repository with the following command:

curl -sL https://deb.nodesource.com/setup_16.x | bash -

Next, install the Node.js with the following command:

apt-get install nodejs -y

Next, add the yarn repository with the following command:

curl -sS https://dl.yarnpkg.com/debian/pubkey.gpg | apt-key add -
echo "deb https://dl.yarnpkg.com/debian/ stable main" | tee /etc/apt/sources.list.d/yarn.list

Next, update the repository and install Yarn with the following command:

apt-get update -y
apt-get install yarn -y

At this point, all the required dependencies are installed, you can now proceed to the next step.

Download PowerDNS Admin

Next, download the latest version of PowerDNS admin from the Git repository to the Nginx root directory:

git clone https://github.com/ngoduykhanh/PowerDNS-Admin.git /var/www/html/pdns

Next, change the directory to the downloaded directory and create a Python virtual environment with the following command:

cd /var/www/html/pdns/
virtualenv -p python3 flask

Next, activate the virtual environment and install all Python dependencies with the following command:

source ./flask/bin/activate
pip install -r requirements.txt

Next, deactivate the Virtual environment with the following command:

deactivate

Configure Database Connection

Next, you will need to define the PowerDNS database connection details to the default_config.py file:

nano /var/www/html/pdns/powerdnsadmin/default_config.py

Change the following lines:

SALT = 'yoursecretekey'
SECRET_KEY = 'yoursecretekey'
BIND_ADDRESS = '0.0.0.0'
PORT = 9191
HSTS_ENABLED = False
OFFLINE_MODE = False

SQLA_DB_USER = 'pdnsadmin'
SQLA_DB_PASSWORD = 'password'
SQLA_DB_HOST = '127.0.0.1'
SQLA_DB_NAME = 'pdns'
SQLALCHEMY_TRACK_MODIFICATIONS = True

Save and close the file, then change the directory to the pdns and activate the virtual environment:

cd /var/www/html/pdns/
source ./flask/bin/activate

Next, update the database with the following command:

export FLASK_APP=powerdnsadmin/__init__.py
flask db upgrade
yarn install --pure-lockfile
flask assets build

Next, deactivate the virtual environment with the following command:

deactivate

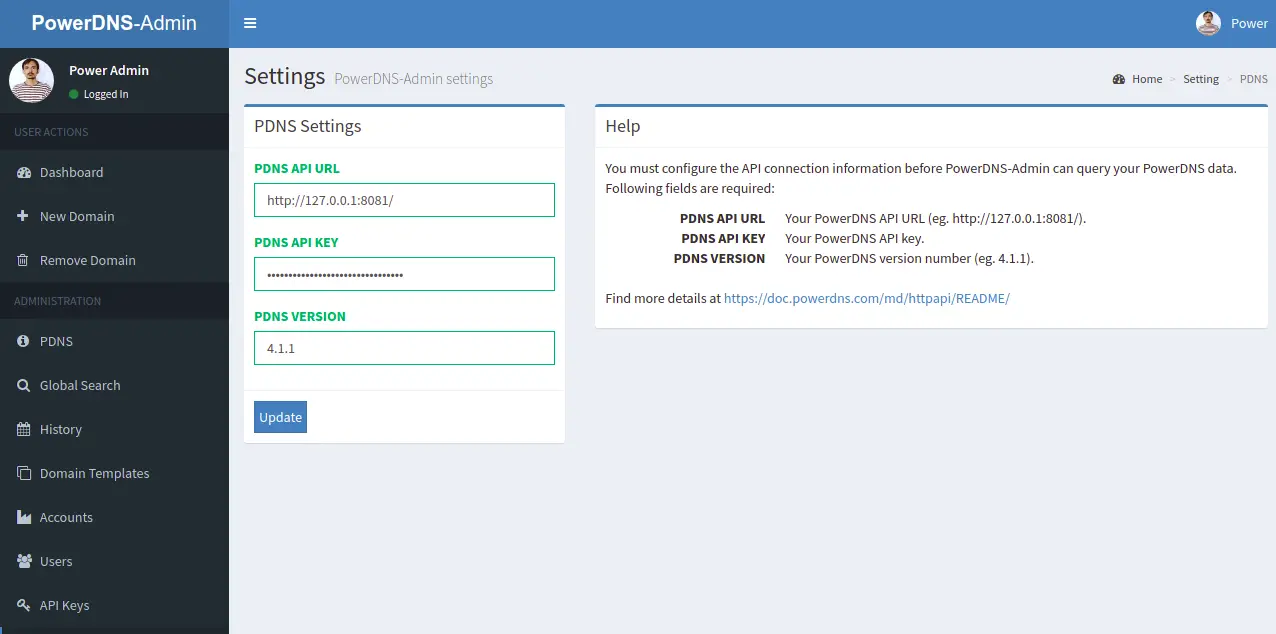

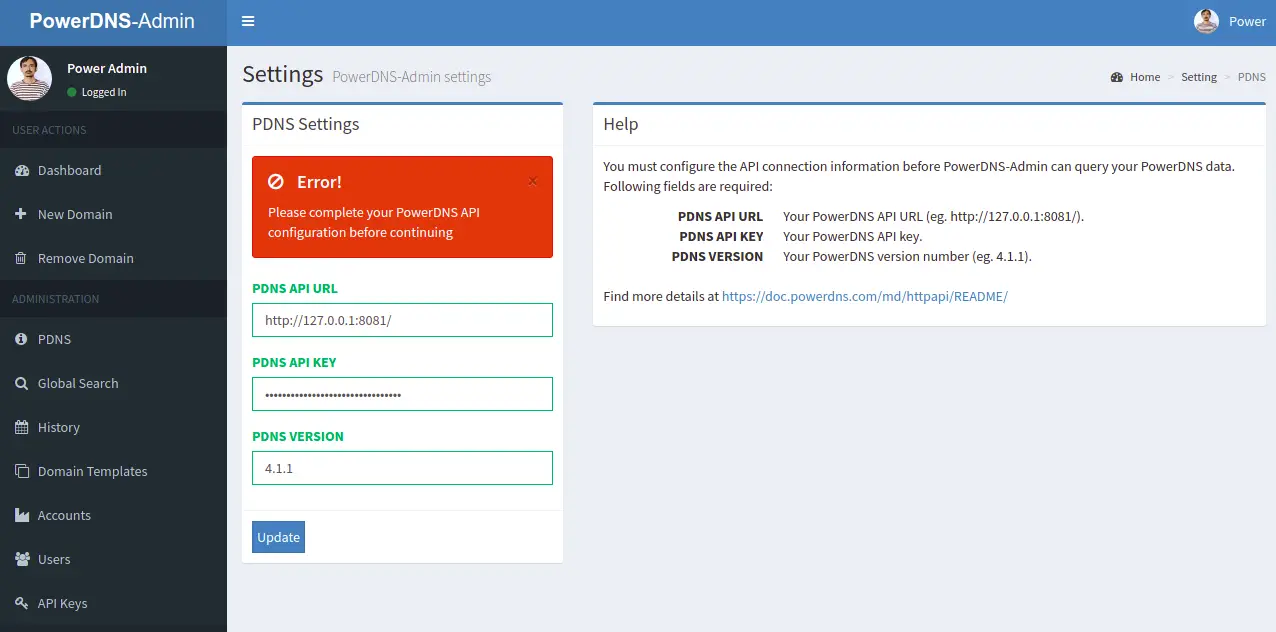

Enable PowerDNS Admin API

PowerDNS admin uses JSON API for reading statistics and modifying zone content, metadata, and DNSSEC key material. You can enable it by editing the file pdns.conf:

nano /etc/powerdns/pdns.conf

Change the following lines:

api=yes
api-key=yoursecretekey

Save and close the file, then restart the PowerDNS service to apply the changes:

systemctl restart pdns

Configure Nginx as a Reverse Proxy for PowerDNS Admin

Next, you will need to configure the Nginx as a reverse proxy for the PowerDNS admin. To do so, create an Nginx virtual host configuration file with the following command:

nano /etc/nginx/conf.d/pdns-admin.conf

Add the following lines:

server {
  listen	*:80;
  server_name               pdnsadmin.example.com;

  index                     index.html index.htm index.php;
  root                      /var/www/html/pdns;
  access_log                /var/log/nginx/pdnsadmin_access.log combined;
  error_log                 /var/log/nginx/pdnsadmin_error.log;

  client_max_body_size              10m;
  client_body_buffer_size           128k;
  proxy_redirect                    off;
  proxy_connect_timeout             90;
  proxy_send_timeout                90;
  proxy_read_timeout                90;
  proxy_buffers                     32 4k;
  proxy_buffer_size                 8k;
  proxy_set_header                  Host $host;
  proxy_set_header                  X-Real-IP $remote_addr;
  proxy_set_header                  X-Forwarded-For $proxy_add_x_forwarded_for;
  proxy_headers_hash_bucket_size    64;

  location ~ ^/static/  {
    include  /etc/nginx/mime.types;
    root /var/www/html/pdns/powerdnsadmin;

    location ~*  \.(jpg|jpeg|png|gif)$ {
      expires 365d;
    }

    location ~* ^.+.(css|js)$ {
      expires 7d;
    }
  }

  location / {
    proxy_pass            http://unix:/run/pdnsadmin/socket;
    proxy_read_timeout    120;
    proxy_connect_timeout 120;
    proxy_redirect        off;
  }

}

Save and close the file, then check the Nginx for any syntax error with the following command:

nginx -t

You should get the following output:

nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

Next, change the ownership of the pdns to www-data:

chown -R www-data:www-data /var/www/html/pdns

Finally, restart the Nginx service to apply the changes:

systemctl restart nginx

Create a Systemd Service File for PowerDNS Admin

Next, you will need to create a systemd service file to manage the PowerDNS service.

First, create a pdns service file with the following command:

nano /etc/systemd/system/pdnsadmin.service

Add the following lines:

[Unit]
Description=PowerDNS-Admin
Requires=pdnsadmin.socket
After=network.target

[Service]
PIDFile=/run/pdnsadmin/pid
User=pdns
Group=pdns
WorkingDirectory=/var/www/html/pdns
ExecStart=/var/www/html/pdns/flask/bin/gunicorn --pid /run/pdnsadmin/pid --bind unix:/run/pdnsadmin/socket 'powerdnsadmin:create_app()'
ExecReload=/bin/kill -s HUP $MAINPID
ExecStop=/bin/kill -s TERM $MAINPID
PrivateTmp=true

[Install]
WantedBy=multi-user.target

Save and close the file, then create a pdnsadmin sockt file with the following command:

nano /etc/systemd/system/pdnsadmin.socket

Add the following lines:

[Unit]
Description=PowerDNS-Admin socket

[Socket]
ListenStream=/run/pdnsadmin/socket

[Install]
WantedBy=sockets.target

Save and close the file, then create the required files and directories with the following command:

echo "d /run/pdnsadmin 0755 pdns pdns -" >> /etc/tmpfiles.d/pdnsadmin.conf
mkdir /run/pdnsadmin/
chown -R pdns: /run/pdnsadmin/
chown -R pdns: /var/www/html/pdns/powerdnsadmin/

Next, reload the systemd daemon with the following command:

systemctl daemon-reload

Next, enable the pdnsadmin service to start at system reboot with the following command:

systemctl enable --now pdnsadmin.service pdnsadmin.socket

Next, verify the status of both service using the following command:

systemctl status pdnsadmin.service pdnsadmin.socket

You should get the following output:

? pdnsadmin.service - PowerDNS-Admin
     Loaded: loaded (/etc/systemd/system/pdnsadmin.service; enabled; vendor preset: enabled)
     Active: active (running) since Sat 2022-08-06 10:52:44 UTC; 9s ago
TriggeredBy: ? pdnsadmin.socket
   Main PID: 98696 (gunicorn)
      Tasks: 2 (limit: 2242)
     Memory: 63.1M
        CPU: 913ms
     CGroup: /system.slice/pdnsadmin.service
             ??98696 /var/www/html/pdns/flask/bin/python /var/www/html/pdns/flask/bin/gunicorn --pid /run/pdnsadmin/pid --bind unix:/run/pdns>
             ??98697 /var/www/html/pdns/flask/bin/python /var/www/html/pdns/flask/bin/gunicorn --pid /run/pdnsadmin/pid --bind unix:/run/pdns>

Aug 06 10:52:44 ubuntu2204 systemd[1]: Started PowerDNS-Admin.
Aug 06 10:52:44 ubuntu2204 gunicorn[98696]: [2022-08-06 10:52:44 +0000] [98696] [INFO] Starting gunicorn 20.0.4
Aug 06 10:52:44 ubuntu2204 gunicorn[98696]: [2022-08-06 10:52:44 +0000] [98696] [INFO] Listening at: unix:/run/pdnsadmin/socket (98696)
Aug 06 10:52:44 ubuntu2204 gunicorn[98696]: [2022-08-06 10:52:44 +0000] [98696] [INFO] Using worker: sync
Aug 06 10:52:44 ubuntu2204 gunicorn[98697]: [2022-08-06 10:52:44 +0000] [98697] [INFO] Booting worker with pid: 98697

? pdnsadmin.socket - PowerDNS-Admin socket
     Loaded: loaded (/etc/systemd/system/pdnsadmin.socket; enabled; vendor preset: enabled)
     Active: active (running) since Sat 2022-08-06 10:52:44 UTC; 9s ago
   Triggers: ? pdnsadmin.service
     Listen: /run/pdnsadmin/socket (Stream)
     CGroup: /system.slice/pdnsadmin.socket

Aug 06 10:52:44 ubuntu2204 systemd[1]: Listening on PowerDNS-Admin socket.

Access PowerDNS Admin

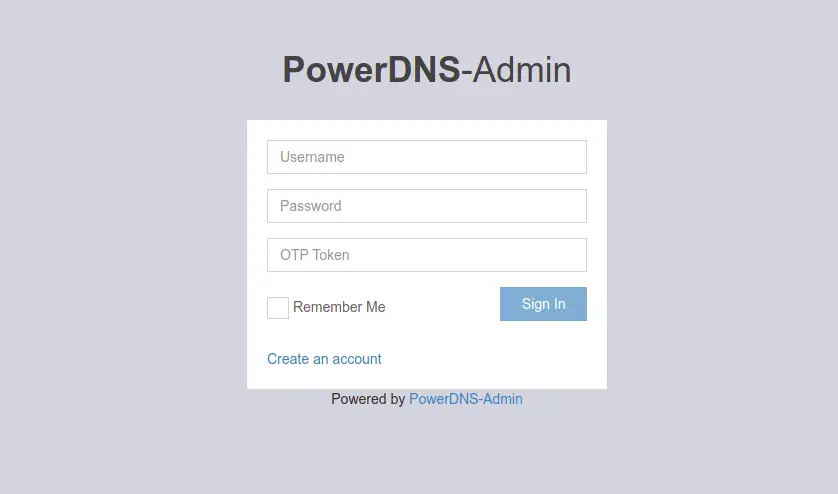

You can now open your web browser and access the PowerDNS admin web interface using the URL http://pdnsadmin.example.com. You will be redirected to the following page:

PowerDNS Admin

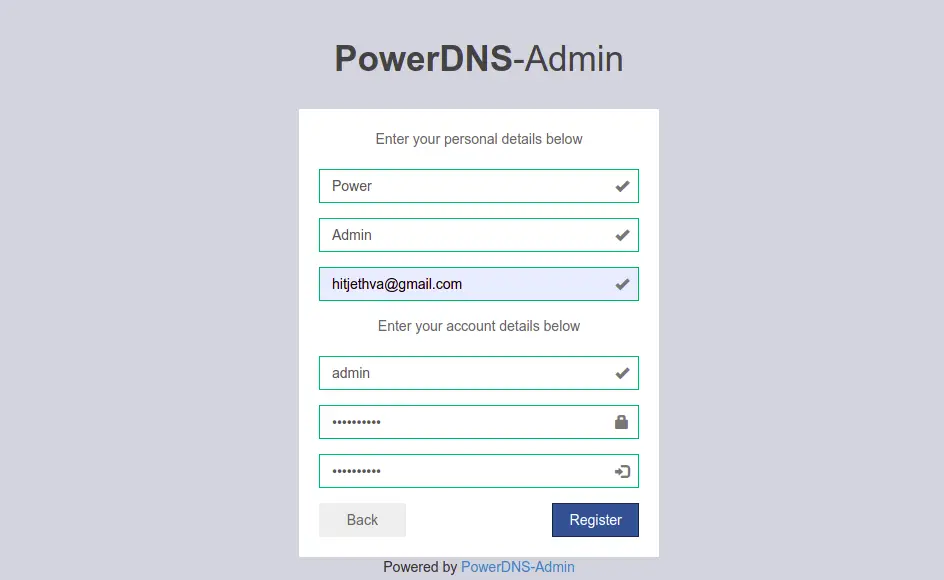

Click on the Create an account button. You should see the following screen:

Set new password

Provide your admin user details and click on the Register button to create an account. You should see the PowerDNS admin web interface on the following screen:

PowerDNS admin dashboard

Provide the PowerDNS API URL to connect to PowerDNS and manage it. Then, click on the Update button to save the changes. You should see the following page:

PDNS Settings

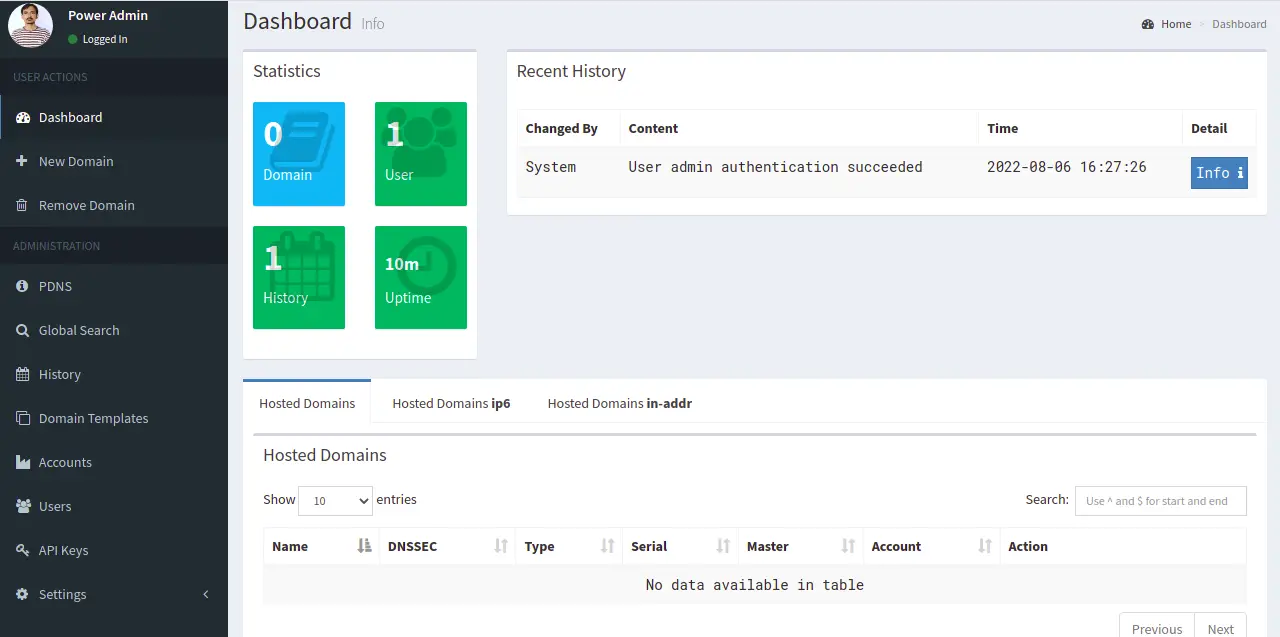

Click on the Dashboard button. You should see the PowerDNS admin dashboard on the following screen:

Dashboard

Conclusion

Congratulations! you have successfully installed and configured PowerDNS and PowerDNS admin with Nginx on Ubuntu 22.04 server. You can now create zones and add records through the PowerDNS admin web interface then test it. Feel free to ask me if you have any questions

Share this page:

Suggested articles

0 Comment(s)

Add comment
