Virtualization With KVM On An OpenSUSE 11.4 Server - Page 2

5 Connecting To The Guest

OpenSUSE 11.4 Desktop:

The KVM guest will now boot from the Debian Squeeze Netinstall CD and start the Debian installer - that's why we need to connect to the graphical console of the guest. You can do this with virt-manager on the OpenSUSE 11.4 desktop.



as a normal user (not root) on the desktop to start virt-manager (this is exactly the same on an Ubuntu desktop).

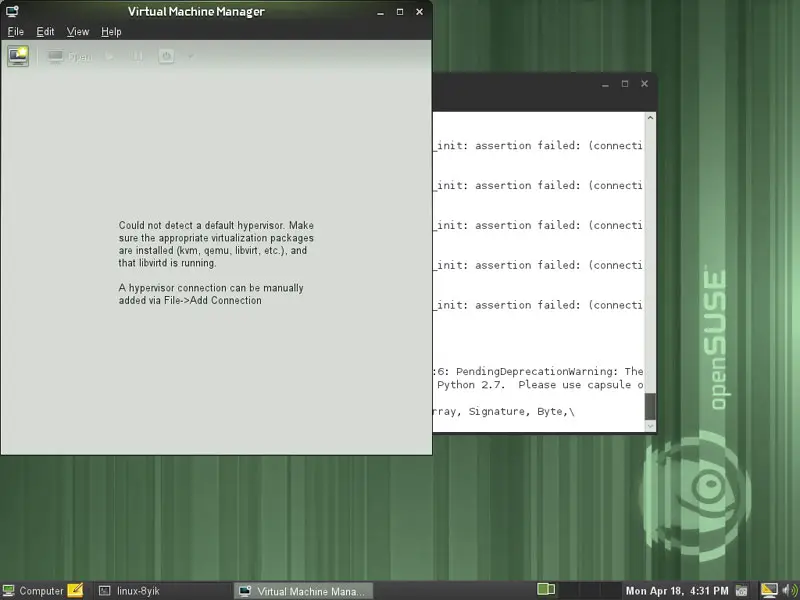

When you start virt-manager for the first time, you will most likely see the following message (Could not detect a default hypervisor.). You can ignore this because we don't want to connect to the local libvirt daemon, but to the one on our OpenSUSE 11.4 KVM host.

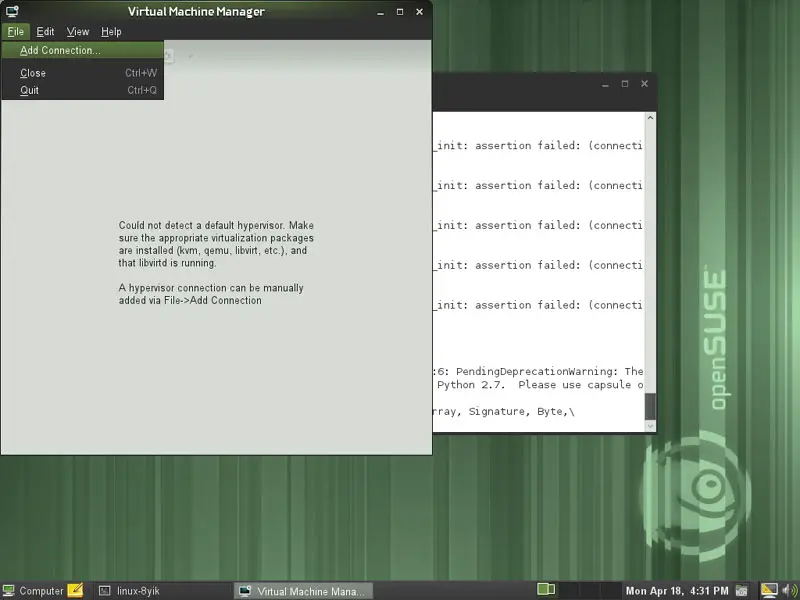

Go to File > Add Connection... to connect to our OpenSUSE 11.4 KVM host:

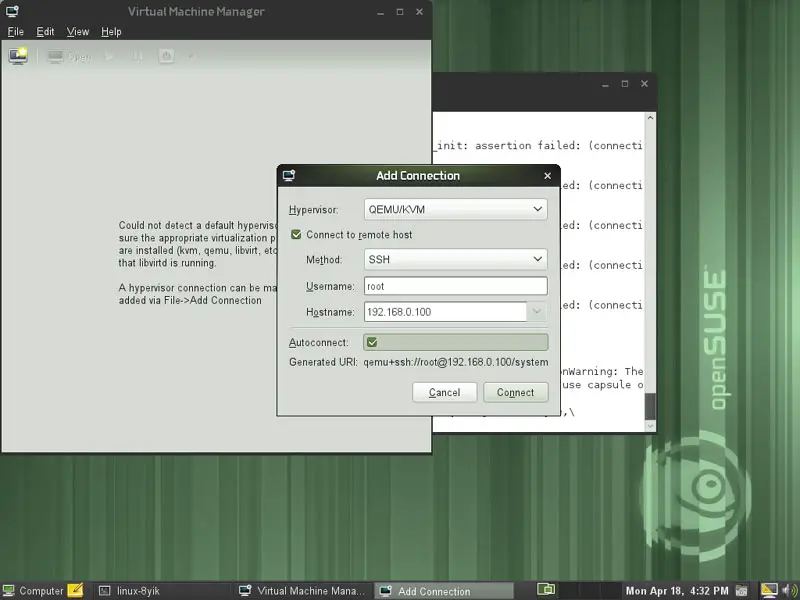

Select QEMU/KVM as Hypervisor, then check Connect to remote host, select SSH from the Method drop-down menu, fill in root in the Username field, type in the hostname ( or IP address ( of the OpenSUSE 11.4 KVM host in the Hostname field, and click on Connect:

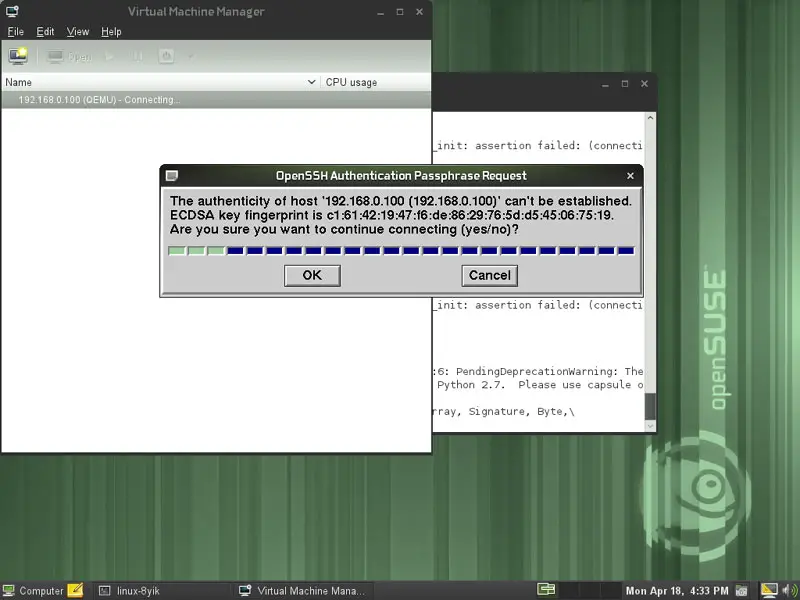

If this is the first connection to the remote KVM server, you must type in yes and click on OK:

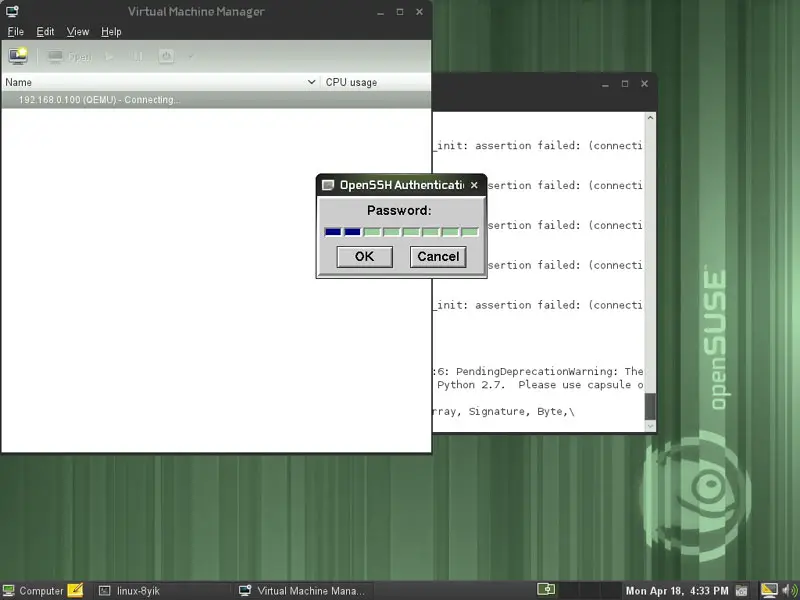

Afterwards type in the root password of the OpenSUSE 11.4 KVM host:

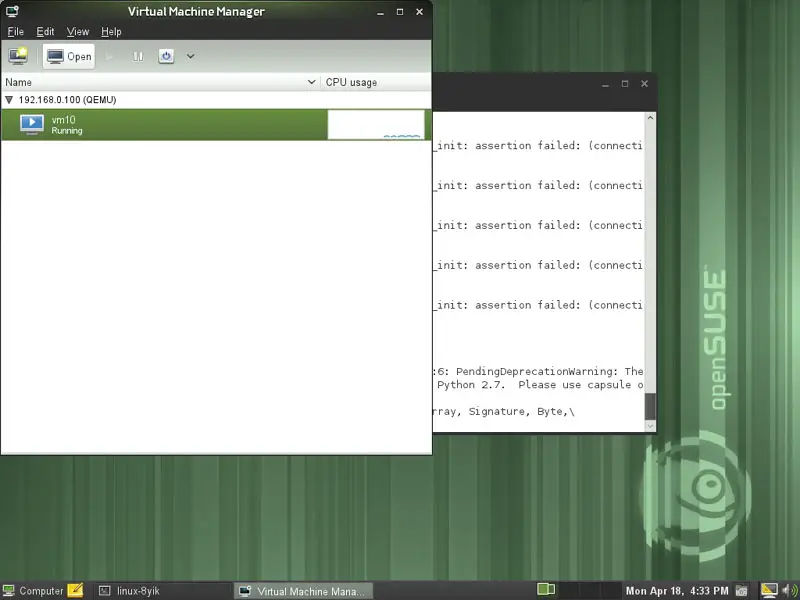

You should see vm10 as running. Mark that guest and click on the Open button to open the graphical console of the guest:

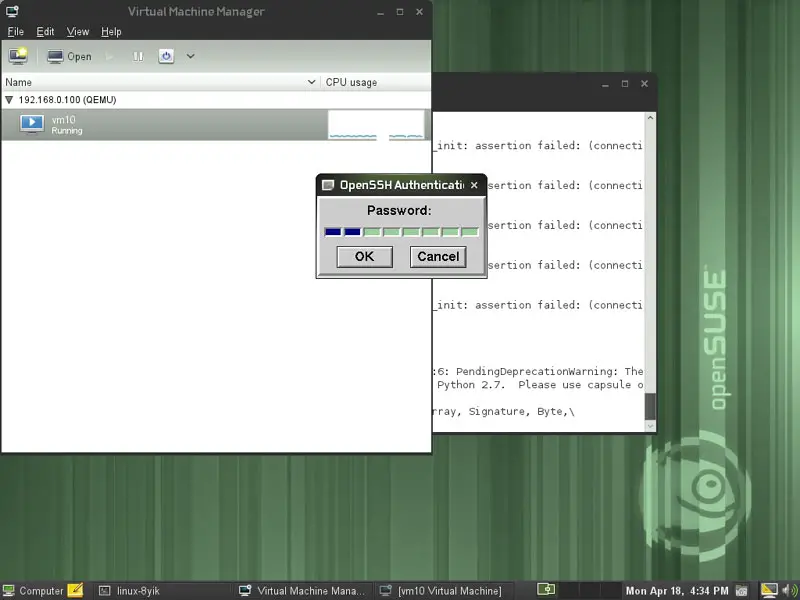

Type in the root password of the KVM host again (you might have to minimize the vm10 Virtual Machine window to see the password window):

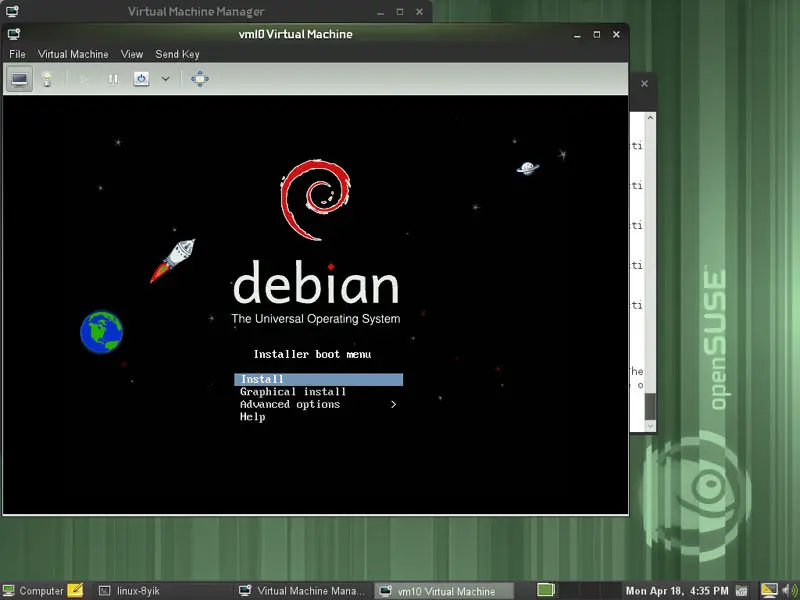

You should now be connected to the graphical console of the guest and see the Debian installer:

Now install Debian as you would normally do on a physical system. Please note that at the end of the installation, the Debian guest needs a reboot. The guest will then stop, so you need to start it again, either with virt-manager or like this on our OpenSUSE 11.4 KVM host command line:

OpenSUSE 11.4 KVM Host:

virsh --connect qemu:///system
start vm10

Afterwards, you can connect to the guest again with virt-manager and configure the guest. If you install OpenSSH (package openssh-server) in the guest, you can connect to it with an SSH client (such as PuTTY).
