Virtual Users And Domains With Postfix, Courier, MySQL And SquirrelMail (Ubuntu 12.04 LTS) - Page 4

12 Test Postfix

To see if Postfix is ready for SMTP-AUTH and TLS, run

telnet localhost 25

After you have established the connection to your Postfix mail server type

ehlo localhost

If you see the lines

250-STARTTLS

and

250-AUTH PLAIN LOGIN

everything is fine:

root@server1:/usr/local/sbin# telnet localhost 25
Trying 127.0.0.1...
Connected to localhost.localdomain.
Escape character is '^]'.
220 server1.example.com ESMTP Postfix (Ubuntu)

<-- ehlo localhost
250-server1.example.com
250-PIPELINING
250-SIZE 10240000
250-VRFY
250-ETRN
250-STARTTLS
250-AUTH PLAIN LOGIN
250-AUTH=PLAIN LOGIN
250-ENHANCEDSTATUSCODES
250-8BITMIME
250 DSN

<-- quit
221 2.0.0 Bye
Connection closed by foreign host.
root@server1:/usr/local/sbin#

Type

quit

to return to the system shell.



13 Populate The Database And Test

To populate the database you can use the MySQL shell:

mysql -u root -p

USE mail;

At least you have to create entries in the tables domains and users:

INSERT INTO `domains` (`domain`) VALUES ('example.com');
INSERT INTO `users` (`email`, `password`, `quota`) VALUES ('sales@example.com', ENCRYPT('secret'), 10485760);

(Please take care that you use the ENCRYPT syntax in the second INSERT statement in order to encrypt the password!)

If you want to make entries in the other two tables, that would look like this:

INSERT INTO `forwardings` (`source`, `destination`) VALUES ('info@example.com', 'sales@example.com');
INSERT INTO `transport` (`domain`, `transport`) VALUES ('example.com', 'smtp:mail.example.com');

To leave the MySQL shell, type

quit;

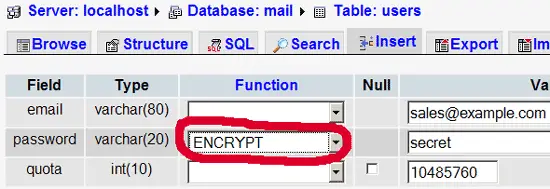

For most people it is easier if they have a graphical front-end to MySQL; therefore you can also use phpMyAdmin (in this example under http://192.168.0.100/phpmyadmin/ or http://server1.example.com/phpmyadmin/) to administrate the mail database. Again, when you create a user, go sure that you use the ENCRYPT function to encrypt the password:

I do not think I have to explain the domains and users table further.

The forwardings table can have entries like the following:

source destination
info@example.com sales@example.com Redirects emails for info@example.com to sales@example.com
@example.com thomas@example.com Creates a Catch-All account for thomas@example.com. All emails to example.com will arrive at thomas@example.com, except those that exist in the users table (i.e., if sales@example.com exists in the users table, mails to sales@example.com will still arrive at sales@example.com).
@example.com @anotherdomain.tld This redirects all emails to example.com to the same user at anotherdomain.tld. E.g., emails to thomas@example.com will be forwarded to thomas@anotherdomain.tld.
info@example.com sales@example.com, billing@anotherdomain.tld Forward emails for info@example.com to two or more email addresses. All listed email addresses under destination receive a copy of the email.

The transport table can have entries like these:

domain transport
example.com : Delivers emails for example.com locally. This is as if this record would not exist in this table at all.
example.com smtp:mail.anotherdomain.tld Delivers all emails for example.com via smtp to the server mail.anotherdomain.com.
example.com smtp:mail.anotherdomain.tld:2025 Delivers all emails for example.com via smtp to the server mail.anotherdomain.com, but on port 2025, not 25 which is the default port for smtp.
example.com

smtp:[1.2.3.4]
smtp:[1.2.3.4]:2025
smtp:[mail.anotherdomain.tld]

The square brackets prevent Postfix from doing lookups of the MX DNS record for the address in square brackets. Makes sense for IP addresses.
.example.com smtp:mail.anotherdomain.tld Mail for any subdomain of example.com is delivered to mail.anotherdomain.tld.
* smtp:mail.anotherdomain.tld All emails are delivered to mail.anotherdomain.tld.
joe@example.com smtp:mail.anotherdomain.tld Emails for joe@example.com are delivered to mail.anotherdomain.tld.

See

man transport

for more details.

Please keep in mind that the order of entries in the transport table is important! The entries will be followed from the top to the bottom.

Important: Postfix uses a caching mechanism for the transports, therefore it might take a while until you changes in the transport table take effect. If you want them to take effect immediately, run

postfix reload

after you have made your changes in the transport table.



14 Send A Welcome Email For Creating Maildir

When you create a new email account and try to fetch emails from it (with POP3/IMAP) you will probably get error messages saying that the Maildir doesn't exist. The Maildir is created automatically when the first email arrives for the new account. Therefore it's a good idea to send a welcome email to a new account.

First, we install the mailx package:

apt-get install mailutils

To send a welcome email to sales@example.com, we do this:

mailx sales@example.com

You will be prompted for the subject. Type in the subject (e.g. Welcome), then press ENTER, and in the next line type your message. When the message is finished, press ENTER again so that you are in a new line, then press CTRL+D; if you don't want to cc the mail, press ENTER again:

root@server1:/usr/local/sbin# mailx sales@example.com
Cc:
<-- ENTER
Subject: Welcome <-- ENTER
Welcome! Have fun with your new mail account. <-- ENTER
<-- CTRL+D
root@server1:/usr/local/sbin#

Share this page:

26 Comment(s)

Add comment

Comments

From: at: 2012-05-17 10:58:27

Hi....

make: *** [maildir.o] Error 1
make: Leaving directory `/usr/src/postfix-2.9.1/src/smtpd'
make[1]: *** [update] Error 1
make[1]: Leaving directory `/usr/src/postfix-2.9.1'
make: *** [build] Error 2
dpkg-buildpackage: error: debian/rules build gave error exit status 2

 help what to do?

From: at: 2012-10-23 19:27:15

I had the same problem with Ubuntu 12.04 and postfix 2.9.3 with vda-patch 2.9.1. German language breaks postfix compilation:

../../lib/libdns.a: undefined reference to `__res_search'
../../lib/libdns.a: undefined reference to `__dn_expand'
collect2: ld gab 1 als Ende-Status zurück
make: *** [smtpd] Fehler 1</pre>

The reason of this error: missing -lresolv
I found a problem in Postfix makedefs file.

gcc -print-search-dirs | sed -n '/^libraries: =/s/libraries: =//p' didn't work for me, because i have Ubuntu in german language.
The gcc -print-search-dirs output is "Bibliotheken", german word of "libraries".

After changing the sed command the SYSLIBS variable filled in correctly and Postfix compiles fine.

http://www.howtoforge.com/forums/showthread.php?p=287215

From: Anonymous at: 2012-05-22 15:01:18

If you got that error above (format not a string literal and no format arguments), it's better to change the code like this:

 dsb_simple(why, "5.2.2", limit_message) -> dsb_simple(why, (char*)"5.2.2", "%s", limit_message);

 or

 dsb_simple(why, "2.0.0", "delivers to maildir") -> dsb_simple(why, (char*)"2.0.0", (char*)"delivers to maildir");



I think it's more elegant than disable hardening build. :)

From: at: 2012-06-20 07:01:43

One more step is necessary to get phpMyAdmin running.

Either:

cat >> /etc/apache2/apache2.conf <<'EOF'

# Include the phpadmin config file
Include /etc/phpmyadmin/apache.conf
EOF

or

sudo ln -s /etc/phpmyadmin/apache.conf /etc/apache2/conf.d/phpmyadmin.conf

After either of those (not both!), reload apache2:

/etc/init.d/apache2 reload

From: tcarrondo at: 2012-06-28 14:09:38

Before 'dpkg-buildpackage' don't we need to 'debchange -i' so that the compiled postfix package isn't reverted in next 'apt-get upgrade'?

From: Anonymous at: 2013-01-28 19:53:04

Great tutorial Falko! Thank you!

From: Anonymous at: 2013-03-08 19:57:42

Recent 12.04 brings postfix 2.9.6 at this time there is no quota patch for 2.9.6 available, but the patch for 2.9.5 can be applied.

From: Anonymous at: 2013-03-09 09:44:52

update: patching and compiling works, but it seems to brake something as the chroot is being disabled for postfix and even if re-enabled it outputs errors like postfix/qmgr[1547]: warning: private/smtp socket: malformed response so i reverted back to the unpatched postfix.

From: Felipe Alcacibar at: 2014-03-11 04:44:01

To avoid the upgrade of the postfix package you can use the following command:

 # echo "postfix hold" | dpkg --set-selections

From: iainH at: 2012-05-24 12:37:49

Falko,

thanks so much for a clear, concise and working tutorial. This has saved me so much experimentation - the quota and amavis-wrapped services in particular represent a lot of experience that I gratefully re-use.

 The only extra thing that I had to get my system working after the tutorial (postfix and courier-imapwas already up and running) was to open these additional firewall ports as follows:

Submission SMTP:
TCP 587
(Shorewall "Mail" macro includes ports 25, 465, 587)
DCC Server:
UDP 6277
Pyzor's rules sets Server
UDP 24441
Razor2's access to Cloudmark.com's rules sets server
UDP 2703

From: Ed at: 2012-07-11 13:50:00

Shouldn't

postconf -e 'virtual_alias_maps = proxy:mysql:/etc/postfix/mysql-virtual_forwardings.cf, mysql:/etc/postfix/mysql-virtual_email2email.cf'

be

postconf -e 'virtual_alias_maps = proxy:mysql:/etc/postfix/mysql-virtual_forwardings.cf, proxy:mysql:/etc/postfix/mysql-virtual_email2email.cf'

From: Ed at: 2012-07-18 10:47:47

It looks like there might be a bug with gamin that is required by courier-imap. You lose imap connection to the server at random times after a reboot.

This is also related when having a web mail client like Round Cube or Squirrel Mail installed.

I found a solution at http://ubuntuforums.org/showthread.php?s=fba71f803c489876a75fb08df822a930&p=11856138 . Running stable now.







From: Anonymous at: 2012-08-04 15:35:21

Great guide !!! It take sometime to find out that I forgot to change /etc/default/saslauthd : START=yes, my bad :)

From: Antonio Delgado at: 2013-07-04 18:22:17

I found out (thanks to http://etbe.coker.com.au/2012/06/20/sasl-authentication-wheezy/ ) that using this manual with ubuntu and postfix 2.9.6-1~12.04 sasl2-bin 2.1.25.dfsg1-3ubuntu the file /etc/postfix/sasl/smtpd.conf need to be changed to:

pwcheck_method: saslauthd
mech_list: plain login
allow_plaintext: true
auxprop_plugin: sql
sql_engine: mysql
sql_hostnames: 127.0.0.1
sql_user: mail_admin
sql_passwd: mail_admin_password
sql_database: mail
sql_select: select password from users where email = '%u@%r'

(using the right database connection information)

From: Anonymous at: 2014-04-20 18:28:43

What is the difference, since I can't find any?

From: Anonymous at: 2014-04-12 12:31:34

I note there are many files in this tut with this string:

 mail_admin_password

Am I suppose to be inserting this literal string in files being created/edited or am I suppose to be injecting the actual mail_admin's password?

From: Anonymous at: 2012-05-21 09:34:53

when I tried to login by using user name and password I got this message

ERROR: ERROR: Connection dropped by IMAP server.

From: Anonymous at: 2012-07-06 10:08:49

Yep same error !

From: RojasIT at: 2012-08-03 19:19:37

Try to send it a email at your mail account

From: Armando at: 2013-07-08 18:43:07

I have an err, I just can sent an emails but I can't receive emails, somebody can help me please..

From: Anonymous at: 2012-08-02 19:39:38

I had the same error

From: Anonymous at: 2012-08-21 15:33:48

You should just create your Maildir directory in your home folder

From: Aristotle Jones at: 2012-08-31 14:35:58

I went through the Debian version of this tutorial and got the same, I then went through this one and it worked fine.  During my troubleshooting of my debian setup I discovered two things, one was a typo in the squirrelmail plugin config, I suggest copy and past of the entire file where ever possible in this tutorial.  Also, my mailbox wasn't properly created when I did the mailx command.  I'm not sure why it didn't work, but I suspect it was due to my incorrect setup of my root alias in previous postfix steps.  Not sure if this will help you out or not, but one error will cause havoc in this tutorial.

From: Anonymous at: 2012-10-23 20:03:02

I got the same problem even if I sent an e-mail to the new mailbox. I solved it by editing /etc/postfix/main.cf.

Replace :

mydestination = domain.tld, localhost, localhost.localdomain

By :

 mydestination = localhost, localhost.localdomain

And restart postfix :

 /etc/init.d/postfix restart

Finally send an e-mail to the created mailbox and enjoy !

From: Marlon Mann at: 2012-12-20 00:16:51

After hours if not days trying to wade through frankly not very clear tutorials on setting up an email system on Ubuntu, I'm so glad I found this.

I followed the instructions step by step and, well, it just works.

I'm so very grateful. Keep up the good work!

From: Anonymous at: 2013-09-12 19:09:57

Just saying thanks for a great how-to. Using database entries to manage the mail system has made my life so much easier. I can also confirm that the tutorial still works fine with latest patches on Ubuntu 12.04. I've been running a system based on this configuration all year with no problems.
