Virtual Users And Domains With Postfix, Courier, MySQL And SquirrelMail (Fedora 15 x86_64) - Page 5
This tutorial exists for these OS versions
On this page
13 Install Razor, Pyzor And DCC And Configure SpamAssassin
Razor, Pyzor and DCC are spamfilters that use a collaborative filtering network. To install Razor and Pyzor, run
yum install perl-Razor-Agent pyzor
Then initialize both services:
chmod -R a+rX /usr/share/doc/pyzor-0.5.0 /usr/bin/pyzor /usr/bin/pyzord
chmod -R a+rX /usr/lib/python2.7/site-packages/pyzor
su -m amavis -c 'pyzor --homedir /var/spool/amavisd discover'
su -m amavis -c 'razor-admin -home=/var/spool/amavisd -create'
su -m amavis -c 'razor-admin -home=/var/spool/amavisd -register'
Then we install DCC as follows:
cd /tmp
wget http://www.dcc-servers.net/dcc/source/dcc-dccproc.tar.Z
tar xzvf dcc-dccproc.tar.Z
cd dcc-dccproc-1.3.140
./configure --with-uid=amavis
make
make install
chown -R amavis:amavis /var/dcc
ln -s /var/dcc/libexec/dccifd /usr/local/bin/dccifd
Now we have to tell SpamAssassin to use these three programs. Edit /etc/mail/spamassassin/local.cf so that it looks like this:
vi /etc/mail/spamassassin/local.cf
# These values can be overridden by editing ~/.spamassassin/user_prefs.cf # (see spamassassin(1) for details) # These should be safe assumptions and allow for simple visual sifting # without risking lost emails. #required_hits 5 #report_safe 0 #rewrite_header Subject [SPAM] # dcc use_dcc 1 dcc_path /usr/local/bin/dccproc #pyzor use_pyzor 1 pyzor_path /usr/bin/pyzor #razor use_razor2 1 razor_config /var/spool/amavisd/razor-agent.conf #bayes use_bayes 1 use_bayes_rules 1 bayes_auto_learn 1 |
Then we must enable the DCC plugin in SpamAssassin. Open /etc/mail/spamassassin/v310.pre and uncomment the loadplugin Mail::SpamAssassin::Plugin::DCC line:
vi /etc/mail/spamassassin/v310.pre
[...] # DCC - perform DCC message checks. # # DCC is disabled here because it is not open source. See the DCC # license for more details. # loadplugin Mail::SpamAssassin::Plugin::DCC [...] |
You can check your SpamAssassin configuration by executing:
spamassassin --lint
It shouldn't show any errors.
Run
/etc/init.d/amavisd restart
afterwards.
Now we update our SpamAssassin rulesets as follows:
sa-update --no-gpg
We create a cron job so that the rulesets will be updated regularly. Run
crontab -e
to open the cron job editor. Create the following cron job:
23 4 */2 * * /usr/bin/sa-update --no-gpg &> /dev/null |
This will update the rulesets every second day at 4.23h.
14 Quota Exceedance Notifications
If you want to get notifications about all the email accounts that are over quota, then create the file /usr/local/sbin/quota_notify:
cd /usr/local/sbin/
vi quota_notify
#!/usr/bin/perl -w # Author <[email protected]> # # This script assumes that virtual_mailbox_base in defined # in postfix's main.cf file. This directory is assumed to contain # directories which themselves contain your virtual user's maildirs. # For example: # # -----------/ # | # | # home/vmail/domains/ # | | # | | # example.com/ foo.com/ # | # | # ----------------- # | | | # | | | # user1/ user2/ user3/ # | # | # maildirsize # use strict; my $POSTFIX_CF = "/etc/postfix/main.cf"; my $MAILPROG = "/usr/sbin/sendmail -t"; my $WARNPERCENT = 80; my @POSTMASTERS = ('[email protected]'); my $CONAME = 'My Company'; my $COADDR = '[email protected]'; my $SUADDR = '[email protected]'; my $MAIL_REPORT = 1; my $MAIL_WARNING = 1; #get virtual mailbox base from postfix config open(PCF, "< $POSTFIX_CF") or die $!; my $mboxBase; while (<PCF>) { next unless /virtual_mailbox_base\s*=\s*(.*)\s*/; $mboxBase = $1; } close(PCF); #assume one level of subdirectories for domain names my @domains; opendir(DIR, $mboxBase) or die $!; while (defined(my $name = readdir(DIR))) { next if $name =~ /^\.\.?$/; #skip '.' and '..' next unless (-d "$mboxBase/$name"); push(@domains, $name); } closedir(DIR); #iterate through domains for username/maildirsize files my @users; chdir($mboxBase); foreach my $domain (@domains) { opendir(DIR, $domain) or die $!; while (defined(my $name = readdir(DIR))) { next if $name =~ /^\.\.?$/; #skip '.' and '..' next unless (-d "$domain/$name"); push(@users, {"$name\@$domain" => "$mboxBase/$domain/$name"}); } } closedir(DIR); #get user quotas and percent used my (%lusers, $report); foreach my $href (@users) { foreach my $user (keys %$href) { my $quotafile = "$href->{$user}/maildirsize"; next unless (-f $quotafile); open(QF, "< $quotafile") or die $!; my ($firstln, $quota, $used); while (<QF>) { my $line = $_; if (! $firstln) { $firstln = 1; die "Error: corrupt quotafile $quotafile" unless ($line =~ /^(\d+)S/); $quota = $1; last if (! $quota); next; } die "Error: corrupt quotafile $quotafile" unless ($line =~ /\s*(-?\d+)/); $used += $1; } close(QF); next if (! $used); my $percent = int($used / $quota * 100); $lusers{$user} = $percent unless not $percent; } } #send a report to the postmasters if ($MAIL_REPORT) { open(MAIL, "| $MAILPROG"); select(MAIL); map {print "To: $_\n"} @POSTMASTERS; print "From: $COADDR\n"; print "Subject: Daily Quota Report.\n"; print "DAILY QUOTA REPORT:\n\n"; print "----------------------------------------------\n"; print "| % USAGE | ACCOUNT NAME |\n"; print "----------------------------------------------\n"; foreach my $luser ( sort { $lusers{$b} <=> $lusers{$a} } keys %lusers ) { printf("| %3d | %32s |\n", $lusers{$luser}, $luser); print "---------------------------------------------\n"; } print "\n--\n"; print "$CONAME\n"; close(MAIL); } #email a warning to people over quota if ($MAIL_WARNING) { foreach my $luser (keys (%lusers)) { next unless $lusers{$luser} >= $WARNPERCENT; # skip those under quota open(MAIL, "| $MAILPROG"); select(MAIL); print "To: $luser\n"; map {print "BCC: $_\n"} @POSTMASTERS; print "From: $SUADDR\n"; print "Subject: WARNING: Your mailbox is $lusers{$luser}% full.\n"; print "Reply-to: $SUADDR\n"; print "Your mailbox: $luser is $lusers{$luser}% full.\n\n"; print "Once your e-mail box has exceeded your monthly storage quota\n"; print "your monthly billing will be automatically adjusted.\n"; print "Please consider deleting e-mail and emptying your trash folder to clear some space.\n\n"; print "Contact <$SUADDR> for further assistance.\n\n"; print "Thank You.\n\n"; print "--\n"; print "$CONAME\n"; close(MAIL); } } |
Make sure that you adjust the variables at the top (especially the [email protected] email address).
We must make the file executable:
chmod 755 quota_notify
Run
crontab -e
to create a cron job for that script:
0 0 * * * /usr/local/sbin/quota_notify &> /dev/null |
15 Test Postfix
To see if Postfix is ready for SMTP-AUTH and TLS, run
telnet localhost 25
After you have established the connection to your Postfix mail server type
ehlo localhost
If you see the lines
250-STARTTLS
and
250-AUTH LOGIN PLAIN
everything is fine.
[root@server1 sbin]# telnet localhost 25
Trying ::1...
Connected to localhost.
Escape character is '^]'.
220 server1.example.com ESMTP Postfix
<-- ehlo localhost
250-server1.example.com
250-PIPELINING
250-SIZE 10240000
250-VRFY
250-ETRN
250-STARTTLS
250-AUTH LOGIN PLAIN
250-AUTH=LOGIN PLAIN
250-ENHANCEDSTATUSCODES
250-8BITMIME
250 DSN
<-- quit
221 2.0.0 Bye
Connection closed by foreign host.
[root@server1 sbin]#
Type
quit
to return to the system's shell.
16 Populate The Database And Test
To populate the database you can use the MySQL shell:
mysql -u root -p
USE mail;
At least you have to create entries in the tables domains and users:
INSERT INTO `domains` (`domain`) VALUES ('example.com');
INSERT INTO `users` (`email`, `password`, `quota`) VALUES ('[email protected]', ENCRYPT('secret'), 10485760);
(Please take care you use the ENCRYPT syntax in the second INSERT statement in order to encrypt the password!)
If you want to make entries in the other two tables, that would look like this:
INSERT INTO `forwardings` (`source`, `destination`) VALUES ('[email protected]', '[email protected]');
INSERT INTO `transport` (`domain`, `transport`) VALUES ('example.com', 'smtp:mail.example.com');
To leave the MySQL shell, type
quit;

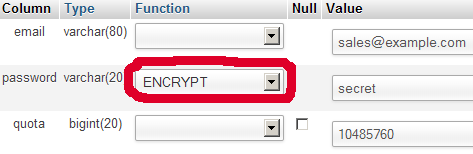

For most people it is easier if they have a graphical front-end to MySQL; therefore you can also use phpMyAdmin (in this example under http://192.168.0.100/phpMyAdmin/ or http://server1.example.com/phpMyAdmin/) to administrate the mail database. Again, when you create a user, go sure that you use the ENCRYPT function to encrypt the password:
I do not think I have to explain the domains and users table further.
The forwardings table can have entries like the following:
source | destination | |
[email protected] | [email protected] | Redirects emails for [email protected] to [email protected] |
@example.com | [email protected] | Creates a Catch-All account for [email protected]. All emails to example.com will arrive at [email protected], except those that exist in the users table (i.e., if [email protected] exists in the users table, mails to [email protected] will still arrive at [email protected]). |
@example.com | @anotherdomain.tld | This redirects all emails to example.com to the same user at anotherdomain.tld. E.g., emails to [email protected] will be forwarded to [email protected]. |
[email protected] | [email protected], [email protected] | Forward emails for [email protected] to two or more email addresses. All listed email addresses under destination receive a copy of the email. |
The transport table can have entries like these:
domain | transport | |
example.com | : | Delivers emails for example.com locally. This is as if this record would not exist in this table at all. |
example.com | smtp:mail.anotherdomain.tld | Delivers all emails for example.com via smtp to the server mail.anotherdomain.com. |
example.com | smtp:mail.anotherdomain.tld:2025 | Delivers all emails for example.com via smtp to the server mail.anotherdomain.com, but on port 2025, not 25 which is the default port for smtp. |
example.com |
smtp:[1.2.3.4] |
The square brackets prevent Postfix from doing lookups of the MX DNS record for the address in square brackets. Makes sense for IP addresses. |
.example.com | smtp:mail.anotherdomain.tld | Mail for any subdomain of example.com is delivered to mail.anotherdomain.tld. |
* | smtp:mail.anotherdomain.tld | All emails are delivered to mail.anotherdomain.tld. |
[email protected] | smtp:mail.anotherdomain.tld | Emails for [email protected] are delivered to mail.anotherdomain.tld. |
See
man transport
for more details.
Please keep in mind that the order of entries in the transport table is important! The entries will be followed from the top to the bottom.
Important: Postfix uses a caching mechanism for the transports, therefore it might take a while until you changes in the transport table take effect. If you want them to take effect immediately, run
postfix reload
after you have made your changes in the transport table.
17 Send A Welcome Email For Creating Maildir
When you create a new email account and try to fetch emails from it (with POP3/IMAP) you will probably get error messages saying that the Maildir doesn't exist. The Maildir is created automatically when the first email arrives for the new account. Therefore it's a good idea to send a welcome email to a new account.
First, we install the mailx package:
yum install mailx
To send a welcome email to [email protected], we do this:
mailx [email protected]
You will be prompted for the subject. Type in the subject (e.g. Welcome), then press ENTER, and in the next line type your message. When the message is finished, press ENTER again so that you are in a new line, then press CTRL+D:
[root@server1 ~]# mailx [email protected]
Subject: Welcome <-- ENTER
Welcome! Have fun with your new mail account. <-- ENTER
<-- CTRL+D
EOT
[root@server1 ~]#
