How to install OpenSC on IPFire Firewall

This article is the continuation of our previous work on IPFire firewall. In this tutorial, support for hardware tokens (such as smart cards) and their readers (CCID compliance) are integrated with the IPFire project. The following tools are successfully compiled for IPFire 2.19 version.

PC/SC smart card daemon is used to access smart cards on the Linux platform using CCID or proprietary drivers.  A driver program for the CCID smart card reader is required to access the smart cards. The CCID package contains drivers for different smart card readers for the Linux/Unix environment. Smartcard access (PKCS#11 API) and management (PKCS#15 file structure) is supported by OpenSC project which consists of several open source tools & libraries. Hardware tokens such as smart card can be used for following purposes

  • Secure Web Login
  • WorkStation Login
  • File Encryption
  • VPN (OpenVPN,L2TP)
  • Email Encryption

Several of the OpenSC supported smart card vendors are given below.

  • ASEPCOS
  • FTCOSPK01C
  • OpenPGP Card
  • Cyberflex
  • CardOs
  • STARCOS

Environment Setup

For the setup of a development environment, a detailed explanation has been given in the previous article.

Addons in test shell of IPFire

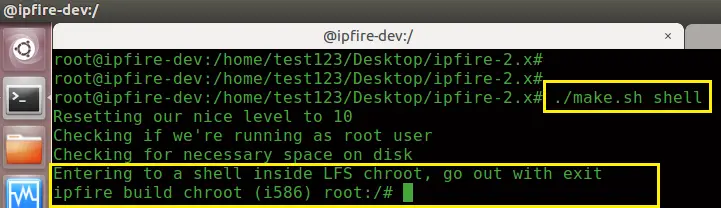

It is recommended to install the IPFire addon's in the test shell (similar to the Linux terminal) which is invoked by using the following command in the root directory.

./make shell

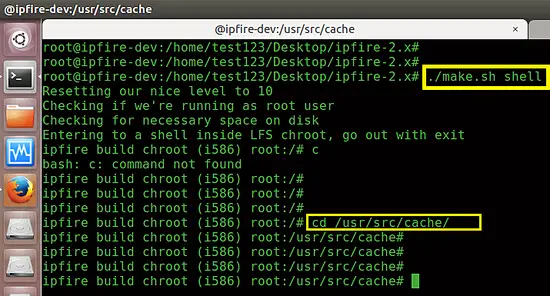

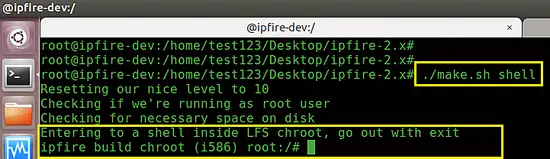

Run the IPFire shell

The source packages on the IPFire build environment are placed inside the /usr/src/cache directory.  All required packages for this tutorial are already placed in the cache directory.

Go the the IPFire Cache directory

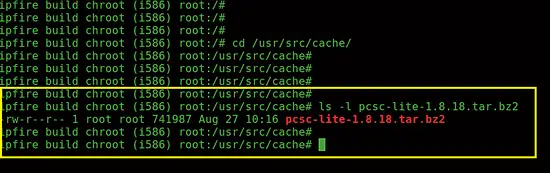

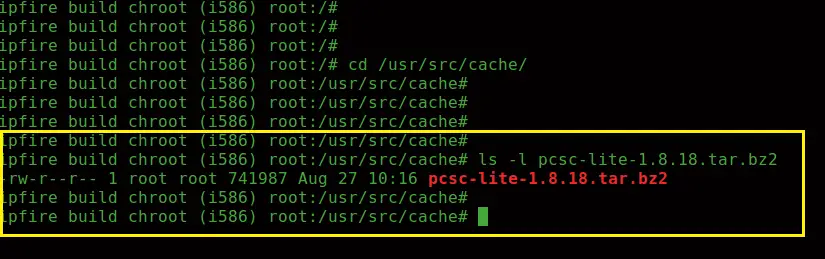

The source of the pcsc-lite package is shown in the following snapshot.

pcsc-lite source package

Before we start the compilation of pcsc-lite tool, it is recommended to install the required libudev-dev library with the following command

apt-get install libudev-dev

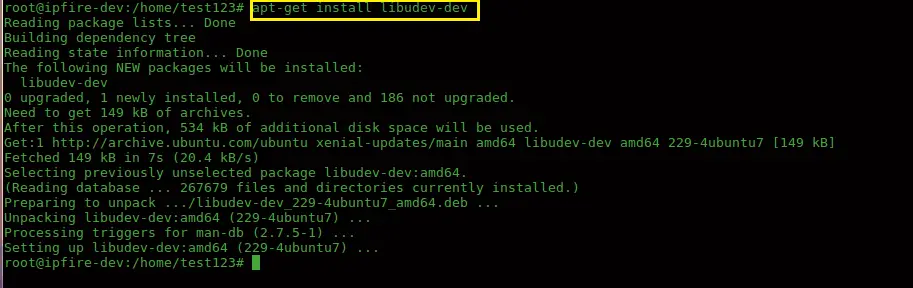

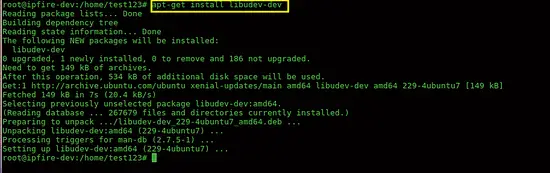

Install libudev-dev library

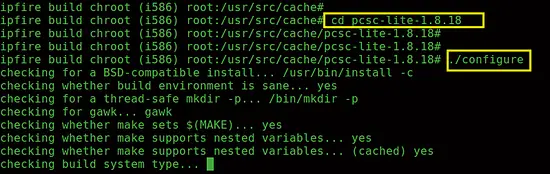

Now, extract the source package using the following command and run the ./configure script as shown below.

tar -xf pcsc-lite-1.8.18.tar.bz2

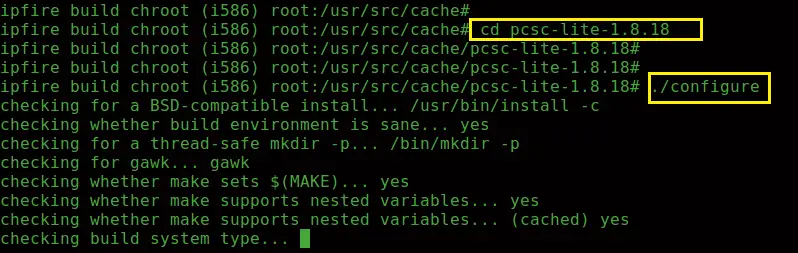

undpack and configure pcsc-lite

As shown below, no error is generated by the configure command.

Configure command ran without errors

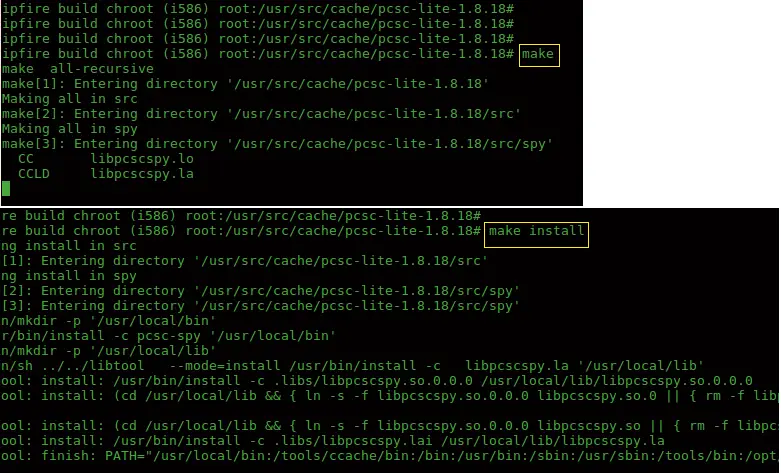

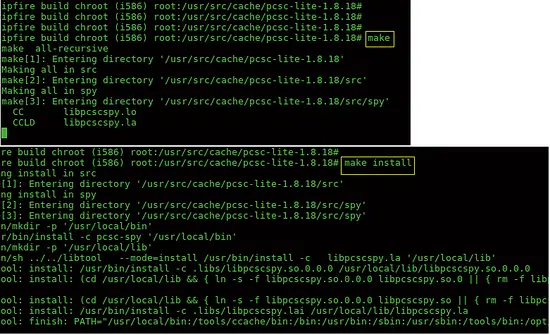

Now, simply run ./make and ./make install command to install pcscd daemon in the test environment.

Install pcscd daemon

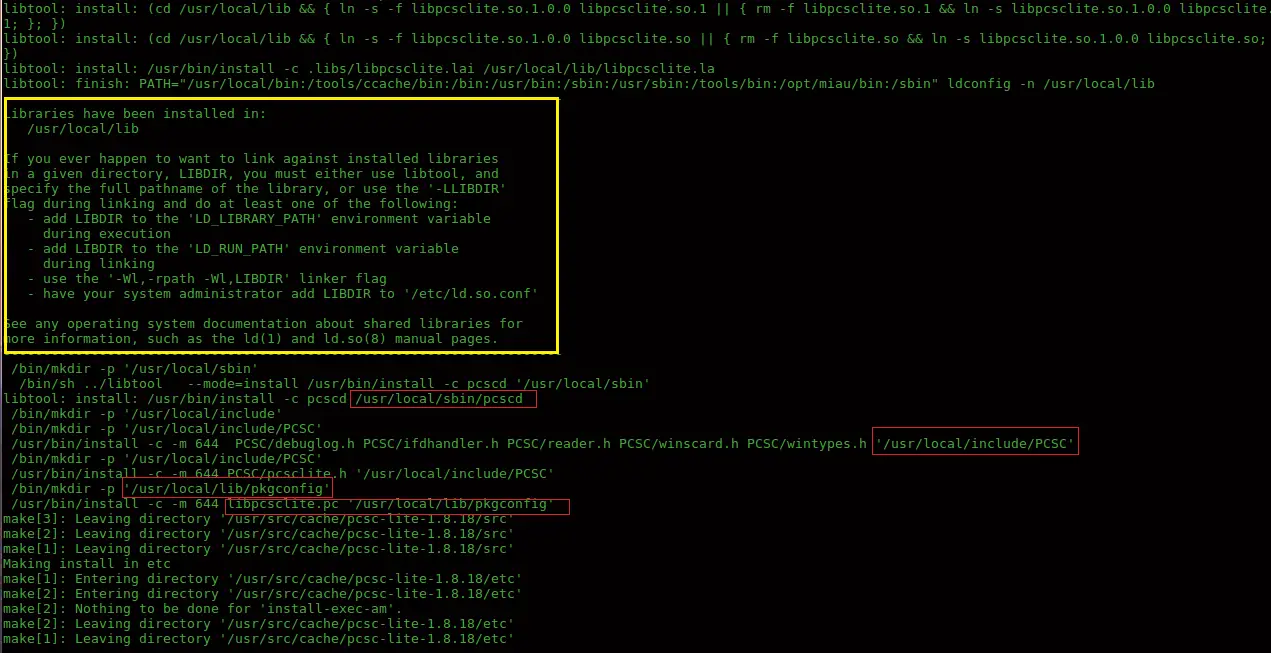

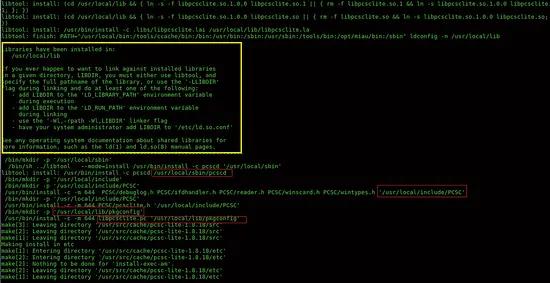

Successful installation of pcsc-lite packages shows few important paths which will be used to compile CCID package.

pcsc-lite installed successfully

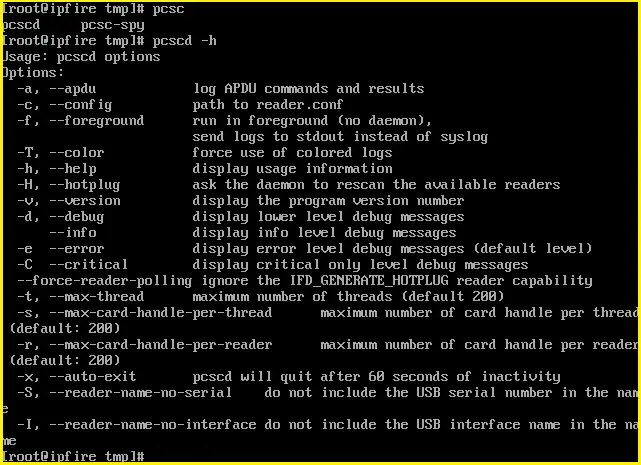

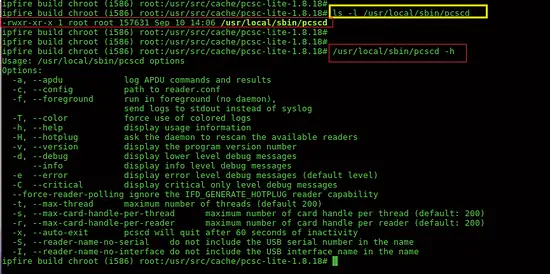

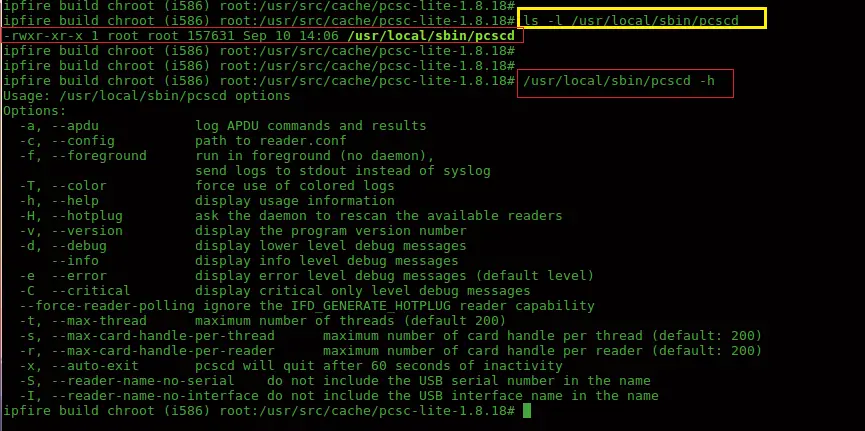

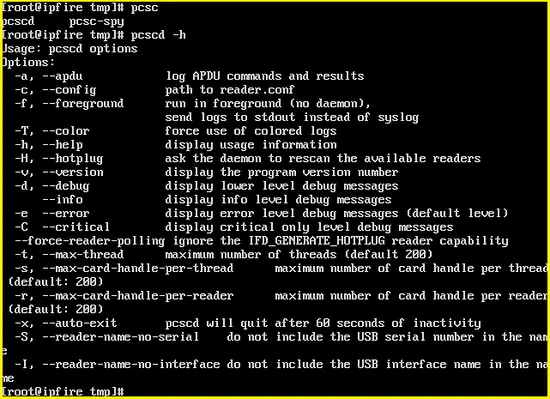

The following screenshot shows that pcscd is running in IPFire in the test environment.

pcscd is running in test environment

The next package that is required for smart cards iis the CCID drivers package. As shown below, CCID package is placed in the cache directory.

CCID package in cache directory

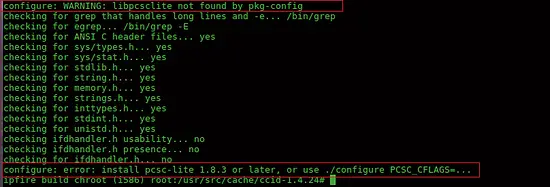

The following screenshot shows the error generated by the ./configure script of the CCID package.

CCID configure error

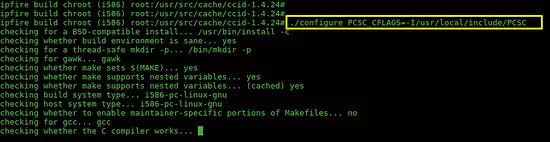

The error shows that pcsc-lite is not found by the configure script. Therefore, set PCSC_CFLAGS with the configure script as shown below.

./configure PCSC_CFLAGS=-I/usr/local/include/PCSC

Set PCSC_CFLAGS

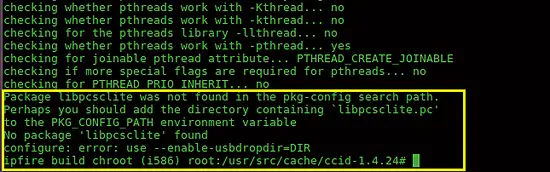

However, another error is generated by the script because libpcsclite.pc is not found under pkg-config path on the IPFire LFS.

Export the PKG_CONFIG_PATH

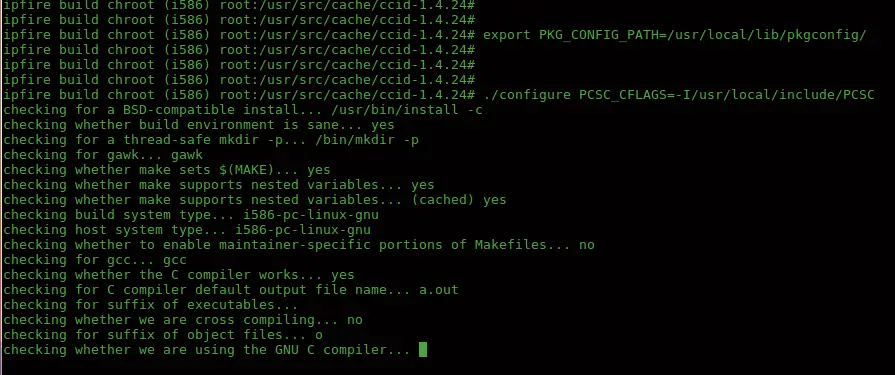

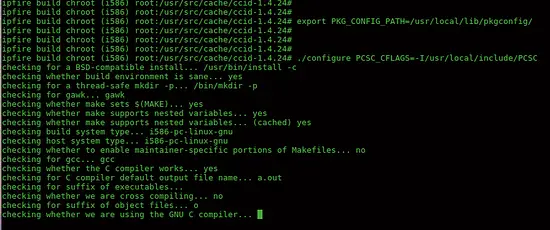

Therefore, first export the PKG_CONFIG_PATH and again run the configure script command.

export PKG_CONFIG_PATH=/usr/local/lib/pkgconfig/

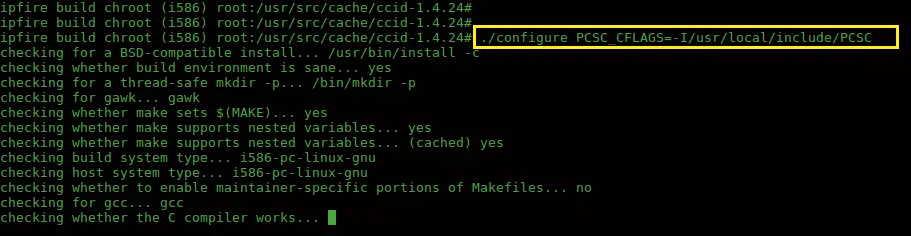

./configure PCSC_CFLAGS=-I/usr/local/include/PCSC

Run the configure script again

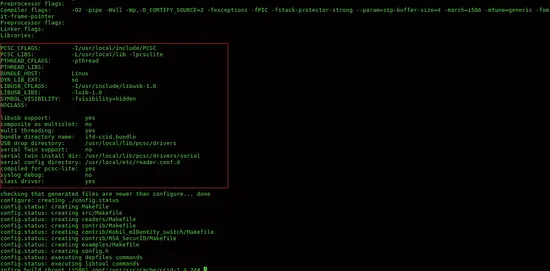

Successful output of the configure script run is shown below. It shows that, required files of PCSC is found by the script.

Configure successful

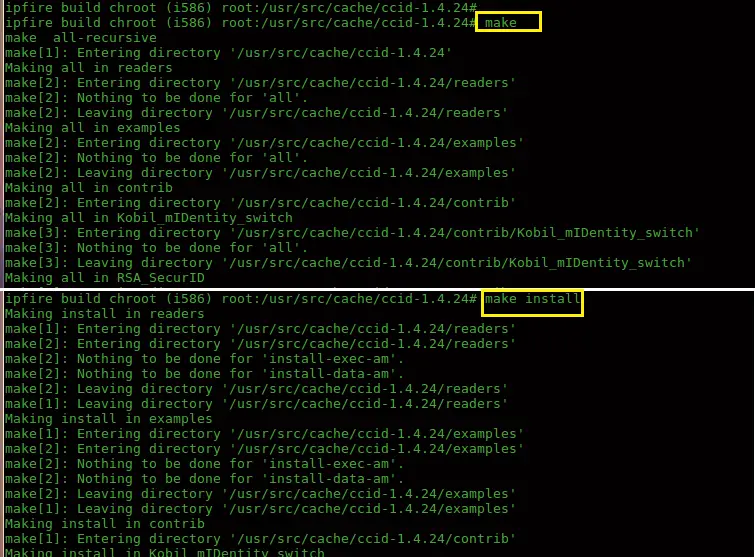

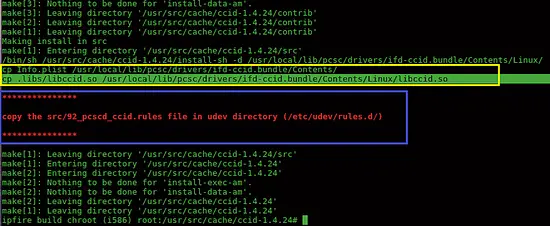

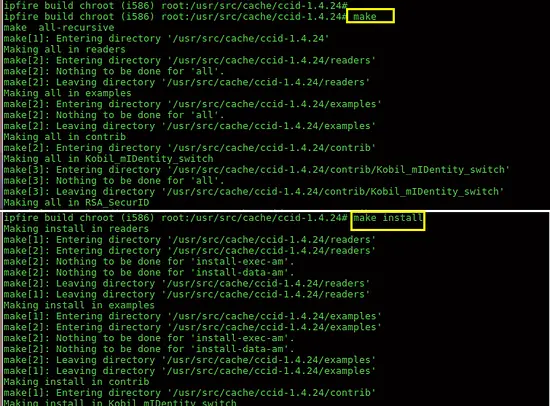

Run the ./make & ./make install commands to complete the installation of CCID drivers.

make and make install

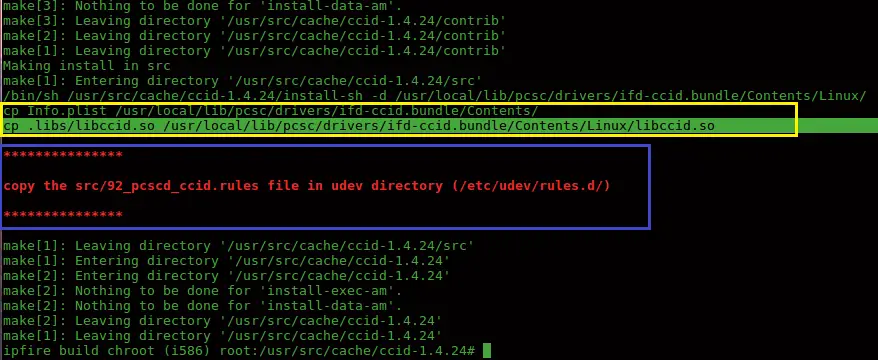

Copy the udev rules for the smart card readers in the /etc/udev/rules directory as shown below.

Copy udev rules

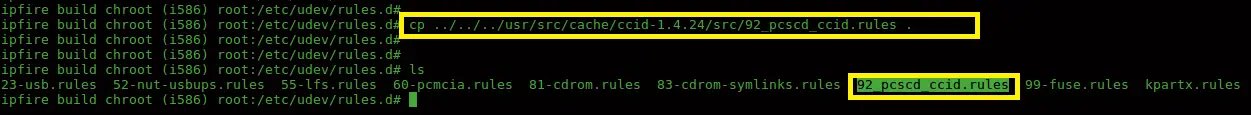

Copying 92_pcscd_ccid.rules file in the /etc/udev/rules directory.

copy 92_pcscd_ccid.rules file

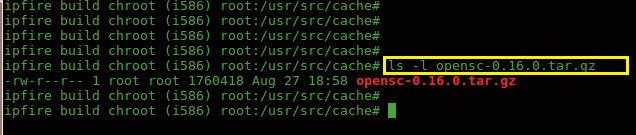

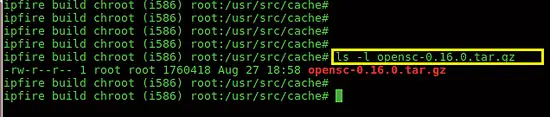

Following screenshot shows the OpenSC tool in the /usr/src/cache directory.

OpenSC Tool

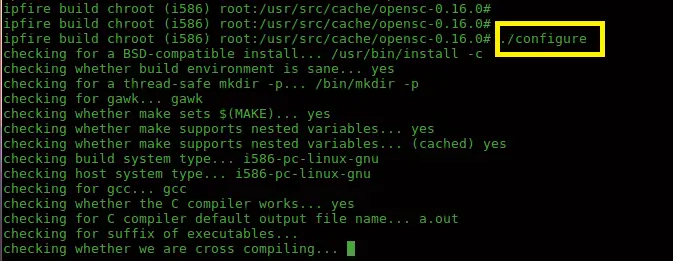

Run configure script to check the dependencies of the package.

Run configure script

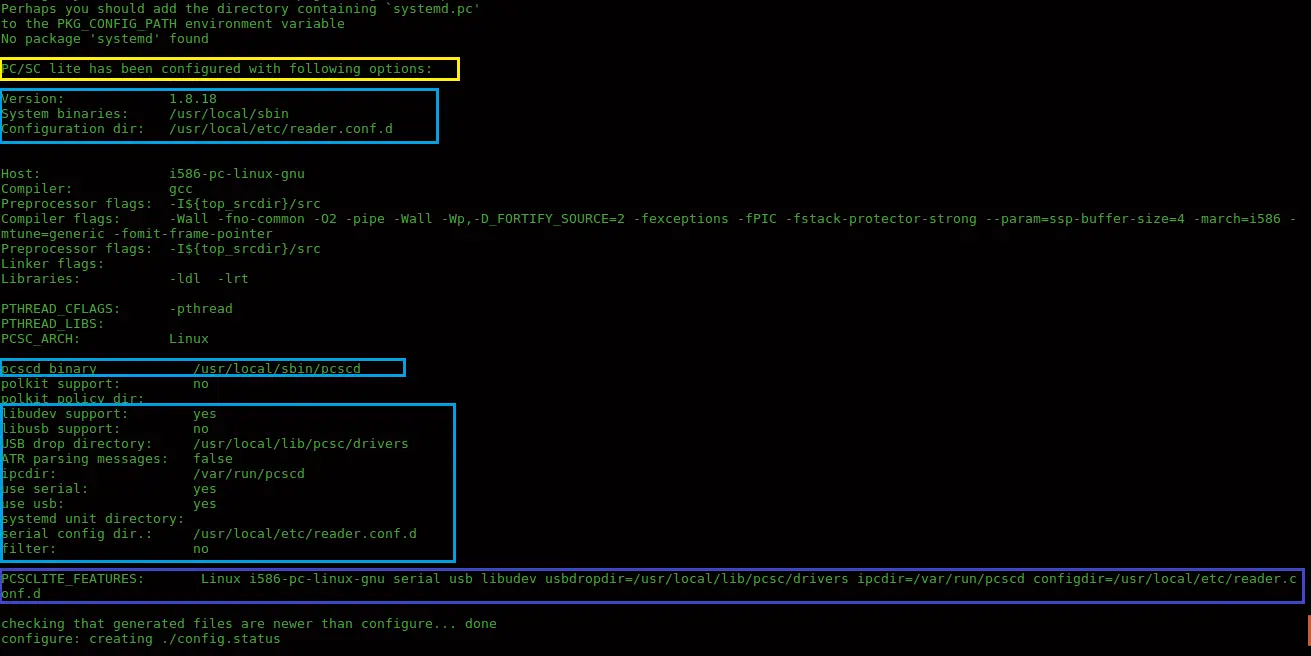

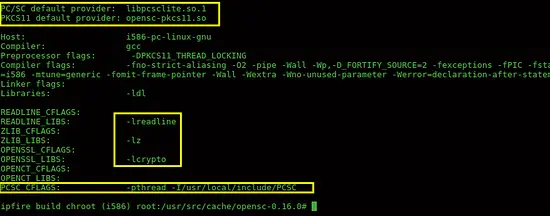

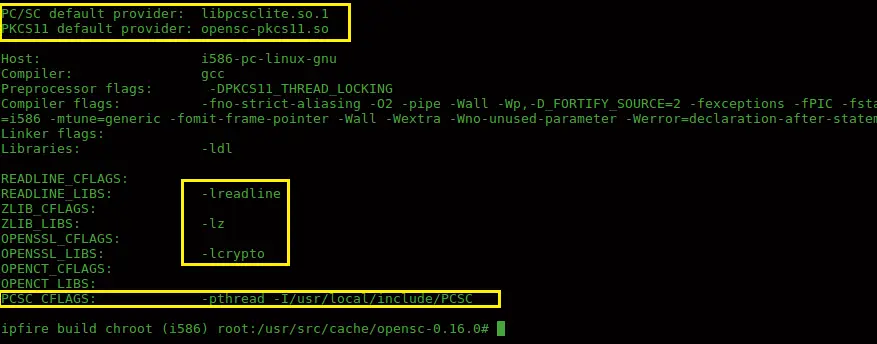

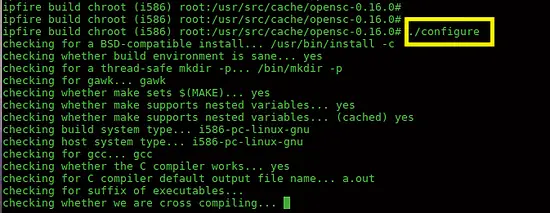

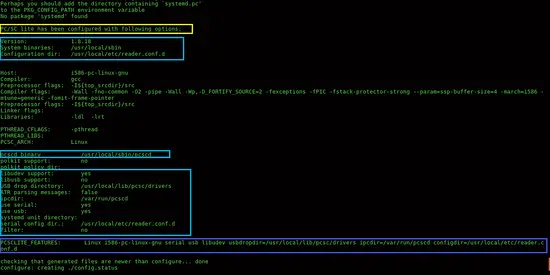

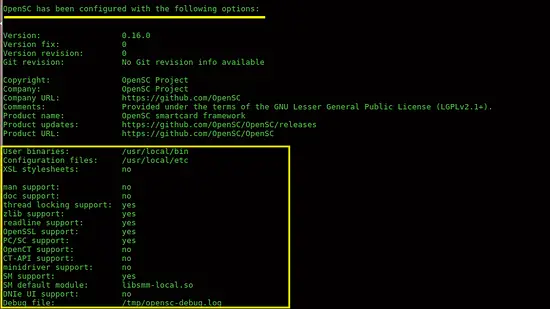

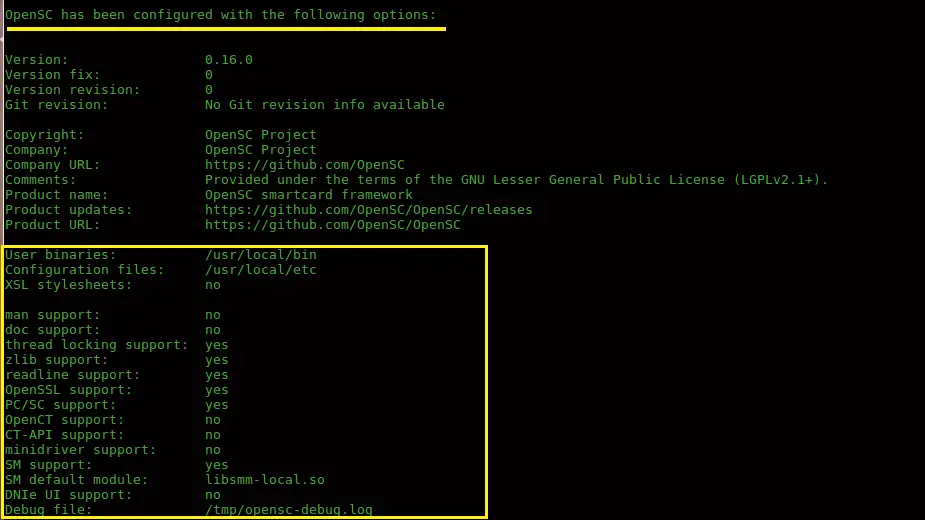

The output of configure script is shown in following snapshots.

Configure output 1

Configure output 2

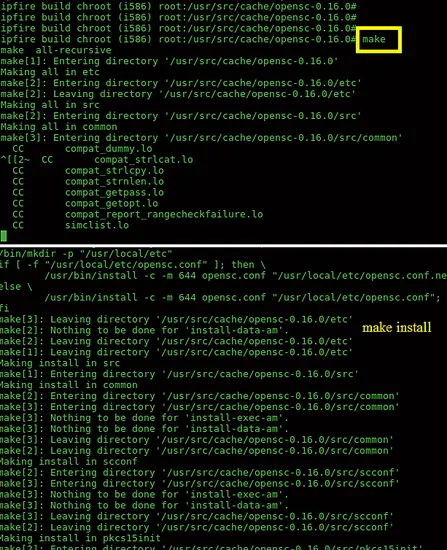

Run the ./make and ./make install commands for the OpenSC installation in the test environment.

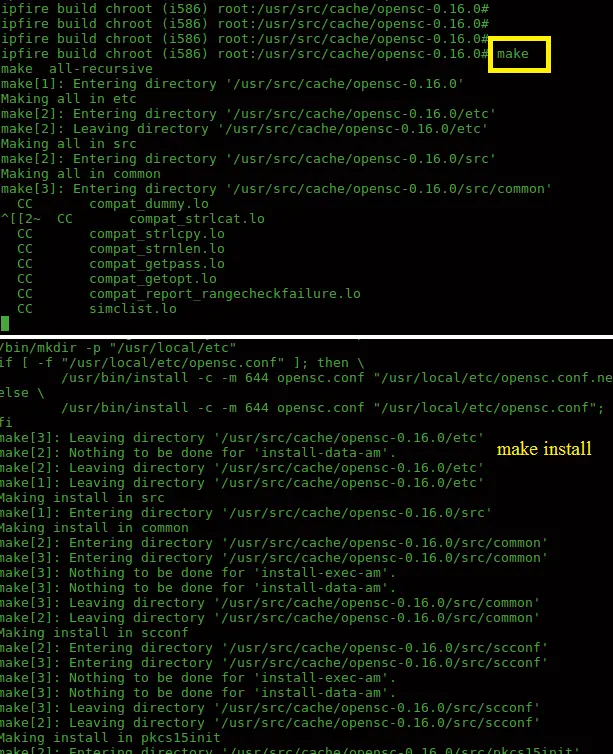

OpenSC make and make install run.

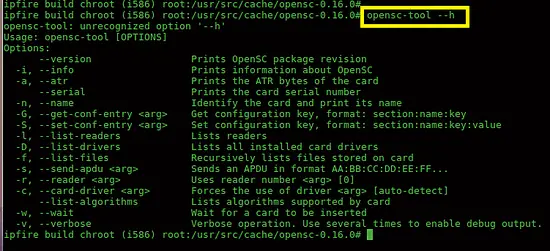

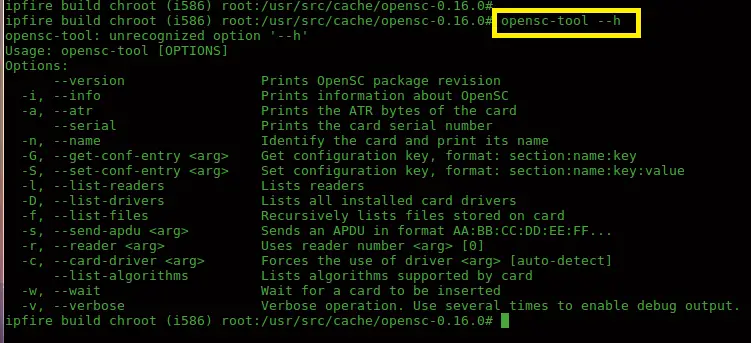

Following screenshot shows that the OpenSC tool has been successfully installed in the test shell of IPFire.

OpenSC installed successfully

After installation of the required tools in the LFS shell of IPFire, the next step is to build the addon in the IPFire package manager format (pakfire).

Compilation of IPFire addon's

The detailed procedure regarding addon building for an IPFire environment is already given in the "Building PSAD addon" section of the previous article.

  • A compilation script also known as lfs script is created in the lfs directory of IPFire setup.
  • Changes for new addons have to be done in the make.sh script.

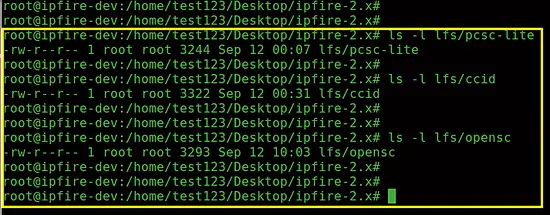

The LFS script is created for the pcsc-lite-1.8.18 , ccid-1.4.24, and opensc-0.16.0 packages. Download all lfs scripts for the packages and place them inside the lfs directory of ipfire-2.x.

Dwnload LFS scripts

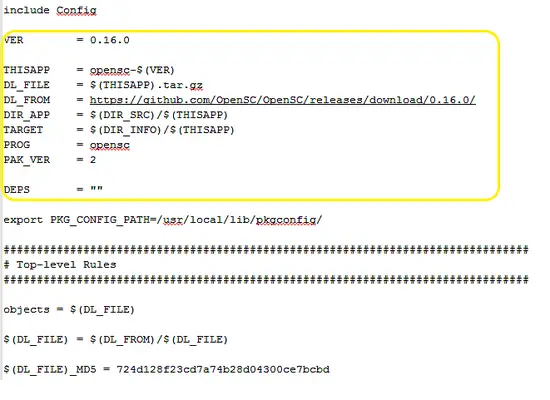

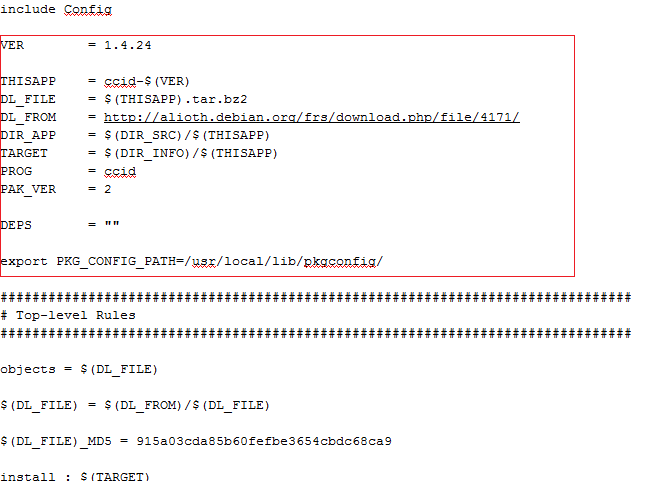

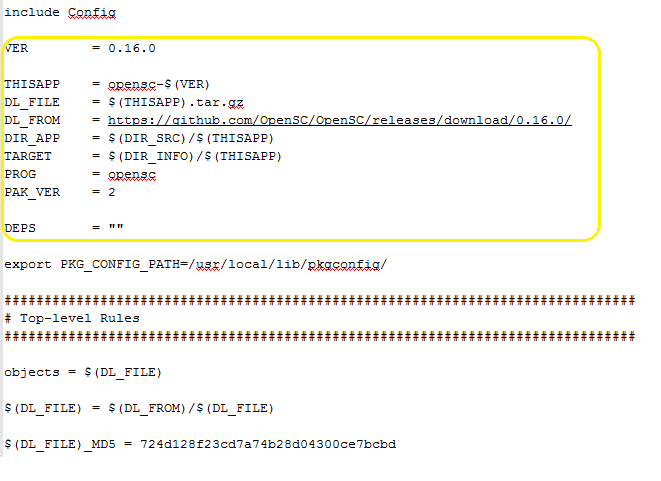

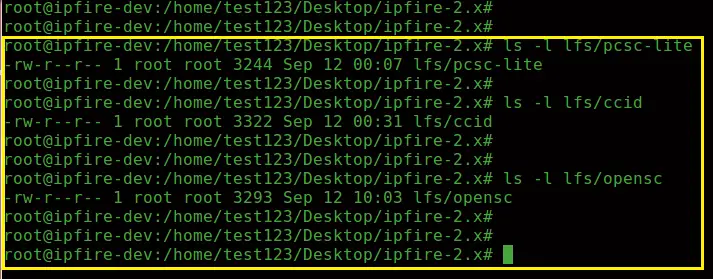

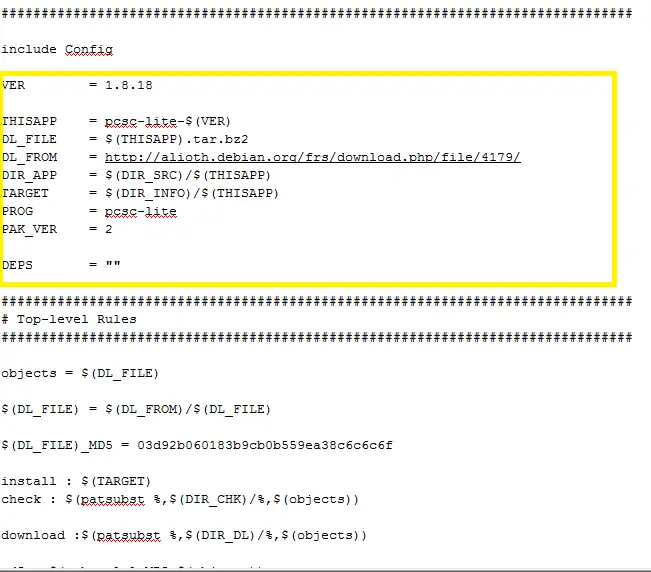

LFS scripts for the above addon's are shown below.

pcsc-lite

pcsc-lite

ccid

ccid

opensc

OpenSC

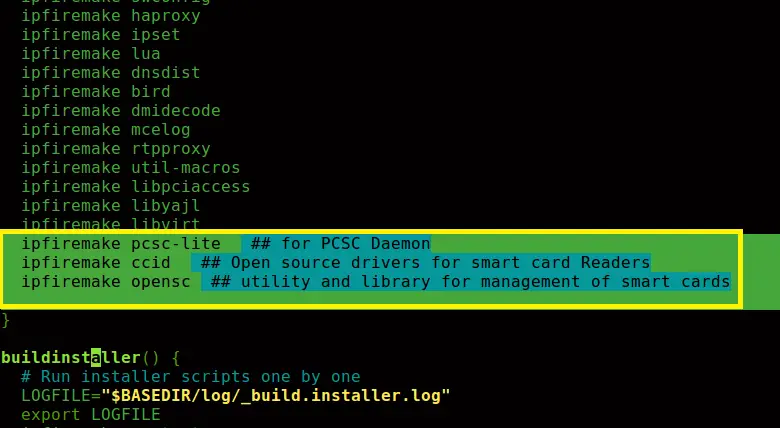

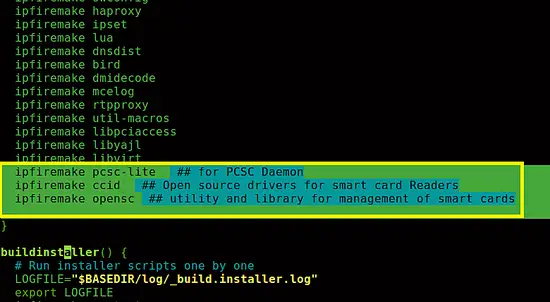

The changes in the build script (make.sh) file are shown below.

make.sh changes

Run the following commands to build the packages.

ipfiremake pcsc-lite

ipfiremake ccid

ipfiremake opensc

It is required to run following command two times for the compilation of the new addons.

./make.sh build

run make build

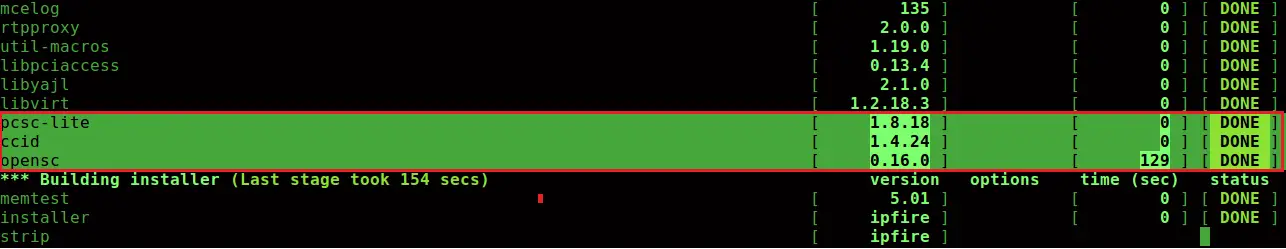

The following screenshot shows that the lfs scripts of new addons are compiled without an error.

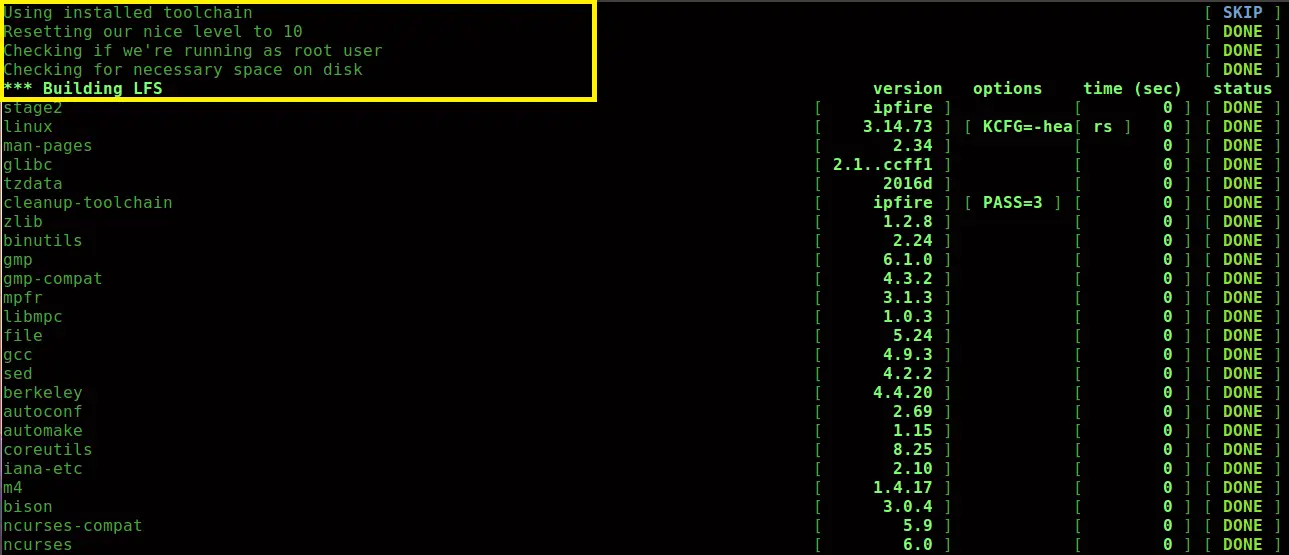

Compilation of the scripts succeeded.

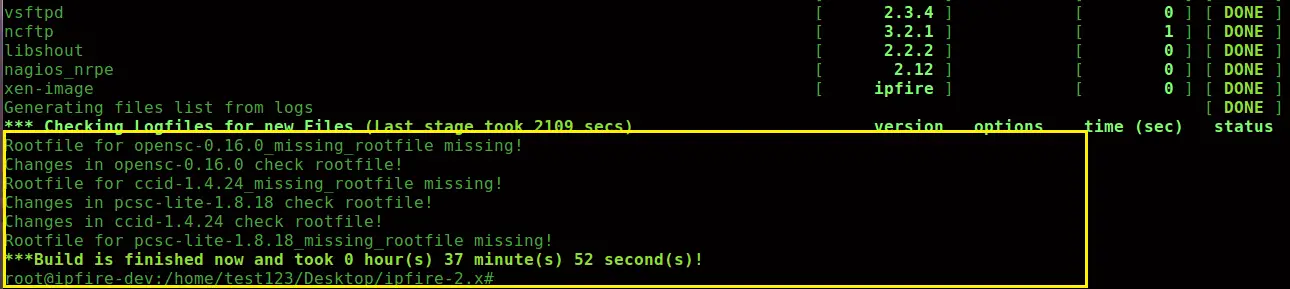

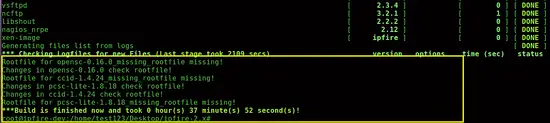

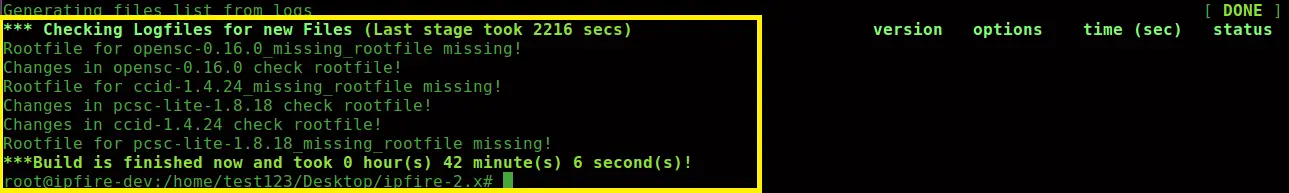

The following screenshot shows the output of first build command. The rootfiles for all three packages are not found during this build process.

rootfiles not found

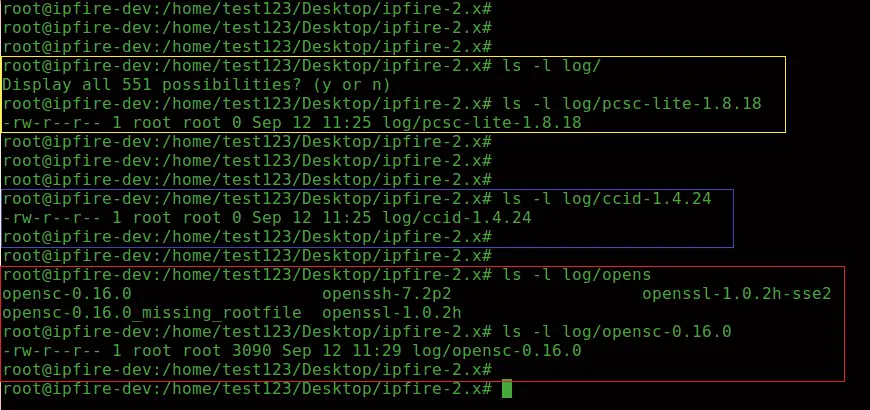

Three rootfiles for the new addon's are inside the log directory with the same package/file name as shown below.

rootfiles are in the log directory

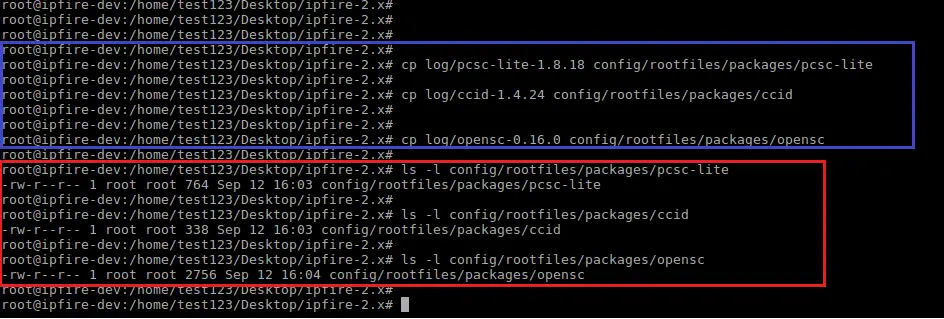

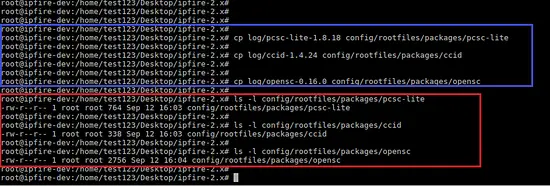

The following screenshot shows that the rootfiles of new addons are copied into the config/rootfiles/packages path.  Change the name of the copied rootfiles to match the lfs name of the new addon. (placed in the lfs directory)

cp log/pcsc-lite-1.8.18 config/rootfiles/packages/pcsc-lite

cp log/ccid-1.4.24 config/rootfiles/packages/ccid

cp log/opensc-0.16.0 config/rootfiles/packages/opensc

copying root files

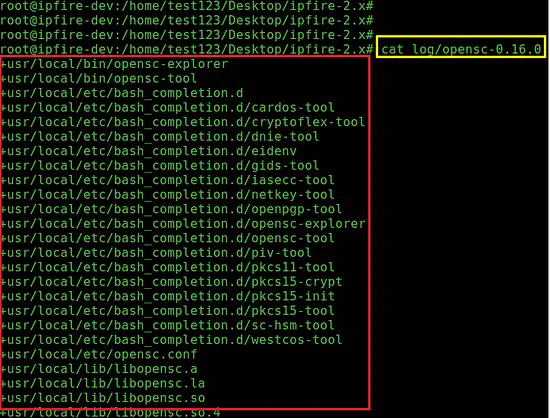

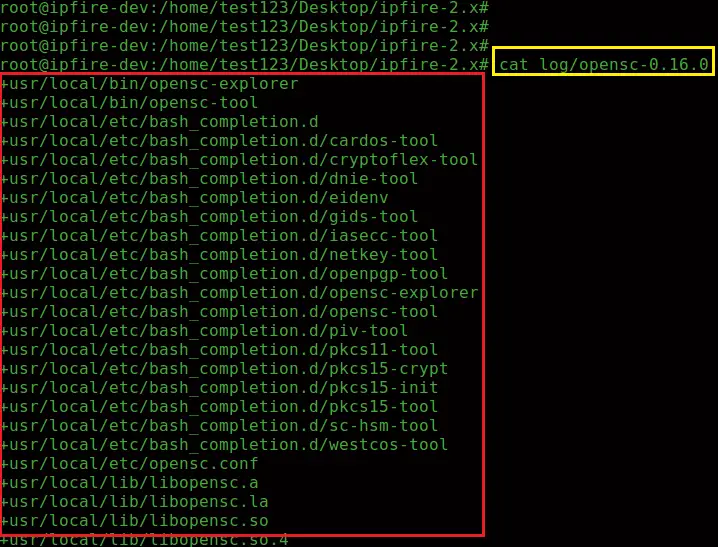

The rootfiles of new addons contain a "+" sign which must be removed before running the build command.

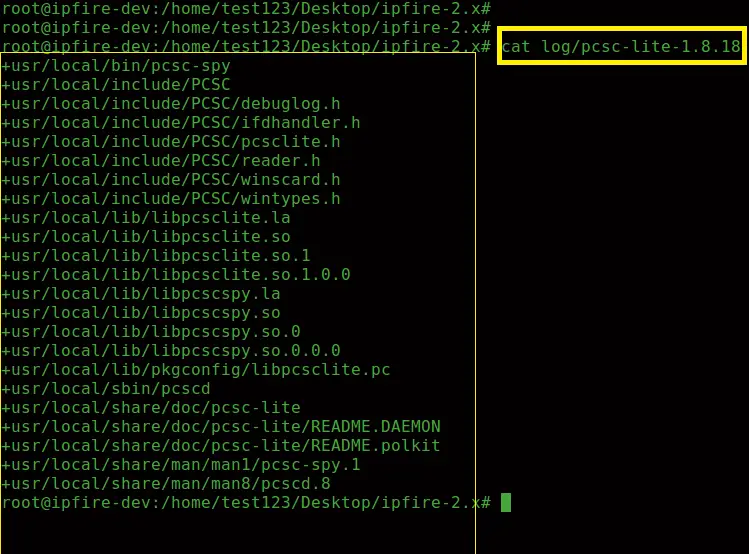

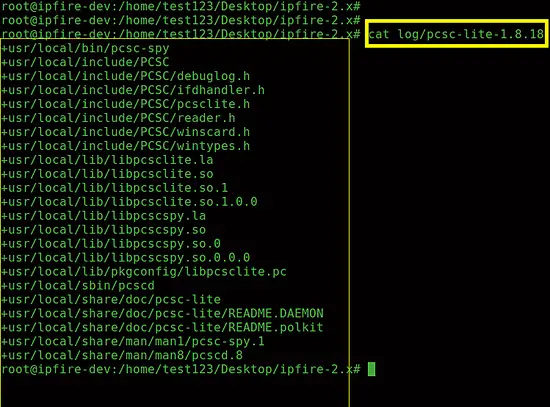

pcsc-lite root file

pcsc-lite root file

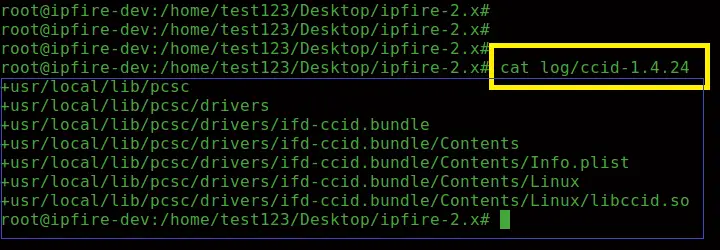

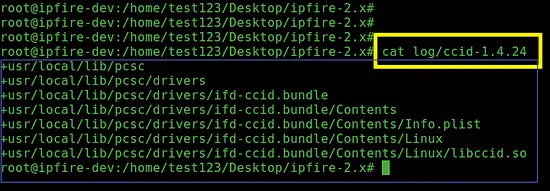

ccid rootfile

ccid rootfile

opensc rootfile

opensc rootfile

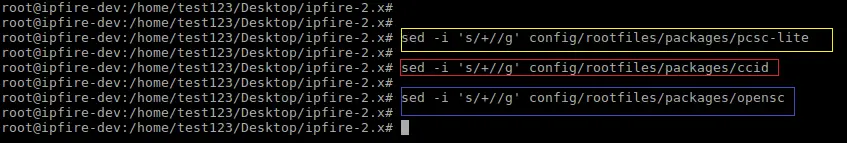

Use the following sed command to remove the  "+" sign from the rootfiles of the new packages.

sed -i 's/+//g' config/rootfiles/packages/pcsc-lite

sed -i 's/+//g' config/rootfiles/packages/ccid

sed -i 's/+//g' config/rootfiles/packages/opensc

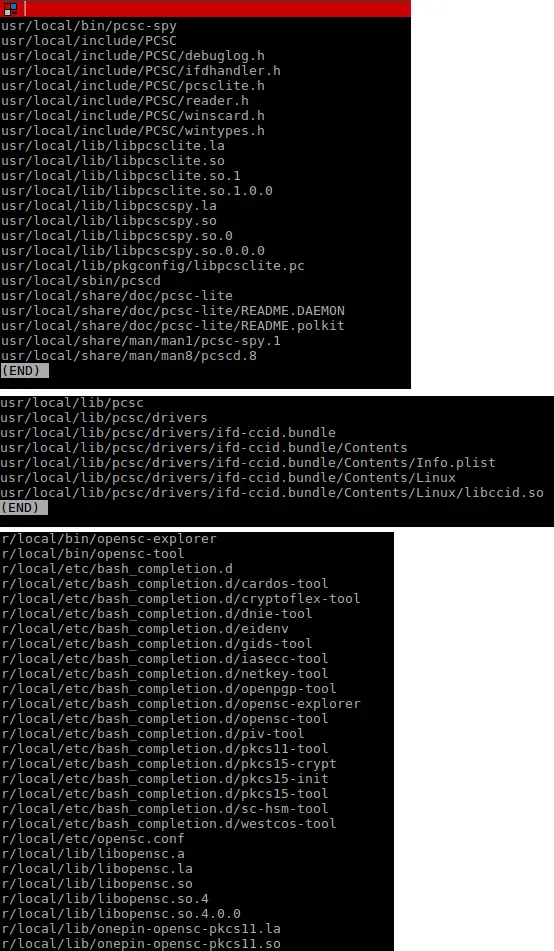

Following screenshot shows that plus sign has been removed from the rootfiles.

Plus sign removed from rootfiles

PakFire is the package management system for IPFire which is used by the install, uninstall and update routines in the new addons.

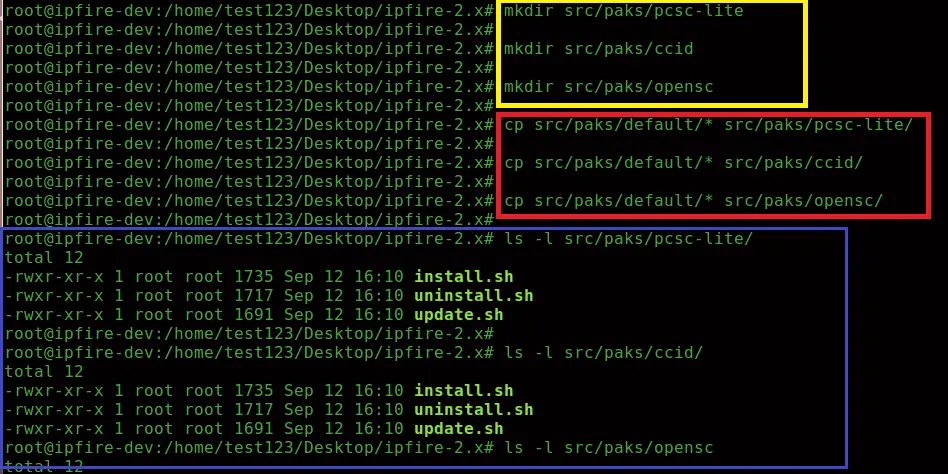

Create directories (same as lfs of the packages) for all new addon's inside the src/paks path and copy install.sh, uninstall.sh an update.sh scripts from src/paks/default/ into the src/paks/pcsc-lite , src/paks/ccid,src/paks/opensc .

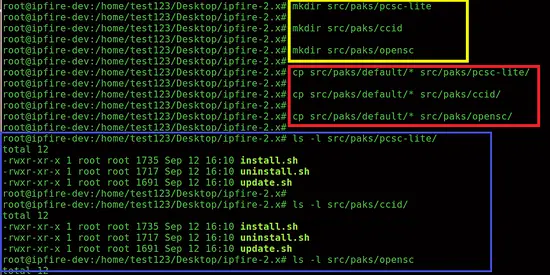

Copy installer scripts

Run the build command again to complete the build process.

./make.sh build

This time, ignore the rootfiles missing message for all new addon's because we have already updated rootfiles  in the config directory.

ignore missing rootfiles message

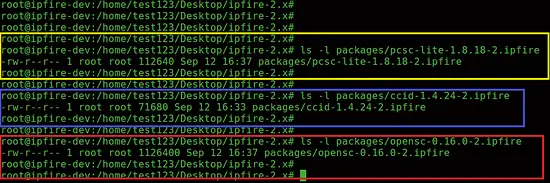

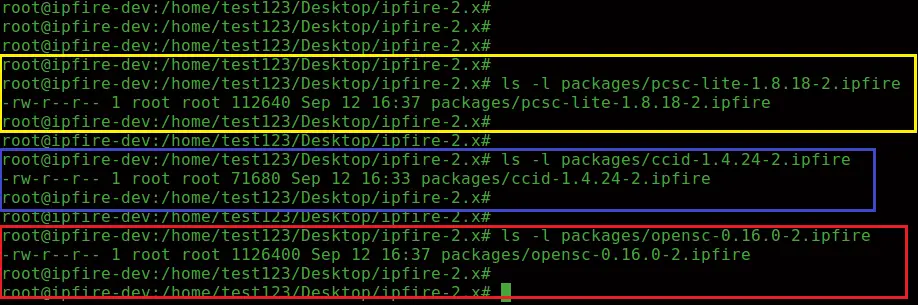

Finally, the following screenshot shows that the new addon's (pcsc-lite-1.8.18-2.ipfire, ccid-1.4.24-2.ipfire , opensc-0.16.0-2.ipfire) have been created inside the packages directory.

Package building completed

Installation of pakfire packages

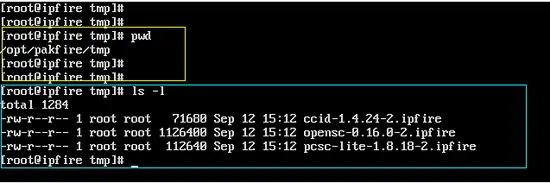

As shown below, the compiled packages are copied to the already installed IPFire system inside the /opt/pakfire/tmp directory.

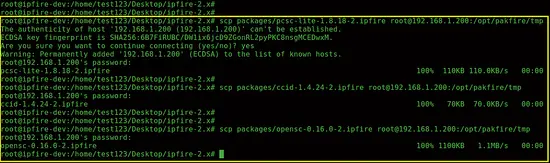

copy packages to live system

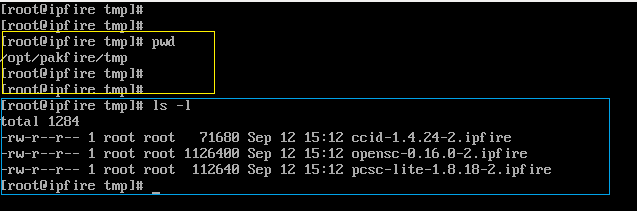

Following screenshot shows that packages are copied on IPFire system.

packages copied

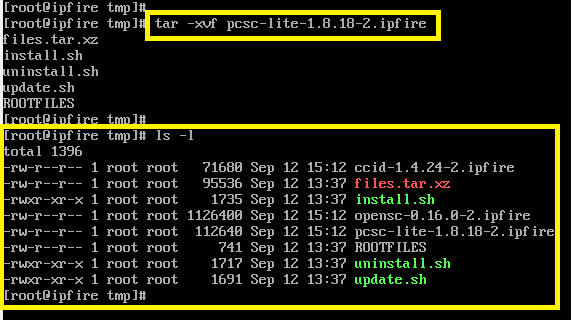

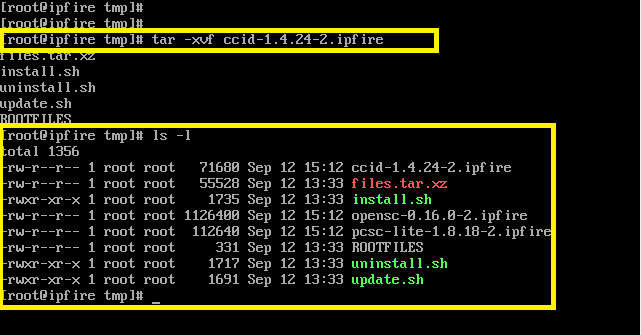

New addons are  extracted by using the following command for installation on IPFire.

 tar -xvf pcsc-lite-1.8.18-2.ipfire

unpack addon's

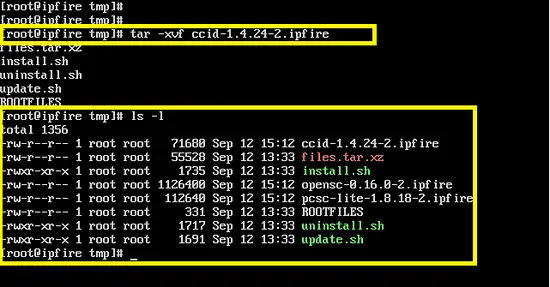

 tar -xvf ccid-1.4.24-2.ipfire

unpack ccid

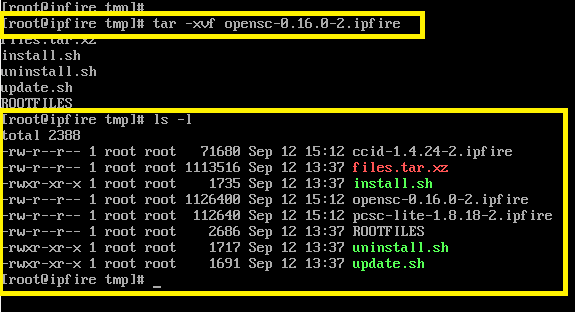

 tar -xvf opensc-0.16.0-2.ipfire

unpack ccid

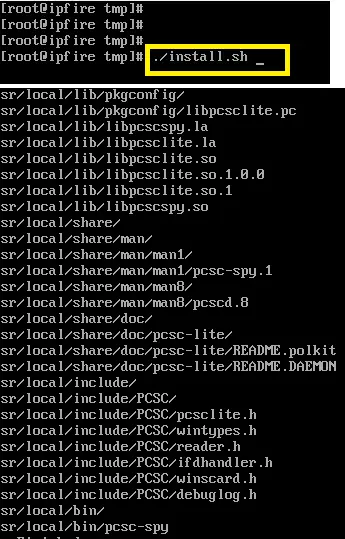

Installation of the new addon's is shown in the following screenshot using ./install.sh script.

Install packages

Successful installation of pcsc-lite is shown in the following snapshot.

pcsc-lite installed successfully

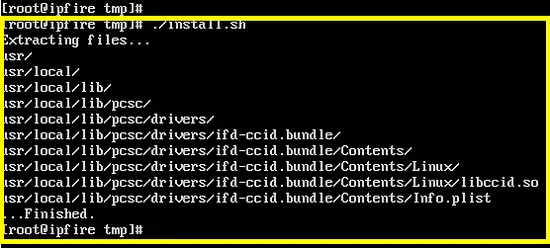

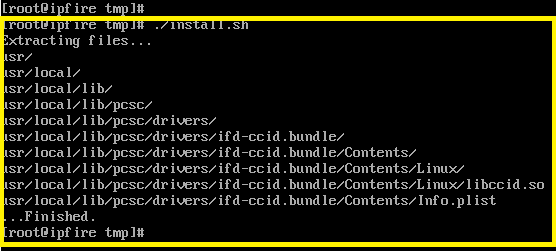

The following figure shows the installation of CCID smart card drivers.

Install smartcard drivers

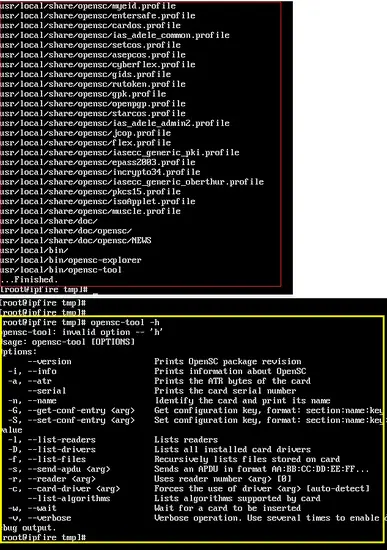

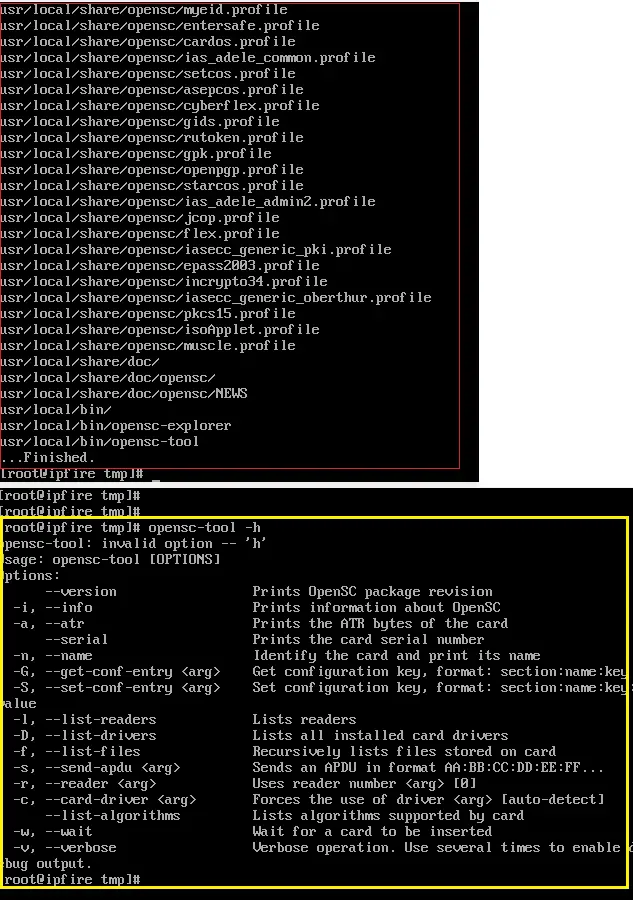

As shown below, the openSC tool is finally installed for the management of smart cards on IPFire system.

OpenSC tool installed

In this tutorial, new addon's are build in the development system of IPFire. These new addons are used to integrate smartcards and their readers with open source IPFire project.
