How to setup HAProxy as Load Balancer for Nginx on CentOS 7

HAProxy or High Availability Proxy is an open source TCP and HTTP load balancer and proxy server software. HAProxy has been written by Willy Tarreau in C, it supports SSL, compressions, keep-alive, custom log formats and header rewriting. HAProxy is a fast and lightweight proxy server and load balancer with a small memory footprint and low CPU usage. It is used by large sites like Github, StackOverflow, Reddit, Tumblr, Twitter and others. It has become the most popular software load balancer and proxy server in the past years.

In this tutorial, I will guide you trough the HAProxy installation and configuration for 3 servers, one load balancer, and two Nginx web servers. We will install HAProxy on a single server and then install Nginx web server on the other servers. HAProxy acts as a load balancer for the Nginx web servers.

Basic Concept with HAProxy

Layer 4 and Layer 7

HAProxy can run in two modes: TCP mode Layer 4 and HTTP Mode Layer 7. In Layer 4 TCP mode, HAProxy forwards the RAW TCP packets from the client to the application servers. In the Layer 7 HTTP mode, HAProxy is parsing the HTTP header before forwarding them to the application servers. In this tutorial, we will use Nginx as the web server that only supports the Layer 7 HTTP mode.

Balance Algorithm

This is the algorithm that is used by HAProxy to select the server when doing the load balancing. The following modes are available:

Roundrobin

This is the most simple balance algorithm. For each new connection, it will be handled by the next backend server. If the last backend server in the list is reached, it will start again from the top of backend list.

Lastconn

The new connection will be handled by the backend server with least amount of connections. This is useful when the time and load of the requests vary a lot.

Source

This is for sticky sessions, the client IP will be hashed to determine the backend server that received the last request from this IP. So an IP A will always be handled by backend1, and IP B will always be handled by banckend2 to not interrupt sessions

There are oOther algorithm - check the official HAProxy site for details.

Prerequisites

  • 3 CentOS 7

            loadbalancer
            192.168.1.102

           nginx1
           192.168.1.104

            nginx2
            192.168.1.105

  • Root privileges on all 3 servers.

Step 1 - Configure the /etc/hosts files

Log in to the load balancer server and edit the /etc/hosts file.

ssh [email protected]
sudo su

vi /etc/hosts

Add nginx1 and nginx2 hostnames:

192.168.1.104    nginx1.loadbalancer.me     nginx1
192.168.1.105    nginx2.loadbalancer.me     nginx2

Save the file and exit the editor.

Next, edit the hosts file on the Nginx servers (nginx1 and nginx2):

ssh [email protected]
ssh [email protected]

Edit and add a new line for the load balancer in the hosts files:

vi /etc/host

Add the loadbalancer hostname on each nginx server:

192.168.1.102    loadbalancer

do this on nginx1 and nginx2 server.

Step 2 - Install and Configure HAProxy

HAProxy is available in the CentOS 7 repository, log in to the loadbalancer server and update the package lists:

ssh [email protected]
yum -y update

Now install HAProxy with this yum command:

yum -y install haproxy

When the installation is finished, go to the "/etc/haproxy/" directory and backup the original configuration file:

cd /etc/haproxy/
mv haproxy.cfg haproxy.cfg.orig

Next, add a new HAProxy configuration file "haproxy.cfg" file with the vi editor:

vi haproxy.cfg

Paste the configuration below:

#---------------------------------------------------------------------
# Global settings
#---------------------------------------------------------------------
global
    log         127.0.0.1 local2     #Log configuration

    chroot      /var/lib/haproxy
    pidfile     /var/run/haproxy.pid
    maxconn     4000
    user        haproxy             #Haproxy running under user and group "haproxy"
    group       haproxy
    daemon

    # turn on stats unix socket
    stats socket /var/lib/haproxy/stats

#---------------------------------------------------------------------
# common defaults that all the 'listen' and 'backend' sections will
# use if not designated in their block
#---------------------------------------------------------------------
defaults
    mode                    http
    log                     global
    option                  httplog
    option                  dontlognull
    option http-server-close
    option forwardfor       except 127.0.0.0/8
    option                  redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 3000

#---------------------------------------------------------------------
#HAProxy Monitoring Config
#---------------------------------------------------------------------
listen haproxy3-monitoring *:8080                #Haproxy Monitoring run on port 8080
    mode http
    option forwardfor
    option httpclose
    stats enable
    stats show-legends
    stats refresh 5s
    stats uri /stats                             #URL for HAProxy monitoring
    stats realm Haproxy\ Statistics
    stats auth howtoforge:howtoforge            #User and Password for login to the monitoring dashboard
    stats admin if TRUE
    default_backend app-main                    #This is optionally for monitoring backend

#---------------------------------------------------------------------
# FrontEnd Configuration
#---------------------------------------------------------------------
frontend main
    bind *:80
    option http-server-close
    option forwardfor
    default_backend app-main

#---------------------------------------------------------------------
# BackEnd roundrobin as balance algorithm
#---------------------------------------------------------------------
backend app-main
    balance roundrobin                                     #Balance algorithm
    option httpchk HEAD / HTTP/1.1\r\nHost:\ localhost    #Check the server application is up and healty - 200 status code
    server nginx1 192.168.1.104:80 check                 #Nginx1
    server nginx2 192.168.1.105:80 check                 #Nginx2

Save the configuration file and exit.

Next, configure rsyslog for HAProxy.

We will configure the rsyslog daemon to log the HAProxy statistics. Edit the rsyslog.conf file to enable the UDP port 514 to be used by rsyslog.

vi /etc/rsyslog.conf

Uncomment this line to enable the UDP connection:

$ModLoad imudp
$UDPServerRun 514

If you want to use a specific IP, you can add a new line like the one below:

$UDPServerAddress 127.0.0.1

Save the file and exit.

Then create new haproxy configuration file for rsyslog:

cd /etc/rsyslog.d/
vi haproxy.conf

Paste configuration below:

local2.=info     /var/log/haproxy-access.log    #For Access Log
local2.notice    /var/log/haproxy-info.log      #For Service Info - Backend, loadbalancer

Save and exit.

Now restart rsyslog and then start the haproxy:

systemctl restart rsyslog
systemctl start haproxy

Add haproxy to start at boot time:

systemctl enable haproxy

Step 3 - Install and Configure Nginx

In this section, we will install Nginx from epel repository on nginx1 and nginx2 server.

Log in to the servers:

ssh [email protected]
ssh [email protected]

Install the epel repository with the yum command below:

yum -y install epel-release

Now you can install Nginx:

yum -y install nginx

Nginx is installed. Go to the web directory and change the index file so that we can see which of the two servers delivered the html file:

cd /usr/share/nginx/html/
echo "<h1>nginx1.loadbalance.me</h1>" > index.html     #For nginx1 server
echo "<h1>nginx2.loadbalance.me</h1>" > index.html     #For nginx2 server

Next, add Nginx to start at boot time and then start it:

systemctl enable nginx
systemctl start nginx

Make sure you're doing this step on nginx1 and nginx2 server.

Step 4 - Testing

Testing from browser by accessing the loadbalancer IP: 192.168.1.102

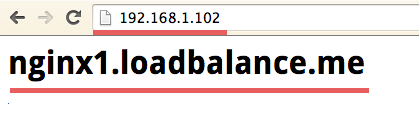

Request handled by Nginx 1

Request handled by Nginx 2

Testing with curl command:

curl 192.168.1.102

Test HAProxy

Testing to login to the HAProxy web monitoring that is running on port 8080 with username and password "howtoforge":

http://192.168.1.102:8080/stats

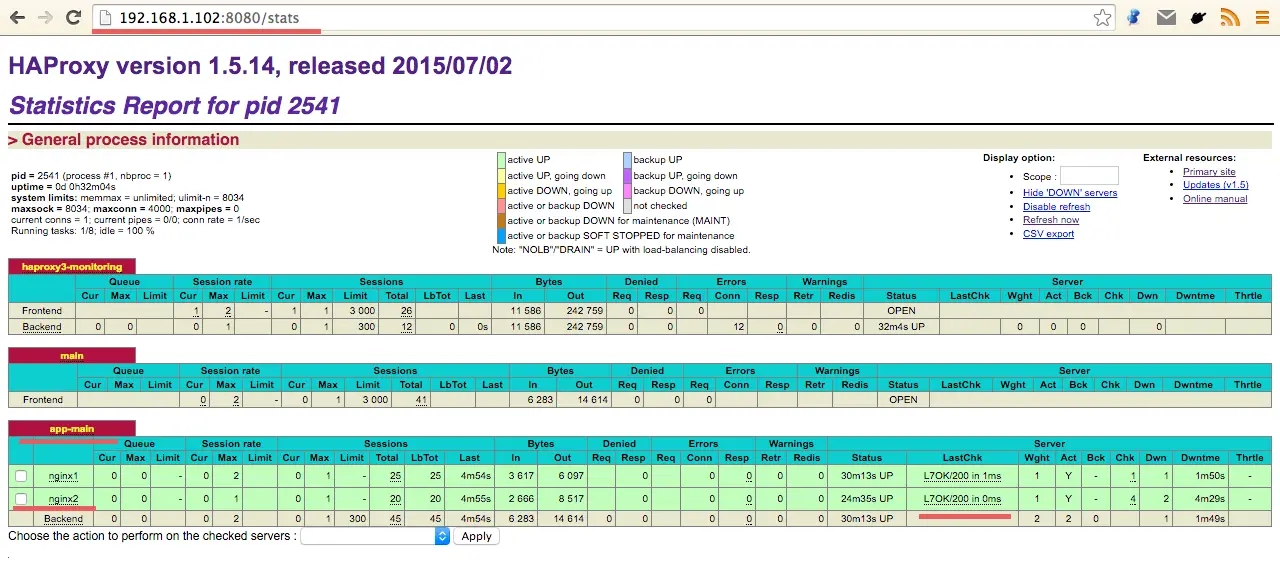

HAProxy Statstics

HAProxy is working  successfully and acts as a load balancer for our two Nginx web servers.

Conclusion

HAProxy or High Availability proxy is an open source software that provides high availability for TCP-based services, it operates as HTTP load balancer and proxy server. The software is written in C and supports SSL, keep-alive and compression. HAProxy is the right choice for everyone who needs a load balancer and proxy server that is fast and lightweight with a small memory footprint and low CPU usage. Haproxy can run in Layer 4 TCP mode and Layer 7 HTTP mode. Nginx supports only the Layer 7 HTTP mode with HAProxy. If you want to use Layer 4 TCP mode, you can use other web servers like apache. On CentOS 7, HAProxy is available in the default repository. It's easy to install and configure.
