The Perfect Setup - Mandrake/Mandriva 10.2 - Page 5

MySQL (4.1)

apt-get install MySQL MySQL-client libmysql14-devel

/etc/init.d/mysqld start

Now check that networking is enabled. Run

netstat -tap

It should show a line like this:

tcp        0      0 *:mysql                 *:*                     LISTEN      6621/mysqld

If it does not, edit /etc/sysconfig/mysqld and remove --skip-networking from the Variable MYSQLD_OPTIONS:

# (oe) Remove --skip-networking to enable network access from
# non local clients. Access from localhost will still work.
MYSQLD_OPTIONS=""

# (oe) set TMPDIR and TMP environment variables
TMPDIR="${datadir}/.tmp"
TMP="${TMPDIR}"

and restart your MySQL server:

/etc/init.d/mysqld restart

Run

mysqladmin -u root password yourrootsqlpassword
mysqladmin -h server1.example.com -u root password yourrootsqlpassword

to set a password for the user root (otherwise anybody can access your MySQL database!).

Postfix With SMTP-AUTH And TLS

apt-get install cyrus-sasl libsasl2 libsasl2-devel libsasl2-plug-plain libsasl2-plug-anonymous libsasl2-plug-crammd5 libsasl2-plug-digestmd5 libsasl2-plug-gssapi libsasl2-plug-login postfix imap

postconf -e 'smtpd_sasl_local_domain ='
postconf -e 'smtpd_sasl_auth_enable = yes'
postconf -e 'smtpd_sasl_security_options = noanonymous'
postconf -e 'broken_sasl_auth_clients = yes'
postconf -e 'smtpd_recipient_restrictions = permit_sasl_authenticated,permit_mynetworks,reject_unauth_destination'
postconf -e 'inet_interfaces = all'
postconf -e 'mydomain = example.com'
postconf -e 'myhostname = server1.$mydomain'
postconf -e 'mydestination = /etc/postfix/local-host-names, localhost.example.com'

Edit /etc/postfix/sasl/smtpd.conf. It should look like this:

# SASL library configuration file for postfix
# all parameters are documented into:
# /usr/share/doc/cyrus-sasl-2.*/options.html

# The mech_list parameters list the sasl mechanisms to use,
# default being all mechs found.
mech_list: plain login

# To authenticate using the separate saslauthd daemon, (e.g. for
# system or ldap users). Also see /etc/sysconfig/saslauthd.
pwcheck_method: saslauthd
saslauthd_path: /var/lib/sasl2/mux

# To authenticate against users stored in sasldb.
#pwcheck_method: auxprop
#auxprop_plugin: sasldb
#sasldb_path: /var/lib/sasl2/sasldb2

mkdir /etc/postfix/ssl
cd /etc/postfix/ssl/
openssl genrsa -des3 -rand /etc/hosts -out smtpd.key 1024
chmod 600 smtpd.key
openssl req -new -key smtpd.key -out smtpd.csr
openssl x509 -req -days 3650 -in smtpd.csr -signkey smtpd.key -out smtpd.crt
openssl rsa -in smtpd.key -out smtpd.key.unencrypted
mv -f smtpd.key.unencrypted smtpd.key
openssl req -new -x509 -extensions v3_ca -keyout cakey.pem -out cacert.pem -days 3650

postconf -e 'smtpd_tls_auth_only = no'
postconf -e 'smtp_use_tls = yes'
postconf -e 'smtpd_use_tls = yes'
postconf -e 'smtp_tls_note_starttls_offer = yes'
postconf -e 'smtpd_tls_key_file = /etc/postfix/ssl/smtpd.key'
postconf -e 'smtpd_tls_cert_file = /etc/postfix/ssl/smtpd.crt'
postconf -e 'smtpd_tls_CAfile = /etc/postfix/ssl/cacert.pem'
postconf -e 'smtpd_tls_loglevel = 1'
postconf -e 'smtpd_tls_received_header = yes'
postconf -e 'smtpd_tls_session_cache_timeout = 3600s'
postconf -e 'tls_random_source = dev:/dev/urandom'

Now start Postfix, saslauthd, imap and pop3:

chkconfig imap on
chkconfig imaps on
chkconfig ipop3 on
chkconfig pop3s on
/etc/init.d/postfix restart
/etc/init.d/saslauthd restart
/etc/init.d/xinetd restart

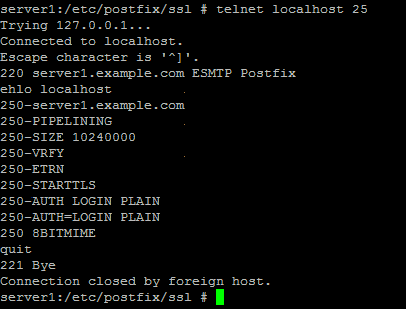

To see if SMTP-AUTH and TLS work properly now run the following command:

telnet localhost 25

After you have established the connection to your postfix mail server type

ehlo localhost

If you see the lines

250-STARTTLS

and

250-AUTH

everything is fine.

Type

quit

to return to the system's shell.

Apache With PHP

apt-get install apache2-mod_php php-cli php-ini php-gd php-xml php-ldap php-xmlrpc php-domxml php-imap php-mysql php-pear php-readline php-xslt php432-devel curl libcurl3-devel perl-libwww-perl ImageMagick

Now edit /etc/httpd/conf.d/70_mod_php.conf and comment out the AddType lines:

<IfDefine HAVE_PHP4>
<IfModule !mod_php4.c>
LoadModule php4_module extramodules/mod_php4.so
</IfModule>
</IfDefine>

<IfModule mod_php4.c>
PHPINIDir /etc
</IfModule>

<IfModule mod_mime.c>
#AddType application/x-httpd-php .php
#AddType application/x-httpd-php .php3
#AddType application/x-httpd-php .php4
#AddType application/x-httpd-php .phtml
#AddType application/x-httpd-php-source .phps
</IfModule>

Edit /etc/httpd/conf/apache-mime.types and comment oout the following lines:

#application/x-perl             perl pl
#application/x-php php php3 php4

Edit /etc/httpd/conf/httpd2.conf and add the following line to the LoadModule section:

LoadModule php4_module    extramodules/mod_php4.so

(Although this line is already in /etc/httpd/conf.d/70_mod_php.conf this is very important because otherwise the command httpd -t will report errors instead of Syntax OK when the virtual hosts created by ISPConfig contain lines like php_admin_flag safe_mode On or the like!)

Restart Apache:

/etc/init.d/httpd restart
