The Perfect Setup - Fedora Core 5 (64-bit) - Page 5

9 Postfix With SMTP-AUTH And TLS

Now we install Postfix and dovecot (dovecot will be our POP3/IMAP server):

yum install cyrus-sasl cyrus-sasl-devel cyrus-sasl-gssapi cyrus-sasl-md5 cyrus-sasl-plain postfix dovecot

Now we configure SMTP-AUTH and TLS:

postconf -e 'smtpd_sasl_local_domain ='
postconf -e 'smtpd_sasl_auth_enable = yes'
postconf -e 'smtpd_sasl_security_options = noanonymous'
postconf -e 'broken_sasl_auth_clients = yes'
postconf -e 'smtpd_recipient_restrictions = permit_sasl_authenticated,permit_mynetworks,reject_unauth_destination'
postconf -e 'inet_interfaces = all'

We must edit /usr/lib64/sasl2/smtpd.conf so that Postfix allows PLAIN and LOGIN logins. It should look like this:

vi /usr/lib64/sasl2/smtpd.conf

pwcheck_method: saslauthd
mech_list: plain login

mkdir /etc/postfix/ssl
cd /etc/postfix/ssl/
openssl genrsa -des3 -rand /etc/hosts -out smtpd.key 1024
chmod 600 smtpd.key
openssl req -new -key smtpd.key -out smtpd.csr
openssl x509 -req -days 3650 -in smtpd.csr -signkey smtpd.key -out smtpd.crt
openssl rsa -in smtpd.key -out smtpd.key.unencrypted
mv -f smtpd.key.unencrypted smtpd.key
openssl req -new -x509 -extensions v3_ca -keyout cakey.pem -out cacert.pem -days 3650

postconf -e 'smtpd_tls_auth_only = no'
postconf -e 'smtp_use_tls = yes'
postconf -e 'smtpd_use_tls = yes'
postconf -e 'smtp_tls_note_starttls_offer = yes'
postconf -e 'smtpd_tls_key_file = /etc/postfix/ssl/smtpd.key'
postconf -e 'smtpd_tls_cert_file = /etc/postfix/ssl/smtpd.crt'
postconf -e 'smtpd_tls_CAfile = /etc/postfix/ssl/cacert.pem'
postconf -e 'smtpd_tls_loglevel = 1'
postconf -e 'smtpd_tls_received_header = yes'
postconf -e 'smtpd_tls_session_cache_timeout = 3600s'
postconf -e 'tls_random_source = dev:/dev/urandom'

After these configuration steps you should now have a /etc/postfix/main.cf that looks like this (I have removed all comments from it):

vi /etc/postfix/main.cf

queue_directory = /var/spool/postfix
command_directory = /usr/sbin
daemon_directory = /usr/libexec/postfix
mail_owner = postfix
inet_interfaces = all
mydestination = $myhostname, localhost.$mydomain, localhost
unknown_local_recipient_reject_code = 550
alias_maps = hash:/etc/aliases
alias_database = hash:/etc/aliases

debug_peer_level = 2
debugger_command =
PATH=/bin:/usr/bin:/usr/local/bin:/usr/X11R6/bin
xxgdb $daemon_directory/$process_name $process_id & sleep 5

sendmail_path = /usr/sbin/sendmail.postfix
newaliases_path = /usr/bin/newaliases.postfix
mailq_path = /usr/bin/mailq.postfix
setgid_group = postdrop
html_directory = no
manpage_directory = /usr/share/man
sample_directory = /usr/share/doc/postfix-2.2.8/samples
readme_directory = /usr/share/doc/postfix-2.2.8/README_FILES
smtpd_sasl_local_domain =
smtpd_sasl_auth_enable = yes
smtpd_sasl_security_options = noanonymous
broken_sasl_auth_clients = yes
smtpd_recipient_restrictions = permit_sasl_authenticated,permit_mynetworks,reject_unauth_destination
smtpd_tls_auth_only = no
smtp_use_tls = yes
smtpd_use_tls = yes
smtp_tls_note_starttls_offer = yes
smtpd_tls_key_file = /etc/postfix/ssl/smtpd.key
smtpd_tls_cert_file = /etc/postfix/ssl/smtpd.crt
smtpd_tls_CAfile = /etc/postfix/ssl/cacert.pem
smtpd_tls_loglevel = 1
smtpd_tls_received_header = yes
smtpd_tls_session_cache_timeout = 3600s
tls_random_source = dev:/dev/urandom

Now start Postfix, saslauthd, and dovecot:

chkconfig --levels 235 sendmail off
chkconfig --levels 235 postfix on
chkconfig --levels 235 saslauthd on
chkconfig --levels 235 dovecot on
/etc/init.d/sendmail stop
/etc/init.d/postfix start
/etc/init.d/saslauthd start
/etc/init.d/dovecot start

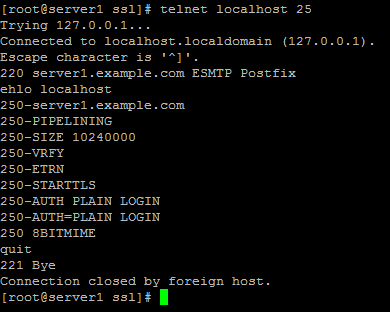

To see if SMTP-AUTH and TLS work properly now run the following command:

telnet localhost 25

After you have established the connection to your Postfix mail server type

ehlo localhost

If you see the lines

250-STARTTLS

and

250-AUTH

everything is fine.

Type

quit

to return to the system's shell.


9.1 Maildir

dovecot uses Maildir format (not mbox), so if you install ISPConfig on the server, please make sure you enable Maildir under Management -> Server -> Settings -> Email. ISPConfig will then do the necessary configuration.

If you do not want to install ISPConfig, then you must configure Postfix to deliver emails to a user's Maildir:

postconf -e 'home_mailbox = Maildir/'
postconf -e 'mailbox_command ='
/etc/init.d/postfix restart


10 Apache2 With PHP5

Now we install Apache with PHP5:

yum install php php-devel php-gd php-imap php-ldap php-mysql php-odbc php-pear php-xml php-xmlrpc curl curl-devel perl-libwww-perl ImageMagick libxml2 libxml2-devel

Then edit /etc/httpd/conf/httpd.conf:

vi /etc/httpd/conf/httpd.conf

and change DirectoryIndex to

DirectoryIndex index.html index.htm index.shtml index.cgi index.php index.php3 index.pl

Now configure your system to start Apache at boot time:

chkconfig --levels 235 httpd on

Start Apache:

/etc/init.d/httpd start


10.1 Disable PHP Globally

(If you do not plan to install ISPConfig on this server, please skip this section!)

In ISPConfig you will configure PHP on a per-website basis, i.e. you can specify which website can run PHP scripts and which one cannot. This can only work if PHP is disabled globally because otherwise all websites would be able to run PHP scripts, no matter what you specify in ISPConfig.

To disable PHP globally, we edit /etc/httpd/conf.d/php.conf and comment out the AddHandler and AddType lines:

vi /etc/httpd/conf.d/php.conf

#
# PHP is an HTML-embedded scripting language which attempts to make it
# easy for developers to write dynamically generated webpages.
#

LoadModule php5_module modules/libphp5.so

#
# Cause the PHP interpreter to handle files with a .php extension.
#
#AddHandler php5-script .php
#AddType text/html .php

#
# Add index.php to the list of files that will be served as directory
# indexes.
#
DirectoryIndex index.php

#
# Uncomment the following line to allow PHP to pretty-print .phps
# files as PHP source code:
#
#AddType application/x-httpd-php-source .phps

Afterwards we restart Apache:

/etc/init.d/httpd restart
