The Perfect Server - Ubuntu Jaunty Jackalope (Ubuntu 9.04) [ISPConfig 2] - Page 2

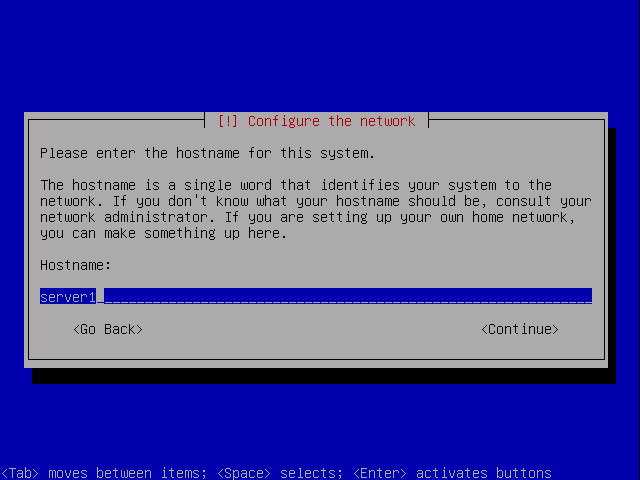

Enter the hostname. In this example, my system is called, so I enter server1:

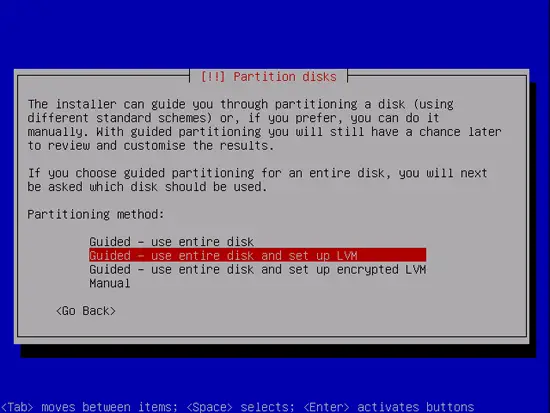

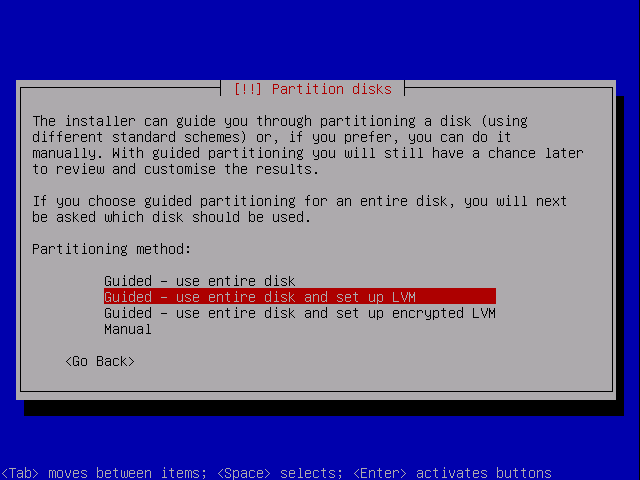

Now you have to partition your hard disk. For simplicity's sake I select Guided - use entire disk and set up LVM - this will create one volume group with two logical volumes, one for the / file system and another one for swap (of course, the partitioning is totally up to you - if you know what you're doing, you can also set up your partitions manually).

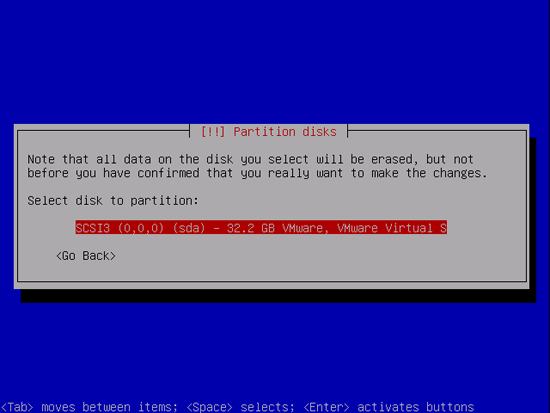

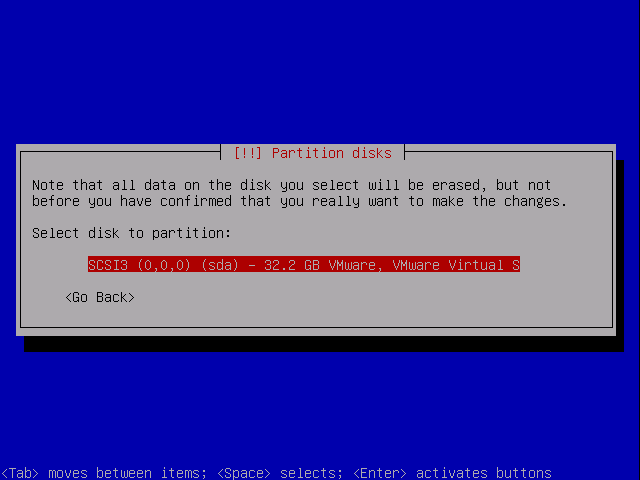

Select the disk that you want to partition:

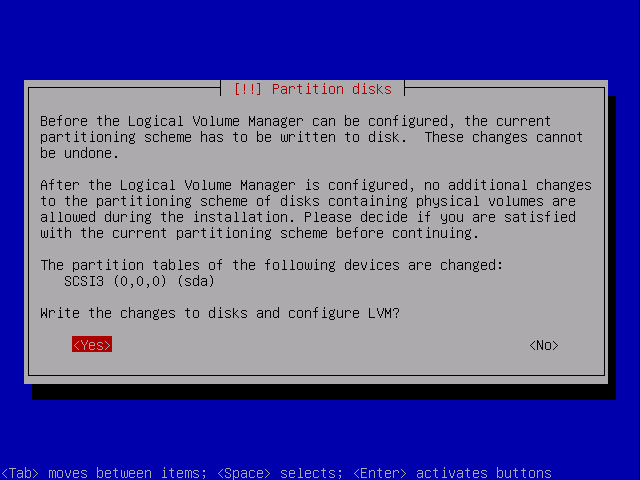

When you're asked Write the changes to disks and configure LVM?, select Yes:

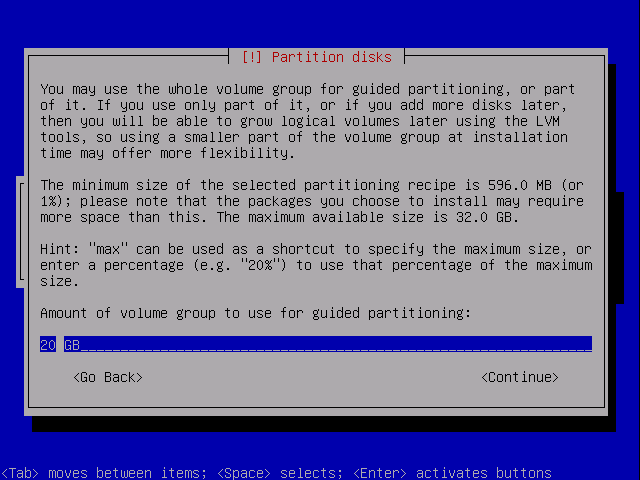

If you have selected Guided - use entire disk and set up LVM, the partitioner will create one big volume group that uses all the disk space. You can now specify how much of that disk space should be used by the logical volumes for / and swap. It makes sense to leave some space unused so that you can later on expand your existing logical volumes or create new ones - this gives you more flexibility.

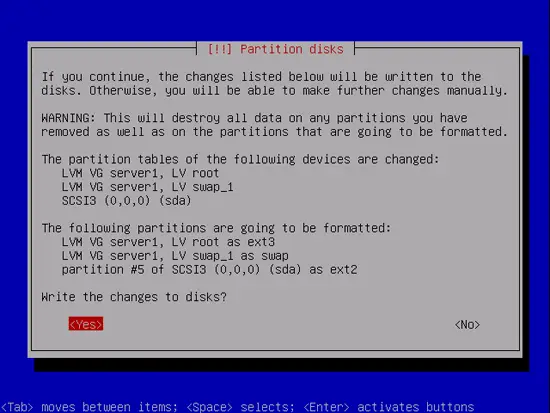

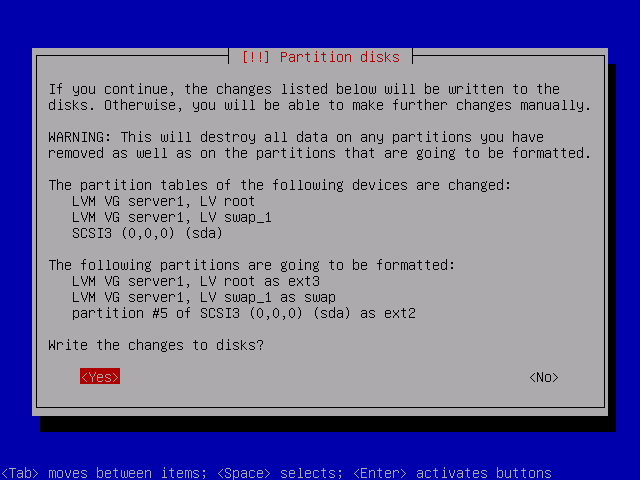

When you're finished, hit Yes when you're asked Write the changes to disks?:

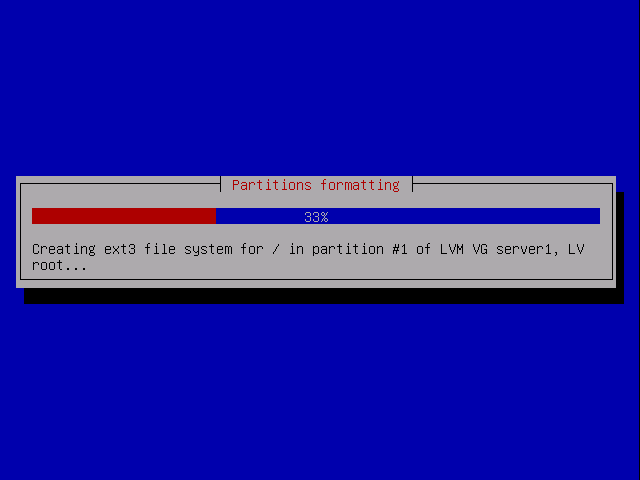

Afterwards, your new partitions are being created and formatted:

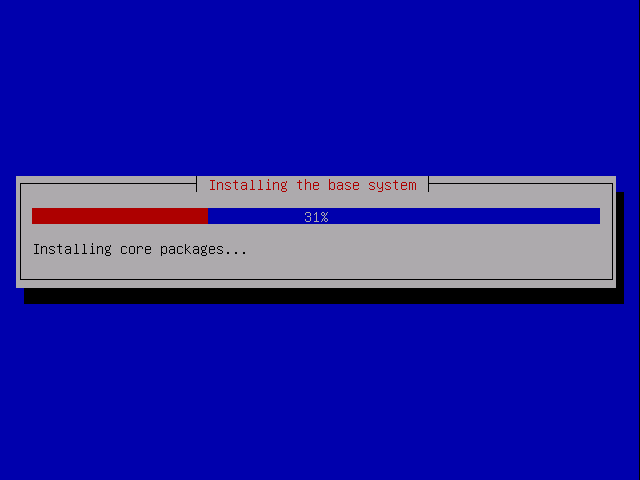

Now the base system is being installed:

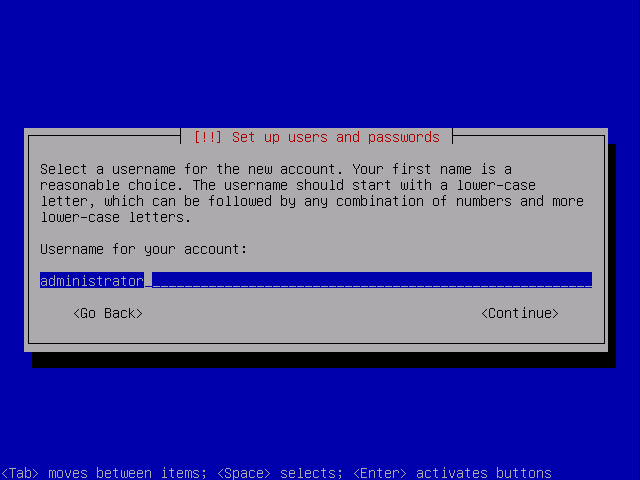

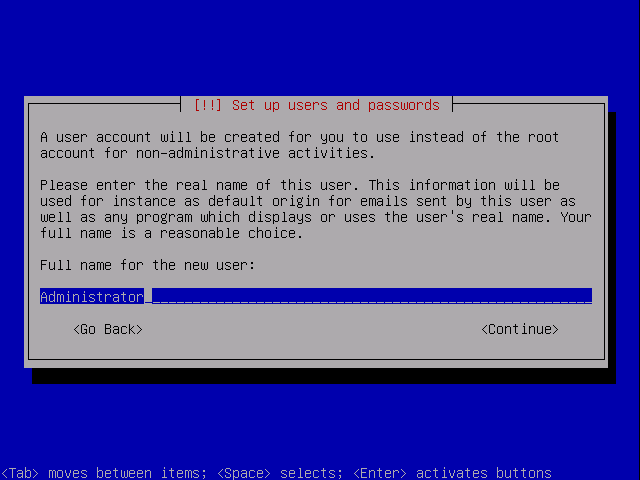

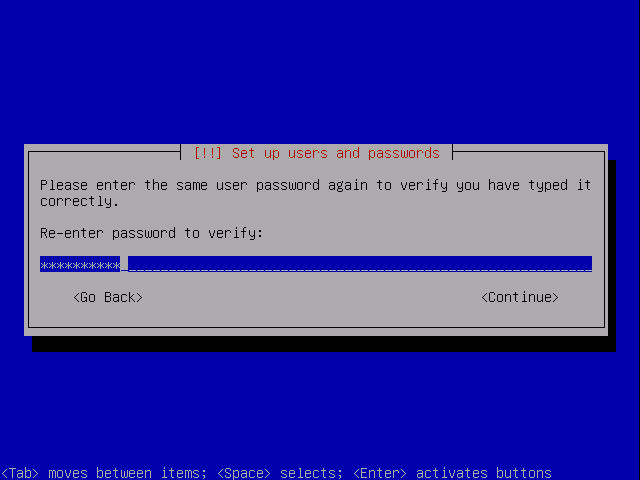

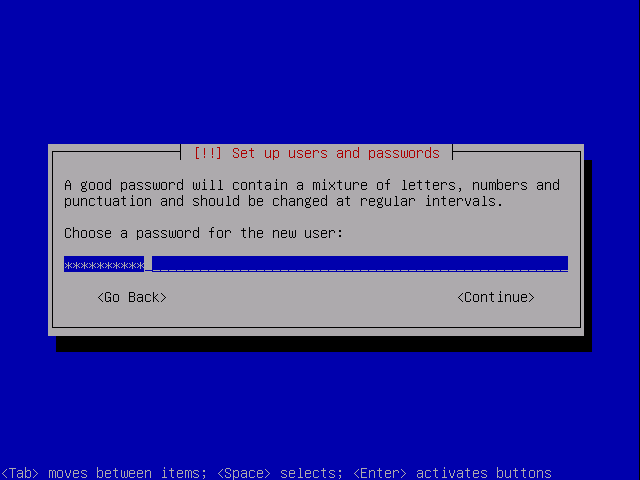

Create a user, for example the user Administrator with the user name administrator (don't use the user name admin as it is a reserved name on Ubuntu 9.04):

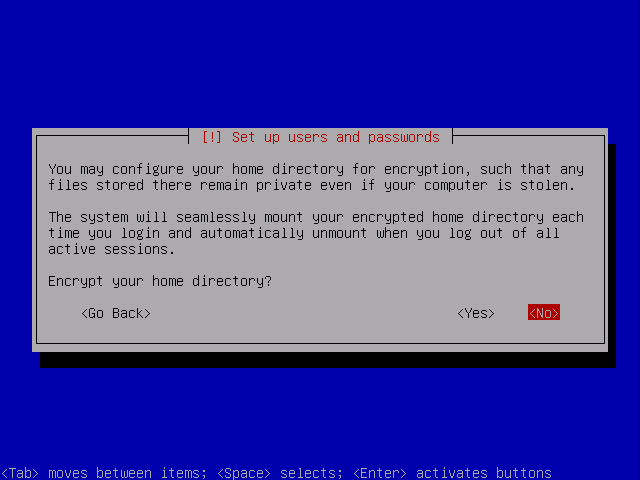

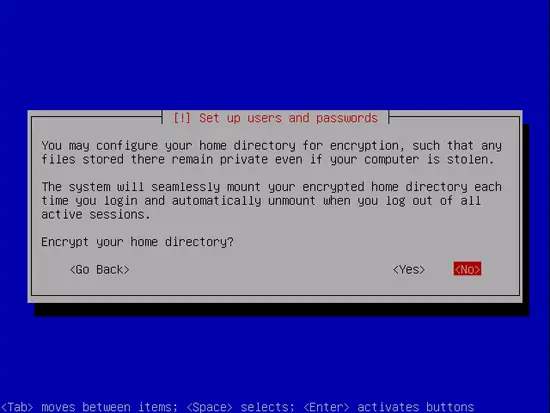

I don't need an encrypted private directory, so I choose No here:

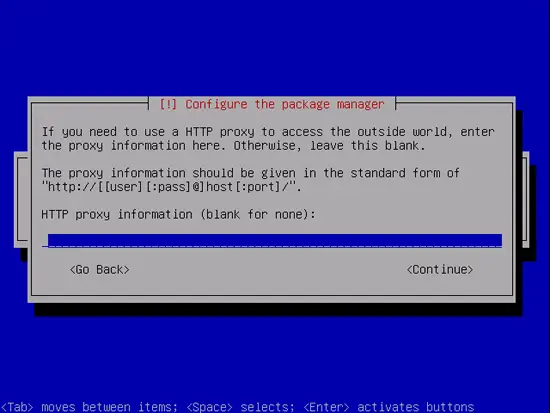

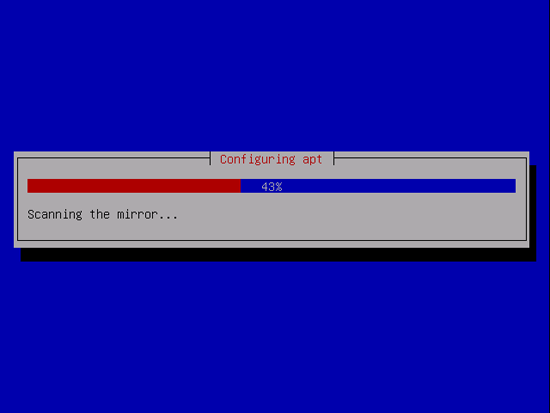

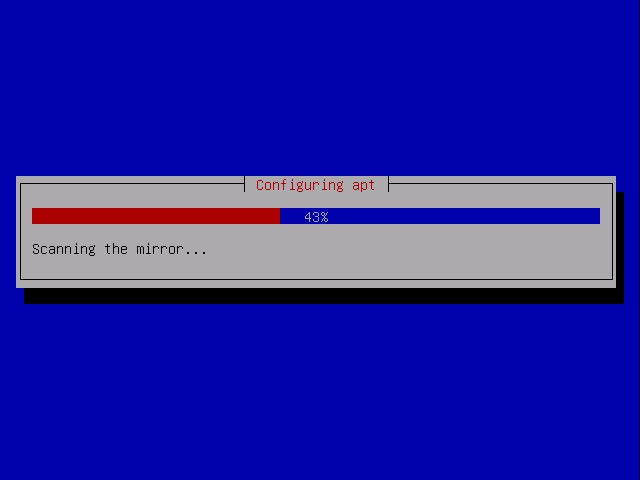

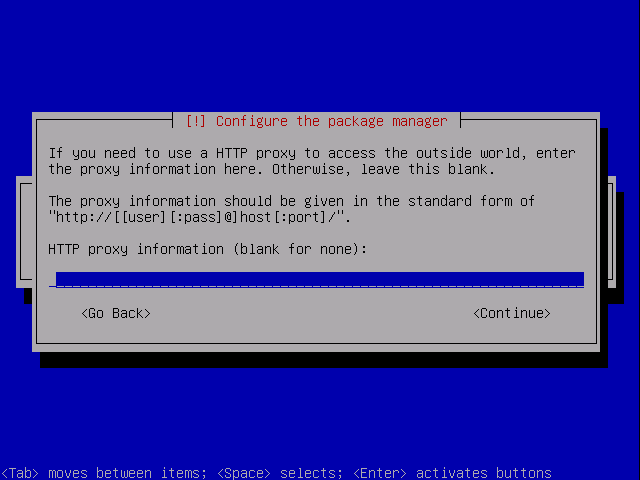

Next the package manager apt gets configured. Leave the HTTP proxy line empty unless you're using a proxy server to connect to the Internet:

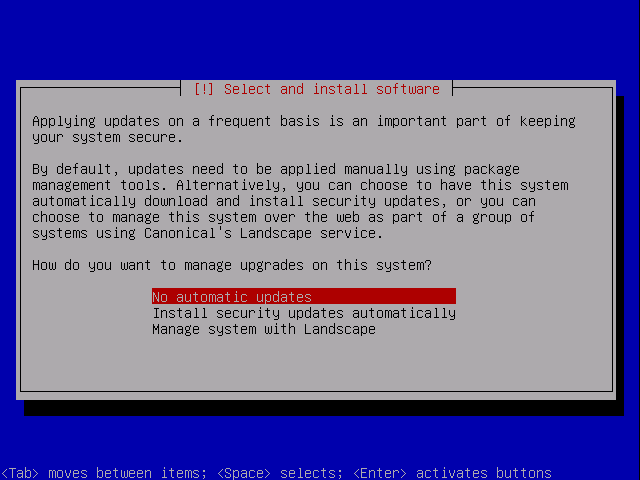

I'm a little bit old-fashioned and like to update my servers manually to have more control, therefore I select No automatic updates. Of course, it's up to you what you select here:

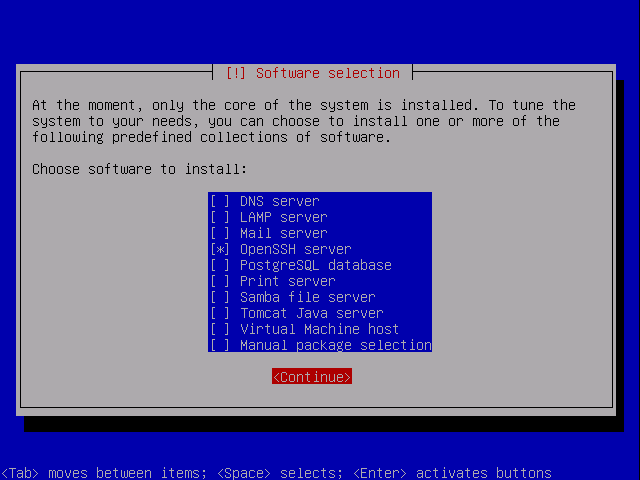

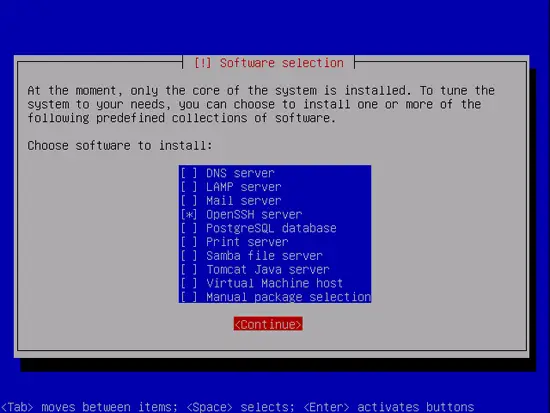

We need a DNS, mail, and LAMP server, but nevertheless I don't select any of them now because I like to have full control over what gets installed on my system. We will install the needed packages manually later on. The only item I select here is OpenSSH server so that I can immediately connect to the system with an SSH client such as PuTTY after the installation has finished:

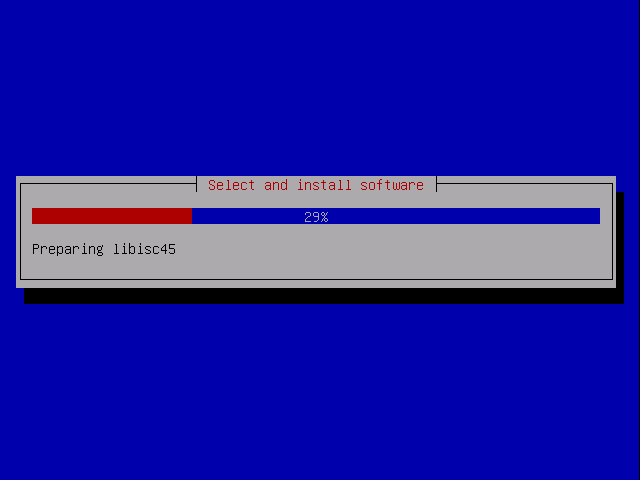

The installation continues:

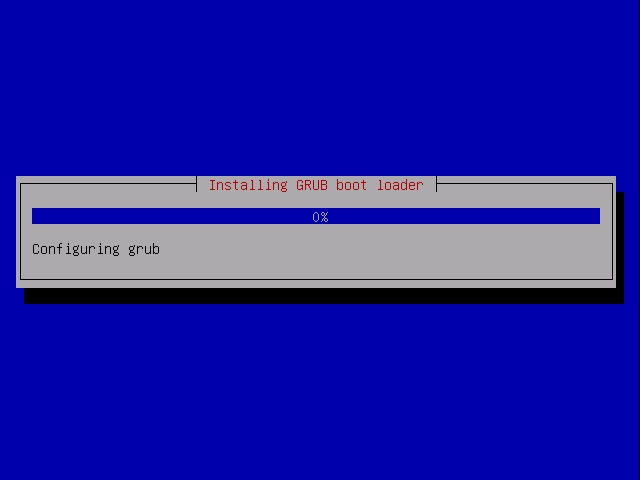

The GRUB boot loader gets installed:

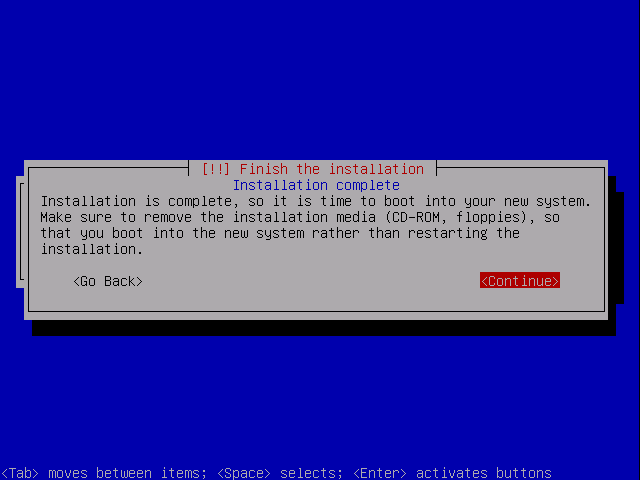

The base system installation is now finished. Remove the installation CD from the CD drive and hit Continue to reboot the system:

On to the next step...

Share this page:

11 Comment(s)

Add comment


From: Anonymous at: 2009-04-30 02:23:33

what do you do about the network interfaces if you are going to use this config on amazon ec2?

new to ec2 and dont know if i should leave it to dhcp or make it static. and if its static what are the values i would use?

From: Anonymous at: 2010-02-21 21:08:18

sorry for this late reply, just leave it alone.Only do the static step if you are using home server, but you aren't so use dhcp

From: Boris at: 2009-04-26 17:34:10

# tasksel

[*] Ubuntu Desktop

Press "Tab"  and  "OK"

About 2hr download at 100KB/s



From: Anonymous at: 2009-07-07 05:29:58

for this server to be used in a small business of about 15 people... and maybe 100 visitors to the website a day what kind of hardware would be need for the server to run smoothly without putting a hole in my wallet?

From: Anonymous at: 2010-03-22 15:36:24

Sorry for the late reply, but, with that little traffic and doing nothing else but web hosting, you could get away with an Atom processor or an old Pentium 4 if you do not care about power usage. If you need it rack mountable, I may suggest a SUPERMICRO SYS-5015A-H 1U otherwise just get a cheap system with reliable hardware and make sure you have room to grow over the next 5 years. After 5 years it may be worthwhile to upgrade to faster and more efficient power-per-watt hardware.

From: Lukas at: 2009-10-20 01:05:03

It works perfect, the only problem I have is when I'm restartting server it says

fsck.ext2 unable to resolve 'UUID=...'

fsck died with exit status 8

File system check failed

From: GBot at: 2010-01-08 02:30:51

Should you still install the DNS server in step 13 if you are behind a home router, such as a D-Link or Linksys?

From: chingson at: 2009-06-01 01:44:15


Since gmail has large volume of email box, customers will always want more and more...

To get more, dbmail with IMAP is a much  better alternative. Also, spamassassin to reject spam emails are required.


BTW, webmail is also a basic of an ISP. Squirrel mail is too .. basic.. and multi-language support is bad. I don't know if there are better alternatives..


From: Anonymous at: 2010-07-19 14:53:17


I am just configure Postfix mailserver follow this tutorial. But when i configure client system its ask for smtp & pop auth password for host. when I give user default password its not taken. Please help me to configure smtp & auth password for host <mail.****.*****>

From: eagle at: 2009-10-05 23:52:03


Good tutorial, all worked fine until the Apache2 installation, which had been working from the defaul installation.

When restarting having enabled the various modules the following message was displayed:

 * Starting web server apache2                                                  (98)Address already in use: make_sock: could not bind to address
no listening sockets available, shutting down
Unable to open logs
Any help/guidance on how to fix gratefully received.



From: Anonymous at: 2009-08-30 20:30:08


 This tutorial is great, though i noticed, trying to run it, that some package are missing to run properly the ISPCONFIG install:

 quota and iptables

 might be good to add them in this list.
