The Perfect Server - Ubuntu 11.10 [ISPConfig 3]

Version 1.0
Author: Falko Timme
Follow me on Twitter
Last edited 10/14/2011

This tutorial shows how to prepare an Ubuntu 11.10 (Oneiric Ocelot) server for the installation of ISPConfig 3, and how to install ISPConfig 3. ISPConfig 3 is a webhosting control panel that allows you to configure the following services through a web browser: Apache web server, Postfix mail server, MySQL, BIND or MyDNS nameserver, PureFTPd, SpamAssassin, ClamAV, and many more.

Please note that this setup does not work for ISPConfig 2! It is valid for ISPConfig 3 only!

I do not issue any guarantee that this will work for you!



1 Requirements

To install such a system you will need the following:



2 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.100 and the gateway 192.168.0.1. These settings might differ for you, so you have to replace them where appropriate.



3 The Base System

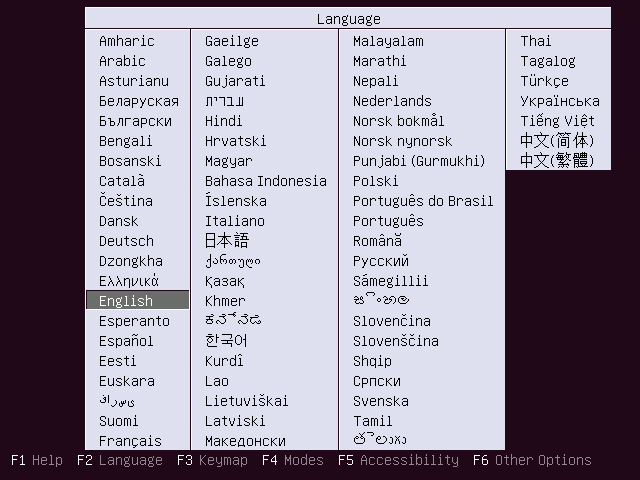

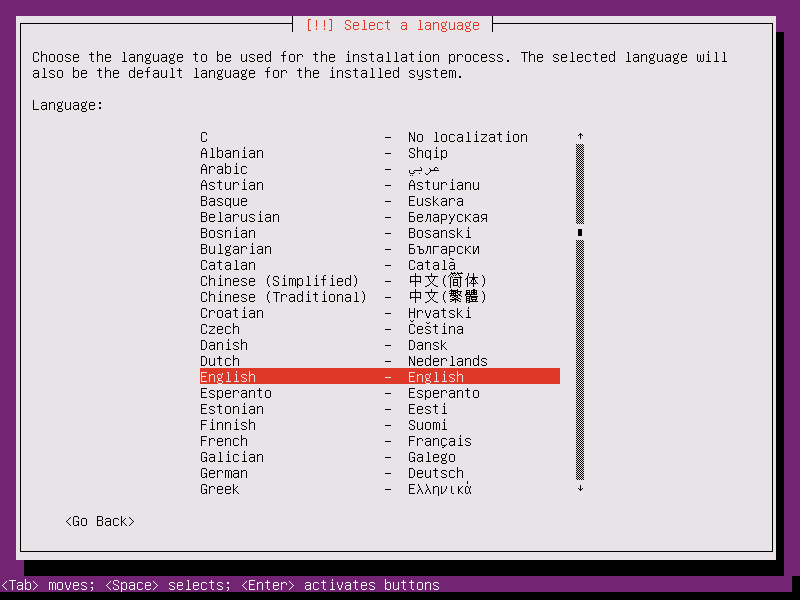

Insert your Ubuntu install CD into your system and boot from it. Select your language:

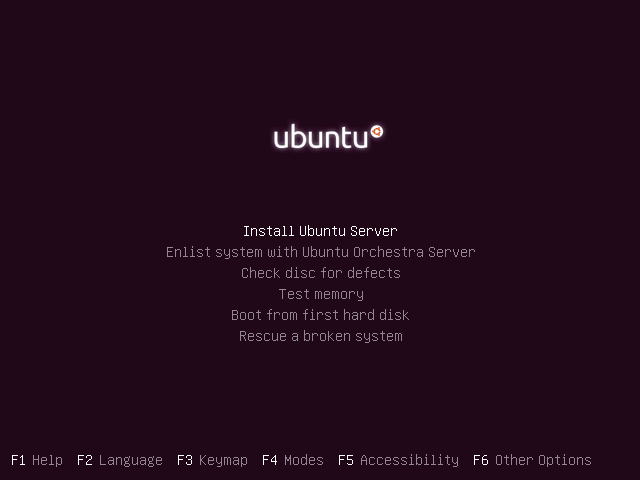

Then select Install Ubuntu Server:

Choose your language again (?):

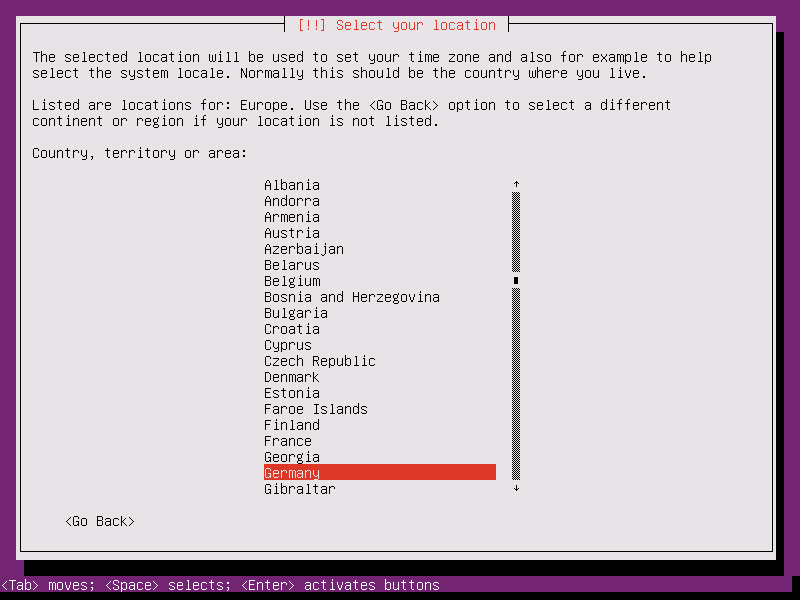

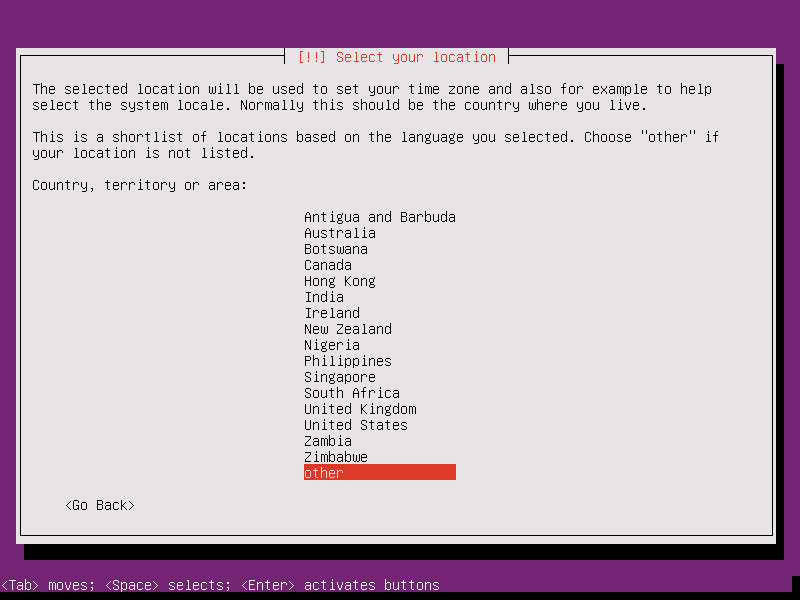

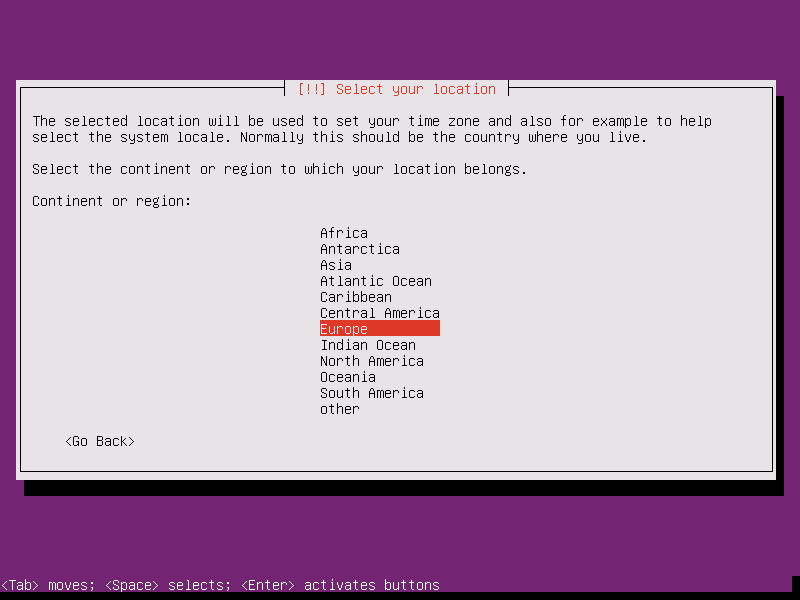

Then select your location:

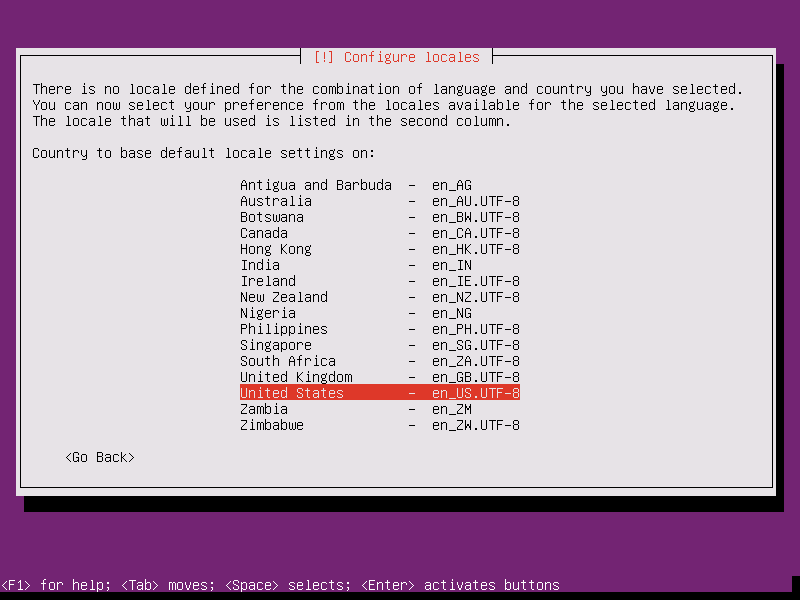

If you've selected an uncommon combination of language and location (like English as the language and Germany as the location, as in my case), the installer might tell you that there is no locale defined for this combination; in this case you have to select the locale manually. I select en_US.UTF-8 here:

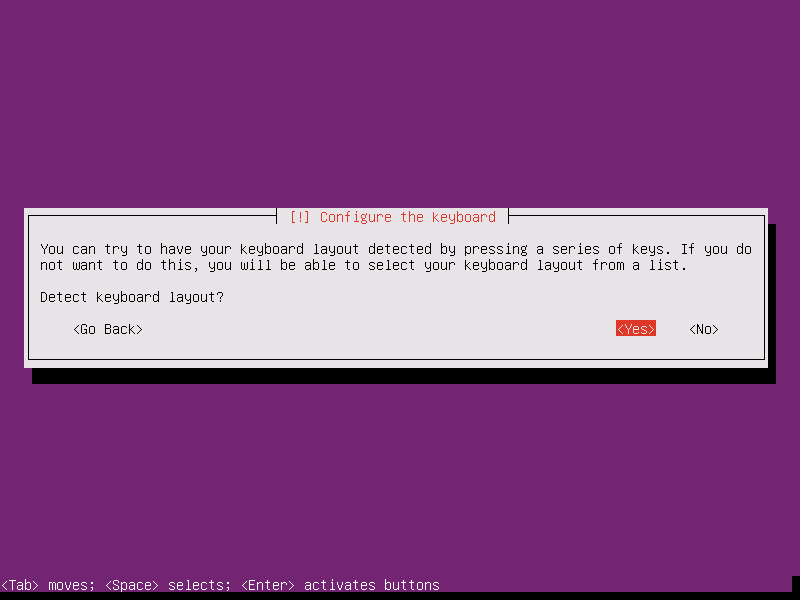

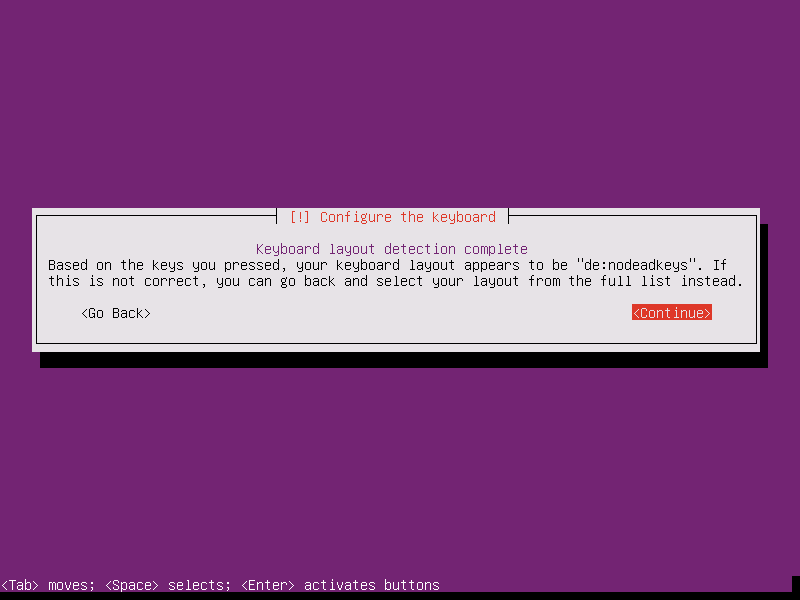

Choose a keyboard layout (you will be asked to press a few keys, and the installer will try to detect your keyboard layout based on the keys you pressed):

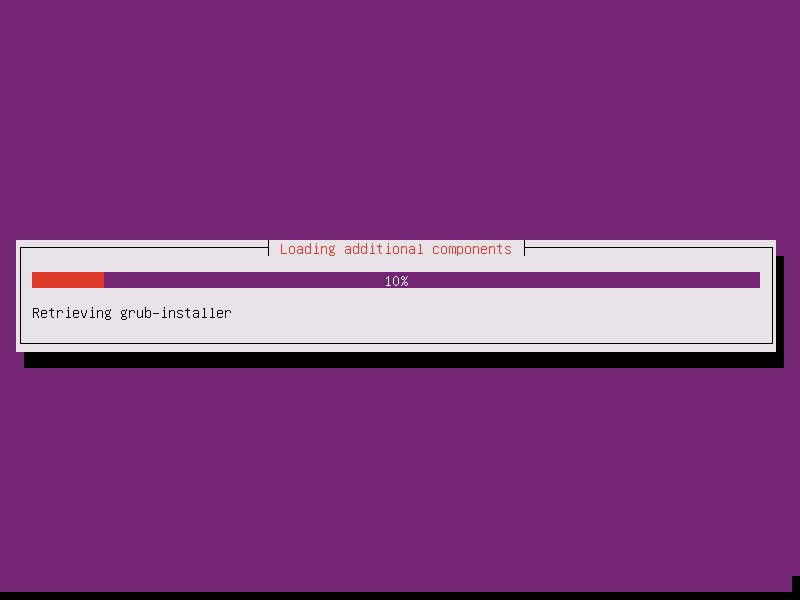

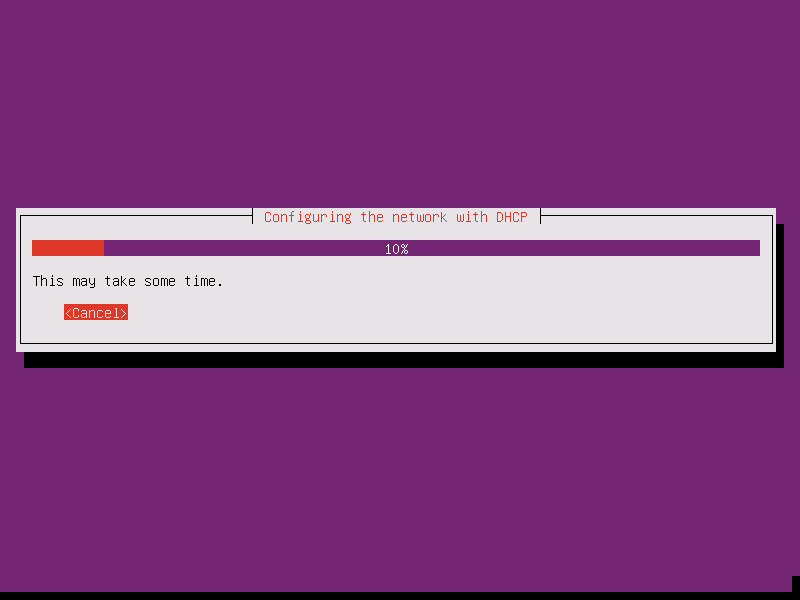

The installer checks the installation CD, your hardware, and configures the network with DHCP if there is a DHCP server in the network:

Share this page:

21 Comment(s)

Add comment

Comments

From: Anonymous at: 2011-10-20 15:55:12

From "man hostname":

 /etc/hostname This file should only contain the hostname and not the full FQDN.

 /etc/hostname This file should only contain the hostname and not the full FQDN.



 you mislead people when you say to use:
 echo server1.example.com > /etc/hostname

From: Anonymous at: 2011-11-02 11:12:55

When accusing someone of 'misleading' people, explain why the hostname must not contain the full FQDN.

From: Anonymous at: 2011-11-18 12:07:11

It's not prohibited, just "not recommended".

Usually, you should not question such a "recommendation", some background services might rely on this.

 Just my 2 cts

From: norby at: 2012-07-08 20:19:53

After a long winding road, finally something that actually works!!!!

So many HowTo's and none, except this one, worked for me.

Thanks folks!!!!!

I tried to install this one on a Ubuntu 12.04LTS 64 Bit, wich absolutely didn't work for me.

A big THANK YOU to all that are involved

Cheers

From: Eiside at: 2012-02-21 19:59:36

How can I configure ipsconfig and the server if I want the websites directory on a diferent harddrive.please help me . I just think about it as a security masure

From: at: 2011-10-16 13:08:40

Going through this I get a comment like the following when I run a script in /etc/init.d

 Rather than invoking init scripts through /etc/init.d, use the service(8)

utility, e.g. service mysql restart


Since the script you are attempting to invoke has been converted to an

Upstart job, you may also use the stop(8) and then start(8) utilities,

e.g. stop mysql ; start mysql. The restart(8) utility is also available.

mysql stop/waiting


From: at: 2011-10-27 21:09:02

At step 18 to avoid errors compiling jailkit install binutils-gold.

apt-get install build-essential autoconf automake1.9 libtool flex bison debhelper binutils-gold

Regards.

From: at: 2011-10-31 15:20:57

solution for jailkit and for sasl auth

 1. jailkit

make distclean

 change all -lpthread to  -pthread in configure, src/config.h.in

./configure
make
make clean
./debian/rules binary



2. sasl auth - problem with "fatal: no SASL authentication mechanisms"

remove or comment two lines in main.cf

# smtpd_sasl_type = dovecot
# smtpd_sasl_path = private/auth


Please, check if it works. For me works.

From: Abhijit at: 2012-02-03 14:01:28

The user quota setup  as described here does not work. When I try the following command

quotaon -avug

it fail complaining that the quota file not found. I tried creating the quota.user and aquota.user in the root dir to satisfy the command without much success.



From: Anonymous at: 2012-02-07 20:54:37

I had the same problem, the errors were referencing inability to find /dev/root. After searching around, I found this page which describes adding a symlink as follows:

 ln -s /dev/xvda /dev/root

Once I did that, the instructions here for quotas worked as expected. However, as noted on that page, the symlink goes away on reboot, so I just added that command to /etc/rc.local and it runs whenever the system reboots and everything works fine.

From: Fleck at: 2012-02-08 13:31:28

if you get SASL LOGIN authentication failed: no mechanism available - DO NOT DOWNGRADE PACKAGES, you just need to update config files:

 in /etc/default/saslauthd check those params:
START=yes
OPTIONS="-c -m /var/spool/postfix/var/run/saslauthd -r"

notice that -r at the end, must have that, or login will not work using email as username!

 in /etc/postfix/sasl/smtpd.conf you need to change few lines and add one:
pwcheck_method: saslauthd
mech_list: plain login pam
allow_plaintext: true
auxprop_plugin: sql
sql_engine: mysql
sql_hostnames: 127.0.0.1
sql_user: ispconfig
sql_passwd: <removed>
sql_database: dbispconfig
sql_select: select password from mail_user where login = '%u' or login = '%u@%r'  this will allow to use smtp using custom login names (ISPConfig -> System -> Interface Config -> Mail -> checked "Allow custom login name"(using this mode you can't leave blank custom login name blank - looks like ISPConfig bug, but then simply, if you don't whant to use custom login name - enter email address one more time!))

if you don't want to use custom login names - you can use this line:
sql_select: select password from mail_user where login = '%u@%r'

From: cg at: 2014-03-21 00:05:09

Thxal for that help man!

 I remembered the change of "auxprop_plugin: mysql" to sql only, with the extra parameter "sql_engine"...

The final crack was to to change:

 sql_select: select password from mail_user where login = '%u@'

as it was in my old config files from squeeze to

sql_select: select password from mail_user where login = '%u@%r'.

I updated ISPConfig and Squeeze several times and it worked until the upgrade to wheezy. Whyever it did not happen before. But I can send mails again, so everything is fine - for now.

Again: Thx!

From: Anonymous at: 2013-04-22 08:54:11

this link is not working anymore

 wget http://olivier.sessink.nl/jailkit/jailkit-2.14.tar.gz

From: boneg at: 2011-10-28 19:42:40

Great tutorial! Today I reconfigured my server with this manual, add some cache modules and now I have great machine with good perfomance.

From: Adaz at: 2012-03-06 00:38:12

Thank you for this great tutorial!! Everything worked as you said! So many steps, but it worths it.Thank you for the minutiae, you wasn't lazy!

From: Anonymous at: 2012-04-05 04:35:30

Thanks for a great tutorial. Clear and exact. I followed all the steps in this complex setup and have to say it all worked out to my surprise.

From: Anonymous at: 2012-04-06 21:04:06

Danke ! Funktioniert perfekt. Die Beschreibung ist hervorragend !

From: ranggadablues at: 2012-04-09 09:08:08

this is great tutorial, but only one problem I've got

I can't login to squirrelmail, as default user and password

please help me

thank you

From: Anonymous at: 2012-05-25 23:22:59

I have the exact same problem.  Before I install ISPconfig3, squirrelmail worked fine.  However it stopped working and give me the error unknow user name and password.  Did you ever get yours sorted out?

From: Travis at: 2012-04-29 18:57:49

I'm a PHP & Java developer, and wanted to get a webserver up to serve as my online resume. I tried and tried on my own to get a server up w/ working email and no problems, and just had no luck. UNIX and email client configurations are not my strong point I fear. Using your guide, I was able to get a working server up in just a few hours ON MY FIRST TRY! Also, I used this guide for 12.4, and confirmed it works. Thank you kind sir for your excellent guide!

From: Anonymous at: 2012-06-21 05:26:18

thanks a lot. but email interface is not running at ispconfig. then i can't add email domain, emailbox etc...

I tried "The Perfect Server - Ubuntu 12.04 LTS (Apache2, BIND, Dovecot, ISPConfig 3) ".

But result is same.  What is wrong? What should i do? Please help.



Thank you.
