The Perfect Server - Fedora 12 x86_64 [ISPConfig 3] - Page 6

20 Install Jailkit

Jailkit is needed only if you want to chroot SSH users. It can be installed as follows (important: Jailkit must be installed before ISPConfig - it cannot be installed afterwards!):

cd /tmp
wget http://olivier.sessink.nl/jailkit/jailkit-2.10.tar.gz
tar xvfz jailkit-2.10.tar.gz
cd jailkit-2.10
./configure
make
make install
rm -rf jailkit-2.10*



21 Install fail2ban

This is optional but recommended, because the ISPConfig monitor tries to show the log:

yum install fail2ban

chkconfig --levels 235 fail2ban on
/etc/init.d/fail2ban start



22 Install rkhunter

rkhunter can be installed as follows:

yum install rkhunter



23 Install SquirrelMail

To install the SquirrelMail webmail client, run...

yum install squirrelmail

... and restart Apache:

/etc/init.d/httpd restart

Then configure SquirrelMail:

/usr/share/squirrelmail/config/conf.pl

We must tell SquirrelMail that we are using Courier-IMAP/-POP3:

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <-- D


SquirrelMail Configuration : Read: config.php
---------------------------------------------------------
While we have been building SquirrelMail, we have discovered some
preferences that work better with some servers that don't work so
well with others.  If you select your IMAP server, this option will
set some pre-defined settings for that server.

Please note that you will still need to go through and make sure
everything is correct.  This does not change everything.  There are
only a few settings that this will change.

Please select your IMAP server:
    bincimap    = Binc IMAP server
    courier     = Courier IMAP server
    cyrus       = Cyrus IMAP server
    dovecot     = Dovecot Secure IMAP server
    exchange    = Microsoft Exchange IMAP server
    hmailserver = hMailServer
    macosx      = Mac OS X Mailserver
    mercury32   = Mercury/32
    uw          = University of Washington's IMAP server

    quit        = Do not change anything
Command >>
 <-- courier


SquirrelMail Configuration : Read: config.php
---------------------------------------------------------
While we have been building SquirrelMail, we have discovered some
preferences that work better with some servers that don't work so
well with others.  If you select your IMAP server, this option will
set some pre-defined settings for that server.

Please note that you will still need to go through and make sure
everything is correct.  This does not change everything.  There are
only a few settings that this will change.

Please select your IMAP server:
    bincimap    = Binc IMAP server
    courier     = Courier IMAP server
    cyrus       = Cyrus IMAP server
    dovecot     = Dovecot Secure IMAP server
    exchange    = Microsoft Exchange IMAP server
    hmailserver = hMailServer
    macosx      = Mac OS X Mailserver
    mercury32   = Mercury/32
    uw          = University of Washington's IMAP server

    quit        = Do not change anything
Command >> courier

              imap_server_type = courier
         default_folder_prefix = INBOX.
                  trash_folder = Trash
                   sent_folder = Sent
                  draft_folder = Drafts
            show_prefix_option = false
          default_sub_of_inbox = false
show_contain_subfolders_option = false
            optional_delimiter = .
                 delete_folder = true

Press any key to continue...
<-- press a key


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <--S


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <--Q

One last thing we need to do is modify the file /etc/squirrelmail/config_local.php and comment out the $default_folder_prefix variable - if you don't do this, you will see the following error message in SquirrelMail after you've logged in: Query: CREATE "Sent" Reason Given: Invalid mailbox name.

vi /etc/squirrelmail/config_local.php

<?php
/**
 * Local config overrides.
 *
 * You can override the config.php settings here.
 * Don't do it unless you know what you're doing.
 * Use standard PHP syntax, see config.php for examples.
 *
 * @copyright &copy; 2002-2006 The SquirrelMail Project Team
 * @license http://opensource.org/licenses/gpl-license.php GNU Public License
 * @version $Id: config_local.php,v 1.2 2006/07/11 03:33:47 wtogami Exp $
 * @package squirrelmail
 * @subpackage config
 */
//$default_folder_prefix                = '';
?>

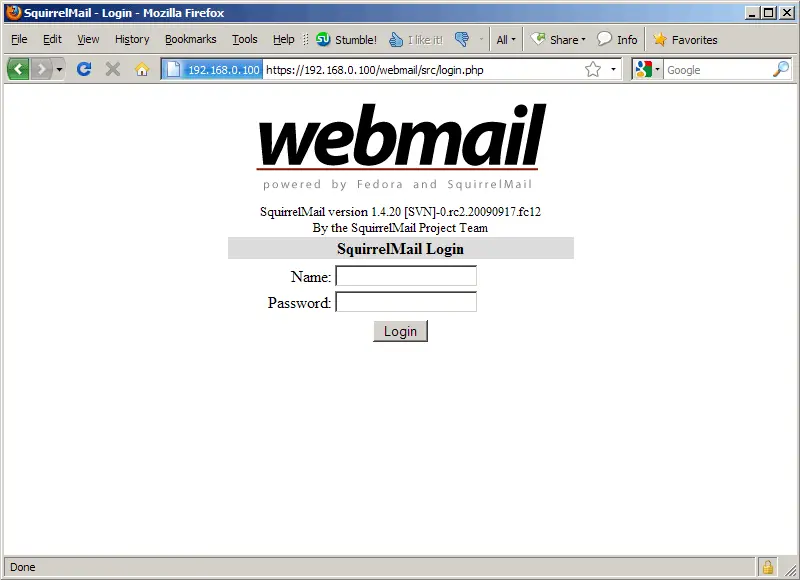

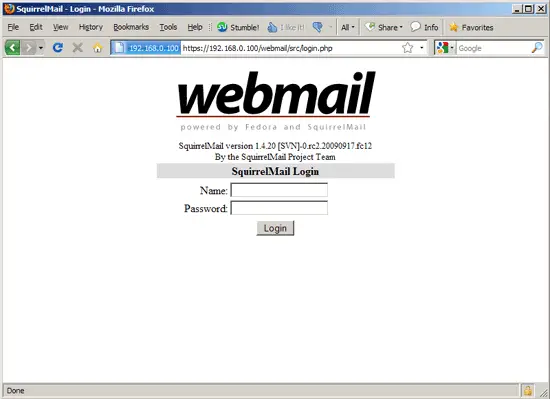

Now you can type in http://server1.example.com/webmail or http://192.168.0.100/webmail in your browser to access SquirrelMail.



24 Install ISPConfig 3

Uninstall BIND and Dovecot so that the ISPConfig installer configures ISPConfig for MyDNS and Courier:

yum remove bind dovecot

To install ISPConfig 3 from the latest released version, do this:

cd /tmp
wget http://downloads.sourceforge.net/ispconfig/ISPConfig-3.0.1.6.tar.gz?use_mirror=
tar xvfz ISPConfig-3.0.1.6.tar.gz
cd ispconfig3_install/install/

The next step is to run

php -q install.php

This will start the ISPConfig 3 installer:

[root@server1 install]# php -q install.php


--------------------------------------------------------------------------------
 _____ ___________   _____              __ _
|_   _/  ___| ___ \ /  __ \            / _(_)
  | | \ `--.| |_/ / | /  \/ ___  _ __ | |_ _  __ _
  | |  `--. \  __/  | |    / _ \| '_ \|  _| |/ _` |
 _| |_/\__/ / |     | \__/\ (_) | | | | | | | (_| |
 \___/\____/\_|      \____/\___/|_| |_|_| |_|\__, |
                                              __/ |
                                             |___/
--------------------------------------------------------------------------------


>> Initial configuration

Operating System: Redhat or compatible, unknown version.

    Following will be a few questions for primary configuration so be careful.
    Default values are in [brackets] and can be accepted with <ENTER>.
    Tap in "quit" (without the quotes) to stop the installer.


Select language (en,de) [en]:
 <-- ENTER

Installation mode (standard,expert) [standard]: <-- ENTER

Full qualified hostname (FQDN) of the server, eg server1.domain.tld  [server1.example.com]: <-- ENTER

MySQL server hostname [localhost]: <-- ENTER

MySQL root username [root]: <-- ENTER

MySQL root password []: <-- yourrootsqlpassword

MySQL database to create [dbispconfig]: <-- ENTER

MySQL charset [utf8]: <-- ENTER

Generating a 2048 bit RSA private key
.............+++
...............................+++
writing new private key to 'smtpd.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:
 <-- ENTER
State or Province Name (full name) []: <-- ENTER
Locality Name (eg, city) [Default City]: <-- ENTER
Organization Name (eg, company) [Default Company Ltd]: <-- ENTER
Organizational Unit Name (eg, section) []: <-- ENTER
Common Name (eg, your name or your server's hostname) []: <-- ENTER
Email Address []: <-- ENTER
Configuring Jailkit
Configuring SASL
Configuring PAM
Configuring Courier
Configuring Spamassassin
Configuring Amavisd
Configuring Getmail
Configuring Pureftpd
Configuring MyDNS
Configuring Apache
Configuring vlogger
Configuring Firewall
Installing ISPConfig
ISPConfig Port [8080]:
 <-- ENTER

Configuring DBServer
Installing Crontab
no crontab for root
no crontab for getmail
Restarting services ...
Stopping MySQL:                                            [  OK  ]
Starting MySQL:                                            [  OK  ]
Shutting down postfix:                                     [  OK  ]
Starting postfix:                                          [  OK  ]
Stopping saslauthd:                                        [  OK  ]
Starting saslauthd:                                        [  OK  ]
Waiting for the process [23970] to terminate
Waiting for the process [23970] to terminate
Waiting for the process [23970] to terminate
Waiting for the process [23970] to terminate
Waiting for the process [23970] to terminate
Waiting for the process [23970] to terminate
Waiting for the process [23970] to terminate
Waiting for the process [23970] to terminate
Waiting for the process [23970] to terminate
Waiting for the process [23970] to terminate
Waiting for the process [23970] to terminate
Daemon [23970] terminated by SIGTERM
Shutting down amavisd:                                     [  OK  ]
amavisd stopped
Starting amavisd:                                          [  OK  ]

Stopping clamd.amavisd:                                    [FAILED]
LibClamAV Warning: ***********************************************************
LibClamAV Warning: ***  This version of the ClamAV engine is outdated.     ***
LibClamAV Warning: *** DON'T PANIC! Read http://www.clamav.net/support/faq ***
LibClamAV Warning: ***********************************************************
ERROR: LOCAL: Socket file /var/spool/amavisd/clamd.sock is in use by another process.
Starting clamd.amavisd:                                    [FAILED]
Stopping Courier authentication services: authdaemond
Starting Courier authentication services: authdaemond
Stopping Courier-IMAP server: imap imap-ssl pop3 pop3-ssl
Starting Courier-IMAP server: imap imap-ssl pop3 pop3-ssl
Stopping Courier-IMAP server: imap imap-ssl pop3 pop3-ssl
Starting Courier-IMAP server: imap imap-ssl pop3 pop3-ssl
Stopping Courier-IMAP server: imap imap-ssl pop3 pop3-ssl
Starting Courier-IMAP server: imap imap-ssl pop3 pop3-ssl
Stopping Courier-IMAP server: imap imap-ssl pop3 pop3-ssl
Starting Courier-IMAP server: imap imap-ssl pop3 pop3-ssl
Stopping httpd:                                            [  OK  ]
httpd: Could not reliably determine the server's fully qualified domain name, using server1.example.com for ServerName
[Sat Nov 21 16:09:12 2009] [warn] NameVirtualHost *:80 has no VirtualHosts
Starting httpd:                                            [  OK  ]
Stopping pure-ftpd:                                        [  OK  ]
Starting pure-ftpd:                                        [  OK  ]
Installation completed.
[root@server1 install]#

The installer automatically configures all underlying services, so no manual configuration is needed.

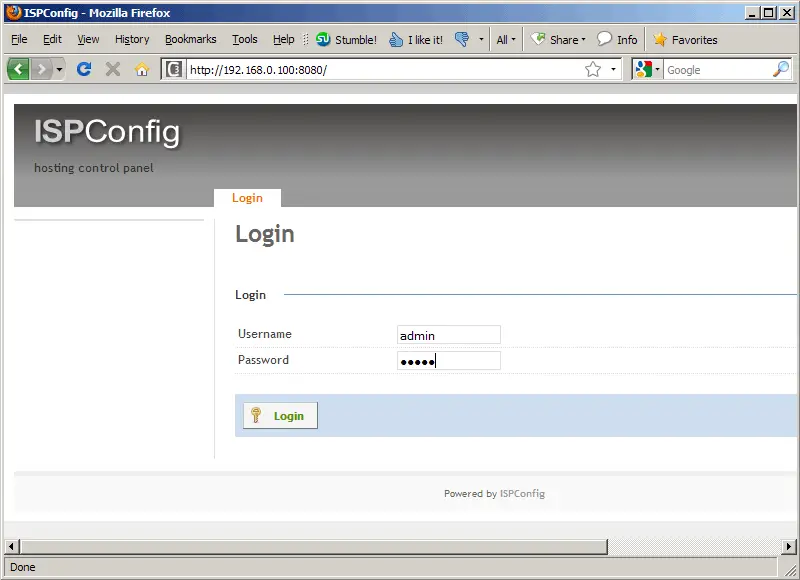

Afterwards you can access ISPConfig 3 under http://server1.example.com:8080/ or http://192.168.0.100:8080/. Log in with the username admin and the password admin (you should change the default password after your first login):

The system is now ready to be used.



24.1 ISPConfig 3 Manual



25 Links

Share this page:

7 Comment(s)

Add comment

Comments

From: gimi at: 2009-11-29 17:43:13

followed your how to and web mail is not working

From: at: 2010-03-13 21:53:24

After following the complete tutorial I noticed that MyDNS service did not start.


So I ran /tmp/ispconfig3_install/install/php -q update.php and I noticed that ISPConfig tries to config BIND.


After reading the complete tutorial again I am sure there is no line with : yum install bind So it is installed from dvd.


There are two solutions


1. on page two you select the packages to be installed,  select dns server, select additional packages, remove the tick from BIND, continue install




2. run ( somewhere in the beginning, but before yum install mydns ) yum erase bind, continue install.





From: at: 2010-03-23 11:34:09

I've created shell scripts to do all of this automatically.  Will be happy to share them.


My scripts also include installing tomcat6, JDK, and setting up the tomcat connector - mod_jk.


BTW ...


This tutorial is not perfect yet ... I did find that I had to make a few tweaks to get squirrelmail to deliver mail.

From: robertlouwen at: 2010-05-13 22:29:28

Make it comfortable ... and install the update - daemon "yum-updatesd" and get notified by e-mail when there are updates for your Fedora 12 server.


1. yum install yum-updatesd


2. vi /etc/yum/yum-updatesd.conf and set the interval for checking, set notification method ( email ), set email recipient and email sender.


All done ( sit back and relax )

From: adycobra at: 2010-06-30 03:20:06

Yes squiremail doesnt work, after u complete this tutorial, after deep searches into my server i nodest that on postfix virtual  mysql confs u can see that it logs to mysql with user ispconfig which on this entire tutorial wasnt sayd anywhere to create it,  in /etc/dovecot-sql.conf u will see the same user ispconfig, so that is why ur mail doesnt work cause postfix conf have one user who cant connect to mysql and dovecot the same, so go on /etc/postfix and modify the user and pass for mysql on these files:


mysql-virtual_client.cf


mysql-virtual_domains.cf


mysql-virtual_email2email.cf


mysql-virtual_forwardings.cf


mysql-virtual_mailboxes.cf


mysql-virtual_recipient.cf


mysql-virtual_relaydomains.cf


mysql-virtual_relayrecipientmaps.cf


mysql-virtual_sender.cf


mysql-virtual_transports.cf


After this changes go edit /etc/dovecot-sql.conf and change user and password, after that restart postfix and dovecot and should work, or lool the simplest is to way early in instalation steps to add the user ispconfig :)) i hope it work for u...

From: Anonymous at: 2010-09-30 15:13:57

are u able to share?i found out that dovecot has problems too, i've simply compile this tutorial with another one to get the damn thing working, still didn't get the squerill to work properly





waiting for a reply, best regards,


V

From: moodz at: 2010-08-16 10:46:44

The instructions for creating quota are screwy ..... apart from the fact it just does not work.
