The Perfect Server - CentOS 6.3 x86_64 (Apache2, Dovecot, ISPConfig 3) - Page 6

23 Install SquirrelMail

To install the SquirrelMail webmail client, run...

yum install squirrelmail

... and restart Apache:

/etc/init.d/httpd restart

Then configure SquirrelMail:

/usr/share/squirrelmail/config/conf.pl

We must tell SquirrelMail that we are using Dovecot:

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <-- D


SquirrelMail Configuration : Read: config.php
---------------------------------------------------------
While we have been building SquirrelMail, we have discovered some
preferences that work better with some servers that don't work so
well with others.  If you select your IMAP server, this option will
set some pre-defined settings for that server.

Please note that you will still need to go through and make sure
everything is correct.  This does not change everything.  There are
only a few settings that this will change.

Please select your IMAP server:
    bincimap    = Binc IMAP server
    courier     = Courier IMAP server
    cyrus       = Cyrus IMAP server
    dovecot     = Dovecot Secure IMAP server
    exchange    = Microsoft Exchange IMAP server
    hmailserver = hMailServer
    macosx      = Mac OS X Mailserver
    mercury32   = Mercury/32
    uw          = University of Washington's IMAP server
    gmail       = IMAP access to Google mail (Gmail) accounts

    quit        = Do not change anything
Command >>
 <-- dovecot


SquirrelMail Configuration : Read: config.php
---------------------------------------------------------
While we have been building SquirrelMail, we have discovered some
preferences that work better with some servers that don't work so
well with others.  If you select your IMAP server, this option will
set some pre-defined settings for that server.

Please note that you will still need to go through and make sure
everything is correct.  This does not change everything.  There are
only a few settings that this will change.

Please select your IMAP server:
    bincimap    = Binc IMAP server
    courier     = Courier IMAP server
    cyrus       = Cyrus IMAP server
    dovecot     = Dovecot Secure IMAP server
    exchange    = Microsoft Exchange IMAP server
    hmailserver = hMailServer
    macosx      = Mac OS X Mailserver
    mercury32   = Mercury/32
    uw          = University of Washington's IMAP server
    gmail       = IMAP access to Google mail (Gmail) accounts

    quit        = Do not change anything
Command >> courier

              imap_server_type = courier
         default_folder_prefix = INBOX.
                  trash_folder = Trash
                   sent_folder = Sent
                  draft_folder = Drafts
            show_prefix_option = false
          default_sub_of_inbox = false
show_contain_subfolders_option = false
            optional_delimiter = .
                 delete_folder = true

Press enter to continue...
 <-- press ENTER


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <--S


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <--Q

One last thing we need to do is modify the file /etc/squirrelmail/config_local.php and comment out the $default_folder_prefix variable - if you don't do this, you will see the following error message in SquirrelMail after you've logged in: Query: CREATE "Sent" Reason Given: Invalid mailbox name.

vi /etc/squirrelmail/config_local.php

<?php

/**
 * Local config overrides.
 *
 * You can override the config.php settings here.
 * Don't do it unless you know what you're doing.
 * Use standard PHP syntax, see config.php for examples.
 *
 * @copyright &copy; 2002-2006 The SquirrelMail Project Team
 * @license http://opensource.org/licenses/gpl-license.php GNU Public License
 * @version $Id: config_local.php,v 1.2 2006/07/11 03:33:47 wtogami Exp $
 * @package squirrelmail
 * @subpackage config
 */

//$default_folder_prefix                = '';
?>

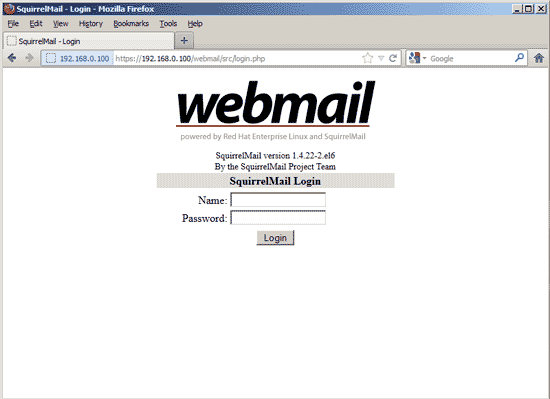

Now you can type in http://server1.example.com/webmail or http://192.168.0.100/webmail in your browser to access SquirrelMail.



24 Install ISPConfig 3

Download the current ISPConfig 3 version and install it. The ISPConfig installer will configure all services like Postfix, Dovecot, etc. for you. A manual setup as required for ISPConfig 2 is not necessary anymore.

You now also have the possibility to let the installer create an SSL vhost for the ISPConfig control panel, so that ISPConfig can be accessed using https:// instead of http://. To achieve this, just press ENTER when you see this question: Do you want a secure (SSL) connection to the ISPConfig web interface (y,n) [y]:.

To install ISPConfig 3 from the latest released version, do this:

cd /tmp
wget http://www.ispconfig.org/downloads/ISPConfig-3-stable.tar.gz
tar xfz ISPConfig-3-stable.tar.gz
cd ispconfig3_install/install/

The next step is to run

php -q install.php

This will start the ISPConfig 3 installer:

[root@server1 install]# php -q install.php


--------------------------------------------------------------------------------
 _____ ___________   _____              __ _         ____
|_   _/  ___| ___ \ /  __ \            / _(_)       /__  \
  | | \ `--.| |_/ / | /  \/ ___  _ __ | |_ _  __ _    _/ /
  | |  `--. \  __/  | |    / _ \| '_ \|  _| |/ _` |  |_ |
 _| |_/\__/ / |     | \__/\ (_) | | | | | | | (_| | ___\ \
 \___/\____/\_|      \____/\___/|_| |_|_| |_|\__, | \____/
                                              __/ |
                                             |___/
--------------------------------------------------------------------------------


>> Initial configuration

Operating System: Redhat or compatible, unknown version.

    Following will be a few questions for primary configuration so be careful.
    Default values are in [brackets] and can be accepted with <ENTER>.
    Tap in "quit" (without the quotes) to stop the installer.


Select language (en,de) [en]:
 <-- ENTER

Installation mode (standard,expert) [standard]: <-- ENTER

Full qualified hostname (FQDN) of the server, eg server1.domain.tld  [server1.example.com]: <-- ENTER

MySQL server hostname [localhost]: <-- ENTER

MySQL root username [root]: <-- ENTER

MySQL root password []: <-- yourrootsqlpassword

MySQL database to create [dbispconfig]: <-- ENTER

MySQL charset [utf8]: <-- ENTER

Generating a 2048 bit RSA private key
..........................................................+++
................................+++
writing new private key to 'smtpd.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:
 <-- ENTER
State or Province Name (full name) []: <-- ENTER
Locality Name (eg, city) [Default City]: <-- ENTER
Organization Name (eg, company) [Default Company Ltd]: <-- ENTER
Organizational Unit Name (eg, section) []: <-- ENTER
Common Name (eg, your name or your server's hostname) []: <-- ENTER
Email Address []: <-- ENTER
Configuring Jailkit
Configuring Dovecot
Configuring Spamassassin
Configuring Amavisd
Configuring Getmail
Configuring Pureftpd
Configuring BIND
Configuring Apache
Configuring Vlogger
Configuring Apps vhost
Configuring Bastille Firewall
Configuring Fail2ban
Installing ISPConfig
ISPConfig Port [8080]:
 <-- ENTER

Do you want a secure (SSL) connection to the ISPConfig web interface (y,n) [y]: <-- ENTER

Generating RSA private key, 4096 bit long modulus
.....................++
.......++
e is 65537 (0x10001)
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:
 <-- ENTER
State or Province Name (full name) []: <-- ENTER
Locality Name (eg, city) [Default City]: <-- ENTER
Organization Name (eg, company) [Default Company Ltd]: <-- ENTER
Organizational Unit Name (eg, section) []: <-- ENTER
Common Name (eg, your name or your server's hostname) []: <-- ENTER
Email Address []: <-- ENTER

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
 <-- ENTER
An optional company name []: <-- ENTER
writing RSA key
Configuring DBServer
Installing ISPConfig crontab
no crontab for root
no crontab for getmail
Restarting services ...
Stopping mysqld:                                           [  OK  ]
Starting mysqld:                                           [  OK  ]
Shutting down postfix:                                     [  OK  ]
Starting postfix:                                          [  OK  ]
Stopping saslauthd:                                        [FAILED]
Starting saslauthd:                                        [  OK  ]
Waiting for the process [1424] to terminate
Shutting down amavisd: Daemon [1424] terminated by SIGTERM
                                                           [  OK  ]
amavisd stopped
Starting amavisd:                                          [  OK  ]

Stopping clamd.amavisd:                                    [  OK  ]
Starting clamd.amavisd:                                    [  OK  ]
Stopping Dovecot Imap:                                     [  OK  ]
Starting Dovecot Imap:                                     [  OK  ]
Stopping httpd:                                            [  OK  ]
[Thu Jul 12 19:02:33 2012] [warn] NameVirtualHost *:80 has no VirtualHosts
Starting httpd:                                            [  OK  ]
Stopping pure-ftpd:                                        [  OK  ]
Starting pure-ftpd:                                        [  OK  ]
Installation completed.
[root@server1 install]#

To fix the Mailman errors you might get during the ISPConfig installation, open /usr/lib/mailman/Mailman/mm_cfg.py...

vi /usr/lib/mailman/Mailman/mm_cfg.py

... and set DEFAULT_SERVER_LANGUAGE = 'en':

[...]
#-------------------------------------------------------------
# The default language for this server.
DEFAULT_SERVER_LANGUAGE = 'en'
[...]

Restart Mailman:

/etc/init.d/mailman restart

Finally we need to tell Dovecot to use the dovecot.conf file generated by ISPConfig - /etc/dovecot.conf - and not the default /etc/dovecot/dovecot.conf:

cd /etc/dovecot
mv dovecot.conf dovecot.conf_orig
ln -s ../dovecot.conf dovecot.conf
/etc/init.d/dovecot restart

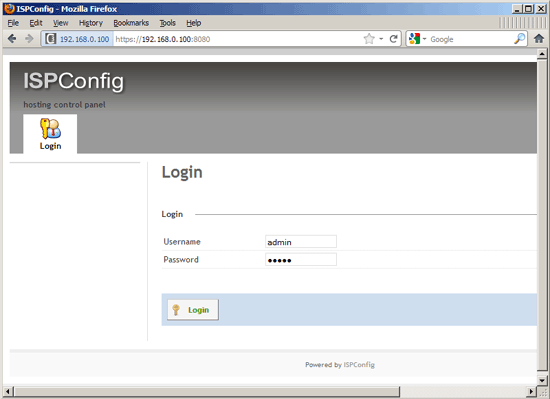

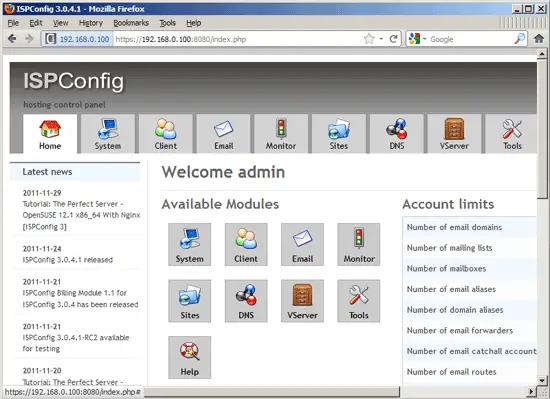

Afterwards you can access ISPConfig 3 under http(s)://server1.example.com:8080/ or http(s)://192.168.0.100:8080/ (http or https depends on what you chose during installation). Log in with the username admin and the password admin (you should change the default password after your first login):

The system is now ready to be used.





25 Links

Share this page:

19 Comment(s)

Add comment

Comments

From: Dylan Myers at: 2012-08-11 06:32:05

Anyone who uses this tutorial should be aware of this bug with the changes ISPConfig3 makes to dovecot on Fedora/CentOS installs:
http://bugtracker.ispconfig.org/index.php?do=details&task_id=2367

From: Anonymous at: 2012-07-16 15:11:18

You'll also need to install php-common

 yum install php-common

From: Jack at: 2013-01-05 16:55:42

EPEL name has been upgraded to: http://dl.fedoraproject.org/pub/epel/6/x86_64/epel-release-6-8.noarch.rpm

From: at: 2013-01-20 16:21:31

Yum installed dovecot 2.0.9.el6_1.1

and  dovecot-mysql 2.0.9-2.el6_1.1

 This seems to cause a failure in amavis:

amavis[8819]: (08819-01-10) Blocked MTA-BLOCKED in maillog

I have tried

mv /etc/dovecot/dovecot.conf /etc/dovecot/dovecot.conf.org

cp /etc/dovecot.conf /etc/dovecot/dovecot.conf



service dovecot restart

service amavisd restart

service postfix restart



# this seems to have worked ok for me - mail now being sent out.

From: at: 2013-01-29 20:31:31

I was having errors in my maillog as follows;

Jan 29 20:18:45 centos postfix/smtpd[25440]: warning: SASL: Connect to private/auth failed: No such file or directory
Jan 29 20:18:45 centos postfix/smtpd[25440]: fatal: no SASL authentication mechanisms

The comment above from DFen;

mv /etc/dovecot/dovecot.conf /etc/dovecot/dovecot.conf.org
cp /etc/dovecot.conf /etc/dovecot/dovecot.conf

This fixed my issues

From: noro at: 2012-10-02 18:26:04

hi,
pureftp dont use certificat in /etc/ssl/private/
but in /etc/pki/pure-ftpd

commnad for generate certificate:
openssl req -x509 -nodes -days 7300 -newkey rsa:2048 -keyout /etc/pki/pure-ftpd/pure-ftpd.pem -out /etc/pki/pure-ftpd/pure-ftpd.pem

thanks for this tutorial

From: MLK Dual Production at: 2012-12-16 15:53:37

Thank you for the helpful and well explained tutorial.
For some reason the link to download mod_ruby (wget http://www.modruby.net/archive/mod_ruby-1.3.0.tar.gz) is not working.

Here is one that works

wget http://fossies.org/unix/www/apache_httpd_modules/mod_ruby-1.3.0.tar.gz


From: Anonymous at: 2012-12-19 09:45:54

mirror:http://ftp.riken.go.jp/pub/FreeBSD/distfiles/ruby/mod_ruby-1.3.0.tar.gz


Thank for walkthrough

From: Anonymous at: 2013-03-31 00:04:26

I found that on some setups phpmyadmin and squirrelmail can't load. By editing the "squirrelmail.conf" and "phpmyadmin.conf" file in "/etc/httpd/conf" and adding

<Directory "/usr/share/phpmyadmin">

  <IfModule prefork.c>

LoadModule php5_module modules/libphp5.so

</IfModule>

<IfModule !prefork.c>

  LoadModule php5_module modules/libphp5-zts.so

</IfModule>



#

# Cause the PHP interpreter to handle files with a .php extension.

#

<FilesMatch \.php$>

    SetHandler application/x-httpd-php

</FilesMatch>

  Order Allow,Deny

  Allow from all

</Directory>

From: CanaDave at: 2012-07-14 23:37:56

...you should mention that when you start named:

/etc/init.d/named start

...it takes a few minutes to generate a key...I thought it was crashed so I Ctrl-C'd it a couple of times then eventually I found how to generate the key manually:

]# rndc-confgen -a

]# chmod 666 /etc/rndc.key

then

]# chkconfig --levels 235 named on
]# /etc/init.d/named start

...I don't know if it would have generated the key on its own, it did say 'Generate Key': but seemed to be waiting for input from me.

Anyway, cool walkthrough...I set it up in a VM in Hyper-V...



From: Pedro Rocha at: 2012-09-27 10:15:18

Vlogger seems no longer available, is there any alternative or does ispconfig really need this?

From: life_watcher at: 2013-01-10 03:54:29

Great tutorial! Thank you!

a little addition - fail2ban seems to conflict with bastille and disable firewall set by ISPConfig (with uses bastille to manage iptables). As result no active firewall except fail2ban rules... I had to remove fail2ban to make it working...

Thank you!



From: at: 2013-01-11 12:17:30

i will sugest fail2ban + APF  and just disable the ispconfig firewall ( only if you have CLI access )

From: Anonymous at: 2012-09-22 02:36:42

Thank you !

 Best TUTORIAL I'v found online, up-to-date everything just works, unlike many other - half-finished tutorials!!!!

Thanks for your time.



From: Mike at: 2012-09-29 23:56:03

Simply awesome. Thank you. Only wish I would have come across this information 3 days ago.

From: Anonymous at: 2013-02-07 04:55:07

SAME HERE!

From: Gijsbert at: 2012-10-21 18:02:48

It's a good tutorial, but I found 2 things that doesn't seem to be right:

1) During the installation of webalizer and awstats an error occurs "No package awstats available". I have no idea where to get it, I checked the art, dag and epel repositories, but no awstats (anymore) :(

2) On a 64-bits Centos 6.3 OS, when installing mod_python the apache error log shows:

[Sun Oct 21 17:48:08 2012] [error] python_init: Python version mismatch, expected '2.6.5', found '2.6.6'.
[Sun Oct 21 17:48:08 2012] [error] python_init: Python executable found '/usr/bin/python'.
[Sun Oct 21 17:48:08 2012] [error] python_init: Python path being used '/usr/lib64/python26.zip:/usr/lib64/python2.6/:/usr/lib64/python2.6/plat-linux2:/usr/lib64/python2.6/lib-tk:/usr/lib64/python2.6/lib-old:/usr/lib64/python2.6/lib-dynload'.

I heard that it's better to remove mod_python and use mod_wsgi instead. I tried this and the errors are gone. However it does show a warning in the error_log:

[Sun Oct 21 20:00:08 2012] [warn] mod_wsgi: Compiled for Python/2.6.2.
[Sun Oct 21 20:00:08 2012] [warn] mod_wsgi: Runtime using Python/2.6.6.

Maybe you can rewrite the manual for these 2 issues so it will be even better in the (near) future!

From: Anonymous at: 2013-02-26 19:30:04

After Install ISPCONFIG 3 ,admin painel show apache test page...help

From: at: 2013-03-30 17:45:19
