The Perfect Server - CentOS 6.3 x86_64 (Apache2, Dovecot, ISPConfig 3)

Version 1.0
Author: Falko Timme
Follow me on Twitter
Last edited 07/12/2012

This tutorial shows how to prepare a CentOS 6.3 x86_64 server for the installation of ISPConfig 3, and how to install ISPConfig 3. ISPConfig 3 is a webhosting control panel that allows you to configure the following services through a web browser: Apache web server, Postfix mail server, MySQL, BIND nameserver, PureFTPd, SpamAssassin, ClamAV, Mailman, and many more. Since version 3.0.4, ISPConfig comes with full support for the nginx web server in addition to Apache; this tutorial covers the setup of a server that uses Apache, not nginx.

Please note that this setup does not work for ISPConfig 2! It is valid for ISPConfig 3 only!

I do not issue any guarantee that this will work for you!



1 Requirements

To install such a system you will need the following:



2 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.100 and the gateway 192.168.0.1. These settings might differ for you, so you have to replace them where appropriate.



3 Install The Base System

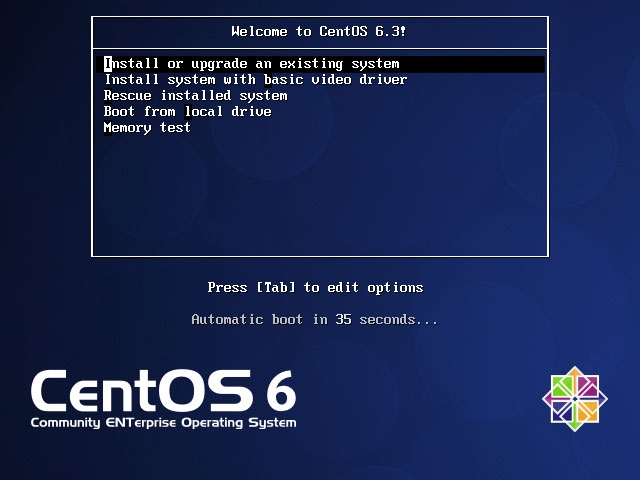

Boot from your first CentOS 6.3 DVD (DVD 1). Select Install or upgrade an existing system:

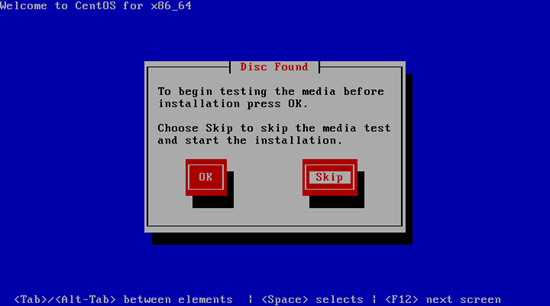

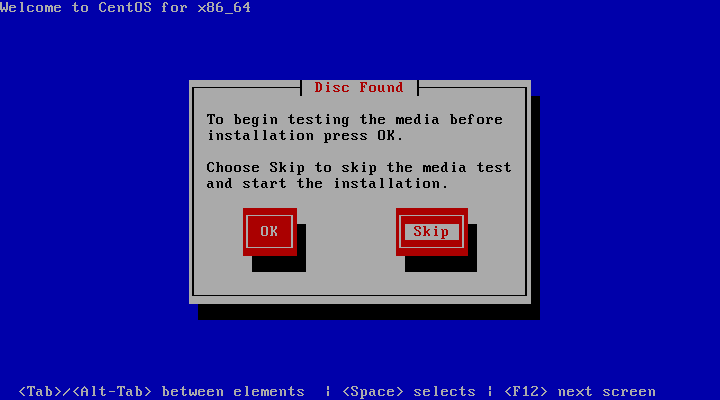

It can take a long time to test the installation media so we skip this test here:

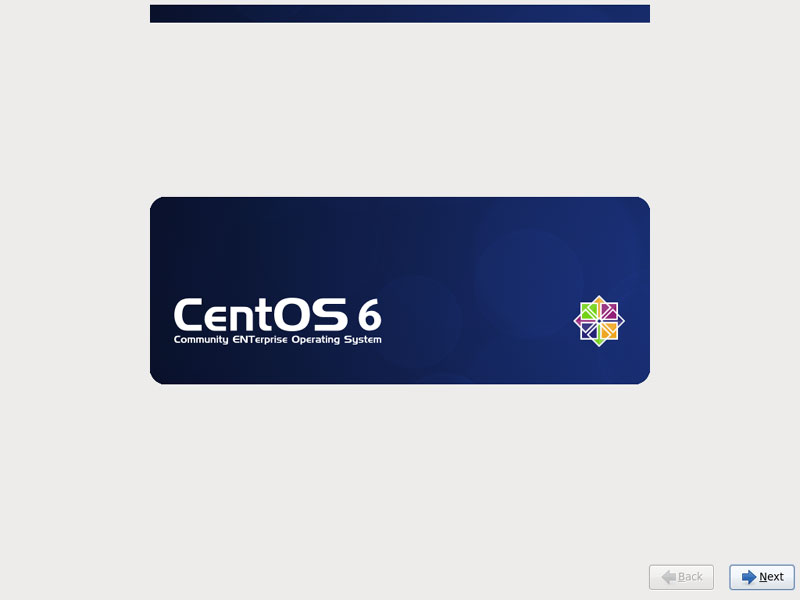

The welcome screen of the CentOS installer appears. Click on Next:

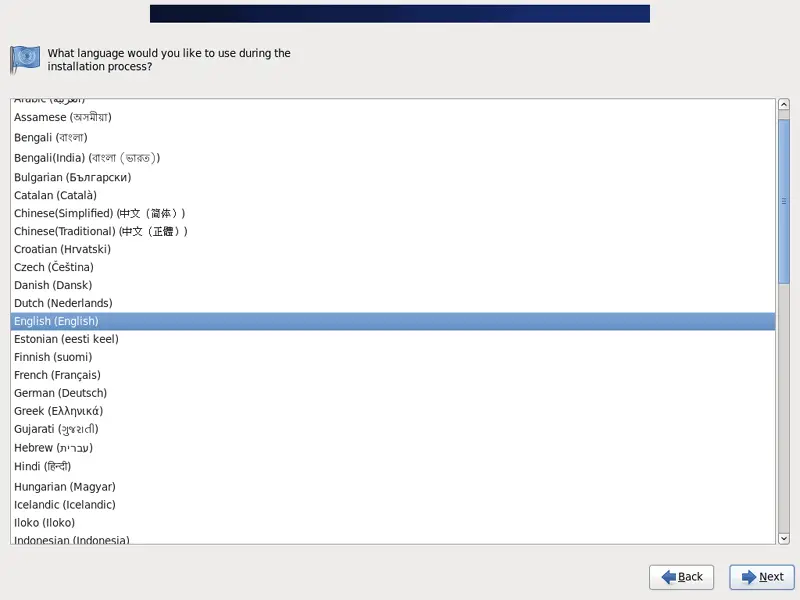

Choose your language next:

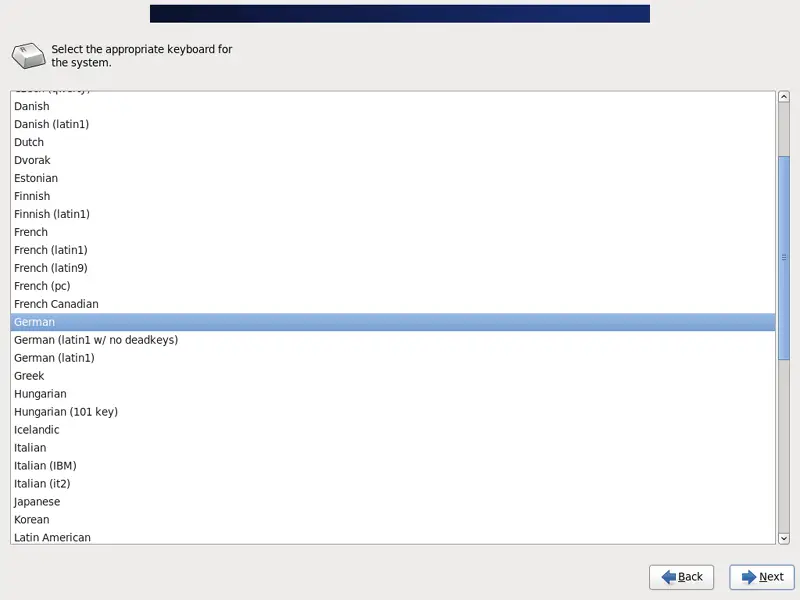

Select your keyboard layout:

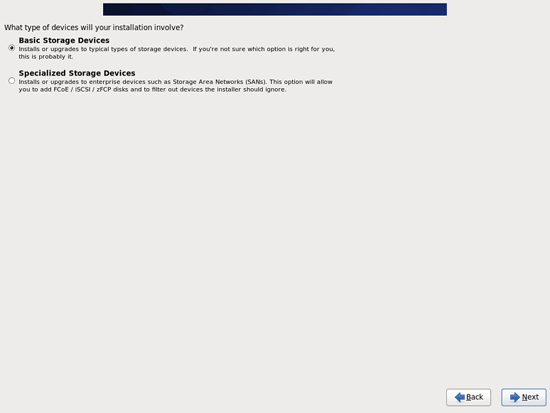

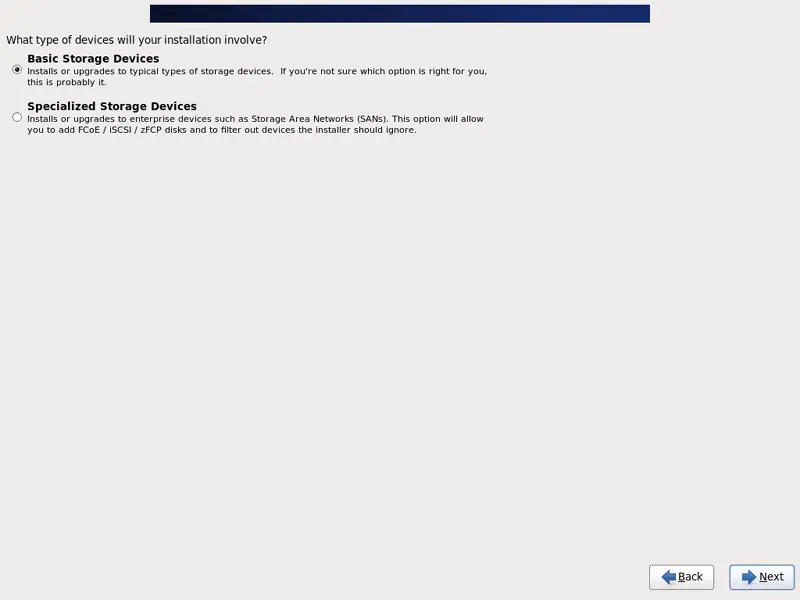

I assume that you use a locally attached hard drive, so you should select Basic Storage Devices here:

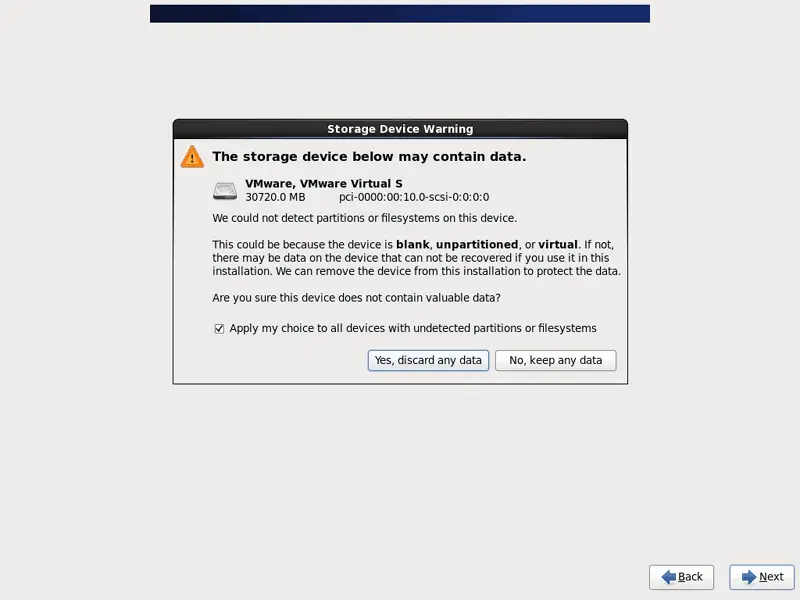

You might see the following warning - Error processing drive. If you see this click on the Re-initialize all button to proceed:

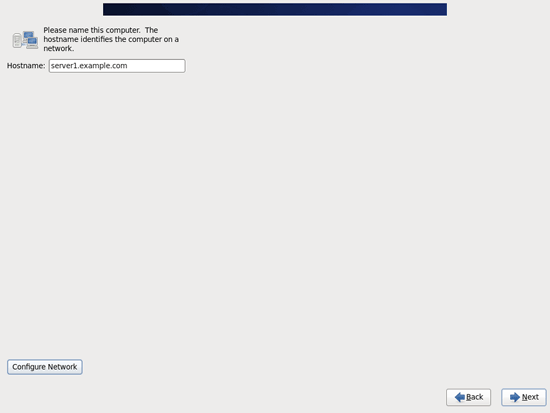

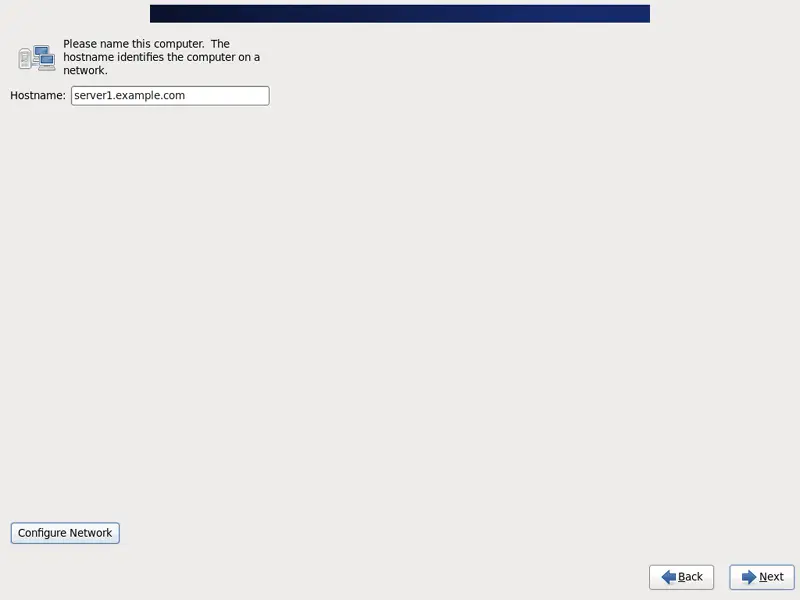

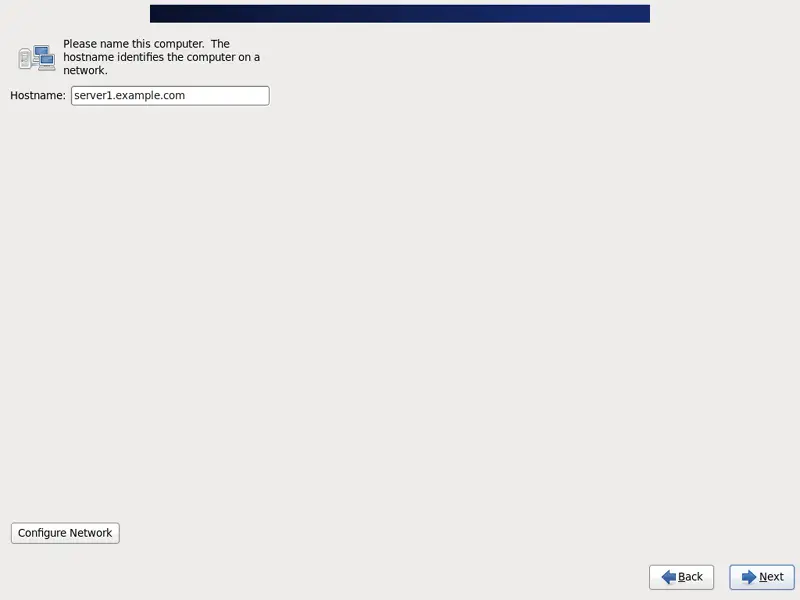

Fill in the hostname of the server (e.g. server1.example.com), then click on the Configure Network button:

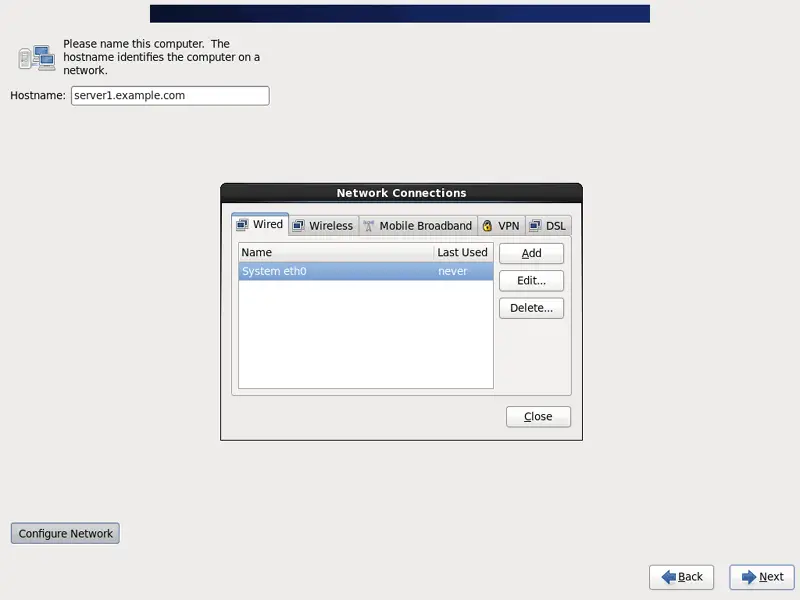

Go to the Wired tab, select the network interface (probably eth0) and click on Edit...:

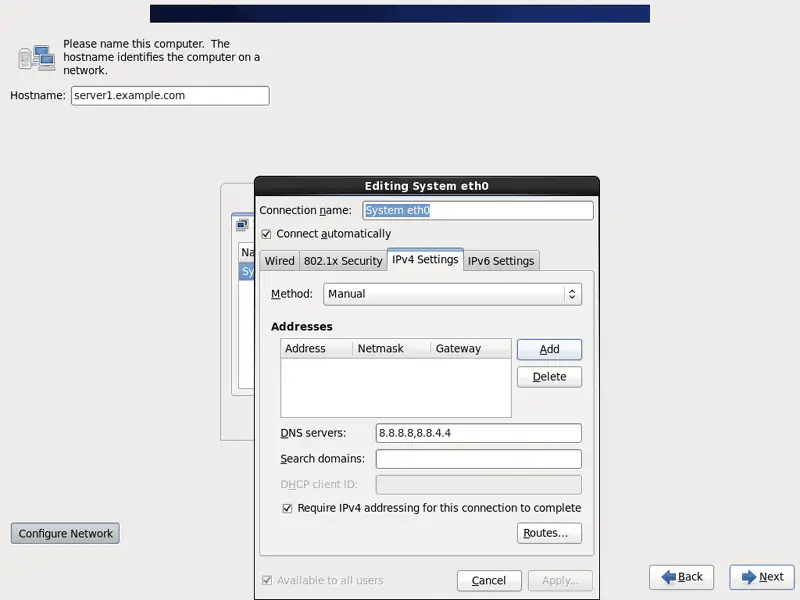

Mark the Connect automatically checkbox and go to the IPv4 Settings tab and select Manual in the Method drop-down menu. Fill in one, two, or three nameservers (separated by comma) in the DNS servers field (e.g. 8.8.8.8,8.8.4.4), then click on the Add button next to the Addresses area:

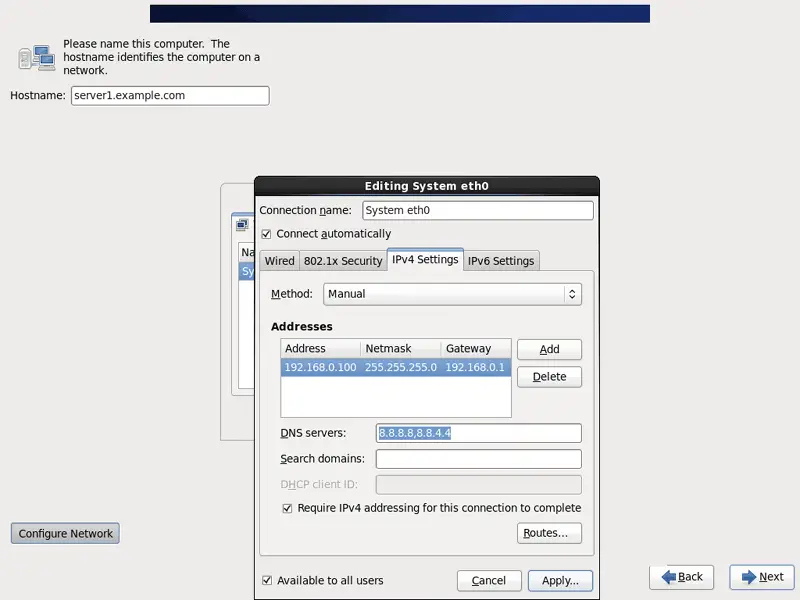

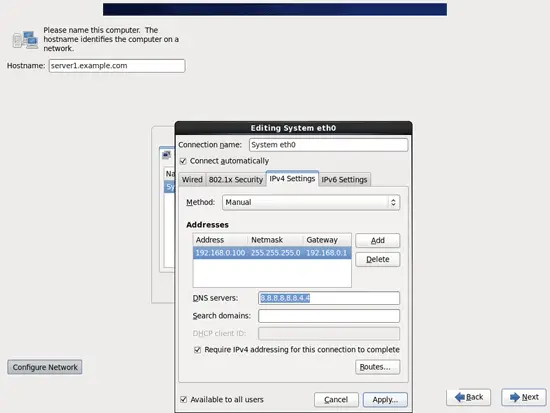

Now give your network card a static IP address and netmask (in this tutorial I'm using the IP address 192.168.0.100 and netmask 255.255.255.0 for demonstration purposes; if you are not sure about the right values, http://www.subnetmask.info might help you). Also fill in your gateway (e.g. 192.168.0.1) and click on the Apply... button:

The network configuration is now finished. Click on the Next button:

Share this page:

19 Comment(s)

Add comment

Comments

From: Dylan Myers at: 2012-08-11 06:32:05

Anyone who uses this tutorial should be aware of this bug with the changes ISPConfig3 makes to dovecot on Fedora/CentOS installs:
http://bugtracker.ispconfig.org/index.php?do=details&task_id=2367

From: Anonymous at: 2012-07-16 15:11:18

You'll also need to install php-common

 yum install php-common

From: Jack at: 2013-01-05 16:55:42

EPEL name has been upgraded to: http://dl.fedoraproject.org/pub/epel/6/x86_64/epel-release-6-8.noarch.rpm

From: at: 2013-01-20 16:21:31

Yum installed dovecot 2.0.9.el6_1.1

and  dovecot-mysql 2.0.9-2.el6_1.1

 This seems to cause a failure in amavis:

amavis[8819]: (08819-01-10) Blocked MTA-BLOCKED in maillog

I have tried

mv /etc/dovecot/dovecot.conf /etc/dovecot/dovecot.conf.org

cp /etc/dovecot.conf /etc/dovecot/dovecot.conf



service dovecot restart

service amavisd restart

service postfix restart



# this seems to have worked ok for me - mail now being sent out.

From: at: 2013-01-29 20:31:31

I was having errors in my maillog as follows;

Jan 29 20:18:45 centos postfix/smtpd[25440]: warning: SASL: Connect to private/auth failed: No such file or directory
Jan 29 20:18:45 centos postfix/smtpd[25440]: fatal: no SASL authentication mechanisms

The comment above from DFen;

mv /etc/dovecot/dovecot.conf /etc/dovecot/dovecot.conf.org
cp /etc/dovecot.conf /etc/dovecot/dovecot.conf

This fixed my issues

From: noro at: 2012-10-02 18:26:04

hi,
pureftp dont use certificat in /etc/ssl/private/
but in /etc/pki/pure-ftpd

commnad for generate certificate:
openssl req -x509 -nodes -days 7300 -newkey rsa:2048 -keyout /etc/pki/pure-ftpd/pure-ftpd.pem -out /etc/pki/pure-ftpd/pure-ftpd.pem

thanks for this tutorial

From: MLK Dual Production at: 2012-12-16 15:53:37

Thank you for the helpful and well explained tutorial.
For some reason the link to download mod_ruby (wget http://www.modruby.net/archive/mod_ruby-1.3.0.tar.gz) is not working.

Here is one that works

wget http://fossies.org/unix/www/apache_httpd_modules/mod_ruby-1.3.0.tar.gz


From: Anonymous at: 2012-12-19 09:45:54

mirror:http://ftp.riken.go.jp/pub/FreeBSD/distfiles/ruby/mod_ruby-1.3.0.tar.gz


Thank for walkthrough

From: Anonymous at: 2013-03-31 00:04:26

I found that on some setups phpmyadmin and squirrelmail can't load. By editing the "squirrelmail.conf" and "phpmyadmin.conf" file in "/etc/httpd/conf" and adding

<Directory "/usr/share/phpmyadmin">

  <IfModule prefork.c>

LoadModule php5_module modules/libphp5.so

</IfModule>

<IfModule !prefork.c>

  LoadModule php5_module modules/libphp5-zts.so

</IfModule>



#

# Cause the PHP interpreter to handle files with a .php extension.

#

<FilesMatch \.php$>

    SetHandler application/x-httpd-php

</FilesMatch>

  Order Allow,Deny

  Allow from all

</Directory>

From: CanaDave at: 2012-07-14 23:37:56

...you should mention that when you start named:

/etc/init.d/named start

...it takes a few minutes to generate a key...I thought it was crashed so I Ctrl-C'd it a couple of times then eventually I found how to generate the key manually:

]# rndc-confgen -a

]# chmod 666 /etc/rndc.key

then

]# chkconfig --levels 235 named on
]# /etc/init.d/named start

...I don't know if it would have generated the key on its own, it did say 'Generate Key': but seemed to be waiting for input from me.

Anyway, cool walkthrough...I set it up in a VM in Hyper-V...



From: Pedro Rocha at: 2012-09-27 10:15:18

Vlogger seems no longer available, is there any alternative or does ispconfig really need this?

From: life_watcher at: 2013-01-10 03:54:29

Great tutorial! Thank you!

a little addition - fail2ban seems to conflict with bastille and disable firewall set by ISPConfig (with uses bastille to manage iptables). As result no active firewall except fail2ban rules... I had to remove fail2ban to make it working...

Thank you!



From: at: 2013-01-11 12:17:30

i will sugest fail2ban + APF  and just disable the ispconfig firewall ( only if you have CLI access )

From: Anonymous at: 2012-09-22 02:36:42

Thank you !

 Best TUTORIAL I'v found online, up-to-date everything just works, unlike many other - half-finished tutorials!!!!

Thanks for your time.



From: Mike at: 2012-09-29 23:56:03

Simply awesome. Thank you. Only wish I would have come across this information 3 days ago.

From: Anonymous at: 2013-02-07 04:55:07

SAME HERE!

From: Gijsbert at: 2012-10-21 18:02:48

It's a good tutorial, but I found 2 things that doesn't seem to be right:

1) During the installation of webalizer and awstats an error occurs "No package awstats available". I have no idea where to get it, I checked the art, dag and epel repositories, but no awstats (anymore) :(

2) On a 64-bits Centos 6.3 OS, when installing mod_python the apache error log shows:

[Sun Oct 21 17:48:08 2012] [error] python_init: Python version mismatch, expected '2.6.5', found '2.6.6'.
[Sun Oct 21 17:48:08 2012] [error] python_init: Python executable found '/usr/bin/python'.
[Sun Oct 21 17:48:08 2012] [error] python_init: Python path being used '/usr/lib64/python26.zip:/usr/lib64/python2.6/:/usr/lib64/python2.6/plat-linux2:/usr/lib64/python2.6/lib-tk:/usr/lib64/python2.6/lib-old:/usr/lib64/python2.6/lib-dynload'.

I heard that it's better to remove mod_python and use mod_wsgi instead. I tried this and the errors are gone. However it does show a warning in the error_log:

[Sun Oct 21 20:00:08 2012] [warn] mod_wsgi: Compiled for Python/2.6.2.
[Sun Oct 21 20:00:08 2012] [warn] mod_wsgi: Runtime using Python/2.6.6.

Maybe you can rewrite the manual for these 2 issues so it will be even better in the (near) future!

From: Anonymous at: 2013-02-26 19:30:04

After Install ISPCONFIG 3 ,admin painel show apache test page...help
