Installing PowerDNS (With MySQL Backend) And Poweradmin On Fedora 10 - Page 2

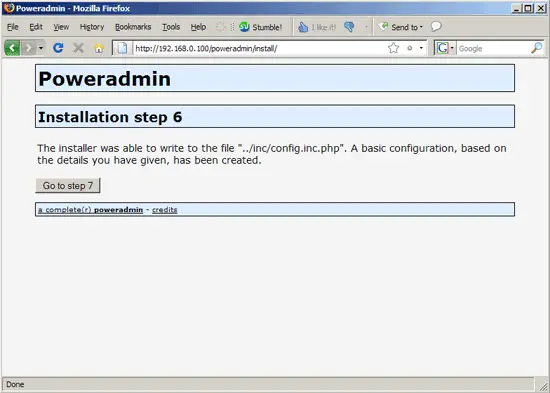

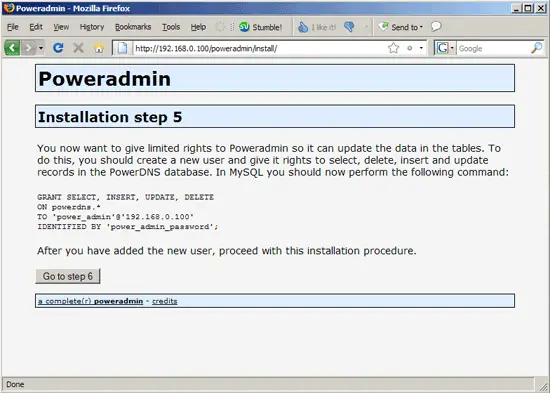

On the next screen the installer asks you to execute a MySQL query. We don't have to do that because we've done something similar in chapter 3 already (the two GRANT statements) so we are set. Click on Go to step 6:

Click on Go to step 7:

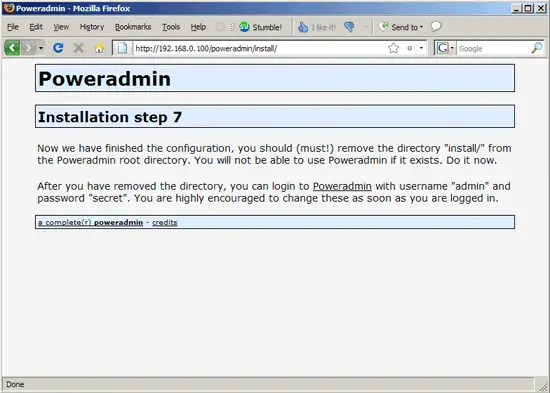

The installation is now finished...

... but for security reasons we must delete the install directory:

rm -fr /var/www/html/poweradmin/install/

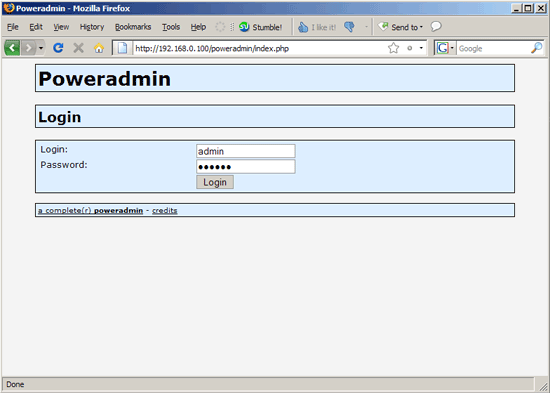

Now you can go to http://server1.example.com/poweradmin or http://192.168.0.100/poweradmin and log in with the username admin and the password you created during the installation:

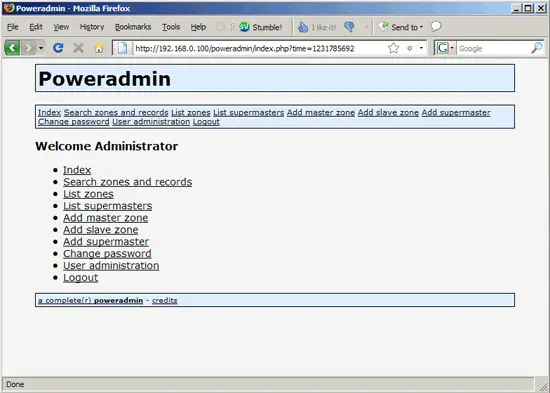

This is how the Poweradmin web interface looks:

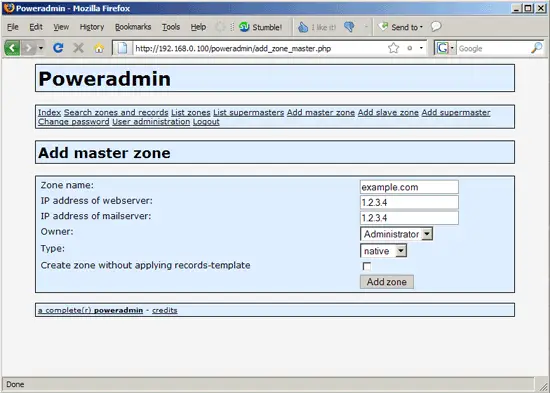

To create a zone, go to Add master zone and fill in the domain name (e.g. example.com). You can already fill in the IP addresses for the www A record ("webserver") and the MX record ("mailserver") for that zone. If you leave the Create zone without applying records-template checkbox unchecked, Poweradmin will automatically create some NS, A (e.g. www) and MX records for that zone:

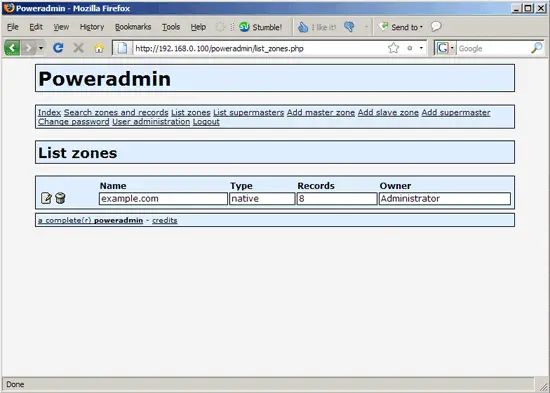

Go to List zones afterwards. You should now see the new zone there, and it already has eight records. Click on the edit icon to see these eight records:

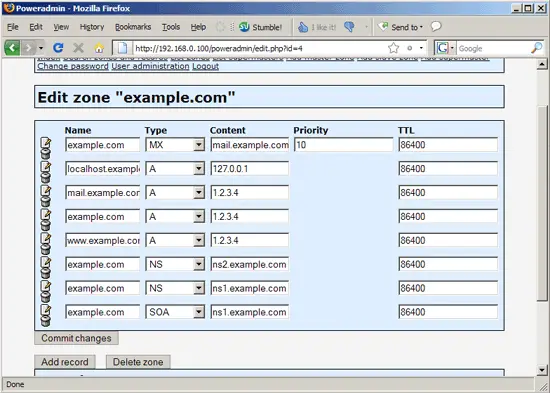

These are the records that are created automatically unless you check the Create zone without applying records-template checkbox when you create a zone. You can now edit them or add and delete records:

Of course, you can as well create all records one-by-one manually - just leave the IP address fields empty and check the Create zone without applying records-template checkbox on the Add master zone page:

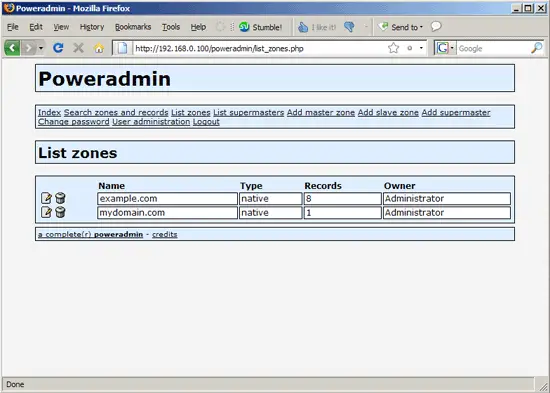

On the List zones page you will see that the new zone has just one record (the SOA record). Click on the edit icon...

... and then on Add record to add further records, ...

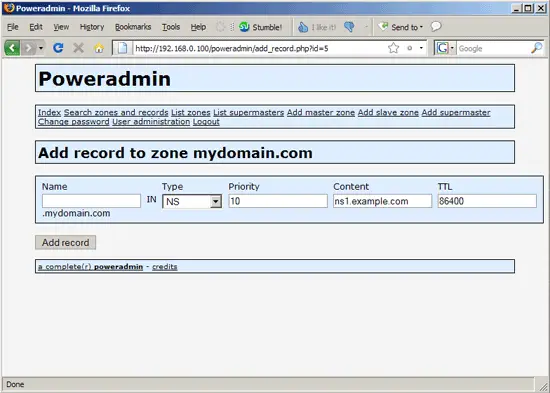

..., e.g. NS records...

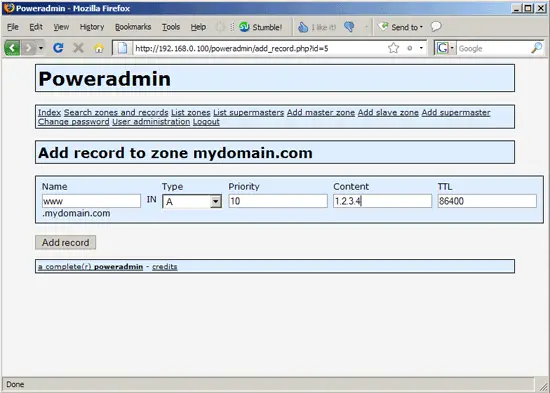

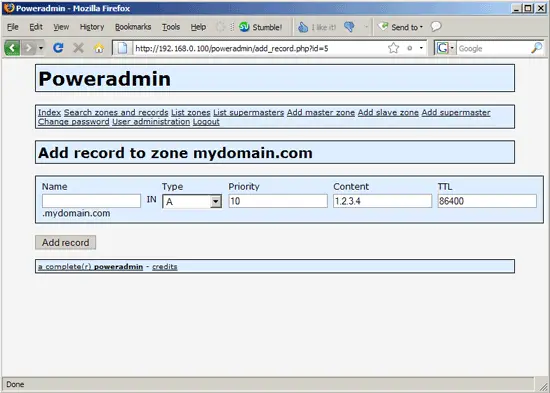

... and A records (e.g. for mydomain.com (leave the Name field empty!) and www.mydomain.com)...

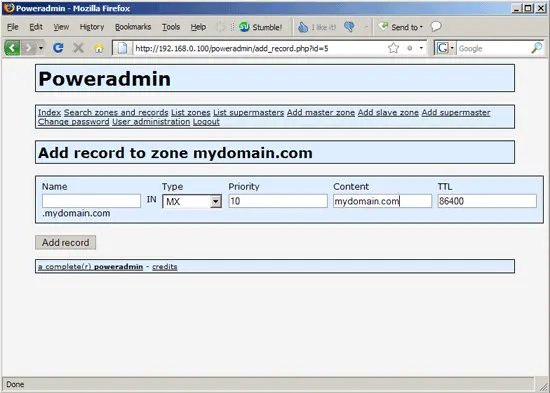

... and MX records:

To create PTR records, go to the Add master zone page and create a zone called in-addr.arpa (leave the IP address fields empty and check the Create zone without applying records-template checkbox):

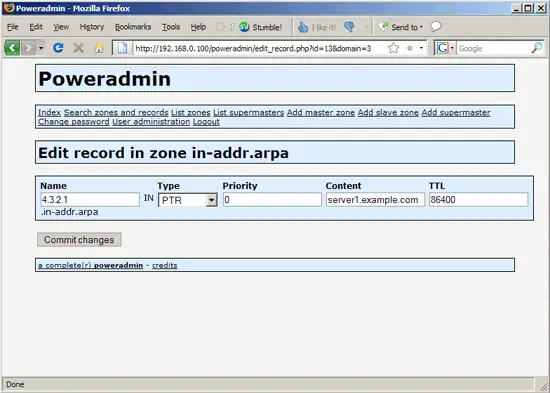

To create a PTR record that points from the IP 1.2.3.4 to server1.example.com, create a record under List zones and fill in 4.3.2.1 in the Name field (that's the IP in reverse order) and server1.example.com in the Content field:

After you've created your records, you can check them with the dig command (see

man dig

for more details), e.g. as follows:

dig @localhost mx example.com

[root@server1 ~]# dig @localhost mx example.com

; <<>> DiG 9.5.1b2-RedHat-9.5.1-0.8.b2.fc10 <<>> @localhost mx example.com
; (1 server found)
;; global options:  printcmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 6561
;; flags: qr aa rd; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; WARNING: recursion requested but not available

;; QUESTION SECTION:
;example.com.                   IN      MX

;; ANSWER SECTION:
example.com.            86400   IN      MX      10 mail.example.com.

;; ADDITIONAL SECTION:
mail.example.com.       86400   IN      A       1.2.3.4

;; Query time: 39 msec
;; SERVER: 127.0.0.1#53(127.0.0.1)
;; WHEN: Wed Jan 14 15:47:01 2009
;; MSG SIZE  rcvd: 66

[root@server1 ~]#
