How to Setup Remote Logging with Rsyslog on Debian 12

Rsyslog is an open-source logging system daemon that is used to collect, filter, store, and forward log messages of operating systems and applications. It is a powerful and flexible logging system that supports multiple protocols, including TCP, UDP, and RELP (Reliable Event Logging Protocol). You can use Rsyslog to centralize logs for your servers, applications, and databases.

This guide will show you how to install rsyslog and set up remote logging on the Debian 12 server. You'll also set up a Linux server to send logs remotely to the Rsyslog server.

Prerequisites

To begin with this guide, you need the following:

  • A Debian 12 server
  • A non-root user with administrator privileges
  • A Linux machine as a client for testing

Installing Rsyslog

Before you start, you need to install Rsyslog to your Debian server. In this step, you'll install Rsyslog through APT, then start and enable Rsyslog service.

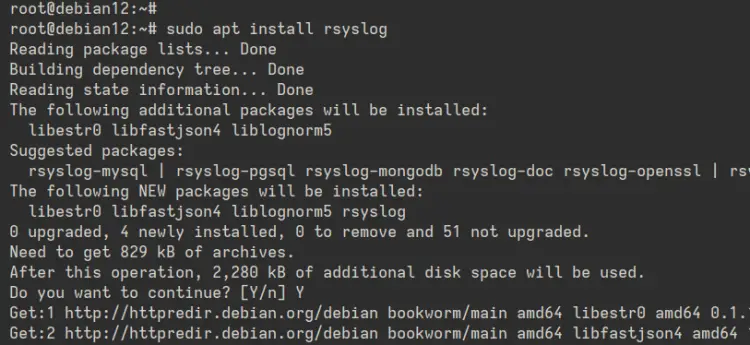

First, run the command below to update your Debian package index and install Rsyslog to your system. Enter 'Y' to confirm the installation.

sudo apt update
sudo apt install rsyslog

install rsyslog

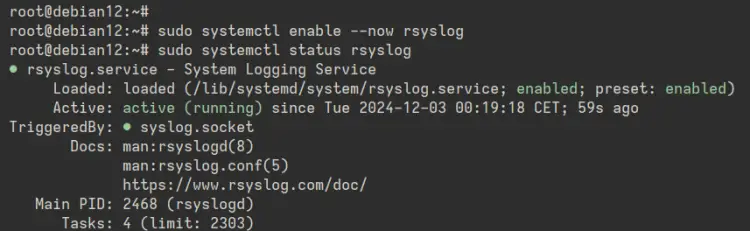

After the installation is finished, run the 'systemctl' command below to start and enable the 'rsyslog' server. Then, verify it to ensure it is running.

sudo systemctl enable --now rsyslog
sudo systemctl status rsyslog

In the following output, you can see that Rsyslog is running and enabled.

check rsyslog

Setting up UFW (Uncomplicated Firewall)

After Rsyslog is installed, you'll install and configure UFW (Uncomplicated Firewall). You'll open port '22' for the OpenSSH service and port '514' for Rsyslog. And then you'll start and enable UFW service.

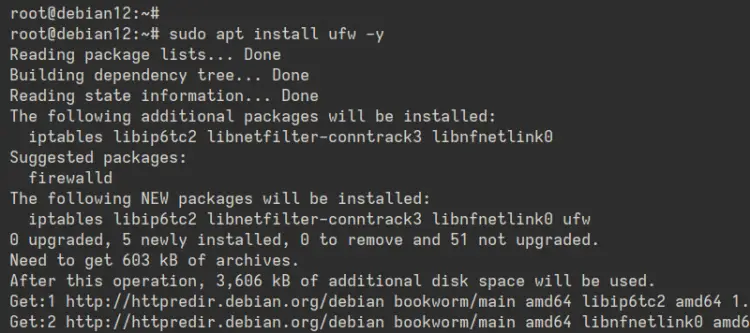

To install UFW, run the following 'apt' command. Input 'Y' to confirm the installation.

sudo apt install ufw

install ufw

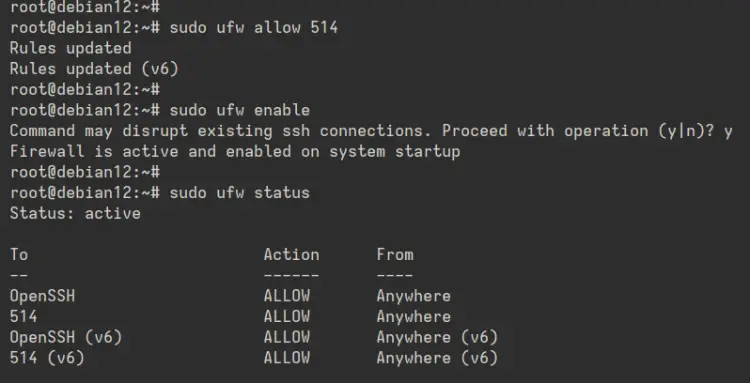

After the installation is finished, run the following 'ufw' command to enable the 'OpenSSH' profile and allow access to port '514'. The 'OpenSSH' profile will allow SSH access and port '514' is the syslog port.

sudo ufw allow OpenSSH
sudo ufw allow 514

Now start and enable UFW with the command below. Type 'y' to confirm and you'll get an output such as 'Firewall is active and enabled at system startup'.

sudo ufw enable

Lastly, check the UFW status with the following command.

sudo ufw status

In the output below, you can see UFW with the status active, OpenSSH profile, and port '514' enabled.

setup ufw

Rsyslog to receive log from Remote Server

Now that you've installed Rsyslog and configured UFW, you're ready to set up Rsyslog to receive logs from remote servers. To achieve this, you need to modify the '/etc/rsyslog.conf' file and configure:

  1. Enable the 'imudp' module to receive logs from remote servers via UDP
  2. Optional, enable the 'imtcp' to receive logs via TCP
  3. Enable the 'AllowedSender' option to allow specific subnets to send logs remotely
  4. Adding a custom template for Rsyslog
  5. Check Rsyslog configuration
  6. Start, enable, and verify the Rsyslog service

Let's get started.

First, edit the '/etc/rsyslog.conf' file using the following 'nano' editor.

sudo nano /etc/rsyslog.conf

Uncomment the following lines to enable the 'imudp' module and enable the syslog to log in to the Rsyslog server.

# provides UDP syslog reception
module(load="imudp")
input(type="imudp" port="514")

Additionally, if you need to enable syslog via TCP, enable the 'imtcp' module like the following:

# provides TCP syslog reception
module(load="imtcp")
input(type="imtcp" port="50514")

Now add the 'AllowedSender' option and input your network subnet that is allowed to send Syslog messages to your Rsyslog server.

# $AllowedSender - specifies which remote systems are allowed to send syslog messages to rsyslogd
$AllowedSender UDP, 192.168.10.0/24, [::1]/128, *.howtoforge.local, db.howtoforge.local

Input the following configuration to set up a template for log files from the remote servers. In this example, log files from the remote server will be stored in the '/var/log/servers/server-ip' directory.

#Custom template to generate the log filename dynamically based on the client's IP address.
$template RemInputLogs, "/var/log/servers/%FROMHOST-IP%/%PROGRAMNAME%.log"
*.?RemInputLogs

Save the file and exit the editor when done.

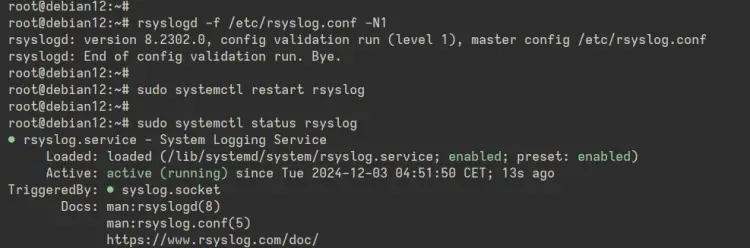

Next, run the 'rsyslogd' command below to check the Rsyslog configuration and make sure you have the proper configuration.

rsyslogd -f /etc/rsyslog.conf -N1

When no error occurs, run the 'systemctl' command below to restart the 'rsyslog' service and apply your changes.

sudo systemctl restart rsyslog

check rsyslog

Lastly, check the 'rsyslog' service status to ensure it is running.

sudo systemctl status rsyslog

In the output below, you can see the 'rsyslog' is running.

check rsyslog service

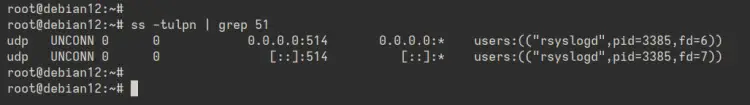

Additionally, check port '514' on your server to ensure Rsyslog is running.

ss -tulpn | grep 514

You can see below the UDP port '514' is used by the Rsyslog.

check port rsyslog

Sending logs to the Rsyslog server

Now that you've configured remote logging with Rsyslog on your Debian server, let's try sending logs from the '192.168.10.41' to the '192.168.10.10' server. To do this, you need the following:

  • Install the Rsyslog package on your machine
  • Edit the Rsyslog configuration and define which logs will be sent to the removed Rsyslog server
  • Optional, setting up the disk queue buffer for Rsyslog

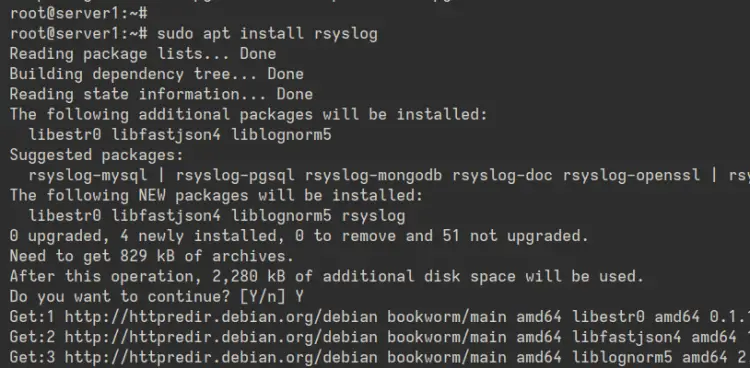

Install the 'rsyslog' package with the 'apt' command below. Enter 'Y' to confirm the installation.

sudo apt install rsyslog

install rsyslog client

Now open the default configuration '/etc/rsyslog.conf' file with the 'nano' editor.

sudo nano /etc/rsyslog.conf

Add the following configuration to send logs to the Rsyslog server '192.168.10.10'. In this case, we'll send kernel, cron, and authentication logs to the Rsyslog server.

# Send logs to a remote syslog server over UDP
auth,[email protected]:514
[email protected]:514
[email protected]:514

Now add the following to set up a queue buffer for Rsyslog.

# Define Disk Queue Buffer in case the server goes down
$ActionQueueFileName queue # define a file name for disk assistance.
$ActionQueueMaxDiskSpace 1g # The maximum size that all queue files together will use on disk.
$ActionQueueSaveOnShutdown on # specifies that data should be saved at shutdown
$ActionQueueType LinkedList # holds enqueued messages in memory which makes the process very fast.
$ActionResumeRetryCount -1 # prevents rsyslog from dropping messages when retrying to connect if the server is not responding,

Save the file and exit the editor.

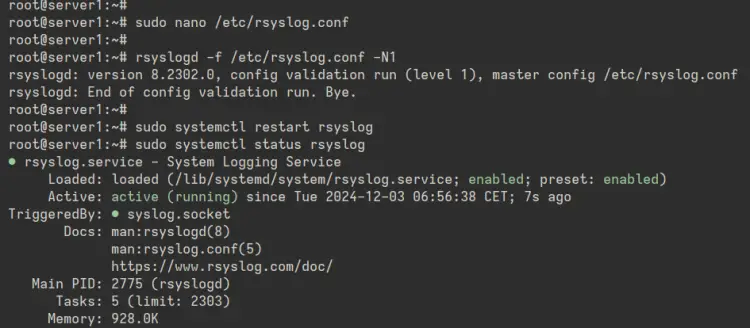

Next, run the 'rsyslogd' command below to check and verify your Rsyslog configuration.

rsyslogd -f /etc/rsyslog.conf -N1

When no error occurs, run the 'systemctl' command below to restart Rsyslog and verify it to ensure it is running.

sudo systemctl restart rsyslogd
sudo systemctl status rsyslogd

You can see below that the Rsyslog service is running and your logs will be sent to the Rsyslog server on '192.168.10.10'.

check rsyslog service

Checking log files on the Rsyslog server

To ensure that your Rsyslog working, you need to check the log directory that you've configured in the template. In this example, log files from remote servers will be stored in the '/var/log/servers' directory.

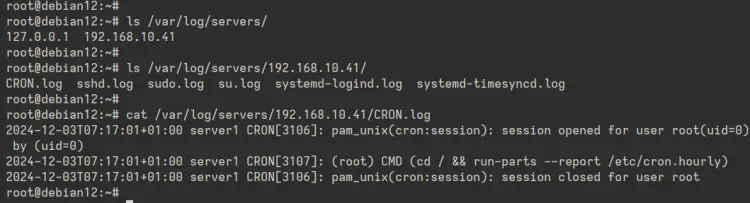

Check the log directory '/var/log/servers' with the command below. This will show you the directory of each server.

ls /var/log/servers

Now check the log directory of your server, which is stored in the '/var/log/servers/server-ip' directory. You'll see multiple log files are available on the Rsyslog server.

You can now check log files with the 'cat' or 'tail' command to see details of logs.

cat /var/log/servers/logfile.log
tail -f /var/log/servers/logfile.log

check log

Conclusion

Congratulations! You've completed the installation of Rsyslog on the Debian 12 server. You've also configured remote logging via Rsyslog and sent the log to the server via syslog UDP. For the next step, you may also set up both TCP and UDP input modules and integrate them with log systems such as Rsyslog or Logstash.
