Create a Daemonset in Kubernetes

A DaemonSet makes sure that all of the Nodes in the Kubernetes Cluster run a copy of a Pod. Every node will have a copy of the pod. When nodes are added to the cluster, Pods are added to them and when nodes are removed from the cluster, the Pods are removed. If we delete a DaemonSet it will clean up the Pods it created.

A DaemonSet ensures that all nodes run a copy of a Pod. Normally, the node that a Pod runs on is selected by the scheduler but  DaemonSet pods are created and scheduled by the DaemonSet controller.

Daemonset can be used:

  1. To run cluster storage on each node, such as:  glusterd, ceph
  2. To run logs collection on each node, such as: fluentd, logstash
  3. To run node monitoring on ever note, such as: Prometheus Node Exporter, collectd, Datadog agent

To know more about Daemonset, visit kubernetes.io the official documentation of Kubernetes.

In this article, we will create a Daemonset of "fluentd_elasticsearch". This will create Pods of "fluentd_elasticsearch" on each node in the cluster. Our Daemonset definition file will have Toleration for Taint of the master nodes to allow Pod to get scheduled on the master node as well.

Pre-requisites

  1. Kubernetes Cluster with at least 1 worker node.
    If you want to learn to create a Kubernetes Cluster, click here. This guide will help you create a Kubernetes cluster with 1 Master and 2 Nodes on AWS Ubuntu 18.04 EC2 Instances.

What will we do?

  1. Create a Daemonset

Create a Daemonset

Check if there exists any daemonset on the default namespace and all the namespaces.

kubectl get daemonsets #Get daemonsets from the default namespace
kubectl get daemonsets --all-namespaces #Get daemonsets from all namespace using --all-namespace option

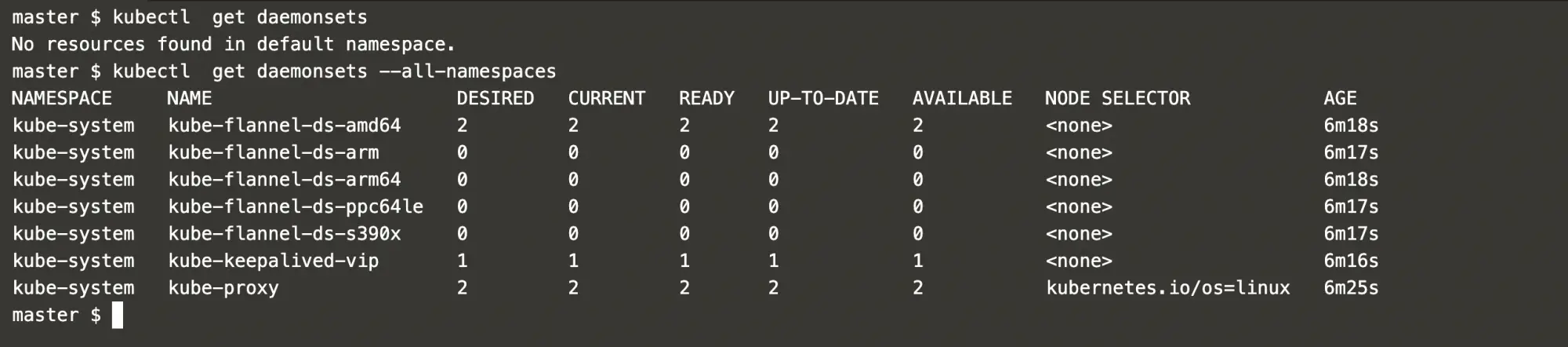

get-system-daemonsets

In the above screenshot, you can see that there are a few Daemonset available. All these Daemonset are for Cluster components.

Now, get pods that belong to "kube-system" namespace.

kubectl  get pods -n kube-system #Get pods from the "kube-system" namespace

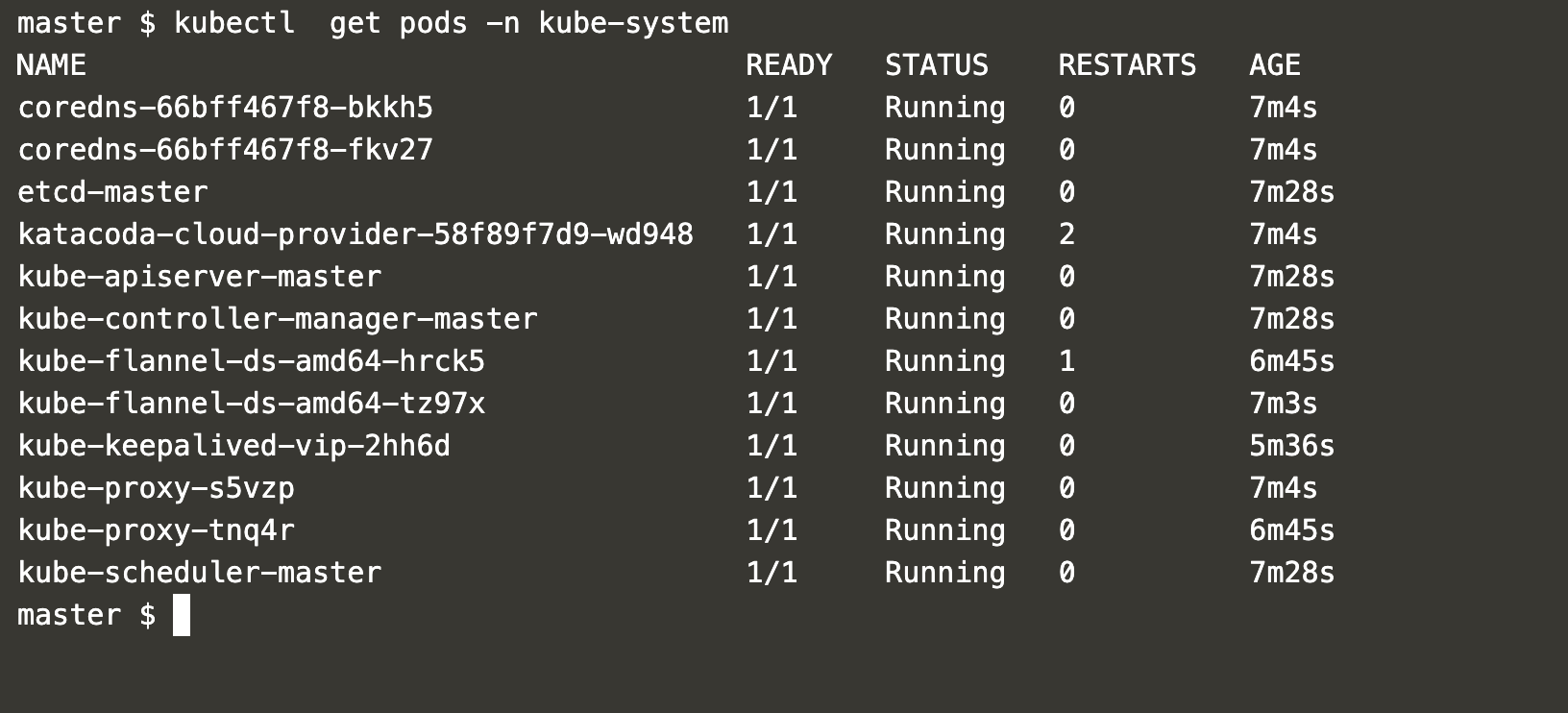

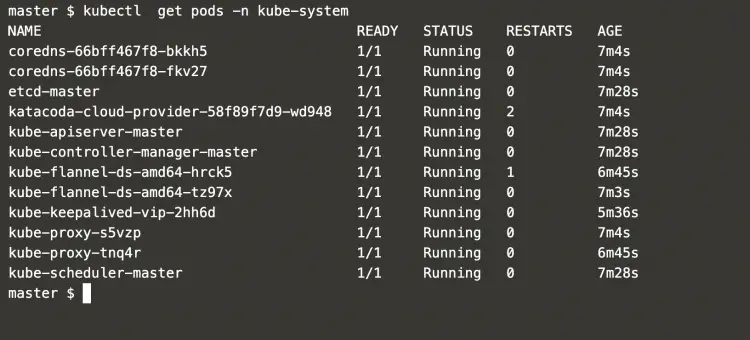

get-system-pods

All these pods seen in the above screenshot belong to the Daemonset of cluster components.

Get a list of proxy pods.

kubectl get pods -n kube-system | grep proxy #Get pods from the "kube-system" namespace and grep for proxy

Check what controls proxy pods.

kubectl describe pod kube-proxy-s5vzp -n kube-system #Describe the pod from the "kube-system" namespace

Get details of the daemonset that controls the proxy pods.

kubectl describe daemonset kube-proxy -n kube-system #Describe the daemonset from the "kube-system" namespace

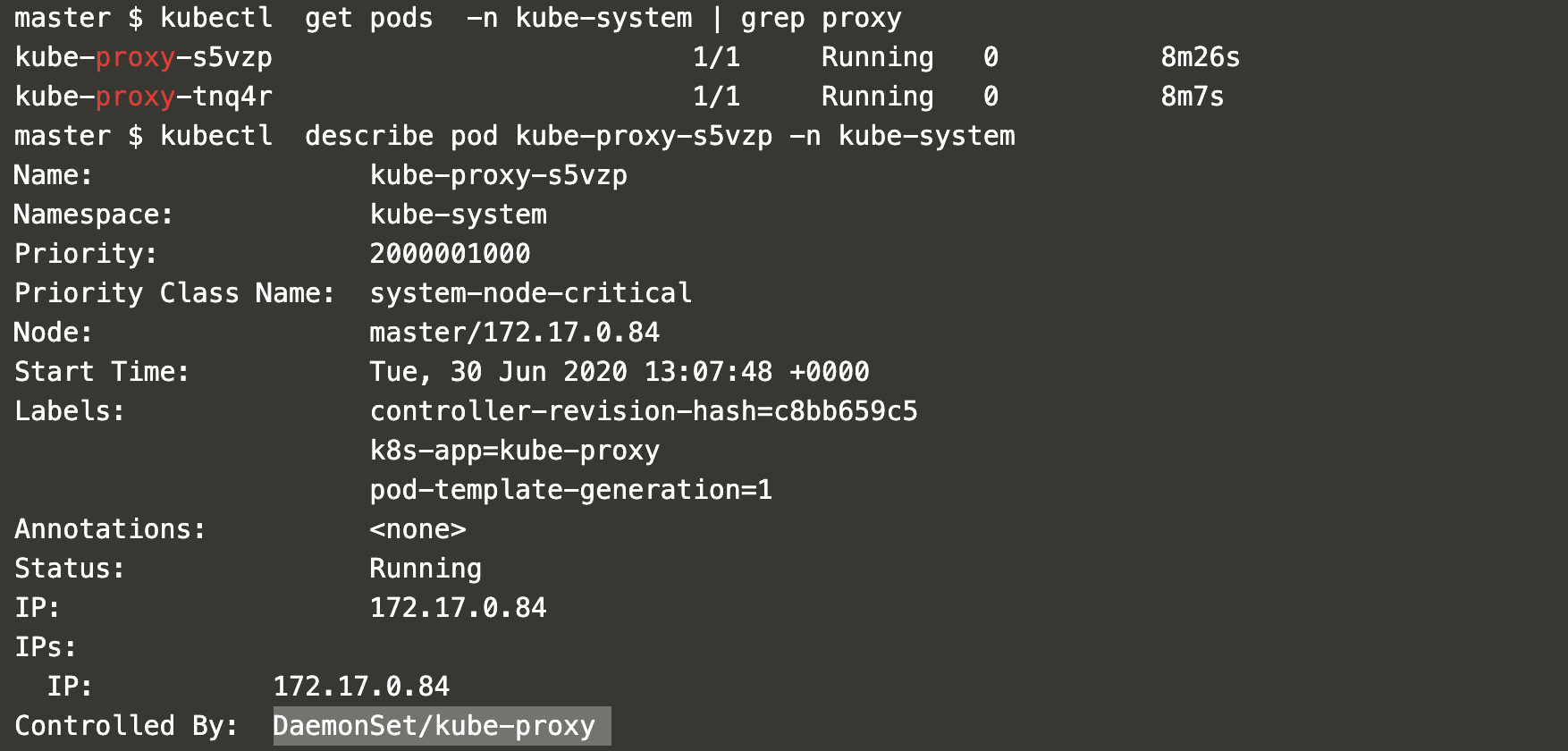

check-pod-controlled-by-daemonset

Create a file with the following daemonset definition in it.

vim my-daemonset.yml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: my-fluentd-elasticsearch-daemonset
  namespace: kube-system
  labels:
    k8s-app: fluentd-logging
spec:
  selector:
    matchLabels:
      name: fluentd-elasticsearch
  template:
    metadata:
      labels:
        name: fluentd-elasticsearch
    spec:
      tolerations:
      - key: node-role.kubernetes.io/master
        effect: NoSchedule
      containers:
      - name: fluentd-elasticsearch
        image: quay.io/fluentd_elasticsearch/fluentd:v2.5.2
        resources:
          limits:
            memory: 200Mi
          requests:
            cpu: 100m
            memory: 200Mi
        volumeMounts:
        - name: varlog
          mountPath: /var/log
        - name: varlibdockercontainers
          mountPath: /var/lib/docker/containers
          readOnly: true
      terminationGracePeriodSeconds: 30
      volumes:
      - name: varlog
        hostPath:
          path: /var/log
      - name: varlibdockercontainers
        hostPath:
          path: /var/lib/docker/containers

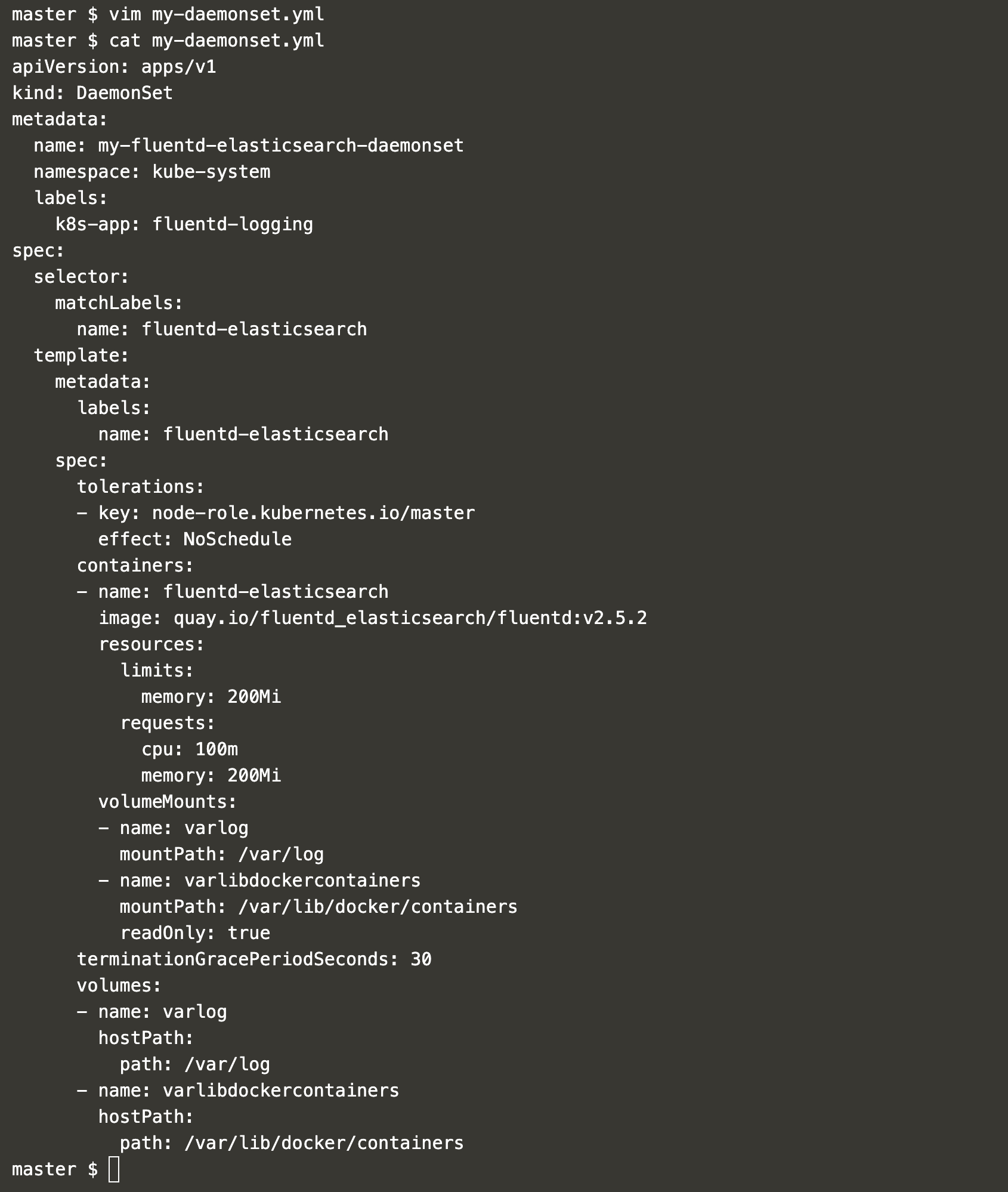

my-daemonset-definition

In the above definition, we have a Toleration to the Taint of the master node. This will let the pod get placed on the master node also.

Create a daemonset using the definition file created in the above step.

kubectl create -f my-daemonset.yml #Create a daemonset
kubectl get daemonset -n kube-system #Get daemonset from the "kube-system" namespace

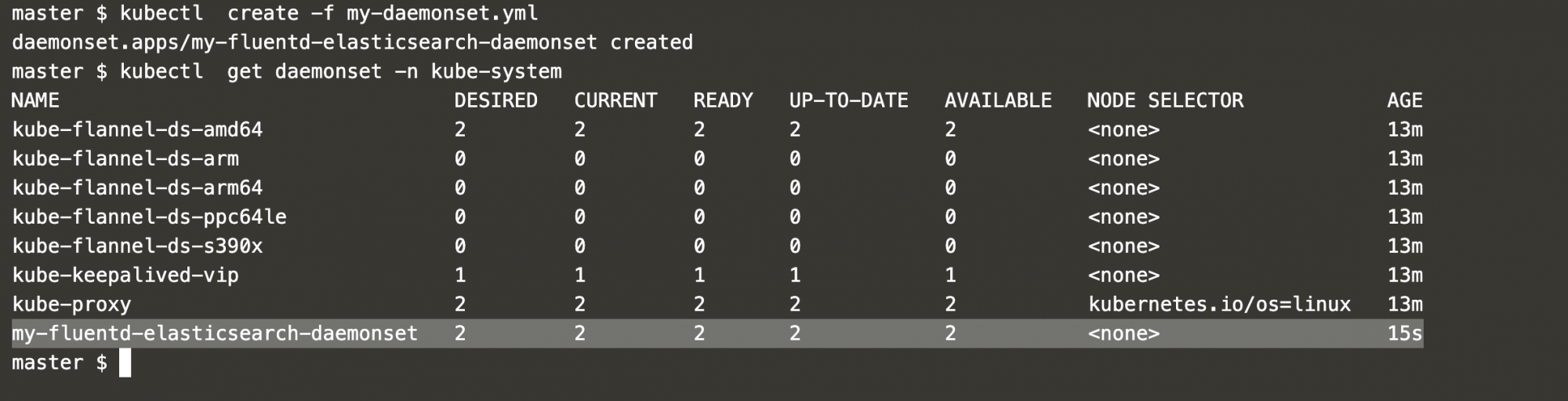

create-a-daemonset

This deamont set has been created in the "kube-system" namespace.

Describe the daemonset we just created in the "kube-system" namespace.

kubectl  describe daemonset my-fluentd-elasticsearch-daemonset -n kube-system #Describe the daemonset from the "kube-system" namespace

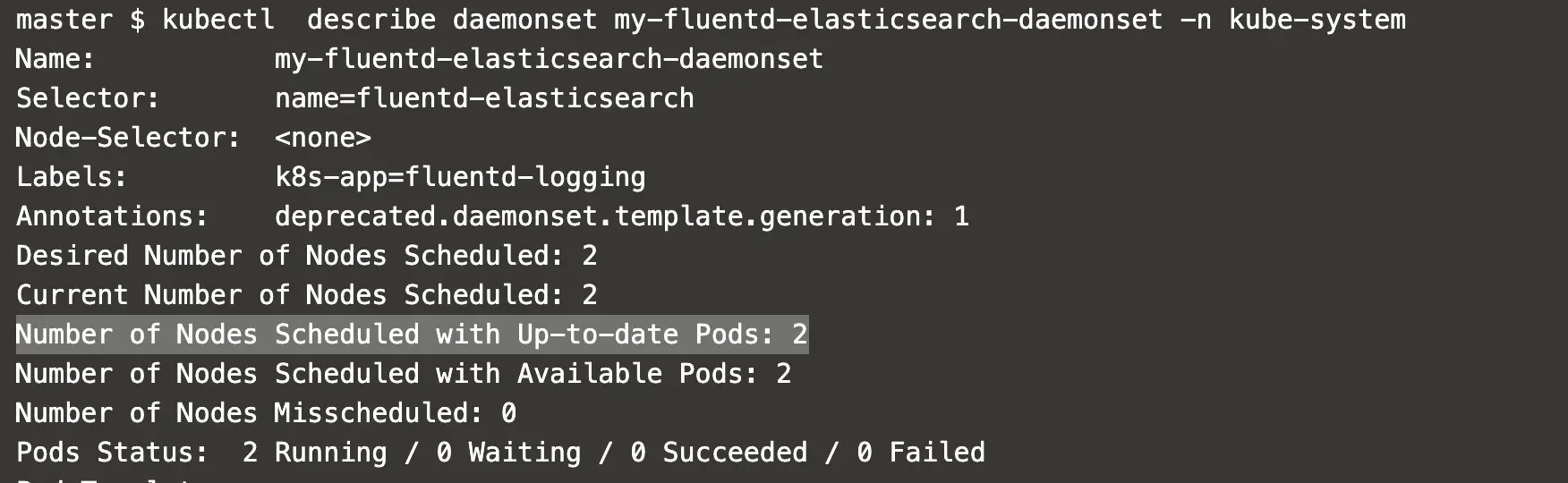

get-daemonset-details

In the above screenshot, it can be seen that the Pods have been deployed on 2 nodes.

Now, we can get details of the pods which are deployed as daemonsets on 2 nodes.

kubectl get pods -n kube-system | grep my-fluentd-elasticsearch-daemonset #Get pods from the "kube-system" namespace and grep
kubectl describe pod my-fluentd-elasticsearch-daemonset-4t9vs -n kube-system | grep Node #Describe the pods from the "kube-system" namespace and grep
kubectl describe pod my-fluentd-elasticsearch-daemonset-kxfjj -n kube-system | grep Node #Describe the pod from the "kube-system" namespace and grep

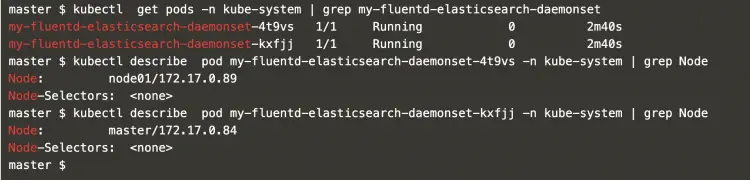

get-pod-details-created-under-daemonset

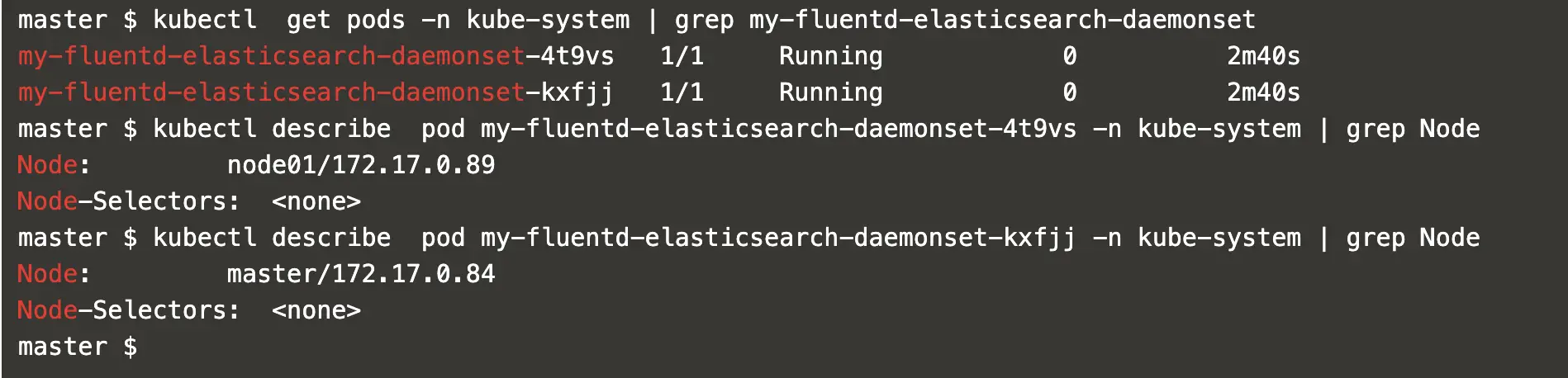

In the above screenshot, it can be seen that the Pods got deployed on worker node "node01" and master node "master". The reason for getting the pod scheduled on the master node is Toleration to the Taint of the master node.

Conclusion

In this article, we saw the steps to create a daemonset and saw how the pods in daemonset get deployed on each node in the Kubernetes cluster.
