Virtual Users And Domains With Postfix, Courier, MySQL And SquirrelMail (Ubuntu 9.10) - Page 4

12 Test Postfix

To see if Postfix is ready for SMTP-AUTH and TLS, run

telnet localhost 25

After you have established the connection to your Postfix mail server type

ehlo localhost

If you see the lines

250-STARTTLS

and

250-AUTH PLAIN LOGIN

everything is fine:

root@server1:/usr/local/sbin# telnet localhost 25
Trying ::1...
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
220 server1.example.com ESMTP Postfix (Ubuntu)
ehlo localhost
250-server1.example.com
250-PIPELINING
250-SIZE 10240000
250-VRFY
250-ETRN
250-STARTTLS
250-AUTH PLAIN LOGIN
250-AUTH=PLAIN LOGIN
250-ENHANCEDSTATUSCODES
250-8BITMIME
250 DSN
quit
221 2.0.0 Bye
Connection closed by foreign host.
root@server1:/usr/local/sbin#

Type

quit

to return to the system shell.



13 Populate The Database And Test

To populate the database you can use the MySQL shell:

mysql -u root -p
USE mail;

At least you have to create entries in the tables domains and users:

INSERT INTO `domains` (`domain`) VALUES ('example.com');
INSERT INTO `users` (`email`, `password`, `quota`) VALUES ('sales@example.com', ENCRYPT('secret'), 10485760);

(Please take care that you use the ENCRYPT syntax in the second INSERT statement in order to encrypt the password!)

If you want to make entries in the other two tables, that would look like this:

INSERT INTO `forwardings` (`source`, `destination`) VALUES ('info@example.com', 'sales@example.com');
INSERT INTO `transport` (`domain`, `transport`) VALUES ('example.com', 'smtp:mail.example.com');

To leave the MySQL shell, type

quit;

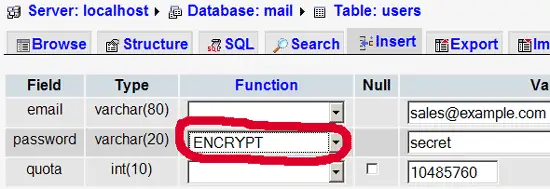

For most people it is easier if they have a graphical front-end to MySQL; therefore you can also use phpMyAdmin (in this example under http://192.168.0.100/phpmyadmin/ or http://server1.example.com/phpmyadmin/) to administrate the mail database. Again, when you create a user, go sure that you use the ENCRYPT function to encrypt the password:

I do not think I have to explain the domains and users table further.

The forwardings table can have entries like the following:

source destination
info@example.com sales@example.com Redirects emails for info@example.com to sales@example.com
@example.com thomas@example.com Creates a Catch-All account for thomas@example.com. All emails to example.com will arrive at thomas@example.com, except those that exist in the users table (i.e., if sales@example.com exists in the users table, mails to sales@example.com will still arrive at sales@example.com).
@example.com @anotherdomain.tld This redirects all emails to example.com to the same user at anotherdomain.tld. E.g., emails to thomas@example.com will be forwarded to thomas@anotherdomain.tld.
info@example.com sales@example.com, billing@anotherdomain.tld Forward emails for info@example.com to two or more email addresses. All listed email addresses under destination receive a copy of the email.

The transport table can have entries like these:

domain transport
example.com : Delivers emails for example.com locally. This is as if this record would not exist in this table at all.
example.com smtp:mail.anotherdomain.tld Delivers all emails for example.com via smtp to the server mail.anotherdomain.com.
example.com smtp:mail.anotherdomain.tld:2025 Delivers all emails for example.com via smtp to the server mail.anotherdomain.com, but on port 2025, not 25 which is the default port for smtp.
example.com

smtp:[1.2.3.4]
smtp:[1.2.3.4]:2025
smtp:[mail.anotherdomain.tld]

The square brackets prevent Postfix from doing lookups of the MX DNS record for the address in square brackets. Makes sense for IP addresses.
.example.com smtp:mail.anotherdomain.tld Mail for any subdomain of example.com is delivered to mail.anotherdomain.tld.
* smtp:mail.anotherdomain.tld All emails are delivered to mail.anotherdomain.tld.
joe@example.com smtp:mail.anotherdomain.tld Emails for joe@example.com are delivered to mail.anotherdomain.tld.

See

man transport

for more details.

Please keep in mind that the order of entries in the transport table is important! The entries will be followed from the top to the bottom.

Important: Postfix uses a caching mechanism for the transports, therefore it might take a while until you changes in the transport table take effect. If you want them to take effect immediately, run

postfix reload

after you have made your changes in the transport table.



14 Send A Welcome Email For Creating Maildir

When you create a new email account and try to fetch emails from it (with POP3/IMAP) you will probably get error messages saying that the Maildir doesn't exist. The Maildir is created automatically when the first email arrives for the new account. Therefore it's a good idea to send a welcome email to a new account.

First, we install the mailx package:

aptitude install mailx

To send a welcome email to sales@example.com, we do this:

mailx sales@example.com

You will be prompted for the subject. Type in the subject (e.g. Welcome), then press ENTER, and in the next line type your message. When the message is finished, press ENTER again so that you are in a new line, then press CTRL+D; if you don't want to cc the mail, press ENTER again:

root@server1:/usr/local/sbin# mailx sales@example.com
Subject: Welcome
<-- ENTER
Welcome! Have fun with your new mail account. <-- ENTER
<-- CTRL+D
Cc: <-- ENTER
root@server1:/usr/local/sbin#

Share this page:

18 Comment(s)

Add comment

Comments

From: batterycentury at: 2009-12-11 08:54:30

Good, new Ubuntu, seems Ubuntu has updated quickly.

From: sky7 at: 2010-06-15 02:43:36

Falko,

how to integrate with postfixadmin to maintain the virtual domains?

No missing clue using your guidance. Many thanks

From: Robsbots at: 2011-11-11 16:19:02

Top job. Works like a dream........

assuming it dosn't take three days to find a typo made when creating a file. My typo, not yours ;)

Thanks for the great How-To.

I am now contactable on several email addresses hosted as virtual domains on my server.

You Rock.



From: Kamil Frydryszek at: 2010-04-14 12:56:22

where is e-mails storage defined?

i can connect with server but i can not read email

i also can not send mail



From: Jamie Strandboge at: 2009-12-28 15:41:32

I noticed that this tutorial recommends to disable all of AppArmor. Unless you have a very specific need to do so, this is not recommended. The apparmor profiles shipped in Ubuntu are designed to work with the default installation. If a particular profile is causing you trouble, please disable the profile or put it in complain mode, and leave the other profiles that are not causing problems to do their jobs. Better yet, file a bug. :) See my blog entry at http://penguindroppings.wordpress.com/2009/07/07/should-i-disable-apparmor/ for details.

From: Anonymous at: 2010-01-30 17:25:59

Hi!

I think, that it's necessary to add in main.cf line:

mailbox_transport=virtual

 without this mail is not delivered to mailbox



I'm not sure that, but it works with this option :)

From: Mikael at: 2010-01-14 19:05:28

First i create user and domain name in the database and then use mailx and send email, but no results. When i try to login i have message  ERROR: Connection dropped by IMAP server. If i try to use another username i read unknown user. If i send email from hotmail it return  "unknown user" . So no user is created when i send mail to postfix. If i use webmin i don't see mail or usermap and if  i search tail /var/log/mail.log....the same...no user have been created. Ports are open, i telnet to localhost and everything seems to be ok.

So pls guide me ...Mikael

From: Yes at: 2010-01-23 17:55:51

Same problem here.

 /var/log/mail.err says:

Jan 23 18:27:01 ubuntu imapd: chdir mydomain.nl/my_account/: No such file or directory
Jan 23 18:27:01 ubuntu imapd: my_account@ mydomain.nl: No such file or directory


It seems as IMAPD doesn't know that we are using virtual users in MySQL database instead of physical unix users.

From: Bozola at: 2010-01-31 18:47:22

You've got to manually create the mail directories under the /home/vmail directory, 'cause they ain't getting created.



Try this (replace "example.com" with your domain):

Step 1 - create directory for the domain. You must create one for each of your domains. Must have an corresponding entry in the "domains" table.

mkdir /home/vmail/example.com



 Steps 2 & 3 - Add new account name and grant permissions. Repeat these for every account you want. Note that these all must have a corresponding entry in the MySQL database "mail", table "users".

maildirmake /home/vmail/example.com/youraccountname

chown -R vmail.vmail /home/vmail/example.com/youraccountname



If I wasn't so lazy I'd include a script to sync the directory creation process with the SQL insertion/update, but there it is....

From: jaman at: 2011-07-02 04:58:20

Hi all, i have the problem about my mail server

if i sign in to my mail server always blank page and i try to show in mail log

tail -f /var/log/mail.log

Jul  2 11:50:28 mentari imapd: Connection, ip=[::ffff:127.0.0.1]
Jul  2 11:50:28 mentari imapd: LOGIN, user=jaman@mentarisatrianet.tk, ip=[::ffff:127.0.0.1], port=[40149], protocol=IMAP
Jul  2 11:50:28 mentari imapd: LOGOUT, user=jaman@mentarisatrianet.tk, ip=[::ffff:127.0.0.1], headers=0, body=0, rcvd=30, sent=238, time=0

can anybody help me please?

thx

From: Ryan at: 2010-02-09 00:03:51

I can confirm that this tutorial does work properly, but without logs its going to be difficult to help you.  Some of the things I noticed is that only in one place he does tell you to change the mail_admin_password to your own password and other places he doesnt.  Therefore, if you created the user acct in mysql with "secret" as a password but all your files are using mail_admin_password you should see login errors in the mail.log log.  If these passwords are different you will get the connection dropped by IMAP error.

 In regards to Bozola fix... YES, It is required but I dont think leaving that out would give you an IMAP error... your mail will just not be delivered and you will see permissions errors in your logs saying that it cannot write to a directory that does not exist.

 Anyway.. I would recommend tailing your log

#tail -f /var/log/mail.log

trying to log in via squirrelmail.. and posting the results.

From: Bung at: 2010-02-01 10:57:01

This comment was made on p4, but incase you missed it, i spent time slamming my head on the desk with this one.

 In /etc/postfix/main.cf you might also want to add:

mailbox_transport = virtual
virtual_transport = virtual



From: Anonymous at: 2010-02-02 01:27:42

Proposed fix didn't work either.

From: radensun at: 2010-02-11 12:21:50

I also had a couple of times to get an error message like that, and found the problem only in the transport field in the table 'transports' which is in mysql. So, you just replace the server1.example.com be ":" (without the quotes). And you will like it. :D

I thank the author of this tutorial, because it is very useful for me.

From: micheldp at: 2010-03-02 00:53:26

Hello,

Your proposed solution don't work neither ....

I verified everything ...and can't login to squirrelmail

If it works for anybody, pls give me a sign

thanks

From: at: 2010-03-11 21:01:25

wrong answer removed

From: at: 2010-05-15 16:04:33

i configured emil system as above. installed fine.

but when i send email to myself from: sales@example.com, to sales@example.com i wont received that email.

mail Log as follws:

May 15 08:41:29 mail amavis[1742]: (01742-02) Blocked SPAM, LOCAL [192.168.1.2] [192.168.1.2] <sales@example.com> -> <sales@example.com>, quarantine: m/spam-mVSvUVWn4KBW.gz, Message-ID: <002801caf445$0a1a58a0$1e4f09e0$@com>, mail_id: mVSvUVWn4KBW, Hits: 6.396, size: 2990, 15698 ms
May 15 08:41:29 mail postfix/smtp[1988]: 269BC226B9: to=<sales@example.com>, relay=127.0.0.1[127.0.0.1]:10024, delay=16, delays=0.07/0.01/0.04/16, dsn=2.7.0, status=sent (250 2.7.0 Ok, discarded, id=01742-02 - SPAM)
May 15 08:41:29 mail postfix/qmgr[1674]: 269BC226B9: removed
mail postfix/smtp[1988]: 269BC226B9: to=<sales@example.com>, relay=127.0.0.1[127.0.0.1]:10024, delay=16, delays=0.07/0.01/0.04/16, dsn=2.7.0, status=sent (250 2.7.0 Ok, discarded, id=01742-02 - SPAM)
May 15 08:41:29 mail postfix/qmgr[1674]: 269BC226B9: removed





please help me to solve this

From: Sick Person at: 2012-01-05 10:41:00

How to add autoresponder? i install courier-maildrop but it seems not working . Did also need recompile it coz ubuntu package seems not support mysql for maildrop (maildrop -v)
