Using Built-in Policy Importer In Firewall Builder - Page 2

Let's inspect one group of rules little closer. The original iptables file contained the following commands:

-A INPUT -i eth0 -j INBOUND


-A INBOUND -p tcp -m state --state RELATED,ESTABLISHED -j ACCEPT
-A INBOUND -p udp -m state --state RELATED,ESTABLISHED -j ACCEPT
-A INBOUND -s 10.3.14.0/255.255.255.0 -j ACCEPT
-A INBOUND -s 10.3.14.0/255.255.255.0 -p tcp -m tcp --dport 22 -j ACCEPT
-A INBOUND -s 10.3.14.0/255.255.255.0 -p udp -m udp --dport 22 -j ACCEPT
-A INBOUND -j LSI

The first rule is in chain INPUT and was recreated as rule #11 in the Policy rule set (rule colored green). Since it was in INPUT, the destination object in the rule #11 is the firewall itself. The "-i eth0" clause translated into interface object "eth0" in the "Interface" rule element and direction "Inbound". The action of the rule #11 is "Branch", pointing to the rule set "INBOUND". This is direct recreation of the original rule in itpables config.

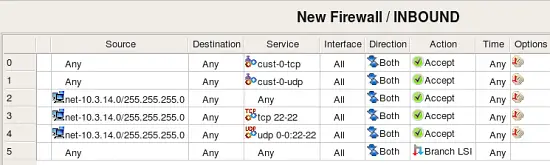

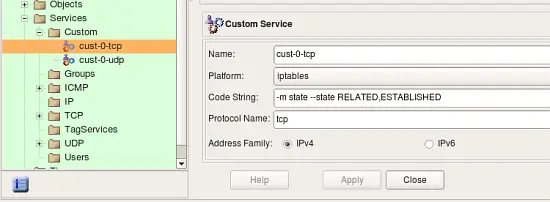

This screenshot demonstrates rules created in the rule set "INBOUND". Rule #0 matches CustomService object "custo-0-tcp" that was created to match combination of protocol "tcp" and state "RELATED,ESTABLISHED". This object is shown in the following screenshot:

Fwbuilder automatically adds a rule on top of generated iptables script to match packets in states "ESTABLISHED, RELATED". With that rule, it is not necessary to have a rule like #0 in INBOUND, but since original script had it, fwbuilder reproduced it.

rule #1 in INBOUND matches protocol udp and state "ESTABLISHED,RELATED". Other rules in INBOUND reproduce original rules from the chain INBOUND and match packets coming from the local net heading for the firewall machine. It is easy to see that the original policy was redundant: rules #2-4 match the same source and destination addresses but different services, but rule #2 matches any service which means rules #3 and 4 will never match any packets. Fwbuilder will detect this problem automatically if you try to compile this policy (this is called "Rule shadowing").

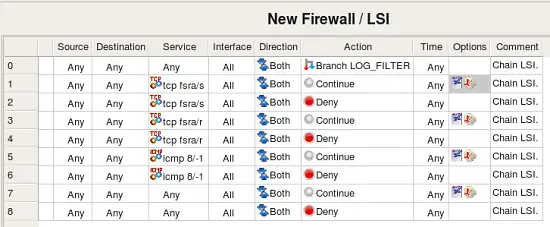

All packets not matched by any rule in INBOUND will match last rule in this rule set which branches to the rule set LSI. Rule set LSI logs various packets and drops them:

The first thing about rules in this rule set that catches the eye is why do we have all these rules with action "Continue".

When a rule is marked as "logging" in fwbuilder, it gets an icon in the column "Options" that represents log, this icon appears either by itself or next to the icon that represents non-default rule options. However iptables does not allow for an action "Accept" or "Deny" to be used in combination with logging, in iptables logging is separate target just like "ACCEPT" or "DROP". Because of that, fwbuilder splits a rule that has action "Accept" or "Deny" or any other with logging turned on. One such rule becomes two or more iptables rules in the generated script. Unfortunately when iptables script is imported back, the program can not merge such rules and logging rules appear in the rule set as separate rules with logging icon in the "Options" column and action "Continue". This is a valid configuration in fwbuilder, it just means that the rule generates log record but does not make any decision whether the packet should be accepted or denied and the firewall should continue its inspection.

Here is the fragment of the original iptables rules in the chain LSI:

-A LSI -p tcp -m tcp --tcp-flags FIN,SYN,RST,ACK SYN \
-m limit --limit 1/sec -j LOG --log-prefix "Inbound " --log-level 6
-A LSI -p tcp -m tcp --tcp-flags FIN,SYN,RST,ACK SYN -j DROP

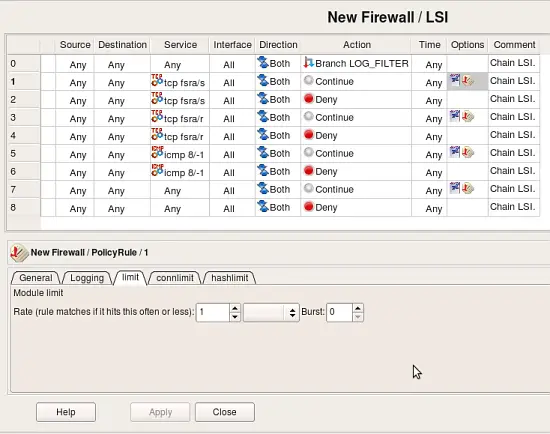

These rules become rules #1 and 2 in rule set LSI in fwbuilder. The first rule, the one that does logging, becomes a separate rule because this is how it is done in iptables. If this policy was created in fwbuilder, rules #1 and 2 would be just one rule in the GUI. Double-clicking in the column "Options" in rule #1 opens dialog where you can inspect and edit its options. Tab "Limit" of this dialog controls parameters iptables "limit" module which was used in the original rule. Screenshot below demonstrates how policy importer recognized these parameters and reproduced them in the rule options:



Limitations

iptables policy importer in fwbuilder has its limitations. Main limitation is that it can only parse certain set of iptables modules and targets. There are too many modules and associated targets out there and supporting all of them is next to impossible. However it supports the core functionality and most popular modules. Even though importer tries to be as close to the original configuration as possible, you should always review rules and objects it creates and edit resultant rules. Most of the time rules can be simplified, such as with logging rules as was explained above. Often you can merge multiple rules by putting several objects in source or destination or service. Using object and service groups is another good way to simplify rules.



Importing Cisco IOS access lists configuration

Importing IOS access lists configuration is more straightforward because branching is not possible there. To import configuration, first you need to save it using "show run" command. IOS has literary hundreds of different commands and configuration clauses, but fwbuilder can only parse those related to the access lists configuration. Other commands will be ignored. There is no need to edit configuration prior to importing it into fwbuilder (except for the "banner" command, see below). Saved IOS configuration has information about router name and its interfaces, this information will be used to recreate objects in fwbuilder. Parser will not only create interface objects with proper names, it will also attach address objects to them to describe their ip addresses.

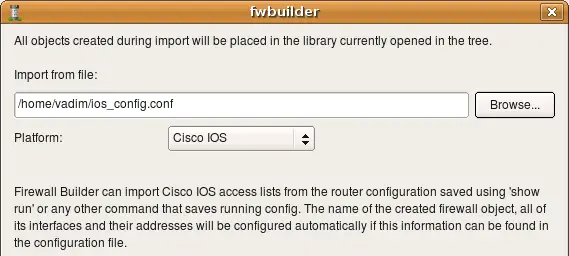

Just like with iptables, we start with main menu "File/Import Policy" and enter file name in the dialog. The "Platform" drop-down list should be set to "Cisco IOS". Click "Next" to start import process.

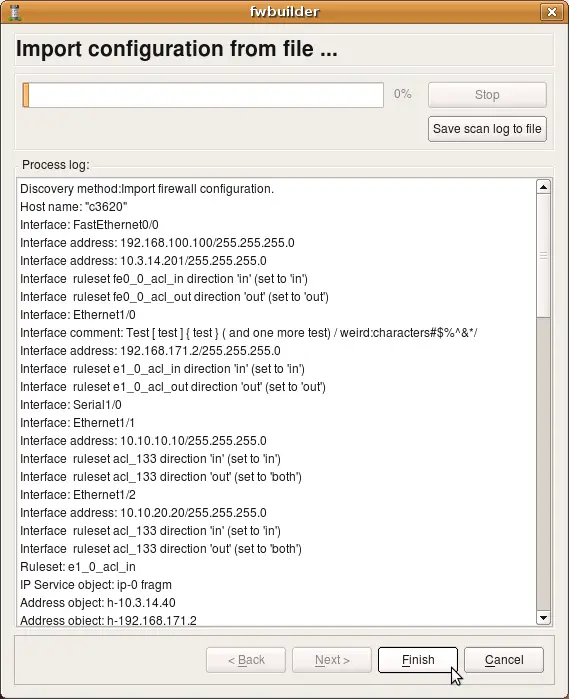

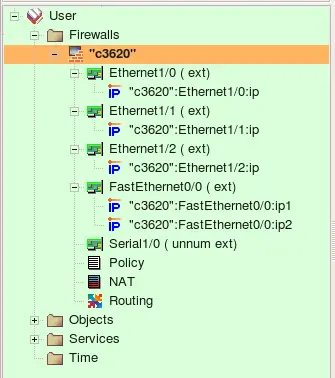

The program recognized router name "c3620" and its interfaces, created interface objects with their ip addresses and then created some address and service objects. My test router config contains the following lines (this is just a fragment, there are more interfaces and more ACLs):

interface FastEthernet0/0
ip address 192.168.100.100 255.255.255.0 secondary
ip address 10.3.14.201 255.255.255.0
ip access-group fe0_0_acl_in in
ip access-group fe0_0_acl_out out
no ip mroute-cache
duplex auto
speed auto
!
interface Ethernet1/0
description Test [test] {test} (and one more test) /weird:characters#$%^&*/
ip address 192.168.171.2 255.255.255.0
ip access-group e1_0_acl_in in
ip access-group e1_0_acl_out out
no ip mroute-cache
ip ospf cost 65000
half-duplex
crypto map real


!################################################################
ip access-list extended e1_0_acl_in
deny ip any any fragments
permit tcp host 10.3.14.40 host 192.168.171.2 eq 22 log
permit tcp host 10.3.14.40 host 10.3.14.201 eq 22 log
permit ip any 10.3.14.0 0.0.0.255 log
deny ip any any log
!################################################################
ip access-list extended e1_0_acl_out
permit ip 10.3.14.0 0.0.0.255 any log
deny ip any any log

Parser recognizes comments and skips them, but text from interface descriptions goes into comments in the Interface objects.

Firewall Builder recognizes both named and regular extended access lists. Each separate access list is recreated in fwbuilder in the same main Policy rule set. The program recognizes "ip access-group" commands and puts corresponding interface object in the "Interface" rule element of the rules it creates.

The original configuration used the same access list "133" with two interfaces:

interface Ethernet1/1
ip address 10.10.10.10 255.255.255.0
no ip mroute-cache
!
! Note - the same access list applied both in and out
ip access-group 133 in
ip access-group 133 out
no shutdown
half-duplex
!
interface Ethernet1/2
ip address 10.10.20.20 255.255.255.0
no ip mroute-cache
!
! Note - the same access list applied both in and out
! the same list is applied to eth 1/1 and eth 1/2
ip access-group 133 in
ip access-group 133 out
no shutdown
half-duplex
!

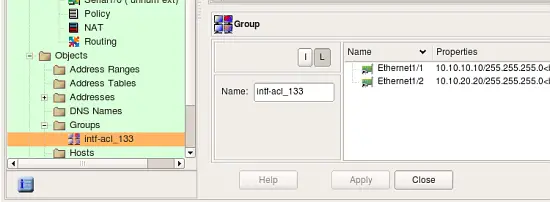

The program recognizes this and creates object group "intf-acl_133" with these two interfaces as members:

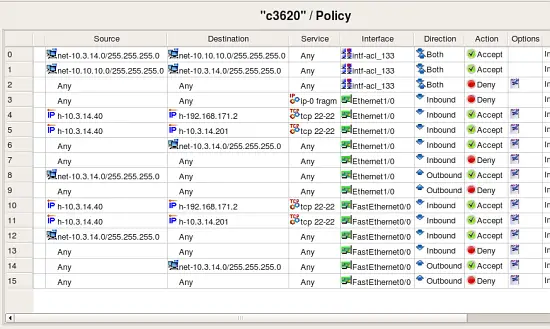

It then uses this group in the "Interface" element of rules #0, 1 and 2 to reproduce rules from the access list "133".

Interface configuration commands visible in the config snippets above, such as "half-duplex", "duplex auto", "speed auto", various protocol configuration commands and other commands supported by IOS inside "interface" block are ignored.



Limitations

One IOS configuration construct that fwbuilder can not import is "banner" command. This command is special in that it allows the user to set arbitrary terminator character and then it allows any text up to this character. This creates a problem for fwbuilder parser because the terminator character can be arbitrary. You need to edit and remove banner from the saved configuration file before importing it.
