How to use Node Selectors in Kubernetes

We can restrict a Pod to only be able to run on a particular Node. There can be some situations where we may want more control on a node where a pod lands.

nodeSelector is one of the forms of node selection constraint. nodeSelector is a field of PodSpec. This is a simple Pod scheduling feature that allows scheduling a Pod onto a node whose labels match the nodeSelector labels specified by the user.

To know more about Node Selects, click here to go to the official page of the Kubernetes.

In this article, we will have no taint on the master node so that pods can get deployed on the master node as well. Then we will create pods to see them get deployed on the worker as well as the master node. We will then attach a label to the master node and point pods to get deployed on the master node only using the nodeSelector.

Pre-requisites

  1. Kubernetes Cluster with at least 1 worker node.
    If you want to learn to create a Kubernetes Cluster, click here. This guide will help you create a Kubernetes cluster with 1 Master and 2 Nodes on AWS Ubuntu 18.04 EC2 Instances.

What we will do

  1. Configure Node-Selectors

Configure Node-Selectors

First, let's extract details of nodes in the cluster using the following command.

kubectl get nodes #Get nodes available in the cluster
kubectl describe nodes node01 | grep Taint #Describe node1 node to extract details regarding Taints
kubectl describe nodes master | grep Taint #Describe master node to extract details regarding Taints

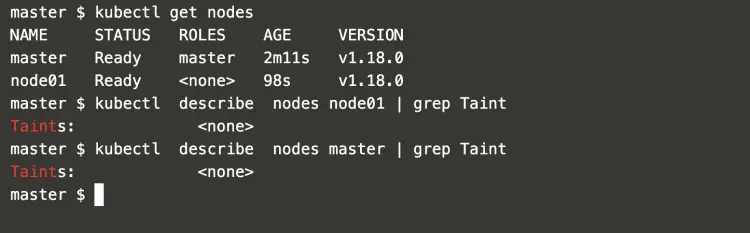

check-taints-on-nodes

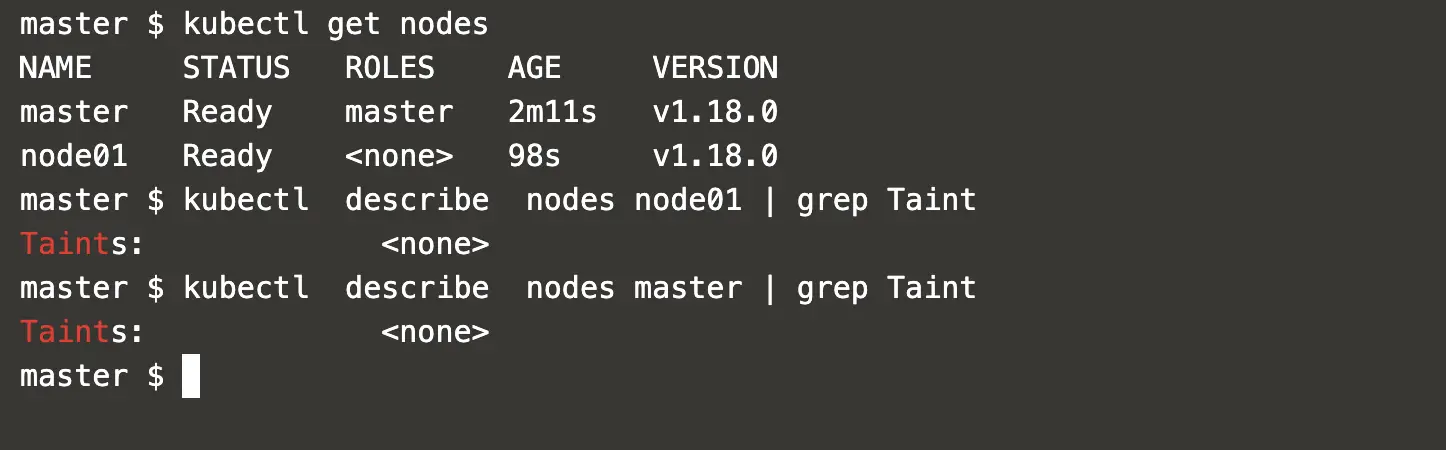

The above shows that the nodes do not have taints, this means Pods can be placed on any of the nodes, either on master or node01.

Now, let's create a deployment that does not have any node selector in it.

vim my-deployment-without-node-selector.yaml #Create a deployment definition
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: frontend
  name: frontend
spec:
  replicas: 3
  selector:
    matchLabels:
      app: frontend
  template:
    metadata:
      labels:
        app: frontend
    spec:
      containers:
      - image: httpd:2.4-alpine
        name: frontend

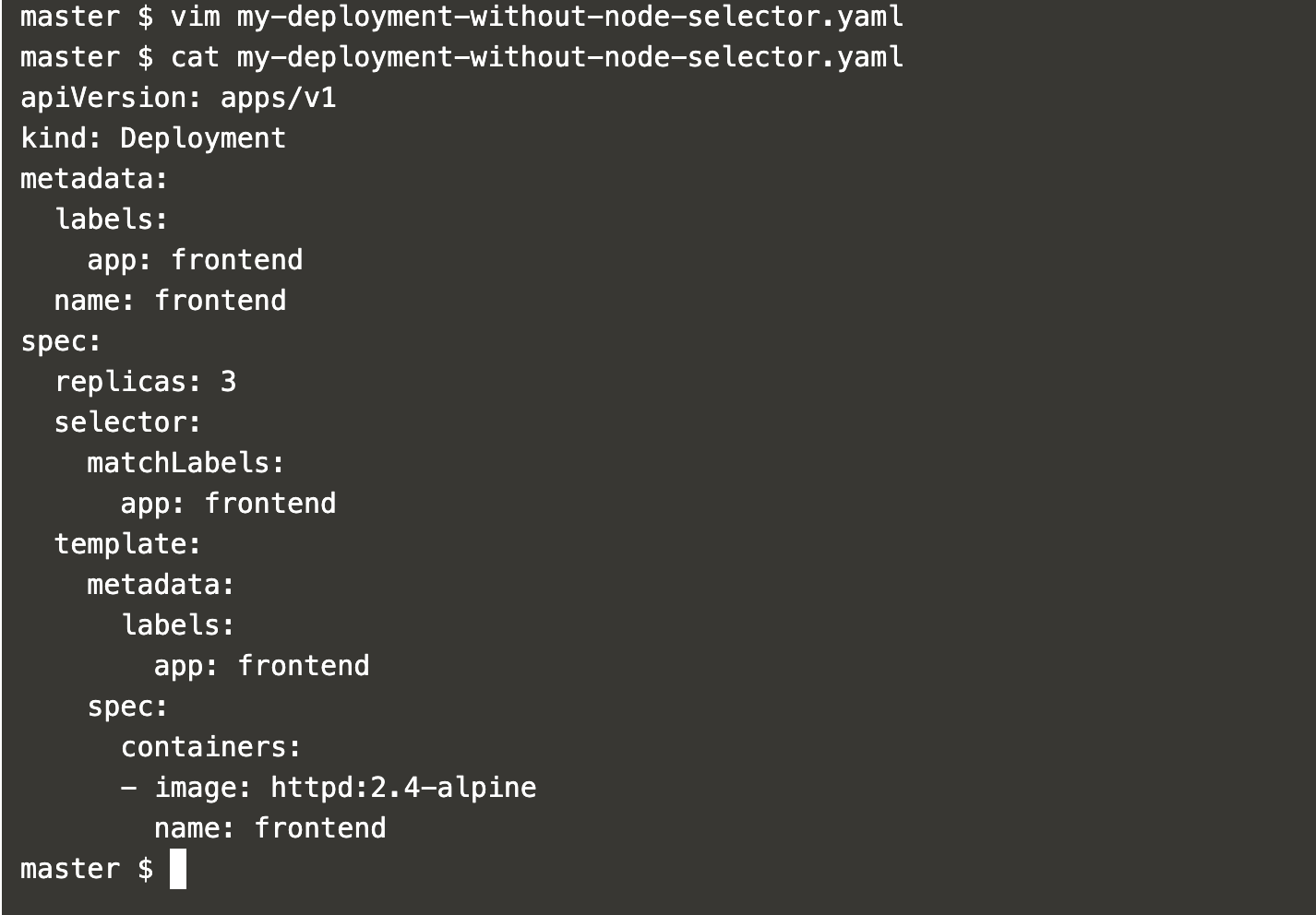

deployment-without-node-selector

Now, we are ready to create a deployment using the following command.

kubectl get pods #Get pods available in the cluster
kubectl create -f my-deployment-without-node-selector.yaml #Create a deployment
kubectl get pods ##Get nodes available in the cluster

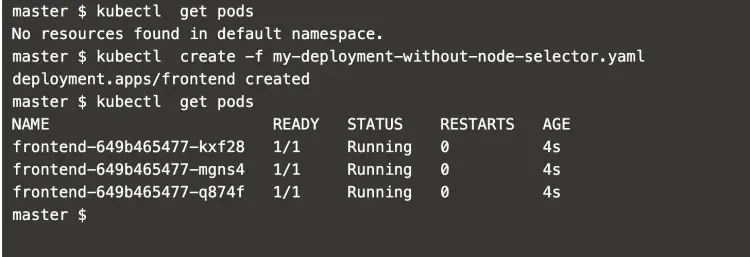

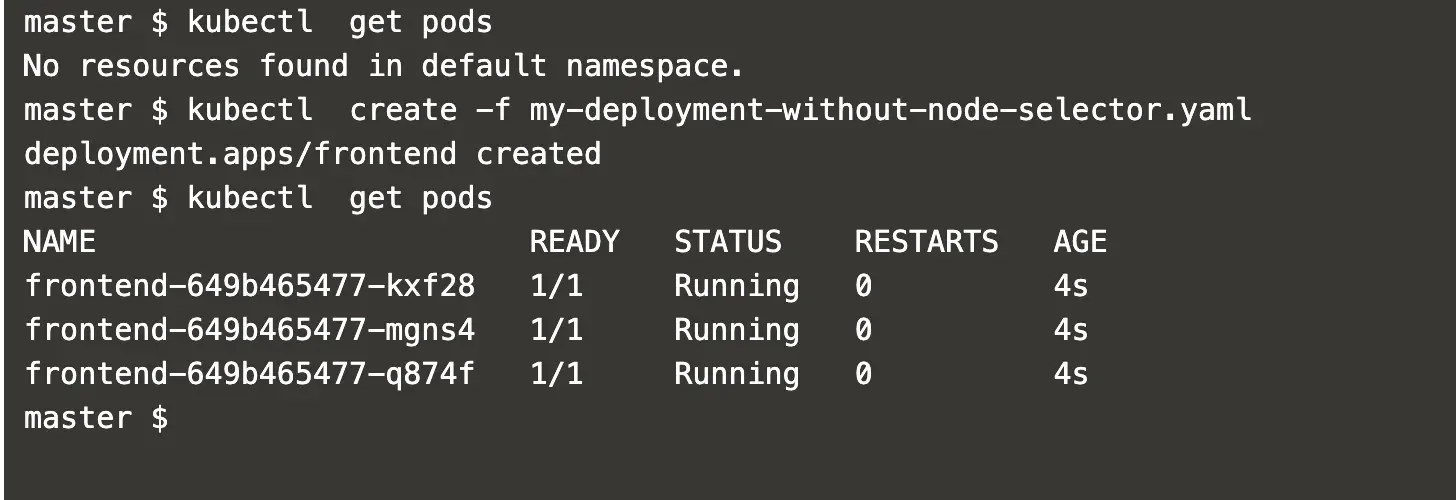

create-deployment

Now, change the replica count in the deployment by editing the file and apply changes.

kubectl apply -f my-deployment-without-node-selector.yaml #Apply changes made in the deployment definition file
kubectl get pods -o wide # Get more details regarding pods using -o wide option

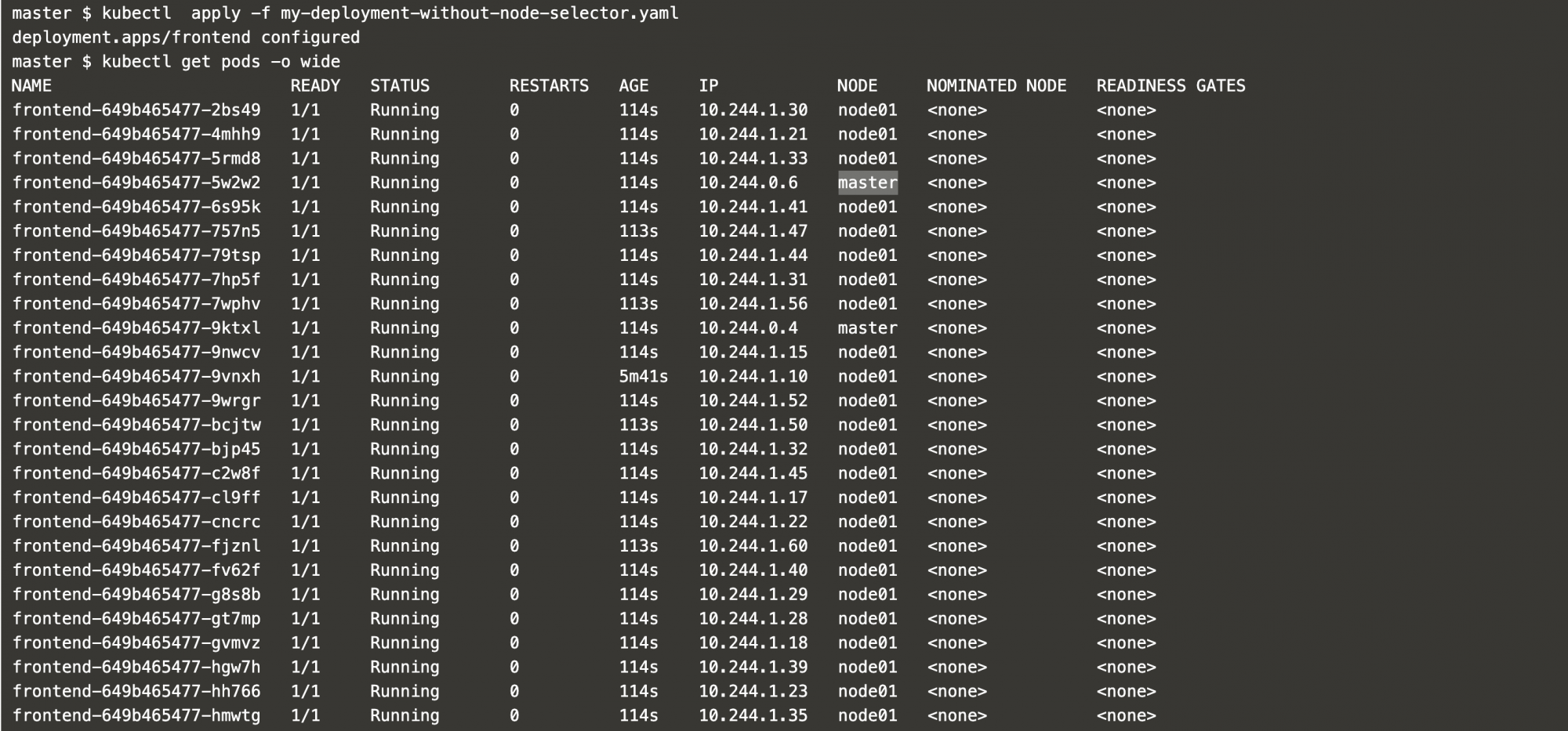

increase-replica-count-in-the-deployment

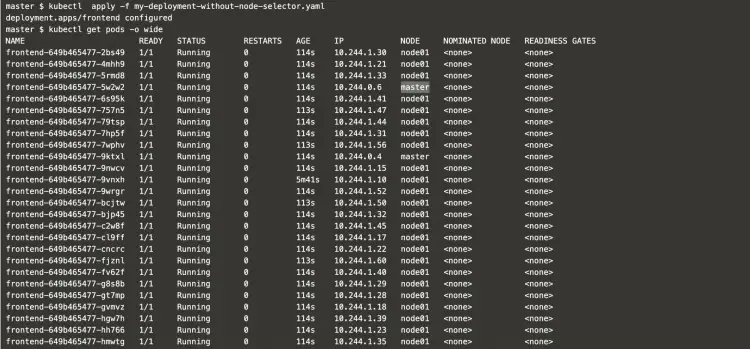

In the above screenshot, it can be seen that new pods are getting created and they are being scheduled on the master node as well.

The reason for this is, both the nodes, the master and node01, do not have taints.

SO, to restrict the scheduling and to make sure pods get places on the master node only, let's create a label on the master node.

kubectl label nodes master on-master=true #Create a label on the master node
kubectl describe node master #Get more details regarding the master node

add-label-to-master-nodes

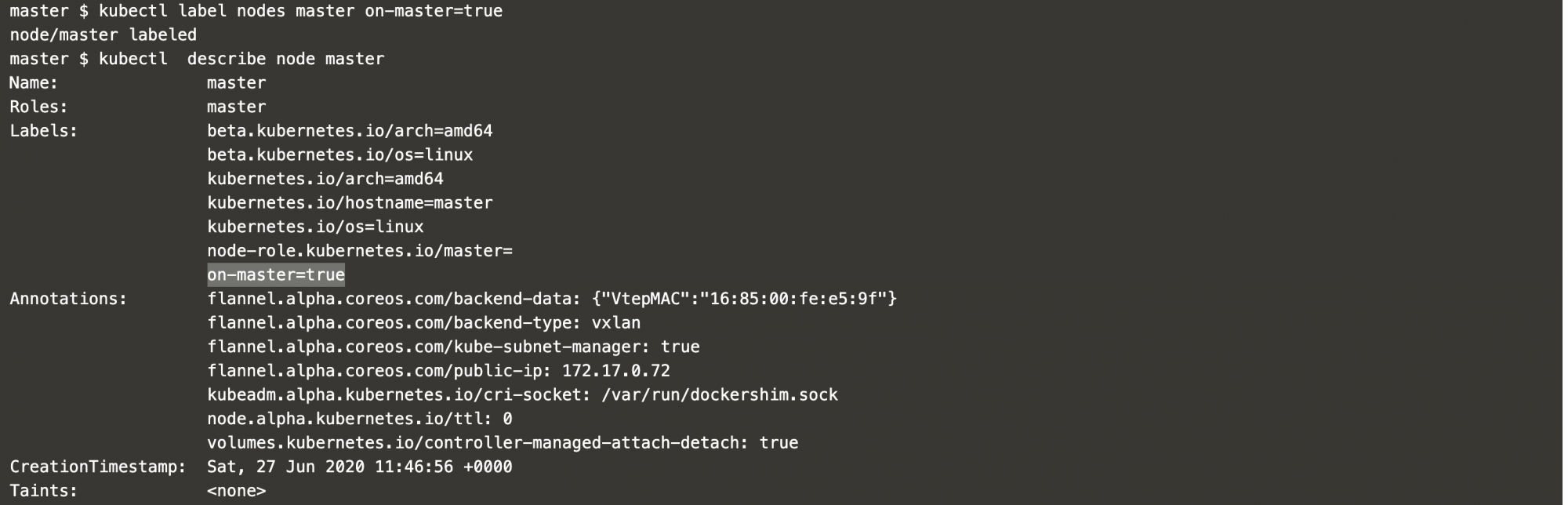

In the above screenshot, it can be seen that the master node has a label to it as "on-master=true"

Now, let's create a new deployment with nodeSelector:on-master=true in it to make sure that the Pods get deployed on the master node only.

vim my-deployment-with-node-selector.yaml #Create a deployment definition file
apiVersion: apps/v1
kind: Deployment
metadata:
  name: streamer-v4-deployment
  labels:
    app: streamer-v4
spec:
  replicas: 2
  selector:
    matchLabels:
      app: streamer-v4
  template:
    metadata:
      labels:
        app: streamer-v4
    spec:
      containers:
      - name: streamer-v4
        image: nginx
        ports:
        - containerPort: 8880
      nodeSelector:
        on-master: "true"

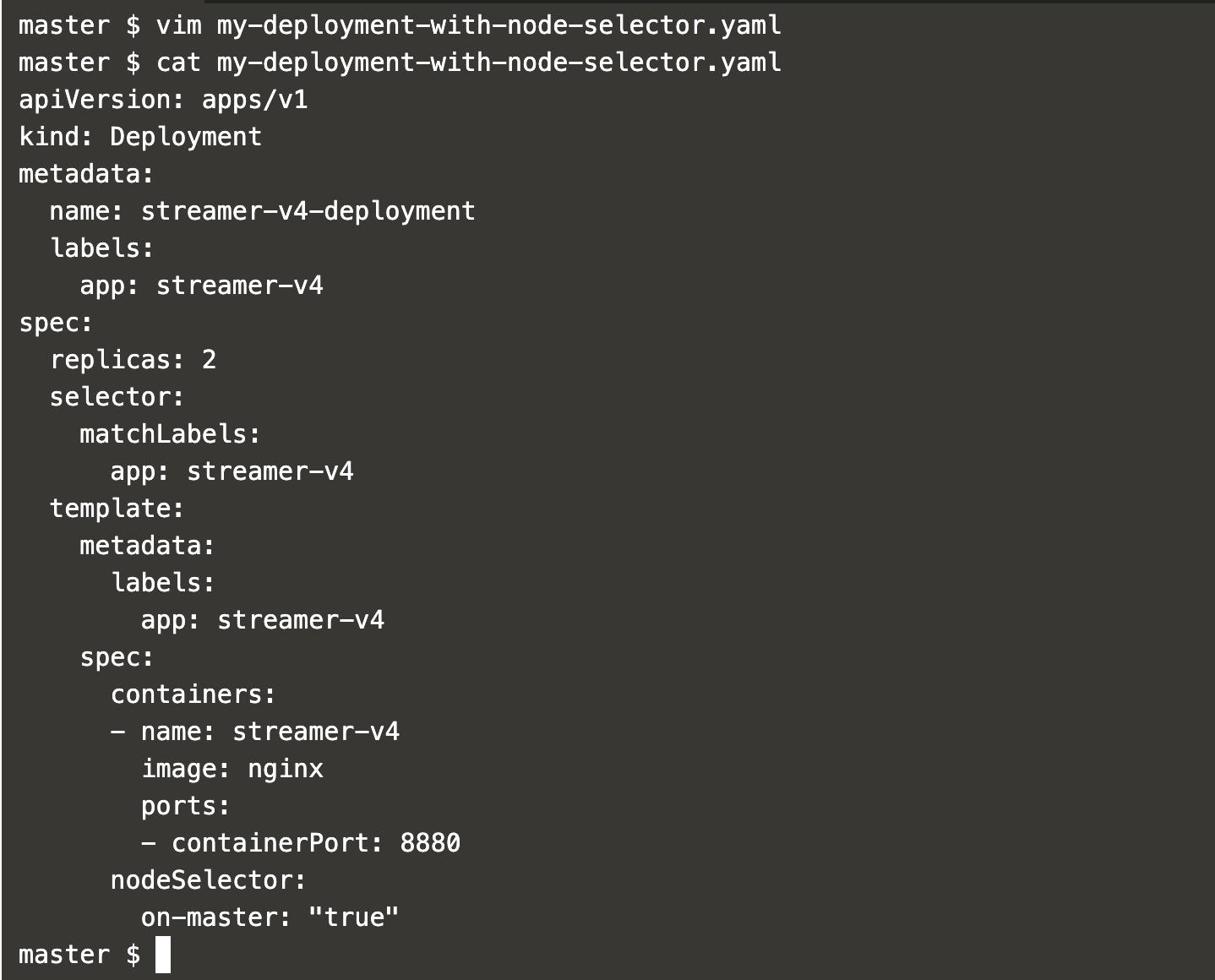

deployment-with-node-selector

A new deployment with nodeSelector can now be created with the following command.

kubectl create -f my-deployment-with-node-selector.yaml #Create a deployment
kubectl get pods -o wide | grep streamer-v4-deployment #Get more details of the pods

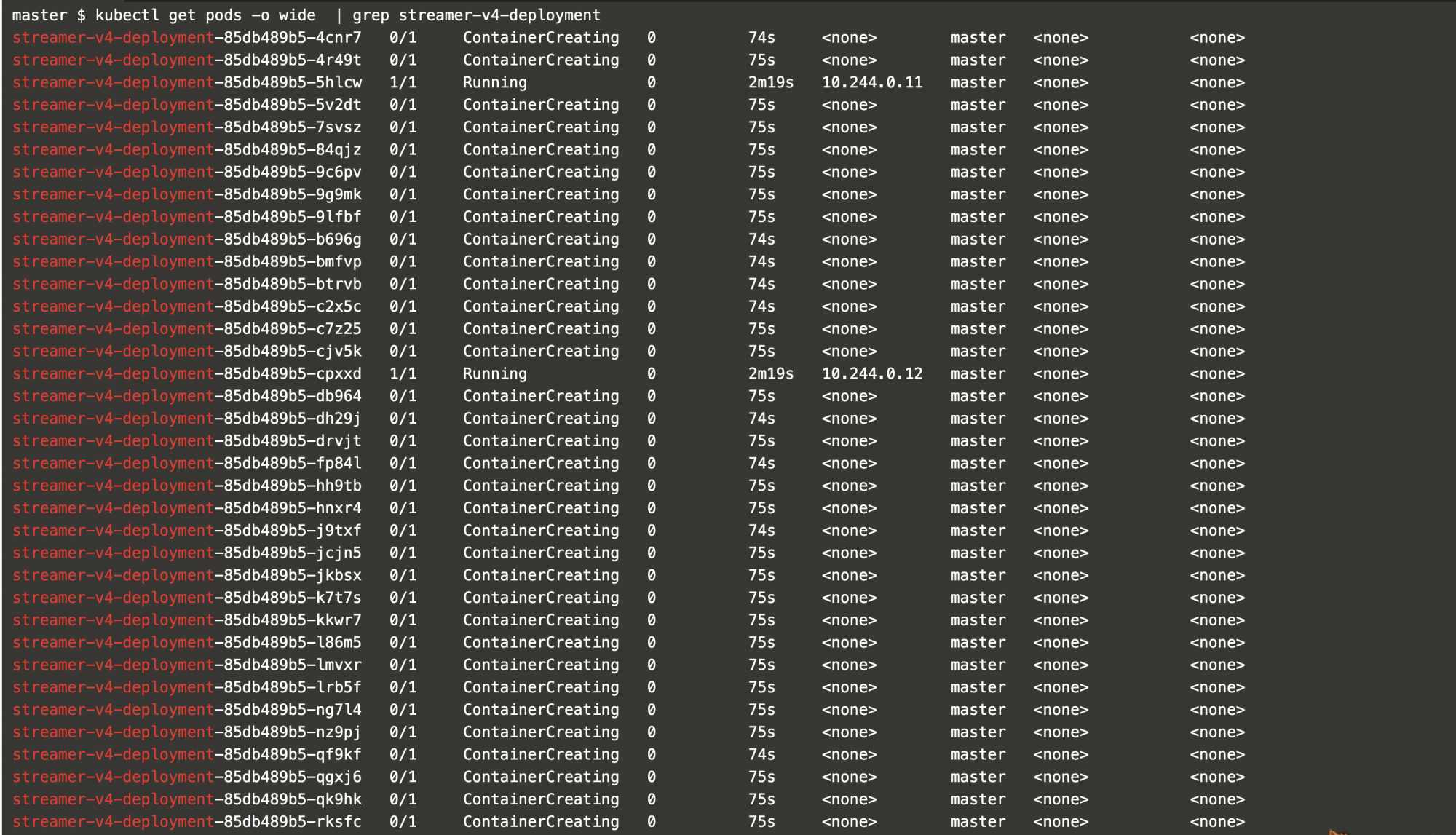

create-deployment-with-node-selector

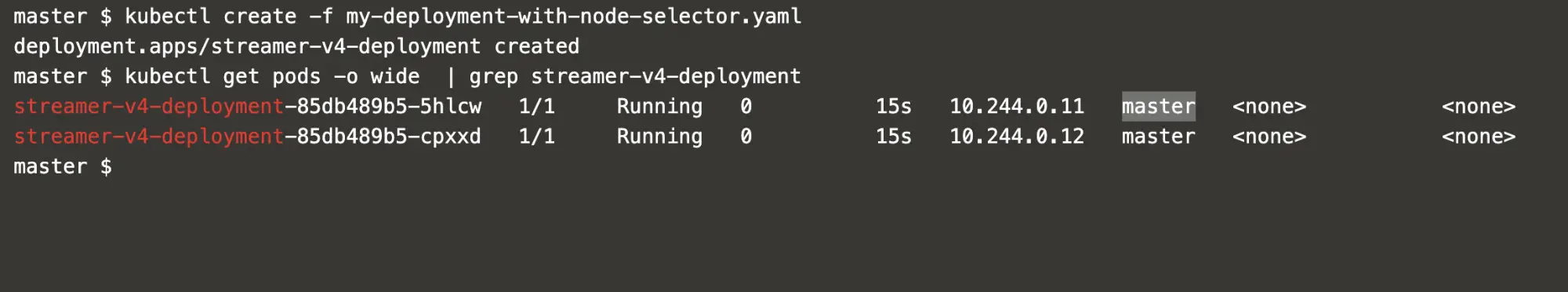

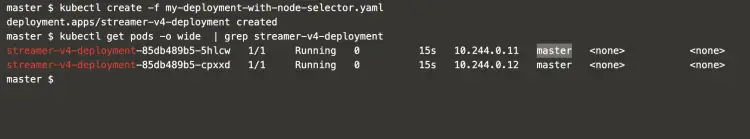

In the above screenshot, it can be seen that the Pods got deployed on the master node only.

Now, let's change "replica=50" to see where the pods will get deployed.

vim my-deployment-with-node-selector.yaml #Change a deployment definition

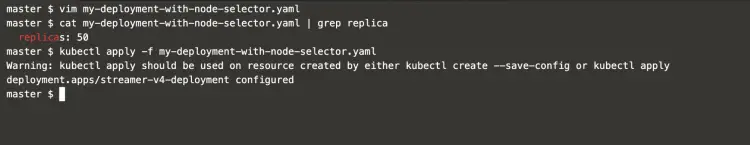

increase-replica-count-in-the-deployment

Apply the latest changes with a command mentioned below.

kubectl apply -f my-deployment-with-node-selector.yaml #Apply changes to the deployment

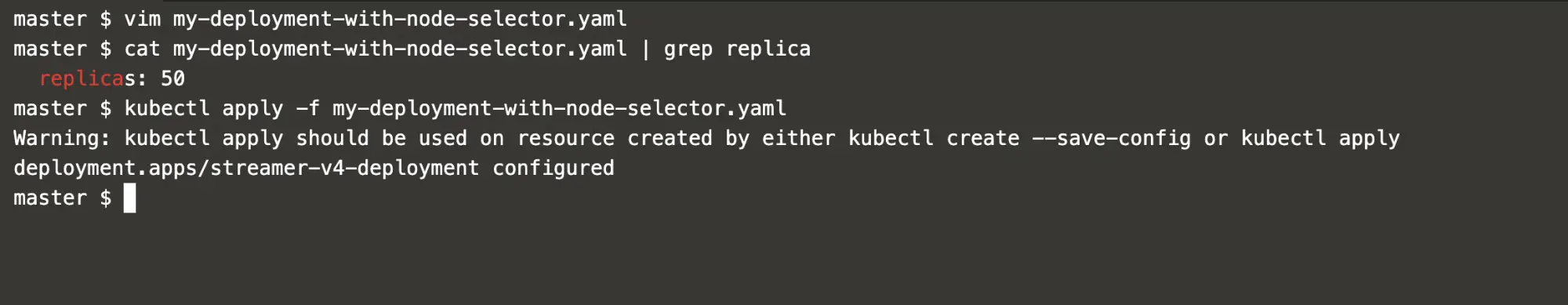

increase-replica-count-in-the-deployment

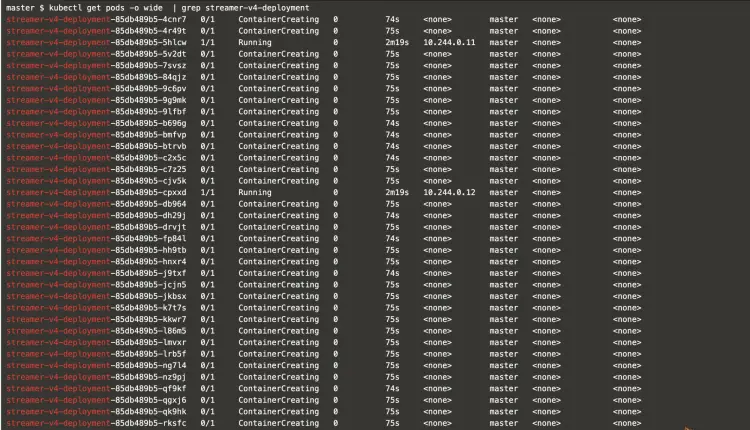

Here, you can see that all the pods are being created and deployed on the "master" node only.

Conclusion

In this article, we saw how pods can be restricted to get deployed on the specific node only using label and nodeSelector.

We also saw that if the master node does not have Taints then pods can get deployed on it.
