Ubuntu 14.10 PXE server installation

Version 1.0
Author: Srijan Kishore <s [dot] kishore [at] ispconfig [dot] org>
Follow howtoforge on Twitter
Last edited 05/Dec/2014

This guide explains how to configure PXE server in Ubuntu 14.10 PXE Server, stands for preboot execution environment, is used to enable a network computer to boot only from a network interface card. This method will be very helpful, if a System Administrator wants to install many systems which doesn’t have a CD/DVD device on the network. PXE environment needs a DHCP server that distributes the IP addresses to the client systems, and a TFTP server that downloads the installation files to the PXE clients. You don’t need any CD/DVD or USB bootable drives to install client systems. Just, copy the ISO images on the PXE server and start installing your Linux clients via network using PXE server.

I do not issue any guarantee that this will work for you!

1 Preliminary Note

I have fresh installed Ubuntu 14.10 server, on which I am going to install the PXE server. My Ubuntu server have hostname server1.example.com and IP as 192.168.0.100

You can have your Ubuntu server installed from the tutorial. We need a DHCP server to have this setup. I will here install DHCP-server, tftp-server and other configurations as explained in next chapters.

2 Install DHCP Server

Now we will install these packages at the Ubuntu 14.10 server end as:

apt-get update
apt-get install isc-dhcp-server

Now the configuration part will include as:

nano /etc/default/isc-dhcp-server

Add the interface as follows:

[...] INTERFACES="eth0"


Next Edit the the file dhcpd.conf as follows:

nano /etc/dhcp/dhcpd.conf

[...]
# option definitions common to all supported networks... option domain-name "example.com"; option domain-name-servers server1.example.com;
subnet 192.168.0.0 netmask 255.255.255.0 { range 192.168.0.20 192.168.0.30; option routers 192.168.0.1; option broadcast-address 192.168.0.255;
}
default-lease-time 600; max-lease-time 7200


[...]
# network, the authoritative directive should be uncommented. authoritative; [...]

Next Restart the service as follows:

service isc-dhcp-server start
service isc-dhcp-server stop

3 PXE installation and configuration

Next install PXE server as follows:

apt-get install apache2 tftpd-hpa inetutils-inetd

Configuration includes:

 nano /etc/default/tftpd-hpa

[...]
RUN_DAEMON="yes" OPTIONS="-l -s /var/lib/tftpboot"

Again

nano /etc/inetd.conf

[...]
tftp dgram udp wait root /usr/sbin/in.tftpd /usr/sbin/in.tftpd -s /var/lib/tftpboot

Next restart the services as follows:

service tftpd-hpa restart

Modify dhcp configuration accordingly for the PXE server:

nano /etc/dhcp/dhcpd.conf

At the end of the file add the entries:

[...]
allow booting; allow bootp; option option-128 code 128 = string; option option-129 code 129 = text; next-server 192.168.0.100; filename "pxelinux.0";

Restart the service as:

service isc-dhcp-server restart

4 Configuring installation media

Now we will mount the external media as follows:

mount /dev/sr0 /mnt

Now add the files as follows:

cp -avr /mnt/install/netboot/* /var/lib/tftpboot/

mkdir -p /var/www/html/ubuntu14.10

cp -avr /mnt/* /var/www/html/ubuntu14.10/

Now make the changes in the file pxelinux.cfg/default as follows:

nano /var/lib/tftpboot/pxelinux.cfg/default

[...]
label linux kernel ubuntu-installer/amd64/linux append ks=http://192.168.0.100/ks.cfg vga=normal initrd=ubuntu-installer/amd64/initrd.gz ramdisk_size=16432 root=/dev/rd/0 rw --

Lastly we need to make our DHCP server fully compatible to PXE environment as follows:

nano /etc/dhcp/dhcpd.conf

[...]
allow booting; allow bootp; option option-128 code 128 = string; option option-129 code 129 = text; next-server 192.168.0.100; filename "pxelinux.0";

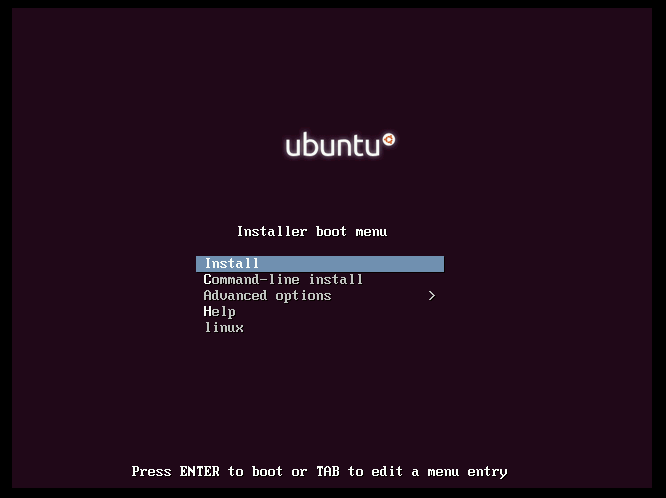

Now we are ready for the Network based installations. Simply booth any other device and boot over network will make the installations over the network.

Cheers now we have a successfully configured PXE-server over Ubuntu 14.10 :)
