Server Monitoring With munin And monit On Fedora 7 - Page 2

This tutorial exists for these OS versions

    On this page

    1. 5 Links

    4 Install And Configure monit

    monit is not available from the official Fedora 7 repositories, but from the RPMforge repositories (see http://dag.wieers.com/rpm/FAQ.php#B2 for instructions). We install the RPMforge package for RHEL 5 which works for Fedora 7 as well:

    rpm -Uhv http://apt.sw.be/packages/rpmforge-release/rpmforge-release-0.3.6-1.el5.rf.i386.rpm

    Afterwards we install monit:

    yum install monit

    Then we create the system startup links for monit:

    chkconfig --levels 235 monit on

    monit's default configuration file is /etc/monit.conf where you can find some configuration examples (you can find more configuration examples on http://www.tildeslash.com/monit/doc/examples.php) that are all commented out, but it tells monit to also look in the directory /etc/monit.d for configuration files, therefore instead of modifying /etc/monit.conf, we create a new configuration file /etc/monit.d/monitrc. In my case I want to monitor proftpd, sshd, mysql, apache, and postfix, I want to enable the monit web interface on port 2812, I want a https web interface, I want to log in to the web interface with the username admin and the password test, and I want monit to send email alerts to root@localhost, so my file looks like this:

    vi /etc/monit.d/monitrc

    set daemon  60
    set logfile syslog facility log_daemon
    set mailserver localhost
    set mail-format { from: [email protected] }
    set alert root@localhost
    set httpd port 2812 and
         SSL ENABLE
         PEMFILE  /var/certs/monit.pem
         allow admin:test

    check process proftpd with pidfile /var/run/proftpd.pid
       start program = "/etc/init.d/proftpd start"
       stop program  = "/etc/init.d/proftpd stop"
       if failed port 21 protocol ftp then restart
       if 5 restarts within 5 cycles then timeout

    check process sshd with pidfile /var/run/sshd.pid
       start program  "/etc/init.d/sshd start"
       stop program  "/etc/init.d/sshd stop"
       if failed port 22 protocol ssh then restart
       if 5 restarts within 5 cycles then timeout

    check process mysql with pidfile /var/run/mysqld/mysqld.pid
       group database
       start program = "/etc/init.d/mysqld start"
       stop program = "/etc/init.d/mysqld stop"
       if failed host 127.0.0.1 port 3306 then restart
       if 5 restarts within 5 cycles then timeout

    check process apache with pidfile /var/run/httpd.pid
       group www
       start program = "/etc/init.d/httpd start"
       stop program  = "/etc/init.d/httpd stop"
       if failed host www.example.com port 80 protocol http
          and request "/monit/token" then restart
       if cpu is greater than 60% for 2 cycles then alert
       if cpu > 80% for 5 cycles then restart
       if totalmem > 500 MB for 5 cycles then restart
       if children > 250 then restart
       if loadavg(5min) greater than 10 for 8 cycles then stop
       if 3 restarts within 5 cycles then timeout

    check process postfix with pidfile /var/spool/postfix/pid/master.pid
       group mail
       start program = "/etc/init.d/postfix start"
       stop  program = "/etc/init.d/postfix stop"
       if failed port 25 protocol smtp then restart
       if 5 restarts within 5 cycles then timeout

    (Please make sure that you check processes only that really exist on your server - otherwise monit won't start. I.e., if you tell monit to check Postfix, but Postfix isn't installed on the system, monit won't start.)

    The configuration file is pretty self-explaining; if you are unsure about an option, take a look at the monit documentation: http://www.tildeslash.com/monit/doc/manual.php

    In the apache part of the monit configuration you find this:

       if failed host www.example.com port 80 protocol http
          and request "/monit/token" then restart


    which means that monit tries to connect to www.example.com on port 80 and tries to access the file /monit/token which is /var/www/www.example.com/web/monit/token because our web site's document root is /var/www/www.example.com/web. If monit doesn't succeed it means Apache isn't running, and monit is going to restart it. Now we must create the file /var/www/www.example.com/web/monit/token and write some random string into it:

    mkdir /var/www/www.example.com/web/monit
    echo "hello" > /var/www/www.example.com/web/monit/token

    Next we create the pem cert (/var/certs/monit.pem) we need for the SSL-encrypted monit web interface:

    mkdir /var/certs
    cd /var/certs

    We need an OpenSSL configuration file to create our certificate. It can look like this:

    vi /var/certs/monit.cnf

    # create RSA certs - Server

    RANDFILE = ./openssl.rnd

    [ req ]
    default_bits = 1024
    encrypt_key = yes
    distinguished_name = req_dn
    x509_extensions = cert_type

    [ req_dn ]
    countryName = Country Name (2 letter code)
    countryName_default = MO

    stateOrProvinceName             = State or Province Name (full name)
    stateOrProvinceName_default     = Monitoria

    localityName                    = Locality Name (eg, city)
    localityName_default            = Monittown

    organizationName                = Organization Name (eg, company)
    organizationName_default        = Monit Inc.

    organizationalUnitName          = Organizational Unit Name (eg, section)
    organizationalUnitName_default  = Dept. of Monitoring Technologies

    commonName                      = Common Name (FQDN of your server)
    commonName_default              = server.monit.mo

    emailAddress                    = Email Address
    emailAddress_default            = [email protected]

    [ cert_type ]
    nsCertType = server

    Now we create the certificate like this:

    openssl req -new -x509 -days 365 -nodes -config ./monit.cnf -out /var/certs/monit.pem -keyout /var/certs/monit.pem

    openssl gendh 512 >> /var/certs/monit.pem

    openssl x509 -subject -dates -fingerprint -noout -in /var/certs/monit.pem

    chmod 700 /var/certs/monit.pem

    Finally, we can start monit:

    /etc/init.d/monit start

    Now point your browser to https://www.example.com:2812/ (make sure port 2812 isn't blocked by your firewall), log in with admin and test, and you should see the monit web interface. It should look like this:

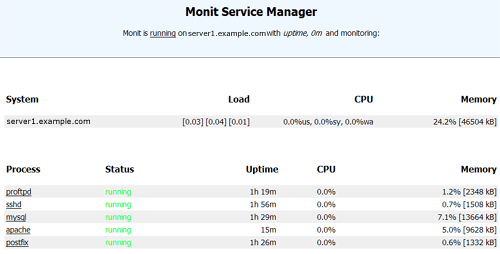

    (Main Screen)

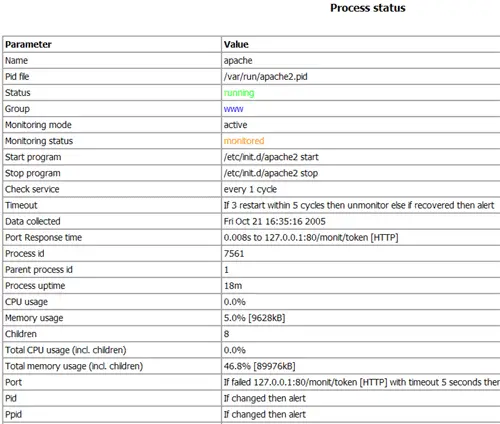

    (Apache Status Page)

    Depending on your configuration in /etc/monit.d/monitrc monit will restart your services if they fail and send notification emails if process IDs of services change, etc.

    Have fun!
