SAMBA (Domain Controller) Server For Small Workgroups With Ubuntu 5.10 "Breezy Badger" - Page 2

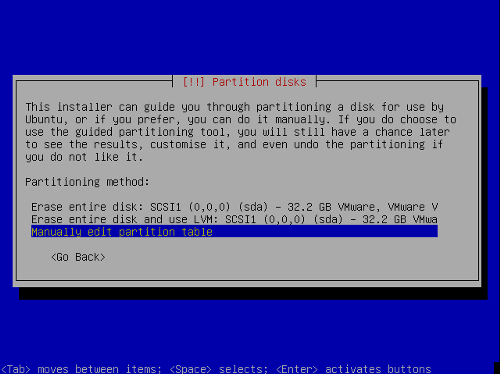

Now we create the partitions. Select Manually edit partition table. If there are already some partitions, delete them first by selecting them, hit return and then select delete.

I will use the folowing partition scheme:

/boot 50 MB
/swap 1GB
/ 10 GB
/home the rest of the hard disk

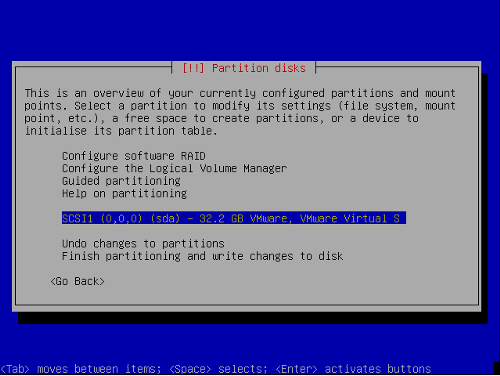

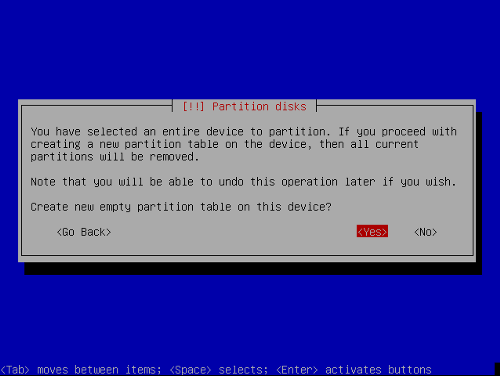

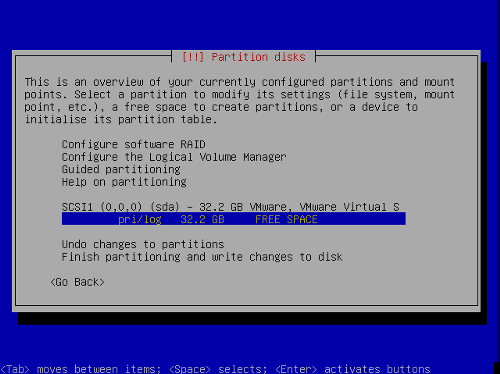

Creating a partition: Select your harddisk (in my case SCSI1), hit enter, then:

Creating a partition table: Select FREE SPACE, hit enter, then:

1) Select Create new partition.
2) Enter the size of the partition. Values can be entered in MB and GB or percent (%)
3) Select type of partition: primary
4) Select location of partition: beginning
5) Change Use as: I will use EXT3 for all partitions except the swap partition, that one is of type swap.
6) Change: Select the mountpoint
7) Select Done setting up the partition

Repeat this for all partitions in the above partition table.

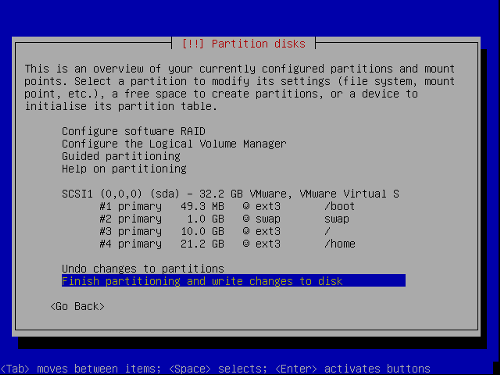

Now your partition table should look similar to this:

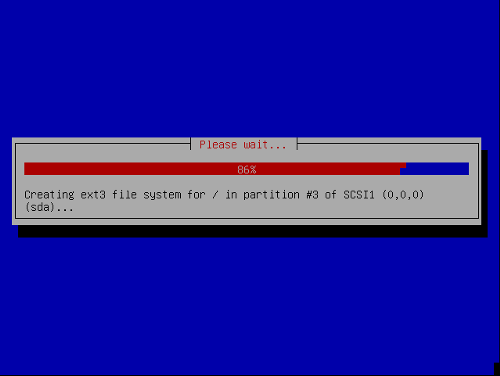

Select Finish partitioning and write changes to disk, then Yes, to proceed with the next step.

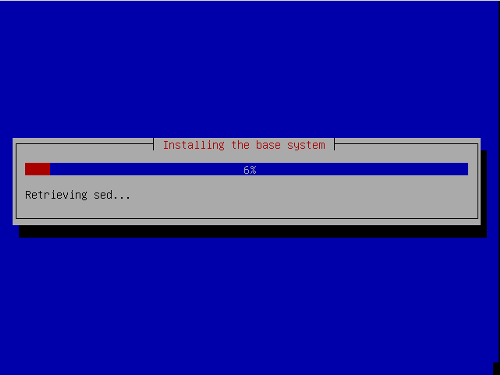

Now the base system is being installed:

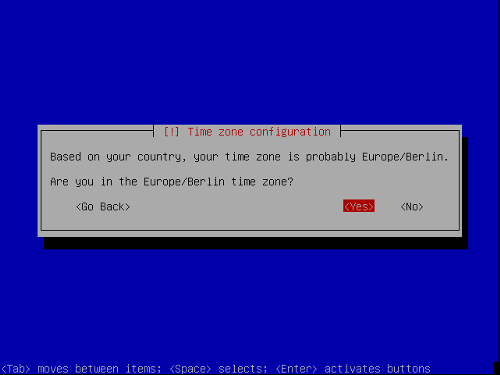

Configure your time zone:

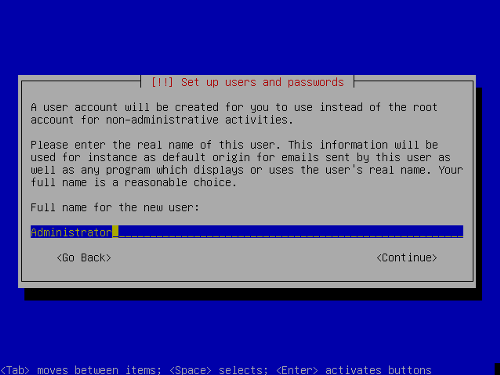

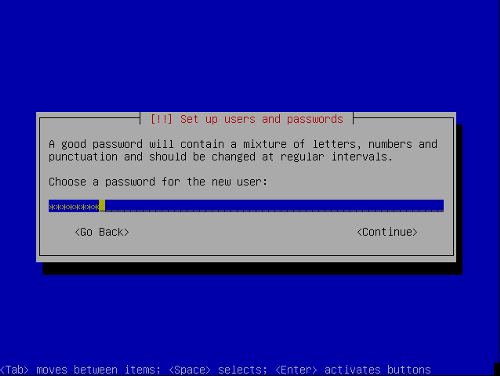

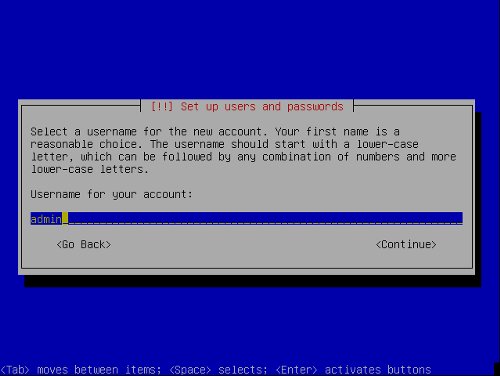

Set up a user:

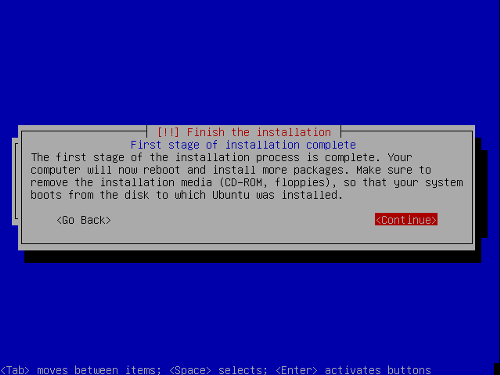

The first stage of the installation process is finished and the server boots into the installed Ubuntu linux.
