How to Install Redis on Ubuntu 22.04

Redis is an open source in-memory key/value store used as a database, cache, and message broker. It is a distributed in-memory key-value database with optional durability. It supports common data structures such as strings, hashes, lists, sets, bitmaps, sorted sets, HyperlogLogs, streams, and geodata indexes with radius queries.

In this tutorial, I will show you how to install and configure Redis Server on Ubuntu 22.04 LTS. We will first install Redis Server and then back up the installation to make it production ready.

Prerequisites

For this tutorial, we will install Redis Server on Ubuntu 22.04 with 1 GB of RAM and 2 CPU cores. This is for testing only. For production, you'll need more than this.

What we will do

  • Install Redis Server
  • Redis Server Basic Configuration
  • Securing Redis Server
  • Testing

Step 1 - Install Redis Server

Firstly, we will update all repositories on the Ubuntu system and upgrade all packages.

Run the apt commands below.

sudo apt update
sudo apt upgrade -y

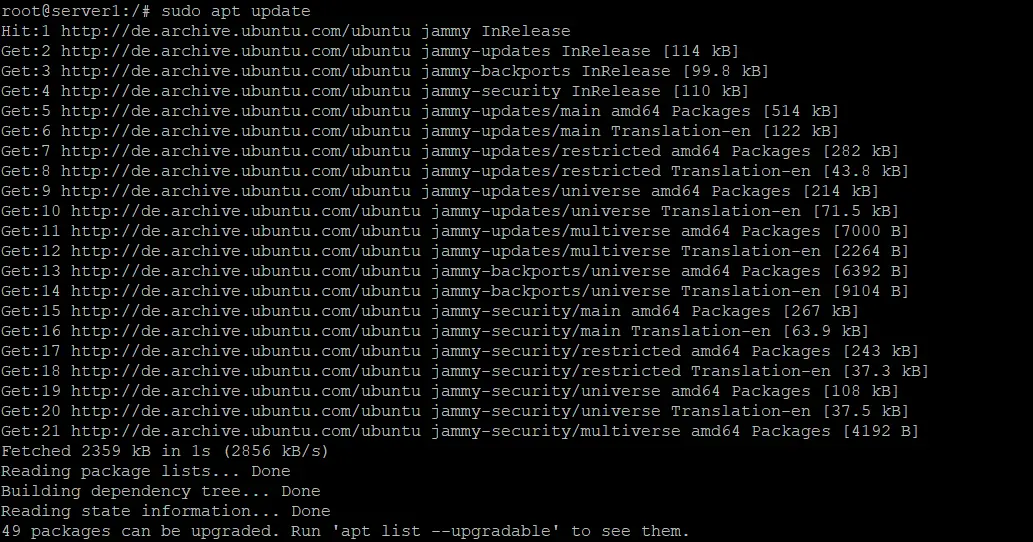

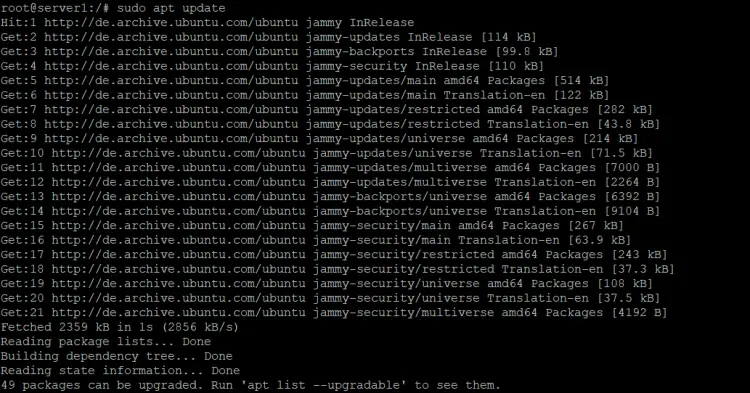

Package update

After that, install the Redis-server package from the official Ubuntu repository using the apt command below.

sudo apt install redis-server -y

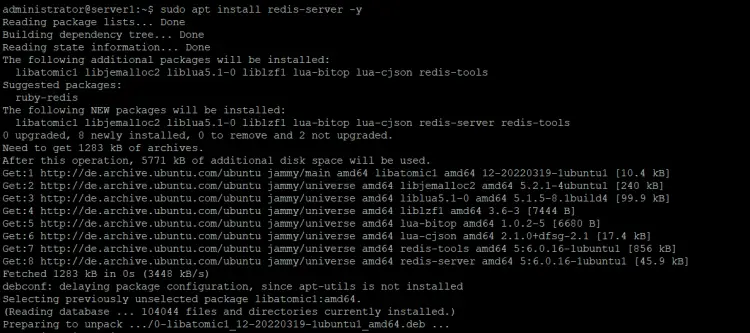

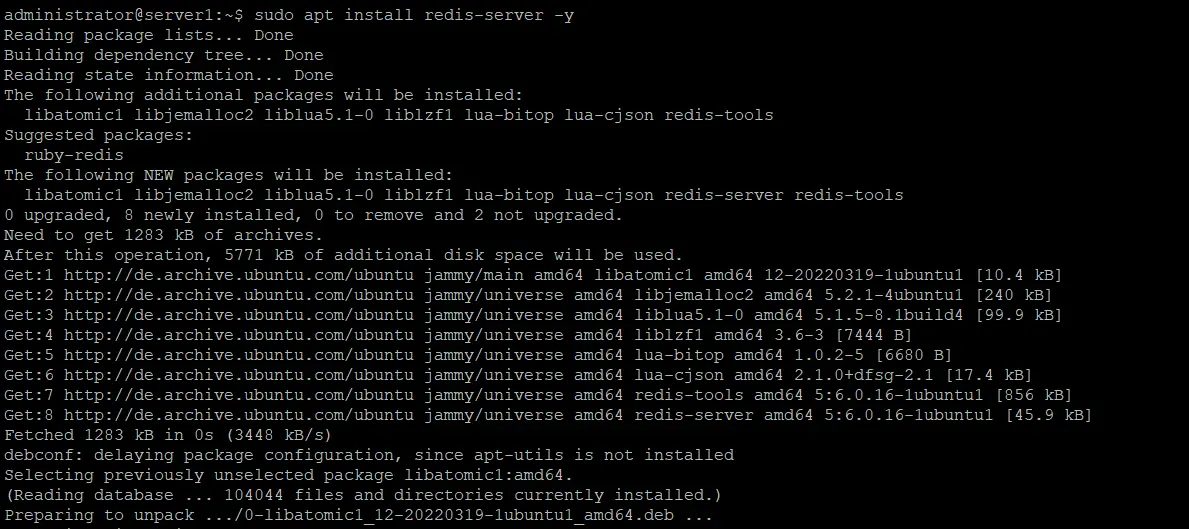

Redis Installation

Once the installation is complete, you will get an error messages about the Redis service failing to start, ignore the message error and we will configure it on the next step.

Step 2 - Redis Server Basic Configuration

In this step, we're going to set up a basic Redis server. On the Linux system, the Redis configuration is located at the '/etc/redis' directory.

Edit the configuration file 'redis.conf' using nano editor.

sudo nano /etc/redis/redis.conf

Firstly, we need to choose a 'bind' IP address to run the Redis service. It's not recommended to use the public IP address for the Redis service, or if you're running the multiple/cluster Redis service, you should use the internal network.

Change the 'bind' address with the localhost IP address for this example (IPv4 and IPv6). It is highly recommended for security reasons to let Redis listen on localhost IP only if the services that use Redis will get installed on the same system.

bind 127.0.0.1 ::1

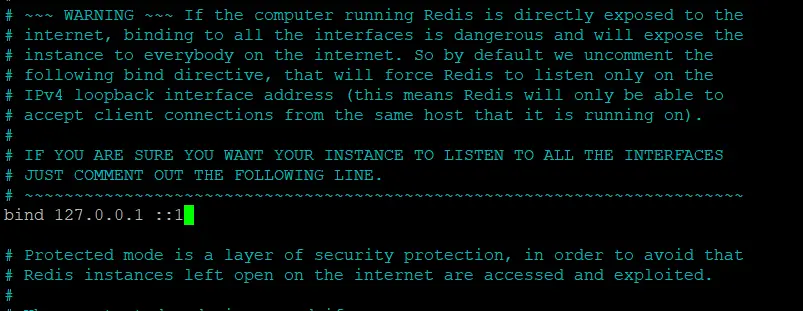

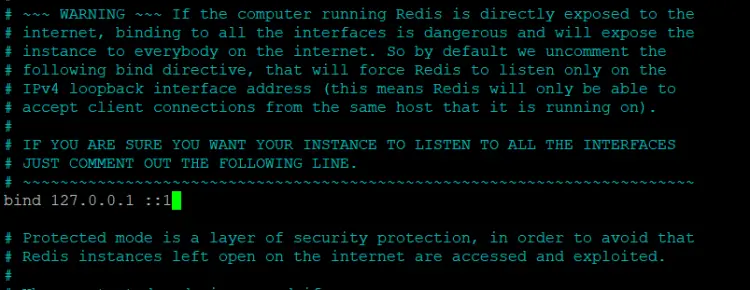

Bind Redis to localhost

After that, we need to set up how the Redis service will run on the server. Since we're using the Ubuntu server and systemd, so we need to change the 'supervised' line configuration to 'systemd'.

supervised systemd

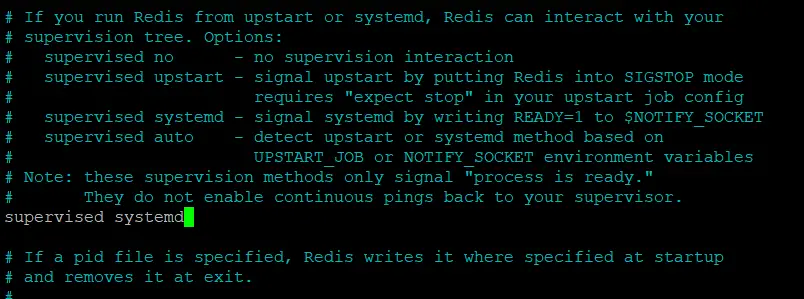

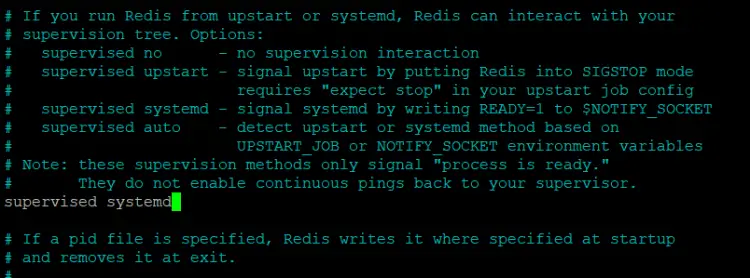

Use systemd

Save and close.

Now restart the Redis service and add it to the boot time.

sudo systemctl restart redis-server
sudo systemctl enable redis-server

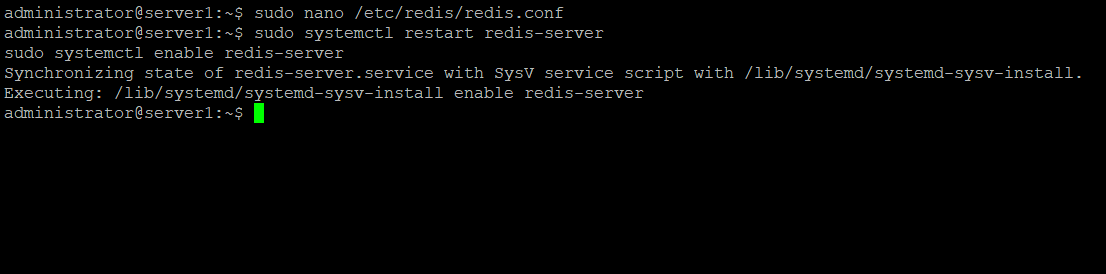

Restart Redis to apply changes

Now make sure there is no error and then check its status.

sudo systemctl status redis-server

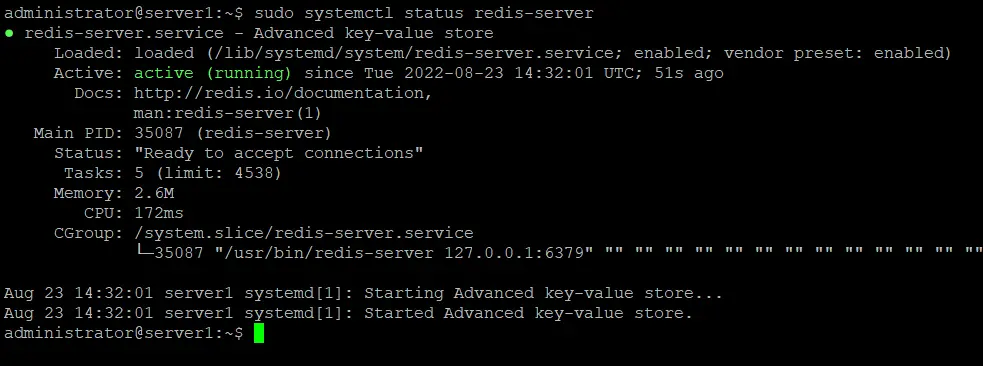

Redis service state

As a result, the Redis service is up and running on Ubuntu 22.04 Server.

Now check the default Redis port '6379' using the netstat command below.

ss -plnt4

And you will get the result the Redis service is running on the localhost IP address with default '6379'.

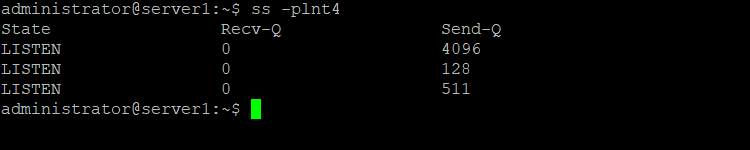

The port that redis service listens on

Now check the Redis using the 'redis-cli' commands as below.

redis-cli ping
redis-cli ping "Hello Howtoforge redis Server"

And you will get the result as shown below.

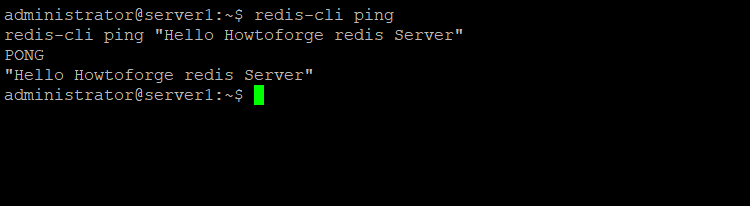

Test Redis

If your installation is correct, you will get the Redis Server reply with 'PONG' or reply with the text that you entered after the 'ping' option.

The basic installation and configuration of the Redis Server have been completed successfully.

Step 3 - Securing Redis Installation

In this step, we're going to secure our Redis installation. There are 3 things that you must know about securing the Redis Server.

1. Network Security

The Network security for the Redis server is related to the 'bind' configuration on the Redis configuration 'redis.conf'. It's recommended to use the internal private network for your Redis installation and don't use the public.

Edit the configuration file 'redis.conf'.

sudo nano /etc/redis/redis.conf

On the 'bind' section, change the IP address with your own internal network IP address.

bind INTERNAL-IP-ADDRESS

Save and close.

And now the Redis service will run under the 'INTERNAL-IP-ADDRESS'.

2. Password Authentication

The password authentication for Redis will give you access control to your Redis server. This is a little layer of security that will enhance your Redis server security, and it is not yet enabled by default installation.

To enable the Password Authentication for the Redis server, you will need to uncomment the 'requirepass' section on the 'redis.conf' file and type your strong password after it.

requirepass MySecretSecurePassword

Change the 'MySecretSecurePassword' with your strong password. And now the password authentication for Redis has been enabled.

3. Disabling Dangerous Redis Commands

Redis provides a feature for disabling some specific Redis commands. This feature can be used to rename or disable some of the dangerous commands such as 'FLUSHALL' for erasing all data, 'CONFIG' command to set up configuration parameters through the Redis CLI, etc.

To change or disable the Redis command, you can use the 'rename-command' option. Edit the Redis configuration file 'redis.conf' and add some configurations below.

# rename-command COMMAND "CUSTOM"
rename-command FLUSHALL "DELITALL"
rename-command CONFIG "MYSERVERCONF"

Save and close.

Once all is complete, restart the Redis service using the systemctl command below.

systemctl restart redis-server

And the basic Redis security for securing Redis installation has been applied to our host.

Other consideration, you may also need the 'Data Encryption' support for Redis, as well as the secure coding needed on the application side.

Step 4 - Testing

In this step, we're going to test our Redis Server deployment using the 'redis-cli' command line.

1. Testing Host and Authentication

Connect to the Redis Server using the redis-cli command by specifying the redis server hostname/ IP address and port.

redis-cli -h 127.0.0.1 -p 6379

Change the '127.0.0.1' with your own IP address.

Once you're connected to the server, try the ping command.

ping "Hello Howtoforge"

Now you will get the result as below.

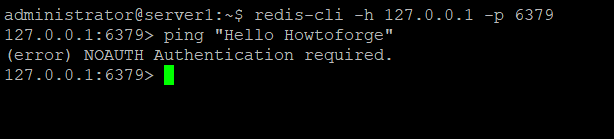

Testing Redis Authentication

You're getting an error because you need to authenticate before invoking any command on the Redis CLI shell.

Run the following command to authenticate against the Redis Server.

AUTH MySecretSecurePassword

Once you're authenticated, you can try the ping command and you will get a reply from the Redis server.

ping "Hello Redis at Howtoforge"

Below is the result after you're authenticated to the Redis Server.

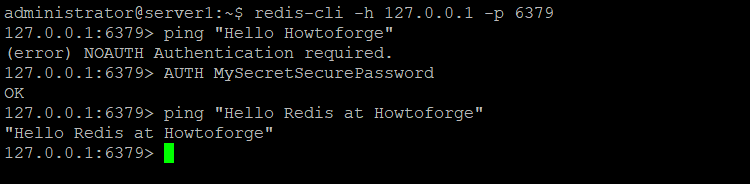

Redis successful authentication

2. Testing Disabled/Renamed Command

Run all commands that we've renamed on the shell and you will get the command error.

FLUSHALL
CONFIG

Below is the error result of those commands.

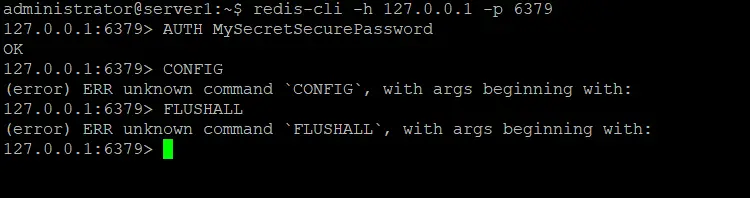

Testing Redis Rename Command

Next, run the 'CUSTOM' commands for each.

Create new Key using through redis-cli command as below.

SET Name "Hakase Labs"
SET Blog "Howtoforge.com"

Keys *

Now delete all keys and data using the renamed 'FLUSHALL' command 'DELITALL'.

DELITALL

For the 'CONFIG' command, you can try to retrieve or set up a new value of the Redis Server configuration. The 'CONFIG' command was renamed to 'MYSERVERCONF'.

MYSERVERCONF get bind
MYSERVERCONF get requirepass

And below is the result of these new renamed custom commands.

Testing redis commands

To leave the Redis console, enter the word quit.

quit

The Basic installation of Redis Server on Ubuntu 22.04 has been completed, and the basic security for Redis Server has been applied.
