The Perfect Server - Ubuntu Karmic Koala (Ubuntu 9.10) [ISPConfig 2]

Version 1.0
Author: Falko Timme
Follow me on Twitter
Last edited 10/30/2009

This tutorial shows how to set up an Ubuntu Karmic Koala (Ubuntu 9.10) server that offers all services needed by ISPs and hosters: Apache web server (SSL-capable), Postfix mail server with SMTP-AUTH and TLS, BIND DNS server, Proftpd FTP server, MySQL server, Courier POP3/IMAP, Quota, Firewall, etc. In the end you should have a system that works reliably, and if you like you can install the free webhosting control panel ISPConfig 2 (i.e., ISPConfig runs on it out of the box).

I will use the following software:

  • Web Server: Apache 2.2.12 with PHP 5.2.10, Python, Ruby, and WebDAV
  • Database Server: MySQL 5.1.37
  • Mail Server: Postfix
  • DNS Server: BIND9
  • FTP Server: proftpd
  • POP3/IMAP: I will use Maildir format and therefore install Courier-POP3/Courier-IMAP.
  • Webalizer for web site statistics

Please note that this setup does not work for ISPConfig 3! It is valid for ISPConfig 2 only!

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!



1 Requirements

To install such a system you will need the following:



2 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.100 and the gateway 192.168.0.1. These settings might differ for you, so you have to replace them where appropriate.



3 The Base System

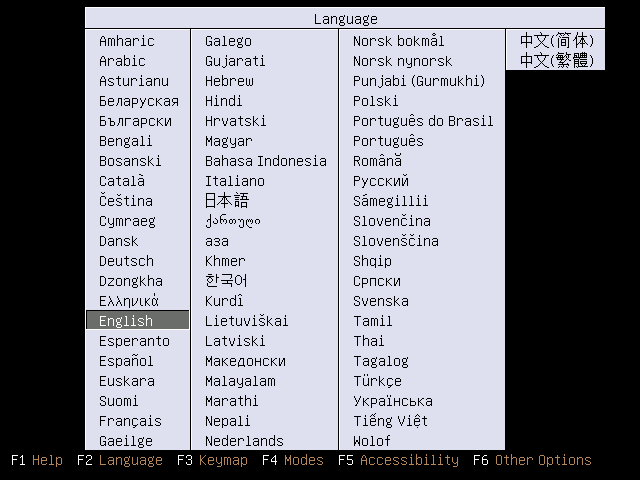

Insert your Ubuntu install CD into your system and boot from it. Select your language:

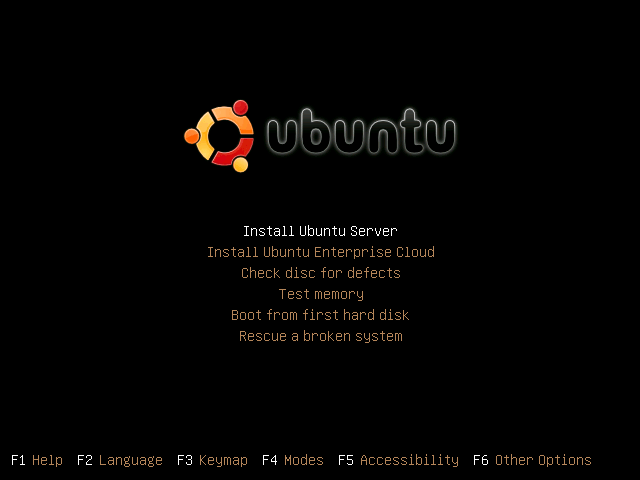

Then select Install Ubuntu Server:

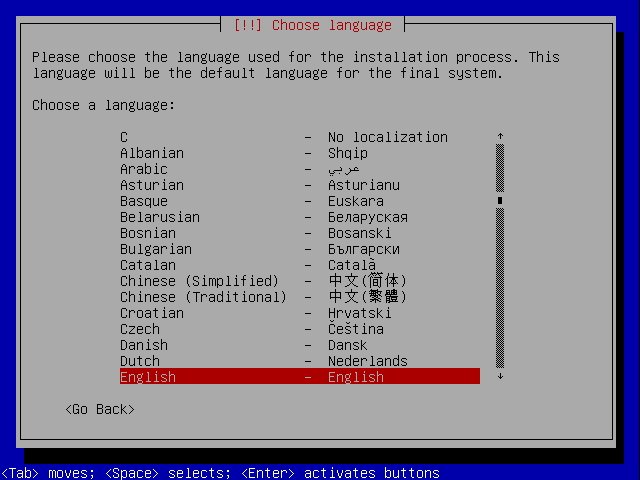

Choose your language again (?):

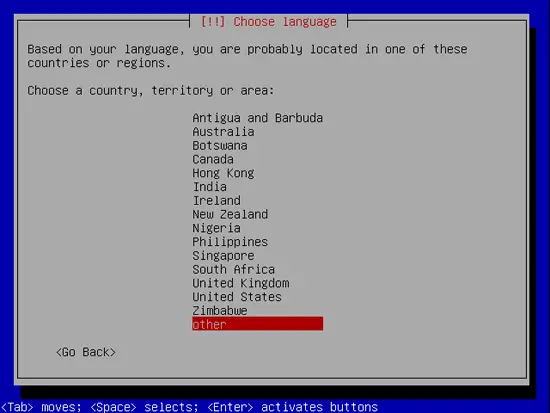

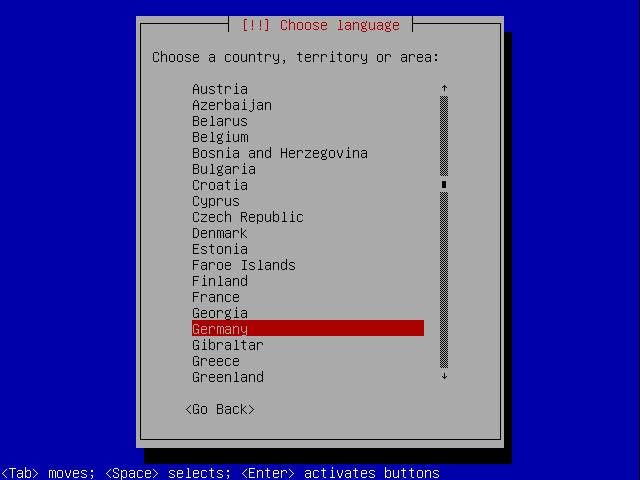

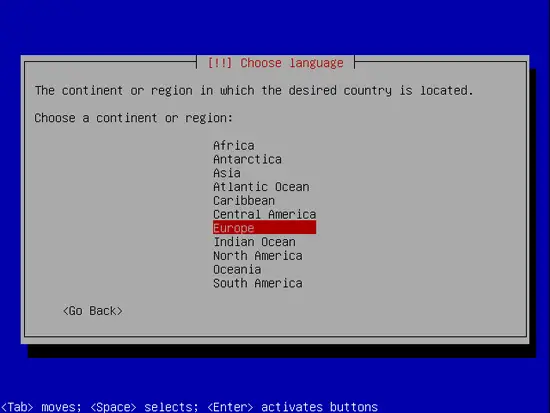

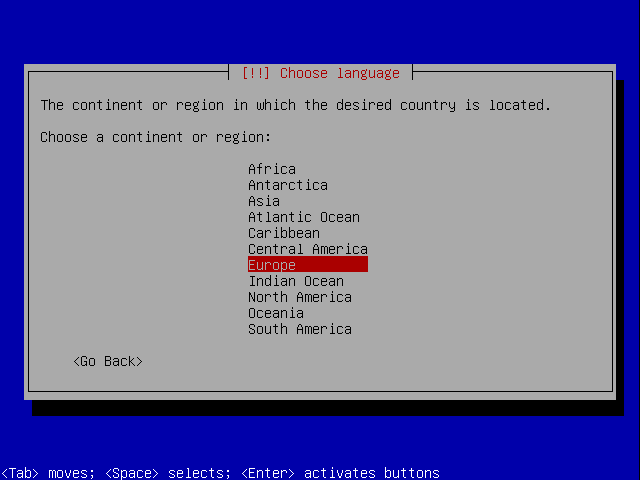

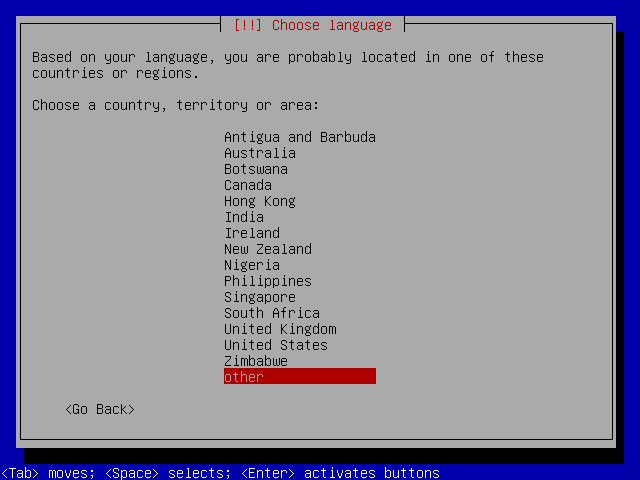

Then select your location:

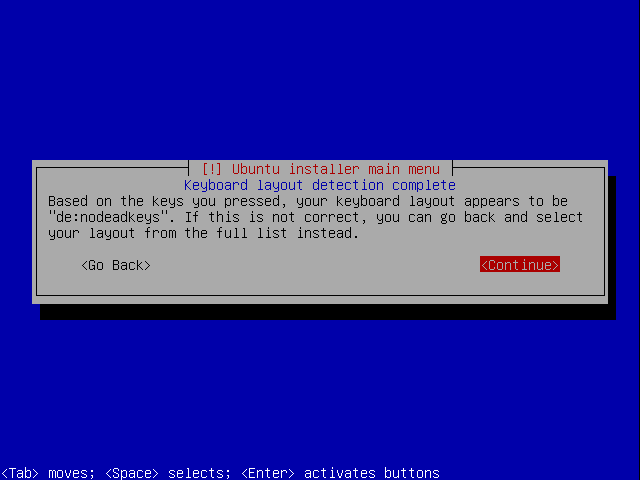

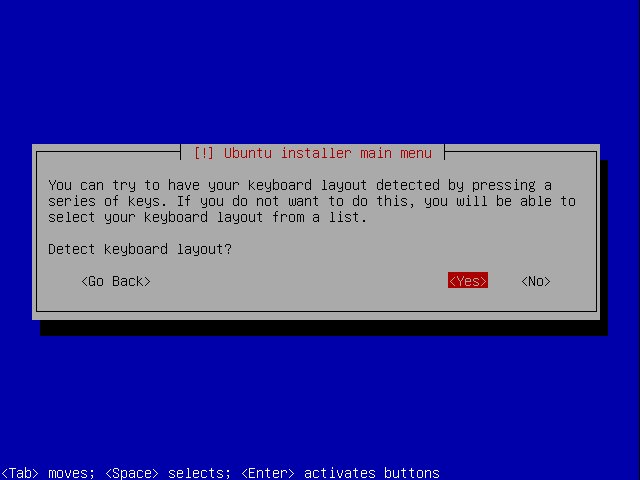

Choose a keyboard layout (you will be asked to press a few keys, and the installer will try to detect your keyboard layout based on the keys you pressed):

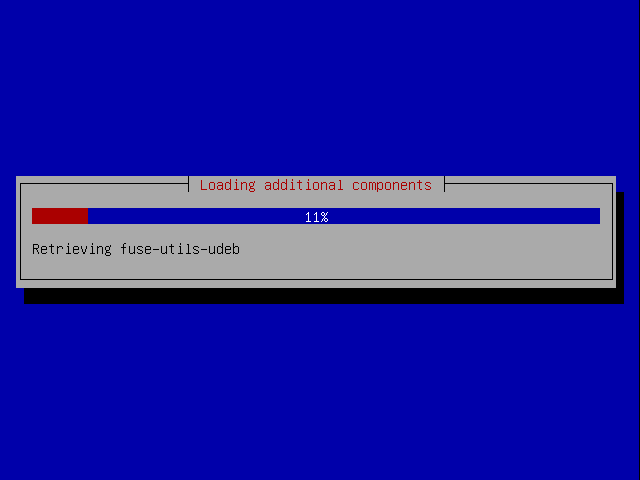

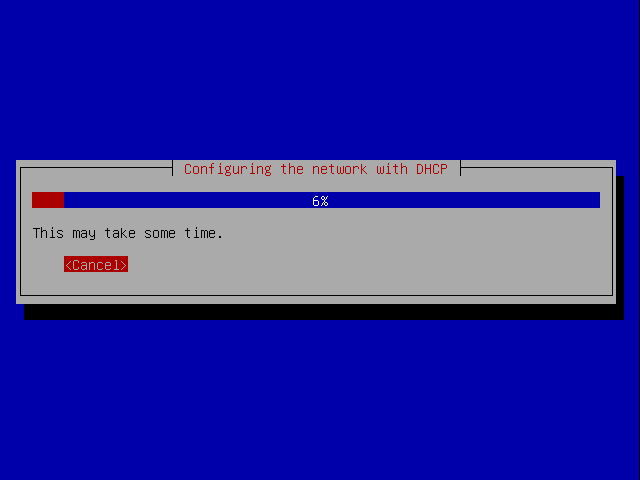

The installer checks the installation CD, your hardware, and configures the network with DHCP if there is a DHCP server in the network:

Share this page:

15 Comment(s)

Add comment

Comments

From: the_guv at: 2009-11-25 14:35:44
From: QSC at: 2009-12-24 00:38:20

I couldn't agree more. The latest release of Ubuntu (9.10) has been a tremendous disappointment, haven't spent this much time fixing a distro since Gentoo or CRUX.

From: the_guv at: 2009-11-18 18:50:36

cos for an Ubuntu server edition, never install anything other than a LTS edition ..

.. so the best choice of Ubuntu server to date would be Hardy Heron 8.04.

Just my tuppency ha'penny :)

(Oh, and Nginx is way more perfect than Apache for most of us too)

From: Anonymous at: 2009-11-08 16:35:38

Karmic Koala aka 9.10 is worst ever release of UBUNTU ever.

Every package has some problem or the other.  Ridiculous!  The users (first adopters) are serving as the unit testers.

Bugs are crawling all over the place.

From: anatoly pugachev at: 2010-01-18 14:43:47

Well, I suggest not to use ubuntu on servers, and my point of view is explained on my kerneltrap note , really better to use Centos or Fedora.

From: ree at: 2009-12-30 13:35:53

hi,

Jamie S. is right. Do not do it. And one thing more: I prefer 8.x LTS over 9.10

regards

From: Anonymous at: 2010-03-09 18:51:40

You did everything, byut you should really explain on how to install and configure IspConfig...

All that you did is that you linked to their official documentation, and their official documentation is linking bacck to this tutorial and now I am lost... I did everything but i cannot install ispconfig... since there isn't a documentation on how to do it...

From: Jamie Strandboge at: 2009-12-28 15:43:35

I noticed that this tutorial recommends to disable all of AppArmor. Unless you have a very specific need to do so, this is not recommended. The apparmor profiles shipped in Ubuntu are designed to work with the default installation. If a particular profile is causing you trouble, please disable the profile or put it in complain mode, and leave the other profiles that are not causing problems to do their jobs. Better yet, file a bug. :) See my blog entry athttp://penguindroppings.wordpress.com/2009/07/07/should-i-disable-apparmor/ for details.

From: Vladimir Stanojevic at: 2010-02-25 11:57:42

Out of words of praise for the author!!!

From: at: 2010-04-28 13:39:51

From https://help.ubuntu.com/community/AppArmor

Disable AppArmor framework

Systems should not generally need to have AppArmor disabled entirely. It is highly recommended that users leave AppArmor enabled and put the problematic profile into complain mode (see above), then file a bug using the procedures found in https://wiki.ubuntu.com/DebuggingApparmor. If AppArmor must be disabled (eg to use SELinux instead), users can:

sudo invoke-rc.d apparmor kill
sudo update-rc.d -f apparmor remove

On Ubuntu 8.04 (Hardy), Ubuntu 8.10 (Intrepid) and Ubuntu 9.04 (Jaunty):

sudo invoke-rc.d apparmor stop
sudo update-rc.d -f apparmor remove

Using kill with Ubuntu 8.10 or later gives the following error:

Killing AppArmor module - failed, AppArmor is builtin: Failed.

On Ubuntu 9.10 and later, you can either:

  • adjust your kernel boot command line (see /boot/grub/menul.lst for Grub or /boot/grub/grub.cfg for Grub 2) to include either

  • * 'apparmor=0'
  • * 'security=XXX' where XXX can be "" to disable AppArmor or an alternative LSM name, eg. 'security="selinux"'

  • remove the apparmor package with your package manager. Do not 'purge' apparmor if you think you might want to reenable AppArmor at a later date

From: at: 2009-12-08 07:17:34

Hi,

I found out after chrooting the bind9, the status cannot be checked.

 i.e.:

root@ns1:/etc/bind# /etc/init.d/bind9 status
 * could not access PID file for bind9

i resolved this by editing the /etc/init.d/bind9

i changed #PIDFILE=/var/run/named/named.pid to
PIDFILE=/var/lib/named/var/run/named/named.pid

Where your pid file is, you may find by doing : find / -name named.pid

When found, it will show you the exact path. (To find it, bind must be running)

Good luck.

From: yuqi at: 2010-08-26 03:09:02

root@server:/etc/bind# /etc/init.d/bind9 restart
 * Stopping domain name service... bind9                                                                                                                                         rndc: connect failed: 127.0.0.1#953: connection refused
[: 131: 2652: unexpected operator
                                                                                                                                                                          [ OK ]
 * Starting domain name service... bind9                                                                                                                                  [ OK ]
root@server:/etc/bind#
root@server:/etc/bind# /etc/init.d/bind9 status
 * bind9 is running
root@server:/etc/bind#

how i fix it

thanks

From: Dwain Blazej at: 2010-01-20 02:49:49

If you're getting this error:

 rndc: connect failed: 127.0.0.1#953: connection refused

re-run the command:

 chown -R bind:bind /var/lib/named/etc/bind



While editing the config files, you may have accidentally made the config files unreadable by the "bind" user.

From: Kevin at: 2010-04-01 12:30:32

I have had great success in the past following the perfect server guides for Ubuntu. This time however it has been over a week of going through the steps over and over again with no luck. Maybe it is because I am setting it up on Ubuntu desktop instead of Ubuntu server, I don't know. What I do know now is this:



1. In step 10 after disabling Apparmor you need to edit the file /etc/apparmor/initramfs or it will keep trying to start up Apparmor. Comment out these lines:


set -e

. /etc/apparmor/functions

mount -n -t securityfs none "${SECURITYFS}"
load_configured_profiles_without_caching


REF: http://www.howtoforge.com/forums/showthread.php?t=40889



2. In step 12 when installing Journaled Quota It kept giving me this error:


quotacheck: Scanning /dev/??? [/] quotacheck: lstat Cannot stat `//home/?????/.gvfs': Permission denied
Guess you'd better run fsck first !
exiting...


It made it so I could not install quota properly which meant ispconfig also wouldnt install. If I rebooted I was in a world of hurt. Answer was not easy to find either cause others in the forum just ignored it like it was silly or something. Thank goodness for Melask:


Just log off from your graphical environment and switch to e.g. tty1 window with the ctrl+alt+F1 keys. Run all the commands there (after u login ofc) and u are ok.

Switch back to kde/gnome with ctrl+alt+F7


REF: http://howtoforge.org/forums/showthread.php?p=218258



3. If you want to use Apparmor you will probably have troubles with Bind9. The fix for that is here:


REF: http://ubuntuforums.org/showthread.php?p=4636681


Now because of this great guide and a couple of fixes here and there I am running this perfect server on an Acer laptop with Ubuntu Netbook Remix.....don't laugh....i have to find something to do.

From: Christian at: 2009-11-24 09:41:59

please, don't suggest ntpdate... upstream developers are making it obsolete. :)
