The Perfect Server - Fedora 14 x86_64 [ISPConfig 2]

Version 1.0
Author: Falko Timme
Follow me on Twitter
Last edited 11/04/2010

This is a detailed description about how to set up a Fedora 14 server that offers all services needed by ISPs and hosters: Apache web server (SSL-capable) with PHP5/Ruby/Python, Postfix mail server with SMTP-AUTH and TLS, BIND DNS server, Proftpd FTP server, MySQL server, Dovecot POP3/IMAP, Quota, Firewall, etc. This tutorial is written for the 64-bit version of Fedora 14, but should apply to the 32-bit version with very little modifications as well. In the end you should have a system that works reliably, and if you like you can install the free webhosting control panel ISPConfig (i.e., ISPConfig runs on it out of the box).

I will use the following software:

  • Web Server: Apache 2.2.16
  • PHP 5.3.3
  • Ruby
  • Python
  • Database Server: MySQL 5.1.51
  • Mail Server: Postfix
  • DNS Server: BIND9 (chrooted)
  • FTP Server: proftpd
  • POP3/IMAP server: Dovecot
  • Webalizer for web site statistics

Please note that this setup does not work for ISPConfig 3! It is valid for ISPConfig 2 only!

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!



1 Requirements

To install such a system you will need the following:



2 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.100 and the gateway 192.168.0.1. These settings might differ for you, so you have to replace them where appropriate.



3 Install The Base System

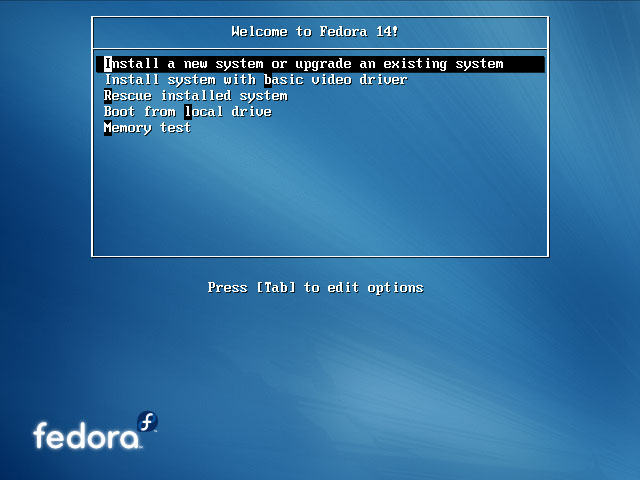

Boot from your Fedora 14 DVD. Select Install a new system or upgrade an existing system:

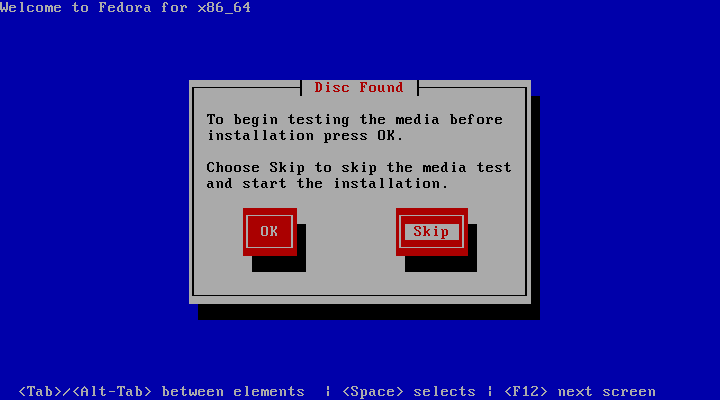

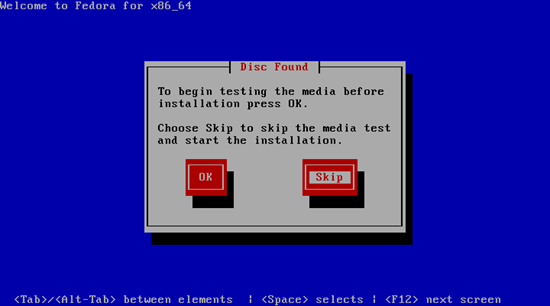

It can take a long time to test the installation media so we skip this test here:

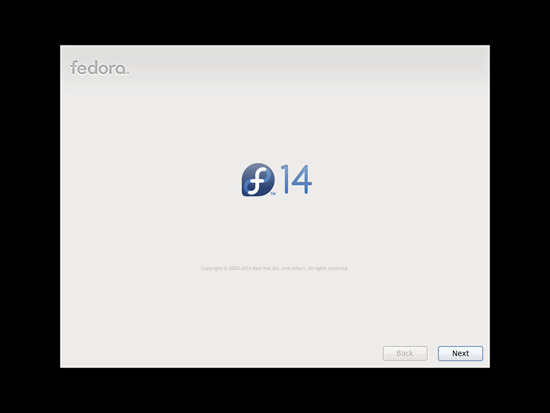

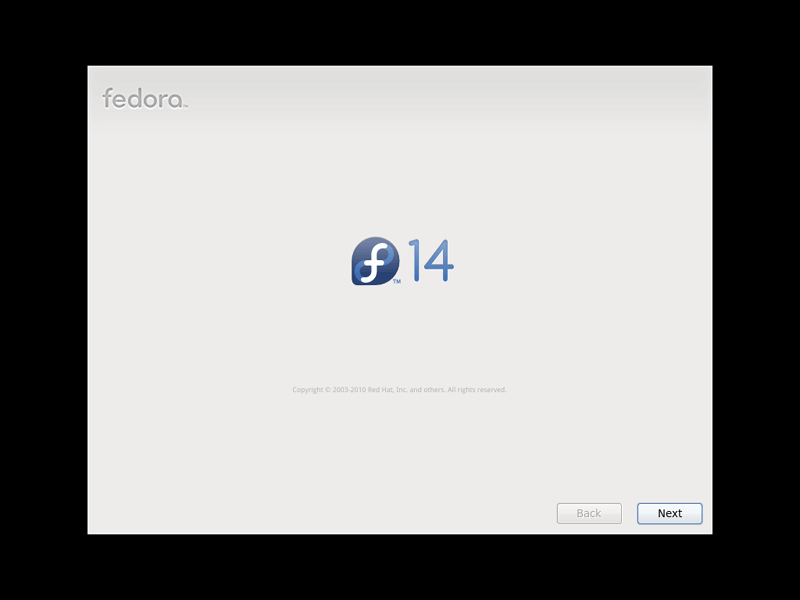

The welcome screen of the Fedora installer appears. Click on Next:

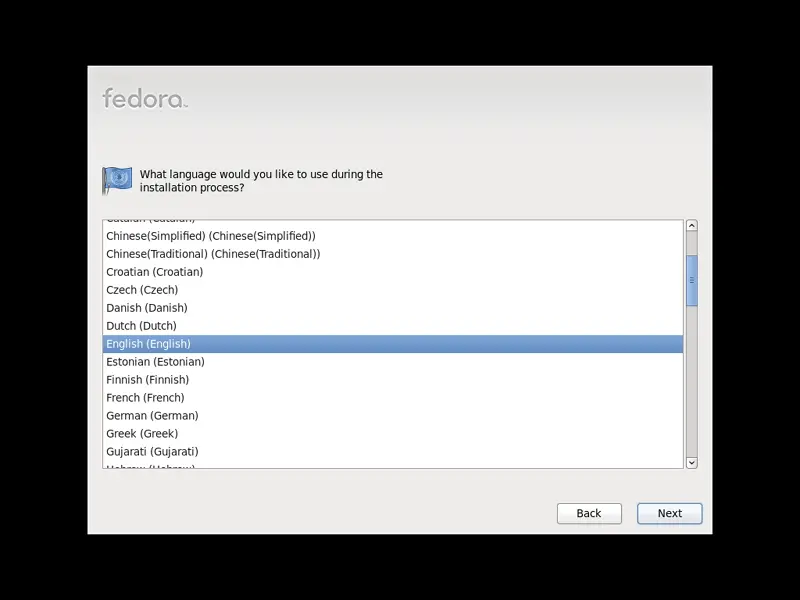

Choose your language next:

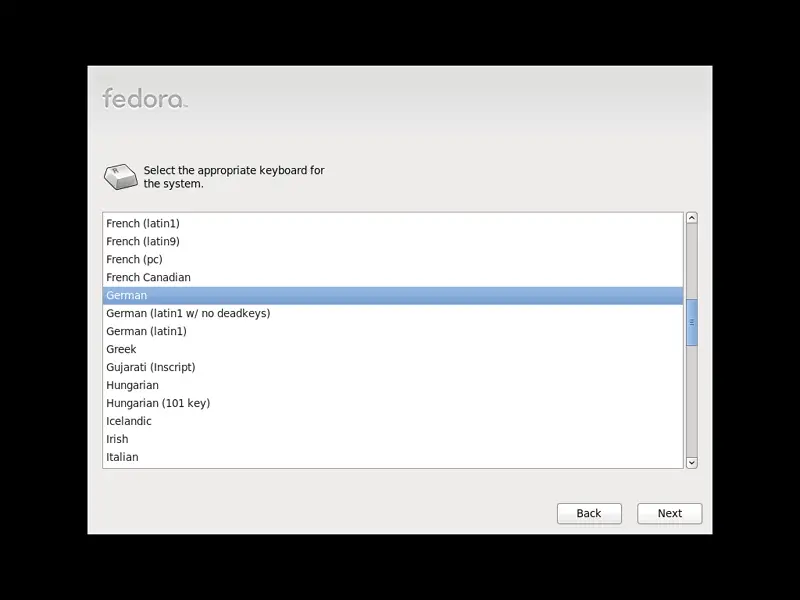

Select your keyboard layout:

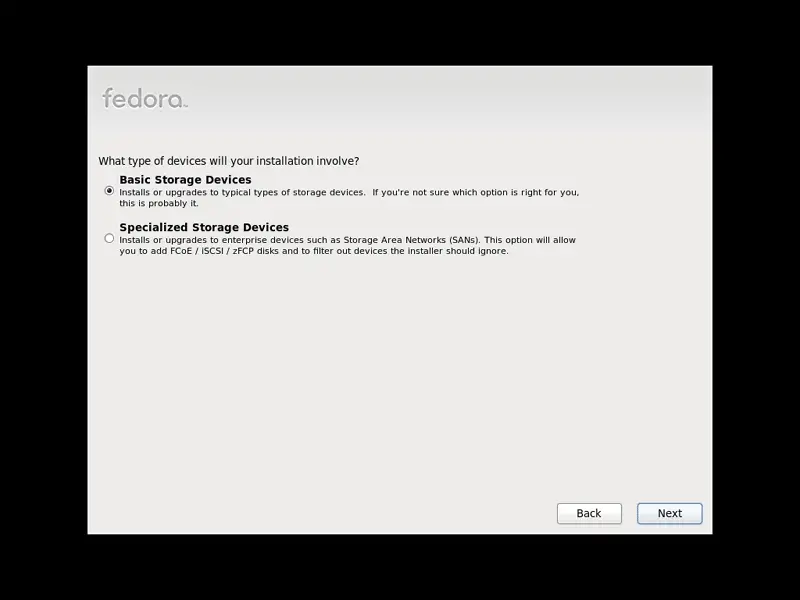

I assume that you use a locally attached hard drive, so you should select Basic Storage Devices here:

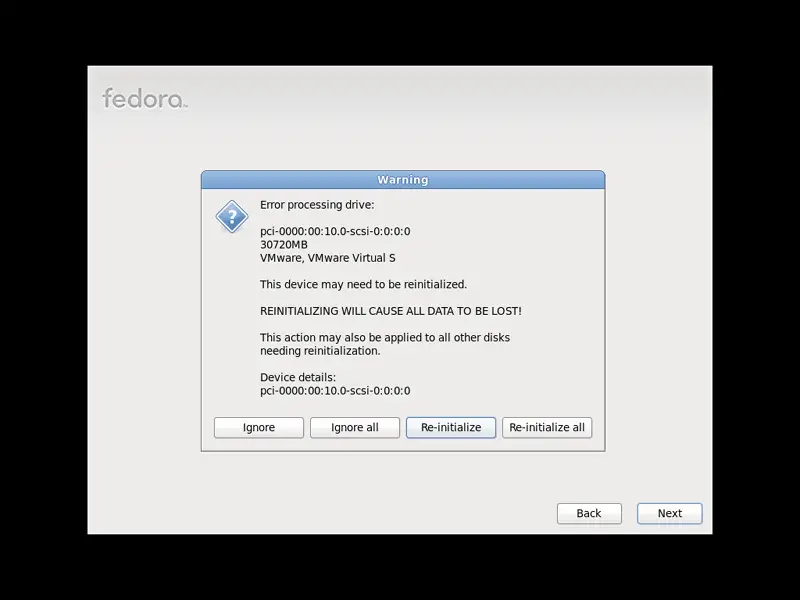

If you see the following message (Error processing drive: [...] This device may need to be reinitialized. REINITIALIZING WILL CAUSE ALL DATA TO BE LOST!), please click on Re-initialize:

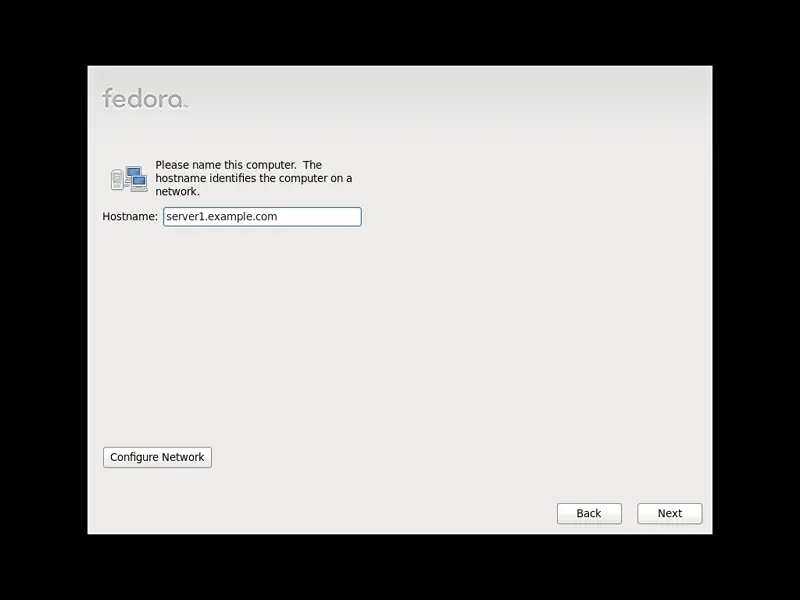

Fill in the hostname of the server:

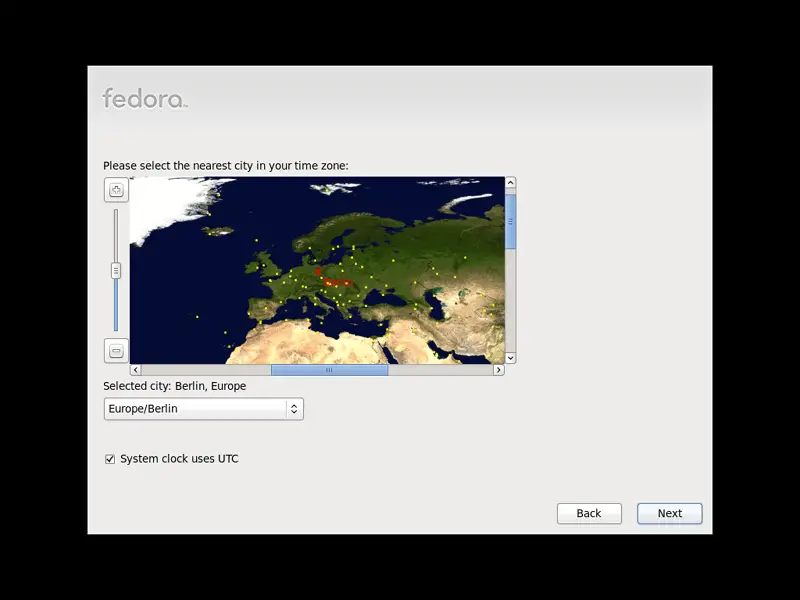

Choose your time zone:

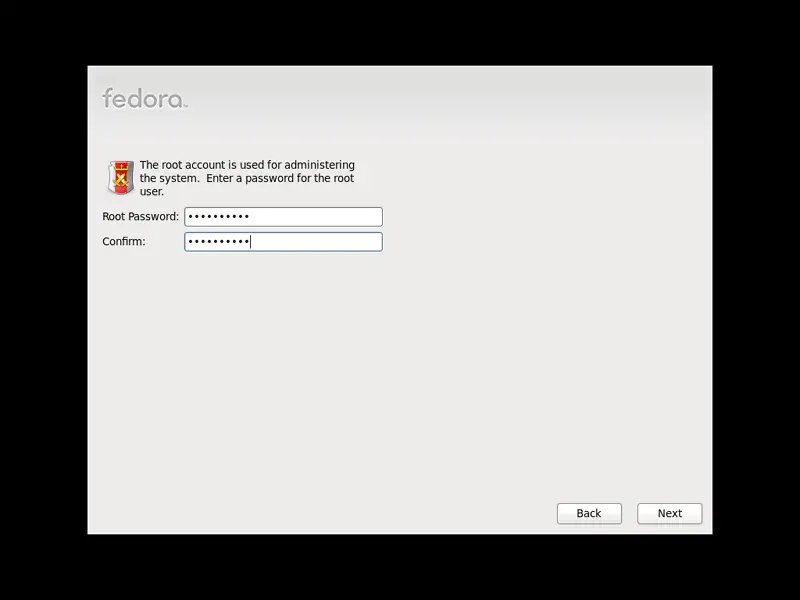

Give root a password:

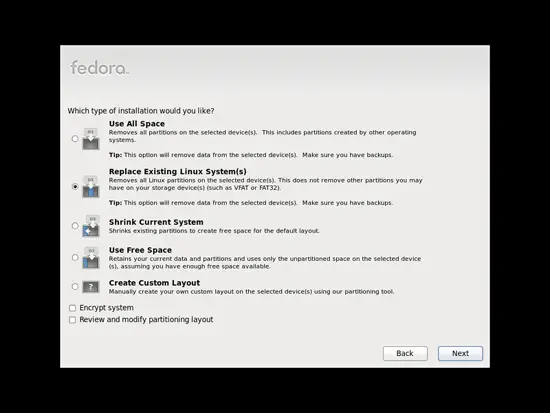

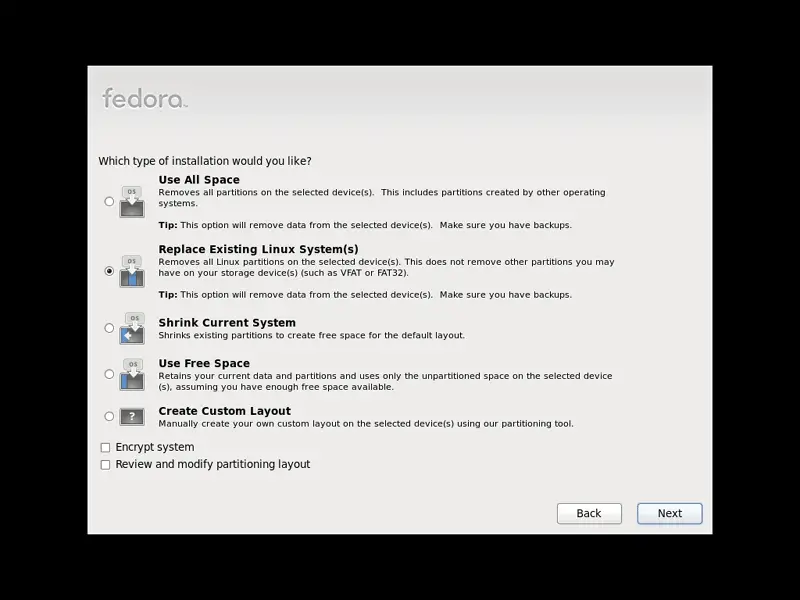

Next we do the partitioning. Select Replace Existing Linux System(s). This will give you a small /boot partition and a large / partition which is fine for our purposes:

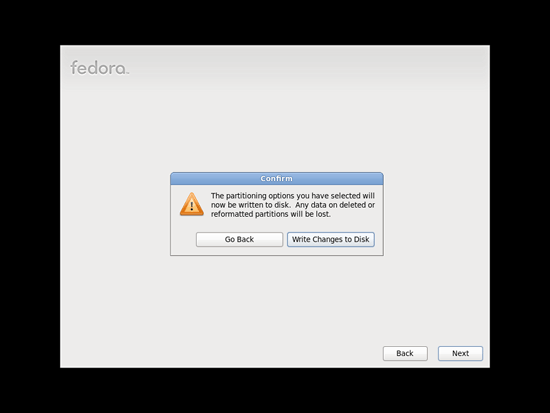

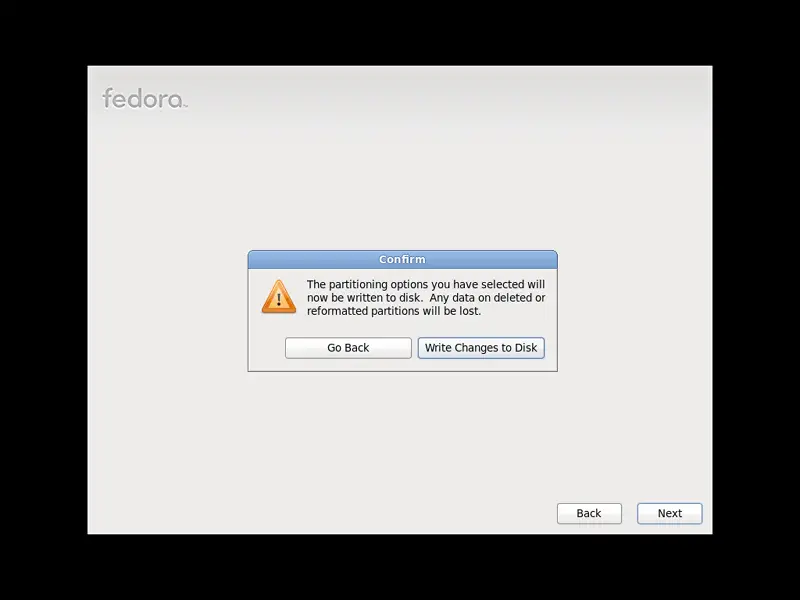

Select Write Changes to Disk:

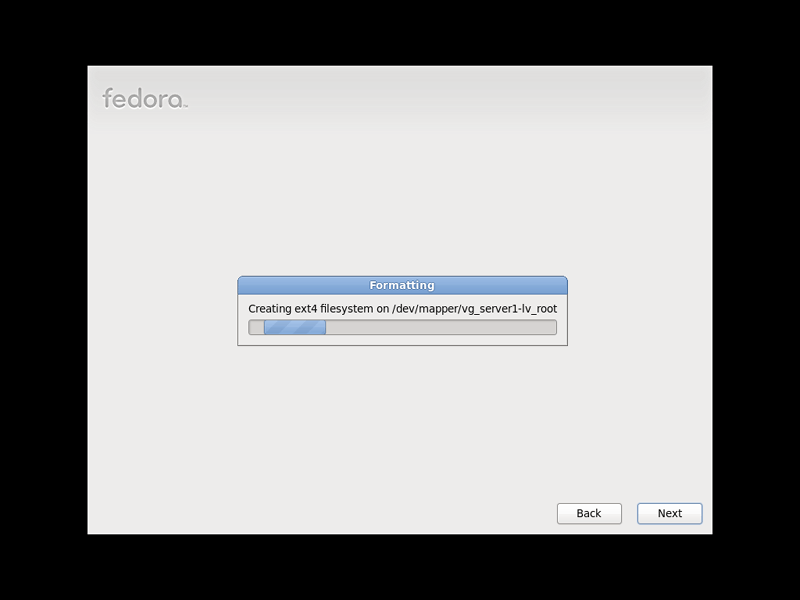

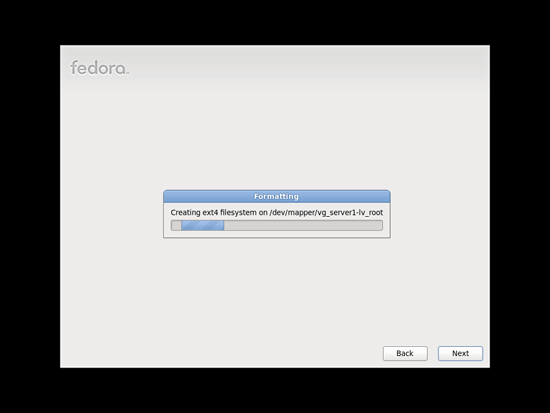

The hard drive is being formatted:

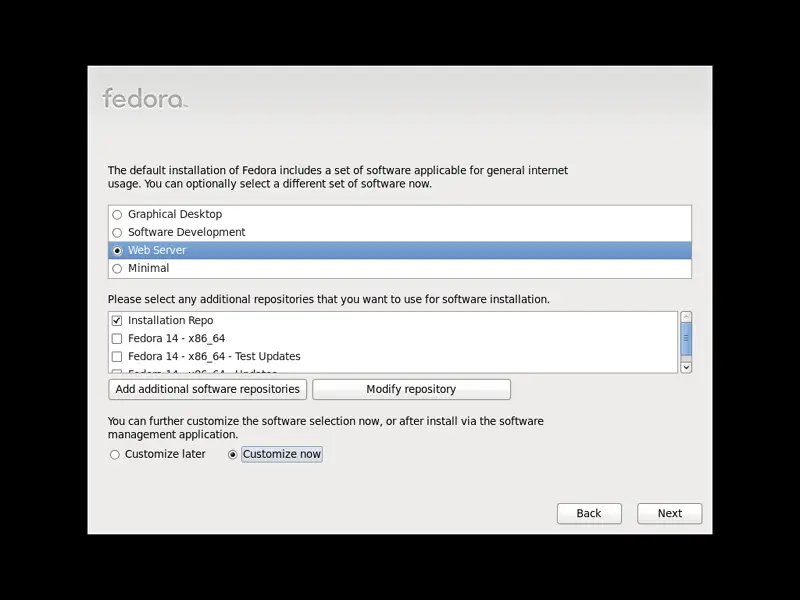

Now we select the software we want to install. Uncheck Graphical Desktop and check Web Server instead. Then check Customize now. Afterwards, select the additional repositories Fedora 14 - x86_64 and Fedora 14 - x86_64 - Updates (if you are on an i386 system, the names are probably Fedora 14 - i386 and Fedora 14 - i386 - Updates):

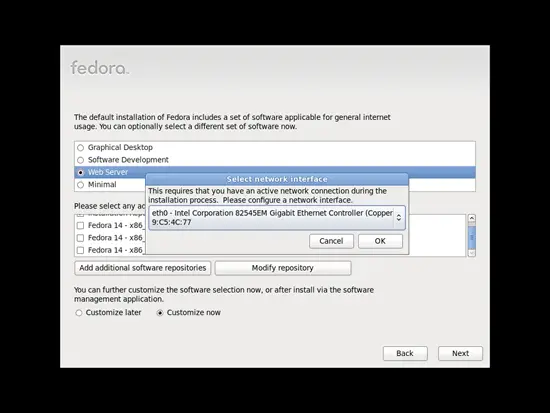

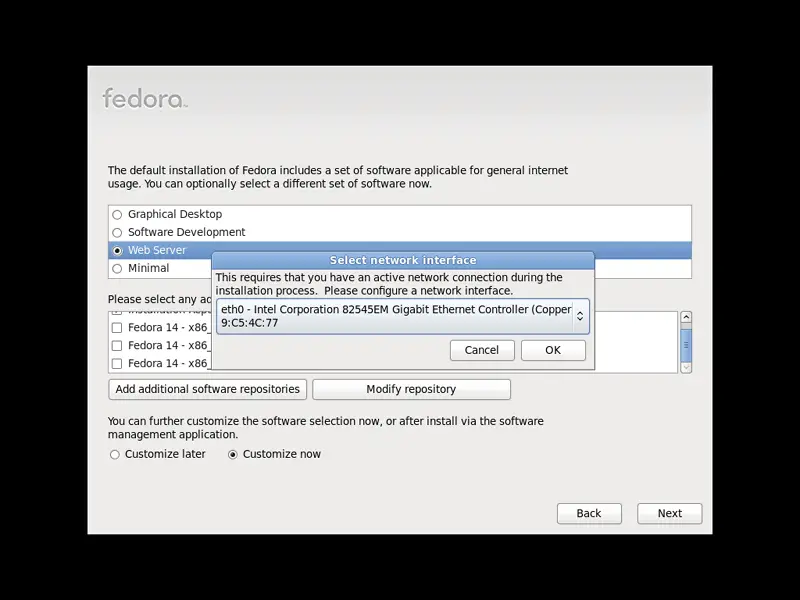

As the last two repositories need an Internet connection, a new window pops up where you have to configure your network card. Select your network card and click on OK:

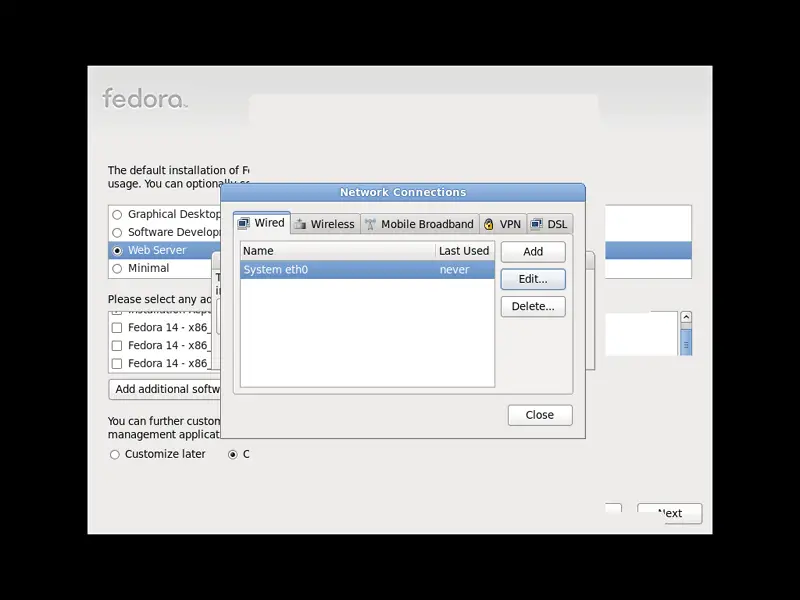

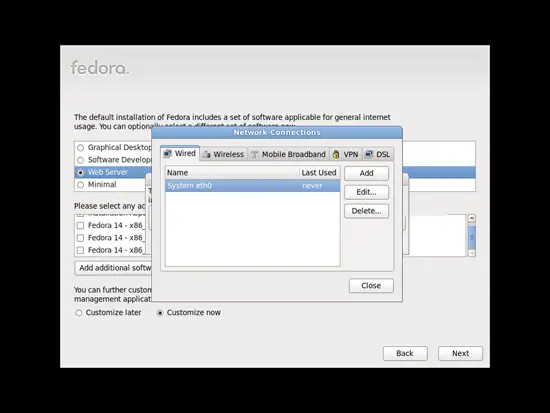

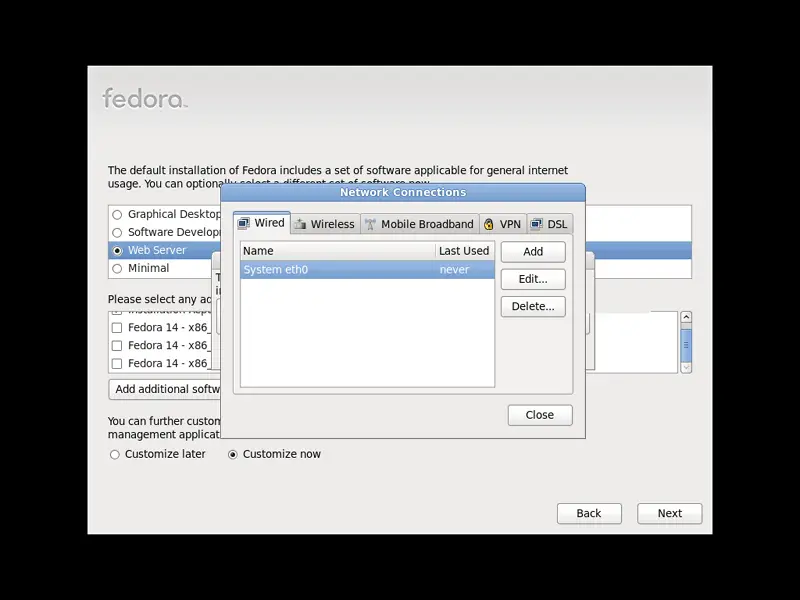

Go to the Wired tab, select the network interface and click on Edit...:

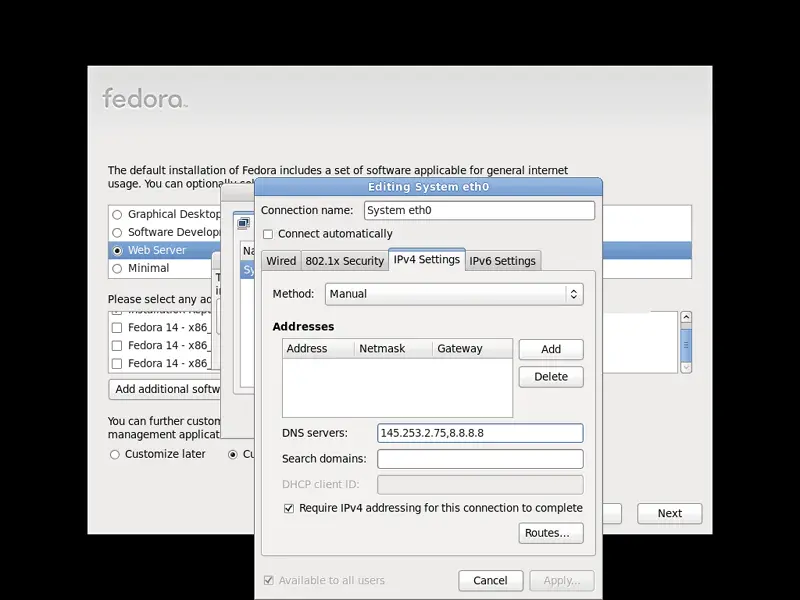

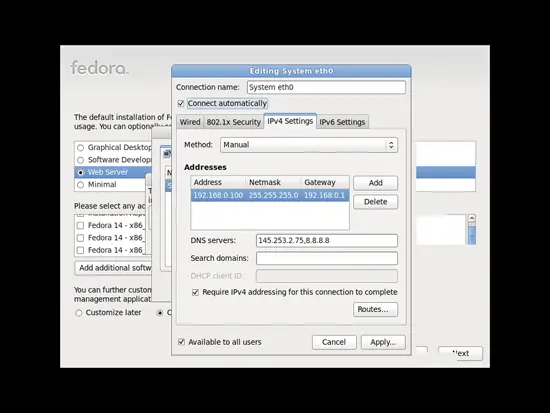

Go to the IPv4 Settings tab and select Manual in the Method drop-down menu. Fill in one, two, or three nameservers (separated by comma) in the DNS servers field (e.g. 145.253.2.75,8.8.8.8), then click on the Add button next to the Addresses area:

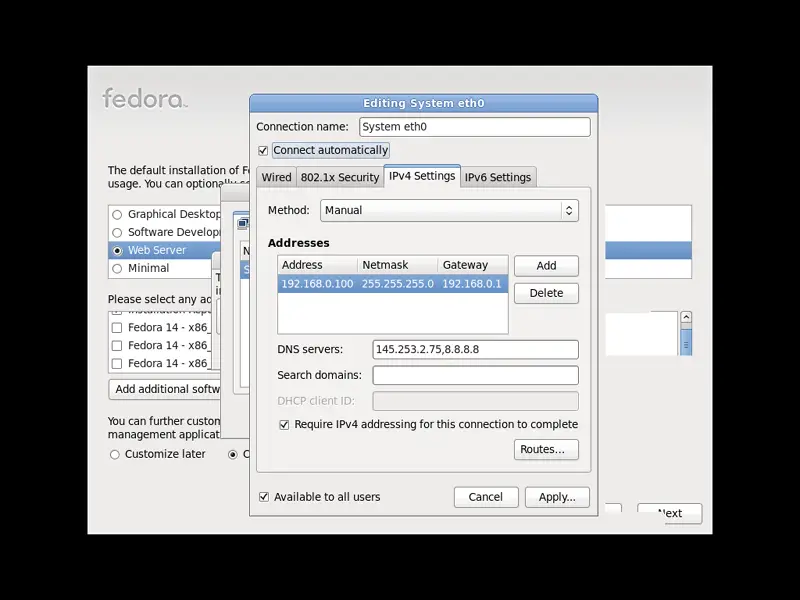

Now give your network card a static IP address and netmask (in this tutorial I'm using the IP address 192.168.0.100 and netmask 255.255.255.0 for demonstration purposes; if you are not sure about the right values, http://www.subnetmask.info might help you). Also fill in your gateway (e.g. 192.168.0.1); check the Connect automatically box and then click on the Apply... button:

Next click on Close in the Network Connections window:
