The Perfect Server - Fedora 11 x86_64 [ISPConfig 2]

Version 1.0
Author: Falko Timme
Last edited 06/11/2009

This is a detailed description about how to set up a Fedora 11 server that offers all services needed by ISPs and hosters: Apache web server (SSL-capable) with PHP5/Ruby/Python, Postfix mail server with SMTP-AUTH and TLS, BIND DNS server, Proftpd FTP server, MySQL server, Dovecot POP3/IMAP, Quota, Firewall, etc. This tutorial is written for the 64-bit version of Fedora 11, but should apply to the 32-bit version with very little modifications as well. In the end you should have a system that works reliably, and if you like you can install the free webhosting control panel ISPConfig (i.e., ISPConfig runs on it out of the box).

I will use the following software:

  • Web Server: Apache 2.2.11
  • PHP 5.2.9
  • Ruby
  • Python
  • Database Server: MySQL 5.1.32
  • Mail Server: Postfix
  • DNS Server: BIND9 (chrooted)
  • FTP Server: proftpd
  • POP3/IMAP server: Dovecot
  • Webalizer for web site statistics

Please note that this setup does not work for ISPConfig 3! It is valid for ISPConfig 2 only!

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!



1 Requirements

To install such a system you will need the following:



2 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.100 and the gateway 192.168.0.1. These settings might differ for you, so you have to replace them where appropriate.



3 Install The Base System

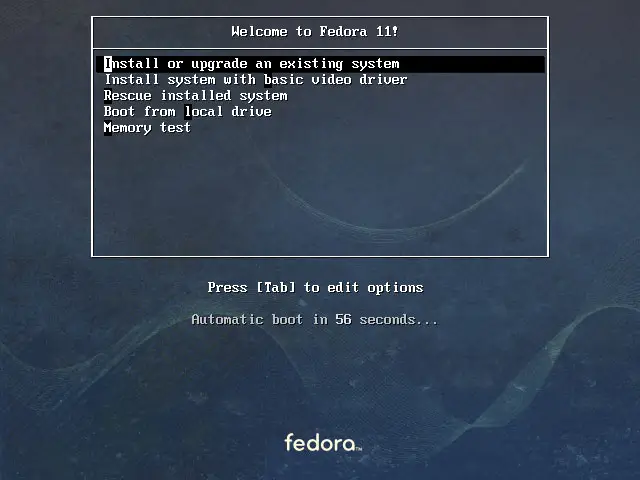

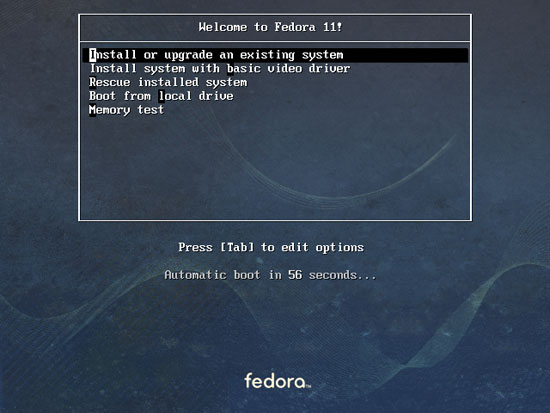

Boot from your Fedora 11 DVD. Select Install or upgrade an existing system:

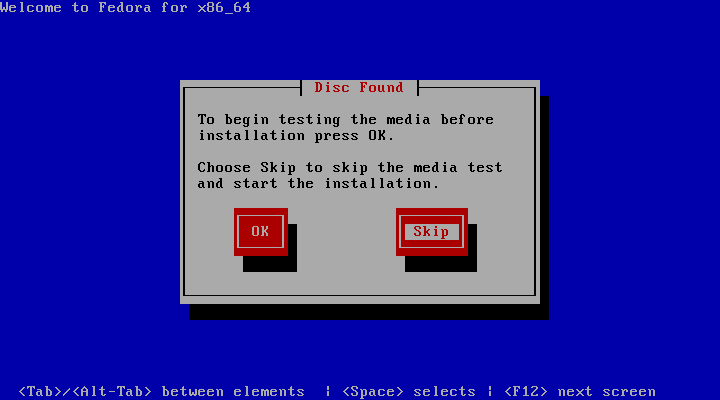

It can take a long time to test the installation media so we skip this test here:

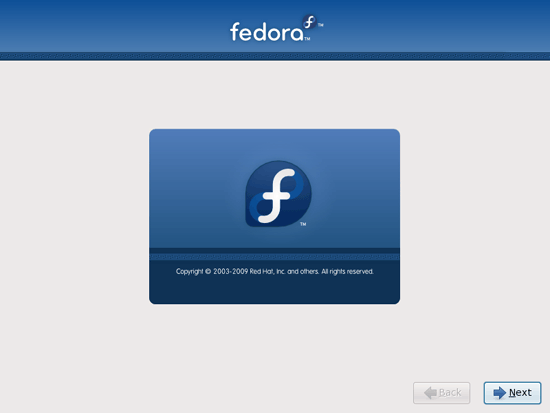

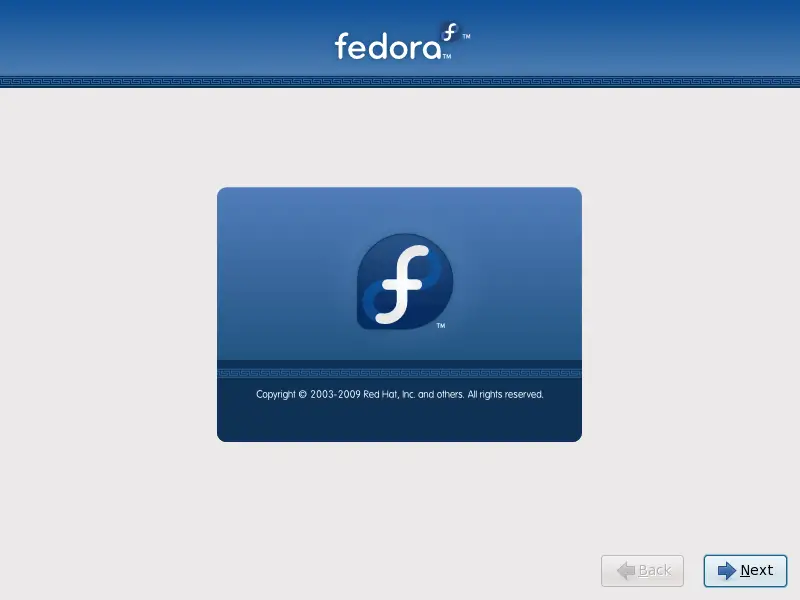

The welcome screen of the Fedora installer appears. Click on Next:

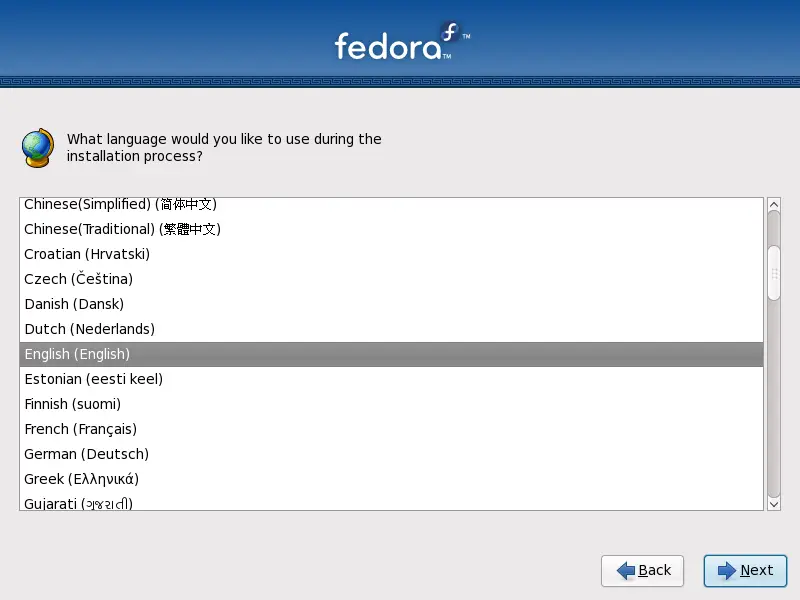

Choose your language next:

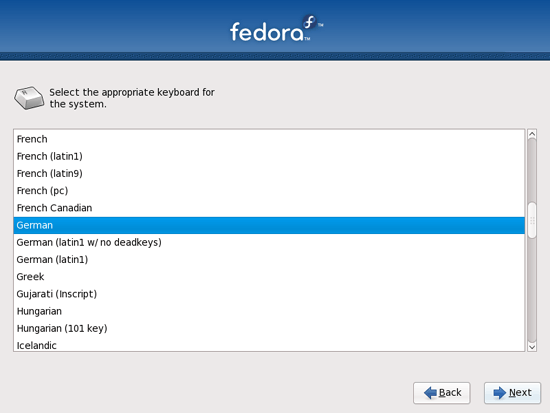

Select your keyboard layout:

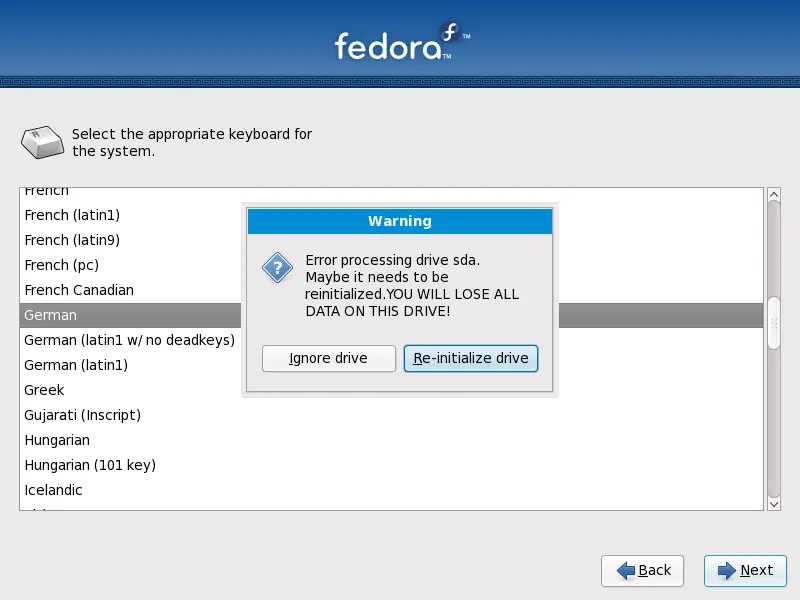

If you see the following message (Error processing drive sda. Maybe it needs to be reinitialized. YOU WILL LOSE ALL DATA ON THIS DRIVE!), please click on Re-initialize drive:

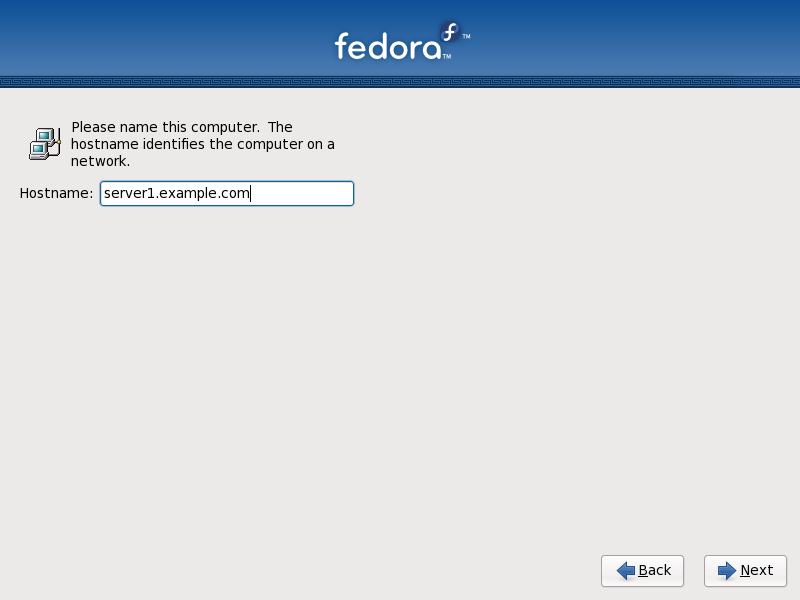

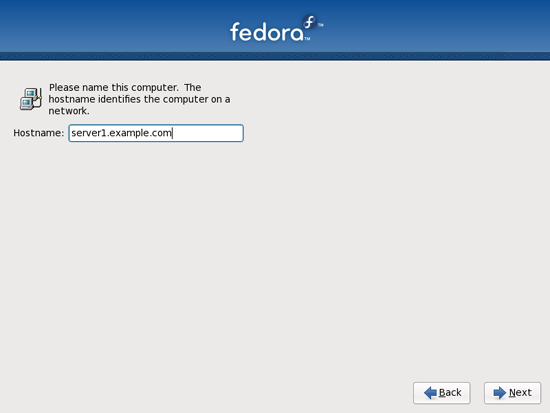

Fill in the hostname of the server:

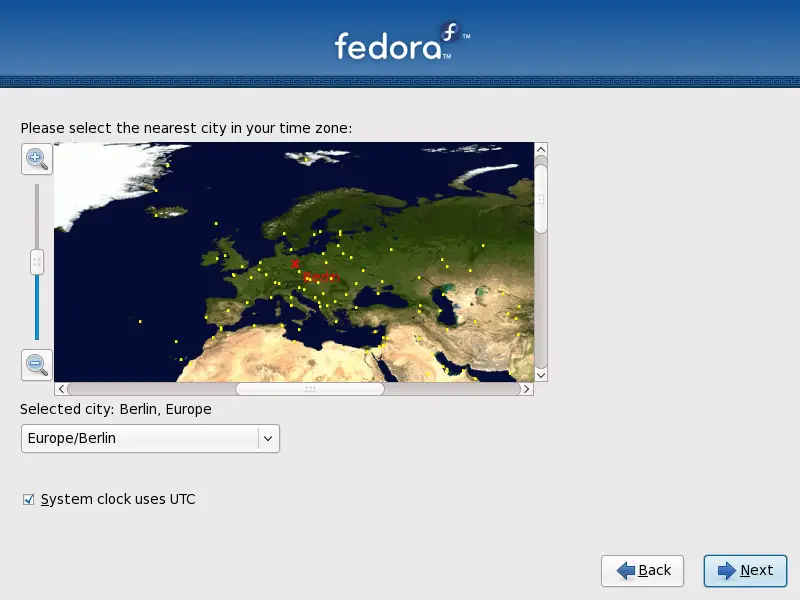

Choose your time zone:

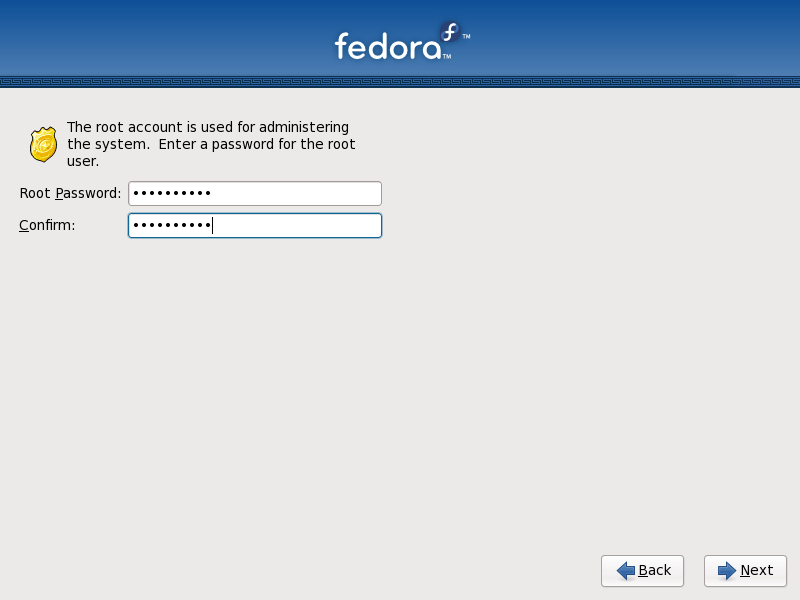

Give root a password:

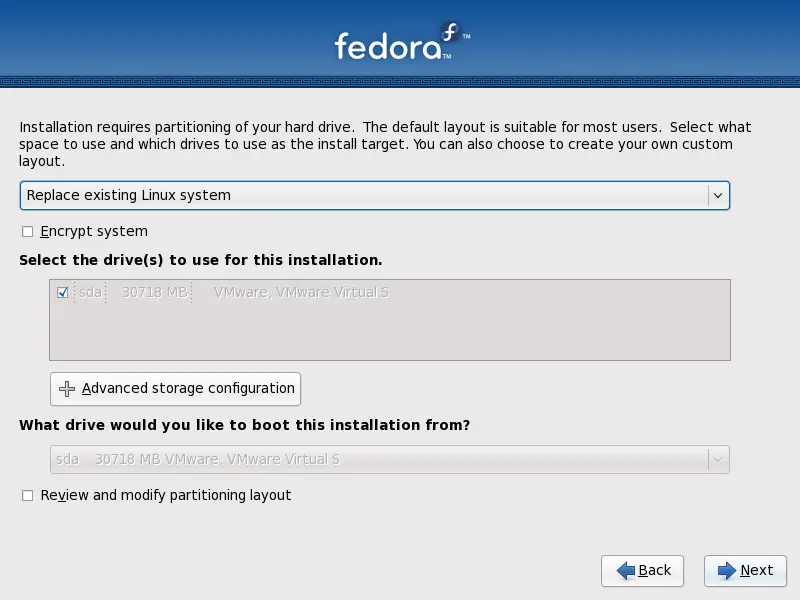

Next we do the partitioning. Select Replace existing Linux system. This will give you a small /boot partition and a large / partition which is fine for our purposes:

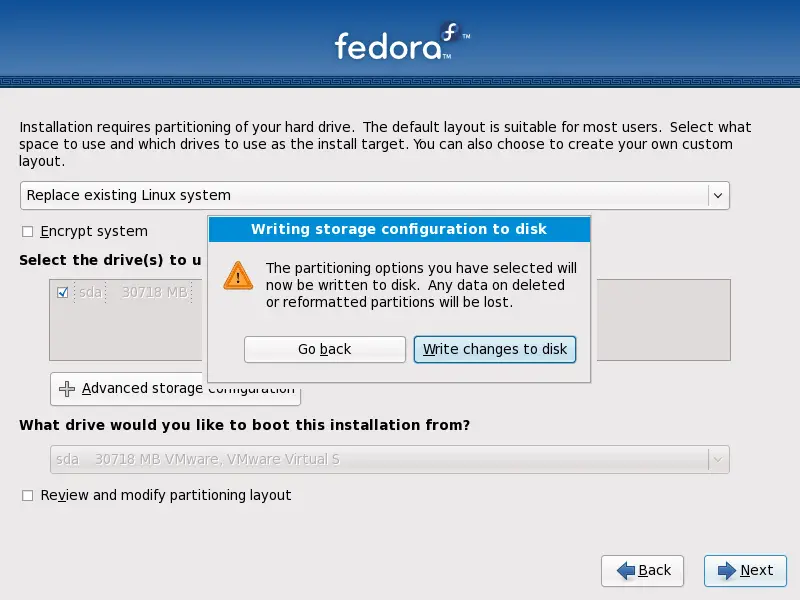

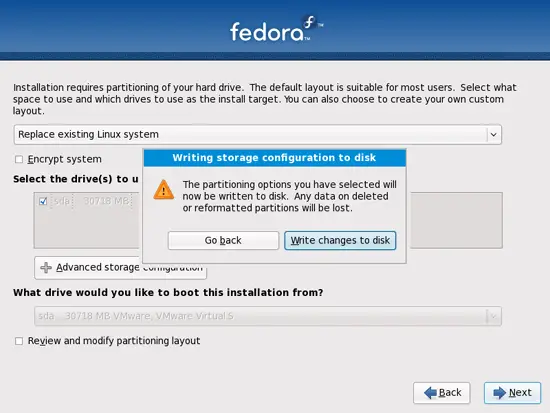

Select Write changes to disk:

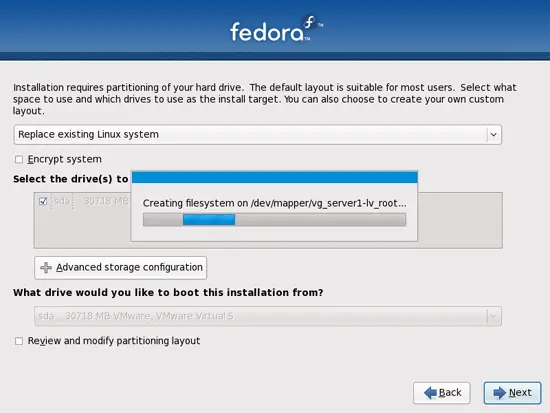

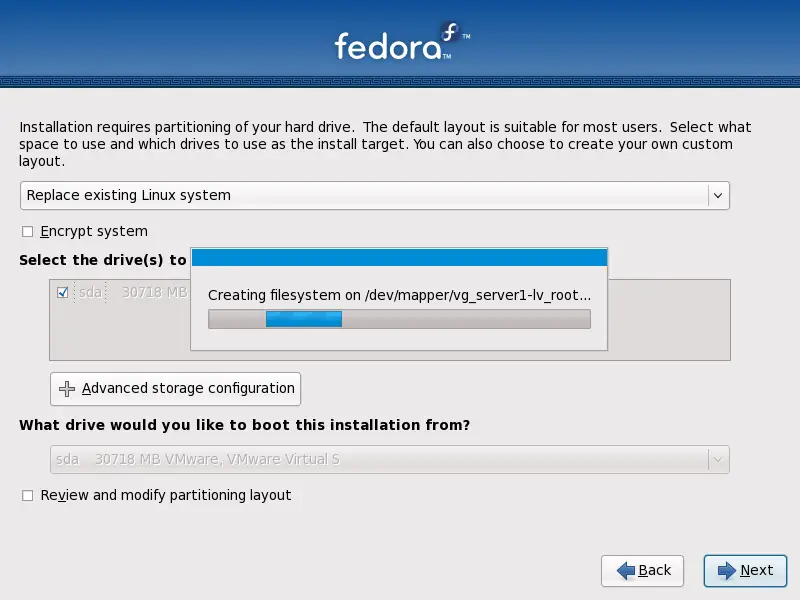

The hard drive is being formatted:
