The Perfect Server - CentOS 6.3 x86_64 (Apache2, Courier, ISPConfig 3)

Version 1.0
Author: Falko Timme
Follow me on Twitter
Last edited 07/11/2012

This tutorial shows how to prepare a CentOS 6.3 x86_64 server for the installation of ISPConfig 3, and how to install ISPConfig 3. ISPConfig 3 is a webhosting control panel that allows you to configure the following services through a web browser: Apache web server, Postfix mail server, MySQL, BIND nameserver, PureFTPd, SpamAssassin, ClamAV, Mailman, and many more. Since version 3.0.4, ISPConfig comes with full support for the nginx web server in addition to Apache; this tutorial covers the setup of a server that uses Apache, not nginx.

Please note that this setup does not work for ISPConfig 2! It is valid for ISPConfig 3 only!

I do not issue any guarantee that this will work for you!



1 Requirements

To install such a system you will need the following:



2 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.100 and the gateway 192.168.0.1. These settings might differ for you, so you have to replace them where appropriate.



3 Install The Base System

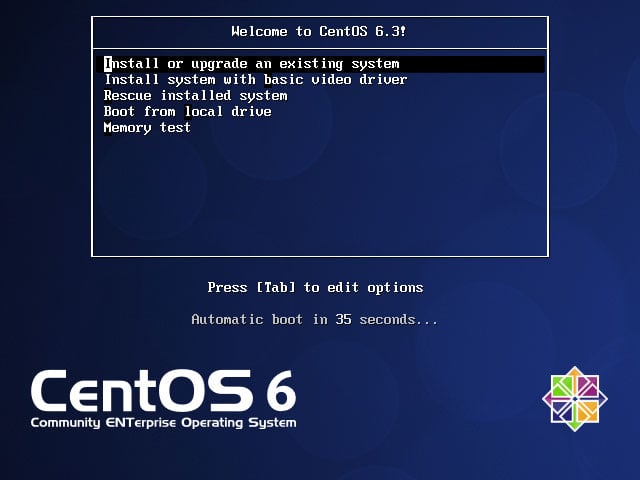

Boot from your first CentOS 6.3 DVD (DVD 1). Select Install or upgrade an existing system:

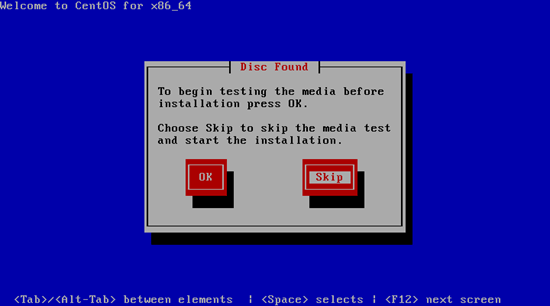

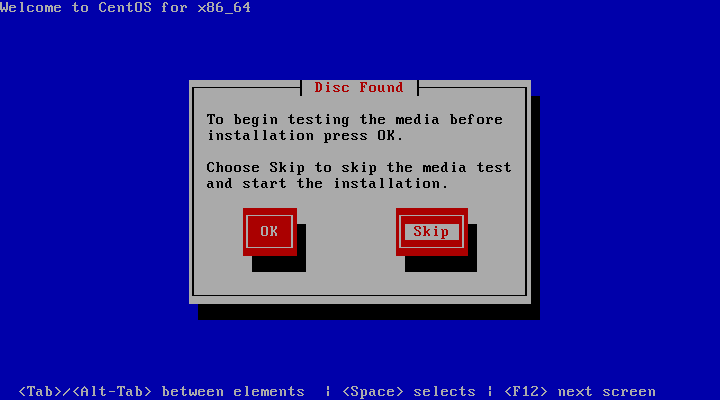

It can take a long time to test the installation media so we skip this test here:

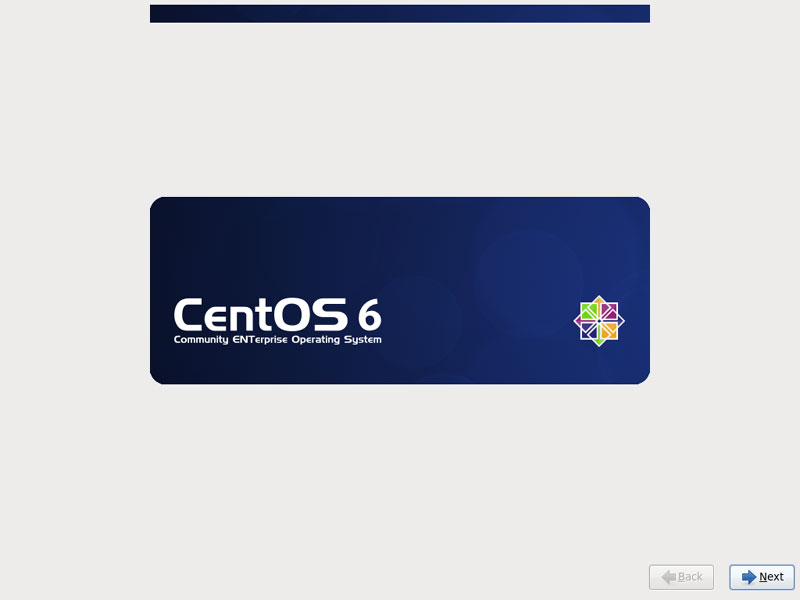

The welcome screen of the CentOS installer appears. Click on Next:

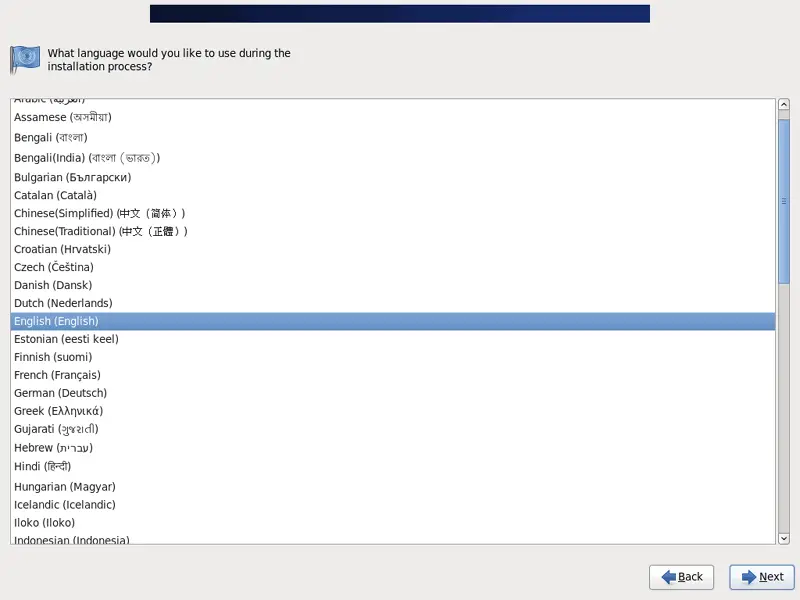

Choose your language next:

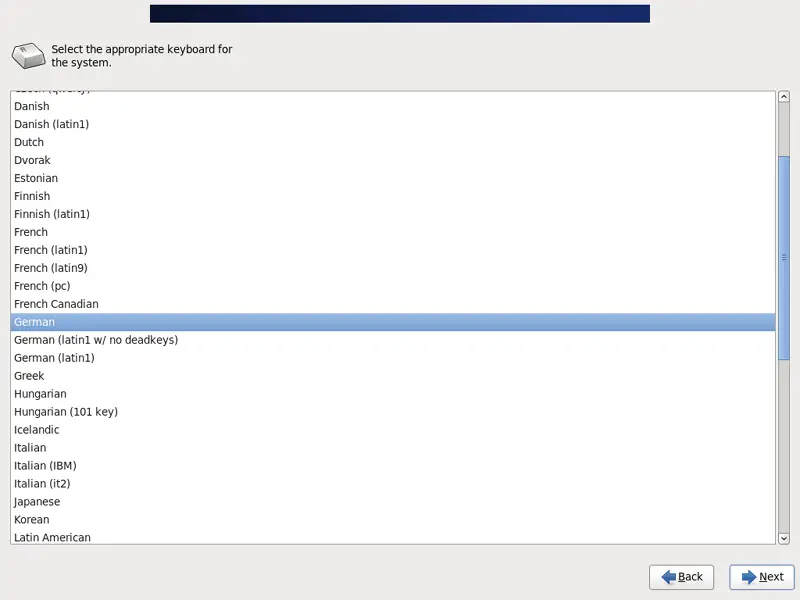

Select your keyboard layout:

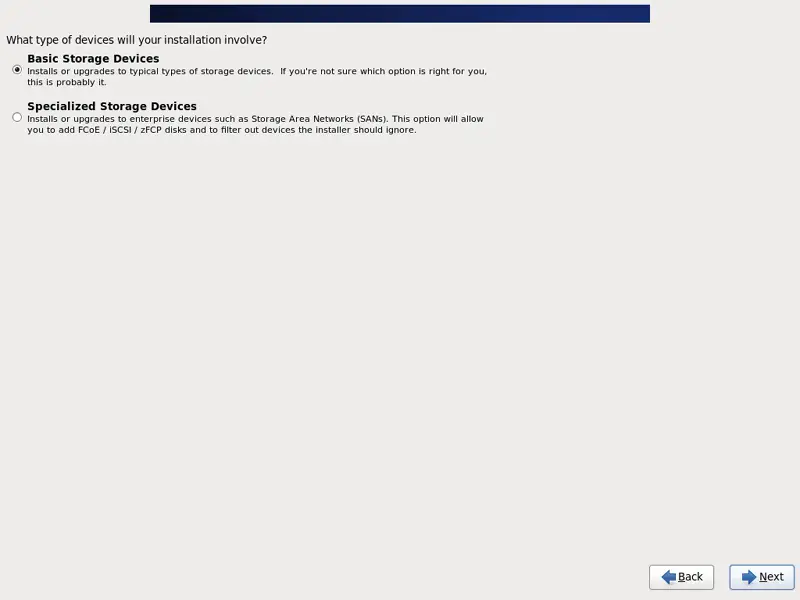

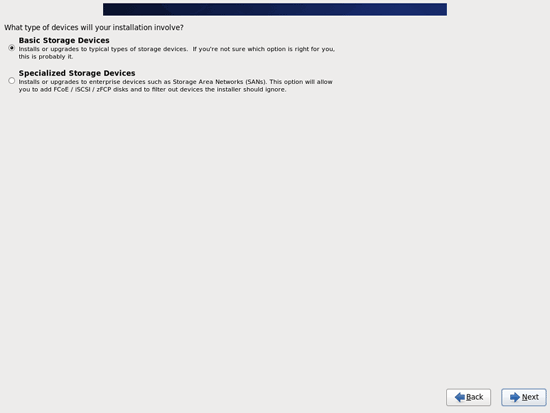

I assume that you use a locally attached hard drive, so you should select Basic Storage Devices here:

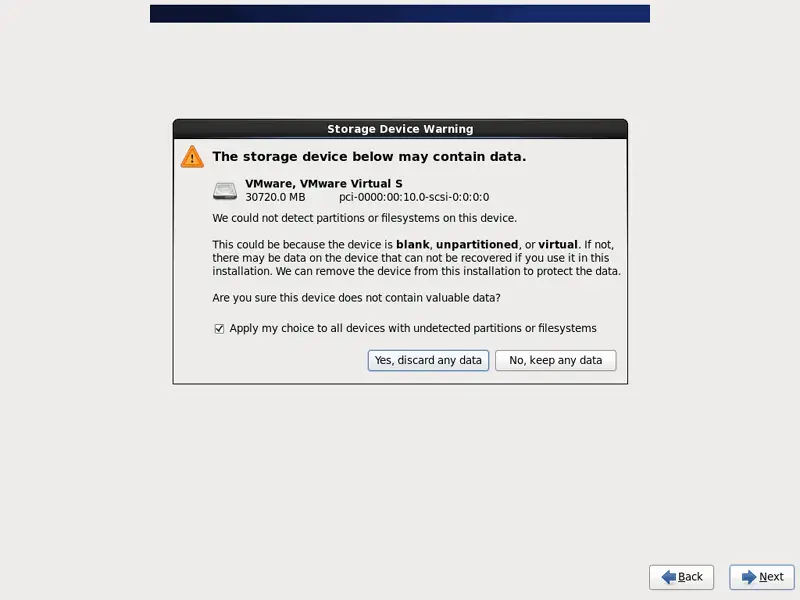

You might see the following warning - Error processing drive. If you see this click on the Re-initialize all button to proceed:

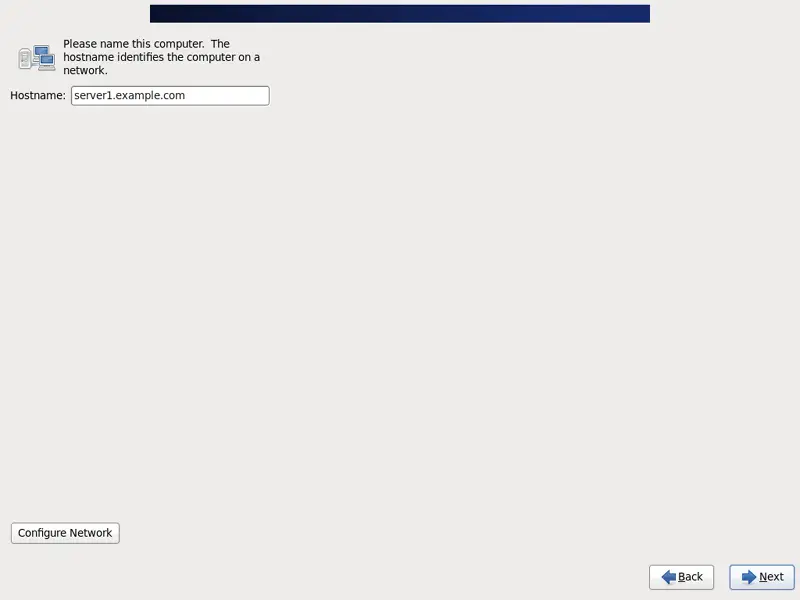

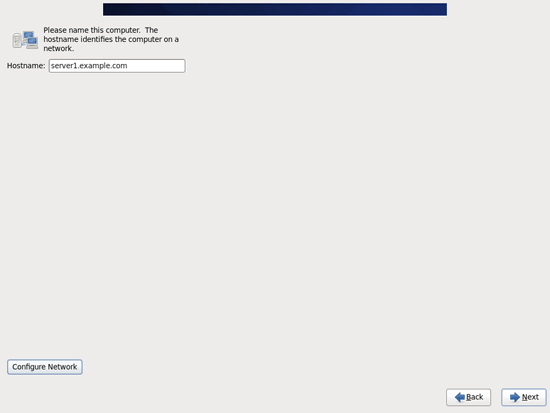

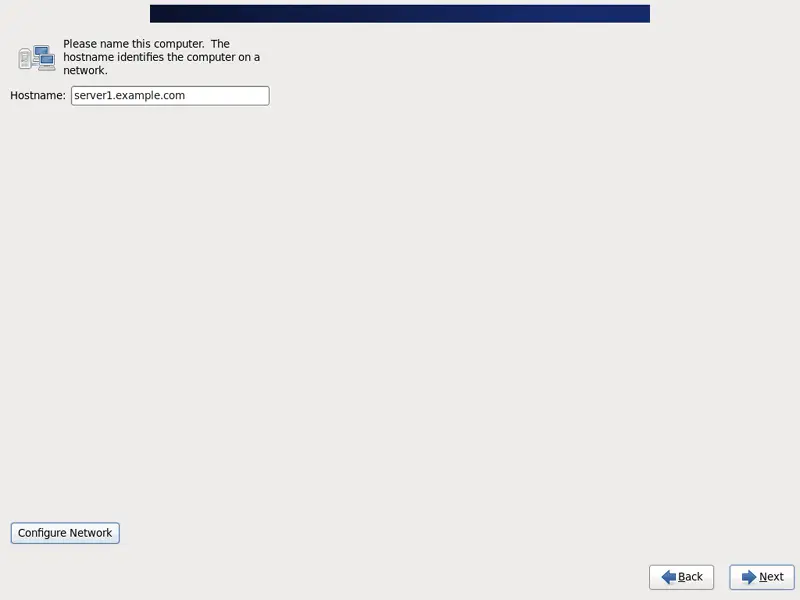

Fill in the hostname of the server (e.g. server1.example.com), then click on the Configure Network button:

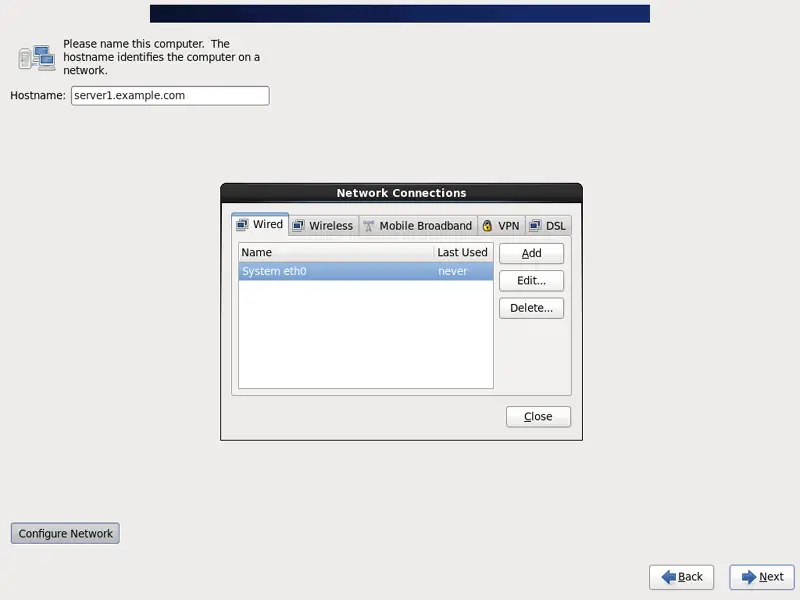

Go to the Wired tab, select the network interface (probably eth0) and click on Edit...:

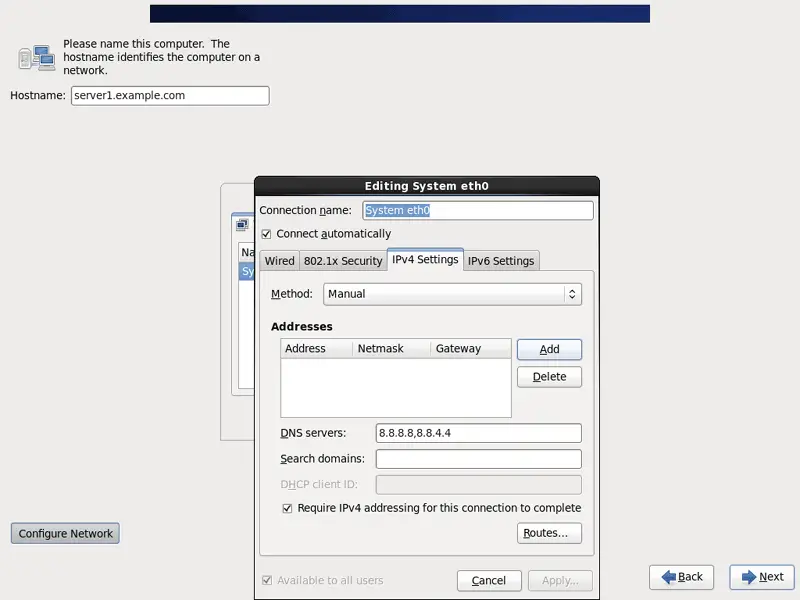

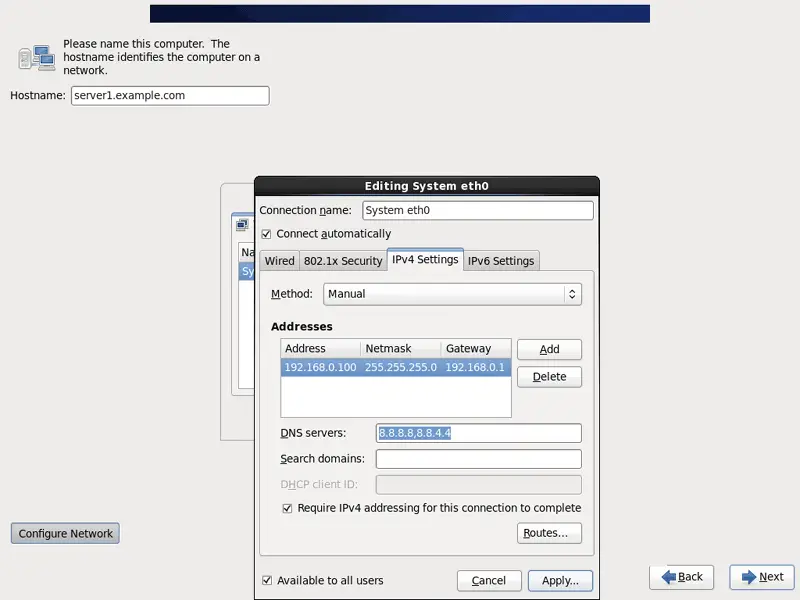

Mark the Connect automatically checkbox and go to the IPv4 Settings tab and select Manual in the Method drop-down menu. Fill in one, two, or three nameservers (separated by comma) in the DNS servers field (e.g. 8.8.8.8,8.8.4.4), then click on the Add button next to the Addresses area:

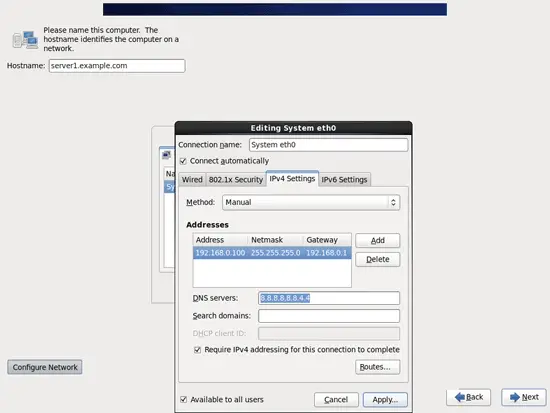

Now give your network card a static IP address and netmask (in this tutorial I'm using the IP address 192.168.0.100 and netmask 255.255.255.0 for demonstration purposes; if you are not sure about the right values, http://www.subnetmask.info might help you). Also fill in your gateway (e.g. 192.168.0.1) and click on the Apply... button:

The network configuration is now finished. Click on the Next button:

Share this page:

23 Comment(s)

Add comment

Comments

From: at: 2013-01-17 18:01:28

Can this process be used to install ISPConfig 3 on CentOS 6 32bit versions?

Please Reply!

From: oakleeman at: 2012-09-20 19:00:38

Heads up that if your HDD is bigger than 50GB or so in size the CentOS 6.3 install will create a 45GB or so / partition and then setup the rest as /home. If this isn't what you want then check the box to review the partitioning layout and delete the /home lv and increase the size of the / lv.

This bites me in the rear every time I follow Falko's guides for CentOS 6 and forget about the partition issue until I get to the step for editing fstab for quota...then I have to delete the VM hard-disk and start over since that is faster for me then extending the lv.

From: Dizfunkshunal at: 2013-01-10 20:33:03

change

epel-release-6-7.noarch.rpm  all instances

to

epel-release-6-8.noarch.rpm

From: ally at: 2013-07-20 13:20:18

Also if installing on OpenVZ it's a different process for enabling quotas. Has to be enabled by the sys admin or hardware node admin for  your container.

From: Emo at: 2014-03-08 09:22:15

its now https:// , http:// is not working anymore.

From: Payne at: 2013-10-21 01:26:33

Another note, in order to get the RepoForge repositories to work correctly (in step 7) I had to follow instructions on the following link:

http://wiki.centos.org/AdditionalResources/Repositories/RPMForge#head-f0c3ecee3dbb407e4eed79a56ec0ae92d1398e01

Hope that helps!



From: admin at: 2012-07-28 07:54:01

It's no mistake - the tutorial is working for me exactly as written.

From: Anonymous at: 2012-07-27 16:02:29

After the build process, the rpm packages can be found in $HOME/rpm/RPMS/x86_64 ($HOME/rpm/RPMS/i686 if you are on an i686 system):

has to correct in

After the build process, the rpm packages can be found in $HOME/rpmbuild/RPMS/x86_64 ($HOME/rpmbuild/RPMS/i686 if you are on an i686 system):

Thnx

From: Mike at: 2012-11-24 14:24:13

Postfix would not receive incoming emails or respond to telnet into port 25.  The maillog showed:

fatal : no SASL authentication method available

The fix was to install missing package cyrus-sasl-plain:

yum install cyrus-sasl-plain

After restarting postfix, incoming emails started to arrive.

From: at: 2013-03-03 22:45:47

Just something of note here:

Courier by default will limit the number of connections per ip to 4.  Most email clients use 5 connections per email account.  See the problem?

Make sure to just update this now to get it out of the way so you aren't wondering later why you can't connect to your IMAP account and start blaming ISPConfig for it

What value should you use for max connections per ip?

Generally speaking, for the ip with the most email accounts:

MAXPERIP = MAX_NUMBER_OF_EMAIL_ACCOUNTS * 5

Then you can just update the config and restart courier and you'll never have to worry about this later (unless the max number of email accounts for an ip increases)

TIP:  If you have your mail setup on your phone and ipad and both are using the same internet ip as your laptop you now have 3 email clients per account instead of just 1.  Either turn off your mail at home on your phone/ipad or increase your MAXPERIP to compensate.

I like to use 105 for my default MAXPERIP (7 accounts per ip, 3 devices per account):

sed -i 's/MAXPERIP=4/MAXPERIP=105/g' /usr/lib/courier-imap/etc/imapd
service courier-imap restart

From: r4faga at: 2012-09-04 23:06:07

when i try to do make on suphp, there is make it a error. And dont install.

g++ -DOPT_CONFIGFILE=\"/etc/suphp.conf\" -g -O2 -o suphp API.o API_Helper.o API_Linux.o API_Linux_Logger.o Application.o CommandLine.o Configuration.o Environment.o Exception.o File.o GroupInfo.o IOException.o IniFile.o IniSection.o KeyNotFoundException.o Logger.o LookupException.o OutOfRangeException.o PathMatcher.o ParsingException.o PointerException.o SecurityException.o SoftException.o SystemException.o UserInfo.o Util.o
make[3]: se sale del directorio `/tmp/suphp-0.7.1/src'
make[2]: se sale del directorio `/tmp/suphp-0.7.1/src'
make[1]: se sale del directorio `/tmp/suphp-0.7.1/src'
make[1]: se ingresa al directorio `/tmp/suphp-0.7.1'
make[1]: No se hace nada para `all-am'.
make[1]: se sale del directorio `/tmp/suphp-0.7.1'

From: Martin at: 2012-09-27 09:33:22

You ask us to remove original init script from rc.* and add

clamd.amavisd

 however there is no such file included (Centos 5.3 following every step to my knowledge)



From: at: 2012-12-05 19:02:04

i had 2 installations were i had to

 cp /etc/awstats/awstats.model.conf /etc/awstats/awstats.conf

for awstats to work. info @ http://www.howtoforge.com/forums/showthread.php?t=35485&page=8

From: JNPerez at: 2013-04-25 15:46:24

the link for the mod_ruby-1.3.0.tar.gz is down... Use this mirror http://ftp.riken.go.jp/pub/FreeBSD/distfiles/ruby/mod_ruby-1.3.0.tar.gz


 :D



From: at: 2013-05-27 23:04:36

Make sure you do not leave /etc/named.conf unconfigured.   By default you are offering recursive name service to the whole world.   You'll notice this one day when you run top and see named using up 50%+ CPU because some bots are using your Bind for DNS DDoS attacks.   Rather than leave the configuration file as the default, at very least update it to the following to protect yourself, your clients, and the victims:

include "/etc/rndc.key";

controls {
        inet 127.0.0.1 allow { localhost; } keys { "rndc-key"; };
};

//
// named.conf for Red Hat caching-nameserver
//

acl "trusted" {
        127.0.0.1;
};

options {
        directory "/var/named";
        dump-file "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        allow-recursion { trusted; };
        allow-notify { trusted; };
        allow-transfer { trusted; };
        forwarders { 127.0.0.1; };
};

Above config found at: http://forum.codecall.net/topic/47953-check-etcnamedconf-for-recursion-restrictions/

From: Alex at: 2012-10-11 16:05:11

Hi

I am in  vi   /etc/aliases file and try to add what it says , but I can't write pipe key  after



mailman:    "



could anyone can tell me how to enter pipe key  in vi editor?



thanks

Alex



From: at: 2013-06-19 08:24:34

Hello,

I get this error when I try to login to webmail;  ERROR: Connection dropped by IMAP server..



The problem is resolved.  I had not installed ISPConfig yet when I tried to access and check the mail server.  After I installed the ISPConfig, I was able to connect, send and receive mail.

From: sth at: 2014-06-15 06:14:16

I have followed the instructions as per the instructions for  "Perfect Server - Centros 6.3 x 86_64...:

Apart from a hiccup in find in the  "mod_ruby" file (eventually found one at another site) all appears to have gone well except that I do not appear to be able to run Firefox.

It seems that Firefox was not installed as part of the "Basic Server" set up when Centros was installed and indicated on page two of the instructions.  ANy way Firefox is easy enough to install.  However, when I try to start Firefox either as root or the user I get a message

cannot open display: :0

 Have tried    export DISPLAY=:0   with no result

Have installed xorg.x11-server-utils     An sill get no result.



Any one any ideas as to how to fix this and be able to run Fix so I can check the Webmail asn WEB Admis screens as shown in the instructions?



Thanks


From: at: 2012-07-31 15:44:13

After all check, if bastille-firewall works:

iptables -L

If not, You can start it by typing:

/etc/init.d/bastille-firewall start

and configure:

chkconfig --levels 235 bastille-firewall on

Now, You can check firewall again:

iptables -L

On all of my servers configured with the articles "CentOS/ISPC3 Perfect Server": 5.7, 6.0, 6.2, 6.3 from howtoforge.com, never Bastille firewall start automatically.

From: hb at: 2012-10-11 15:37:41

we just us one, so why should be download two DVDs ?

From: at: 2013-03-19 03:42:45

in the end when this is all set up and working for the most part, I have one problem.



Basically ftp into the correct area, then when trying to browse to the page it runs some cached version rather than the actual file that's been uploaded.  This has nothing to do with the client side cache as I've tried it on at least 5-10 machines which have never even been to the domain :(

 ANY help would be sincerely appreciated.

From: Anonymous at: 2013-08-06 18:52:54

after a fair bit of prodding I fixed this myself.

basically in ispconfig 3 it was a small tweak.

From: Ergec at: 2013-06-26 16:30:12

Let say we have a solid network, only one website on the server and we ignore the security weakness of the php code.

 How secure is this particulat setup for direct attacks? Of course there is no immune system but is it solid enough to serve an important website?
