Monitoring Network Latency With Smokeping (Ubuntu 9.04)

Version 1.0
Author: Falko Timme
Follow me on Twitter

This guide shows how to install and configure Smokeping on Ubuntu 9.04 to monitor network latency. From the Smokeping web site: "SmokePing is a deluxe latency measurement tool. It can measure, store and display latency, latency distribution and packet loss. SmokePing uses RRDtool to maintain a longterm data-store and to draw pretty graphs, giving up to the minute information on the state of each network connection."

This document comes without warranty of any kind! I do not issue any guarantee that this will work for you!



1 Preliminary Note

I have tested this on an Ubuntu 9.04 system. I will use the hostname www.example.com for this system in this tutorial. We need a web server on the system to display the graphs. I will install Apache2 and use Apache's default vhost for hosting the graphs. If you use a different vhost, you might have to adjust its settings or copy the smokeping.cgi script from /usr/lib/cgi-bin/smokeping.cgi to the appropriate location.

I'm running all the steps in this tutorial with root privileges, so make sure you're logged in as root:

sudo su



2 Installing Smokeping

To install Smokeping along with some other recommended packages, we simply run:

aptitude install smokeping curl libauthen-radius-perl libnet-ldap-perl libnet-dns-perl libio-socket-ssl-perl libnet-telnet-perl libsocket6-perl libio-socket-inet6-perl apache2



3 Configuring Smokeping

The Smokeping configuration is in the file /etc/smokeping/config. This file just includes some other files from the /etc/smokeping/config.d directory so we have to modify these files. First we modify /etc/smokeping/config.d/General. In this file, you find some email settings and the URL of the Smokeping web interface. Change them like this:

vi /etc/smokeping/config.d/General
*** General ***

@include /etc/smokeping/config.d/pathnames

# Please edit this to suit your installation
owner    = Falko Timme
contact  = [email protected]
cgiurl   = http://www.example.com/cgi-bin/smokeping.cgi
mailhost = smtp.example.com
# specify this to get syslog logging
syslogfacility = local0
# each probe is now run in its own process
# disable this to revert to the old behaviour
# concurrentprobes = no

(Make sure that mailhost contains the primary MX for your email domain!)

Open /etc/smokeping/config.d/Alerts and set the correct to and from addresses for emails sent by Smokeping:

vi /etc/smokeping/config.d/Alerts
*** Alerts ***
to = [email protected]
from = [email protected]
[...]

Next open /etc/smokeping/config.d/Targets. In this file, you find the remark line. Modify it to your likings:

vi /etc/smokeping/config.d/Targets
[...]
remark = Welcome to the SmokePing website of 'Example Company'
[...]



3.1 Basic Example

We will now do a basic configuration to measure the network latency to certain servers in various countries (e.g. Germany, UK, USA). In this example, I'm going to test the network connection to the servers www.heise.de (Germany), bbc.co.uk (UK), and web.mit.edu (USA). You should choose different servers to avoid a DOS!

Open /etc/smokeping/config.d/Targets again:

vi /etc/smokeping/config.d/Targets

At the end of this file, you should see this:

[...]
+ Local

menu = Local
title = Local Network

++ LocalMachine

menu = Local Machine
title = This host
host = localhost

Add the following lines to the file:

[...]
+ World

menu = World
title = World

++ Europe

menu = Europe
title =European Connectivity

+++ Germany

menu = Germany
title = German Connectivity
alerts = bigloss,someloss,startloss

++++ Heise

menu = Heise
title = Heise
host = www.heise.de

+++ UK

menu = United Kingdom
title = United Kingdom

++++ BBC

menu = BBC
title = BBC
host = bbc.co.uk

++ USA

menu = North America
title =North American Connectivity

+++ MIT

menu = MIT
title = Massachusetts Institute of Technology Webserver
host = web.mit.edu

Save your changes and restart Smokeping:

/etc/init.d/smokeping restart

Smokeping will now probe the servers by pinging them (by using /usr/bin/fping) - this is the default test.

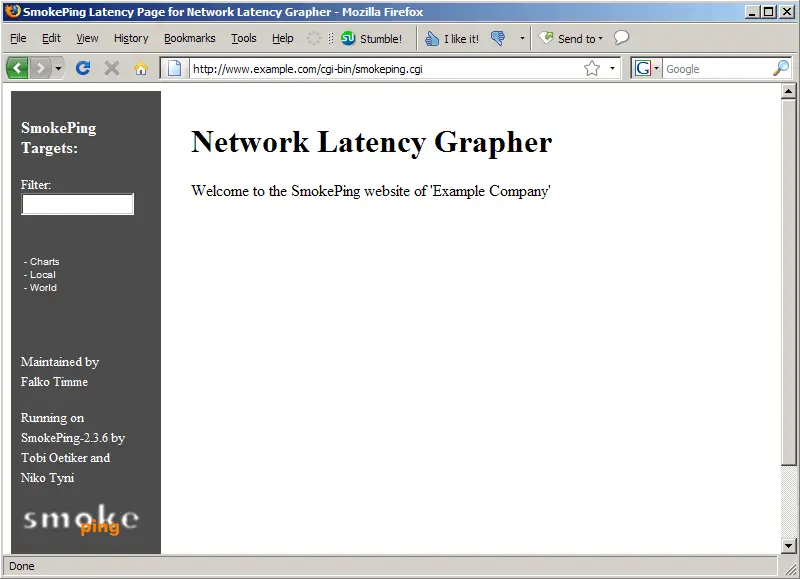

Now open a web browser and go to http://www.example.com/cgi-bin/smokeping.cgi. This is the start page:

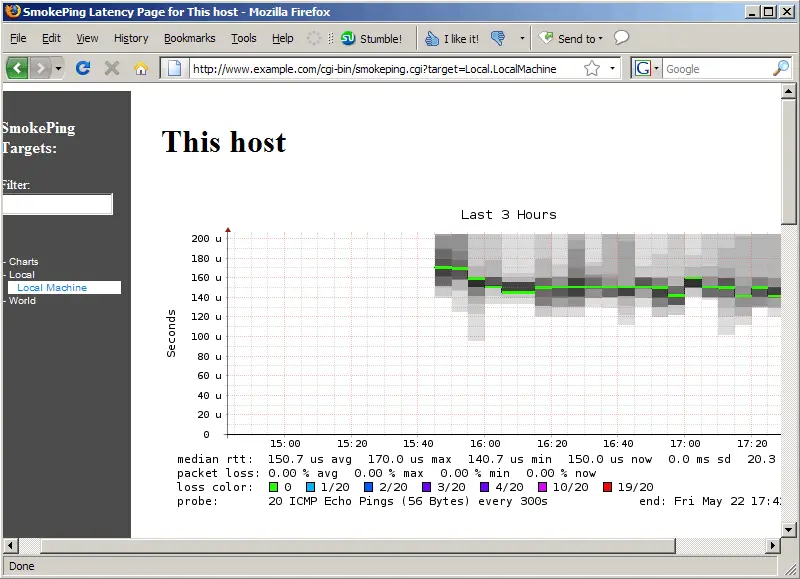

After a few minutes you should see the first graphs. This is how the latency of localhost looks (which is configured by default in /etc/smokeping/config.d/Targets unless you changed that):

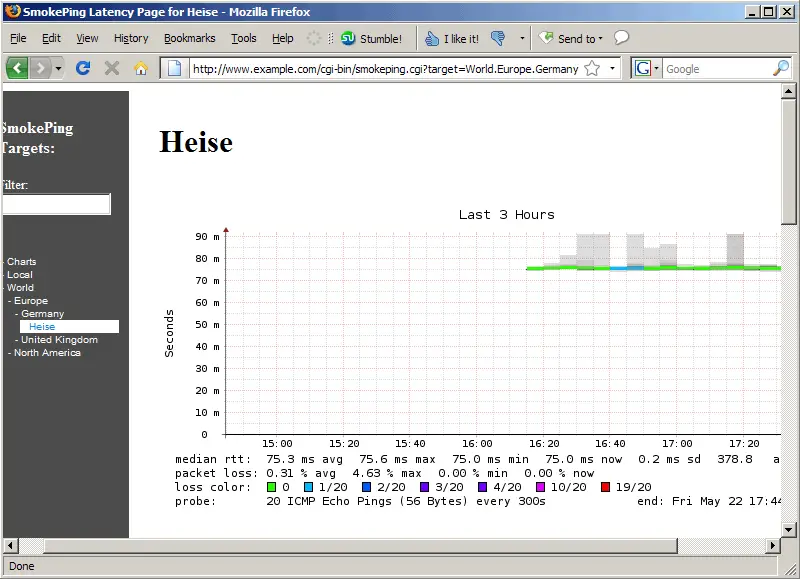

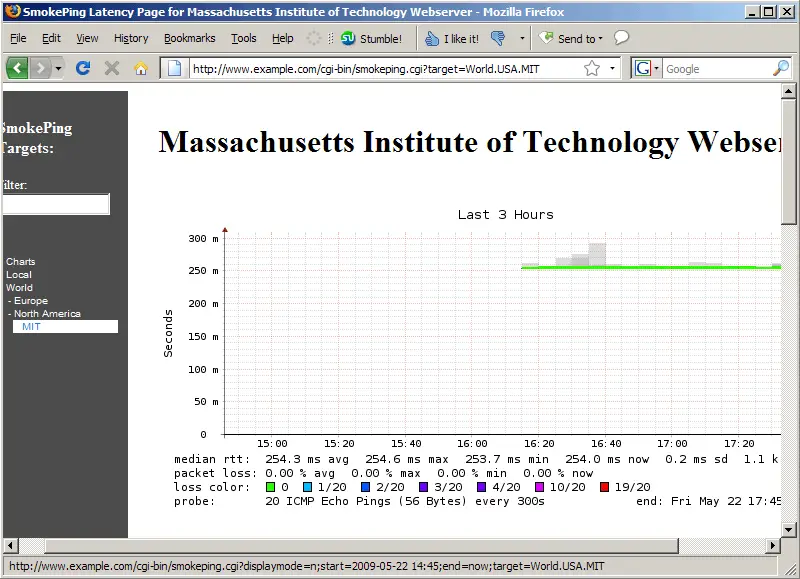

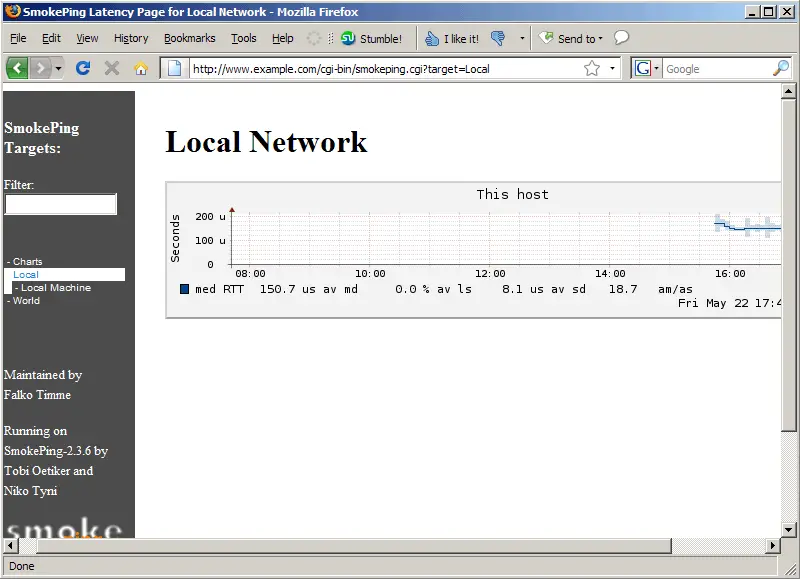

In the menu on the left side we can now go to the countries/servers that we configured earlier and take a look at their graphs:

Share this page:

8 Comment(s)

Add comment

Please register in our forum first to comment.

Comments

By: VJ

Thank you for the informative Smokeping setup guide.

I followed these steps on an Ubuntu machine, and when I apply "/etc/init.d/smokeping restart", get the following error message:

 * Shutting down latency logger daemon smokeping                         [ OK ]  * Starting latency logger daemon smokeping

ERROR: /etc/smokeping/config.d/Targets, line 3: unknown variable 'menu'

My Targets file is simple as follows:

+ Internationalmenu = International serverstitle = International servers++ Yahoomenu = Yahootitle = Yahoohost = www.yahoo.com

Any tips to overcome the error message?



By: Lars

Thx for the informative post.



If u get and sendmail does not exist error, try installing sendmail.

apt-get install sendmail

By: Sebastian Quintero

Excellent tutorial but I have a problem.



When you open the page www.example.com/cgi-bin/smokeping.cgi SmokePing the web interface does not appear.



What should I do ?



Thank you.

By: Lii

Thank you for the informative smokeping setup guide. I would to ask you, how to read smokeping graph to get a latency and packet loss? and how to measure it?I've smokeping in my office but i couldn't representation this information to my report cz i couldnt read information in smokeping.

By: Dax Mickelson

 I encountered a similar issue.  My webserver cannot find the CGI script.

<snip>

The requested URL /cgi-bin/smokeping.cgi was not found on this server.

</snip>



The Apache access.log shows a 404 509 reason and there is no entry in the error.log.



BTW, without your tutorial I'd NEVER had gotten this far.  The source documentation is attrocious!

By: Dax Mickelson

I solved my issue.  I needed to run the command "sudo a2enmod cgi".

By: Dax Mickelson

I've encountered a new issue.  The images in the smokeping webpage don't render.  I've checked the cgiurl, pathnames, and other variables and they all appear to be pointing to the correct spot (/var/cache/smokeping/images).  I even see PNG files in that location!  But apache gives a 404 error.  Thoughts?

By: Dax Mickelson

Found the solution.  Sorry to spam your comments but I'm learning how to fix this as I go along.  From http://blog.dical.org/2015/06/step-by-step-guide-to-installing-smokeping-on-ubuntu-14-04-lts/ I learned that I needed to also modify the /etc/apache2/conf-available/serve-cgi-bin.conf file and add a new section.  (See step 5 in the URL I have listed here for details.)
