iRedMail 0.7.0: Open Source Mail Server With Postfix, Dovecot, Amavisd, ClamAV, SpamAssassin, RoundCube (OpenSuSE 11.4)

iRedMail 0.7.0: Open Source Mail Server With Postfix, Dovecot, Amavisd, ClamAV, SpamAssassin, RoundCube, iRedAdmin On OpenSuSE 11.4

Last edited 03/31/2011

iRedMail is a shell script that lets you quickly deploy a full-featured mail solution in less than 2 minutes. Its object is to make a Linux mail server installation and configuration simple, painless and easy to use.

Most components used in iRedMail are provided by Linux distributions officially. It means that iRedMail users can get software update support for as long as the the distribution is supported. Since version 0.7.0, iRedMail supports OpenSuSE (it supports both i386 and x86_64). iRedMail supports both OpenLDAP and MySQL as backends for storing virtual domains and users. This tutorial shows how to use the OpenLDAP backend on OpenSuSE 11.4.

Now iRedmail provides RoundCube as webmail, and support MySQL and OpenLDAP and can change passwords and set vacation messages.

The iRedMail project was published three years ago on 2007-11-01.

iRedAdmin is iRedMail's official web-based admin panel for the ldap backend. You can use iRedAdmin to manage email accounts (it offers more convenience than phpldapadmin). Right now, iRedAmin supports only LDAP.

Main components used in this solution: http://code.google.com/p/iredmail/wiki/Main_Components
Discussion forum and bug report: http://www.iredmail.org/forum/
iRedmail FAQ: http://www.iredmail.org/faq.html
iRedmail Wiki: http://www.iredmail.org/wiki
Project home page: http://code.google.com/p/iredmail/

1 Requirements

It is strongly recommended to install a minimal OpenSUSE system, and then deploy the mail service via the iRedMail solution. e.g.:

To install such a system you will need the following:

The OpenSUSE 11.4 DVD. You can download it here: http://download.opensuse.org/distribution/11.4/iso/openSUSE-11.4-DVD-x86_64.iso
Internet connection.

2 Preliminary Note

In this tutorial we use:

Hostname: mail.example.com
IP address: 192.168.1.10 (you can set a static IP address through YaST)
LDAP suffix (root dn): dc=example,dc=com
The first virtual domain: example.com

3 Setting The Hostname

No matter if your server is external or internal, it is strongly recommended that you set up a fully qualified domain name (FQDN) hostname.

Verify the FQDN hostname:

hostname -f

mail.example.com

If it doesn't show an FQDN, please set it with YaST.

yast lan

4 Start To Install iRedMail

Download the new version of iredmail, visit the download page to download the official release of iRedMail (it is recommended to use the lastest version):

# wget http://iredmail.googlecode.com/files/iRedMail-0.7.0.tar.bz2
# tar jxvf iRedMail-0.7.0.tar.bz2

Start the iRedMail installer:

# cd iRedMail-0.7.0
# bash iRedMail.sh

Note:

It will add some additional zypper repositories in /etc/zypp/repos.d/iRedMail.repo.
It will download some source packages and install the package "dialog" first.

It will show a basic GUI wizard to help you set up the mail server.

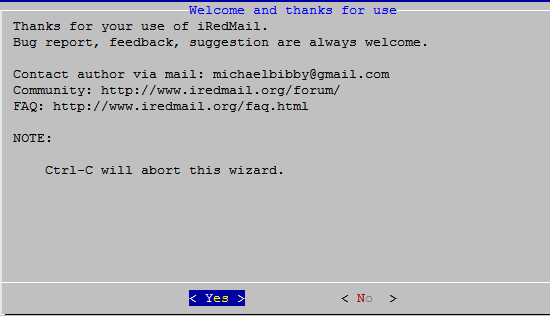

Welcome page:

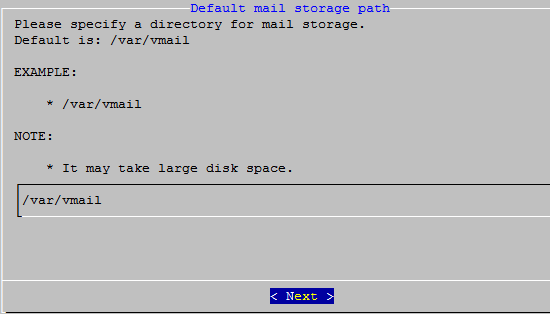

Choose the directory that will be used to store users' mailboxes.

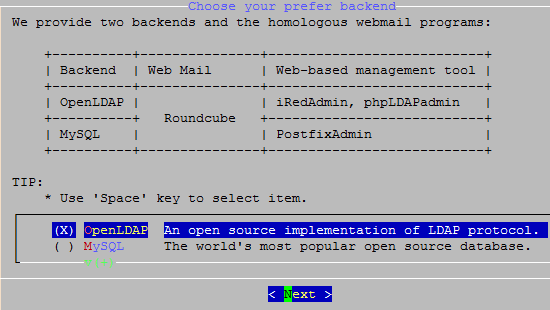

iRedMail supports both OpenLDAP and MySQL as backends to store virtual domains and users. OpenLDAP is recommended.

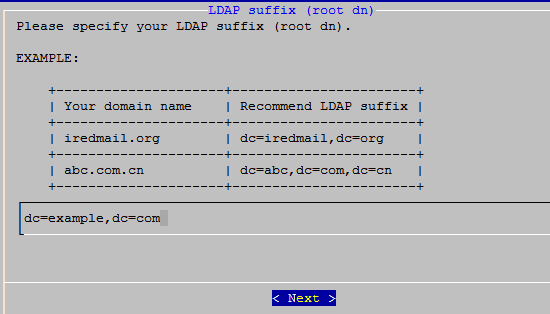

LDAP suffix, normally it's your domain name, such as: dc=example,dc=com:

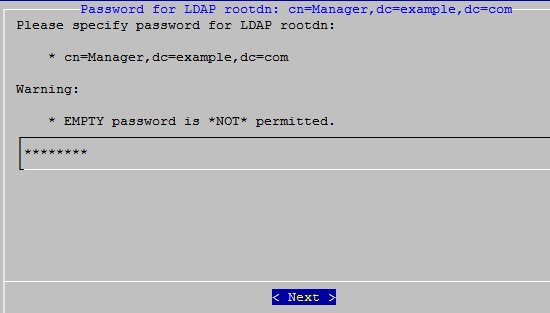

Set password for LDAP server admin: cn=Manager,dc=example,dc=com

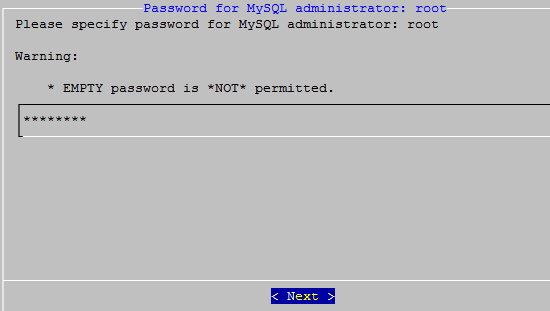

Set the MySQL root password:

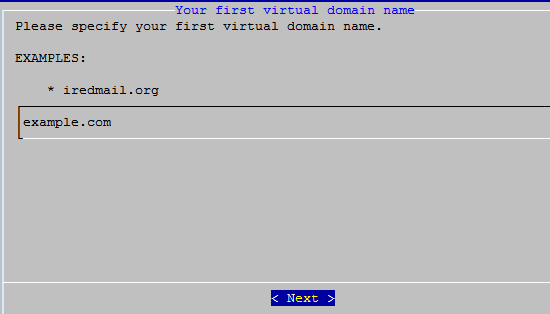

Add your first virtual domain, e.g.:

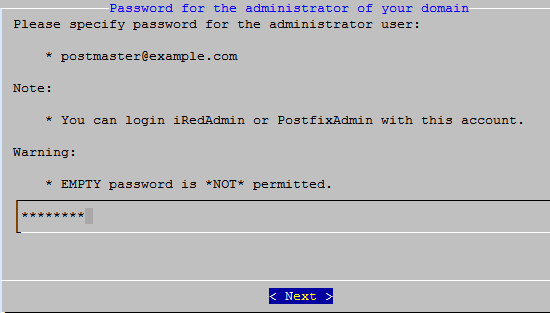

Set password for the virtual domain admin: [email protected], you can log into iRedadmin and Awstats with this account.

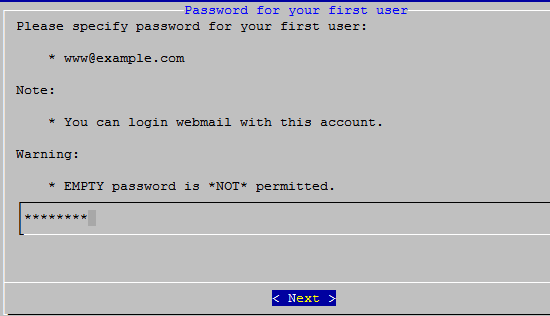

Set password for the first normal user [email protected] for the first virtual domain:

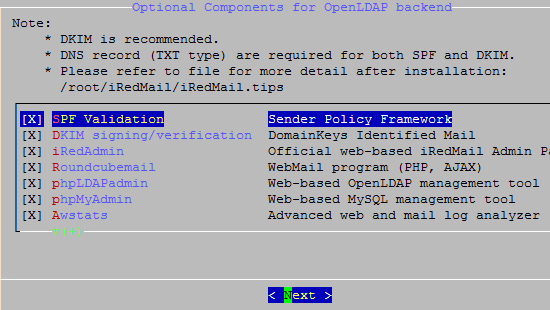

Select optional components:

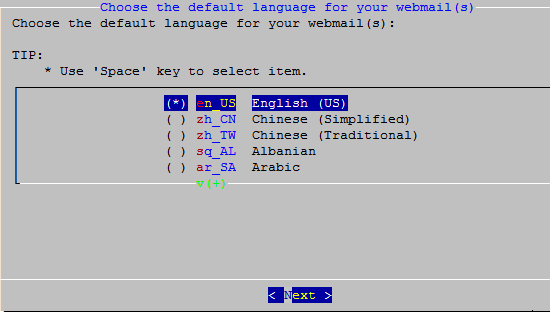

Select the default language for your webmail application:

The configuration is now finished, we can now start the installation:

Configuration completed.

*************************************************************************
***************************** WARNING ***********************************
*************************************************************************
*                                                                       *
* Please do remember to *MOVE* configuration file after installation    *
* completed successfully.                                               *
*                                                                       *
*   * /root/iRedMail-0.7.0-beta2/config
*                                                                       *
*************************************************************************
< INFO > Continue? [Y|n]

Finish the installation:

*************************************************************************
* iRedMail-0.7.0-beta2 installation and configuration complete.
*************************************************************************

< Question > Would you like to use firewall rules shipped within iRedMail now?
< Question > File: /etc/sysconfig/SuSEfirewall2, with SSHD port: 22. [Y|n]
< Question > Restart firewall now (with SSHD port 22)? [y|N]
< INFO > Skip restart firewall.
< Question > Would you like to start postfix now? [y|N]

********************************************************************
* Congratulations, mail server setup complete. Please refer to tip
* file for more information:
*
*   - /root/iRedMail-0.7.0-beta2/iRedMail.tips
*
* And it's sent to your mail account [email protected].
*
* Please reboot your system to enable mail related services or start them
* manually without reboot:
*
*   # for i in syslog  apache2 postfix mysql ldap policyd dovecot
amavis clamd freshclam cron iredapd SuSEfirewall2_setup; do /etc/init.d/${i} restart; done
*
********************************************************************
* URLs of your web applications:
*
* - Webmail: http://mail.example.com/mail/ or httpS://mail.example.com/mail/
*   + Account: [email protected], Password: iredmail
*
* - iRedAdmin: httpS://mail.example.com/iredadmin/
*   + Account: [email protected], Password: iredmail
*
* - phpMyAdmin: httpS://mail.example.com/phpmyadmin/
*   + Accounts:
*       - Name: vmailadmin, Password: SVLVELupAHB2OSqqdKgREwWci1ZZdq
*       - Name: root, Password: iredmail
*
* - phpLDAPadmin: httpS://mail.example.com/phpldapadmin/
*   + Account:
*       - Name (manage mail accounts only): cn=vmailadmin,dc=example,dc=com, Password: 6J5X7Htm8qqes70Bhzl4WHHCbevo13
*       - Name (site-wide manager): cn=Manager,dc=example,dc=com, Password: iredmail
*
* - Awstats:
*   + URLs:
*       - httpS://mail.example.com/awstats/awstats.pl?config=web
*       - httpS://mail.example.com/awstats/awstats.pl?config=smtp
*   + Account: [email protected], Password: iredmail
*
********************************************************************

Restart all the related services:

# for i in syslog apache2 postfix mysql ldap policyd dovecot amavis clamd freshclam cron iredapd SuSEfirewall2_setup; do /etc/init.d/${i} restart; done
