Installing A LAMP System With Fedora Core 6 - Page 5

10 Postfix With SMTP-AUTH And TLS

Now we install Postfix and dovecot (dovecot will be our POP3/IMAP server):

yum install cyrus-sasl cyrus-sasl-devel cyrus-sasl-gssapi cyrus-sasl-md5 cyrus-sasl-plain postfix dovecot

Now we configure SMTP-AUTH and TLS:

postconf -e 'smtpd_sasl_local_domain ='
postconf -e 'smtpd_sasl_auth_enable = yes'
postconf -e 'smtpd_sasl_security_options = noanonymous'
postconf -e 'broken_sasl_auth_clients = yes'
postconf -e 'smtpd_recipient_restrictions = permit_sasl_authenticated,permit_mynetworks,reject_unauth_destination'
postconf -e 'inet_interfaces = all'
postconf -e 'mynetworks = 127.0.0.0/8'

We must edit /usr/lib/sasl2/smtpd.conf so that Postfix allows PLAIN and LOGIN logins. It should look like this:

vi /usr/lib/sasl2/smtpd.conf

pwcheck_method: saslauthd
mech_list: plain login

mkdir /etc/postfix/ssl
cd /etc/postfix/ssl/
openssl genrsa -des3 -rand /etc/hosts -out smtpd.key 1024
chmod 600 smtpd.key
openssl req -new -key smtpd.key -out smtpd.csr
openssl x509 -req -days 3650 -in smtpd.csr -signkey smtpd.key -out smtpd.crt
openssl rsa -in smtpd.key -out smtpd.key.unencrypted
mv -f smtpd.key.unencrypted smtpd.key
openssl req -new -x509 -extensions v3_ca -keyout cakey.pem -out cacert.pem -days 3650

postconf -e 'smtpd_tls_auth_only = no'
postconf -e 'smtp_use_tls = yes'
postconf -e 'smtpd_use_tls = yes'
postconf -e 'smtp_tls_note_starttls_offer = yes'
postconf -e 'smtpd_tls_key_file = /etc/postfix/ssl/smtpd.key'
postconf -e 'smtpd_tls_cert_file = /etc/postfix/ssl/smtpd.crt'
postconf -e 'smtpd_tls_CAfile = /etc/postfix/ssl/cacert.pem'
postconf -e 'smtpd_tls_loglevel = 1'
postconf -e 'smtpd_tls_received_header = yes'
postconf -e 'smtpd_tls_session_cache_timeout = 3600s'
postconf -e 'tls_random_source = dev:/dev/urandom'

After these configuration steps you should now have a /etc/postfix/main.cf that looks like this (I have removed all comments from it):

vi /etc/postfix/main.cf

queue_directory = /var/spool/postfix
command_directory = /usr/sbin
daemon_directory = /usr/libexec/postfix
mail_owner = postfix
inet_interfaces = all
mydestination = $myhostname, localhost.$mydomain, localhost
unknown_local_recipient_reject_code = 550
alias_maps = hash:/etc/aliases
alias_database = hash:/etc/aliases
debug_peer_level = 2
debugger_command =
         PATH=/bin:/usr/bin:/usr/local/bin:/usr/X11R6/bin
         xxgdb $daemon_directory/$process_name $process_id & sleep 5

sendmail_path = /usr/sbin/sendmail.postfix
newaliases_path = /usr/bin/newaliases.postfix
mailq_path = /usr/bin/mailq.postfix
setgid_group = postdrop
html_directory = no
manpage_directory = /usr/share/man
sample_directory = /usr/share/doc/postfix-2.3.3/samples
readme_directory = /usr/share/doc/postfix-2.3.3/README_FILES
smtpd_sasl_local_domain =
smtpd_sasl_auth_enable = yes
smtpd_sasl_security_options = noanonymous
broken_sasl_auth_clients = yes
smtpd_recipient_restrictions = permit_sasl_authenticated,permit_mynetworks,reject_unauth_destination
mynetworks = 127.0.0.0/8
smtpd_tls_auth_only = no
smtp_use_tls = yes
smtpd_use_tls = yes
smtp_tls_note_starttls_offer = yes
smtpd_tls_key_file = /etc/postfix/ssl/smtpd.key
smtpd_tls_cert_file = /etc/postfix/ssl/smtpd.crt
smtpd_tls_CAfile = /etc/postfix/ssl/cacert.pem
smtpd_tls_loglevel = 1
smtpd_tls_received_header = yes
smtpd_tls_session_cache_timeout = 3600s
tls_random_source = dev:/dev/urandom

Now start Postfix, saslauthd, and dovecot:

chkconfig --levels 235 sendmail off
chkconfig --levels 235 postfix on
chkconfig --levels 235 saslauthd on
chkconfig --levels 235 dovecot on
/etc/init.d/sendmail stop
/etc/init.d/postfix start
/etc/init.d/saslauthd start
/etc/init.d/dovecot start

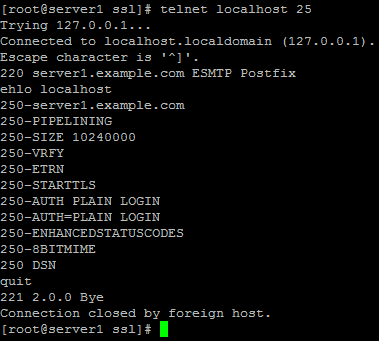

To see if SMTP-AUTH and TLS work properly now run the following command:

telnet localhost 25

After you have established the connection to your Postfix mail server type

ehlo localhost

If you see the lines

250-STARTTLS

and

250-AUTH

everything is fine.

Type

quit

to return to the system's shell.



10.1 Maildir

dovecot uses Maildir format (not mbox), so if you install ISPConfig on the server, please make sure you enable Maildir under Management -> Server -> Settings -> Email. ISPConfig will then do the necessary configuration.

If you do not want to install ISPConfig, then you must configure Postfix to deliver emails to a user's Maildir:

postconf -e 'home_mailbox = Maildir/'
postconf -e 'mailbox_command ='
/etc/init.d/postfix restart



11 Apache2 With PHP5

Now we install Apache with PHP5:

yum install php php-devel php-gd php-imap php-ldap php-mysql php-odbc php-pear php-xml php-xmlrpc curl curl-devel perl-libwww-perl ImageMagick libxml2 libxml2-devel

Then edit /etc/httpd/conf/httpd.conf:

vi /etc/httpd/conf/httpd.conf

and change DirectoryIndex to

DirectoryIndex index.html index.htm index.shtml index.cgi index.php index.php3 index.pl

Now configure your system to start Apache at boot time:

chkconfig --levels 235 httpd on

Start Apache:

/etc/init.d/httpd start



11.1 Disable PHP Globally

(If you do not plan to install ISPConfig on this server, please skip this section!)

In ISPConfig you will configure PHP on a per-website basis, i.e. you can specify which website can run PHP scripts and which one cannot. This can only work if PHP is disabled globally because otherwise all websites would be able to run PHP scripts, no matter what you specify in ISPConfig.

To disable PHP globally, we edit /etc/httpd/conf.d/php.conf and comment out the AddHandler and AddType lines:

vi /etc/httpd/conf.d/php.conf

#
# PHP is an HTML-embedded scripting language which attempts to make it
# easy for developers to write dynamically generated webpages.
#

LoadModule php5_module modules/libphp5.so

#
# Cause the PHP interpreter to handle files with a .php extension.
#
#AddHandler php5-script .php
#AddType text/html .php

#
# Add index.php to the list of files that will be served as directory
# indexes.
#
DirectoryIndex index.php

#
# Uncomment the following line to allow PHP to pretty-print .phps
# files as PHP source code:
#
#AddType application/x-httpd-php-source .phps

Afterwards we restart Apache:

/etc/init.d/httpd restart

Share this page:

10 Comment(s)

Add comment

Comments

From: statiic at: 2006-10-28 07:51:01

What about an anti virus program??

From: at: 2006-10-28 13:05:58

The ClamAV antivirus for the email is part of ISPConfig.

From: at: 2007-01-17 17:30:56

If you are going to install ISPConfig you have to be careful on the MySQL password.  Do not put !@#$%^&*() type characters in it.  While it works fine when you log onto mysql at the prompt, ISPConfig prompts you for a password which it then passes into a script.  If you use these characters you can get a strange command-line substitution.

Stick with [A-Z][a-z][0-9] and you should be fine

 -Roger

From: at: 2007-01-21 21:54:53

If you're planning tpo install the ISPconfig support, you'll need to have the MySQL headers installed in the system prior to trying to install  that package.

 To do so, while on the PACKAGE GROUPS INSTALL page, select SERVERS, then, from in that group, select MYSQL DATABASE, then click on the OPTIONAL PACKAGES button in the lower left corner of the page.  In the dialog that opens, check the box next to "mysql-devel".

Close the OPTIONAL dialog and continue as indicated in these instructions.

From: admin at: 2007-01-22 14:05:16

...or just install mysql-devel, as shown on page 4:

yum install mysql mysql-devel mysql-server

From: at: 2006-12-26 15:56:21

please add openssl-devel to the yum install, openssl alone is not enough for ispconfig, the installation will fail without this package

From: at: 2007-04-22 05:53:43

first, I'd like to thank Falko for his tremendous patience in coming up with this how to.

 I have been using his how to tutorials since he releases it for FC5 and I really make good use of it being an IT professionnal.

 I recently tried this install and got very minor problems like in "named" but one thing that really got me itching is https.  For some reason, mod_ssl was included in one of the packages but it turns out tha mod_ssl is now not integrated.  This was the reason why I couldn't make https work.

 So there you go,  yum install mod_ssl

 Cheers!

From: at: 2007-07-06 16:20:38

Found one little hiccup, if you try to do step 6 without first doing an update, step 6 fails with transaction errors. Do the updates either through yum or the gui before step 6 and everything works like a charm. Great walkthrough.

From: at: 2007-04-01 14:15:10

Install command should be:

yum install bind-chroot caching-nameserver

Without caching-nameserver package, named start will not start.

From: at: 2006-12-26 15:51:17

for 64 bit systems please use

vi /usr/lib64/sasl2/smtpd.conf

instead of

vi /usr/lib/sasl2/smtpd.conf

the library sits in another directory
