How to Deploy Secure CockroachDB Cluster on Ubuntu Server

CockroachDB is an open source and cloud-native SQL database developed by the CockroachLabs. It's a distributed SQL database built on the transactional and key-value store. CockroachDB is scalable SQL database which has been compared to Google Spanner database. It's based on the PostgreSQL protocol wire and production ready.

In this tutorial, we will show you how to set up the Secure CockroachDB Cluster on Ubuntu 18.04. You will learn how to set up the secure cluster, access the CockroachDB admin dashboard, create a new user on CockroachDB, create and show database on CockroachDB.

Prerequisites

In order to run the CockroachDB Cluster, we need multiple servers. And we will be using three Ubuntu 18.04 servers with the detail hostname and IP address as below.

node1   10.5.5.21
node2   10.5.5.22
node3   10.5.5.23

What we will do?

  • Setup NTP Server with Chronysystemctl restart chrony
    systemctl enable chrony
  • Download and Install CockroachDB
  • Create Certificates
  • Initialize CockroachDB Cluster
  • Add Node to the CockroachDB Cluster
  • Testing

Step 1 - Setup NTP Server with Chrony

Firstly, we must keep the time between servers on the cluster synchronized. So, we need to install the NTP package on all servers. And for this guide, we will be using chrony.

Install chrony package to all servers using the following command.

sudo apt install chrony -y

Once the installation is complete, goto '/etc/chrony/' configuration directory and edit the file 'chrony.conf'.

cd /etc/chrony/
vim chrony.conf

Delete the default NTP pool and replace with your own country pool.

pool 0.id.pool.ntp.org iburst maxsources 4
pool 1.id.pool.ntp.org iburst maxsources 1
pool 2.id.pool.ntp.org iburst maxsources 1
pool 3.id.pool.ntp.org iburst maxsources 2

Save and close.

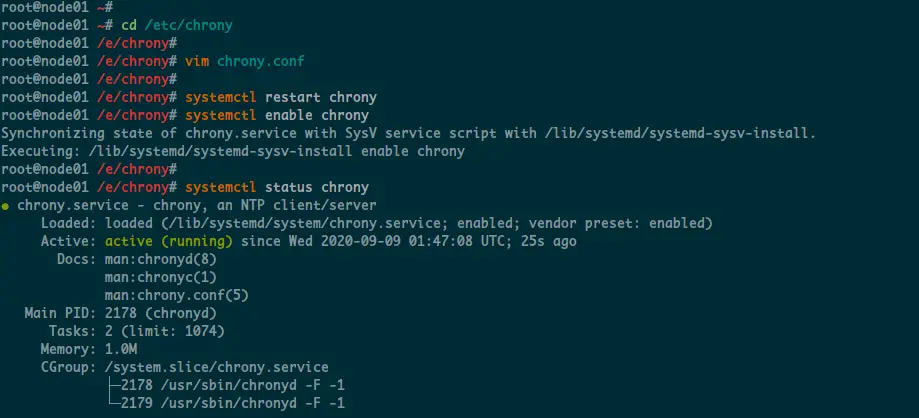

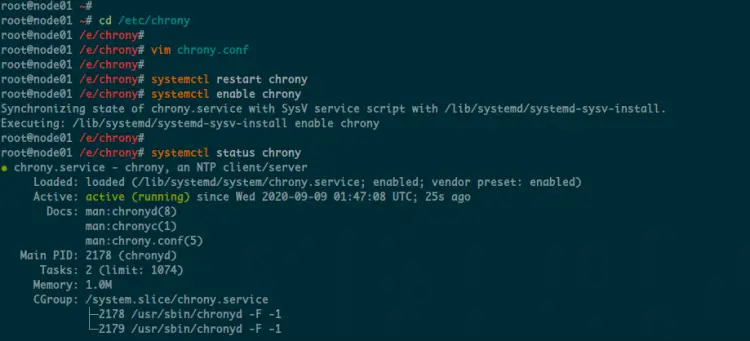

Now restart the chrony service and then add chrony to the startup service.

systemctl restart chrony
systemctl enable chrony

As a result, the time between servers will be synchronized to the same NTP pool servers.

Start and enable Chrony

Step 2 - Download and Install CockroachDB

In this step, we will download and install the CockroachDB on all servers. So, run all commands on all of your cluster servers.

Create a new directory called 'binary' and got into it.

mkdir -p binary; cd binary

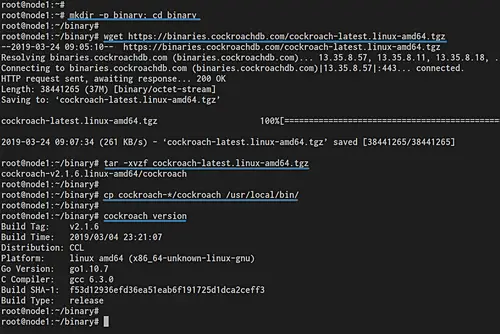

Download the compressed cockroachdb binary file for Linux and extract it.

wget https://binaries.cockroachdb.com/cockroach-latest.linux-amd64.tgz
tar -xvzf cockroach-latest.linux-amd64.tgz

Now copy the 'cockroach' binary file to the '/etc/local/bin' directory.

cp cockroach-*/cockroach /usr/local/bin/

After that, you can run the 'cockroach' command and explore the basic command for help, check the version etc.

cockroach version

The CockroachDB has been installed on all servers.

Install CockroachDB

Step 3 - Create Certificates

Now we're going to generate some certificates to secure the CockrouchDB Cluster. We can use OpenSSL or the cockroach command line for generating certificate files.

We will generate the CA certificate and key, and the generate certificate for user root and certificate for each node on the cluster.

Create the certificate directory '~/.cockroach-certs' and the environment variable for it.

mkdir -p ${HOME}/.cockroach-certs/
export COCKROACH_CERTS_DIR='${HOME}/.cockroach-certs/'

Create CA and Copy to All Nodes

On the 'node1' server, create the certificate authority using the cockroach command below.

cockroach cert create-ca \
--certs-dir=$COCKROACH_CERTS_DIR \
--ca-key=$COCKROACH_CERTS_DIR/ca.key

And you will get the 'ca.key' and 'ca.crt' on the '~/.cockroach-certs' directory.

Create CA and Copy to All Nodes

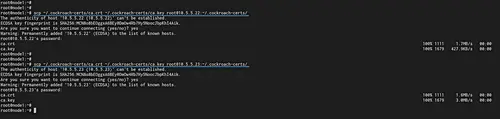

After that, copy the ca certificate and key to all servers using the scp command as below.

Copy to the 'node2' server.

scp ~/.cockroach-certs/ca.crt ~/.cockroach-certs/ca.key [email protected]:~/.cockroach-certs/

Copy to the 'node3' server.

scp ~/.cockroach-certs/ca.crt ~/.cockroach-certs/ca.key [email protected]:~/.cockroach-certs/

Now make sure the CA certificate and key are uploaded to all host servers.

Check CA certificate

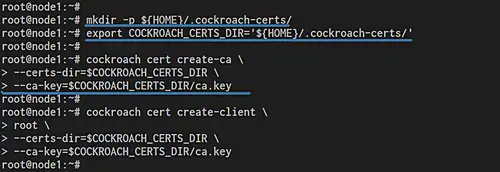

Create Client Certificates

After creating the certificate authority, we need to generate the client certificate. The client certificate will be used to secure communication between the built-in SQL shell and the cluster.

Generate the client certificate on all servers using the following cockroach command.

cockroach cert create-client \
root \
--certs-dir=$COCKROACH_CERTS_DIR \
--ca-key=$COCKROACH_CERTS_DIR/ca.key

And you will get client certificates for user root 'client.root.crt' and 'client.root.key'.

Create Client Certificates

Create Server Certificates

Server certificates will be used to secure communication between servers on the CockroachDB cluster. And in order to join the secure cluster, you need to generate server certificates for each server.

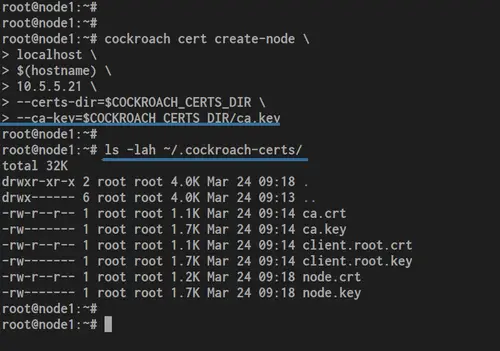

On the 'node1', create the server certificate using the following command.

cockroach cert create-node \
localhost \
$(hostname) \
10.5.5.21 \
--certs-dir=$COCKROACH_CERTS_DIR \
--ca-key=$COCKROACH_CERTS_DIR/ca.key

Change the IP address with your own.

Change IP address

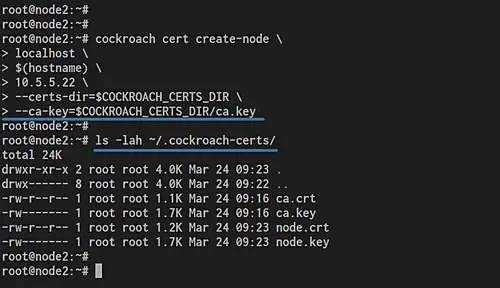

On the 'node2', create the server certificate using the following command.

cockroach cert create-node \
localhost \
$(hostname) \
10.5.5.22 \
--certs-dir=$COCKROACH_CERTS_DIR \
--ca-key=$COCKROACH_CERTS_DIR/ca.key

Change the IP address with your own.

IP address configuration

On the 'node3', create the server certificate using the following command.

cockroach cert create-node \
localhost \
$(hostname) \
10.5.5.23 \
--certs-dir=$COCKROACH_CERTS_DIR \
--ca-key=$COCKROACH_CERTS_DIR/ca.key

Change the IP address with your own.

Now you will get server certificates 'node.crt' and 'node.key' on the '~/.cockroach-certs' directory.

Step 4 - Start Secure CockroachDB Cluster

After creating some SSL certificates, we will initialize the Secure CockroachDB Cluster from the 'node1' server.

Run the following command on the 'node1' server.

cockroach start \
--background --certs-dir=$COCKROACH_CERTS_DIR \
--advertise-host=10.5.5.21 --listen-addr=10.5.5.21

Ensure there is no error.

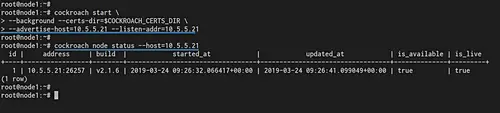

After that, check the cluster node status by running the cockroach command below.

cockroach node status --host=10.5.5.21

You will get the node1 with IP address 10.5.5.21 is up and running with CockroachDB v2.1.6.

Start the cluster

Step 5 - Add Node to the Cluster

Next, we will add the 'node2' and 'node3' to the CockroachDB secure cluster.

Ensure the CA and server certificate is on the ~/.cockroach-certs directory.

ls -lah ~/.cockroah-certs/

Now run the following command to add the 'node2' with IP address 10.5.5.22. Add it to the CockroachDB cluster.

cockroach start \
--background --certs-dir=$COCKROACH_CERTS_DIR \
--advertise-host=10.5.5.22 --listen-addr=10.5.5.22 \
--join=10.5.5.21:26257

Once it's complete, go to the 'node3' and run the following command.

cockroach start \
--background --certs-dir=$COCKROACH_CERTS_DIR \
--advertise-host=10.5.5.23 --listen-addr=10.5.5.23 \
--join=10.5.5.21:26257

Change the IP address with your own.

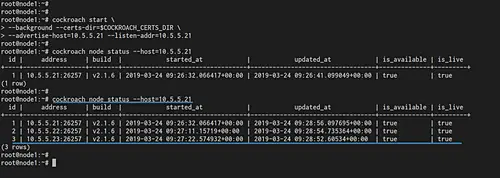

Now the 'node2' and 'node3' has been added to the Secure CockroachDB Cluster. Check it from the 'node1' server using the following command.

cockroach node status --host=10.5.5.21

And you will get three different servers is up and running the cockroach v2.1.6.

Add node to cluster

Step 6 - Testing

For this last step, we will test our CockroachDB Secure Cluster installation by accessing the admin dashboard and testing the database replication between servers.

Testing CockroachDB Dashboard

The CockroachDB provides beautiful dashboard UI to monitor the cluster. Open your web browser and type the server IP address followed by the port 8080.

https://10.5.5.21:8080/

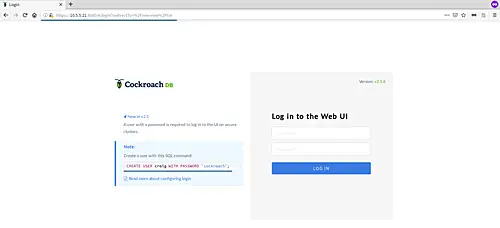

And you will get the CockroachDB login page as below.

CockroachDB Dashboard

In order to log in to the dashboard, we need to create a user on the CockroachDB database.

Back to your 'node1' terminal and log in to the cockroachdb SQL shell using the following command.

cockroach sql --certs-dir=$COCKROACH_CERTS_DIR \
--host=10.5.5.21

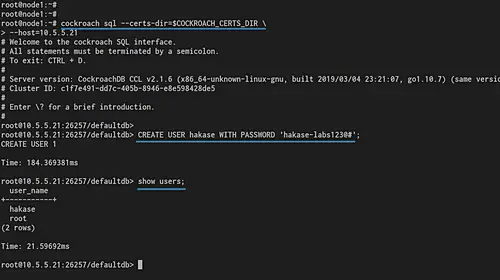

Now create a new user called 'hakase' with password '[email protected]#' using the query below.

CREATE USER hakase WITH PASSWORD '[email protected]#';

Type '\q' to exit from the CockroachDB SQL shell.

CockroachDB SQL shell

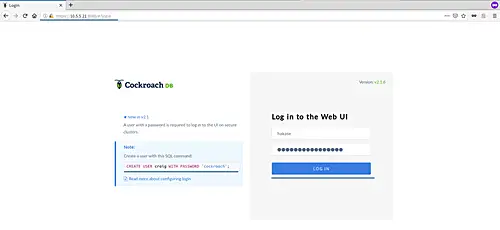

Now back to the web browser and type the user 'hakase' with password 'ha[email protected]#' on the login page and click the Login button.

Cockroach DB

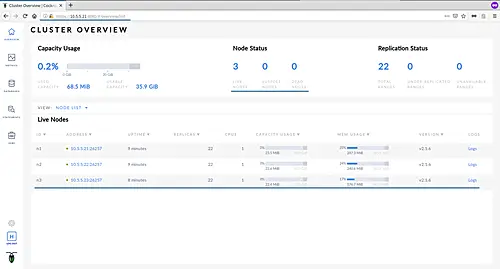

And you will get the CockroachDB admin dashboard as below.

Cluster Overview

Testing Database Replication

Now we're going to test the database replication between servers on the CockroachDB Cluster by creating the database on the 'node1' and checking the database from 'node2' or 'node3'.

On the 'node1', access the CockroachDB SQL shell using the following command.

cockroach sql --certs-dir=$COCKROACH_CERTS_DIR \
--host=10.5.5.21

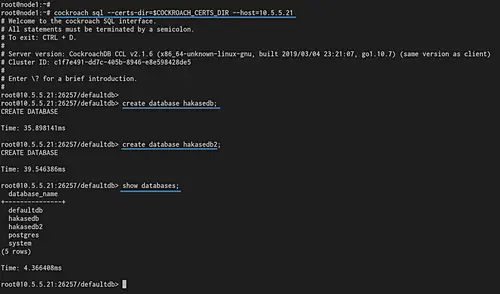

Create two databases 'hakasedb' and 'hakasedb2' using the queries below.

create database hakasedb;
create database hakasedb2;

Now print database list and make sure you get two databases that we just created.

show databases;

Cockroach DB cmd line

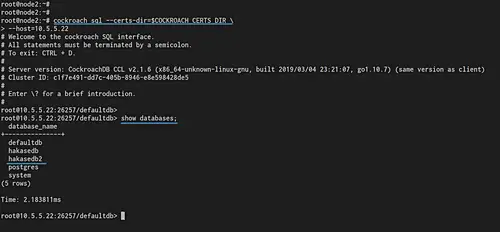

Next, login to the 'node2' server and access the CockroachDB SQL shell using the following command.

cockroach sql --certs-dir=$COCKROACH_CERTS_DIR \
--host=10.5.5.22

Check the database list.

show databases;

And you will get 'hakasedb' and 'hakasedb2' has been replicated to the 'node2' server.

Show databases

And finally, the installation and configuration of Secure CockroachDB Cluster using Ubuntu 18.04 has been completed successfully.
