Now compile the policy. Note that in the progress output the compiler shows that it first processes IPv4 policy rule set, then compiles IPv6 policy rule set. I still have bunch of rules in the IPv4 policy left from the previous examples but the IPv6 policy is small and only has a few rules as shown on the screenshot above.

$ fwb_ipt -v -f policy_rules.fwb fw
 *** Loading data ... done
 Compiling rules for 'nat' table
 processing 1 rules
 rule 0 (NAT)
 Compiling ruleset Policy for 'mangle' table
 processing 1 rules
 rule 0 (eth2)
 Compiling ruleset Policy for 'filter' table
 processing 17 rules
 rule 1 (global)
 rule 2 (global)
 rule 3 (global)
 rule 4 (global)
 rule 5 (global)
 rule 6 (global)
 rule 7 (global)
 rule 8 (global)
 rule 9 (global)
 rule 10 (global)
 rule 11 (eth2)
 rule 12 (lo)
 rule 13 (global)
 rule 14 (global)
 rule 15 (global)
 rule 16 (global)
 rule 17 (global)
 Compiling ruleset Policy_ipv6 for 'mangle' table, IPv6
 Compiling ruleset Policy_ipv6 for 'filter' table, IPv6
 processing 4 rules
 rule Policy_ipv6 1 (global)
 rule Policy_ipv6 2 (global)
 rule Policy_ipv6 3 (global)
 Compiled successfully

Here is a fragment of the generated script. The script uses the ip6tables routine to load rules into the kernel. Option "Assume firewall is part of any" was turned off in this firewall object so the rule #1 generated only iptables commands in the INPUT chain.

# ================ Table 'filter', rule set Policy_ipv6
# Policy compiler errors and warnings:
#
# Rule Policy_ipv6 0 (lo)
#
$IP6TABLES -A INPUT  -i lo   -m state --state NEW  -j ACCEPT
$IP6TABLES -A OUTPUT  -o lo   -m state --state NEW  -j ACCEPT
#
# Rule Policy_ipv6 1 (global)
#
echo "Rule Policy_ipv6 1 (global)"
#
$IP6TABLES -A INPUT -p tcp -m tcp  --dport 80  -m state --state NEW  -j ACCEPT
$IP6TABLES -A INPUT -p ipv6-icmp  -m state --state NEW  -j ACCEPT
#
# Rule Policy_ipv6 2 (global)
#
echo "Rule Policy_ipv6 2 (global)"
#
$IP6TABLES -A OUTPUT  -m state --state NEW  -j ACCEPT
$IP6TABLES -A FORWARD  -s 2001:db8:ffff:ffff::/64   -m state --state NEW  -j ACCEPT
#
# Rule Policy_ipv6 3 (global)
#
echo "Rule Policy_ipv6 3 (global)"
#
$IP6TABLES -N Policy_ipv6_3
$IP6TABLES -A FORWARD  -j Policy_ipv6_3
$IP6TABLES -A Policy_ipv6_3  -j LOG  --log-level info --log-prefix "RULE 3 -- DENY "
$IP6TABLES -A Policy_ipv6_3  -j DROP

Let's try to compile policy rule set configured as mixed IPv4+IPv6. To illustrate, I am using two simple rules.

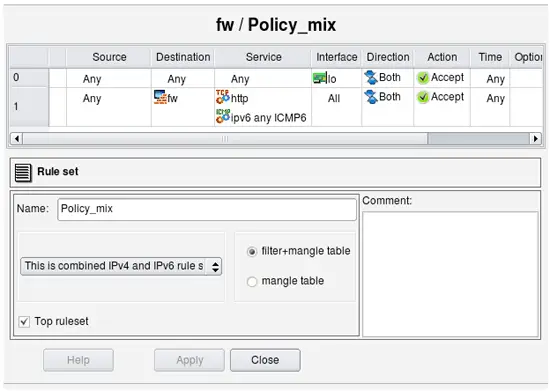

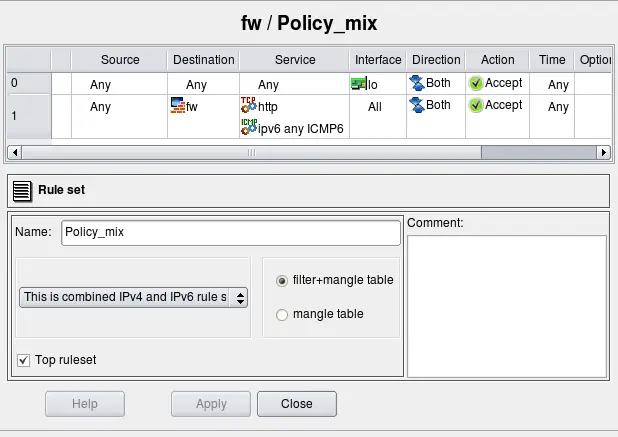

Rule #0 permits everything on loopback. Loopback interface of the firewall has two addresses: 127.0.0.1/8 and ::1/128. Rule #1 permits http and any ICMPv6 to the firewall. Here is generated iptables script for these two rules:

# ================ IPv4

# ================ Table 'filter', rule set Policy_mix
# Policy compiler errors and warnings:
#
# Rule Policy_mix 0 (lo)
#
$IPTABLES -A INPUT  -i lo   -m state --state NEW  -j ACCEPT
$IPTABLES -A OUTPUT  -o lo   -m state --state NEW  -j ACCEPT
#
# Rule Policy_mix 1 (global)
#
$IPTABLES -A INPUT -p tcp -m tcp  --dport 80  -m state --state NEW  -j ACCEPT

# ================ IPv6

# ================ Table 'filter', rule set Policy_mix
# Policy compiler errors and warnings:
#
# Rule Policy_mix 0 (lo)
#
$IP6TABLES -A INPUT  -i lo   -m state --state NEW  -j ACCEPT
$IP6TABLES -A OUTPUT  -o lo   -m state --state NEW  -j ACCEPT
#
# Rule Policy_mix 1 (global)
#
$IP6TABLES -A INPUT -p tcp -m tcp  --dport 80  -m state --state NEW  -j ACCEPT
$IP6TABLES -A INPUT -p ipv6-icmp  -m state --state NEW  -j ACCEPT

The script has two parts, one for IPv4 and another for IPv6, generated from the same rule set "Policy_mix". The IPv4 part has only IPv4 addresses and services. The rule that permits ICMPv6 to the firewall is missing in this part of the script because ICMPv6 does not match address family. The rule that permits HTTP to the firewall is there though. The second (IPv6) part of the script both permits HTTP and ICMPv6 to the firewall.

Note: the rule that matches on an interface (column "Interface" is not "any") will compile for IPv6 only if this interface has IPv6 address.

If loopback interface of the firewall did not have an address ::1/128, then the IPv6 part of the generated script would not have rules permitting anything on loopback (those with "-i lo" and "-o lo"). This may not be very obvious and may be confusing at first, but this behavior is very useful during transition from purely IPv4 network to a mix of IPv4 and IPv6 when you enable IPv6 only on some interfaces but not others.

Finally, let's look at the generated PF configuration for the same rules in the same mixed policy rule set:

table <tbl.r9999.d> { 192.0.2.1 , 192.168.1.1 }
table <tbl.r1.dx> { 2001:db8:1:1::1 , 2001:db8:ffff:ffff::1 }

# Rule  Policy_mix 0 (lo)
#
pass quick on lo inet  from any  to any keep state
#
# Rule  Policy_mix 1 (global)
#
pass in quick inet proto tcp  from any  to <tbl.r9999.d> port 80 keep state


# Rule  Policy_mix 0 (lo)
#
pass quick on lo inet6  from any  to any keep state
#
# Rule  Policy_mix 1 (global)
#
pass in quick inet6 proto tcp  from any  to <tbl.r1.dx> port 80 keep state
pass in quick inet6 proto icmp6  from any  to <tbl.r1.dx> keep state



Using mixed IPv4+IPv6 rule set to simplify adoption of IPv6

Mixed IPv4/IPv6 rule sets can be especially useful in the configuration of the routers access lists and firewall policies where rules can become rather complicated when IPv6 is added to existing IPv4 network. Since most firewalls and routers require different syntax for ipv6 ACL and rules, administrator has to implement second rule set for IPv6, carefully trying to copy existing IPv4 rules to preserve general structure and meaning of the security policy. Things get even more complicated after that because every change in the policy should now be reflected in two sets of ACL or firewall rules. Keeping these synchronized can quickly turn into major task that can significantly elevate probability of human error and network outage. Mixed IPv4+IPv6 rule sets in Firewall Builder help solve this problem.

Let's illustrate this using simplified example of a Cisco router access list configuration that we migrate from IPv4 only to mixed IPv4+IPv6. We start with simple two rules that use only IPv4 address and service objects:

In this example router has just two interfaces, FastEthernet0/0 and FastEthernet0/1, both interfaces have only IPv4 addresses when we start. Generated configuration looks like this:

! ================ IPv4
! Policy compiler errors and warnings:
!
no ip access-list extended fe0_0_in
no ip access-list extended fe0_1_in

ip access-list extended fe0_0_in
  permit icmp any  host 192.0.2.1 8
  permit icmp any  host 192.168.1.1 8
exit

ip access-list extended fe0_1_in
  permit icmp any  host 192.0.2.1 8
  permit icmp any  host 192.168.1.1 8
  permit tcp any  192.168.1.0 0.0.0.255 eq 80
exit

interface FastEthernet0/0
  ip access-group fe0_0_in in
exit
interface FastEthernet0/1
  ip access-group fe0_1_in in
exit

Here rule #0 permits ICMP ping requests to the firewall through all interfaces and rule #1 permits http to internal network through interface FastEthernet0/1 (external), direction inbound. As the result, we get two access lists "fe0_0_in" and "fw0_1_in", one for each interface, that reflect these rules.

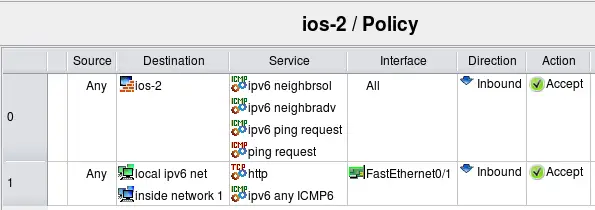

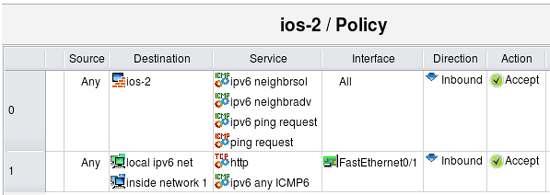

Suppose we need to add IPv6 to this network. To do this, I add IPv6 addresses to the interfaces of the router and create network object to describe IPv6 internal network. I then add new IPv6 network object to the rule #1 to permit HTTP to internal net both on IPv4 and IPv6. Rule #0 should also permit ICMPv6 neighbor solicitation and advertisement messages, as well as ICMP v6 ping since it is different from IPv4 ICMP ping. Lets permit any ICMPv6 to the internal network as well. I'll just add IPv6 objects to existing rules, mark rule set as "Mixed IPv4 and IPv6" and let the program sort it out. Here is how updated rules look like:

Now router has the same two interfaces, FastEthernet0/0 and FastEthernet0/1, but both interfaces have IPv4 and IPv6 addresses. Here is the result:

! ================ IPv4
! Policy compiler errors and warnings:
!
no ip access-list extended fe0_0_in
no ip access-list extended fe0_1_in

ip access-list extended fe0_0_in
  permit icmp any  host 192.0.2.1 8
  permit icmp any  host 192.168.1.1 8
exit

ip access-list extended fe0_1_in
  permit icmp any  host 192.0.2.1 8
  permit icmp any  host 192.168.1.1 8
  permit tcp any  192.168.1.0 0.0.0.255 eq 80
exit

interface FastEthernet0/0
  ip access-group fe0_0_in in
exit
interface FastEthernet0/1
  ip access-group fe0_1_in in
exit

! ================ IPv6
! Policy compiler errors and warnings:
!
no ipv6 access-list ipv6_fe0_0_in
no ipv6 access-list ipv6_fe0_1_in

ipv6 access-list ipv6_fe0_0_in
  permit icmp any  host 2001:db8:1:1::1 135
  permit icmp any  host 2001:db8:1:1::1 136
  permit icmp any  host 2001:db8:1:1::1 128
  permit icmp any  host 2001:db8:ffff:ffff::1 135
  permit icmp any  host 2001:db8:ffff:ffff::1 136
  permit icmp any  host 2001:db8:ffff:ffff::1 128
exit

ipv6 access-list ipv6_fe0_1_in
  permit icmp any  host 2001:db8:1:1::1 135
  permit icmp any  host 2001:db8:1:1::1 136
  permit icmp any  host 2001:db8:1:1::1 128
  permit icmp any  host 2001:db8:ffff:ffff::1 135
  permit icmp any  host 2001:db8:ffff:ffff::1 136
  permit icmp any  host 2001:db8:ffff:ffff::1 128
  permit tcp any  2001:db8:ffff:ffff::/64 eq 80
  permit icmp any  2001:db8:ffff:ffff::/64
exit

interface FastEthernet0/0
  ipv6 traffic-filter ipv6_fe0_0_in in
exit
interface FastEthernet0/1
  ipv6 traffic-filter ipv6_fe0_1_in in
exit

The IPv4 part looks exactly the same as before, but we also have additional IPv6 access lists. For IPv6, rule #1 permits ICMPv6 neighbor solicitation, neighbor advertisement and ipv6 ping request messages to the firewall through all interfaces, direction inbound, and rule #1 permits http and all ICMPv6 to the internal network through FastEthernet0/1, inbound. Generated ipv6 access lists "ipv6_fe0_0_in" and "ipv6_fe0_1_in" reflect this. ACL ipv6_fe0_0_in permits icmp types 128, 135 and 136 to ipv6 addresses that belong to the firewall and ACL ipv6_fe0_1_in permits the same icmp messages to the firewall, plus tcp port 80 and any ipv6 icmp to the internal ipv6 network.

The program automatically separated IPv4 and IPv6 objects and created two sets of access lists to implement policies for both address families. This simplifies adoption of IPv6 into existing network because you don't have to reimplement access lists and firewall rules written for IPv4 again and then maintain two rule sets coordinated as you make changes. Instead, the structure of existing policy rule set is preserved, you just add IPv6 objects to the same rules and the program generates both IPv4 and IPv6 configurations from it.
