Fedora 8 Server Setup: LAMP, Email, DNS, FTP, ISPConfig (a.k.a. The Perfect Server)

Version 1.0
Author: Falko Timme
Last edited 11/08/2007

This is a detailed description about how to set up a Fedora 8 server that offers all services needed by ISPs and hosters: Apache web server (SSL-capable), Postfix mail server with SMTP-AUTH and TLS, BIND DNS server, Proftpd FTP server, MySQL server, Dovecot POP3/IMAP, Quota, Firewall, etc. This tutorial is written for the 32-bit version of Fedora 8, but should apply to the 64-bit version with very little modifications as well.

I will use the following software:

  • Web Server: Apache 2.2.6
  • PHP 5.2.4
  • Database Server: MySQL 5.0.45
  • Mail Server: Postfix
  • DNS Server: BIND9 (chrooted)
  • FTP Server: proftpd
  • POP3/IMAP server: Dovecot
  • Webalizer for web site statistics

In the end you should have a system that works reliably, and if you like you can install the free webhosting control panel ISPConfig (i.e., ISPConfig runs on it out of the box).

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!


1 Requirements

To install such a system you will need the following:


2 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address and the gateway These settings might differ for you, so you have to replace them where appropriate.


3 Install The Base System

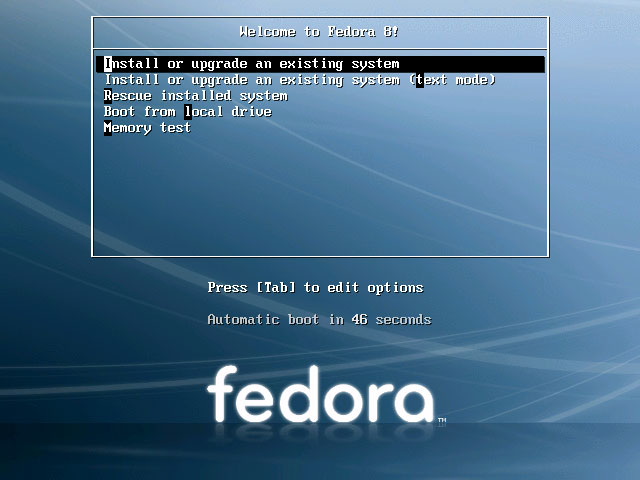

Boot from your Fedora 8 DVD. Select Install or upgrade an existing system:

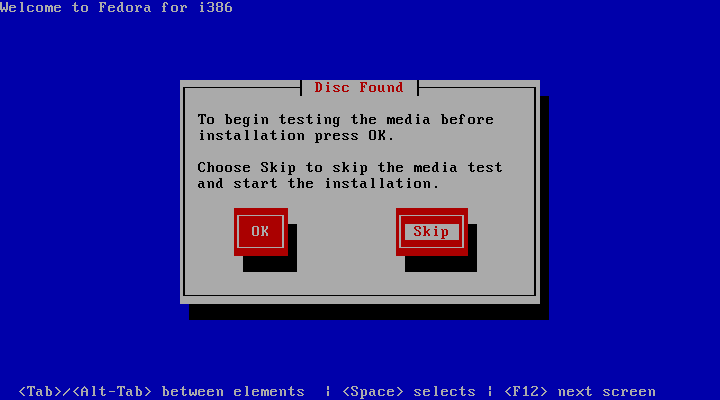

It can take a long time to test the installation media so we skip this test here:

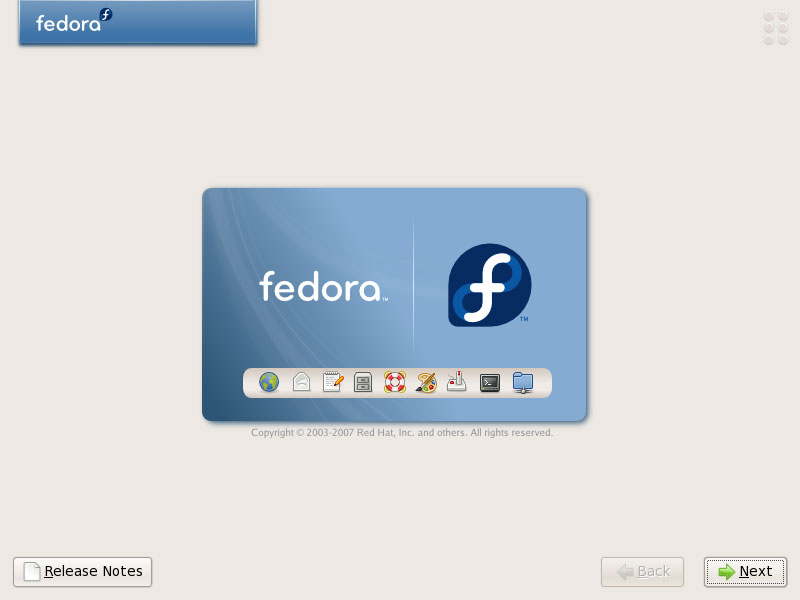

The welcome screen of the Fedora installer appears. Click on Next:

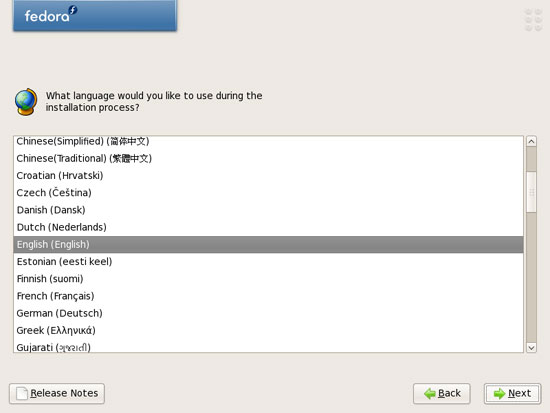

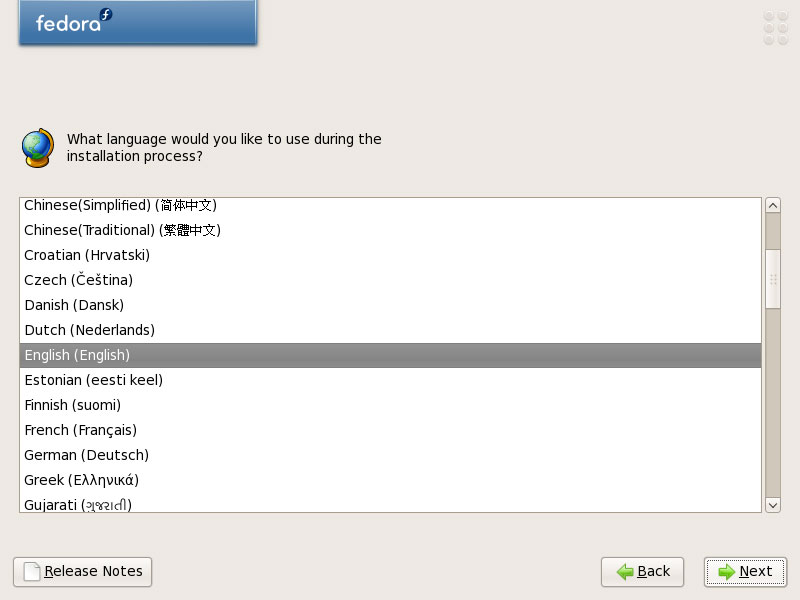

Choose your language next:

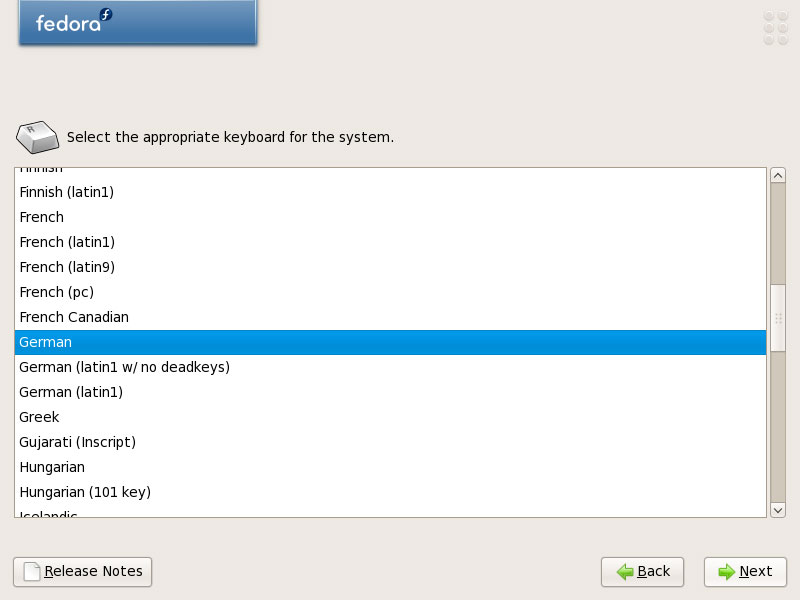

Select your keyboard layout:

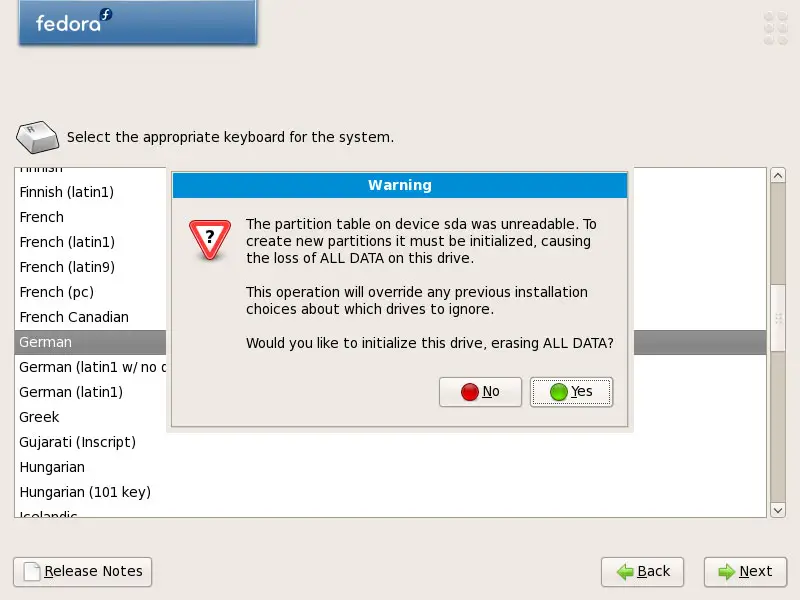

I'm installing Fedora 8 on a fresh system, so I answer Yes to the question Would you like to initialize this drive, erasing ALL DATA?:

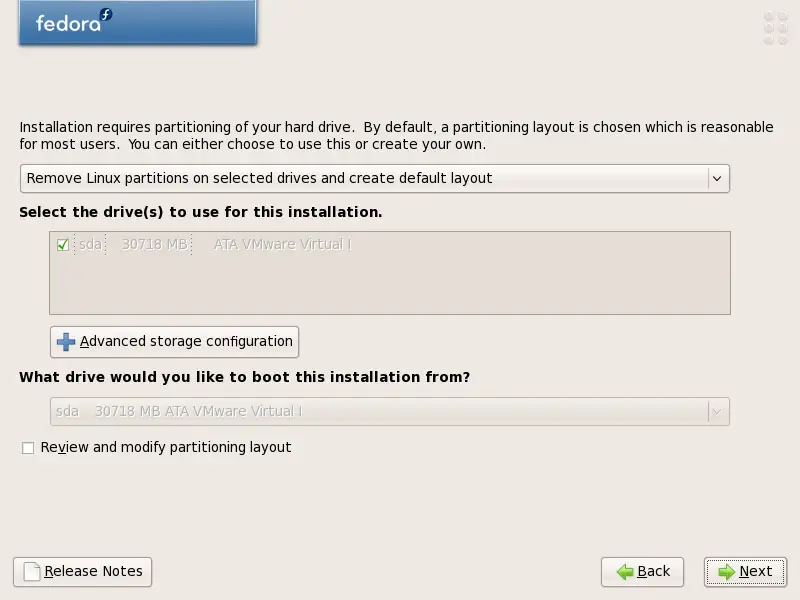

Next we do the partitioning. Select Remove Linux partitions on selected drives and create default layout. This will give you a smalll /boot partition and a large / partition which is fine for our purposes:

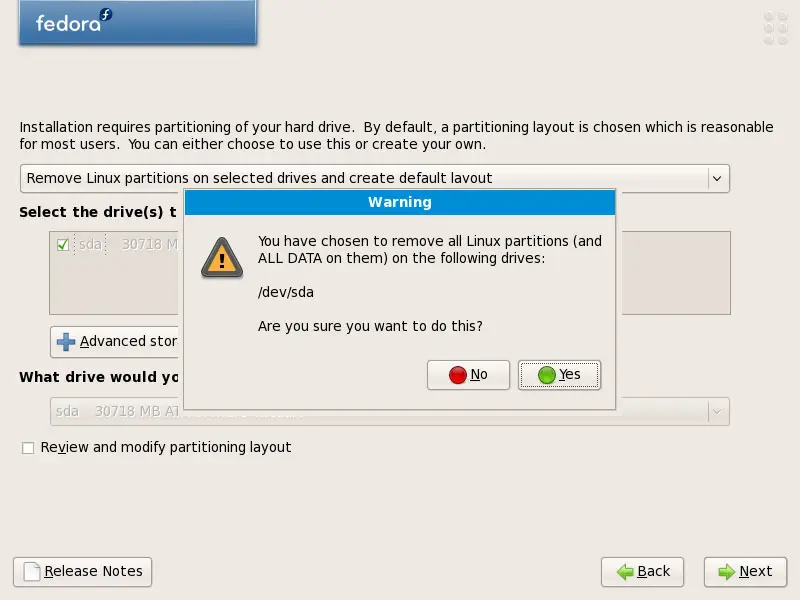

We want to remove all Linux partitions (remember, this is a fresh system), so we answer Yes to the following question:

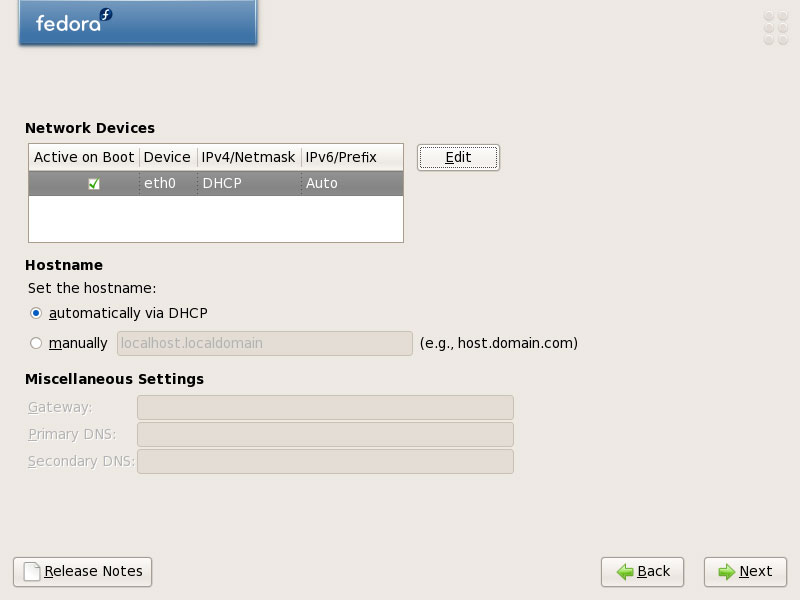

On to the network settings. The default setting here is to configure the network interfaces with DHCP, but we are installing a server, so static IP addresses are not a bad idea... Click on the Edit button at the top right:

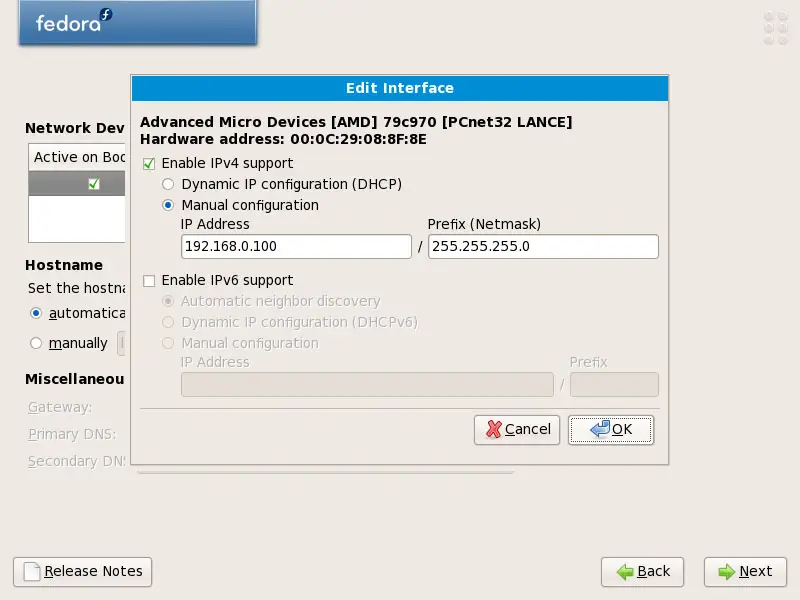

In the window that pops up select Enable IPv4 support > Manual configuration and give your network card a static IP address and netmask (in this tutorial I'm using the IP address and netmask for demonstration purposes; if you are not sure about the right values, http://www.subnetmask.info might help you). Uncheck Enable IPv6 support:

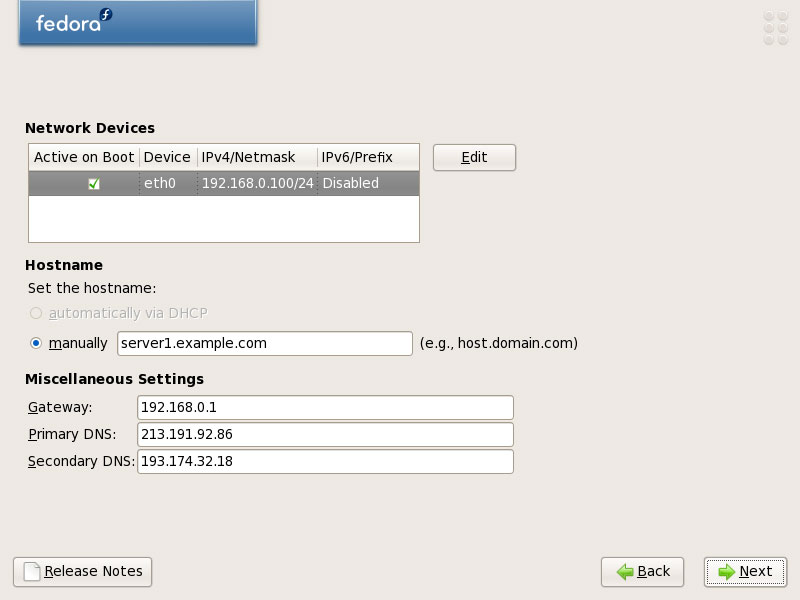

Set the hostname manually, e.g. server1.example.com, and enter a gateway (e.g. and two DNS servers (e.g. and

Share this page:

3 Comment(s)

Add comment


From: at: 2008-01-09 14:31:51

Some of these steps take a long time to complete, so new linux users should be aware that a few of steps will appear to lock up the server.

When installing quota, #quotacheck -avugm will typically display 2 warnings and then appear to lock up on the command: "quotacheck: Scanning /dev/mapper/VolGroup00-LogVol00 [/]"

This can easily take an hour or more, on some systems, so give it a lot of time if you run into this.

Additionally, performing a full #yum update can take several hours depending on how fast the server is and how fast the internet connection is.

From: at: 2008-01-24 13:42:02

Hi all

I tried to install on my Fedora 8 64 twice without success .

The installation went fine , ths ISPconfig seens to be worked fine as well but after reboot the system, the Fedora  GUI was not able to start .

I was able to start on text mode to look for the logs but did not find anything that could help this issue .



From: admin at: 2008-01-25 10:04:09

You can find the solution to your problem here: http://www.howtoforge.com/forums/showthread.php?t=18463
