Creating Advanced MySQL-Based Virtual Hosts On Lighttpd (Debian Squeeze)

Version 1.0
Author: Falko Timme
Follow me on Twitter

This guide explains how you can create advanced virtual hosts on a lighttpd web server on Debian Squeeze that are stored in a MySQL database. The method described here does not use the lighttpd mod_mysql_vhost module, and unlike mod_mysql_vhost (which allows you to store only the hostname and document root of a vhost in a database), this method allows to store individual configuration directives for each vhost in the MySQL database.

I do not issue any guarantee that this will work for you!


1 Installing MySQL 5

First we install MySQL 5 like this:

apt-get install mysql-server mysql-client

You will be asked to provide a password for the MySQL root user - this password is valid for the user root@localhost as well as [email protected], so we don't have to specify a MySQL root password manually later on:

New password for the MySQL "root" user: <-- yourrootsqlpassword
Repeat password for the MySQL "root" user: <-- yourrootsqlpassword


2 Installing Lighttpd, Python, And python-mysqldb

We will use a Python script to read the vhost configurations from the MySQL database, therefore we must install Python and python-mysqldb in addition to lighttpd.

You can install these packages as follows:

apt-get install lighttpd python python-mysqldb


3 Preparing The MySQL Database

Now we log in to MySQL...

mysql -u root -p

... and create the database lighttpd:


Next we create a database user (which we name lighttpd as well) with SELECT privileges for the lighttpd database:

GRANT SELECT ON lighttpd.* TO lighttpd@localhost IDENTIFIED BY 'secret';
GRANT SELECT ON lighttpd.* TO [email protected] IDENTIFIED BY 'secret';

(Replace secret with a password of your choice.)

Then we create the domains table in the lighttpd database and leave MySQL:

USE lighttpd;

domain varchar(64) NOT NULL PRIMARY KEY,
docroot varchar(128) NOT NULL,
config text



4 Creating The Python Script To Read The Vhost Configuration From The Database

Now we create the Python script /usr/share/lighttpd/ which will connect to the lighttpd database and read the vhost configurations from it:

vi /usr/share/lighttpd/

#!/usr/bin/env python
import sys
import MySQLdb

# load configuration data from the database
db=MySQLdb.connect(host='localhost', db=sys.argv[1], user=sys.argv[2], passwd=sys.argv[3])
cur = db.cursor()
cur.execute("SELECT * FROM domains")

for domain in rs:

    print "$HTTP[\"host\"] == \"%s\" {\nserver.document-root = \"%s\"\n%s\n}" % (domain[0], domain[1], domain[2])

Make the script executable:

chmod 755 /usr/share/lighttpd/

Now we must tell lighttpd to use that script. Therefore we open /etc/lighttpd/lighttpd.conf and add the following line at the end of it:

vi /etc/lighttpd/lighttpd.conf

include_shell "/usr/share/lighttpd/ lighttpd lighttpd secret"

(The first lighttpd refers to the name of the MySQL database, the second lighttpd to the database user, and secret to the MySQL password.)

Restart lighttpd afterwards:

/etc/init.d/lighttpd restart


5 Configuring Virtual Hosts

I will now configure two virtual hosts, one for (with the document root /var/www/ and one for (with the document root /var/www/

I will add custom directives to both vhosts. For the vhost I will enable directory listings and create an alias test which points back to the document root /var/www/, and for the vhost I will disable directory listings.

First, we create the document roots of both web sites (if they don't already exist):

mkdir -p /var/www/
mkdir -p /var/www/

Then we log in to MySQL...

mysql -u root -p

USE lighttpd;

... and create the vhosts as follows:

INSERT INTO domains VALUES ('','/var/www/','dir-listing.activate = "enable"\nalias.url = ( "/test" => "/var/www/" )');
INSERT INTO domains VALUES ('','/var/www/','dir-listing.activate = "disable"');

As you can see in the first INSERT statement, if you want to use more than one custom directive, put a linebreak (\n) between the directives.

We can now leave the MySQL shell:


That's it, the vhosts are now configured. To check if our /usr/share/lighttpd/ script is working as expected, we can call it on the command line...

/usr/share/lighttpd/ lighttpd lighttpd secret

... and it should display the correct vhost configurations:

root@server1:~# /usr/share/lighttpd/ lighttpd lighttpd secret
$HTTP["host"] == "" {
server.document-root = "/var/www/"
dir-listing.activate = "enable"
alias.url = ( "/test" => "/var/www/" )
$HTTP["host"] == "" {
server.document-root = "/var/www/"
dir-listing.activate = "disable"

Unlike the mod_mysql_vhost way, this method needs a lighttpd restart whenever the vhost configuration is changed, so let's restart lighttpd:

/etc/init.d/lighttpd restart


6 Testing

Now let's test if our MySQL-based vhosts and are working as expected. I'm assuming that you have no index files in each document root.

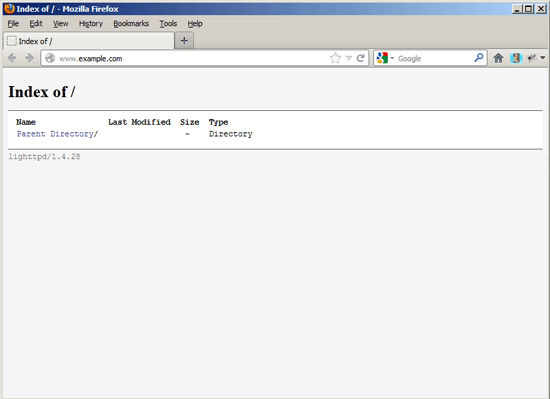

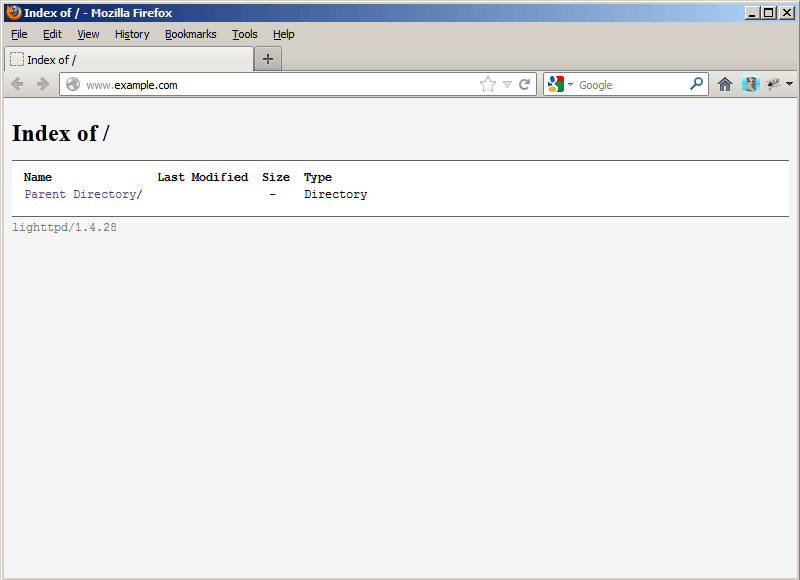

Let's call (for which we have enabled directory listings) in a browser, and you should see a directory listing:

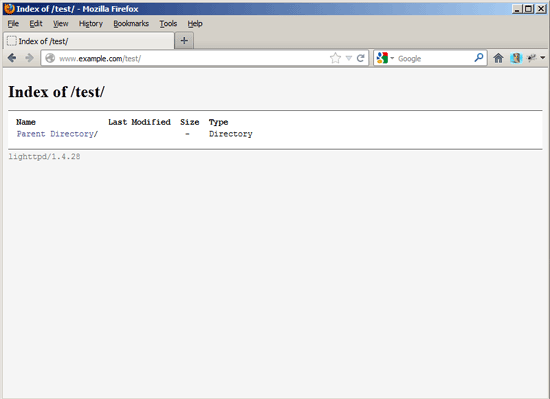

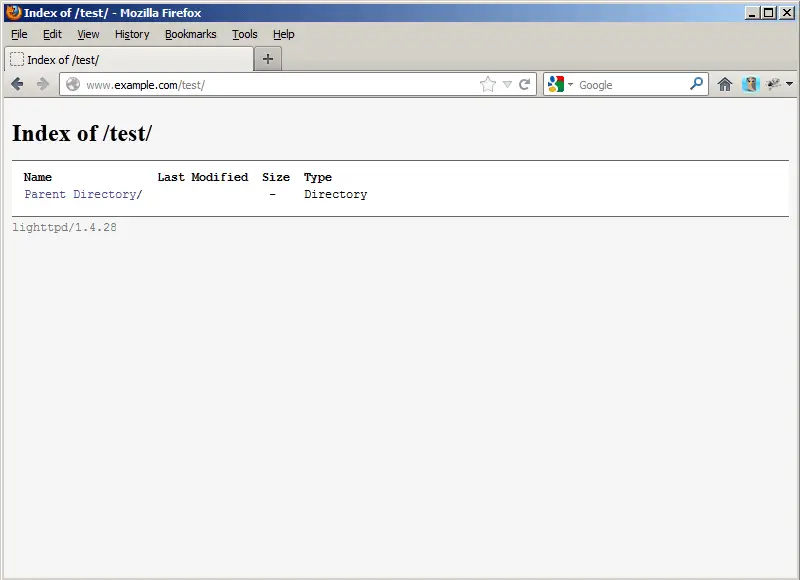

Now let's go to (there's no directory test in that vhost), and it should go back to the document root because we have configured that alias for the vhost:

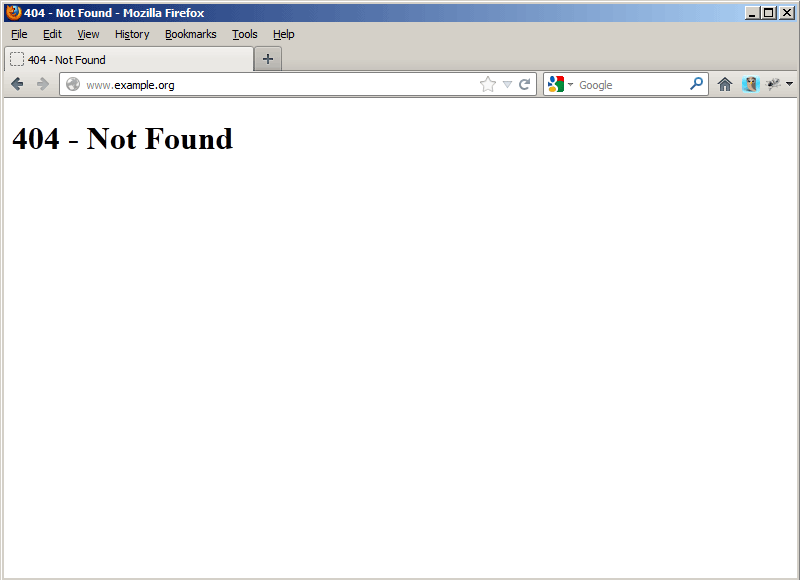

Now go to, and you should get a 404 - Not Found error (unless there's an index file in the document root) because we've disabled directory listings for that vhost:

Now let's try - as this directory does not exist and we haven't defined such an alias in the vhost, we get a 404 - Not Found again:

So everything's working as expected.
