The Perfect Setup - Debian Etch (Debian 4.0)

Version 1.0
Author: Falko Timme <ft [at] falkotimme [dot] com>
Last edited 04/09/2007

This tutorial shows how to set up a Debian Etch (Debian 4.0) based server that offers all services needed by ISPs and hosters: Apache web server (SSL-capable), Postfix mail server with SMTP-AUTH and TLS, BIND DNS server, Proftpd FTP server, MySQL server, Courier POP3/IMAP, Quota, Firewall, etc. This tutorial is written for the 32-bit version of Debian Etch, but should apply to the 64-bit version with very little modifications as well.

I will use the following software:

  • Web Server: Apache 2.2
  • Database Server: MySQL 5.0
  • Mail Server: Postfix
  • DNS Server: BIND9
  • FTP Server: proftpd
  • POP3/IMAP: I will use Maildir format and therefore install Courier-POP3/Courier-IMAP.
  • Webalizer for web site statistics

In the end you should have a system that works reliably, and if you like you can install the free webhosting control panel ISPConfig (i.e., ISPConfig runs on it out of the box).

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!



1 Requirements

To install such a system you will need the following:



2 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.100 and the gateway 192.168.0.1. These settings might differ for you, so you have to replace them where appropriate.



3 The Base System

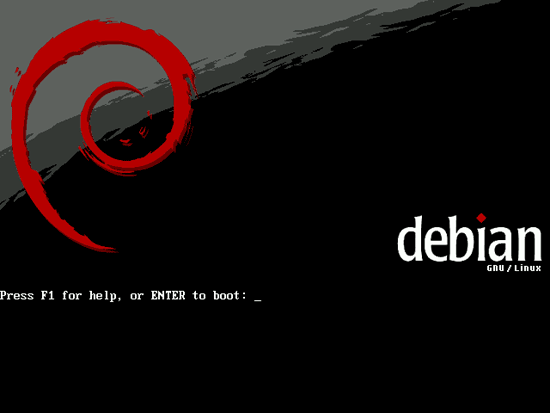

Insert your Debian Etch Netinstall CD into your system and boot from it. Press ENTER to boot:

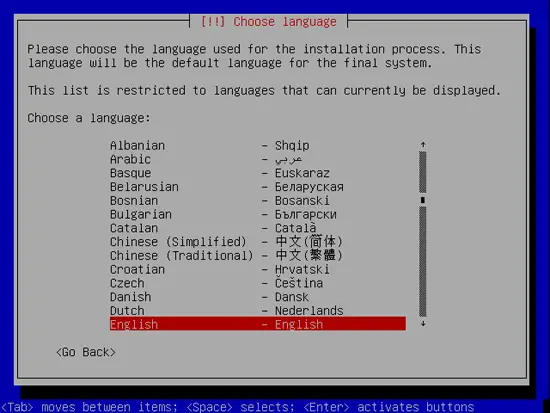

The installation starts, and first you have to choose your language:

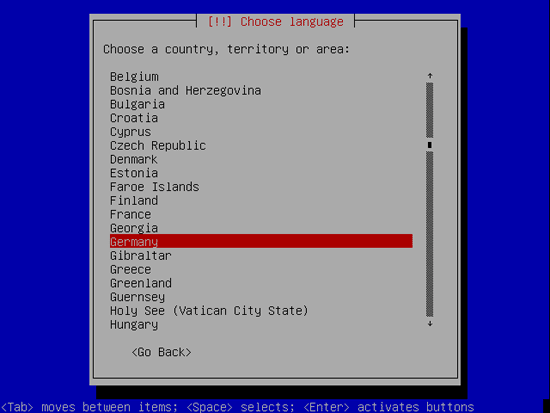

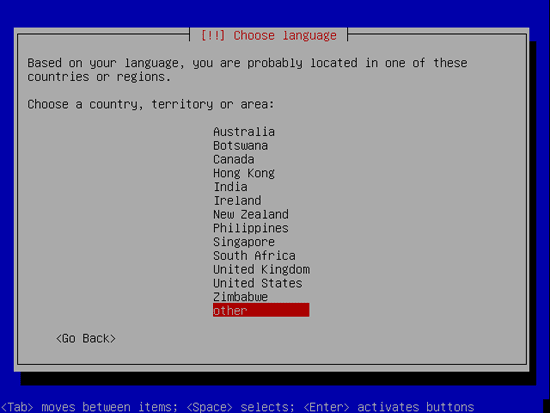

Then select your location:

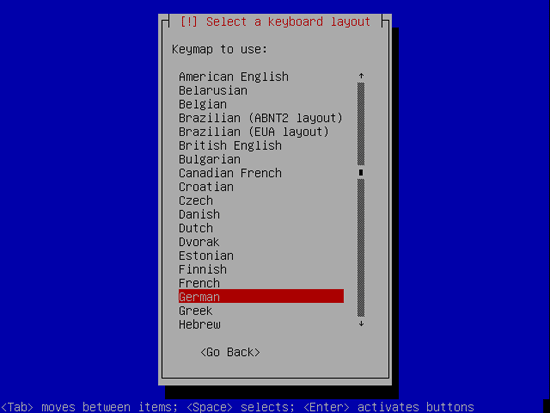

Choose a keyboard layout:

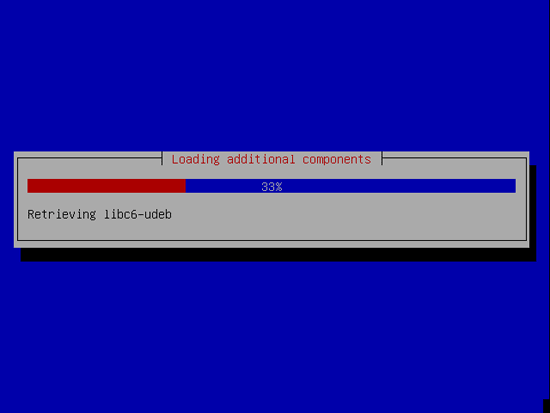

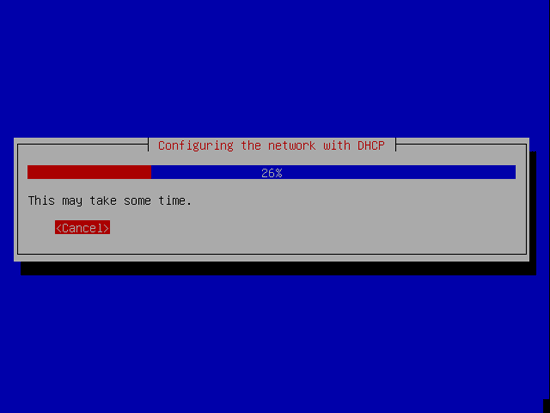

The installer checks the installation CD, your hardware, and configures the network with DHCP if there is a DHCP server in the network:

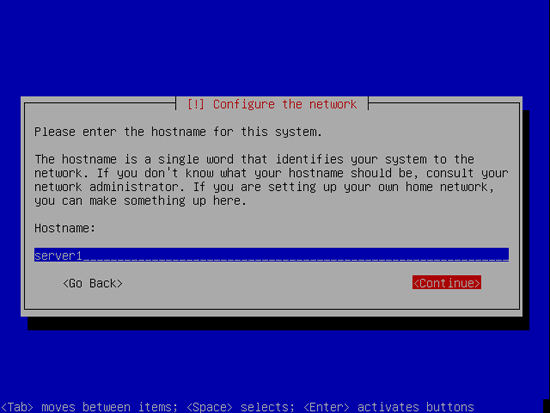

Enter the hostname. In this example, my system is called server1.example.com, so I enter server1:

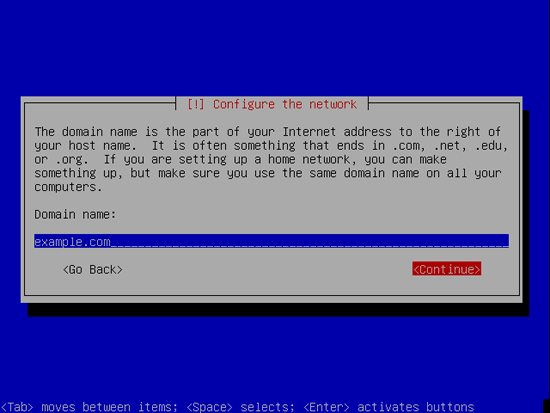

Enter your domain name. In this example, this is example.com:

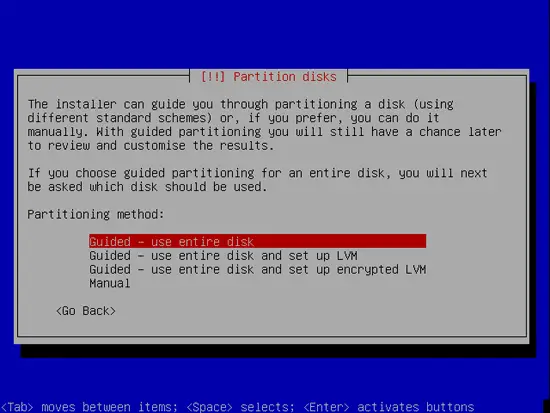

Now you have to partition your hard disk. For simplicity's sake I will create one big partition (with the mount point /) and a little swap partition so I select Guided - use entire disk (of course, the partitioning is totally up to you - if you like, you can create more than just one big partition, and you can also use LVM):

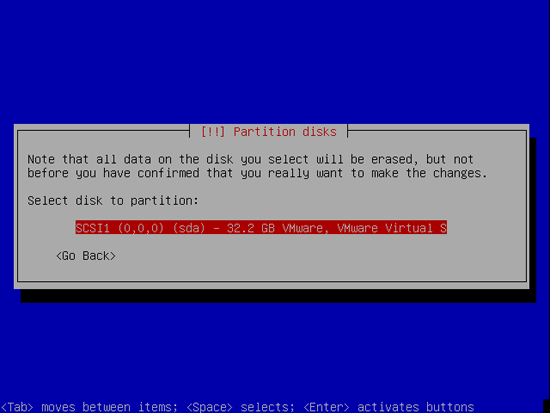

Select the disk that you want to partition:

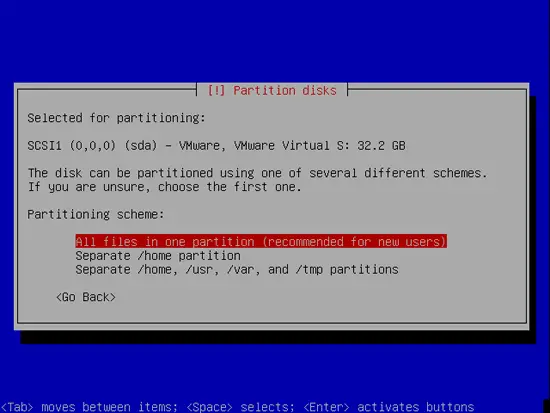

Then select the partitioning scheme. As mentioned before, I select All files in one partition (recommended for new users) for simplicity's sake - it's up to your likings what you choose here:

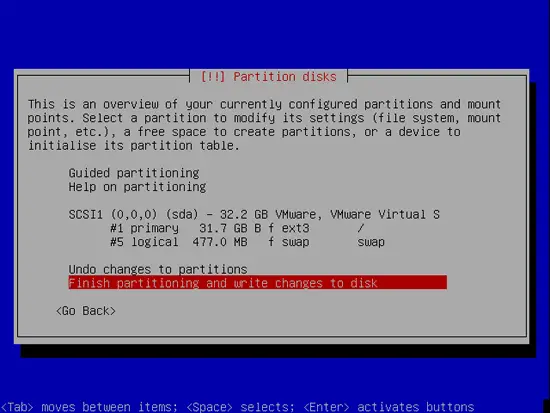

When you're finished, select Finish partitioning and write changes to disk:

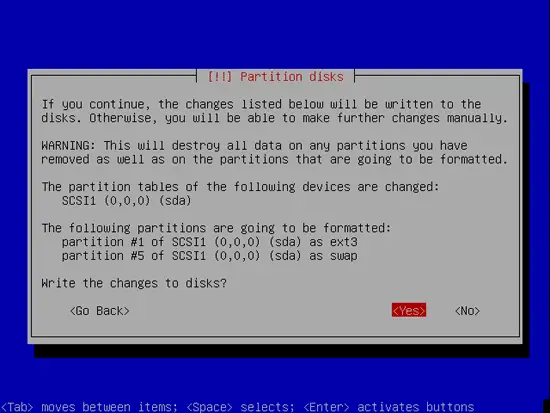

Select Yes when you're asked Write changes to disks?:

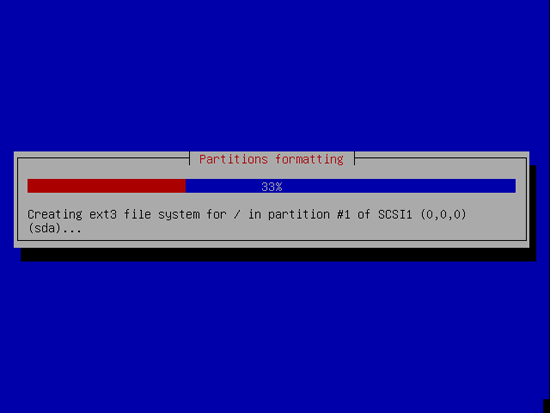

Afterwards, your new partitions are created and formatted:
