20 Install SquirrelMail

To install the SquirrelMail webmail client, run

aptitude install squirrelmail

Then create the following symlink...

ln -s /usr/share/squirrelmail/ /var/www/webmail

... and configure SquirrelMail:

squirrelmail-configure

We must tell SquirrelMail that we are using Courier-IMAP/-POP3:

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color on
S   Save data
Q   Quit

Command >>
 <-- D


SquirrelMail Configuration : Read: config.php
---------------------------------------------------------
While we have been building SquirrelMail, we have discovered some
preferences that work better with some servers that don't work so
well with others.  If you select your IMAP server, this option will
set some pre-defined settings for that server.

Please note that you will still need to go through and make sure
everything is correct.  This does not change everything.  There are
only a few settings that this will change.

Please select your IMAP server:
    bincimap    = Binc IMAP server
    courier     = Courier IMAP server
    cyrus       = Cyrus IMAP server
    dovecot     = Dovecot Secure IMAP server
    exchange    = Microsoft Exchange IMAP server
    hmailserver = hMailServer
    macosx      = Mac OS X Mailserver
    mercury32   = Mercury/32
    uw          = University of Washington's IMAP server
    gmail       = IMAP access to Google mail (Gmail) accounts

    quit        = Do not change anything
Command >>
 <-- courier


SquirrelMail Configuration : Read: config.php
---------------------------------------------------------
While we have been building SquirrelMail, we have discovered some
preferences that work better with some servers that don't work so
well with others.  If you select your IMAP server, this option will
set some pre-defined settings for that server.

Please note that you will still need to go through and make sure
everything is correct.  This does not change everything.  There are
only a few settings that this will change.

Please select your IMAP server:
    bincimap    = Binc IMAP server
    courier     = Courier IMAP server
    cyrus       = Cyrus IMAP server
    dovecot     = Dovecot Secure IMAP server
    exchange    = Microsoft Exchange IMAP server
    hmailserver = hMailServer
    macosx      = Mac OS X Mailserver
    mercury32   = Mercury/32
    uw          = University of Washington's IMAP server

    quit        = Do not change anything
Command >> courier

              imap_server_type = courier
         default_folder_prefix = INBOX.
                  trash_folder = Trash
                   sent_folder = Sent
                  draft_folder = Drafts
            show_prefix_option = false
          default_sub_of_inbox = false
show_contain_subfolders_option = false
            optional_delimiter = .
                 delete_folder = true

Press any key to continue...
 <-- ENTER


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color on
S   Save data
Q   Quit

Command >>
 <-- S


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color on
S   Save data
Q   Quit

Command >> S

Data saved in config.php
Press enter to continue...
 <-- ENTER


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color on
S   Save data
Q   Quit

Command >>
 <-- Q

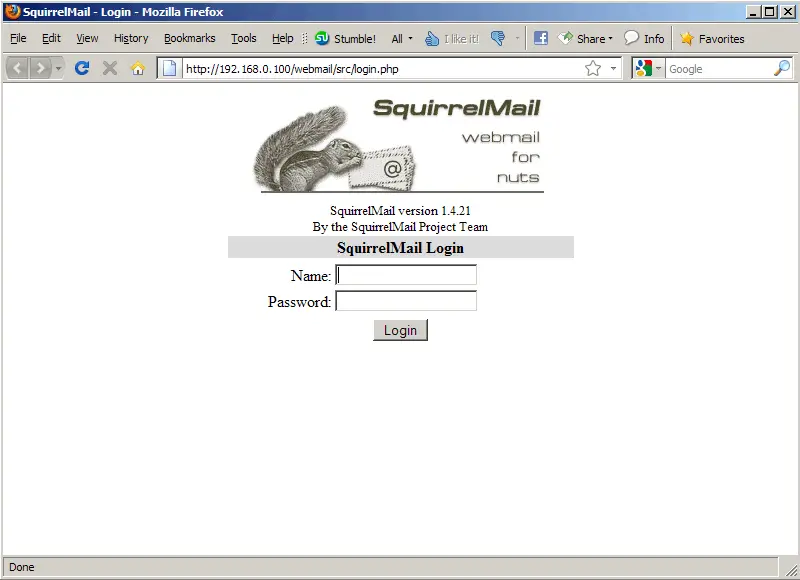

Afterwards you can access SquirrelMail under http://server1.example.com/webmail or http://192.168.0.100/webmail:



21 Install ISPConfig 3

To install ISPConfig 3 from the latest released version, do this:

cd /tmp
wget http://www.ispconfig.org/downloads/ISPConfig-3-stable.tar.gz
tar xfz ISPConfig-3-stable.tar.gz
cd ispconfig3_install/install/

he next step is to run

php -q install.php

This will start the ISPConfig 3 installer. The installer will configure all services like Postfix, SASL, Courier, etc. for you. A manual setup as required for ISPConfig 2 (perfect setup guides) is not necessary.

root@server1:/tmp/ispconfig3_install/install# php -q install.php


--------------------------------------------------------------------------------
 _____ ___________   _____              __ _         ____
|_   _/  ___| ___ \ /  __ \            / _(_)       /__  \
  | | \ `--.| |_/ / | /  \/ ___  _ __ | |_ _  __ _    _/ /
  | |  `--. \  __/  | |    / _ \| '_ \|  _| |/ _` |  |_ |
 _| |_/\__/ / |     | \__/\ (_) | | | | | | | (_| | ___\ \
 \___/\____/\_|      \____/\___/|_| |_|_| |_|\__, | \____/
                                              __/ |
                                             |___/
--------------------------------------------------------------------------------


>> Initial configuration

Operating System: Debian 6.0 (Squeeze/Sid) or compatible

    Following will be a few questions for primary configuration so be careful.
    Default values are in [brackets] and can be accepted with <ENTER>.
    Tap in "quit" (without the quotes) to stop the installer.


Select language (en,de) [en]:
 <-- ENTER

Installation mode (standard,expert) [standard]: <-- ENTER

Full qualified hostname (FQDN) of the server, eg server1.domain.tld  [server1.example.com]: <-- ENTER

MySQL server hostname [localhost]: <-- ENTER

MySQL root username [root]: <-- ENTER

MySQL root password []: <-- yourrootsqlpassword

MySQL database to create [dbispconfig]: <-- ENTER

MySQL charset [utf8]: <-- ENTER

Generating a 2048 bit RSA private key
......................+++
.............................................................+++
writing new private key to 'smtpd.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:
 <-- ENTER
State or Province Name (full name) [Some-State]: <-- ENTER
Locality Name (eg, city) []: <-- ENTER
Organization Name (eg, company) [Internet Widgits Pty Ltd]: <-- ENTER
Organizational Unit Name (eg, section) []: <-- ENTER
Common Name (eg, YOUR name) []: <-- ENTER
Email Address []: <-- ENTER
Configuring Jailkit
Configuring SASL
Configuring PAM
Configuring Courier
Configuring Spamassassin
Configuring Amavisd
Configuring Getmail
Configuring Pureftpd
Configuring BIND
Configuring Apache
Configuring Vlogger
Configuring Apps vhost
Configuring Firewall
Installing ISPConfig
ISPConfig Port [8080]:
 <-- ENTER

Configuring DBServer
Installing ISPConfig crontab
no crontab for root
no crontab for getmail
Restarting services ...
Rather than invoking init scripts through /etc/init.d, use the service(8)
utility, e.g. service mysql restart

Since the script you are attempting to invoke has been converted to an
Upstart job, you may also use the restart(8) utility, e.g. restart mysql
mysql start/running, process 25572
 * Stopping Postfix Mail Transport Agent postfix
   ...done.
 * Starting Postfix Mail Transport Agent postfix
   ...done.
 * Stopping SASL Authentication Daemon saslauthd
   ...done.
 * Starting SASL Authentication Daemon saslauthd
   ...done.
Stopping amavisd: amavisd-new.
Starting amavisd: amavisd-new.
 * Stopping ClamAV daemon clamd
   ...done.
 * Starting ClamAV daemon clamd
   ...done.
 * Stopping Courier authentication services authdaemond
   ...done.
 * Starting Courier authentication services authdaemond
   ...done.
 * Stopping Courier IMAP server imapd
   ...done.
 * Starting Courier IMAP server imapd
   ...done.
 * Stopping Courier IMAP-SSL server imapd-ssl
   ...done.
 * Starting Courier IMAP-SSL server imapd-ssl
   ...done.
 * Stopping Courier POP3 server...
   ...done.
 * Starting Courier POP3 server...
   ...done.
 * Stopping Courier POP3-SSL server...
   ...done.
 * Starting Courier POP3-SSL server...
   ...done.
 * Restarting web server apache2
 ... waiting .............   ...done.
Restarting ftp server: Running: /usr/sbin/pure-ftpd-mysql-virtualchroot -l mysql:/etc/pure-ftpd/db/mysql.conf -l pam -O clf:/var/log/pure-ftpd/transfer.log -D -H -b -A -Y 1 -u 1000 -8 UTF-8 -E -B
Installation completed.
root@server1:/tmp/ispconfig3_install/install#

The installer automatically configures all underlying services, so no manual configuration is needed.

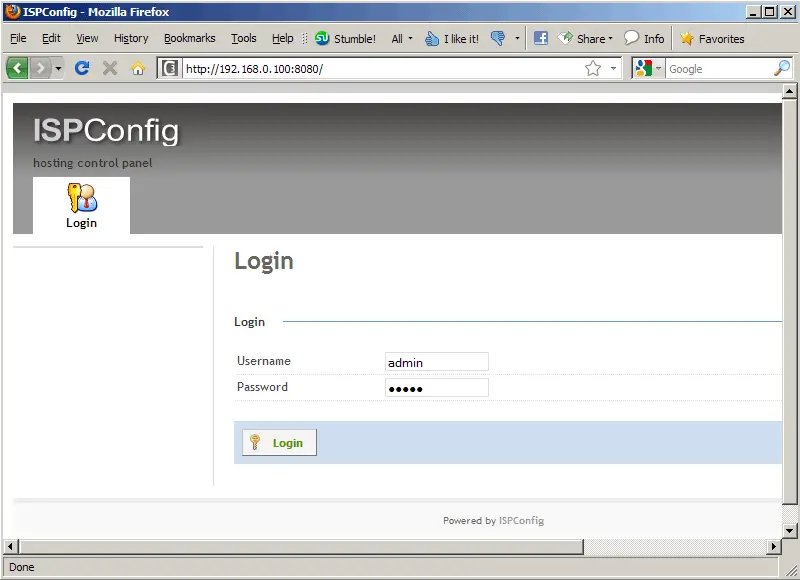

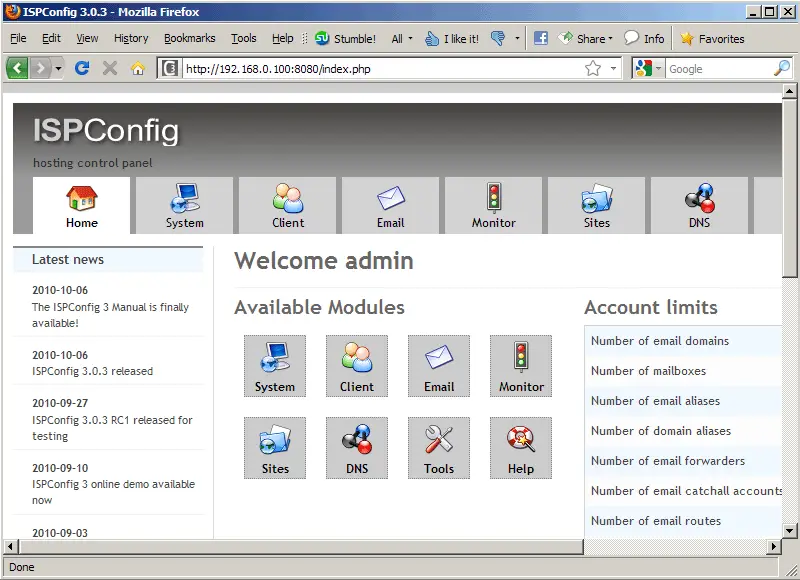

Afterwards you can access ISPConfig 3 under http://server1.example.com:8080/ or http://192.168.0.100:8080/. Log in with the username admin and the password admin (you should change the default password after your first login):

The system is now ready to be used.



21.1 ISPConfig 3 Manual



22 Additional Notes

22.1 OpenVZ

If the Ubuntu server that you've just set up in this tutorial is an OpenVZ container (virtual machine), you should do this on the host system (I'm assuming that the ID of the OpenVZ container is 101 - replace it with the correct VPSID on your system):

VPSID=101
for CAP in CHOWN DAC_READ_SEARCH SETGID SETUID NET_BIND_SERVICE NET_ADMIN SYS_CHROOT SYS_NICE CHOWN DAC_READ_SEARCH SETGID SETUID NET_BIND_SERVICE NET_ADMIN SYS_CHROOT SYS_NICE
do
  vzctl set $VPSID --capability ${CAP}:on --save
done



22.2 SquirrelMail

Lots of people have reported problems (such as getting 404 Not Found errors) using the SquirrelMail webmail package in their web sites created through ISPConfig 3. This guide explains how to configure SquirrelMail on an Ubuntu 10.10 server so that you can use it from within your web sites (created through ISPConfig).

SquirrelMail's Apache configuration is in the file /etc/squirrelmail/apache.conf, but this file isn't loaded by Apache because it is not in the /etc/apache2/conf.d/ directory. Therefore we create a symlink called squirrelmail.conf in the /etc/apache2/conf.d/ directory that points to /etc/squirrelmail/apache.conf and reload Apache afterwards:

cd /etc/apache2/conf.d/
ln -s ../../squirrelmail/apache.conf squirrelmail.conf
/etc/init.d/apache2 reload

That's it already - /etc/apache2/conf.d/squirrelmail.conf defines an alias called /squirrelmail that points to SquirrelMail's installation directory /usr/share/squirrelmail.

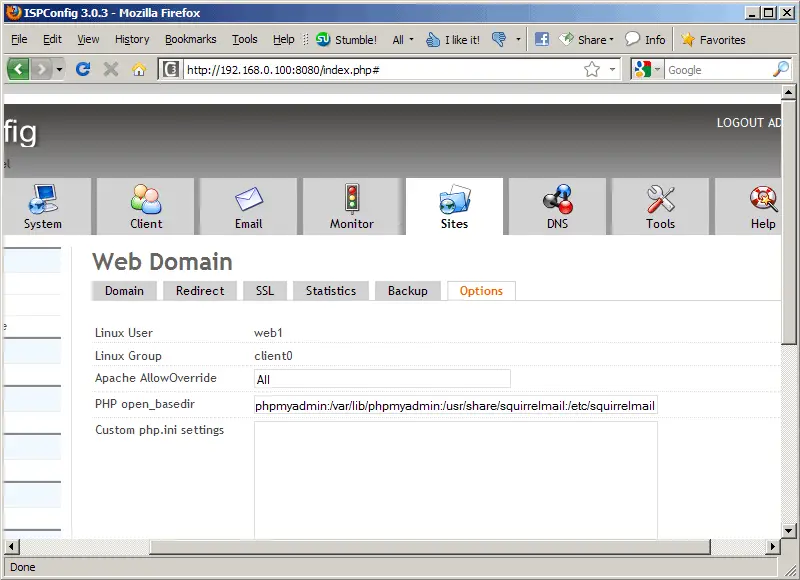

Now go to the PHP open_basedir field on the Options tab of your web site in ISPConfig and add the directories /usr/share/squirrelmail and /etc/squirrelmail (that's the directory where SquirrelMail's configuration is stored) to the line, e.g. as follows:

Wait two or three minutes until ISPConfig has updated the site configuration. You can now access SquirrelMail from your web site as follows:

http://www.example.com/squirrelmail

You can also access it from the ISPConfig control panel vhost as follows (this doesn't need any configuration in ISPConfig):

http://server1.example.com:8080/squirrelmail

If you'd like to use the alias /webmail instead of /squirrelmail, simply open /etc/apache2/conf.d/squirrelmail.conf...

vi /etc/apache2/conf.d/squirrelmail.conf

... and add the line Alias /webmail /usr/share/squirrelmail:

Alias /squirrelmail /usr/share/squirrelmail
Alias /webmail /usr/share/squirrelmail

<Directory /usr/share/squirrelmail>
  Options FollowSymLinks
  <IfModule mod_php5.c>
    php_flag register_globals off
  </IfModule>
  <IfModule mod_dir.c>
    DirectoryIndex index.php
  </IfModule>

  # access to configtest is limited by default to prevent information leak
  <Files configtest.php>
    order deny,allow
    deny from all
    allow from 127.0.0.1
  </Files>
</Directory>

# users will prefer a simple URL like http://webmail.example.com
#<VirtualHost 1.2.3.4>
#  DocumentRoot /usr/share/squirrelmail
#  ServerName webmail.example.com
#</VirtualHost>

# redirect to https when available (thanks omen@descolada.dartmouth.edu)
#
#  Note: There are multiple ways to do this, and which one is suitable for
#  your site's configuration depends. Consult the apache documentation if
#  you're unsure, as this example might not work everywhere.
#
#<IfModule mod_rewrite.c>
#  <IfModule mod_ssl.c>
#    <Location /squirrelmail>
#      RewriteEngine on
#      RewriteCond %{HTTPS} !^on$ [NC]
#      RewriteRule . https://%{HTTP_HOST}%{REQUEST_URI}  [L]
#    </Location>
#  </IfModule>
#</IfModule>

Then reload Apache:

/etc/init.d/apache2 reload

Now you can access Squirrelmail as follows:

http://www.example.com/webmail
http://server1.example.com:8080/webmail

If you'd like to define a vhost like webmail.example.com where your users can access SquirrelMail, you'd have to add the following vhost configuration to /etc/apache2/conf.d/squirrelmail.conf:

vi /etc/apache2/conf.d/squirrelmail.conf

[...]
<VirtualHost 1.2.3.4:80>
  DocumentRoot /usr/share/squirrelmail
  ServerName webmail.example.com
</VirtualHost>

Make sure you replace 1.2.3.4 with the correct IP address of your server. Of course, there must be a DNS record for webmail.example.com that points to the IP address that you use in the vhost configuration. Also make sure that the vhost webmail.example.com does not exist in ISPConfig (otherwise both vhosts will interfere with each other!).

Now reload Apache...

/etc/init.d/apache2 reload

... and you can access SquirrelMail under http://webmail.example.com!



23 Links


Please do not use the comment function to ask for help! If you need help, please use our forum.
Comments will be published after administrator approval.
Submitted by Swiss420 (not registered) on Tue, 2011-04-05 06:56.
When your Brain is experiencing a lack of activity howtoforge.com is here to jump start it.
Submitted by Alberto (not registered) on Fri, 2011-04-01 22:20.

Hello there!
I always post about problems but today I am happy to say that this manual worked perfect for me!
at once!

I am testing it in my server at home Ubuntu 10.10 ( btw I don't have a static IP and the installation worked perfect)

I am system administrator and at work I use CentOs and Ubuntu Server in few different servers.

I have to say that this is exactly what I was looking for.
Thank you!


Submitted by Tommy Nefcy (not registered) on Mon, 2011-03-28 21:27.

cd /etc/apache2/conf.d/
ln -s ../../squirrelmail/apache.conf squirrelmail.conf
/etc/init.d/apache2 reload

I used the above instructions as detailed in 22.2 Squirrelmail above. When I attempt to access http://mydomain.net/squirrelmail the browser attempts to download a file called 'squirrelmail' to my local hd. The file is a copy of the /usr/share/squirrelmail/index.php file.

Any suggestions on how to correct this?

Tommy

Submitted by MatrixDiaz (not registered) on Sat, 2012-03-10 16:34.

I have the same problem, any sugestion to solve this???



Submitted by Carlos Paulino (not registered) on Thu, 2011-03-17 06:15.

After following this guide I can not log into ISPCONFIG3.

I tried reinstalling, changing the password directly via phpmyadmin, but nothing seems to work.

FYI: The installation didn't give me any errors.

I get the following message.

ERROR

  1. Error

    Username or Password wrong.1

Submitted by denmaddog (registered user) on Sat, 2011-02-12 17:03.

I have setup my server based on this tutorial but Jailkit is not working. When I add shell user to some site and then login via ssh as that user, the user can browse all system. Outputs are:

 tail -f /var/log/auth.log

 Feb 12 16:58:43 www sshd[4370]: Accepted password for bojana from 10.13.1.56 port 2128 ssh2 Feb 12 16:58:43 www sshd[4370]: pam_unix(sshd:session): session opened for user bojana by (uid=0) Feb 12 16:58:44 www sshd[4370]: pam_unix(sshd:session): session closed for user bojana

 /etc/passwd

web3:x:5006:5005::/var/www/clients/client1/web3/./home/web3:/bin/false

bojana:x:5006:5005::/var/www/clients/client1/web3/./home/bojana:/bin/bash

 /etc/init.d/jailkit restart

 Stopping jailkit: jk_socketd/usr/sbin/jk_socketd: no process found

 done.

Starting jailkit: jk_socketdversion 2.13, no sockets specified in configfile /etc/jailkit/jk_socketd.ini or on commandline, nothing to do, exiting...

 done.

Please can you help me solve this.


 Zeljko

Submitted by Anonymous (not registered) on Thu, 2011-04-07 18:50.

Hi

Did anyone manage to fix this issue? Am having one hell of a time fixing it

Submitted by defconjuan (registered user) on Fri, 2011-06-24 20:17.
I'm seeing the same thing (re: jailkit socket config file error on start). anyone? falko?
