8 Configure Firefox To Trust CAcert.org (Optional)

If you use a CAcert.org certificate, your browser most likely doesn't trust this certificate and will show a warning. This chapter explains how you can import the CAcert.org root certificate into Firefox so that it won't show this warning anymore (please read http://wiki.cacert.org/BrowserClients for other browsers like MSIE, Safari or Opera).

Please note that if you run an e-commerce web site, you should better buy a certificate from a trusted CA because you can't ask all your visitors to reconfigure their browsers.

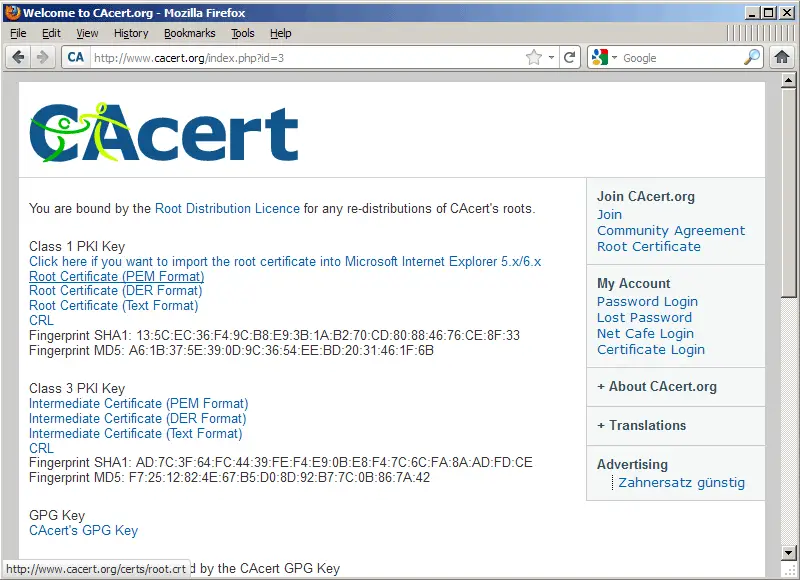

Please visit http://www.cacert.org/index.php?id=3 and click on the Root Certificate (PEM Format) link (http://www.cacert.org/certs/root.crt):

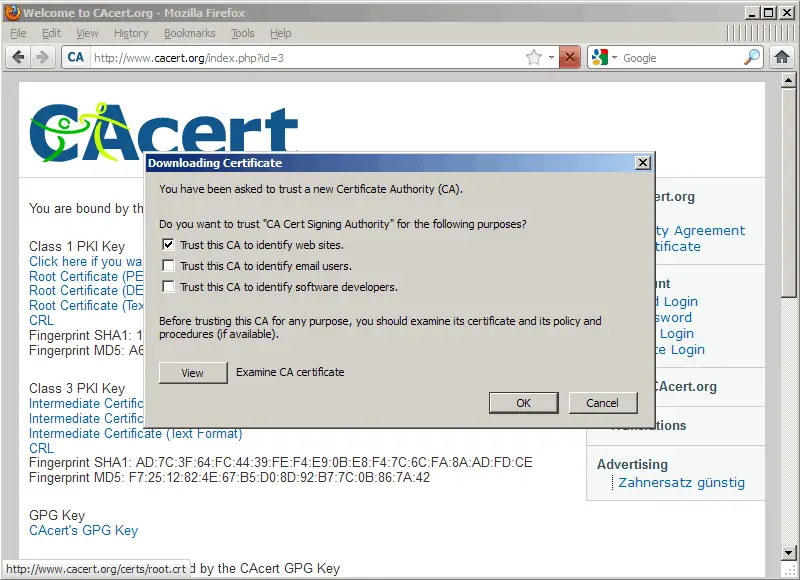

The Downloading Certificate dialogue opens. Click on View to examine the certificate:

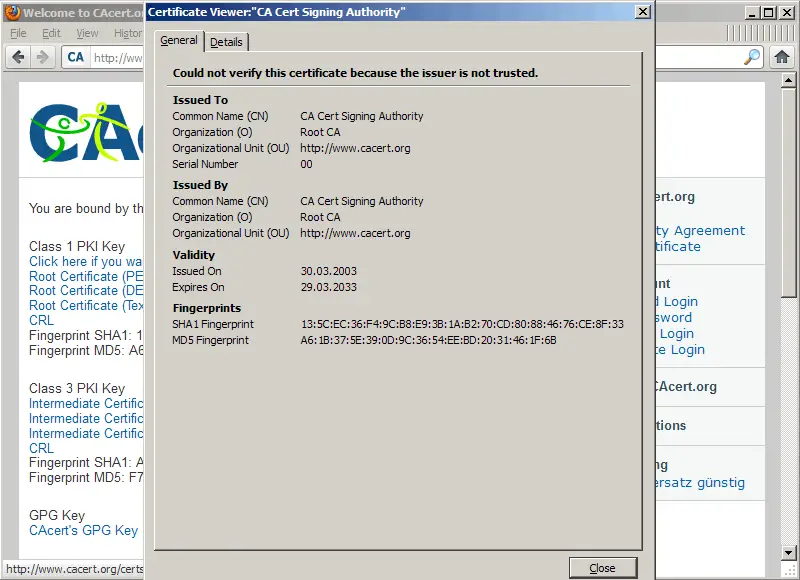

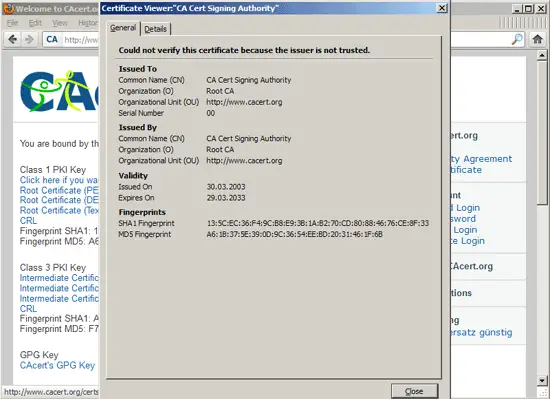

Please make sure that the fingerprints are as follows:

SHA1 Fingerprint: 135C EC36 F49C B8E9 3B1A B270 CD80 8846 76CE 8F33
MD5 Fingerprint: A6:1B:37:5E:39:0D:9C:36:54:EE:BD:20:31:46:1F:6B

Click on Close afterwards:

Next check Trust this CA to identify web sites. and click on OK:

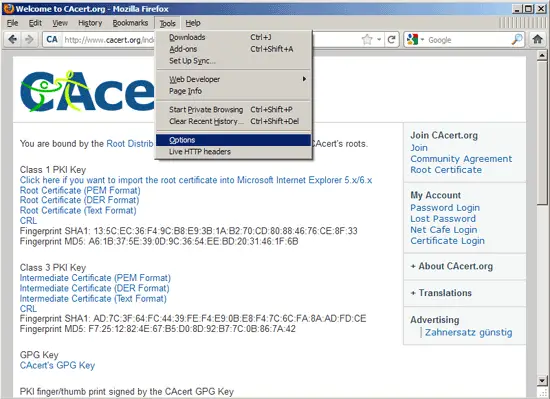

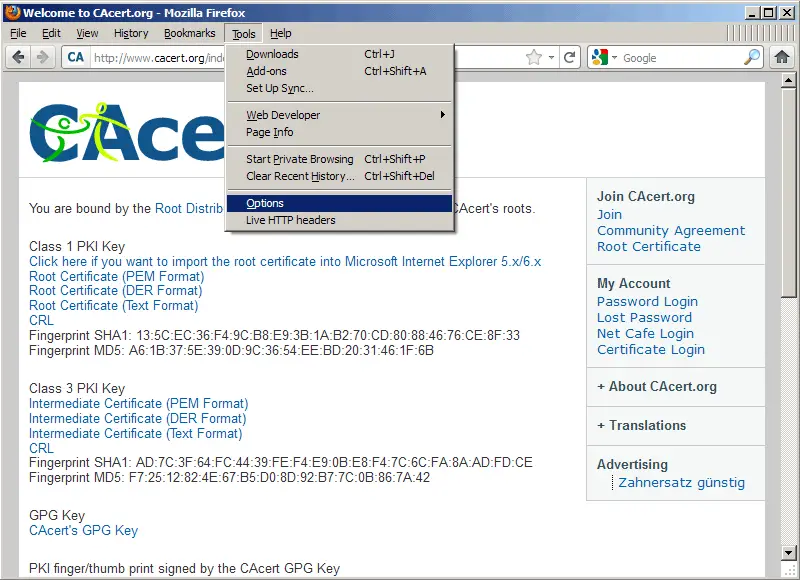

Now go to Tools > Options...

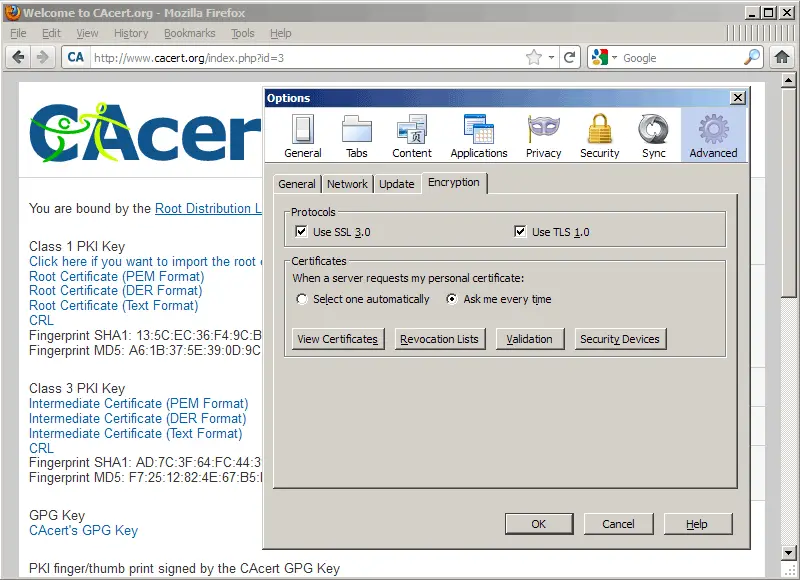

... and then to Advanced > Encryption. Click on Revocation Lists:

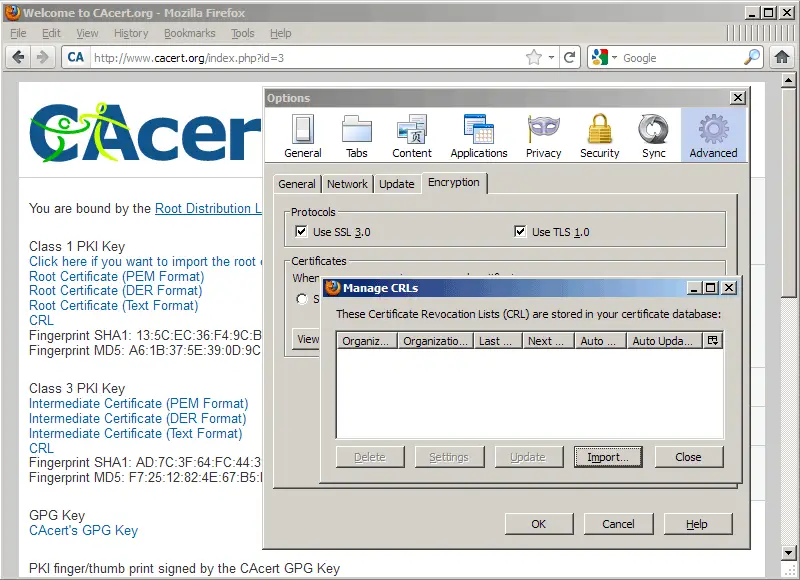

The Manage CRLs window opens. Click on Import...:

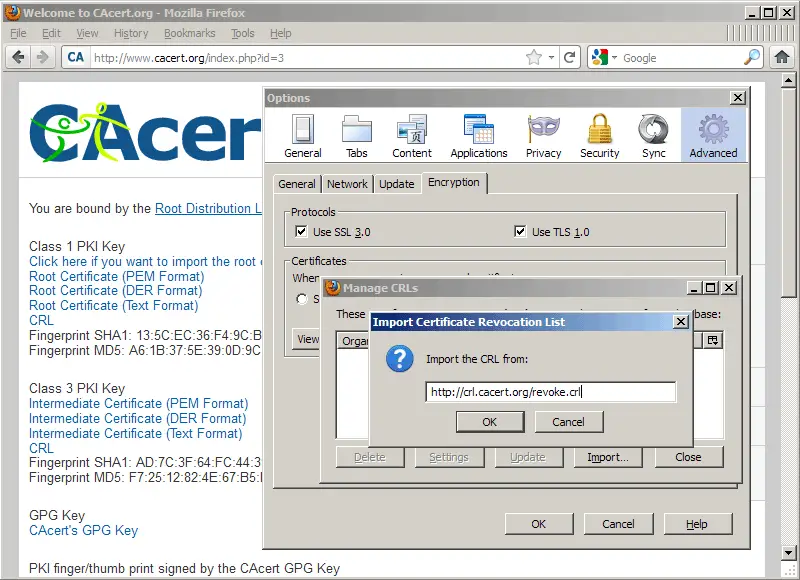

Fill in the following URL and click on OK: http://crl.cacert.org/revoke.crl

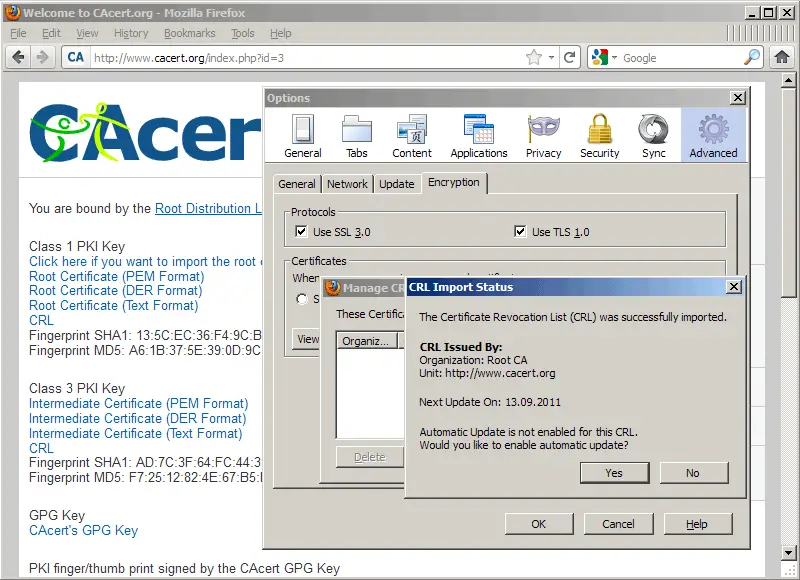

After a few moments you should see the following message. Click on Yes to enable automatic updates:

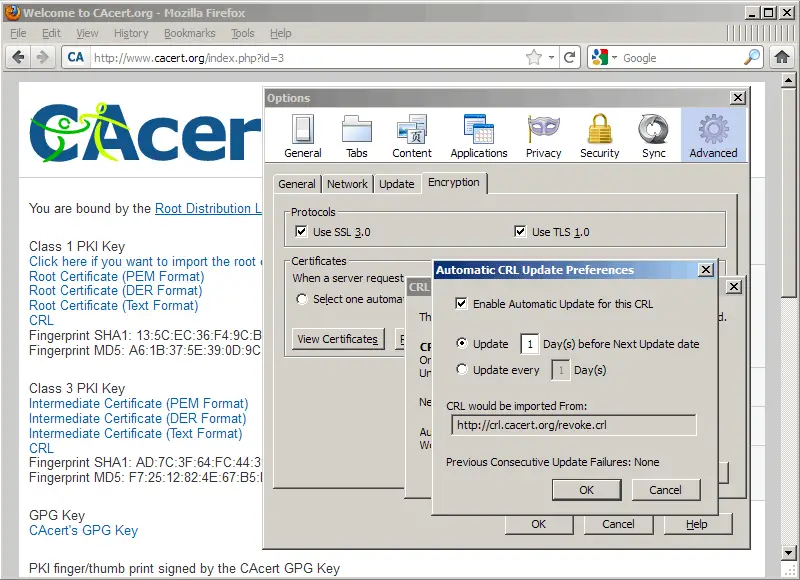

Check Enable Automatic Update for this CRL and click on OK:

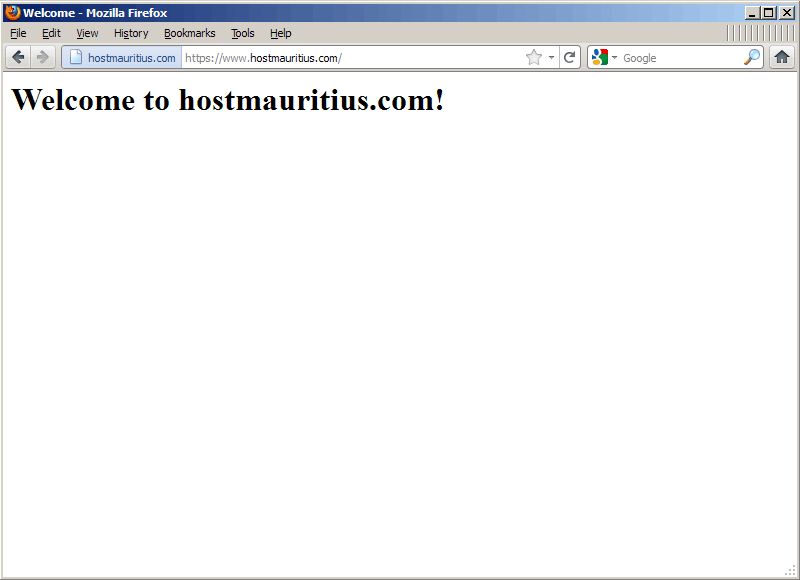

That's it. You should now be able to go to your SSL vhost without getting a browser warning:



9 Running Multiple SSL Vhosts On One IP Address With SNI (Server Name Indication)

Please note that currently SNI is not supported by all browsers/operating systems:

Browsers/clients with support for TLS server name indication:

  • Opera 8.0 and later (the TLS 1.1 protocol must be enabled)
  • Internet Explorer 7 or later (under Windows Vista and later only, not under Windows XP)
  • Firefox 2.0 or later
  • Curl 7.18.1 or later (when compiled against an SSL/TLS toolkit with SNI support)
  • Chrome 6.0 or later (on all platforms - releases up to 5.0 only on specific OS versions)
  • Safari 3.0 or later (under OS X 10.5.6 or later and under Windows Vista and later)

To find out if your browser supports SNI, you can go to https://alice.sni.velox.ch/.

If your nginx supports SNI, you don't need any special configuration to use it - you just configure a second, third, ... SSL vhost on the same IP as shown in chapter 5.

To find out if your nginx supports SNI, run:

nginx -V

If it does, you will see the line TLS SNI support enabled in the output:

root@server1:~# nginx -V
nginx version: nginx/0.8.54
TLS SNI support enabled
configure arguments: --conf-path=/etc/nginx/nginx.conf --error-log-path=/var/log/nginx/error.log --http-client-body-temp-path=/var/lib/nginx/body --http-fastcgi-temp-path=/var/lib/nginx/fastcgi --http-log-path=/var/log/nginx/access.log --http-proxy-temp-path=/var/lib/nginx/proxy --http-scgi-temp-path=/var/lib/nginx/scgi --http-uwsgi-temp-path=/var/lib/nginx/uwsgi --lock-path=/var/lock/nginx.lock --pid-path=/var/run/nginx.pid --with-debug --with-http_addition_module --with-http_dav_module --with-http_geoip_module --with-http_gzip_static_module --with-http_image_filter_module --with-http_realip_module --with-http_stub_status_module --with-http_ssl_module --with-http_sub_module --with-http_xslt_module --with-ipv6 --with-sha1=/usr/include/openssl --with-md5=/usr/include/openssl --with-mail --with-mail_ssl_module --add-module=/build/buildd/nginx-0.8.54/debian/modules/nginx-upstream-fair
root@server1:~#

I can now simply create another SSL host (this time for www.hostmauritius.net) as follows:

vi /etc/nginx/sites-available/www.hostmauritius.net.vhost

If you use nginx >= 0.8.21:

server {
        listen   80; ## listen for ipv4
        listen   [::]:80; ## listen for ipv6
        listen   443 ssl;
        listen   [::]:443 ssl;
        ssl_certificate /etc/ssl/certs/www.hostmauritius.net.pem;
        ssl_certificate_key /etc/ssl/private/www.hostmauritius.net.key;
        server_name  www.hostmauritius.net hostmauritius.net;
        root /var/www/www.hostmauritius.net/web;
        if ($http_host != "www.hostmauritius.net") {
                 rewrite ^ $scheme://www.hostmauritius.net$request_uri permanent;
        }
        location / {
                index  index.php index.html index.htm;
        }
        location ~ \.php$ {
                fastcgi_pass   127.0.0.1:9000;
                fastcgi_index  index.php;
                fastcgi_param  SCRIPT_FILENAME  /var/www$fastcgi_script_name;
                include         fastcgi_params;
        }
        location ~ /\. {
                deny  all;
        }
}

If you use nginx < 0.8.21:

server {
        listen   80; ## listen for ipv4
        listen   [::]:80; ## listen for ipv6
        listen   443;
        listen   [::]:443;
        ssl_certificate /etc/ssl/certs/www.hostmauritius.net.pem;
        ssl_certificate_key /etc/ssl/private/www.hostmauritius.net.key;
        server_name  www.hostmauritius.net hostmauritius.net;
        root /var/www/www.hostmauritius.net/web;
        if ($http_host != "www.hostmauritius.net") {
                 rewrite ^ $scheme://www.hostmauritius.net$request_uri permanent;
        }
        location / {
                index  index.php index.html index.htm;
        }
        location ~ \.php$ {
                fastcgi_pass   127.0.0.1:9000;
                fastcgi_index  index.php;
                fastcgi_param  SCRIPT_FILENAME  /var/www$fastcgi_script_name;
                include         fastcgi_params;
        }
        location ~ /\. {
                deny  all;
        }
}

(Make sure that you create the certificate and the private key as shown in chapters 4, 6, and 7. You might also have to append a chain file or intermediate certificate to the certificate for this vhost, as described in chapter 7.1. Also, if this is a new vhost, make sure its document root exists.)

If this is a new vhost, you must create a link to it from the /etc/nginx/sites-enabled/ directory to enable it:

cd /etc/nginx/sites-enabled/
ln -s /etc/nginx/sites-available/www.hostmauritius.net.vhost www.hostmauritius.net.vhost

Reload nginx afterwards:

/etc/init.d/nginx reload

If all goes well, you can now go to all your SSL sites which run on the same IP without getting a browser warning.
