Improve Network Performance with openDataplane and Open Fast Path on Ubuntu 16.04

Open Data Plane (ODP)

The performance of Linux-based network solutions was one of the biggest issues in the past and that's why Intel started the Data Plane Development Kit (DPDK) project. The goal of the ODP environment is to provide a cross­platform framework for data plane applications. ODP is an open source project which provides the environment for data plane applications. It is easy to use, provides high­performance and is also portable across various networking system on chip (SoCs) and instruction sets and architectures such as ARM and Intel. The OPD environment consists of configuration files, services, APIs for different architectures and utilities which are optimized for the different underlying hardware vendors. The purpose of the ODP environment is to separate the API from the underlying architectures and it is designed in a way to support both software and hardware implementations to deeply exploit acceleration features present in modern SoCs.

Open Fast Path (OFP)

As we know, high-performance devices are required for the exponentially growing data traffic which demands a fast packet processing devices or machines in the network. OpenFastPath is another open source implementation of a high-performance TCP/IP stack which is helpful for network applications with a traditional Linux stack. The main functionality of OFP is provided as a library for different applications which are using ODP for the completion, execution model and framework. OFP supports both DPDK and ODP for high performance of network solutions.

Build the Environment Setup

As per OFP project website, it has been tested on generic 32/64bit x86 Linux machines. In this tutorial, OFP will be installed on an Ubuntu 16.04 VM.

Prerequisites

The following steps are executed as root user. Run:

sudo -s

to become root on the server.

The following packages are required to compile OFP and ODP code on Ubuntu.

These are mandatory for accessing and building ODP and OFP:

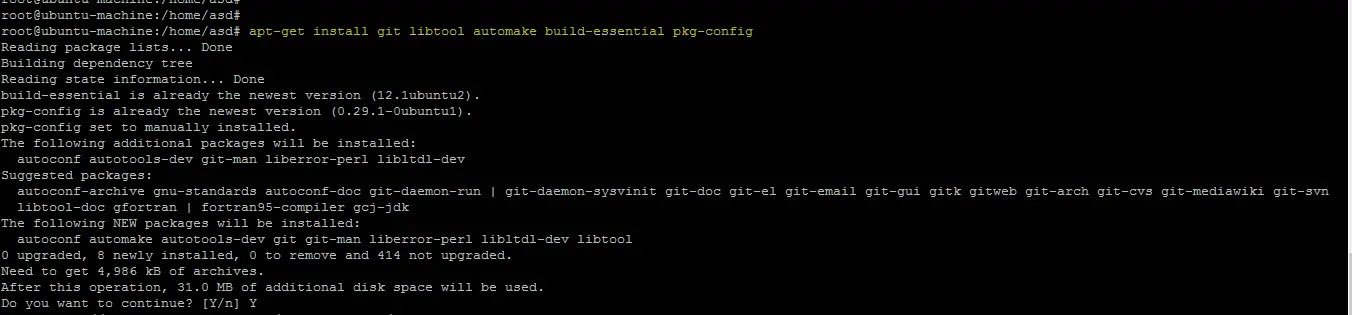

apt-get install git libtool automake build-essential pkg-config

Install ODP system requirements

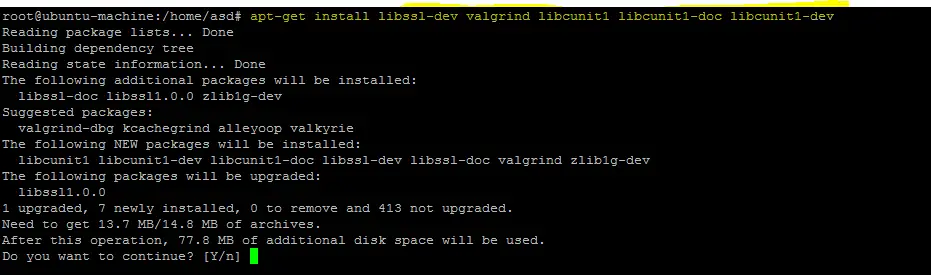

However, following packages are options.

 apt-get install libssl-dev valgrind libcunit1 libcunit1-doc libcunit1-dev

Install optional but recommended packages

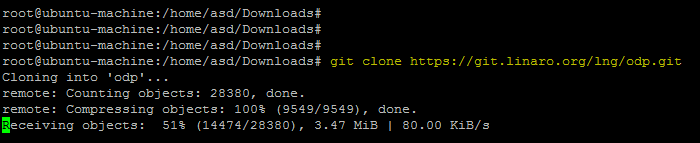

OFP path can be used with ODP and DPDK (intel). However, in this tutorial, ODP will be used with the OFP project. Using the git utility to download the ODP code as shown below.

 git clone https://git.linaro.org/lng/odp.git

Download ODP with GIT

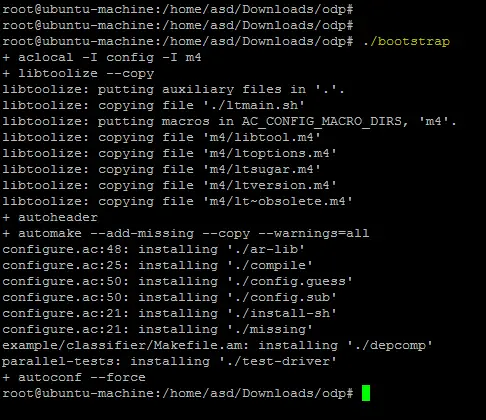

Go into the root directory of the ODP source code and run the following command.

 ./bootstrap

Bootstrap ODP

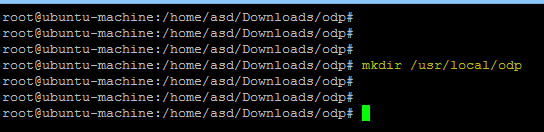

In this tutorial, the installation directory of ODP is "/usr/local/odp".

mkdir /usr/local/odp

Create ODP directory

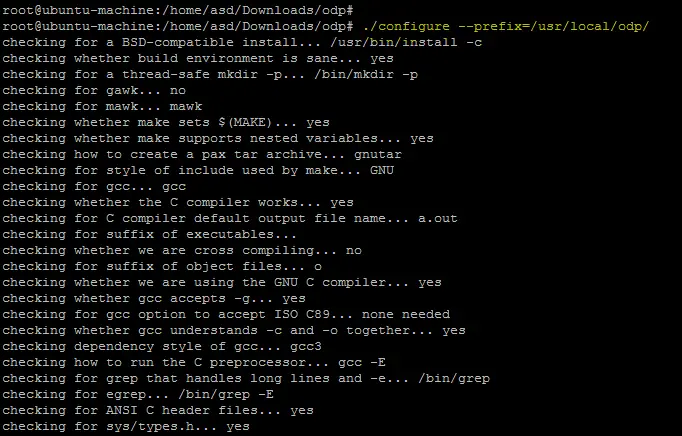

Run the configure script with prefix option as shown in following screenshot.

 ./configure --prefix=/usr/local/odp/

Configure ODP

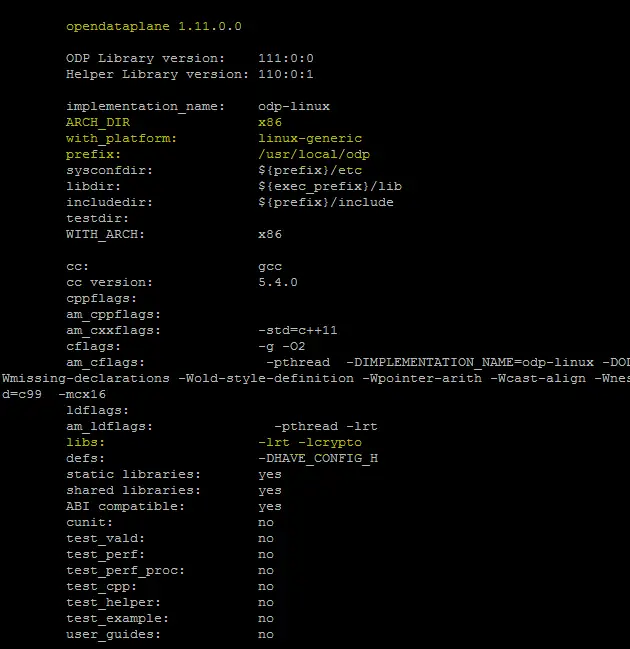

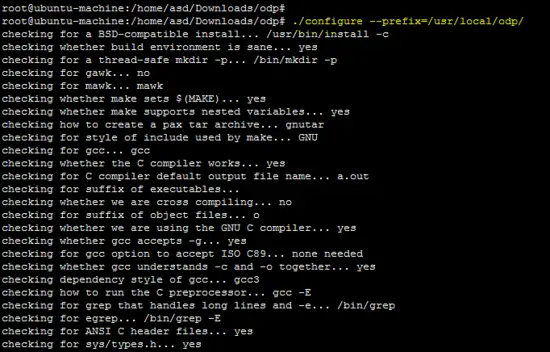

The output of configure script is shown below.

ODP configure output

Run make and make install for the compilation and installation of ODP on the Ubuntu platform.

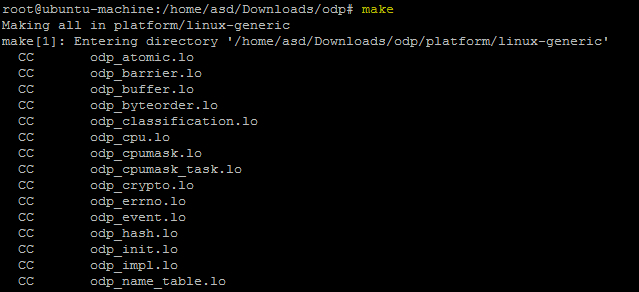

make

Make ODP

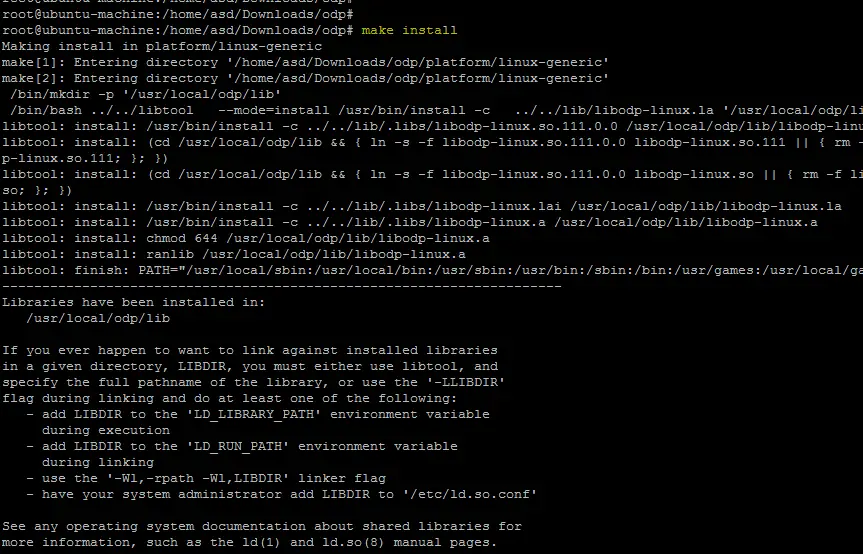

make install

install ODP with make install

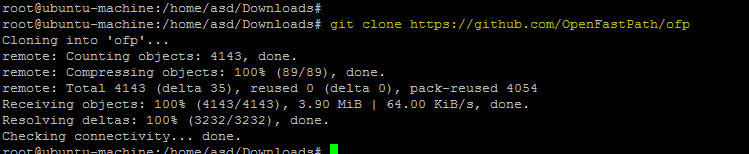

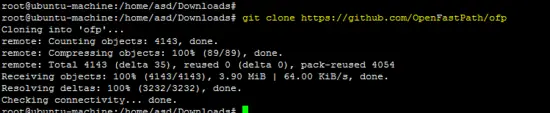

As shown below, download the OFP code by using the git command.

git clone https://github.com/OpenFastPath/ofp

Download OFP with GIT

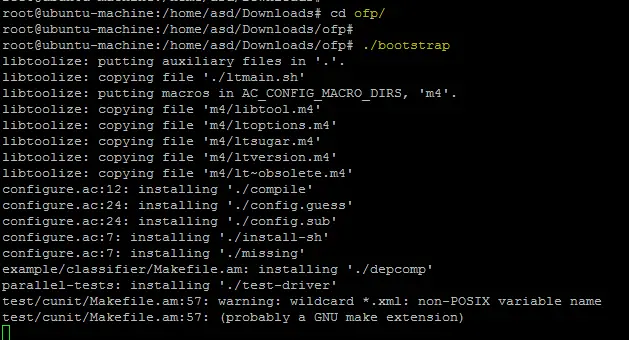

Enter into the root directory of the OFP source code and run the ./bootstrap command.

cd ofp/
./bootstrap

Bootstrap OFP

The installation directory of the OFP project is "/usr/local/ofp". Run the following configure script to check the dependencies of the project.

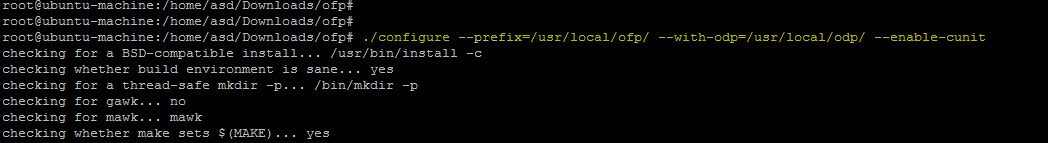

 ./configure --prefix=/usr/local/ofp/ --with-odp=/usr/local/odp/ --enable-cunit

Check OFP dependencies

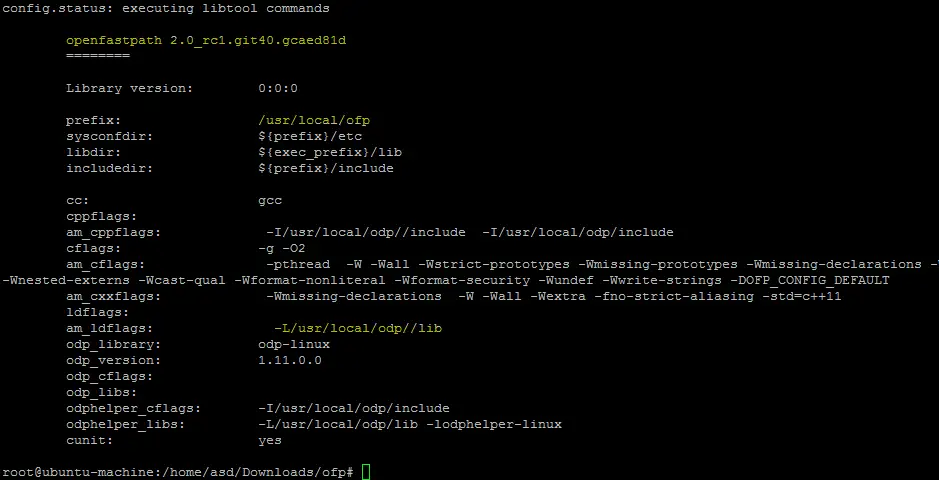

The output of the configure script is shown in the following snapshot.

OFP configure script output

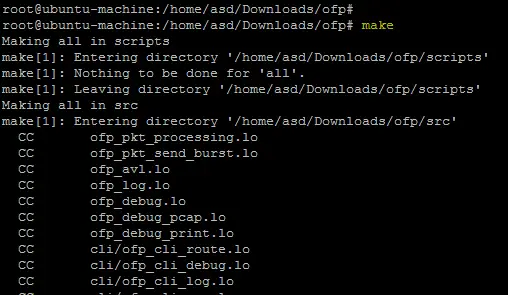

Run the "make" command to build the OFP project code. It will take some time to build the OFP application.

 make

Build OFP code with make command

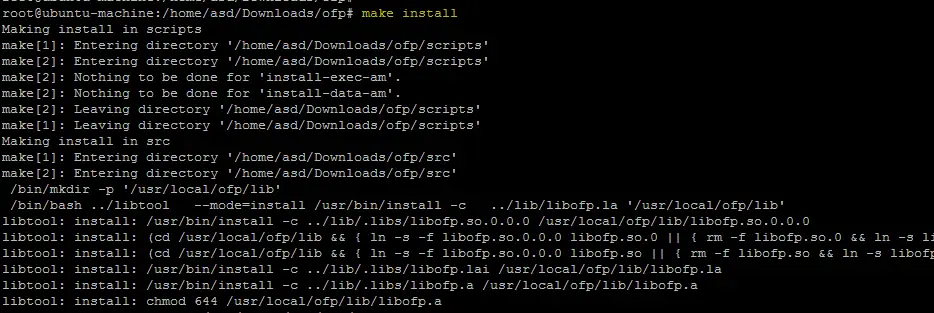

The following command will place the OFP project binaries and libraries inside the prefix path.

 make install

Install OFP

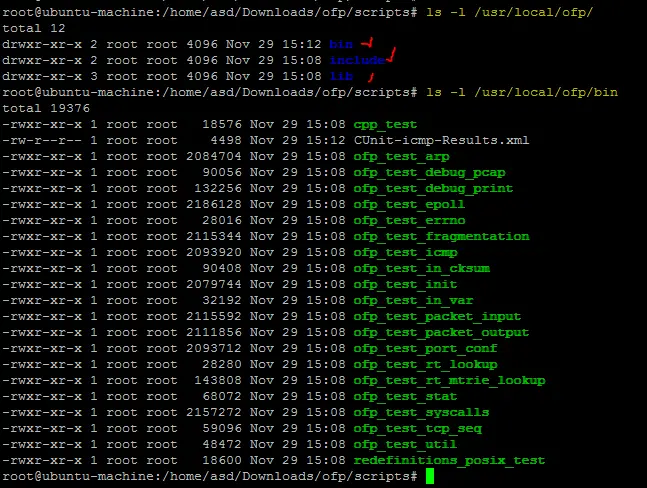

After installation, binaries and libraries are placed under the "/usr/local/ofp" path.  All related test applications for the OFP project are under the "bin" directory.

Locations of binaries

Execution of the OFP Application

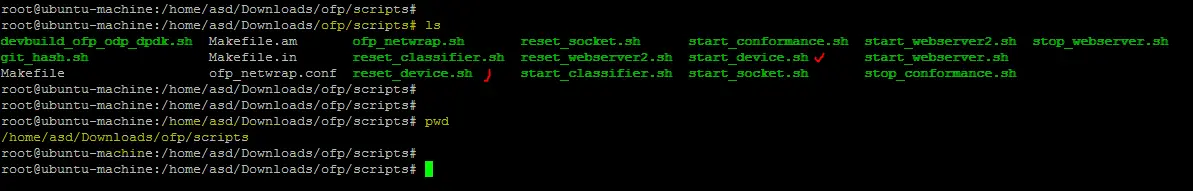

To run the OFP application (fpm), go into the scripts directory under the root directory of the OFP source code.

Enter the scripts directory

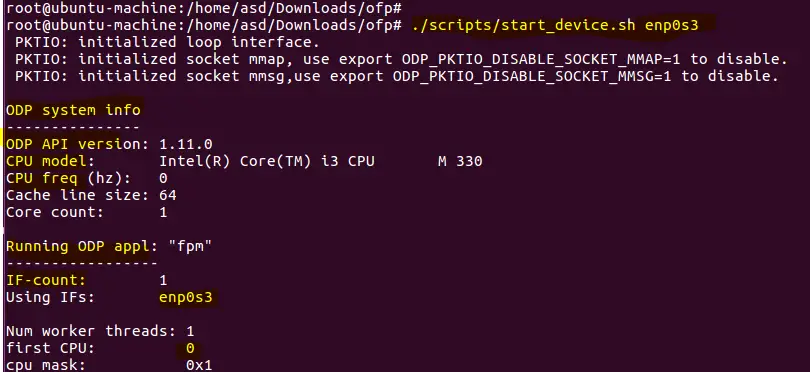

By default, the fpm application runs on the eth0 interface. However, on ubuntu 16.04 LTS, the interface name is "enp0s3".  The following screenshot shows how the fpm application is run using the "start_device.sh" script.

Run start_device.sh

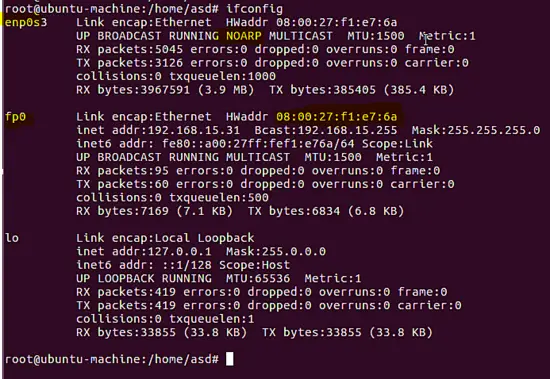

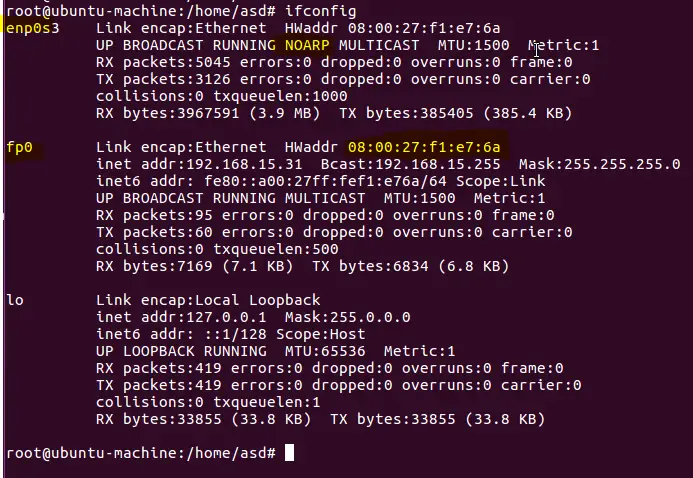

After running the "fpm" application, a new interface "fp0" will be created as shown below.

The fp0 interface has been created

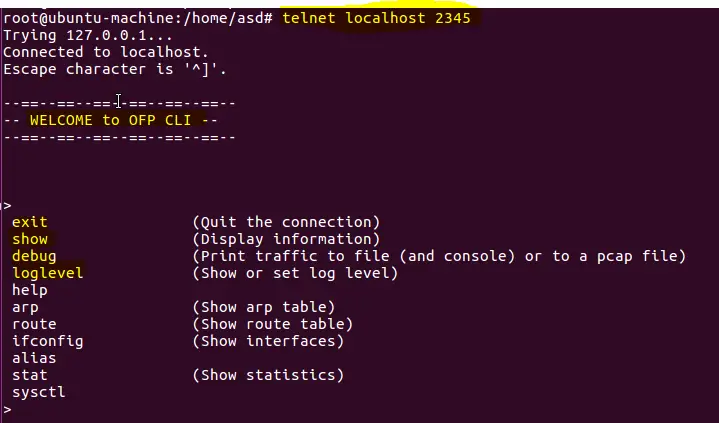

Run the following command to get access to CLI of the "fpm" application.

telnet localhost 2345

Access the FPM application with telnet

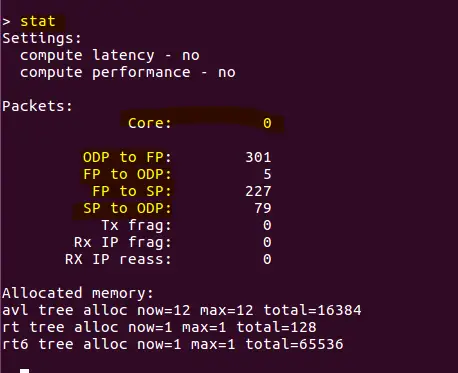

The CLI of the application supports several basic commands. The following screenshot shows the interface statistics using the "stat" command. After running the fastpath application, the ethernet interface (enp0s3) will be disconnected from Linux and "NoARP" will be set on it. The newly created virtual interface (fp0) will be used by Linux OS for communication now.

Interface statistics

References

  1. http://www.opendataplane.org/wp-content/uploads/2014/01/ODPIntroductionandOverview-2014Jan29.pdf
  2. http://www.openfastpath.org/index.php/service/technicaloverview/
Share this page:

Suggested articles

8 Comment(s)

Add comment

Comments

From: alex

Can you elaborate on the use cases for this ?

I'm not familiar with Dataplane and ODP. Why would somebody use this? What does it do for an aplication like MariaDB/MySQL ?

From: Dave

When followig this example, I set the ip on the fp0 interface, but am unable to ping out from the server.

Incoming pings to the IP work, but not outgoing.

From: richard

Me too!  Did you ever work out what was going on?

From: JeffRegerator

Hello,

While i try to compile OFP (following the instruction above step by by step) i get this error:

/home/hwk/fp2/ofp/example/fpm/app_main.c:229: undefined reference to `odph_linux_pthread_create'

/home/hwk/fp2/ofp/example/fpm/app_main.c:274: undefined reference to `odph_linux_pthread_join'

app_main.o: In function `start_performance':

/home/hwk/fp2/ofp/example/fpm/app_main.c:512: undefined reference to `odph_linux_pthread_create'

app_main.o: In function `main':

/home/hwk/fp2/ofp/example/fpm/app_main.c:287: undefined reference to `odph_linux_pthread_join'

../../lib/.libs/libofp.a(ofp_cli.o): In function `ofp_start_cli_thread':

/home/hwk/fp2/ofp/src/cli/ofp_cli.c:1741: undefined reference to `odph_linux_pthread_create'

../../lib/.libs/libofp.a(ofp_cli.o): In function `ofp_stop_cli_thread':

/home/hwk/fp2/ofp/src/cli/ofp_cli.c:1765: undefined reference to `odph_linux_pthread_join'

../../lib/.libs/libofp.a(ofp_init.o): In function `ofp_init_global':

/home/hwk/fp2/ofp/src/ofp_init.c:218: undefined reference to `odph_linux_pthread_create'

../../lib/.libs/libofp.a(ofp_init.o): In function `ofp_term_global':

/home/hwk/fp2/ofp/src/ofp_init.c:294: undefined reference to `odph_linux_pthread_join'

/home/hwk/fp2/ofp/src/ofp_init.c:295: undefined reference to `odph_linux_pthread_join'

/home/hwk/fp2/ofp/src/ofp_init.c:270: undefined reference to `odph_linux_pthread_join'

../../lib/.libs/libofp.a(ofp_ifnet.o): In function `ofp_ifnet_create':

/home/hwk/fp2/ofp/src/ofp_ifnet.c:319: undefined reference to `odph_linux_pthread_create'

/home/hwk/fp2/ofp/src/ofp_ifnet.c:328: undefined reference to `odph_linux_pthread_create'

collect2: error: ld returned 1 exit status

I could build ofp with devbuild_dpdk script and run the examples.But it didn't be compiled with "make".

From: Allan

I get the following error trying to build OFP:

/usr/local/odp//include/odp/api/plat/shared_memory_types.h:23:39: fatal error: odp/api/shared_memory.h: No such file or directory

compilation termined.



Any ideas?  My google foo is not turning up anything.

From: Allan

After several failed attempts to solve this, I blew away the VM, reinstalled Ubuntu and tried again.  It still fails when trying to compile ofp.  This time the error was a little different:



root@genesis01:~/download/ofp# make

Making all in scripts

make[1]: Entering directory '/home/abrand/download/ofp/scripts'

make[1]: Nothing to be done for 'all'.

make[1]: Leaving directory '/home/abrand/download/ofp/scripts'

Making all in src

make[1]: Entering directory '/home/abrand/download/ofp/src'

  CC       ofp_pkt_processing.lo

In file included from ofp_pkt_processing.c:35:0:

../include/ofpi.h:12:30: fatal error: odp/helper/linux.h: No such file or directory

compilation terminated.

Makefile:646: recipe for target 'ofp_pkt_processing.lo' failed

make[1]: *** [ofp_pkt_processing.lo] Error 1

make[1]: Leaving directory '/home/abrand/download/ofp/src'

Makefile:587: recipe for target 'all-recursive' failed

make: *** [all-recursive] Error 1

root@genesis01:~/download/ofp#

From: Ibraheem

I faced this problem, OFP (master branch) supports only one ODP version: monarch_lts

On odp, try:

git checkout -b test_monarch_lts origin/monarch_lts



https://github.com/OpenFastPath/ofp/issues/148

From: Ibraheem

  CC       ofp_pkt_processing.lo

In file included from /usr/local/odp//include/odp/api/barrier.h:22:0,

                 from /usr/local/odp//include/odp_api.h:31,

                 from /usr/local/odp//include/odp.h:21,

                 from ../include/ofpi.h:11,

                 from ofp_pkt_processing.c:35:

/usr/local/odp//include/odp/api/plat/shared_memory_types.h:23:39: fatal error: odp/api/abi/shared_memory.h: No such file or directory

compilation terminated.

Makefile:646: recipe for target 'ofp_pkt_processing.lo' failed

make[1]: *** [ofp_pkt_processing.lo] Error 1

make[1]: Leaving directory '/home/ibraheem/ofp/src'

Makefile:587: recipe for target 'all-recursive' failed

make: *** [all-recursive] Error 1
