Build an IRC Server with IRCD-Hybrid and Anope on Ubuntu 15.04
This tutorial shows the installation of an IRC server with IRCD-Hybrid and Anope on Ubuntu 15.04 and how to secure the IRC connections with SSL.
IRC (Internet Relay Chat) is a text-based chat protocol which has an open specification. There are several IRC servers and clients available which implement IRC.
IRCD-Hybrid is a lightweight, high-performance Internet Relay Chat daemon used by e.g. EFnet. We will use this software in our tutorial for Ubuntu 15.04.
Anope is a set of IRC Services that provides flexibility and ease of use with support for 15 IRCds including IRCD-Hybrid. Anope is available in 2 versions: Stable and Development. We will use the Stable version here.
- An Ubuntu 15.04 server, I will use the IP 192.168.1.109.
- Root Privileges
What we will do in this tutorial:
- Install the required dependencies.
- Download and install IRCD-Hybrid.
- Download and install Anope.
- Configure IRCD-Hybrid.
- Configure Anope Services.
- Adding SSL to IRCD-Hybrid.
Step 1 - Installation of the required dependencies
We need OpenSSL and the gcc compiler for the installation. The Linux Build tools are available in the meta package "build-essential" and we need the Make tool CMake for the Anope installation. Install the packages with the "apt" command:
sudo apt-get install build-essential cmake openssl libssl-dev
Step 2 - Download and install IRCD-Hybrid
1. We will install IRCD-Hybrid from source. Download the source files from sourceforge and extract them in your home directory:
tar -xzf ircd-hybrid-8.2.8.tgz
2. Please go to the directory "ircd-hybrid" with "cd" command:
3. Now before you compile and install the software, you have to set a directory for ircd, and the user to run the software. This what i will do:
- Install ircd-hybrid under user "mavis".
- Install in a directory called "hybrid", under mavis home directory. "/home/mavis/hybrid/".
If you dont have a user "mavis" yet, add one with the command:
Now run this command with "root" privileges to configure and compile ircd:
make && make install
Now go to the mavis home directory and change the owner of the "hybrid" directory.
chown -R mavis:mavis hybrid
Step 3 - Download and install Anope Services
1. Download anope with the wget command and extract the tar.gz file:
tar -xzf 2.0.2.tar.gz
2. Then enter the anope directory.
3. And compile and install anope. These are the same steps that we used to install ircd-hybrid. I will install it under user "mavis" as well into the directory "services".
Now run this as "root" privileges :

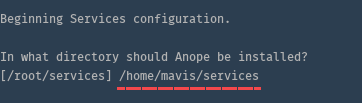

and you will be asked "where do you want to install" anope. Enter the following directory "/home/mavis/services/" and then press "Enter".
Next enter the "build" directory and then use a command "make && make install" to compile and install anope services.
make && make install
When the installation is complete, go to the mavis home directory and change the owner for directory "services" to user "mavis".
chown -R mavis:mavis services/
Step 4 - Configure IRCD-Hybrid

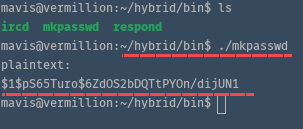

1. Before you edit the configuration file, please generate a password with "mkpasswd" command in the "bin" directory. This password is used later for the admin/operator access.
type your password
2. Now switch to user mavis to configure ircd-hybrid. Please go to the directory "hybrid/etc/" and copy a file "reference.conf" to a new file "ircd.conf".
su - mavis
cp reference.conf ircd.conf
3. Edit the file ircd.conf with the vim editor.
Go to line 40 - the serverinfo block - and change it to your server info, below my example:
name = "mavis.local"; description = "ircd-hybrid Mavis server"; network_name = "MavisNet"; network_desc = "This is Mavis Network";
Now edit the admin info in line 195:
name = "Mavis Admin"; description = "Mavis Server Administrator"; email = "<firstname.lastname@example.org>";
and in the auth block on line 428, comment "flag" the option:
# flags = need_ident;
and set the oprator or admin for irc server in line 437 :
name = "mavis"; #operator username user = "*@192.168.1.*"; # this is my network IP password = "$1$zylz9BKK$AQg/dc/Ig04YuvPgkCtFK0"; #password generated with mkpasswd encrypted = yes;
And finally you have to "define a server to connect to" in the connect block line 566. The configuration is use by ircd-hybrid for the connection to anope :
name = "services.mavis.local"; host = "192.168.1.109"; #server ip send_password = "12345"; #use your password accept_password = "12345"; port = 6666;
Then save the configuration file.

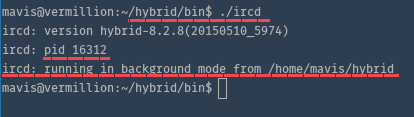

4. Start ircd-hybrid in bin directory

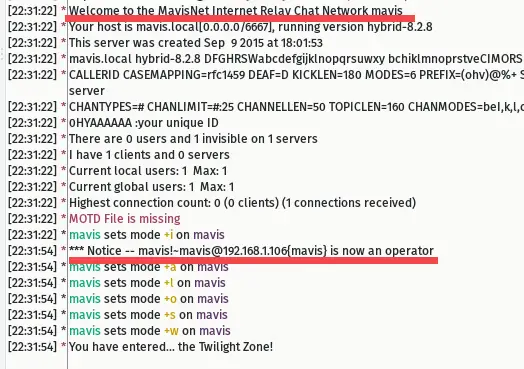

Try connect to your IRC server with an IRC client like mIRC, hexchat or xchat.
Login with user mavis, try to be an operator/admin.
/oper mavis aqwe123
Step 5 - Configure Anope Services
1. Go to the anope installation directory as user "mavis" and copy the file "example.conf" to the new file "services.conf".
su - mavis
cp example.conf services.conf
2. Edit the configuration file with the vim editor.
Edit the uplink block in line 154 - this is used by anope for the connection to ircd. Make sure this configuration matches with connect block in the ircd configuration.
host = "192.168.1.109" port = 6666 #default port is 7000 password = "12345"
Then change the serverinfo block in line 198 and make sure it is matches with the connect block in the ircd-hybrid configuration.
name = "services.mavis.local"
Finally you have to define the ircd software that you use in the module block in line 260. Change "inspircd20" to "hybrid".
name = "hybrid"
Save the configuration file.

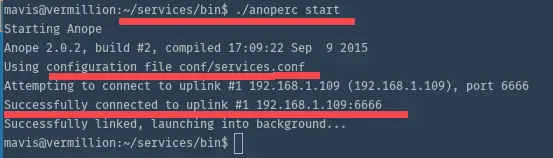

3. Run the anope services.

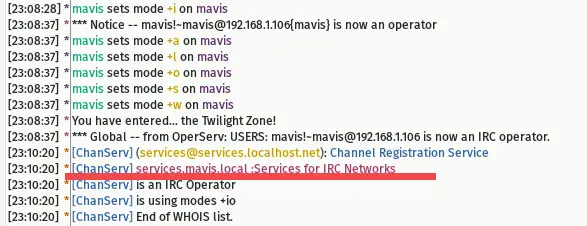

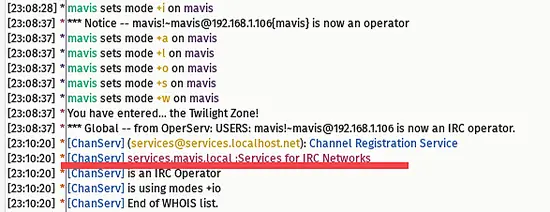

Now you can check that the anope services are connected with ircd-hybrid. Connect to the IRC server and check with this command:
Step 6 - Add SSL to IRCD-Hybrid
1. Before you edit the ircd-hybrid configuration, you have to generate a SSL certificate for ircd. Please go to the "hybrid/etc/" directory.

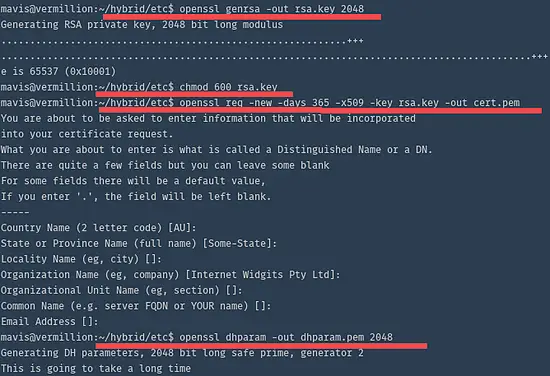

And generate a private rsa.key with the openssl command, change the permission to 600 with chmod:
openssl genrsa -out rsa.key 2048
chmod 600 rsa.key
Now generate the SSL certificate for the encrypted client connection with our rsa.key private key:
openssl req -new -days 365 -x509 -key rsa.key -out cert.pem
Enter your data like Country etc. when requested by OpenSSL.
and the last, generate a dhparam file with command :
openssl dhparam -out dhparam.pem 2048
Just wait, because it will take some time.
2. Now go to the hybrid directory and edit the configuration file "ircd.conf".
vim ircd .conf
Uncomment the ssl configuration in the serverinfo block:
rsa_private_key_file = "etc/rsa.key"; # Line 114 ssl_certificate_file = "etc/cert.pem"; # Line 136 ssl_dh_param_file = "etc/dhparam.pem"; # Line 151

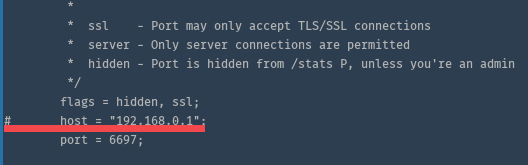

And finally you have to comment the host in the listen block at line 353.
# host = "192.168.0.1";
Save and exit.

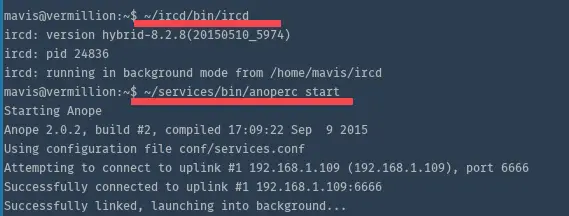

3. Restart ircd-hybrid and anope:
Step 7 - Testing

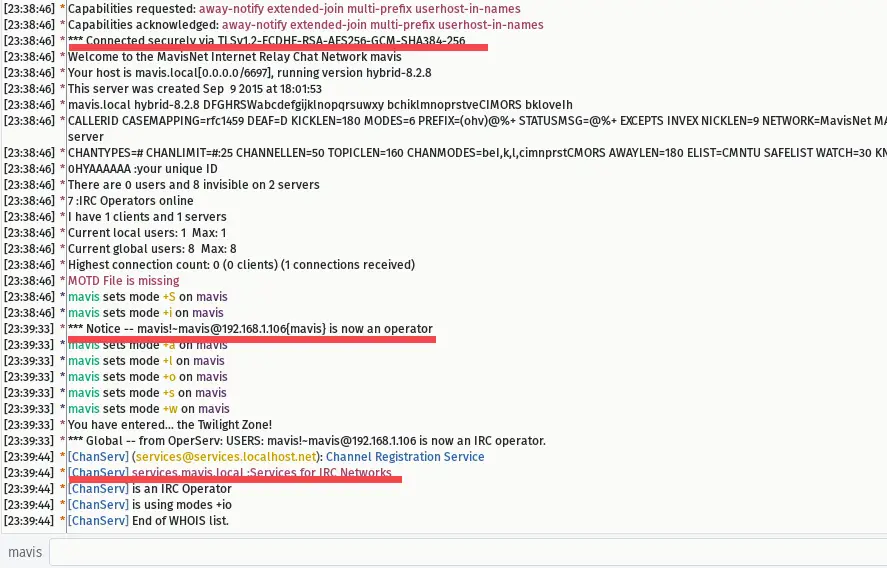

Try to connect to your IRC server with an IRC client, I'll be using Hexchat here and see what happens:
/server -ssl 192.168.1.109 6697
note : 6697 is default port for SSL Connection on ircd-hybrid.
Now you can see that we are connected with SSL and that we can be a operator/admin of our server, so the anope is working.
Internet Relay Chat(IRC) is an open (client/server) protocol for text-based chats, it is one of the foundations of the internet and still used by many developers and sysadmins. The IRC Server is a computer/server running an IRC daemon, the IRC client is a small program that the user can install on their system as chat client. IRCD-Hybrid is an lightweight and easy to configure IRC Daemon with support for SSL connections to secure the IRC network. Anope is a set of services for IRC Networks. With anope you can easily manage your IRC network. IRCD-Hybrid, Anope and SSL are one of the best solutions to build your own IRC Server.
