How to Install a MongoDB Sharded Cluster on CentOS 7

Sharding is a MongoDB process to store data-set across different machines. It allows you to do a horizontal scale of data, partition data across independent instances, and it can be 'Replica Sets'. Data-set partitioning on 'Sharding' uses shard key. Sharding allows you to add more machines based on data growth on your stack.

Sharding and Replication

Let's make it simple. When you have collections of music, 'Sharding' will save and keep your music collections into a different folder. 'Replication,' on the other hand, is just syncing your music collections to other instances.

Three Sharding Components

Shard - Used to store all data, and in a production environment, each shard is replica sets. Provides high-availability and data consistency.

Config Server - Used to store cluster metadata, contains a mapping of cluster data set and shards. This data is used by mongos/query server to deliver operations. It's recommended to use more than 3 instances in production.

Mongos/Query Router - This is just mongo instances running as application interfaces. The application will make requests to mongos instances, and then mongos will deliver the requests using shard key to the shards replica sets.

Prerequisites

  • 2 centOS 7 server as Config Replica Sets
      • 10.0.15.31      configsvr1
      • 10.0.15.32      configsvr2
  • 4 CentOS 7 server as Shard Replica Sets
      • 10.0.15.21      shardsvr1
      • 10.0.15.22      shardsvr2
      • 10.0.15.23      shardsvr3
      • 10.0.15.24      shardsvr4
  • 1 CentOS 7 server as mongos/Query Router
      • 10.0.15.11       mongos
  • Root privileges
  • Each server connected to another server

Step 1 - Disable SELinux and Configure Hosts

For this tutorial, we will disable SELinux. Change SELinux configuration from 'enforcing' to 'disabled'.

Connect to all nodes through OpenSSH.

ssh [email protected]

Disable SELinux by editing the configuration file.

vim /etc/sysconfig/selinux

Change SELinux value to 'disabled'.

SELINUX=disabled

Save and exit.

Next, edit the hosts file on each server.

vim /etc/hosts

Paste the following hosts configuration:

    10.0.15.31      configsvr1
    10.0.15.32      configsvr2
    10.0.15.11      mongos
    10.0.15.21      shardsvr1
    10.0.15.22      shardsvr2
    10.0.15.23      shardsvr3
    10.0.15.24      shardsvr4

Save and exit.

Now restart all servers:

reboot

Step 2 - Install MongoDB on All Instances

We will use latest MongoDB (MongoDB 3.4) for all instances. Add new MongoDB repository by executing the following commands:

cat <<'EOF' >> /etc/yum.repos.d/mongodb.repo
[mongodb-org-3.4]
name=MongoDB Repository
baseurl=https://repo.mongodb.org/yum/redhat/$releasever/mongodb-org/3.4/x86_64/
gpgcheck=1
enabled=1
gpgkey=https://www.mongodb.org/static/pgp/server-3.4.asc
EOF

Now install mongodb 3.4 from mongodb repository using the yum command below.

sudo yum -y install mongodb-org

After mongodb is installed, use 'mongo' or 'mongod' command in the following way to check version details.

mongod --version

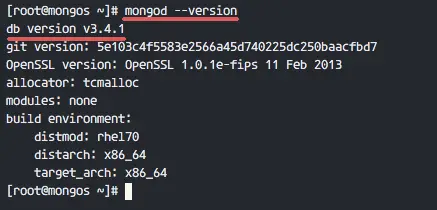

Install MongoDB on All Instances

Step 3 - Create Config Server Replica Set

In the prerequisites section, we've already defined config server with 2 machines 'configsvr1' and 'configsvr2'. And in this step, we will configure it to be a replica set.

If there is mongod service running on the server, stop it with the following systemctl command.

systemctl stop mongod

Edit the default mongodb configuration 'mongod.conf'.

vim /etc/mongod.conf

Change DB storage path to your own directory. We will use '/data/db1' for the first server, and '/data/db2' directory for second config server.

storage:
  dbPath: /data/db1

Change the value of the line 'bindIP' to your internal network address. 'configsvr1' with IP address 10.0.15.31, and the second server with 10.0.15.32.

bindIP: 10.0.15.31

In the replication section, set a replication name.

replication:
  replSetName: "replconfig01"

And under sharding section, define a role of the instances. We will use these two instances as 'configsvr'.

sharding:
  clusterRole: configsvr

Save and exit.

Next, we must create a new directory for MongoDB data, and then change the ownership permissions of that directory to the 'mongod' user.

mkdir -p /data/db1
chown -R mongod:mongod /data/db1

Next, start the mongod service with the following command.

mongod --config /etc/mongod.conf

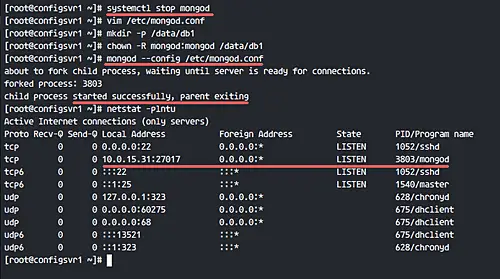

You can check mongod service is running on port 27017 with the netstat command.

netstat -plntu

Create Config Server Replica Set

Configsvr1 and Configsvr2 are ready for the replica set. Connect to the 'configsvr1' server and access the mongo shell.

ssh [email protected]
mongo --host configsvr1 --port 27017

Initiate the replica set name with all configsvr members using the query below.

rs.initiate(
  {
    _id: "replconfig01",
    configsvr: true,
    members: [
      { _id : 0, host : "configsvr1:27017" },
      { _id : 1, host : "configsvr2:27017" }
    ]
  }
)

If you get a results '{ "ok" : 1 }', it means the configsvr is already configured with the replica set.

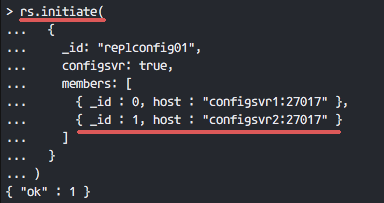

Initiate the replica set name with all configsvr members

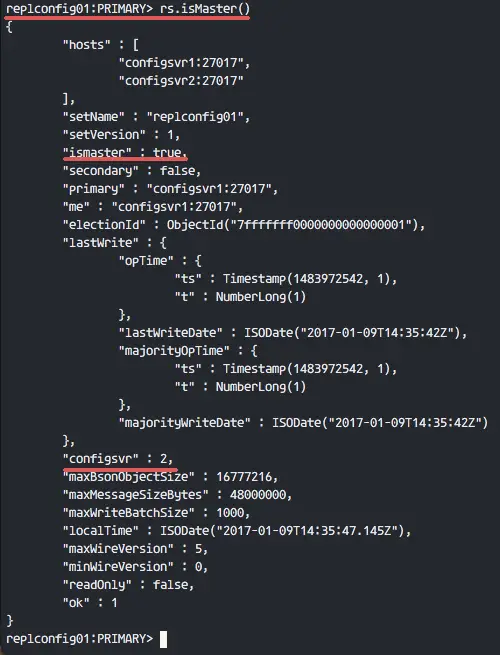

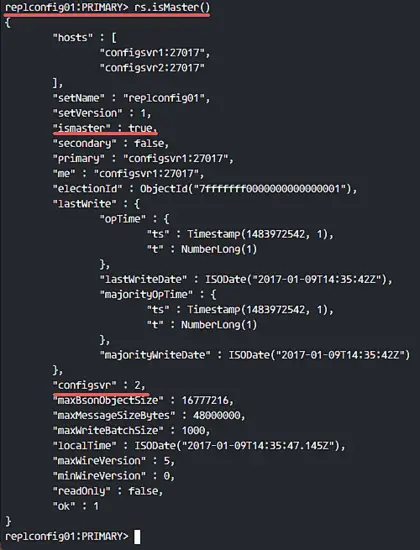

and you will be able to see which node is master and which node is secondary.

rs.isMaster()
rs.status()

The configuration of Config Server Replica Set is done.

configuration of Config Server Replica Set

Step 4 - Create Shard Replica Sets

In this step, we will configure 4 centos 7 servers as 'Shard' server with 2 'Replica Set'.

  • 2 server - 'shardsvr1' and 'shardsvr2' with replica set name: 'shardreplica01'
  • 2 server - 'shardsvr3' and 'shardsvr4' with replica set name: 'shardreplica02'

Connect to each server and stop the mongod service (If the service is running), and edit the MongoDB configuration file.

systemctl stop mongod
vim /etc/mongod.conf

Change default storage to your specific directory.

storage:
  dbPath: /data/db1

In the 'bindIP' line, change the value to your internal network address.

bindIP: 10.0.15.21

In the replication section, you can use 'shardreplica01' for the first and second instances. And use 'shardreplica02' for third and fourth shard server.

replication:
  replSetName: "shardreplica01"

Next, define the role of the server. We will use all this as shardsvr instances.

sharding:
  clusterRole: shardsvr

Save and exit.

Now create a new directory for MongoDB data.

mkdir -p /data/db1
chown -R mongod:mongod /data/db1

Start the mongod service.

mongod --config /etc/mongod.conf

Check whether MongoDB is running with the command below:

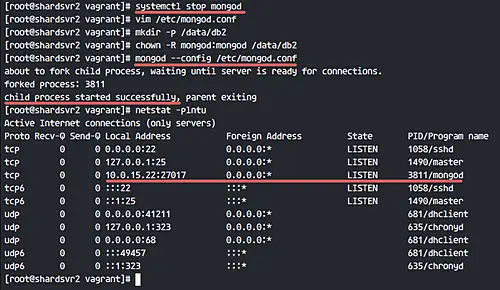

netstat -plntu

You will see MongoDB is running on the local network address.

Create Shard Replica Sets

Next, create a new replica set for these 2 shard instances. Connect to 'shardsvr1' and access the mongo shell.

ssh [email protected]
mongo --host shardsvr1 --port 27017

Initiate the replica set with the name 'shardreplica01', and the members are 'shardsvr1' and 'shardsvr2'.

rs.initiate(
  {
    _id : "shardreplica01",
    members: [
      { _id : 0, host : "shardsvr1:27017" },
      { _id : 1, host : "shardsvr2:27017" }
    ]
  }
)

If there is no error, you will see results as shown below.

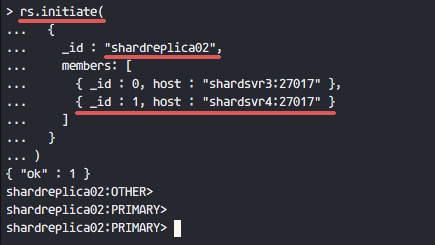

Results from shardsvr3 and shardsvr4 with replica set name 'shardreplica02'.

Initiate the replica set

Redo this step on shardsvr3 and shardsvr4 servers with different replica set name 'shardreplica02'.

Now we've created 2 replica sets as the shard - 'shardreplica01' and 'shardreplica02'.

Step 5 - Configure mongos/Query Router

The 'Query Router' or mongos is just instances that are running 'mongos'. You can run mongos with the configuration file, or run it with just a command line.

Login to the mongos server and stop the MongoDB service.

ssh [email protected]
systemctl stop mongod

Run mongos with the command below.

mongos --configdb "replconfig01/configsvr1:27017,configsvr2:27017"

use the '--configdb' option to define the config server. If you are on production, use at least 3 config servers.

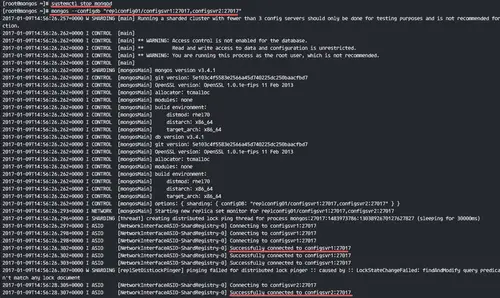

You will see results below.

Successfully connected to configsvr1:27017
Successfully connected to configsvr2:27017

mongos instances are running.

Configure mongos/Query Router

Step 6 - Add shards to mongos/Query Router

Open another shell from step 5, connect to the mongos server again and access the mongo shell.

ssh [email protected]
mongo --host mongos --port 27017

Add shard server with sh mongodb query.

For 'shardreplica01' instances.

sh.addShard( "shardreplica01/shardsvr1:27017")
sh.addShard( "shardreplica01/shardsvr2:27017")

For 'shardreplica02' instances.

sh.addShard( "shardreplica02/shardsvr3:27017")
sh.addShard( "shardreplica02/shardsvr4:27017")

Make sure there is no error and check the shard status.

sh.status()

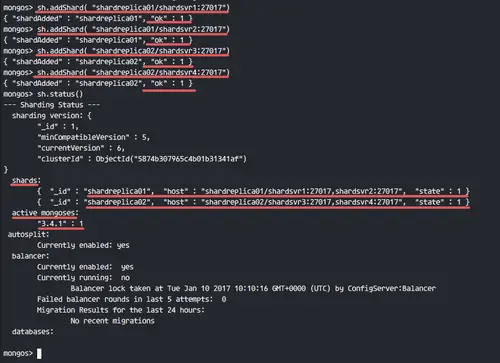

You will sharding status as shown in the screenshot below.

Add shards to mongos/Query Router

We have 2 shard replica set and 1 mongos instance running on our stack.

Step 7 - Testing

Now we'll test the MongoDB server by enabling sharding and then add documents.

Access the mongos server mongo shell.

ssh [email protected]
mongo --host mongos --port 27017

Enable Sharding for a Database

Create a new database and enable sharding for the new database.

use lemp
sh.enableSharding("lemp")
sh.status()

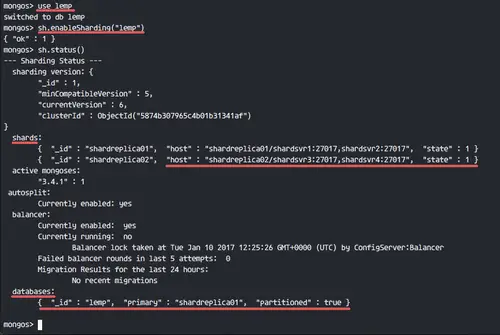

Enable sharding.

Now see the status of the database - it has been partitioned to the replica set 'shardreplica01'.

Enable Sharding for Collections

Next, add new collections to the database with sharding support. We will add new collection named 'stack' with shard collection 'name', and then see database and collections status.

sh.shardCollection("lemp.stack", {"name":1})
sh.status()

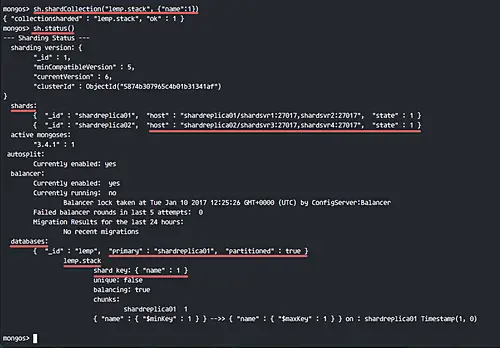

Enable Sharding for Collections

New collections 'stack' with shard collection 'name' has been added.

Add documents to collections 'stack'.

Now insert the documents to the collections. When we add documents to the collection on sharded cluster, we must include the 'shard key'.

You can use an example below. We are using shard key 'name', as we added when enabling sharding for collections.

db.stack.save({
    "name": "LEMP Stack",
    "apps": ["Linux", "Nginx", "MySQL", "PHP"],
})

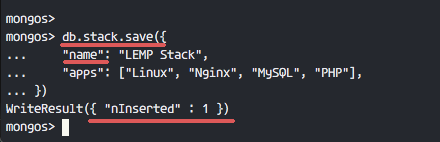

Documents in successfully added to the collection, as shown in the following screenshot.

Add documents to collections 'stack'.

If you want to test the database, you can connect to the replica set 'shardreplica01' PRIMARY server and open the mongo shell. I am logging in to the 'shardsvr2' PRIMARY server.

ssh [email protected]
mongo --host shardsvr2 --port 27017

Check database available on the replica set.

show dbs
use lemp
db.stack.find()

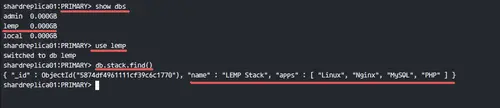

You will see the database, collections, and documents are available in the replica set.

You will see the database, collections, and documents are available in the replica set.

MongoDB sharded cluster on CentOS 7 successfully installed and deployed.
