How to start a vnc server for the actual display (scraping) with TigerVNC

Requirements

A fully functional linux desktop environment
root privilege (to install the TigerVNC server)
basic knowledge of the linux shell

In order to get the latest packages, you may want to update.

[email protected]:~$ sudo apt-get update

This howto was tested on Debian/GNU Linux 9.5 (stretch) and Ubuntu 18.04

Install TigerVNC

First, you have to install the TigerVNC server.

[email protected]:~$ sudo apt-get install tigervnc-scraping-server

Note, that on most debian-based systems, there is a small package called tigervnc-scraping-server, which you need to install. You don't have to install the main TigerVNC server (package name: tigervnc-standalone-server) to have the functionality to connect to the running desktop session, only if you prefer to connect to a virtual desktop, too.

The TigerVNC server provides a smaller application (x0vncserver) to grant access to the active session.

Then, create a .vnc directory in your home:

[email protected]:~$ mkdir -p ~/.vnc

Create a password for your vnc session:

[email protected]:~$ vncpasswd
Password:
Verify:
Would you like to enter a view-only password (y/n)? n

Starting the VNC server

A short description of the x0vncserver:

x0tigervncserver is a TigerVNC Server which makes any X display remotely accessible via VNC, TigerVNC or compatible viewers. Unlike Xvnc(1), it does not create a virtual display. Instead, it just shares an existing X server (typically, that one connected to the physical screen).

Now that you have successfully installed TigerVNC server on your computer, created a password with the vncpasswd command, we can begin to start our vnc server. Make sure that you're on the active session, and write (as user):

[email protected]:~$ x0vncserver -passwordfile ~/.vnc/passwd -display :0

Wed Oct 10 22:17:16 2018
Geometry: Desktop geometry is set to 1920x1080+0+0
Main: XTest extension present - version 2.2
Main: Listening on port 5900

The option -passwordfile ~/.vnc/passwd reads the password file created earlier with the vncpasswd command. The second option -display :0 means, that you want to connect to the session on the display :0, which is usually the active session.

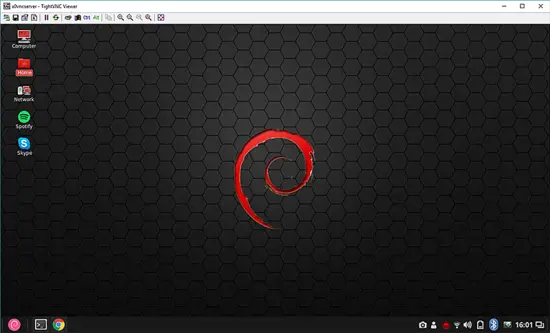

Now you can access your actual desktop with any vnc viewer application on the default vnc port 5900.

You can stop this process whenever you want by pressing Ctrl-c.

If you wish to run it in the background, type:

[email protected]:~$ x0vncserver -passwordfile ~/.vnc/passwd -display :0 >/dev/null 2>&1 &

Now all the output standard output and errors are redirected to /dev/null and with the & at the end, it will run in the background. However, you won't be able anymore to stop the vnc server by pressing Ctrl-c, instead you have to kill it's process id (see below section "Stopping the vnc server").

For more options and syntax, check the x0vncserver manual.

Stopping the VNC server

If your vnc server runs in the background, you have to know the process id, in order to stop it.

[email protected]:~$ ps -fu user | grep [x]0vncserver
user    1328    1   0 23:11 pts/2    00:00:00    /usr/bin/x0vncserver -display :0 -passwordfile /home/user/.vnc/passwd -rfbport 5900

The output will be like this, so notice the pid 1328. In order to stop the vnc server, we have to "kill" this process.

[email protected]:~$ kill -9 1328

The option -9 for the kill command will send the KILL signal to the process id to make sure that it stops.

Script to run the VNC server

There is a script to start and stop the x0vncserver application on github. For testing purposes, you download the psmisc package, too:

[email protected]:~$ sudo apt-get install git psmisc

Then, download the startvnc script using the git command:

[email protected]:~$ git clone https://github.com/sebestyenistvan/runvncserver
Cloning into 'runvncserver'...
remote: Enumerating objects: 77, done.
remote: Counting objects: 100% (77/77), done.
remote: Compressing objects: 100% (57/57), done.
remote: Total 77 (delta 25), reused 60 (delta 18), pack-reused 0
Unpacking objects: 100% (77/77), done.

Your output will look something like above.

Copy the startvnc script from the runvncserver directory to your home:

[email protected]:~$ cp ~/runvncserver/startvnc ~

Change permissions to executable, in order to execute the script:

[email protected]:~$ chmod +x ~/startvnc

Then, run the script.

[email protected]:~$ ./startvnc

Usage: ./startvnc start|stop|restart|status

This script will only work, if you have a .vnc directory in your home and created a vncpasswd (it checks for ~/.vnc/passwd file). We already created the .vnc directory and the password earlier.

To start the vnc server on the actual display, just type:

[email protected]:~$ ./startvnc start
Starting VNC Server on display :0 [ok]

You can test, if your vnc server is running with the option:

[email protected]:~$ ./startvnc status
Status of the VNC server: [running] (pid: 1328)

Few examples:

Or by checking the 5900 TCP port on your system with the fuser command (from the psmisc package):

[email protected]:~$ fuser -vn tcp 5900
                  USER      PID     ACCESS      COMMAND
5900/tcp:         user      1328    F....       x0vncserver

You'll get an output like this if the vnc server is running on port 5900.

More instructions for this script you can find in the readme file:

[email protected]:~$ less runvncserver/README.md

The script will create a logfile, where the output is stored. If something goes wrong or you can't start or stop the x0vncserver, take a look at the logfile under ~/.vnc/logfile

Start the VNC server automatically

If you want to access the active desktop session automatically, you need to edit the .xsessionrc file in your home directory.

[email protected]:~$ echo "/home/user/startvnc start >/dev/null 2>&1" >> ~/.xsessionrc

Replace user by your username and it will automatically run when starting the X session. The script logs its activity in ~/.vnc/logfile, if something goes wrong, you can check the log file there.

Notes

This tutorial doesn't deal with setting up a VNC virtual desktop.

Security

Be aware, that the x0vncserver doesn't use encryption by default, so use it carefully over the internet. If you want to use it remotely, you can tunnel it via ssh. However, there are other howtos where you can find a solution to encrypt your VNC session.

Or you can take a look at the ssvnc package.

VNC viewers

If you're looking for VNC viewers, there are plenty of them, for instance:

gvncviewer
tigervnc-viewer
xtightvncviewer
xvnc4viewer

Geometry

The x0vncserver on the actual display will use the same geometry as the running desktop on the :0 display. So if you set the -geometry option to a lower size, it won't get scaled, you'll just see a fraction of the desktop size.

Feedback

Feel free to write feedback. If you tested this tutorial or even the script on another system.
