Multiserver Setup With Dedicated Web, Email, DNS & MySQL Database Servers On Debian Squeeze With ISPConfig 3 - Page 2

7 Adjust The Server Settings In ISPConfig

Log into ISPConfig on the master server with a web browser:

http://192.168.0.105:8080

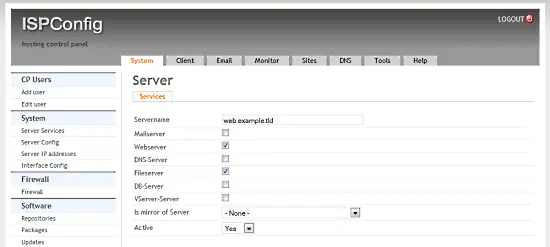

Click on System > Server services > web.example.tld and disable all checkboxes except of the Webserver and Fileserver checkbox and click on Save.

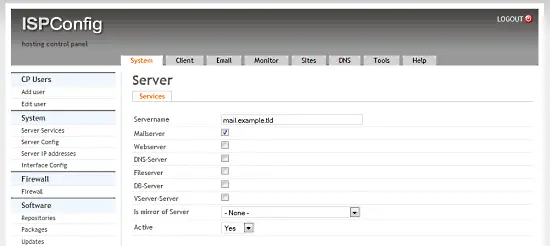

Click on System > Server services > mail.example.tld and disable all checkboxes except of the Mailserver checkbox and click on Save.

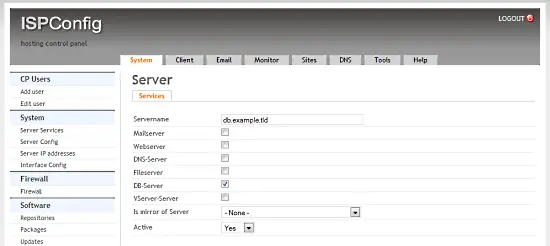

Click on System > Server services > db.example.tld and disable all checkboxes except of the DB-Server checkbox and click on Save.

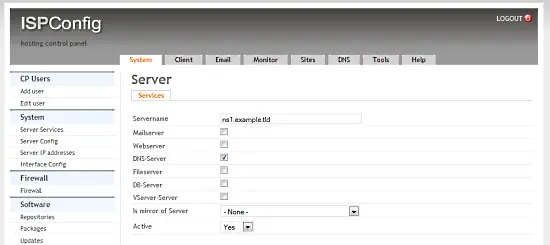

Click on System > Server services > ns1.example.tld and disable all checkboxes except of the DNS-Server checkbox and click on Save.

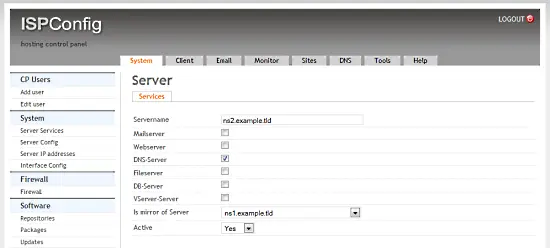

Click on System > Server services > ns2.example.tld and disable all checkboxes except of the DNS-Server checkbox and select ns1.example.com in the Is mirror of Server selectbox and click on Save.



8 Links

Share this page:

5 Comment(s)

Add comment

Please register in our forum first to comment.

Comments

By:
Reply

Hello Till,

 I found this to be a very good how to guide for setting up a multi-server environment.  Most everything went well with the setup, but now I'm to the end and I am having difficulty in setting up DNS records for the servers.

 Website setups are not problem it's with the master servers.  Say my server names are web.myserver.com (1.2.3.4), mail.myserver.com (1.2.3.5), db.myserver.com (1.2.3.6), and I also created a git.myserver.com (1.2.3.7).

 Instead of accessing my web server like https://1.2.3.4:8080, I want to access it this way https://web.myserver.com:8080.

 For the mail server, I would like to know how my users could access their webmail by https://mail.myserver.com.

 I suppose that my system could access my database server via db.myserver.com.  How should I setup the DNS records to make this happen?

Last, I would like to be able to access my git server via SSH like git.myserver.com.  How would I setup this DNS record?

I have spent a significant amount of time reading many of the howto guides, and none that I have found make this clear...  I purchased and read the ISPConfig3 guide, and I'm still not clear on how to make this happen.

If you could please help answer these questions, I would appreciate it!

Regards,

 Darin

By: Anonymous
Reply


create a Cname: web.myserverz.com

then a subdomain in ISPconfig.

to :

web

https://web.myserver.com:8080.

R flag

same for mail..

 but remember to add the alias in the mail config.

By: Bart Dorlandt
Reply

Hi Till,

 i was just installing this on a new server.

It seems that dovecot-mysql is missing fram the package list on page 2. This is needed if you want to use dovecot to communicate with mysql.

 Else these errors appear:

 dovecot: auth: Fatal: Unknown database driver 'mysql'



 Thanks. Cheers.

By: Mobarak
Reply

Hi, I install web ,mail , Database and Ns1 , Ns2 . I Install Squirrelmail in the web server . And I add a domain but I can't receive any email . To sending a email getting error

Server replied: 554 5.7.1 <[email protected]>: Relay access denied . I modified in the mail host server postfix main.cf fiiles .

#mydomain = domain.tld
mydomain = xyz.com

#inet_interfaces = all
inet_interfaces = all

mynetworks_style = host

#relayhost = $mydomain
relayhost = $xyz.com

Still getting the same error . Please let me know what shoud I do ?

Thanks
Mobarak

By: Lindeni
Reply

Hello. I have followed this tutorial, but with three servers. I was trying to consolidate some services. I have the web.example.com - master as in tutorial, dbns1.example.com - database and NS1 host, and emailns2.example.com - email server and NS2. I tried to follow the tutorial as is also on the ISPConfig Manual, when it comes to the dbns1 and emailns2, its just that I have chosen to also configure DNS when running the ISPConfig installer.

Under system>server services I have the following selectios

web.example.com : web server, file server

dbns1.example.com : db server,  dns server

emailns2.example.com : mail server, dns server

Now everything seems to be running well, but maybe I am undermining the problem, when I create a new client, new website, add a email domain everything seems to be Ok, but when I add an actual Email Mailbox, the dropdown to choose a server is empty, and won't allow me to type anything, and if I proceed and save the mailbox, it allows me to.

 And then when I click on the Icon to go to the webmail, I get a page with the error below:

No E-Mail - Server found!

 What does this imply, what went wrong, why does it say no email server found?

Thank you for the great tutorial
